montpellier
Installation and Operating Instructions

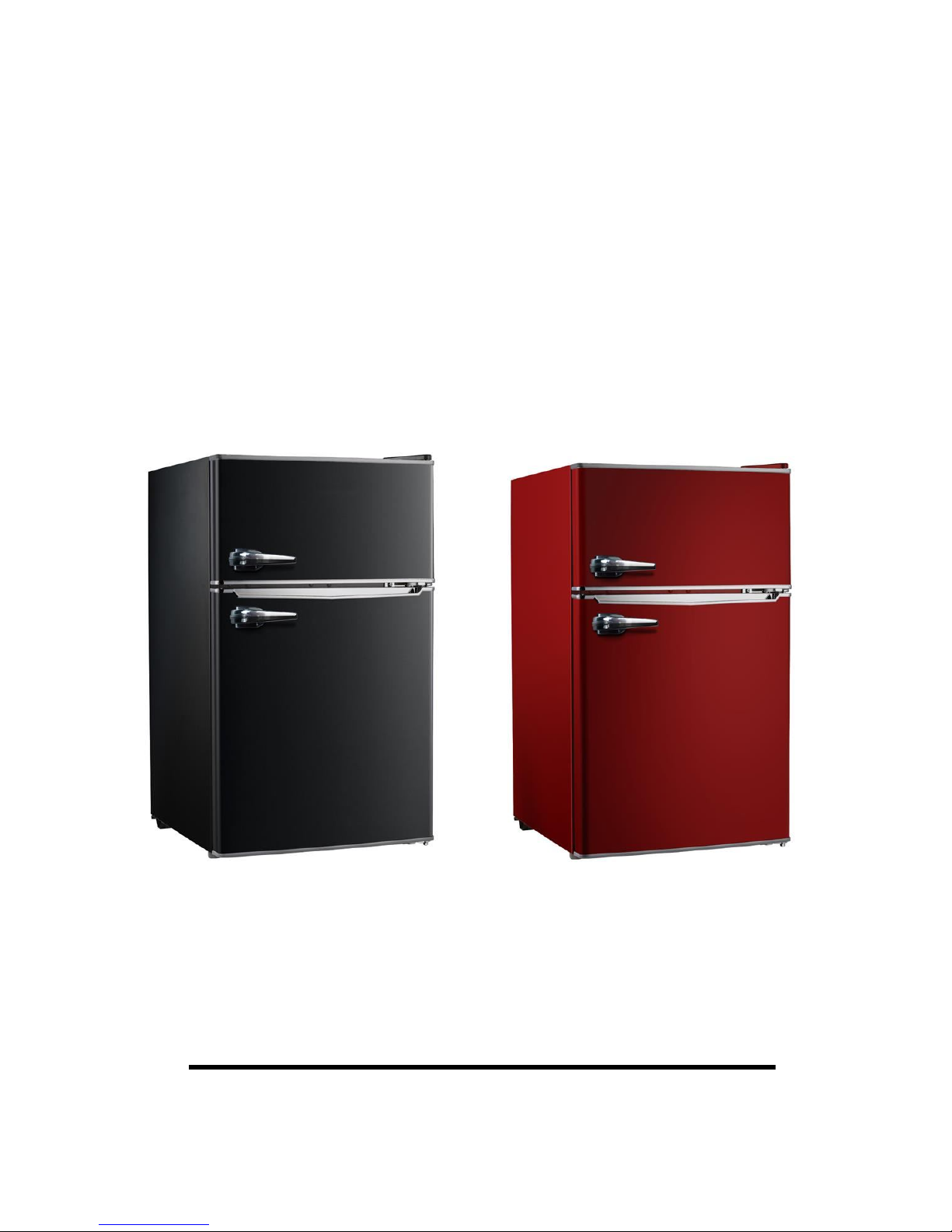

MODELS: MAB2030K & MAB2030R
BLACK OR RED
A+ 48cm U-COUNTER FRIDGE FREEZER
(Models shown for indicative purposes only)
Please read these instructions carefully before attempting to install or use this appliance. It is
advisable to keep these instructions in a safe place for future reference.

1
Introduction
Thank you for choosing this montpellier appliance. It has been
designed to give years of trouble-free use provided it is installed and
maintained correctly.
Please read these instructions carefully before installing or using your
appliance. It is advisable to keep your purchase and installation receipts
with these instructions in a safe place for future reference. Included is
some important safety information in addition to guidelines and
recommendations that will enable you to take full advantage of all the
functions available.
This quality appliance has been tested and certified to meet all applicable
UK electrical and safety standards.
This appliance must be installed and connected in accordance with
current regulations by a qualified electrician.
After unpacking the appliance ensure that there is no visible damage.
If the appliance has been damaged during transit, do not use it, contact
your retailer immediately.

2
Your 2 year Manufacturer's guarantee
THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS.
Your new montpellier appliance carries a free guarantee which protects you against
the cost of repairs during the first 24 months from date of purchase provided that:
Any claim is accompanied by evidence of the model reference, model serial number
and proof of purchase, such as a Sales Receipt, showing that the appliance was
purchased within the 24 months prior to the date of claim.
What is not covered under the Guarantee:
Any appliance not correctly installed and operated in accordance with the
manufacturer's instructions.
Any appliance that is used for anything other than domestic purposes.
Any defect caused by accident, misuse, unauthorized modification or inexpert
repair.
Cost of Call-out where a fault cannot be found with the appliance.
Cost of Call-out for work covering routine maintenance, such as, but not
exclusively, cleaning of filters or defrosting.
Cost of Call-out for work required to correct the alignment of doors following door
reversal procedures carried out by you.
Use of the appliance by anyone other than the Householder.
Use in any commercial environment.
Consumable items, such as, but not exclusively, fuses in plugs, bulbs and
breakable items which require routine replacement.
Repair costs incurred that have not been authorised by Repairtech and/or carried
out by a non-approved Repairtech engineer.
YOUR GUARANTEE IS VALID ONLY IN THE UK.
To Register your Appliance simply complete the card in your appliance pack and return it with a stamp
affixed or Alternatively you can Register online at www.repairtechuk.com
SERVICE HELP-LINE
Should your appliance develop a fault, please call the
Repairtech Service Helpline on:
01527-888133
Please remember to have all your product details available, including the model number, serial number,
date of purchase and your retailer’s details before registering a fault.
Your service call cannot progress without this information.

3
Description of the Appliance
1. Freezer Compartment
2. Thermostat Control
3. Interior Light
4. Interior Glass Shelf
5. Door Storage – Specific Areas for Bottles & Dairy Products
6. Salad Crisper Box with Glass Shelf
7. Two Levelling Feet
(Picture shown for indicative purposes only, model supplied may differ).
1.
2/3.
4.
5.
6.
7.
Warmest zone
Coldest zone

4
CONTENTS:
Section 1. Installation
Section 2. Safety Advice
Section 3. Operating the Appliance
Section 4. Maintenance

5
Section 1. Installation
IMPORTANT! This appliance must be left to stand in an upright position for at
least 4 hours before being switched on for the first time.
This appliance has been designed for Domestic Use Only.
Remove all packaging and securing tape from the appliance.
Wash the interior of the appliance with luke warm water containing a small
amount of bicarbonate soda (5ml to 0.5 litres of water).
Position the appliance in a dry atmosphere and out of direct sunlight.
Do not position next to a cooker or other sources of heat, i.e. radiator.
This appliance should not be sited in a cold atmosphere, i.e. garage or
shed. Doing so may cause the freezer unit to underfreeze.
If positioned next to another fridge or freezer, leave a minimum gap of 2cm
between the appliances in order to avoid condensation.
A clearance of 50mm should be left above the appliance. If this cannot be
achieved you should ensure a clearance of 25mm is maintained on each side of
the appliance.
Do not place or store heavy items on the top of this appliance.
Ensure that the appliance is positioned on a firm flat floor.
This appliance must be level. Adjust the level by screwing the adjustable feet up
or down (use your fingers or a suitable spanner).
Ensure that the appliance is upright and both feet are in firm contact with the floor
so that the cabinet is stable.
Connect the plug to an adjacent 13amp socket outlet and ensure that the
appliance is not standing on the supply cable.
ELECTRICAL CONNECTION (FOR UK 3 PIN PLUG)
For your safety please read the following information.
Warning: This appliance must be earthed.
This appliance operates from 220-240 volts and should be protected by a 13
amp fuse in the plug.
The appliance is supplied with a standard 13 amp 3-pin mains plug fitted with
a 13-amp fuse. Should the fuse require replacement, it must be replaced with
a fuse rated at 13 amp and approved to BS1362.

6

7
Section 2. Safety Advice
Please read this booklet thoroughly before installing and switching on the
appliance. The manufacturer accepts no responsibility for incorrect installation
and usage.
If this appliance is to replace an old refrigerator with a lock, as a safety measure
break or remove the lock and/or door before disposal.
Your old appliances contain insulation gases and refrigerant that must be
disposed of correctly. Please ensure that the refrigerant circuit is not damaged
before the appliance is taken away for correct disposal in line with current
legislation. If there is any doubt contact your Local Authority for instructions.
This appliance may contain the refrigerant isobutene (R600a). This is a natural gas
with a high level of environmental compatibility; however, caution is required as
isobutene is a flammable gas. It is essential to ensure that refrigerant tubes are not
damaged during transportation and the installation of the appliance. In the event
that the refrigerant circuit is damaged, avoid naked flames or sources of ignition and
ventilate the room in which the appliance is situated.
Do not damage the refrigerant circuit.
The appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
the use of the appliance by a person responsible for their safety. Children should
be supervised to ensure that they do not play with the appliance.
If using an adaptor, this must be used in accordance with the manufacturer’s
instructions and ensure that the electrical circuit is not overloaded as this could
cause overheating.
Do not twist or bend the cables, and keep them away from hot surfaces.
Do not plug ın or unplug this appliance with wet hands.
Following installation make sure that the power cable is not trapped underneath
the appliance.
Ensure the appliance is left in an upright position for at least 4 hours before you
switch it on.
If the power supply cord is damaged, it must be replaced by the
manufacturer, it’s service agent or similarly qualified persons in order to
avoid a hazard.

8
Section 3. Operating the Appliance
3.1. Switching on the Appliance
Allow the appliance to stand upright for a minimum of 4 hours before you switch it
on.
Plug in the appliance and switch on at the mains supply.
Set the thermostat control to the required setting as detailed in the Temperature
Control section (3.2.).
Leave the appliance for approximately 4 hours for the correct temperature to be
reached.
3.2. Temperature Control
The temperature selector knob is located on the r/h wall inside the refrigerator (see
Description of the Appliance on page 3).
Setting “0ff”: Unit Off
Setting “1”: Unit On – Warmest Temperature
Setting “3” to “4”: Normal Operation (adequate for most situations)
Setting “7”: Coldest Temperature
Important!
During high ambient temperatures e.g. on hot summer days, it may be necessary to set
the thermostat to the coldest setting (position 7). This may cause the compressor to run
continuously in order to maintain a low temperature in the cabinet.
3.3. Storing & Freezing Food in the Freezer
This appliance has a four star freezer that is suitable for the long-term storage of frozen
food items. It can also be used for freezing and storing fresh food items.
You should always follow the storage guidelines printed on each food producers
packaging, however the following information is provided as a general guide for the
maximum storage life of frozen items:
Fresh Meat and Poultry – up to 12 months
Cooked Meats – up to 2 months
Fresh Fish – up to 6 months
Fruit and Vegetables – up to 12 months
Bread and Cakes – up to 6 months

9
3.4. Normal Operating Sounds
You may hear faint gurgling or bubbling sounds when the refrigerant is pumped to the
cooling system and through the coils or tubing at the rear of the appliance. When the
compressor is in operation you may hear a slight whirring sound or pulsating noise. The
thermostat controls the operation of the compressor, and you may hear a slight click as
it cycles in and out.
3.5. Energy Saving Advice
Do not install the appliance close to sources of heat, such as a cooker,
dishwasher or radiator.
Locate the appliance in a cool well-ventilated room and make sure that the air
vents are clear
Try to avoid keeping the doors open for a long time, warm air will enter the
cabinet and may cause a build-up of ice as well as affecting the energy
consumption. Ensure there are no obstructions preventing the doors from closing
properly
Ensure that the door seals are clean and there are no tears or splits.
Keep the most perishable foods, (those with a short shelf-life, such as
cooked meats), in the coldest part of the fridge. The Salad Crisper Box is
the warmest part of your fridge and should be used for vegetables, salads and
fruits etc. (see Description of Appliance on Page 2)
Do not overload the fridge: the cooling air that circulates to keep the
fridge cold gets blocked and pockets of warm air form.
Do not put hot food into the fridge or freezer – let it cool down first.
3.6. In the Event of a Power Failure
If there is a power failure, keep the doors closed. When the power has been restored
the appliance will start to operate but it may take some time to achieve the pre-set
operating temperature. Check the condition of your stored food items and liquids.

10
Section 4. Maintenance
Before any maintenance or cleaning work is carried out, DISCONNECT the
appliance from the ELECTRICITY supply.
4.1. Internal Cleaning
Clean the interior and accessories with warm water and bicarbonate of soda (5ml to 0.5
litre of water). Rinse and dry thoroughly. Do not use detergents, abrasive powders,
highly perfumed cleaning products, wax polishes or cleaning products containing bleach
or alcohol.
4.2. External Cleaning
Wash the outer cabinet with warm soapy water. Do NOT use abrasive products. There
may be sharp edges on the underside of the product, so care should be taken when
cleaning. Once or twice a year dust the rear of the appliance and the compressor at the
back of the appliance, with a brush or vacuum cleaner, as an accumulation of dust will
affect the performance of the appliance and cause increased energy consumption.
4.3. Defrosting
The fridge compartment will automatically defrost itself. The rear inner wall of the fridge
compartment will at times appear wet, but this is part of the defrost process and is quite
normal. However, you will need to defrost the freezer periodically. When ice build-up in
the freezer exceeds 3-5mm, empty the contents and switch off the appliance, leave the
door open and allow the ice to melt. Place the frozen foods items in a cool-bag or wrap
them in thick newspaper. Do not use sharp objects to scrape the ice away. Clean
and dry the interior, close the door and turn on the power to the appliance. When the
power has been restored the appliance will start to operate but it may take some time to
achieve the pre-set operating temperature.
4.4. When the appliance is not in use
When the appliance is not in use for long periods, remove the contents, disconnect
from the electricity supply and clean the appliance, leaving the door ajar until you wish
to use the appliance again.
4.5. Changing the Interior Light
Switch off the power supply to the appliance
Remove the plastic light cover by sliding it towards the rear of the fridge
Unscrew and remove the bulb from the light unit.
Replace the bulb with a ‘like for like’ suitable replacement (E14,10W)
Refit the cover and switch the appliance back on.

11
4.6. What to do if something goes wrong
There is no power to the appliance:
Check there is not a power cut
Check there is power to the electric socket/appliance
Check the fuse in the plug (Must be 13 amp)
Check that the thermostat has been set to position 1 or above (see section 3.2.)
The compressor runs continuously:
Are the doors closed correctly?
Have large quantities of food recently been added to the appliance? – if yes,
allow the interior temperature to recover
Have the appliance doors been opened frequently? – if yes, allow the interior
temperature to recover
Check that the Thermostat Control has not been set to maximum
There is excessive frost/ice build up:
Ensure that the doors have been closed correctly
Ensure that the door seals are clean and sealing correctly
Check that the Thermostat Control has not been set to maximum
The appliance is making a noise:
Refer to Normal Operating Sounds, section 3.4
Ensure that the appliance has been installed correctly (see section 1).
If after the above checks there is still a fault please contact:
YOUR GUARANTEE IS VALID ONLY IN THE UK.
To Register your Appliance simply complete the card in your appliance pack and return it with a stamp
affixed or Alternatively you can Register online at www.repairtechuk.com
SERVICE HELP-LINE
Should your appliance develop a fault, please call the
Repairtech Service Helpline on:
01527-888133
Please remember to have all your product details available, including the model number, serial number,
date of purchase and your retailer’s details before registering a fault.
Your service call cannot progress without this information.

12
Insurance
!
Any warranty provided with this product does not cover loss of
!
fridge/
freezer content
.
Any claim for loss, damage, costs or expenses of an indirect or consequential nature
including any economic loss or damage to foodstuffs or any other goods is excluded.
We recommend that you inspect your fridge/freezer regularly to check that it is working
correctly, losses can result from deterioration following breakdown or accidental failure
of the appliance, fuses, plugs or public electricity supply, these can be covered by your
standard home insurance or might require extra cover. Check with your insurance
provider.
Important Note:
This appliance is marked according to the European directive 2002/96/EC on
Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is
disposed of correctly, you will help prevent potential negative consequences for
the environment and human health, which could otherwise be caused by
inappropriate waste handling of this product.
The symbol on the product, or on the documents accompanying the product, the
Crossed Out Wheelie Bin, indicates that this appliance may not be treated as
household waste. Instead it shall be handed over to the applicable collection
point for the recycling of electrical and electronic equipment.
Disposal must be carried out in accordance with local environmental
regulations for waste disposal. For more detailed information
about treatment, recovery and recycling of this product, please
contact your local authority, your household waste disposal service
or the retailer where you purchased the product.
We continuously try to improve our products for the benefit of our customers.
For this reason we reserve the right to make changes to any product at any time, without
notice
Issue: 02/01-07-2014
