montpellier MIFF7030AP User manual

Installation and Operating Instructions
MODEL: MIFF7030AP
Tall A+ BUILT-IN Fridge Freezer
N.B. Picture shown for indicative purposes only!
Please read these instructions carefully before attempting to install or use this appliance.
It is advisable to keep these instructions in a safe place for future reference.
N.B. Should your appliance require attention, our service agents will not be able to book a
service call without your unique serial number which can be found on the last page of this
manual.

1
Introduction
Thank you for choosing this Montpellier appliance. It has been
designed to give years of trouble-free use provided it is installed
and maintained correctly.
Please read these instructions carefully before installing or using your
appliance. It is advisable to keep your purchase and installation
receipts with these instructions in a safe place for future reference.
Included is some important safety information in addition to guidelines
and recommendations that will enable you to take full advantage of all
the functions available.
This quality appliance has been tested and certified to meet all
applicable UK electrical and safety standards.
This appliance must be installed and connected in accordance
with current regulations by a qualified electrician.
After unpacking the appliance ensure that there is no visible damage.
If the appliance has been damaged during transit, do not use it,
contact your retailer immediately.

2
Your 2 year Manufacturer's guarantee
THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS.
Your new montpellier appliance carries a free guarantee which protects you
against the cost of repairs during the first 24 months from date of purchase
provided that:
Any claim is accompanied by evidence of the model reference, model serial
number and proof of purchase, such as a Sales Receipt, showing that the
appliance was purchased within the 24 months prior to the date of claim.
What is not covered under the Guarantee:
·Any appliance not correctly installed and operated in accordance with the
manufacturer's instructions.
·Any appliance that is used for anything other than domestic purposes.
·Any defect caused by accident, misuse, unauthorized modification or
inexpert repair.
·Cost of Call-out where a fault cannot be found with the appliance.
·Cost of Call-out for work covering routine maintenance, such as, but not
exclusively, cleaning of filters or defrosting.
·Cost of Call-out for work required to correct the alignment of doors
following door reversal procedures carried out by you.
·Use of the appliance by anyone other than the Householder.
·Use in any commercial environment.
·Consumable items, such as, but not exclusively, fuses in plugs, bulbs and
breakable items which require routine replacement.
·Repair costs incurred that have not been authorised by Repairtech and/or
carried out by a non-approved Repairtech engineer.
YOUR GUARANTEE IS VALID ONLY IN THE UK.
To Register your Appliance simply complete the card in your appliance pack and return it with a
stamp affixed or Alternatively you can Register online at www.repairtechuk.com
SERVICE HELP-LINE
Should your appliance develop a fault, please call the
Repairtech Service Helpline on:
01527-888133
Please remember to have all your product details available, including the model number, serial
number, date of purchase and your retailer’s details before registering a fault.
Your service call cannot progress without this information.

3
Description of the Appliance
A) Refrigerator compartment
B) Freezer compartment
1) Thermostat
2) Refrigerator lamp and cover
3) Refrigerator shelves
4) Crisper shelf
5) Crisper
6) Top freezer drawer
7) Middle freezer drawer
8) Bottom freezer drawer
9) Ice tray
10) Bottle Shelf
11) Door shelves
12) Egg holder

4
CONTENTS:
Section 1. Installation
Section 2. Safety Advice
Section 3. Operating the Appliance
Section 4. Maintenance

5
Section 1. Installation
-IMPORTANT! This appliance must be left to stand in an upright position for
at least 4 hours before being switched on for the first time.
-Remove all packaging and securing tape from the appliance.
-Wash the interior of the appliance with lukewarm water containing a small
amount of bicarbonate soda (5ml to 0.5 litres of water).
-Position the appliance in a dry atmosphere and out of direct sunlight.
-Do not position next to a cooker or other sources of heat, i.e. radiator.
-If positioned next to another fridge or freezer, leave a minimum gap of 2cm
between the appliances in order to avoid condensation.
-Please ensure clearances as shown in the installation guide/diagrams.
-Do not place or store heavy items on the top of this appliance.
-Ensure that the appliance is positioned on a firm flat floor.
-This appliance must be level. Adjust the level by screwing the adjustable
feet up or down (use your fingers or a suitable spanner).
-Ensure that the appliance is upright and both feet are in firm contact with
the floor so that the cabinet is stable.
-Connect the plug to an adjacent 13amp socket outlet and ensure that the
appliance is not standing on the supply cable.

6
·Before installation, read the instructions carefully.
·Fit the refrigerator/freezer in stable kitchen units only.
·If necessary, reverse the door according to instructions.

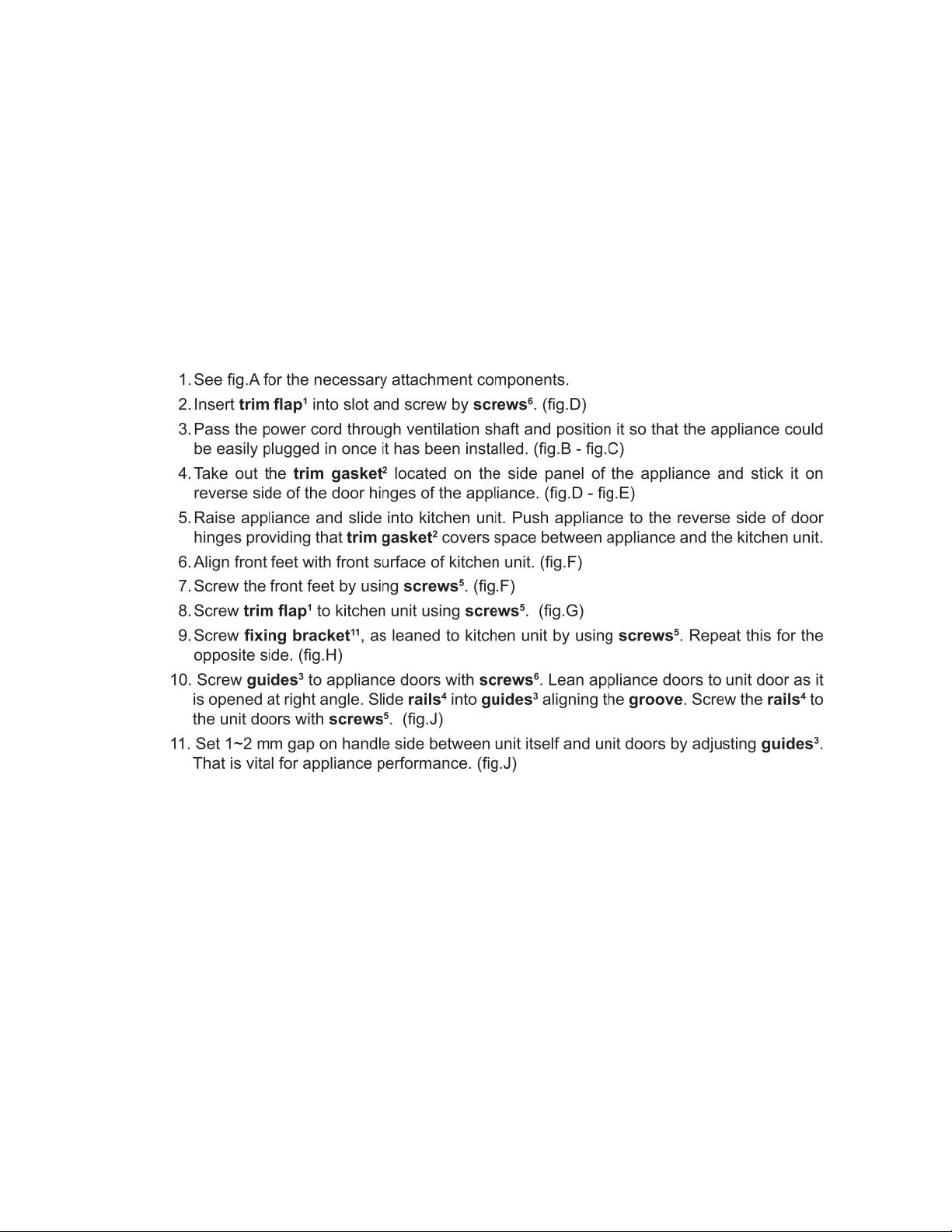

·Check the installation dimensions according to fig.C. The position of
the joint between the unit doors must be level with the position of the
joint between the appliance doors.
Installation

7

8

9
Section 2. Safety Advice
-Please read this booklet thoroughly before installing and switching on the
appliance. The manufacturer accepts no responsibility for incorrect
installation and usage.
-If this appliance is to replace an old refrigerator with a lock, as a safety
measure break or remove the lock and/or door before disposal.
-Your old appliances contain insulation gases and refrigerant that must be
disposed of correctly. Please ensure that the refrigerant circuit is not
damaged before the appliance is taken away for correct disposal in line
with current legislation. If there is any doubt contact your Local Authority
for instructions.
-This appliance may contain the refrigerant isobutene (R600a). This is a
natural gas with a high level of environmental compatibility; however, caution
is required as isobutene is a flammable gas. It is essential to ensure that
refrigerant tubes are not damaged during transportation and theinstallation of
the appliance. In the event that the refrigerant circuit is damaged, avoid naked
flames or sources of ignition and ventilate the roomin which the appliance is
situated.
-Do not damage the refrigerant circuit.
-Do not allow children to play with plastic bags –tear the bag(s) immediately
and ensure that they are placed in a dust-bin out of reach.
-The appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction
concerning the use of the appliance by a person responsible for their
safety. Children should be supervised to ensure that they do not play with
the appliance.
-If using an adaptor, this must be used in accordance with the
manufacturers instructions and ensure that the electrical circuit is not
overloaded as this could cause overheating.
-Do not twist or bend the cables, and keep them away from hot surfaces.
-Do not plug ın or unplug this appliance with wet hands.
-Following installation make sure that the power cable is not trapped
underneath the appliance.
-If the power supply cord is damaged, it must be replaced by the
manufacturer, it’s service agent or similarly qualified persons in order to
avoid a hazard.

10
Section 3. Operating the Appliance
3.1. Switching on the Appliance
-Allow the appliance to stand for a minimum of 4 hours after installation.
-Plug in the appliance and switch on at the mains supply.
-Set the thermostat control to the required setting as detailed in the
Temperature Control section (3.2.).
-Leave the appliance for approximately 4 hours for the correct temperature
to be reached.
3.2. Temperature Control
The temperature selector knob is located at the base of the appliance (See
‘Description of the Appliance’on page 3). Set the thermostat as follows:
-Setting “o”: Off
-Setting “1”: Warmest Temperature
-Setting “3”: Normal Operation (adequate for most situations)
-Setting “5”: Coldest Temperature
Important!
During high ambient temperatures e.g. on hot summer days, it may be necessary
to set the thermostat to the coldest setting (5). This may cause the compressor to
run continuously in order to maintain a low temperature in the cabinet.
3.3. Normal Operating Sounds
You may hear faint gurgling or bubbling sounds when the refrigerant is pumped to
the cooling system and through the coils or tubing at the rear of the appliance.
When the compressor is in operation you may hear a slight whirring sound or
pulsating noise. The thermostat controls the operation of the compressor, and
you may hear a slight click as it cycles in and out.
Thermostat knob

11
3.4. Energy Saving Advice
- Do not install the appliance close to sources of heat, such as a cooker,
dishwasher or radiator.
- Locate the appliance in a cool well-ventilated room and make sure that
the air vents are clear.
- Try to avoid keeping the door open for a long time, warm air will enter the
cabinet and may cause a build up of ice as well as affecting the energy
consumption. Ensure there are no obstructions preventing the door from
closing properly.
- Ensure that the door seal is clean and there are no tears or splits.
- Do not add hot food items to the Freezer compartment.
3.5. In the Event of a Power Failure
If there is a power failure, keep the door closed. When the power has been
restored the appliance will start to operate but it may take some time to achieve
the pre-set operating temperature. Check the condition of your stored food items
and liquids.

12
Section 4. Maintenance
Before any maintenance or cleaning work is carried out, DISCONNECT the
appliance from the ELECTRICITY supply.
4.1. Internal Cleaning
Clean the interior and accessories with warm water and bicarbonate of soda (5ml
to 0.5 litre of water). Rinse and dry thoroughly. Do not use detergents, abrasive
powders, highly perfumed cleaning products, wax polishes or cleaning products
containing bleach or alcohol.
4.2. External Cleaning
Wash the outer cabinet with warm soapy water. Do NOT use abrasive products.
There may be sharp edges on the underside of the product, so care should be
taken when cleaning. Once or twice a year dust the rear of the appliance and the
compressor at the back of the appliance, with a brush or vacuum cleaner, as an
accumulation of dust will affect the performance of the appliance and cause
increased energy consumption.
4.3. Defrosting

13
4.4. When the appliance is not in use
When the appliance is not in use for long periods, remove the contents,
disconnect from the electricity supply and clean the appliance, leaving the door
ajar until you wish to use the appliance again.

14
4.5. Reversing the Door
The door opening can be reversed from “right hand hinged”to “left hand hinged”if
required. If your appliance is supplied “left hand hinged”simply reverse the
following procedure.
Warning!
When reversing the door, the appliance must not be connected to the mains.
Remove the plug from the mains beforehand.
N.B. Service calls relating to door problems and/or cooling issues will be
chargeable if the fault is found to be due to an incorrect door reversal
procedure carried out by the consumer!

15
4.6. Changing the Light Bulb
·Unplug the appliance from the power supply
·Remove the refrigerator light cover (A) by pressing
the hooks placed on both sides of the cover
·Replace the bulb (B) with a ‘like for like’unit,
maximum 15W
·Refit the light unit cover
4.6. What to do if something goes wrong
There is no power to the appliance:
-Check there is not a power cut
-Check there is power to the electric socket/appliance
-Check the fuse in the plug (Must be 13 amp)
The compressor runs continuously:
-Is the door closed correctly?
-Have large quantities of food recently been added to the appliance? –if
yes, allow the interior temperature to recover
-Has the appliance door been opened frequently? –if yes, allow the interior
temperature to recover
-Is the t/stat control set to maximum? –if yes, adjust the control to a lower
setting
There is excessive frost/ice build-up:
-Ensure that the door has been closed correctly
-Ensure that the door seal is clean and sealing correctly
-Defrost the appliance as shown in section 4.3.
The appliance is making a noise:
-Refer to Normal Operating Sounds, section 3.3.
-Ensure that the appliance has been installed correctly (see section 1).

16
If after the previous checks there is still a fault, please contact
the Repairtech Service Help-line below. Please ensure that you
have the model number, serial number, date of purchase and
retailers information available before you make the call.
SERVICE HELP-LINE
Should your appliance develop a fault, please call the
Repairtech Service Helpline on:
01527-888133
ELECTRICAL CONNECTION (FOR UK TYPE PLUG)
For your safety please read the following information.
Warning: This appliance must be earthed.
This appliance operates from 220-240 volts and should be protected by a
13amp fuse in the plug.
The appliance is supplied with a standard 13 amp 3-pin mains plug fitted
with a 13-amp fuse. Should the fuse require replacement, it must be
replaced with a fuse rated at 13 amp and approved to BS1362.

17
Insurance
!
Any warranty provided with this product does not cover loss of
!
fridge/freezer content
.
Any claim for loss, damage, costs or expenses of an indirect or consequential
nature including any economic loss or damage to foodstuffs or any other goods is
excluded. We recommend that you inspect your fridge/freezer regularly to check
that it is working correctly, losses can result from deterioration following
breakdown or accidental failure of the appliance, fuses, plugs or public electricity
supply, these can be covered by your standard home insurance or might require
extra cover. Check with your insurance provider.
Important Note:
This appliance is marked according to the European directive 2002/96/EC
on Waste Electrical and Electronic Equipment (WEEE). By ensuring this
product is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could
otherwise be caused by inappropriate waste handling of this product.
The symbol on the product, or on the documents accompanying the
product, the Crossed Out Wheelie Bin, indicates that this appliance may not
be treated as household waste. Instead it shall be handed over to the
applicable collection point for the recycling of electrical and electronic
equipment.
Disposal must be carried out in accordance with local environmental
regulations for waste disposal. For more detailed information
about treatment, recovery and recycling of this product, please
contact your local authority, your household waste disposal service
or the retailer where you purchased the product.
We continuously try to improve our products for the benefit of our customers.
For this reason we reserve the right to make changes to any product at any time,
without notice
Issue: 01/02-12-2014
