montpellier MITL320 User manual

Integrated Tall Larder Fridge
MITL320 - 177cm Tall

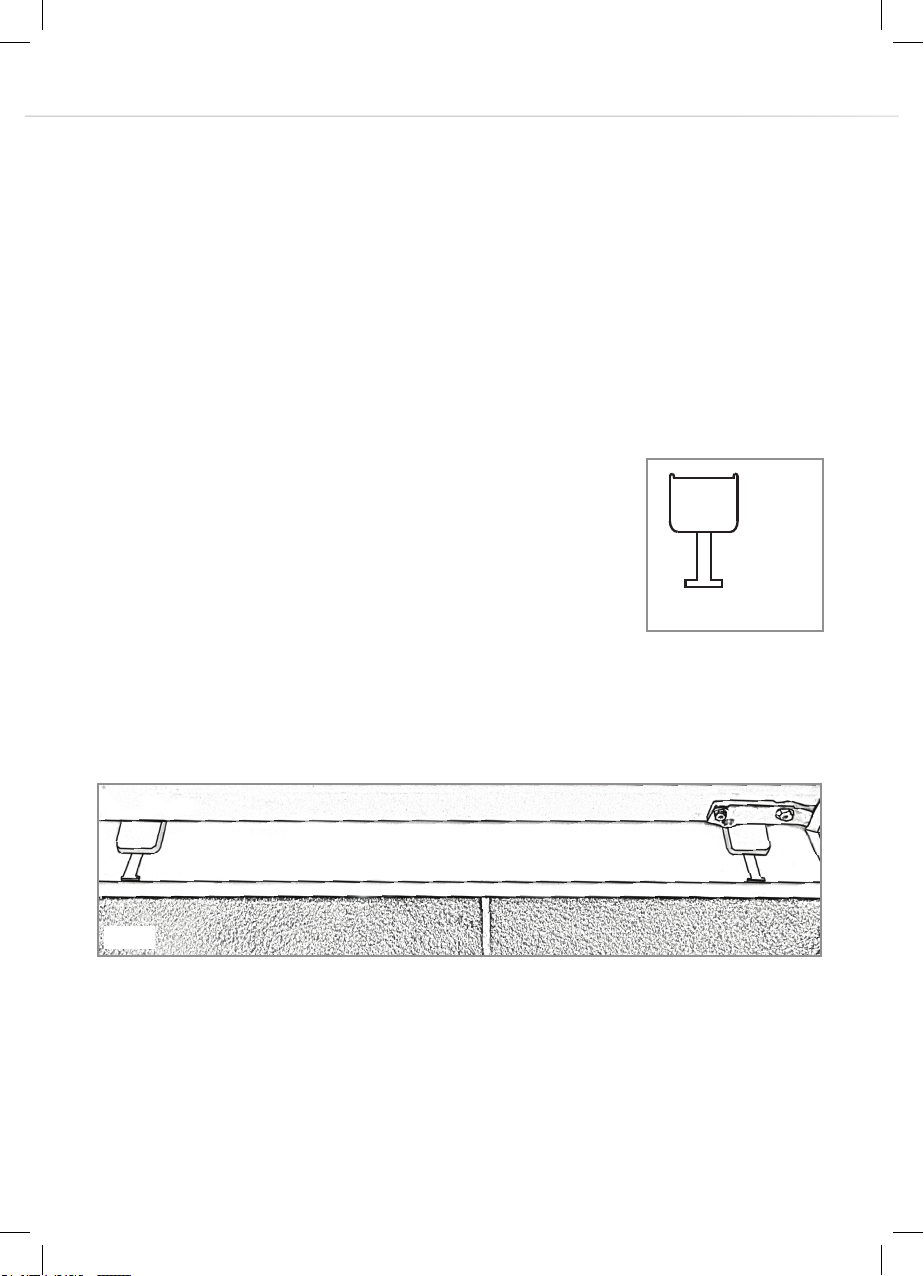

Slider Fixings
Please read these instructions carefully before attempting to install or use this appliance.
We recommend that you keep these instructions in a safe place for future reference.
Installation and Operating Instructions
THE PERFECT BALANCE OF FUNCTION AND STYLE
LAUNDRY - DISHWASHING - COOKING - COOLING

Thank you for choosing this Montpellier Integrated Larder Fridge.
Our refrigeration products have been designed to provide you with the best combination of style, reliability and
performance to give you years of trouble-free use.
You may be familiar with a similar product, but please take time to read these instructions carefully before installing
or using your Fridge to ensure you get the most from your purchase.
We recommend that you keep this manual in a safe place for future reference.
Your Integrated Fridge is covered by a comprehensive 5 Year Parts & Labour
Guarantee. In the unlikely event that you experience a problem with your
Fridge, you can rest assured that you are fully protected against the cost of
repairs for the first 5 Years. Please note that any claim must be accompanied
by the model reference number, serial number and proof of purchase.
To activate your guarantee, you will need your product serial number. This
can be found inside your appliance on the left hand wall on a small sticker.
There are two ways to register your Guarantee:
•Online: Visit the Support page on our website and complete the online Product
Registration form. www.montpellier-appliances.com
•By Post: Simply detach and ll in the form provided, attach a stamp and send
it in the post. Don’t forget to include your e-mail address so that we can send
conrmation through to you.
Welcome
Note: We are unable to take registrations over the phone.
ACROSS INTEGRATED COOLING
YEAR
GUARANTEE
PAR TS & LA BO UR
www.montpellier-appliances.com

2
Contents:
3 Important information
5 Important notes
5 Before first use
6 Important notes on use of the fridge
8 Storage
9 Control panel
10 Care and cleaning
11 Defrosting the fridge
11 Changing the light
12 Troubleshooting
14 Installation preparation
14 Ventilation requirements
16 Installation into the cabinet
17 Mounting the fascia door
19 Reversing the appliance door
20 Electrical information
23 Energy efficiency information

3
Important
The manufacturer cannot be held responsible for injuries or losses
caused by incorrect use or installation of this product. Please note
that we reserve the right to invalidate the guarantee supplied with
this product following incorrect installation or misuse of the
appliance.
This appliance is not designed to be used by people (including
children) with reduced physical, sensorial or mental capacity, or
who lack experience or knowledge about it, unless they have had
supervision or instructions on how to use the appliance by
someone who is responsible for their safety.
Under no circumstances should any external covers be removed for
servicing or maintenance except by suitably qualified personnel.
Appliance information:
Please enter the details on the appliance rating plate below for
reference, to assist Customer Care in the event of a fault with your
appliance and to register your appliance for guarantee purposes.
Appliance Model
Serial Number
EU Declarations of Conformity:
This appliance has been designed, constructed and marketed in
compliance with safety requirements of EU Directive 2014/35/EU
(Low voltage) and requirements of EU Directive 2014/30/EU (EMC).

4
This appliance has been manufactured to the strictest standards and
complies with all applicable legislation, including Electrical safety
(LVD) and Electromagnetic interference compatibility (EMC). Parts
intended to come into contact with food conform to 1935/2004/EC.
IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE
PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2012/19/EU. At
the end of its working life, the product must not be disposed of as
urban waste. The refrigeration system contains insulating gases and
refrigerants, which require specialised waste disposal. The valuable
materials contained in this appliance can be recycle. It must be taken
to a special local authority differentiated waste collection centre or
to a dealer providing this service.
Before disposing of an old appliance, remove the door seals etc. to
reduce the risk of child entrapment.
Disposing of a household appliance separately avoids possible
negative consequences for the environment and health deriving
from inappropriate disposal and enables the constituent materials to
be recovered to obtain significant savings in energy and resources.
As a reminder of the need to dispose of household appliances
separately, the product is marked with a crossed-out wheeled
dustbin.

5
Important
•Never store inflammable or explosive items and strong corrosive
acids or alkalis in the appliance.
•This is a household appliance, which is produced in accordance
with the national standard. It is intended for food storage only, not
for storage of blood, medicine and biological products.
•To prevent risk of fire, keep the appliance away from petrol or any
other inflammables.
•To prevent risk of electromagnetic interference or other
accidents, do not place a microwave oven on top of the
refrigerator or use any electric appliance inside the refrigerator.
•Do not allow children to play with or near the appliance.
•The internal surface of the fridge compartment is very cold when
the appliance is running. Do not touch the surface especially
when hands are wet.
•Do not splash water onto the appliance. Keep it away from places
of high humidity that may have adverse effect on the electric
insulation performance.
•This appliance is designed to be used in ambient temperatures
between 10 and 32˚C. Use outside of this range may cause the
appliance to fail.
Before first use
You must allow the fridge to settle for at least twenty four hours
prior to switching the power on.
It is recommended that you clean the interior of the appliance prior
to first use, using a solution of bicarbonate of soda and warm water
and then thoroughly drying the interior.

6
The fridge may have an odour to it at first use. This will disappear as
the appliance cools.
Please note:
The appliance will start on temperature setting 3 and work
continuously until it comes down to the correct temperature.
If the appliance is switched off, you should allow five minutes
before switching it on again to prevent unnecessary damage to the
compressor.
Never store inflammable or explosive items and strong corrosive
acids or alkalis in the appliance.
This fridge cools your food by making the inside back of the cavity
cold. It is normal for frost to build up on this surface; it then
dissipates and drains through a small drain at the bottom, where it
evaporates harmlessly. The presence of frosting at the back is not
a malfunction of the fridge.
Fridge use
•Never put liquids in the refrigerator uncovered.
•Never put hot foods in the refrigerator. Warm food should be
allowed to cool to room temperature before being put into the
refrigerator.
•Nothing should rest against the rear wall of the refrigerator, as
this will cause frost and possible condensation problems which
will be difficult to remove.
•Make sure food is clean and any extra water is wiped away
before putting into the fridge.
•Wrap or cover food before putting into the fridge. This will help

7
prevent the loss of moisture, keep food fresh and
avoid unpleasant odours.
• Sort foods prior to storing. Any foods to be used soon should be
stored at the front of the shelf to prevent deterioration caused
by the door being open for prolonged periods.
•Do not overfill the fridge. There should be sufficient space
between the foods to allow the cool air to circulate.
•Thawing frozen foods in the fridge compartment will help to keep
the temperature low and save energy.
•Never store raw meats on shelves above cooked meats or other
produce. This will help to prevent juices from raw meat
contaminating other foodstuffs.

8
Storage
The fridge is for short term food storage. Although low
temperatures can be maintained, extended periods of food
storage is not recommended.
As the cold air circulates within the fridge, the temperature can
vary between the different sections. As such, foods should be
stored in different sections according to type. Sections 6 and 7 are
the coldest parts of the fridge.
1. Butter, cheeses etc.
2. Food in jars and bottles
3. Drinks, e.g. milk
4. Cooked food
5. Yogurts, preserves etc.
6. 75cl bottles or ready meals
etc.
7. Fresh meat and fish
8. Fruit and vegetables
The fridge shelves can be moved
according to the storage
requirements within the fridge
section. To move the shelf, lift up the
rear section and then pull it outwards.
To replace, slide the shelf back into
the slot, and then lower the rear
section.
The wine racks can be deployed or
withdrawn as desired.
Fig. 1
Fig. 2
4
5
3
1
1
2
2
4
5
6
6
7
8
8

9

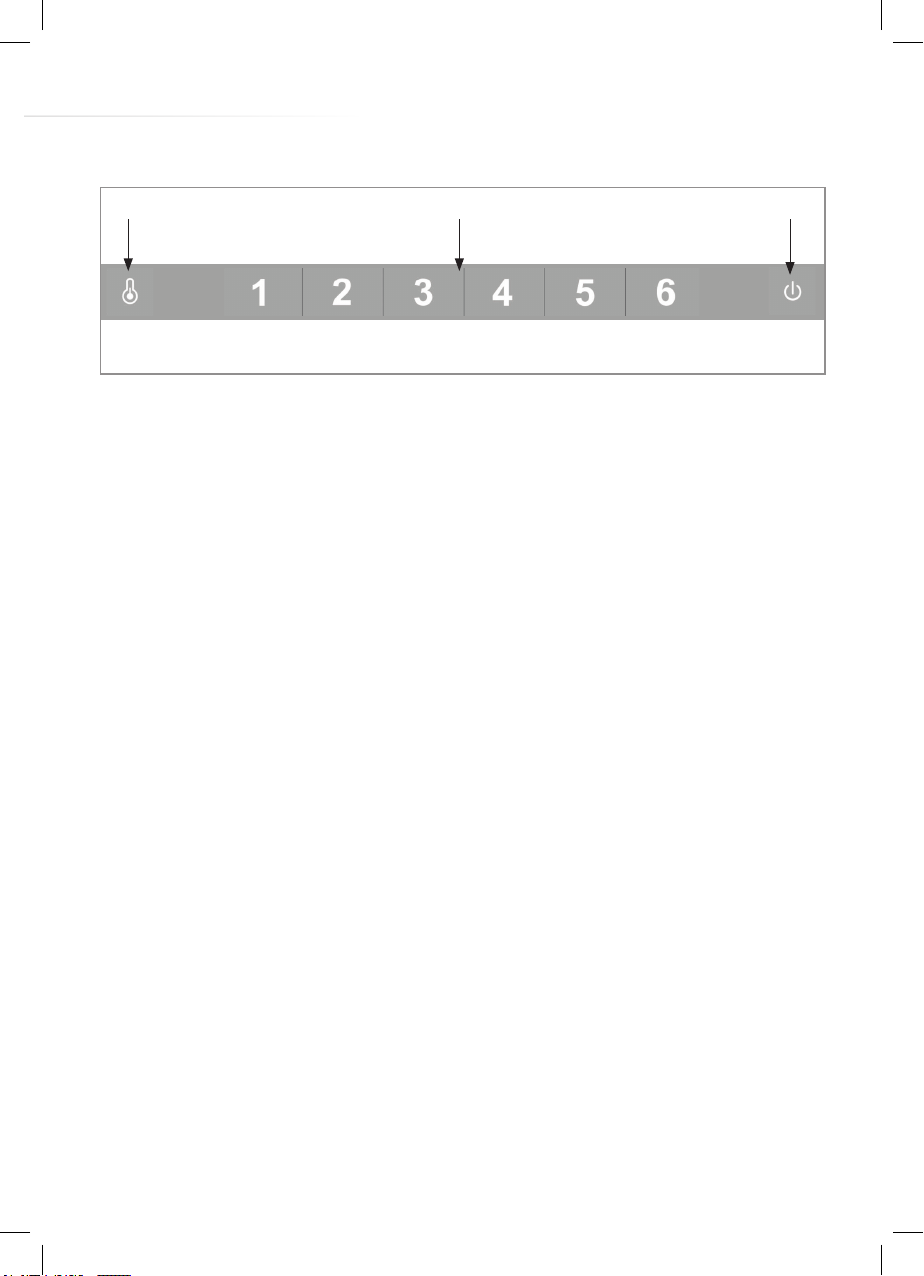

Control panel
A. Refrigerator temperature adjustment sensor
This button is used to adjust the temperature within the fridge. Press
this sensor once to activate adjustment, and then as many times as
necessary until the desired level is selected. The settings range from
1 to 6 with 1 being the warmest and 6 being the coldest.
Please note: Where possible, avoid having the temperature setting
on 6 all of the time. This well help to alleviate strain on the
compressor and refrigeration system.
B. Refrigerator temperature setting display
This display will illuminate the current temperature setting. Adjusting
the temperature will cycle through this display.
Please note: You do not use numbers 1 to 6 to change the
temperature. Instead, use the refrigerator temperature adjustment
sensor (A).
C. Power button
Use this sensor to switch the appliance on and off (standby mode).
The sensor will be illuminated when the appliance is off.
Fig. 3
A B C

10
Care and cleaning
Always disconnect the appliance from
the power supply before any cleaning
or maintenance.
The fridge and crisper sections should
be cleaned using a solution
of bicarbonate of soda and lukewarm
water. Do not use abrasive products or
detergents. After washing, rinse and
dry thoroughly.
Clean the shelves, drawers and balconies
separately by hand with a mild solution of washing up liquid and
water. Do not put them in the dishwasher.
The water drain hole at the back of the fridge compartment should
be cleaned periodically to prevent the defrosted water from
collecting inside the fridge compartment. The drain plug can be
used to clean the drain hole.
If the appliance is not to be used for prolonged periods of time,
unplug and clean the appliance. The doors should be left slightly
ajar to prevent the formation of mildew and unpleasant odours.
Fig. 4
Drain hole
Drain Plug

11
Defrosting the fridge
The fridge is self-defrosting. Any water created will run out of the fridge
through the channel at the back of the fridge, unless the drain hole is
blocked (page 10). It is important to keep the channel clear at all times
using the cleaning tool/drain plug supplied. The defrosted water is
collected in the evaporating tray at the back of the appliance and
dissipated by evaporation.
Please note: If you are regularly finding pools of water in the fridge, or
you notice that the compressor is always running, then it is likely that
the door is not sealing properly. This could be due to a defective door
seal or an incorrectly fitted, or overly heavy, decor door. For more
information see the troubleshooting section on ice on page 13.
Changing the light
If the LED lighting fails in any way, it should only be replaced by
authorised service agents. In the event of light failure within your fridge
please contact Customer Care to arrange a service visit. Contact details
are on the rear cover of this manual.

12
Troubleshooting
If you have any problems with your appliance, you should
check the troubleshooting prior to calling Customer Care.
If the appliance is not working, check:
•That there is power to the appliance.
•The house fuses are intact and the fuse in the plug has not
blown.
•The fridge has not been turned off (page 9).
• The plug socket is functioning fine. To check this, plug another
electrical appliance in to see if the socket is faulty.
If the appliance is working, but not very well, check:
•The appliance is not overloaded.
•The thermostat is set to an appropriate temperature.
•The doors are closing properly.
• The cooling system at the rear of the appliance is clean and free of
dust, and not touching the rear wall.
•There is enough ventilation at the side and rear walls.
• This can be due to the decor door(s) not being properly fitted,
causing the fridge door to not close properly thus letting warm air
in. If you are at all unsure, ask your fitter to check the decor doors.
If the appliance is noisy, check:
•The appliance is level and stable.
• The side and rear walls are clear, and there is nothing resting on the
appliance.
• Note: The cooling gas in the refrigerator may make a slight
bubbling or gurgling noise, even when the compressor is not
running.

13
If the appliance is beeping, check:
•That the door is closed. An alarm will sound after 60 seconds
of a door being open.
If there’s water in the base of the refrigerator compartment, check:
• The drain hole at the back of the compartment is clear (page
11).
If ice has formed on the back wall of the fridge:
• It is normal for some ice droplets to form on the back wall of the
fridge. This does not constitute a fault with the appliance.
• Ensure that no items inside the fridge are in contact with the back
wall.
• Check that there is some resistance when opening the door of the
appliance. If it opens at the slightest touch it may mean that the
door seal needs to be replaced.
• Check the door seal for any kinks, debris or damage. If you notice
any, and are unable to resolve the issue yourself, contact
Customer Care so that the seal can be replaced.
• This can be due to the decor door(s) not being properly fitted. If
you are at all unsure, ask your fitter to check the decor doors.
If the LED unit within the appliance is not working:
•Contact Customer Care to arrange a service visit.

14
Installation preparation
This appliance must never be installed
close to heat sources, e.g. heating
elements or cookers, nor in damp
places.
Seek the help of another individual, or
two, when installing this appliance. This
appliance may have sharp edges. Wear
adequate PPE for the task and
environment.
Ventilation
The main consideration when installing any refrigeration unit into
a fitted kitchen is ventilation. The heat removed from the cooling
compartment needs to be dissipated into the atmosphere. Incorrect
ventilation can lead to premature compressor failure, excessive
power
1776
45
57
540
540
1785-
1788
min. 30
560-570
550 min.
= airflow
(Fridge dimensions are approximate)
Fig. 5
• To ensure the appliance is level, you
should use the height adjustable feet
at the front of the appliance.
• The cooling system at the rear of the
appliance must not touch the rear wall.
The greater the gap, the better.
• The appliance must be installed with
adequate ventilation. Ensure that there Fig. 6
is clearance above the appliance to allow air to escape and
that there is space between the rear of the appliance and the
wall.
DO NOT TILT BEYOND 40°


FRQVXPSWLRQWRWDOV\VWHPIDLOXUHDQGPD\LQYDOLGDWHWKHZDUUDQW\
SURYLGHGZLWKWKHDSSOLDQFH)RUSURGXFWVLQWHQGHGWREHLQVWDOOHG
LQWRDWDOOKRXVLQJXQLWWKHIROORZLQJUHTXLUHPHQWVQHHGWREHPHW
7KHRSHQFKDQQHODWWKHUHDULVFOHDUO\VKRZQ)RUWKHFRUUHFW
RSHUDWLRQRIWKHDSSOLDQFHLWLVLPSRUWDQWWKDWWKHWRSRIWKH
KRXVLQJXQLWLVQRWEORFNHGRII$FKDQQHOGHSWKRIPPLV
QRUPDOZLWKPRVWXQLWV
$YHQWLODWLRQKROHLVUHTXLUHGLQWKHSOLQWKRIWKHXQLWWKLVDOORZVDLU
WR
SODQYLHZRIUHDUYHQWLODWLRQJDS
7KHWRSRIWKHFDELQHWQHHGVWREH
YHQWHGLQWRWKHURRP
5HFRPPHQGHGVL]HRIYHQWRSHQLQJ
[PP
,IWKHIXUQLWXUHGRHVQRWDOORZIUHHDLU
LQWRWKHURRPWKHQDSOLQWKYHQWRU
RWKHUPHDQVRIYHQWLODWLRQQHHGVWREH
SURYLGHGWRHQVXUHDQDWXUDOIORZRIDLU
7KHUHVKRXOGEHVSDFHDWWKHUHDURIWKH
FDELQHWWRDOORZFRRODLUWREHGUDZQ
RYHUWKHFRQGHQVHU
5HFRPPHQGHG
[PP
$QDLULQWDNHVKRXOG
EHSURYLGHG
VRPHZKHUHLQWKH
FDELQHWUXQWRDOORZ
IUHHDLULQ,QWKLV
H[DPSOHD
*
SOLQWK
YHQWLVVKRZQ
XQGHUQHDWKWKH
UHIULJHUDWRU
$FXWRXWVKRXOGEH
PDGHLQWKH
*
SOLQWK
EHORZWKHIULGJH
IUHH]HUDQGWKLV
ILQLVKHGQHDWO\
XVLQJWKHDLUYHQW
JULOOH
$OWHUQDWLYHO\DWKLQ
VHFWLRQRIWKH
*
SOLQWK
FDQEHUHPRYHGWR
DOORZDLULQWRWKHXQLW
UHFRPPHQGHG
PP[PP
5HIULJHUDWRU
RXWOLQH
0LQPP
)LJ
* Please note a plinth vent / grill is not
included with the appliance. This is given as a
guide to aid installation. Your installer will be
able to determine if you would be required to
buy a plinth vent / grill for your type of
installation or not.

16
be drawn over the compressor & heat exchange. The required
air flow can be achieved by removal of a thin section of plinth
(recommended 600mm x 10mm minimum).
As a rule, the more air that can get in and out, the better and
more efficient the operation of the product.
Installation into the cabinet
With the help of another individual, or two,
manoeuvre the appliance into the cabinet.
There are two metal plates at the base of the
appliance. Fit the supplied white spacers (Fig. 8)
to these plates, as per Fig. 9.
Ensure that the lips of the spacers are level with the lip of the
cabinet base.
With the base of the appliance aligned correctly with the edge of the
cabinet base, the metal trim at the top of the appliance should sit
flush against the cabinet edge (if it does not, ensure the base is
aligned as per Fig. 9 and that the metal trim in Fig. 10 is not
damaged).
Fig. 9
Fridge base
Cabinet base
Floor
x2
Fig. 8

17

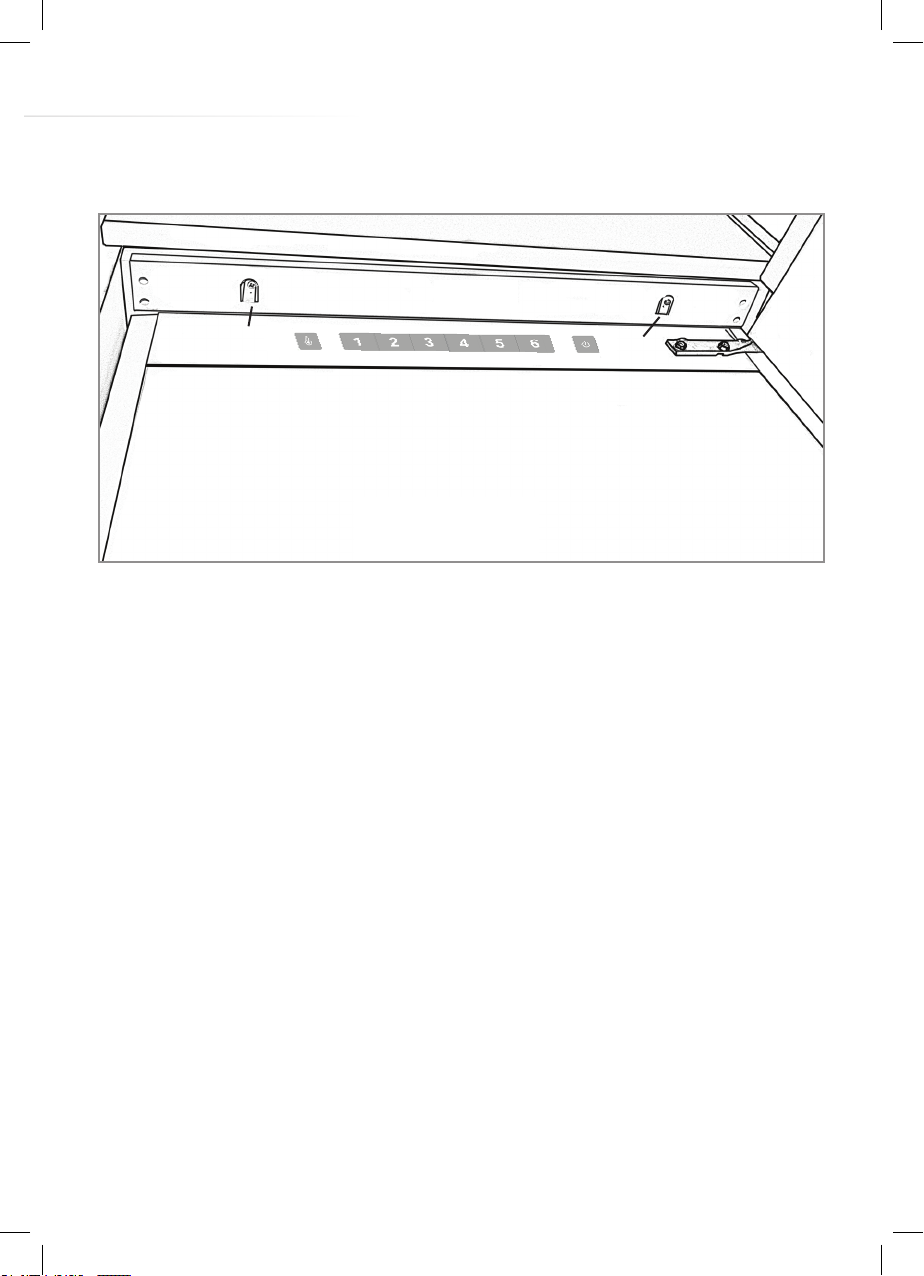

Secure the top of the appliance to the top of the cabinet through
the metal trim screw holes marked ‘T’ in fig 10.
Remove the white spacers from the base plates and secure the
plates to the cabinet base using four of the supplied screws.
Replace the spacers.
Mounting the fascia door
•Ensure that there is a gap of 3 to 4mm between the non-
hinged side and the cabinet wall.
•Locate the slider in the bracket and fix the slider to the fascia
door 20 to 22mm from the edge of the fascia as shown in
figure 11, ensuring that the slider is positioned centrally and
horizontally within the bracket. Tighten securely by hand.
•Fill the gap on the non-hinged side with the gasket/seal strip
provided, as shown in Fig. 12 (page 18).
•The finished look for the door sliders should be similar to those
shown in Fig. 14, which shows 2 sliders in place.
•Ensure the appliance door opens, closes and seals properly.
T
Fig. 10
Trim
T

18
20 mm
door gasket
x4
Fig. 11
Fig. 12 Fig. 14
Decor door
S
Fig. 13
Once complete, and if you are happy with the fit of the appliance in
the cabinet, bend and snap the parts of the white spacers marked
‘S’ as shown by the dotted outline in fig. 13. Leave the rest of the
spacer cover in place over the metal plates.
Gasket
Important: After completing the installation, check that the
appliance is secured within the unit and that the door(s) close and
open properly. If there is no resistance from the door seals when
opening the doors, then it is probable that the appliance and/or
decor doors are not fitted properly.

19
Reversing the appliance door
We recommend you seek the help of another individual to support the
doors whilst performing this operation. Always wear adequate PPE
(Personal Protective Equipment) for the task at hand. Prepare a
surface with a soft, clean towel or similar where you can place the door
during these steps.
1. Carefully prise off the cover cap for the top hinge and unscrew the
screws fixing the top hinge to the appliance, you should support
the door whilst doing this.
2. Carefully remove the door from the bottom hinge (by lifting) and
place it somewhere safe. Note that there may be spacers between
the door and the hinge; note how many and their position.
3. Swap the previous top hinge to the opposite side at the bottom.
4. Place the door onto the new bottom hinge. Support it.
5. Refit the “new” top hinge and fix securely to the appliance.
6. Fit the central cover caps and top hinge cover pieces in place to
complete the process.
7. Unscrew all four slider brackets from the door and swap them over
to the side furthest from the new hinge positions, before the decor
door is fitted.
Ensuring the door seals correctly:
It is normal for the seal to be compressed after the door has been
reversed. With the door closed, use a hair dryer to expand the seal
and fill the gap between the door and the body of the appliance.
Take care not to use the hair dryer too close to the appliance,
which could damage the seal. A distance of approximately 10cm
should be
