MOODY Panoview User manual

Easy to operateand reflects vividand colourful images.
Applicable for educationvenues, meeting rooms,control rooms,
boardrooms, training facilitiesand home theatres.
Especially suited forspecific use projectors.
Installation Guide for
Panoview Motorized screen
ISO9001:2000
International Certification
Optoma Asia Corporation
5F., No108, Minchiuan Rd., XindianCity, Taipei 231
Tel: [phone]
Fax: [phone]
www.optoma.com.tw
Optoma USA
715 Sycamore Drive
Milpitas, CA 95035USA
Tel: [phone]
Fax: [phone]
www.optomausa.com
Optoma Europe Ltd.
42 Caxton Way
The Watford BusinessPark
Watford Hertfordshire WD188QZ UK
Tel: [phone]
Fax: [phone]
www.optoma.co.uk

Product Safety
To ensure your safety, please read "Product Manual and Warnings"
The ceiling or wall used for fixture installation must be secure to prevent the screens from falling.
While installing electrical motors, please hire professionals or your local dealer to ensure safety.A misconnection may lead
to fire or leaks.
Keep all infrared wireless products away from fluorescent lighting as it may cause malfunctions.
Please read the following as any damage to the screen surface willaffect thequality of the picture:
1.Avoid contact or touching the screen surface as it may cause scratches or tears.
2.Do not write or draw on the surface
3.Clean the screen with a soft cloth and lukewarm water. Do not use any detergent or cleaning products.
Roll up the screen after every use. Ensure that the screen is level when installing;do not pullon the sides or fold the screen.
To prevent unnecessary damage, the operating and maintenance of the screen should be done by adults.
Product Features
16
Ignoring the safety warnings may lead to
and /or damaging the product.injuries
Refrain from hanging anything on th e screen a s
it may cause the screen to fall.
Do not connect any electrical attachments
or remote controls.
Fixtures should be installed in a secure place
to avoid accidents or the screen falling.
Roll up the screen after every use . Leaving
it hanging for a long period oftime may cause
the fabric to loosen.
Please contact your local dealer for repairs or
maintenance. Please contact our company if y ou
have any furtherquestions . Avoid taking
apart the fixtures yourself. Loose parts may
cause the screen to fall.
Warnings
To avoid overheating the motor , do not continually retract and lower the screen for over 4 minutes at a time . If the motor
overheats, it will need a cool down time of 2 minutes. The motor does not need any lubricants.The drop and retract limit of the
screen is factory preset to an optimal configuration. Please ask your local dealer or professional to adjust settings to avoid
damaging the motor.
Do not take apart and replace with unknown parts. If there are any problems, please contact your local dealer. Product specifications
are subject to change.
Trendy and Elegant
The metal casing is compact and elegant. The white cover is coated with PVC technology that enhances the
feel and esthetics.
Unique Rolling Rod
Special designs on the rod allow minimal contact with the screen's surface resulting in minimaldamage to the screen.
Top-Quality Motor
Equipped with the world-renowned power motor. It is quiet, secure, and precise.
Resolution
The matte white material provide different brightness and viewing ranges, flexible to suit every setting.The matte white
allows a wider view range and soft colors.
Location
It is suited for various venues such as education facilities, home theatres , boardrooms , or othe entertainment
sites.
Picture 1 Picture 2 Picture 3
b.Connect to a power source (Please make sure it is the right voltage)
c. ; it will come down slowly. When it is all the way down, it will stop automatically.
d. ; it will go up into the metal casing. When it is allthe way up, it will stop automatically.
e.To stop any time while the screen is in motion, turn the switch to 0.
Turn the switch to position 2 to lower the screen
Turn the switch to position 1 to retract the screen
3. Automatic remote control (Please see section on Remote Control)

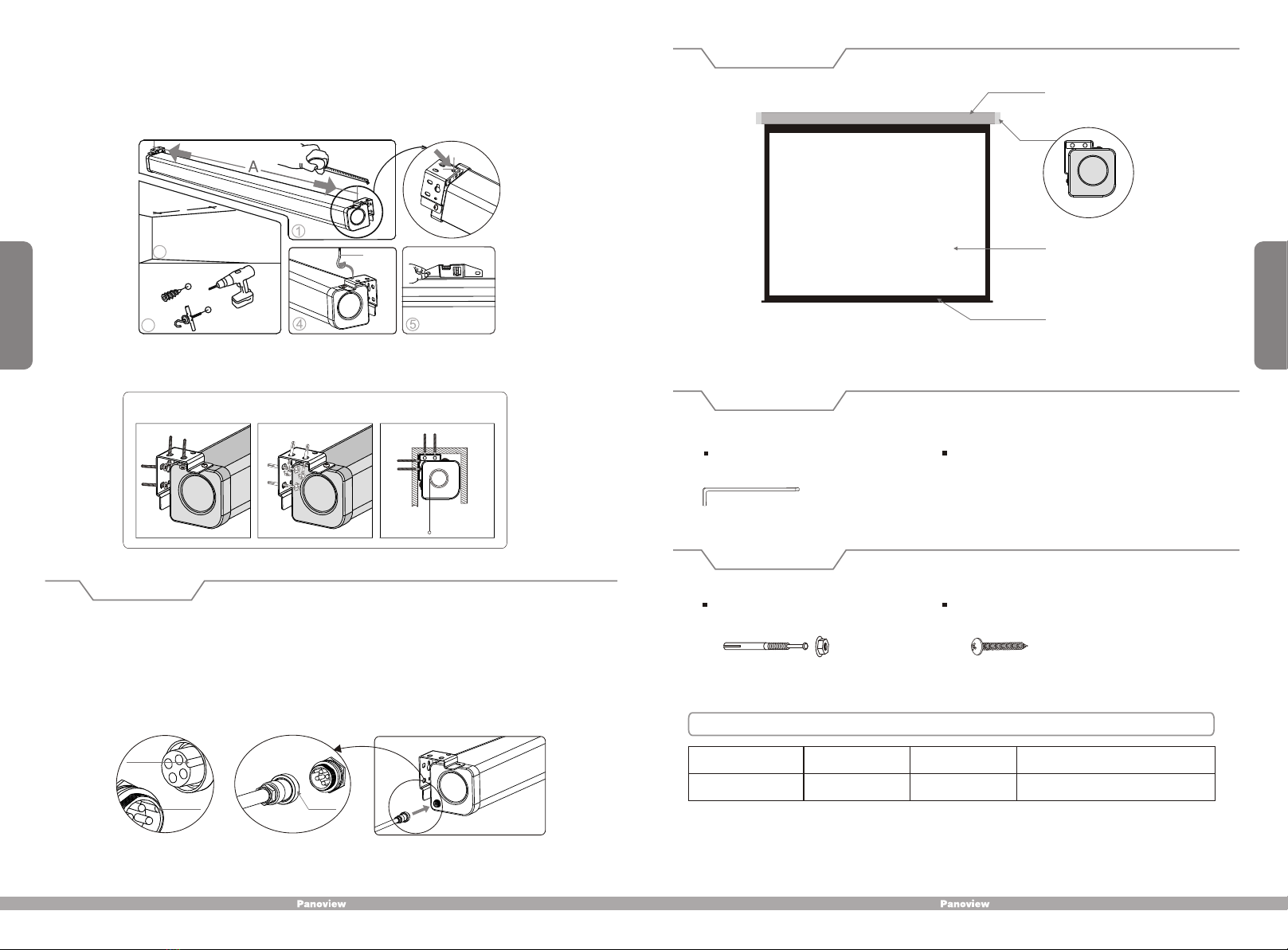

Motor adjusting slot
3.12V burst controller. ( )
a.One end of the signal cable insert into the 12V jack of the handle controller, the other end insert into the 12V output hold
of the projector.
b.Press the control switch of the handle controller to the location.
c.When running the projector, the screen will spread the fabric automatic by synchronous; when closing the projector, screen
will be back automatic by synchronous too.
d.If you don't need to use the12V burst controller, please draw off the burst line directly, then control it by your hand.
Figure 4-6
12V Plug
Picture 4 Picture 5 Picture 6

Metal Casing
Screen Fabric
Rod
Description
End Cap
52
A
2
3
Hanger
Wood material installation Concrete material installation Hidden installation
Ceiling mount
Wall mount
Ceiling mount
Wall mount
Ceiling mount
Wall mount

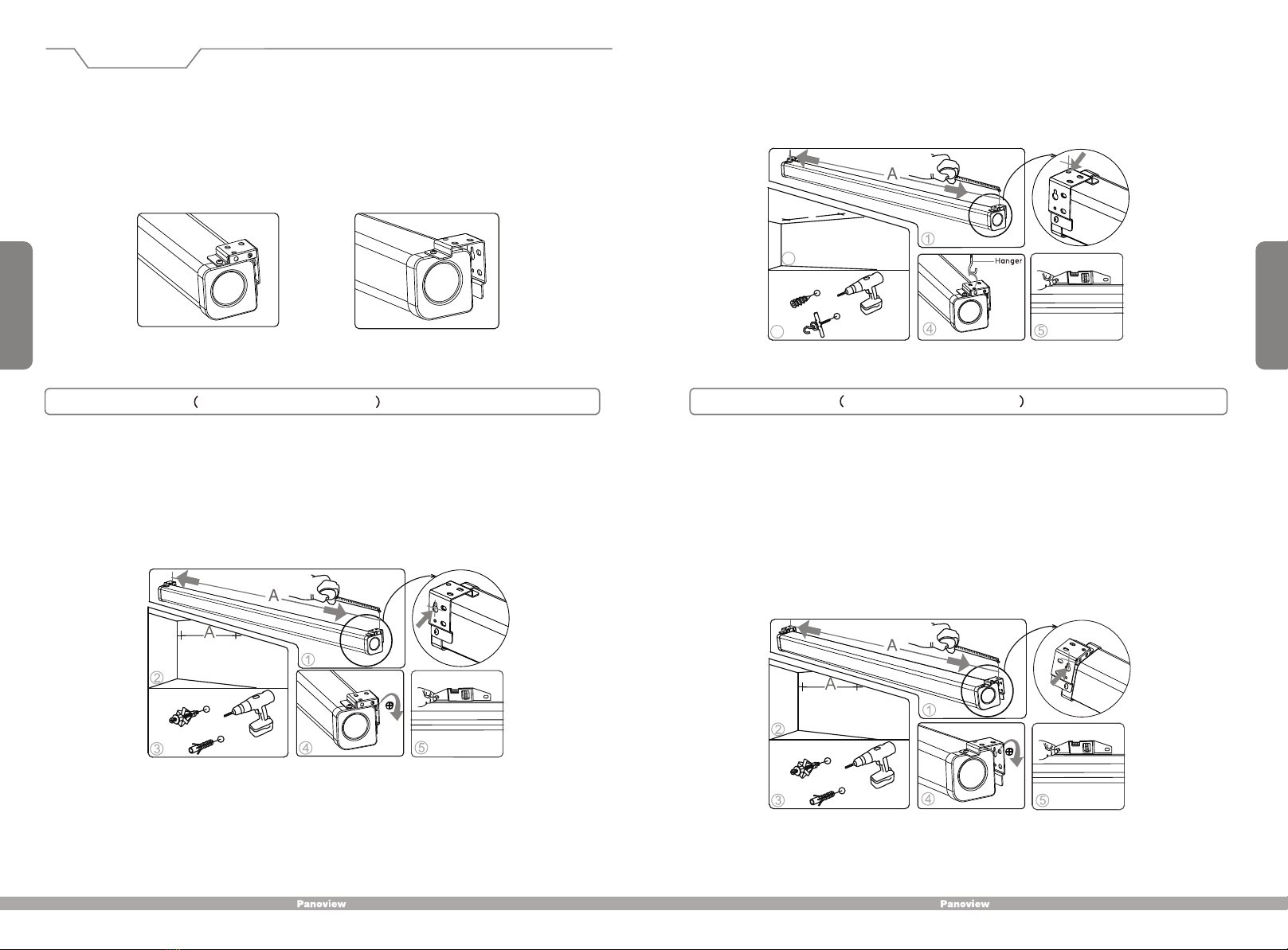

Wall/Ceiling Mounting Installation
Ceiling Mount
Using a tapemeasure find out the distance betweenthe two keyholes on the casing (figure 1).According to
the measurement, usethe drill todrill identical holesof the appropriate size onthe ceiling and ensure that it is
level (figure 2 &3 ). Screw inthe hook screws( not provided ) , and lift the screen into the hook screws to
hang (figure 4). To ensure thatthe screen islevel, use alevel to check(figure 5).
Instructions
1. T
2. Manual switch control
ear off the glue cloth fixed on the bottom rod,ensure the bottom rod is not stuck by the casing.
a. At the end of the controller wire, take the plug and insert it securely into the inlet located on the left side of the screen casing.
ensure the position of the plug is properly matched with the inlet and screw down the nut.
Connection between the manual control and screen (remark:for this kind of product only)
Slot Socket
Slot Screw
Plug
Panoview projection screens are controlled by a manual switch or an automatic remote control.
5mm Allen Key(1 )
5 x 60mmAnchor and bolts (6)
Installation Manual
5 x 60mmScrew ( 6 )
Accessories
Motorized Screen Power Specifications
50Hz/60Hz 36W/36W 230V/120V/100V
Voltage Frequency Watts Application
Applies up to 120" motorizedscreens
Optional

Installation
1.This projection screen shouldbe installed at thebest possible viewing positionfor the audience. Take out all theparts
from the packaging and follow theaccessories guideline to ensureyou have all theparts . The partsneeded will vary
depending on which installation youchoose to use. Forinstallation on a woodwall or ceiling ,use 5 x 60 anchorsand
screws.
34
Wall Mount
Using a tapemeasure, measure thedistance between thetwo keyholes onthe casing (figure 1) .According tothe
measurement, use thedrill to drillidentical holes ofthe appropriate sizeon the wall(use a smallerdrill bit thanthe
actual screws) andensure that itis level (figure2 & 3). Screw inthe appropriate screws,either 5 x60 by itselffor
wood walls orwith anchors fordrywalls , leavingenough space atthe end tohang the casing(figure 4) .Toensure
that the screenis level, usea level tocheck (figure 5).
2. There are twoway for wallbrackets to fixon the housing.As you can see onthe figure 1,which is our normal fixed
way(namely factory set). While the other fixed wayis to interchangethe left andright wall brackets,and then fix
onto the housing(namelyfunctional installation way, as figure2).
Installation one Factory-set installationway
A
2
3
Wall Mount
Using a tapemeasure, measure thedistance between the two keyholes on the casing ( figure 1) .According tothe
measurement, use thedrill to drill identical holes of the appropriate size on the wall (use a smaller drill bit than the
actual screws) andensure that itis level (figure2 & 3). Screw inthe appropriate screws,either 5 x60 by itselffor
wood walls orwith anchors fordrywalls , leaving enough space at the end to hang the casing (figure 4) . To ensure
that the screenis level, usea level to check (figure 5).
Factory-set installation way Functional installation way
Figure 1 Figure 2
For Functional installation way, we can not only use wall mounting, ceiling mounting to fix the housing, but also can just nail
the housing onto the wall and ceiling via wall brackets using spare screws. Please make sure that, using this installation way,
you have to take off the factory-set wall brackets and then interchange left & right brackets before mounting.
Installation two Functional installation way
Ceiling Mount
Using a tapemeasure find out the distance betweenthe two keyholes on the casing (figure 1).According to
the measurement, usethe drill todrill identical holesof the appropriatesize on theceiling and ensure that it is
level (figure 2 &3 ). Screw inthe hook screws( not provided ) , and lift the screen into the hook screws to
hang (figure 4). To ensure thatthe screen islevel, use alevel to check(figure 5).
