Moog Videolarm SView FDP7C12N-9 User manual

Complete, all-in-one PTZ
Video Monitoring System
Videolarm’s SView is a highly sophisticated PTZ camera
system, available in either IP or Analog format. Designed for
outdoor use, consisting of metal gearing and a durable pan/
tilt, the SView system features an auto focus, hi-res, true day/
night camera, 360x zoom (36x optical and 10x digital), two
adjustable privacy zones and 64 presets.
Backed by an impressive Industry Leading 5 Year Warranty,
the SView system is available in 6 distinguishing enclosures.
• Heavy-dutyconstructionincludingmetal
gearingandadurablepan/tilt
•IPorAnalogmodelsavailable
•Autofocus,high-restrueday/nightcamera
(36xopticaland10xdigitalzoom)
•360°continuousrotation
•Autoprotocolandbaud-rateselection
•Proportionalzoom/panandzoom/tilt
•64presetsand3auto-tours
(sequentialandrandom)
•Twoadjustableprivacyzones
•Camerasolutionsforallapplications
 –6distinctmodeltypes
•IndustryLeading5YearWarranty
KEY FEATURES
2525 Park Central Blvd., Decatur, GA USA 30035 |1.800.554.1124 |www.videolarm.com
PTZ Camera System
6 Distinct Model Oerings
SView

2525 Park Central Blvd., Decatur, GA USA 30035 |1.800.554.1124 |www.videolarm.com

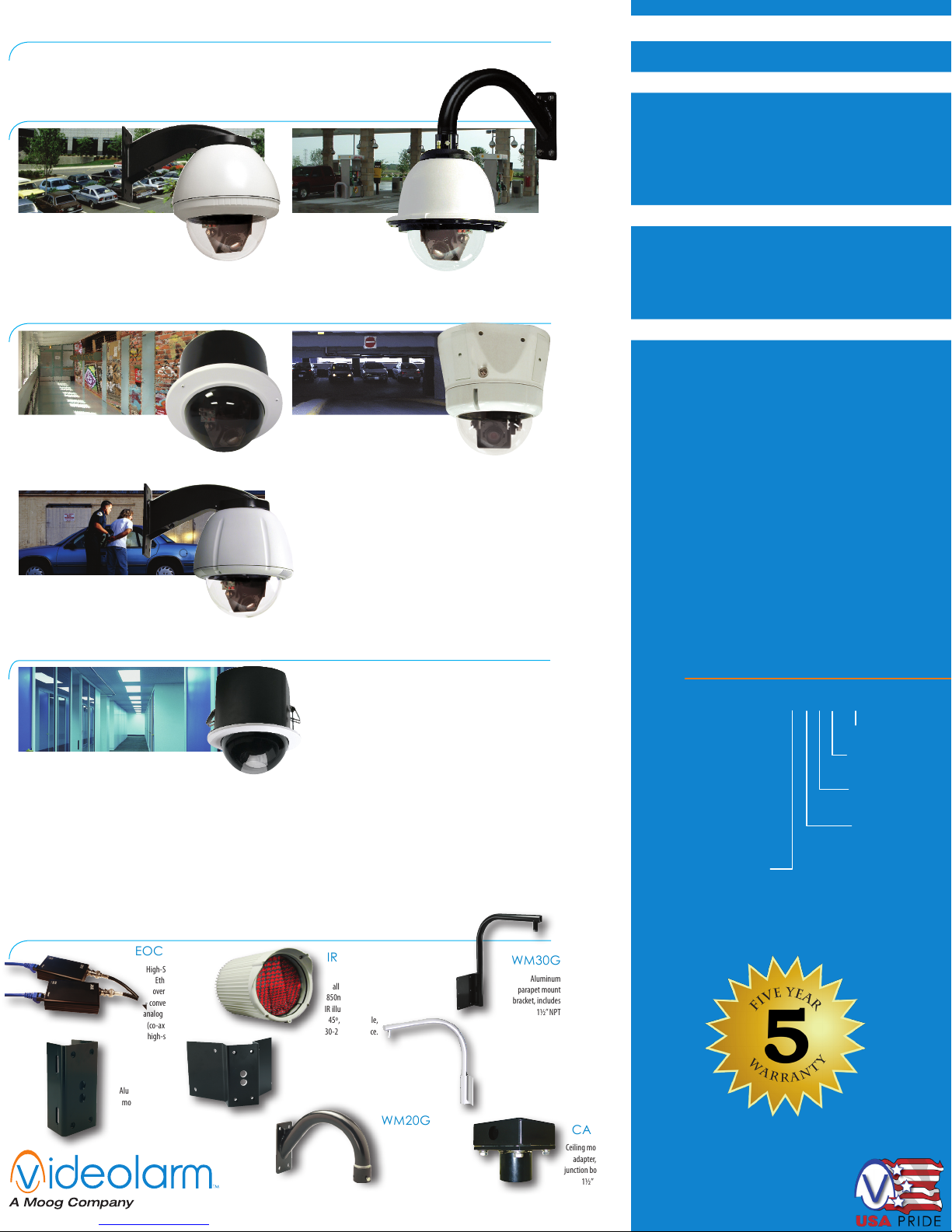

SView: 6 Distinct Model Offerings
To better address the needs of your specic monitoring application’s requirements,
Videolarm oers 6 distinguishing SView model enclosures. Simply select
the housing of your choice, based on your environment. It’s that easy!
FDW7CN-3
FusionDome: Standard 7”
dome available in outdoor or
indoor models. Pendant mount
or wall mount available.
PFD7CN-3
Pressurized
FusionDome:
IP67 rating, fully
pressurized camera system with heater/blower.
RHW7CN-3
Vandal-Resistant Dome:
Available with a pendant or wall
mount with heater / blower.
RM7TN-3
Recessed Ceiling Dome:
Outdoor or indoor models;
extends only 3.5” below ceiling.
SM75CN-3
Vandal Resistant Surface
Mount Dome: IP66 Rating,
capable of mounting either facing down or
towards the sky.
Outdoor Surveillance
Severe & Volatile Environments
Oce Environments
MR5TN-3
Recessed Ceiling Dome:
Extends only 3½” below ceiling.
Optional Components and Accessories:
Tinted and Clear Domes available for all
models. Change: “C“- Clear or “T“- Tinted.
EOC1N
High-Speed
Ethernet
over Coax
- converting
analog video
(co-ax) into
high-speed
Ethernet
All SView Enclosures available in Analog
models. Replace: “N-3“ IP or “S-3“ Analog.
IR200-36
One Model for
all Applications!
850nm adjustable
IR illuminator, 30º,
45º, or 60º angle,
30-200m distance.
WM30G
Aluminum
parapet mount
bracket, includes
1½”NPT
CA15
Ceiling mount
adapter, w/
junction box &
1½”NPT
APM3
Aluminum pole
mount bracket
with female
inserts
ACA2
Aluminum
corner mount
bracket with
female inserts
WM20G
Aluminum
gooseneck
wall bracket,
includes 1½”NPT
Video Specications
Resolutions: Full D1 (4SIF): NTSC=720x480
VGA, SIF, QVGA, QSIF, QQVGA
Camera Specications (Analog & IP)
Lens: 36x optical, 10x digital
Minimum illumination: Color 3 lux @ 1/60s, .2 lux @ ¼s
B&W: 0.02 lux (¼s, IR cut lter
removed)
Resolution: Approx. 360,000 pixels
(470 x 400)
Performance: Auto Focus, IRIS Control
Network Specications (IP Only)
Network Interface: 10/100 Base-T Ethernet
Image Compression: MPEG-4 Simple Prole (SP);
JPEG; MJPEG
Protocols: TCP(UDP)/IP, ICMP, HTTP, TFTP,
FTP, Telnet, SMTP, DHCP, NTP,
DNS, DDNS, RTSP, RTP/TCP(UDP)
Mechanical Specications PAN/TILT
Pan Movement: 360° Continuous pan rotation
Manual Pan/Tilt Speeds: 0.5°-80°/sec manual operation
Preset Pan/Tilt Speeds: 120°/sec
Positioning: +/-.05 degree
Construction: Aluminum
Motors: Stepper motors
Gearing: Belt-driven, ¼” wide
Bearings: Precision ball bearings,
permanently lubricated bushings
For detailed specications on each
SView model, please contact your
Videolarm representative or visit
www.videolarm.com
SView Model Number System
F D W7CN-3
Wall Mount W
Pendant Mount P
}
Fusion Dome FD
Vandal-Resistant RH
Vandal-Resistant
Recessed Ceiling RM
Surface Mount SM
Pressurized Dome PF D
Recessed Ceiling MR
3SView PTZ
NIP Network
S Analog
CClear Dome
T Tinted Dome
77” Dome
75 7” Dome with
extended
trim ring
5 5” Dome
PRM50G
Heavy-duty alumnum
parapet mount bracket
with 20”extension,
includes 1 1/2”NPT
Wall Mounts and Pendant Mounts available
Change: “W” - Wall Mount or“P” - Pendant Mount
12Vdc models available: SView
