Moorwood Vulcan MV1CGR60-NG User manual
Manual Part No: 931763-01 MV1 Gas Chargrill - 2 –
Manual Rev No: 1
IMPORTANT CUSTOMER INFORMATION
Please check that the gas taps will press and release freely
prior to lighting the burner, as this is part of the unit’s safety
mechanism.
It is particularly important to check this following spillage as
solidified fats and carbonised meat juices can impair the
valves correct operation.
IMPORTANT INFORMATION INSTALLATION ENGINEER
Please ensure the customer is made fully aware of how the
gas taps operate and the importance of checking their
operation daily.
Manual Part No: 931763-01 MV1 Gas Chargrill - 3 –
Manual Rev No: 1
Model No. Product Description Rev. Date Flexible
Hose Size
MV1CGR60-NG
MV1CGR60-LP
MV1CGR90-NG
MV1CGR90-LP
MV Gas Chargrill
600 Gas Chargrill
600 Gas Chargrill
900 Gas Chargrill
900 Gas Chargrill
1
1
1
1
05/05/05
05/05/05
05/05/05
05/05/05
½” BSP hose
½” BSP hose
¾” BSP hose
¾” BSP hose
Manual Part No: 931763-01 MV1 Gas Chargrill - 4 –
Manual Rev No: 1
INDEX
Page
CoverSheet: 1
ImportantInformationSheet: 2
RevisionSheet: 3
Index: 4
WarningSheet: 5
Introduction: 6&7
GeneralIntroduction 6
ImportantNote 7
Specification: 8-12
GasPressure/Connection 8
OverallDimensions 9-12
Installation: 13-15
ImportantNote 13
Positioning 13&14
Checking&Commissioning 15
UserInstructions: 16-20
ImportantNote 16&17
Operation 18&19
Cleaning 20
Service&Maintenance: 21-24
RoutineMaintenance 21
FaultFinding 21
Instructions 22-24
SpareParts: 25
WarrantyCoverSheet: 26
Manual Part No: 931763-01 MV1 Gas Chargrill - 5 –
Manual Rev No: 1
Where this appliance is to be positioned in close proximity to a wall, partitions,
kitchen furniture, decorative finishes etc; it is recommended that they be made of
non-combustible material. If not, they should be clad with a suitable non-
combustible heat-insulating material, and that the closest attention be paid to Fire
Prevention Regulations.
Warning – This unit must be mounted on a non-
combustible surface.
Manual Part No: 931763-01 MV1 Gas Chargrill - 6 –
Manual Rev No: 1
INTRODUCTION
This manual contains all the required information to ensure that your new appliance is installed correctly
and that you have all the information necessary to identify and order spare parts. It also contains
comprehensive instructions for the user and for cleaning the appliance.
To maintain peak performance, it is recommended that the appliance be regularly serviced and that
when ordering spare parts, reference be made to the appropriate list quoting the Part No. and the
description. THE FITTING OF A NON-STANDARD PART MAY VOID ANY GUARANTEE.
All work carried out on this appliance during installation or servicing must be performed by a competent
person and the connection of the appliance to the gas supply MUST be carried out by qualified
personnel in accordance, where applicable, with the relevant regulations.
The siting of the appliance and the connection to the gas/electrical supply must comply with the GAS
SAFETY (INSTALLATION & USE) REGULATIONS 2000: the requirements of the FIRE PRECAUTIONS ACT
1971; the HEALTH & SAFETY AT WORK, etc ACT 1974, the BUILDING STANDARDS (SCOTLAND)
CONSOLIDATION REGULATIONS 1971. Detailed recommendations are contained in British Standards
BS5440: Part 1: 2000, BS5440: Part 2: 2000, BS5588: Part 0: 1996, BS5588: Part 11: 1997 & BS6173:
2001.
The installation must comply with the requirements of Local Authority Regulations and the wiring must
comply with the latest I.E.E. Regulations.
An easily accessible stopcock must be fitted in the gas supply adjacent to the appliance for use in an
emergency. In addition a fused isolator must be fitted in the electricity supply.
The details of the gas supply will be found on the Data Plate, which is located on the rear of the flue
upstand/splashback panel.
WARNING: THIS APPLIANCE MUST BE EARTH BONDED.
Improvements
The policy of Viscount Catering Ltd is such that, each product is subject to continual development and
may, therefore, be subsequently improved. The company reserves the right to alter the design of any
appliance without prior notification and without responsibility to update any delivered or in-service
appliance and furthermore, without incurring the responsibility for altering these instructions. In such
circumstances, it may be found that the appliance detailed herein differs in certain respects from the one
supplied.
IT IS IMPORTANT, THEREFORE, TO QUOTE THE SERIAL No. AND THE APPLIANCE MODEL No. IN ALL
COMMUNICATIONS WITH THE COMPANY.
Manual Part No: 931763-01 MV1 Gas Chargrill - 7 –
Manual Rev No: 1
Introduction (cont.)
Important
Before installing any item please refer to the installation instructions.
We recommend that our authorised service agents carry out all servicing, other than routine cleaning,
and will accept no responsibility for work carried out by other persons.
For satisfactory operation, parts of catering equipment become hot. Suitable precautions must be taken
to avoid accidental burns therefore the appliance should be positioned to minimise the possibility of
accidental touching. It is the supervisor’s responsibility to warn users to wear suitable protection and to
follow correct operation and cleaning procedures.
For the details of your nearest Service Agent for all warranty and repair work, you should contact:
The Service Manager
Viscount Catering Limited
Provincial Park
Nether Lane
Ecclesfield
Sheffield
S35 9ZX
Tel: +44 (0) 114 2574500
Fax: +44 (0) 114 2574527
Spares can be obtained via the Spare Parts Department at the above address.
IT IS IMPORTANT TO QUOTE THE SERIAL No. AND THE APPLIANCE MODEL No. IN ALL
COMMUNICATIONS WITH THE COMPANY.
Manual Part No: 931763-01 MV1 Gas Chargrill - 8 –
Manual Rev No: 1
SPECIFICATION
600 Gas Chargrill
900 Gas Chargrill
Supply Pressure Adjusted Pressure
Natural Gas
Propane Gas
20mbar ( 8” wg)
37mbar (14.8” wg)
15mbar ( 6” wg)
37mbar (14.8” wg)
Gas Connection
1/2” BSP Taper Male (Rp 1/2”)
When connecting using a flexible hose fit a ½” BSP hose-600 Chargrill
Fit a ¾” BSP hose-900 Chargrill
Heat Input (Nett)
INJECTOR (mm) NATURAL GAS PROPANE
NG LP
m³/h Btu/h kW Kg/h Btu/h kW
600 Chargrill 2.5 1.52 1.68 54,182 15.88 1.166 50,838 14.9
900 Chargrill 2.5 1.52 2.523 74,779 23.8 1.75 76,087 22.3
Air Requirements
Area
600 Chargrill 66cm² (10in²)
900 Chargrill 99cm² (15in²)
Specification (cont.)

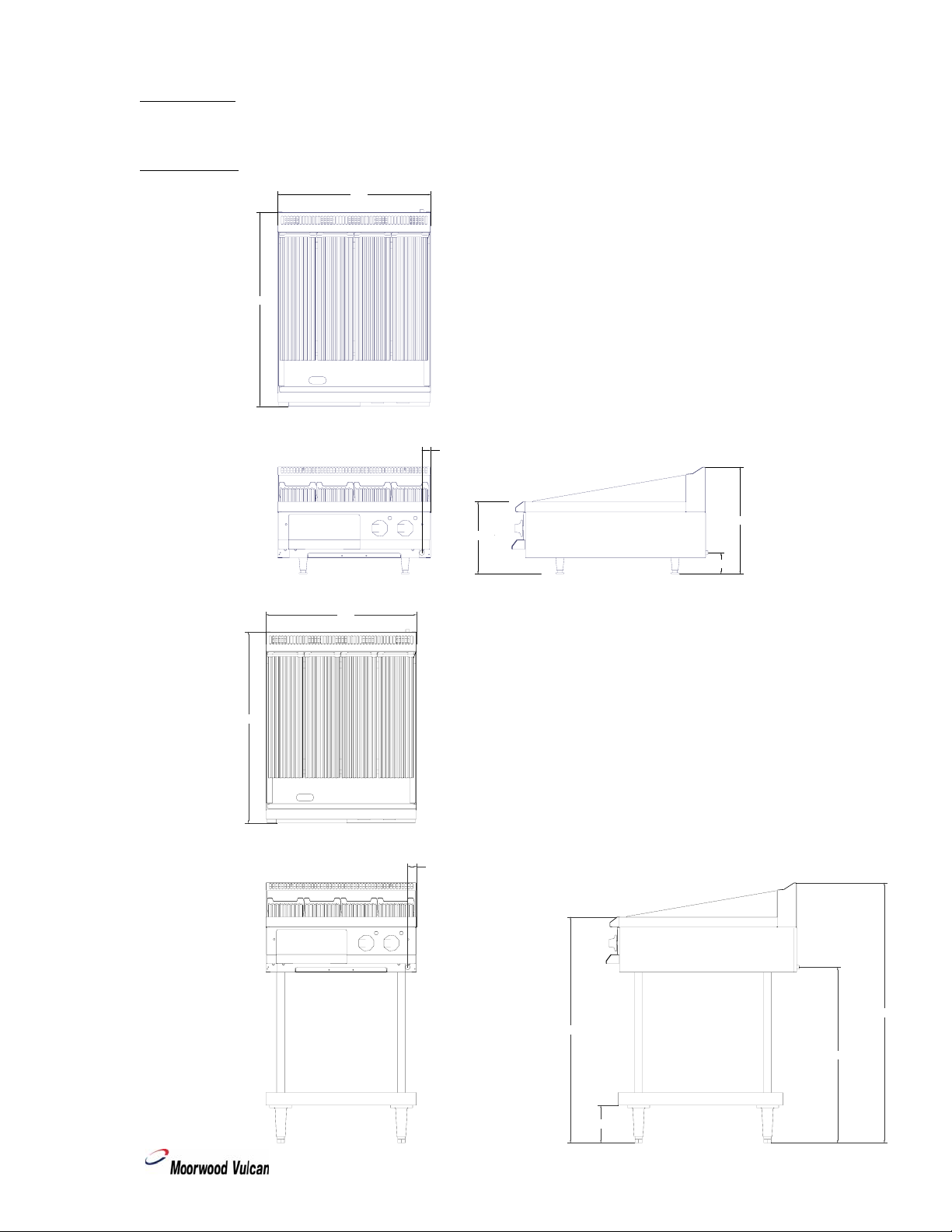

600 Chargrill (Table Mounted and Stand Mounted)
282-5
+25
600
751
35
82
418
35
751
600
1040
702
900
150
Manual Part No: 931763-01 MV1 Gas Chargrill - 9 –
Manual Rev No: 1
Specification (cont.)

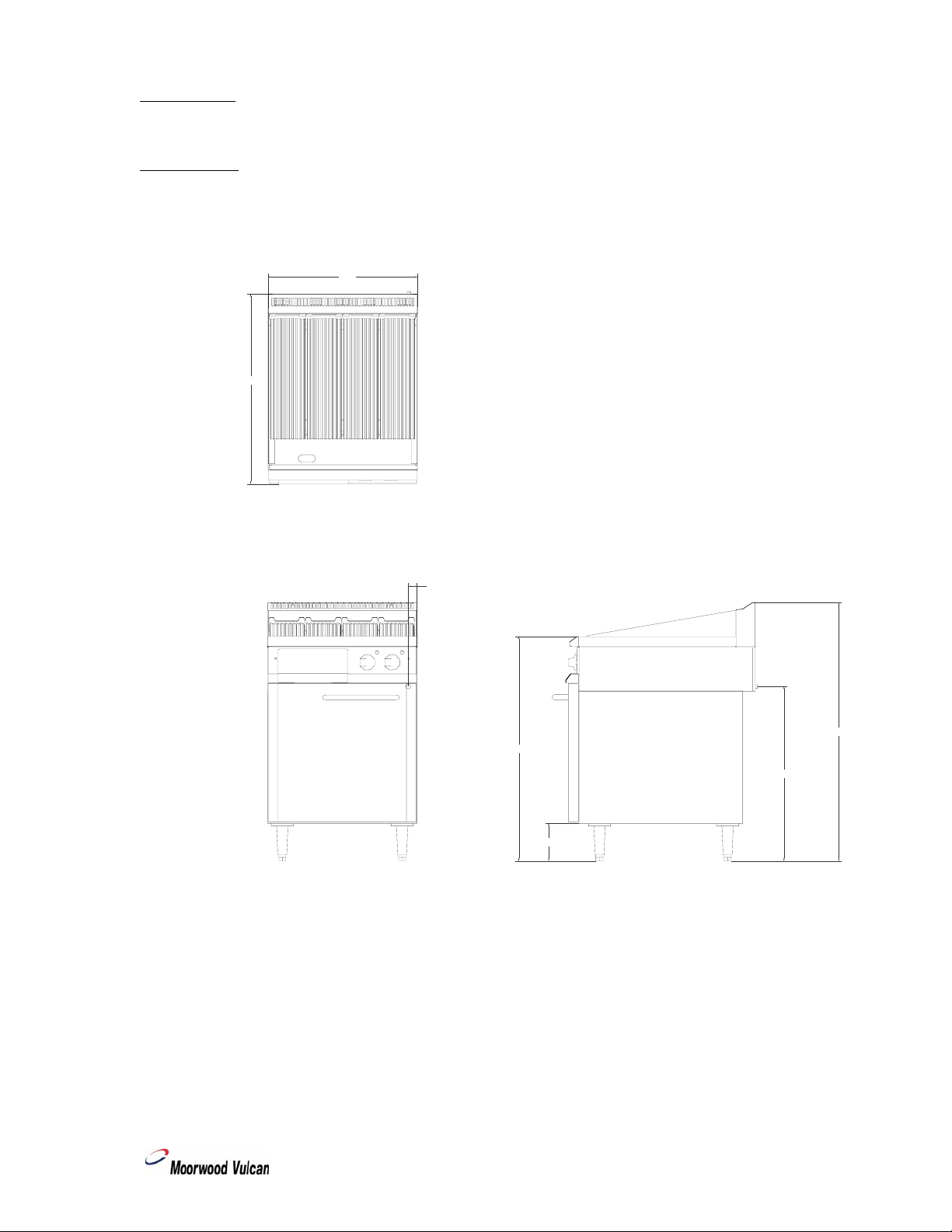

600 Chargrill (Cupboard Mounted)
150
600
751
35
900
1040
702
Manual Part No: 931763-01 MV1 Gas Chargrill - 10 –
Manual Rev No: 1
Specification (cont.)
900 Chargrill (Table Mounted and Stand Mounted)
900
751
82
418
282
35
-5
+25
1040
702
900
150
35
751
900
Manual Part No: 931763-01 MV1 Gas Chargrill - 11 –
Manual Rev No: 1
Specification (cont.)

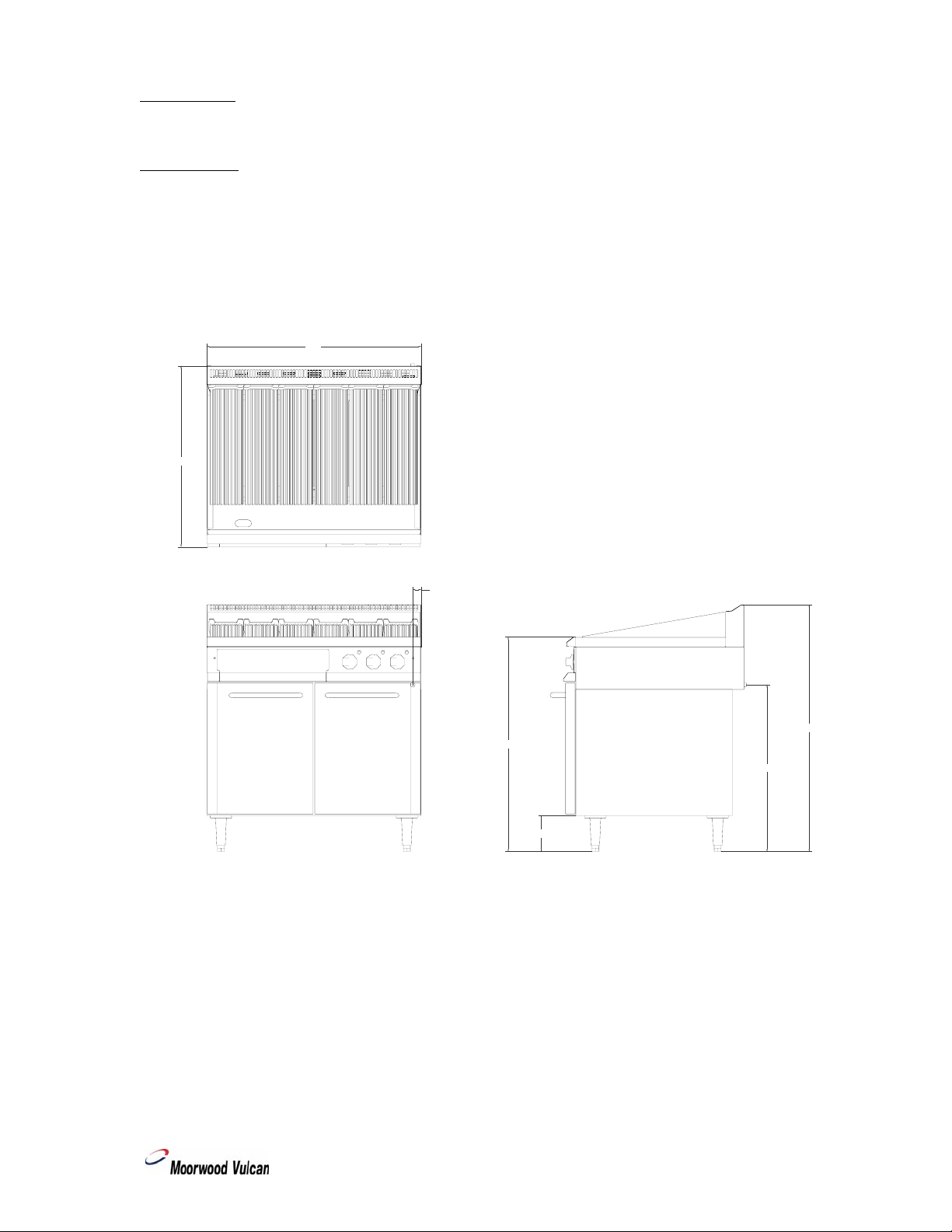

900 Chargrill (Cupboard Mounted)
35
751
900
702
900
1040
150
Manual Part No: 931763-01 MV1 Gas Chargrill - 12 –
Manual Rev No: 1
Manual Part No: 931763-01 MV1 Gas Chargrill - 13 –
Manual Rev No: 1
INSTALLATION
Important
Your attention is drawn to the latest GAS SAFETY (INSTALLATION & USE) REGULATIONS 2000.
This appliance MUST be installed by a competent person in accordance with these and any other relevant
regulations. Users, too, should be aware of the regulations governing the use of gas appliances,
particularly with respect to the need for regular servicing.
Your attention is drawn to the requirement that those parts, which have been protected by the
manufacturer or his agent, are not to be adjusted by the installer.
Before Installation
Before commencing installation, remove all packaging materials from the appliance. It is suggested that
any protective film adhering to the stainless steel panels should be left on until installation is completed.
BUT THIS MUST BE REMOVED BEFORE COMMISSIONING OR OPERATING THE APPLIANCE.
Check the appliance Data Plate (located on the rear of the flue upstand/splashback panel), to ensure that
the appliance is suitable for the gas supply available.
The Chargrill can be installed on a counter top capable of adequately supporting the weight of the
appliance, or a purpose designed stand fitted with adjustable feet to compensate for some unevenness
of the floor.
Positioning
Place the appliance in position allowing a minimum gap of 100mm (4”) at the rear and at least 150mm
(6”) between the sides of the appliance and any adjacent wall. If the appliance is being suited then please
refer to the separate instructions. The minimum distance between the hotplate and any overshelf or
ceiling constructed of a combustible material must be 1525mm (60”).
Adequate ventilation is essential for safe operation of a gas appliance. A supply of fresh air is necessary
for the correct combustion of the gas and there must be a means of exhausting the heat and the
products of combustion from the kitchen. It is recommended that the appliance be sited below a
ventilating hood, one preferably connected to an extractor system incorporating a grease filter.
Appliances are to be installed with sufficient ventilation to prevent the occurrence of unacceptable
concentrations of substances harmful to health in the room in which they are installed.
Manual Part No: 931763-01 MV1 Gas Chargrill - 14 –
Manual Rev No: 1
Installation (cont.)
Important Note
The appliance MUST NOT be connected DIRECTLY to a flue or ventilating system, although the flue
products of two or more appliances may be directed into a common outlet when building a suite of
appliances (see separate instructions for suiting appliances).
Ensure that the appliance is level in two places - front to rear and side to side. Level can be achieved by
adjusting any or all of the screw in feet in each corner of the base. Turn anti-clockwise to lower and
clockwise to raise the corner.
Gas Connection
Natural Gas: The size of the supply pipe should be no smaller than ½” BSP and an easily accessible
stopcock must be fitted in the gas line adjacent to the appliance. The gas governor provided with the
appliance MUST be fitted in the supply line BETWEEN the stopcock and the appliance.
An armoured flexible pipe of a GAS COUNCIL APPROVED PATTERN is recommended.
NOTE:
Ensure that all the pipes to the appliance are clean and free from swarf etc, BEFORE making the final
connection.
Propane Gas: Follow the same procedure as that for Natural Gas EXCEPT that the Gas Governor MUST
NOT be fitted - the Gas Supply Tank or Cylinders are already fitted with a Gas Regulator.
Manual Part No: 931763-01 MV1 Gas Chargrill - 15 –
Manual Rev No: 1
Installation (cont.)
Leak Test
Clean off any protective film from the stainless steel panels.
AT THIS STAGE, LEAK TEST THE WHOLE SYSTEM. THE GAS SAFETY REGULATIONS require that ALL
connections in the gas supply line between the Gas Meter and the appliance are tested for gas leaks.
THIS MUST BE DONE BEFORE COMMENCING TO COMMISSION THE APPLIANCE.
Checking and commissioning
ALTHOUGH EVERY APPLIANCE IS TESTED AND SET BEFORE IT LEAVES THE FACTORY, IT IS
IMPORTANT THAT THE INSTALLER RE-CHECKS CERTAIN FUNCTIONS BEFORE LEAVING THE SITE.
CHECK THE GAS PRESSURE AT THE APPLIANCE THUS: -
The pressure test point is located on the manifold rail at the right hand side behind the front control
panel, which is secured by two M5 screws.
Connect a manometer (U tube) to the test point. Turn on the gas supply and light two burners. Check
that the pressure reading agrees with that stated on the Data Plate.
SHOULD ADJUSTMENT BE NECESSARY, PROCEED AS FOLLOWS: -
FOR PROPANE GAS, REFER TO SUPPLIER.
On the gas governor: -
Remove the cap in order to gain access to the pressure adjusting screw.
Turn the pressure adjusting screw clockwise to increase the pressure or anti-clockwise to decrease it.
When the pressure reading is correct, refit the cap to the governor.
Turn the gas supply to the unit OFF at the stopcock and disconnect the manometer (U tube). Ensure that
the pressure test point screw is refitted.
Turn the gas supply to the appliance on at the stopcock and leak test the pressure test point.
Burner Aeration
The aeration of all the burners is fixed and does not need adjusting.
The parts protected by the manufacturer or his agent are not to be adjusted by the installer.
This appliance must be equipotentially earth bonded.
Manual Part No: 931763-01 MV1 Gas Chargrill - 16 –
Manual Rev No: 1
USERS INSTRUCTIONS
Important Note!
The attention of the user is drawn to the requirements of the GAS SAFETY (INSTALLATION & USE)
REGULATIONS 2000. This appliance MUST be used in accordance with those, particularly so in respect
of the need for regular servicing.
The attention of the user is also drawn to the requirement that those parts, which have been protected
by the manufacturer or his agent, are not to be adjusted by the user.
See also the sections of this manual referring to Cleaning and General Maintenance.
Safety Note:
This appliance is intended for professional use and shall only be used by qualified personnel.
Parts and surfaces of this appliance get hot in use. It is the responsibility of the kitchen supervisor to
inform and warn every user and kitchen worker of this and, furthermore, to ensure those users wear and
use protective clothing when operating the appliance.
Should any adjustment or attention be necessary, you are advised to contact your nearest CORGI
(Confederation for the Registration of Gas Installers) Service Engineer immediately. The need for regular
servicing is detailed in the GAS SAFETY (INSTALLATION & USE) REGULATIONS 2000.
IF YOU THINK THAT GAS IS ESCAPING, ACT IMMEDIATELY. SHUT OFF THE GAS SUPPLY AT THE
METER OR EMERGENCY CONTROL, CONTACT THE SUPPLIER OF YOUR GAS IMMEDIATELY.
MAKE SURE THAT ALL USERS OF THIS APPLIANCE KNOW WHERE THE GAS SUPPLY STOPCOCK IS
LOCATED FOR THE USE IN AN EMERGENCY.
Those parts, which have been protected by the manufacturer or his agent, are not to be adjusted by the
user.
Manual Part No: 931763-01 MV1 Gas Chargrill - 17 –
Manual Rev No: 1
User Instructions (cont.)
Improvements
The policy of Viscount Catering Ltd. is such that each product is subject to continual improvement. The
company reserves the right to alter the design of any appliance without prior notification and without the
responsibility to update any delivered or in-service appliance and, furthermore, without incurring the
responsibility for altering these instructions. In such circumstances, it may be found that the appliance
detailed herein differs in certain respect from the one supplied.
For further details or enquiry’s please contact:
Viscount Catering Limited,
Provincial Park,
Nether Lane,
Ecclesfield,
Sheffield,
S35 9ZX
Tel: +44 (0) 114 2570100
Fax: +44 (0) 114 2570251
Users Instructions (cont.)
Lighting Instructions:
1) Look through Brander plate push in the appropriate control knob and turn it anti-clockwise to
the spark position .
2) Repeatedly press the piezo igniter button until pilot is alight.
3) Keep knob depressed for a further 20 seconds until flame is established.
4) If flame is extinguished on releasing knob, wait 3 minutes then repeat steps 1, 2 & 3.
5) To turn down or lower the heat, turn the gas tap knob anti-clockwise from full flame until the
required temperature is reached. Turning fully anti-clockwise to the small flame position is the
lowest setting.
6) Repeat for all the other controls.
NOTE!When first lighting the appliance or after installation or after an extended shut-down period, it
may be necessary for gas control knob to remain pushed in for some time before burner will light, owing
to the presence of air in gas line.
To Turn Off:
Turn the gas tap knob fully clockwise (beyond the “Full On” position) to the “Off” position λ.
The brander bars have integral drain channels to both sides and are reversible to give two-position
height. They are fitted as a set of four (600mm) and a set of six (900mm).
Manual Part No: 931763-01 MV1 Gas Chargrill - 18 –
Manual Rev No: 1
Manual Part No: 931763-01 MV1 Gas Chargrill - 19 –
Manual Rev No: 1
Users Instructions (cont.)
Cooking Guide
The times given below are a guide based on the branding bars placed in the lowest position. These can
be reversed to raise them by approximately 20mm. Timings will also vary depending on size and weight
of portion, fat content and food temperature.
Fillet Steak 150g 8 Minutes
T-Bone Steak 400g 15 Minutes
Lamb Chop 130g 10 minutes
Lamb Cutlet 120g 8 Minutes
Pork Chop 160g 14 Minutes
Gammon Steak 150g 8 Minutes
Bacon Rashers 30g 2 Minutes
Chicken Fillet 140g 8 Minutes
Chicken Drumsticks 100g 8 Minutes
Lamb’s Liver 80g 3 – 4 Minutes
Lamb’s Kidney 70g 5 – 6 Minutes
Salmon Steak 150g 8 Minutes
Rainbow Trout 180g 8 Minutes
Burgers 100g 9 Minutes
Kebabs 150g 7 Minutes
Peppers 30g 4 – 5 Minutes
It is recommended that the brander bar height is set prior to lighting the burners, this will avoid them
having to be moved once they have heated up.
Due to the high temperatures achieved on the brander bars the majority of the food cooked will stick to
the bars. To avoid this, pre-heat the brander bars with the burners on full for approximately 15 minutes
then turn down to low rate for a further 5 minutes, then lightly brush with oil.
Marinated food could be cooked without the need for any extra lubrication.
Users Instructions (cont.)
Cleaning the Equipment
Turn the unit off and allow to cool down before attempting any cleaning.
Clean stainless steel with soap and hot water or a mild detergent solution. Rinse and dry thoroughly.
DO NOT USE CAUSTIC OR ABRASIVE CLEANERS. DO NOT USE ABRASIVE PADS.
Brander bars can be removed when cold, with any burnt on food removed with a stiff brush. Any
remaining particles can be removed with a damp cloth.
Dry thoroughly and brush with vegetable oil to prvent any rusting.
The burners can be cleaned by wiping with a damp cloth.
DO NOT DISTURB THE BURNER OR THERMOCOUPLE PROBE.
DO NOT USE WATER OR A LIQUID CLEANER ON THE BURNER.
It is recommended that the interior surface is cleaned on a weekly basis using a mlld detergent solution
and dried thoroughly.
Remove the fat drawer from the front of the unit. Wash the fat drawer in a mild detergent solution and
dry thoroughly, replace drawer.
Remove the lower drip tray and wash in a mild detergent solution and dry throughtly.
General Maintenance and Care.
This equipment is designed and manufactured to give you long, satisfactory service at low cost, provided
that it is given proper care and attention at all times. Frequent cleaning and regular checking of correct
adjustment will be rewarded by reduced operating and maintenance costs, minimum downtime, and
regular results from your cooking.
All gas taps and gas controls must operate smoothly and freely without sticking or jerking. A QUALIFIED
SERVICE ENGINEER MUST carry out re-lubrication.
WE RECOMMEND THAT ALL EQUIPMENT IS SERVICED AT LEAST ONCE A YEAR, BUT MAY BE AS
FREQUENT AS 6 MONTHS OR LESS IF THE GAS TAPS DO NOT OPERATE FREELY. ALL WORK MUST BE
CARRIED OUT BY A QUALIFIED SERVICE ENGINEER.
SERVICE INTERVALS CAN BE AFFECTED BY SPILLAGE AND SHOULD BE ASSESSED EACH TIME THE
EQUIPMENT HAS BEEN USED.
Manual Part No: 931763-01 MV1 Gas Chargrill - 20 –
Manual Rev No: 1
This manual suits for next models
3
Table of contents
Other Moorwood Vulcan Grill manuals
