morning station MS-T7 Owner's manual

» Please read this user manual before using the device to ensure safe and proper use.
Vehicle Video Recorder |Quick User Manual
MS-T7

Introduction
This quick user manual shows how to use the device and main functions of the device. Please read this quick
user manual before using the device. Also, please store this quick user manual in an easy-to-reach place for your
convenience. To get download the user manual for more information, refer to our website www.morningstation.com .
Copyright
SDsystem, Co., Ltd. has intellectual property rights including copyright for Morning Station and this quick user
manual. No part of this quick user manual may be used, photocopied, or distributed or shown to a third party
without the prior written permission of SDsystem, Co., Ltd.
Disclaimer
Specifications and documents are subject to change without notice. SDsystem, Co., Ltd. does not warrant this
document is error-free. SDsystem, Co., Ltd. assumes no liability for damage incurred directly or indirectly from
errors, omissions, or discrepancies between the device and the documents.

Safety information 1
Instructional icons 1
WARNING 2
CAUTION 4
Package components 6
Product specification 9
Getting started 10
Device layout 10
Mounting the Micro SD cards 12
Insert the Micro SD card 13
Remove the Micro SD card 14
Mounting the USIM card 15
Insert the USIM card 15
Remove the USIM card 16
Installing 17
Device installation layout (recommend) 18
Installing the main device 19
Installing the cameras 22
Installing the GPS 25
Installing the E-call kit 26
Mount the SD cards and USIM card 27
Connect constant power cable 28
Device status 29
Operation modes 29
LED Status display 30
Video recording 31
SD card memory proportion per settings 31
Table of contents

Safety information 1 Quick User Manual
Safety information
Please read this safety information carefully before you use the device. Follow the warning and caution to prevent
any unexpected risks or property damage.
Instructional icons
WARNING
Situations that may cause injury or death in case of failure to follow the instruction.
CAUTION
Situations that may cause injury or property damage in case of failure to follow the instruction.
Useful information for operation of the device.
To indicate on the rating plate that the equipment is suitable for direct current only; to identify
relevant terminals.

Safety information MS-T7
2
WARNING
Failure to comply with safety warnings and regulations may cause serious injury or death.
• Do not disassemble, repair, or modify the device
yourself.
It can cause fire, electric shock, or malfunction. For internal
inspection and repair, contact the SDsystem, Co., Ltd.
Service Representative or the sales headquarter.
• Do not operate the device while driving.
It can cause an accident. Stop or park your car in a safe
place to operate it.
• If any foreign matter gets inside the device, stop
operating straightaway.
Contact the SDsystem, Co., Ltd. Service Representative or
the sales headquarter for repair.
• Do not store it in an environment with high humidity or
liquids.
For repair, contact the SDsystem, Co., Ltd. Service
Representative or the sales headquarter.
• Make sure the power is turned off when attaching or
detaching the rear camera.
It can cause malfunction.
• Make sure the power is turned off when installing the
device.
It can cause an accident or electric shock when installing
the device while the power is on.
• Do not install the device where it can interfere with the
driver’s vision.
It can cause an accident.
• Do not operate the device when the malfunction is
founded in the device.
• If the device is used beyond the optimal temperature
range (0°C ~ 60°C), performance can decline or
malfunction can be caused.
• Avoid exposing the device to high temperature such as

Safety information 3 Quick User Manual
microwave ovens, stoves, or hair driers.
It can cause explosion or malfunction when overheated.
• Avoid exposing the device to direct sunlight in summer.
It can cause fire or malfunction.
• Use only accessories provided by the manufacturer.
Using generic accessories may cause the device to
malfunction or an accident.
• Do not install the device where it can interfere with the
vehicle system such as an air bag restraint system.
The vehicle system can be interfered, and may cause
physical injury.
• Use the correct input voltage.
Otherwise it can cause explosion, fire, or malfunction.
• Make sure that the device is installed properly.
The device can fall as a result of vibration, and may cause
physical injury.

Safety information MS-T7
4
CAUTION
Failure to comply with safety cautions and regulations can cause injury or property damage.
• Do not drop or cause an impact to the device.
It can cause damage or malfunction.
• Do not use your device for a while if the device is
overheated.
Prolonged exposure of your skin to an overheated device
may cause low temperature burn symptoms.
• In the circumstance with excessive light change, the
recorded video can be distorted.
While entering or exiting a tunnel, in the excessive change
of brightness, or in the excessive backlight, the quality of
recorded video can deteriorate.
• Do not operate the device with wet or oil-stained hands.
It can cause damage or malfunction.
• Clean the lens regularly.
Foreign material attached to the lens can affect the
recording quality.
• Excessively tinted glass can distort the recorded video
or cause it to be indistinct.
• The event recording may not be generated when an
impact is not enough intensity.
You may change the sensitivity of the impact detection from
the settings.
• Do not operate the device with pointed objects such as
awls or nails.
It can cause damage or malfunction.
• Do not store your device near magnetic fields.
It can cause damage or malfunction.
• Check the device, Micro SD card, and recording
capability periodically and replace it as necessary.
When the malfunction is found, stop operating and contact
the SDsystem, Co., Ltd. Service Representative or the sales
headquarter.

Safety information 5 Quick User Manual
• Back up important data to other storage media.
It is required to back up important data regularly to other
separate storage media to store safe for long time.
• If you want to connect the device with the constant
power cable, the installation must be serviced by a
professional car mechanic.
• The battery of the vehicle may discharge while in long
term parking.
• Risk of explosion if battery is replaced by an incorrect
type.

Safety information MS-T7
6
Package components
The product package has the following package components:
• Pictures of the components may differ from the actual ones.
• To enhance the performance of the device, components may be changed without prior notice.
• To download the dedicated PC viewer, APPs, firmware and manuals, login to the user webpage.
2
6
1
5
3
4
BAT(+)
ACC(+)
GND

Safety information 7 Quick User Manual
No. Description
1Body (including antenna) Body of the device.
2Body holder Used to fix the body.
3Front view camera (3 m) Camera to be Installed on the front of the vehicle.
4External GPS (3 m) GPS unit that sends the vehicle’s location information.
5Power supply cable (5 m) Long cable used to supply power.
6Key Key used to lock the front cover on the device. With locked, the driver cannot extract
a set of SD cards.

Safety information MS-T7
8
The optional components are as follows:
No. Description
1Rear view camera
(IR waterproof camera)
Camera to be installed to record the internal/rear view.
2Front view camera (3 m) Camera to be installed to record the front view.
3Extension cables Different lengths of cable to supply to the cameras. 4/8/12 m cables available.
4Emergency button (voice call kit) Used for emergency call.
5Dome camera case Camera protection.
6Right angle connector Provides more space during installation stage.
2 3 4 5 61

Safety information 9 Quick User Manual
Product specification
The specifications of the product are as follows:
Device Specifications
Channel Max 2 channels GPS Type External
Video CAM 1 / CAM 2 HD 15 FPS Speed 1 Hz / 9600 bps
Viewing Angle CAM 1 140° Sensor G-Sensor 3-axis Accelerometer
CAM 2 162° (IR / IP67) Tamper Sensor 2 Tamper Detection
Sensors
Camera Cable Type MCX MIC Internal / External
Length Max. 15 m Speaker Internal / External
Video Format AVI (H.264, Audio: PCM)
Storage Type Dual Micro SD Card LED 3 Status indication LEDs
Capacity Max. 128 GB (64 GB X 2 Slots) Battery 2,000 mAh Li-Ion Battery
Locker Key Type Operation Temperature -20 to 60 °C
Network Type LTE / 3G Dimension/Weight 145 x 87 x 37.5 mm / 205.6 g
Frequency 800 - 2,600 MHz Certification CE, RoHS, NOM
Antenna Dual External Helical Antenna Language English
SIM USIM

Getting started MS-T7
10
Getting started
Device layout
Learning the name of the parts will assist you when you install the device and check how to use it.
Front View
1 Antenna : Double helical antenna for network connection
2 LED light signal : RED - device on/off,
GREEN - cam is recording,
BLUE - connected to network
3 This lock needs a key to get access to the data
4 R : Reset Pinhole
5 P : Power off Pinhole (Only works when using internal battery)
6 Bluetooth dongle slot for OBD scanner
7 Double SD card slots : 128GB of data can be stored
8 Sim card slot : data are sent via 3G/4G network
1
2
3 7 85
4
6

Getting started 11 Quick User Manual

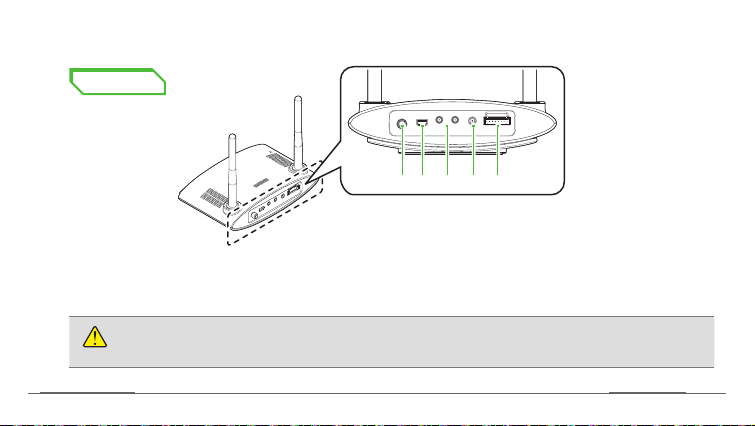

Rear View
1 2 3 4 5
1 GPS slot for receiving location info
2 HDMI port is only used for testing
3 Cam slots for front & rear cameras
4 Power cord slot
5 E-button slot for emergency voice call
CAUTION
When removing the connectors from their slots, you must hold the very end part of the connectors when
pulling them out.

Getting started MS-T7
12
Mounting the Micro SD cards
CAUTION
• Be sure to use a Micro SD card with UHI-1/class 10/16-64 GB.
• Be sure to use a same types of Micro SD cards for dual slots. ie UHI-1 & UHI-1 or class 10 & class 10.
• You can insert the Micro SD card regardless of the device’s power status.
• When the SD card is removed while the device is turned on (not recommended), the alert will sound and the device
may not finish recording the final file. And the data may be damaged or malfunction caused.
• The Micro SD cards are not inserted upside down. Do not apply force to the insert them.
• Note that the Micro SD card is a consumable item. Therefore it may needs to be replaced once in a while.
• Note that when the Micro SD card (as well as cable and SIM card) is removed from its slot, the error sound (three
beeps) is generated.

Getting started 13 Quick User Manual

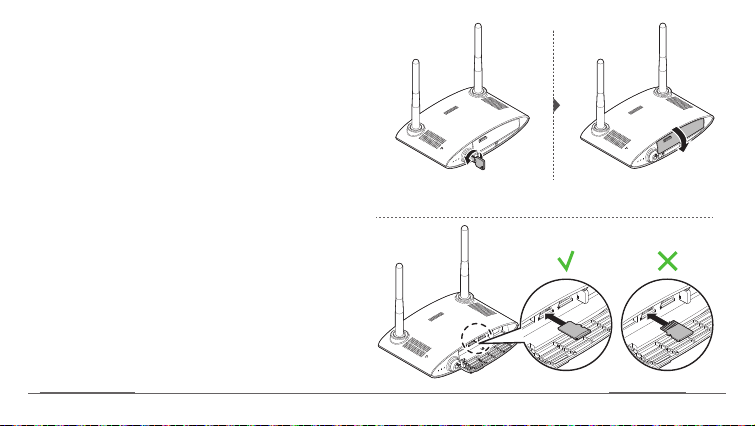

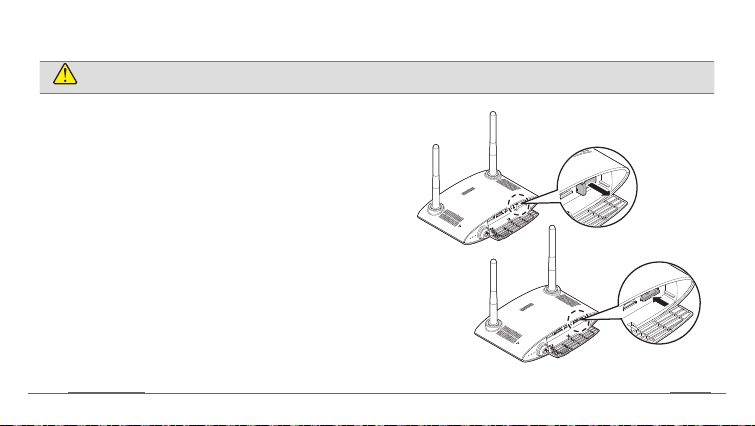

]Insert the Micro SD card
1. Open the cover of the Micro SD card slot.
2. Insert the Micro SD card with the gold-colored
contacts facing downward until it locks into the
slot with a click sound.
3. Close the cover of the Micro SD card slot.

Getting started MS-T7
14

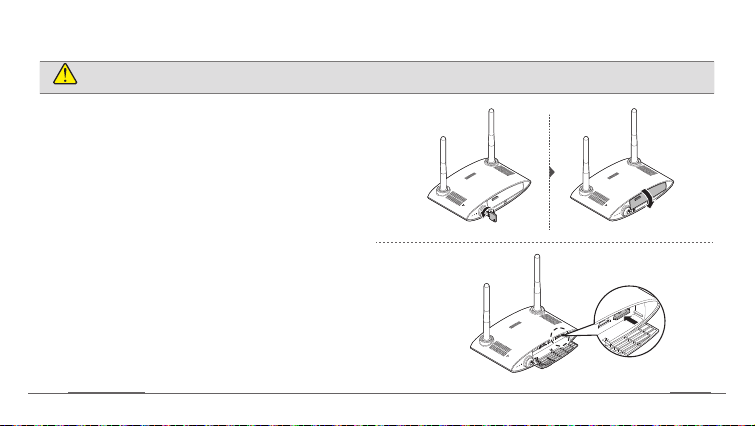

]Remove the Micro SD card
CAUTION
Be careful not to damage your fingernails when you open the card slot.
1. Open the cover of the Micro SD card slot.
2. Push the top edge of the Micro SD card inwards
with your fingertip to release it, and pull it out of
the slot.
»Make sure that the Micro SD card doesn’t pop out
while trying to remove it.
3. Close the cover of the Micro SD card slot.

Getting started 15 Quick User Manual
Mounting the USIM card
]Insert the USIM card
1. Open the cover of the USIM card slot.
2. Insert the USIM card with the gold-colored contacts
facing downward until it locks into the slot.
3. Close the cover of the USIM card slot.
»You can only insert the standard(mini) USIM card size.

Getting started MS-T7
16
]Remove the USIM card
CAUTION
Be careful not to damage your fingernails when you open the card slot.
1. Open the cover of the USIM card slot.
2. Push the top edge of the USIM card inwards to
release it, and pull it out of the slot.
»Make sure that the USIM card doesn’t pop out while
trying to remove it.
3. Close the cover of the USIM card slot.
