Morris Whitehall Podiatry P-10-S User manual

6900-194-001_REV_B
Revised: 08-11-2020
User Manual
Stationary Models
Podiatry P-10-S, P-15-S, P-22-S
Extremity E-15-S, E-22-S, E-22-SP, E-27-S, E-45-S
Hi-Boy H-60-S, H-75-S, H-90-S, H-105-S
Lo-Boy L-75-S, L-90-S, L-105-S, L-105-SL
Sports S-85-S, S-85-SL, S-90-S, S-90-SL, S-110-S, S-110-SL
Slant Back SB-100-S
P.O. Box 3527 •City of Industry, CA 91744-0527 U.S.A.
800-782-7706 •626-968-6681 •www.whitehallmfg.com
S-110-SL
E-27-S
E-22-SP

WHITEHALL MANUFACTURING •P.O. BOX 3527 •City of Industry, CA 91744-0527 U.S.A.
Phone [phone] •[phone] •Fax [phone] •www.whitehallmfg.com
2
The information in this manual is proprietary and confidential to Whitehall Manufacturing, a
division of Acorn Engineering and a member of Morris Group International. Any
reproduction, dissemination or distribution of this document in whole or in part without prior
written authorization of Whitehall Manufacturing is strictly prohibited. While every effort has
been made to ensure the accuracy of information provided in this document, please note
the information is subject to change without notice.

WHITEHALL MANUFACTURING •P.O. BOX 3527 •City of Industry, CA 91744-0527 U.S.A.
Phone [phone] •[phone] •Fax [phone] •www.whitehallmfg.com
3
Contents
Symbols..............................................................................................................................................4
Warnings.............................................................................................................................................5
Intended Use......................................................................................................................................7
Contraindications...............................................................................................................................7
User Skills...........................................................................................................................................7
Device Description............................................................................................................................8
Options and Accessories.................................................................................................................9
Facility Requirements.....................................................................................................................11
Instructions.......................................................................................................................................14
Installation Instructions..................................................................................................................14
Operating Instructions....................................................................................................................16
Draining Instructions .....................................................................................................................17
Thermometer Calibration Instructions...........................................................................................19
Disinfecting and Cleaning Instructions..........................................................................................20
Turbine Maintenance......................................................................................................................22
Troubleshooting...............................................................................................................................22
Classification....................................................................................................................................23
Specifications...................................................................................................................................23

WHITEHALL MANUFACTURING •P.O. BOX 3527 •City of Industry, CA 91744-0527 U.S.A.
Phone [phone] •[phone] •Fax [phone] •www.whitehallmfg.com
4
WARNING
READ AND UNDERSTAND THIS ENTIRE MANUAL BEFORE OPERATING THE WHIRLPOOL
Failure to follow the instructions in this manual could result in Whirlpool damage and/or bodily injury
Symbols
Waste Electrical and Electronic Equipment (WEEE)
Indicates that the product must not be disposed of with regular waste. It is the customer’s responsibility to
dispose of waste equipment according to local laws. For information about where to drop off the waste
equipment for recycling, contact your local waste collection authority.
General Warning or Caution
Indicates personal injury or damage to the equipment is possible
Electric Shock
Indicates a hazard arising from dangerous voltage. Any mishandling could result in irreparable damage to
the equipment and/or personal injury or death.
Refer To Manual (Instructions for Use)
Indicates that user manual shall be referred to before performing any installation, operation or maintenance
Alternating Current
Indicates alternating current is present
Manufacturer
Indicates manufacturer of device
Manufacture Date
Indicates manufacture date of device
Authorized representative in the European Community
Indicates the authorized representative in the European Community

WHITEHALL MANUFACTURING •P.O. BOX 3527 •City of Industry, CA 91744-0527 U.S.A.
Phone [phone] •[phone] •Fax [phone] •www.whitehallmfg.com
5
Warnings
Treatments:
•Whirlpools are intended for use by a medical professional only, e.g., Physiotherapist,
Physical Therapist, Rehabilitation Therapist, Athletic Trainers, Podiatrist.
•During treatment, the medical professional must stay with patient at all times.
•For Whirlpools that support that the entire mass of the patient, the maximum allowable
patient mass is 135 kg (298 lbs).
•Ensure water in tub is no greater than 43.3ºC (110ºF). Higher temperatures may result
in injury to patient.
•Treatment should terminate if the patient experiences dizziness, light-headedness,
shortness of breath, or nausea.
•To avoid patient cross-infection, drain and clean hydrotherapy equipment after each
patient’s use, and disinfect equipment surfaces and components by using an EPA-
registered product in accordance with the manufacturer’s instructions.
Operation:
•Use of this equipment adjacent to or stacked with other equipment should be avoided
because it could result in improper operation. If such use is necessary, this equipment
and the other equipment should be observed to verify that they are operating normally.
•Use of accessories and cables other than those specified or provided by the
manufacturer of this equipment could result in increased electromagnetic emissions or
decreased electromagnetic immunity of this equipment and result in improper
operation.
•Use only Whitehall-approved items on the Whirlpool.
•Portable RF communications equipment (including peripherals such as antenna cables
and external antennas) should be used no closer than 30 cm (12 inches) to any part of
the Whirlpool, including cables specified by the manufacturer. Otherwise, degradation
of the performance of this equipment could result.
•If there is visible damage to the Whirlpool or packaging upon receipt, report this
damage to shipping company and Whitehall. Do not use the Whirlpool if damage to it
is suspected.
•Operate with the bottom of the turbine submerged in at least 15.2 cm (6 inches) of
water.
•Keep hair and loose items (gown straps, gauze, etc.) out of the tub. These items can
be pulled into the pump and cause injury or damage to the turbine.
•Use the Whirlpool only for the purpose described in this manual.
•Position the Whirlpool so that the power cord is easily accessible.

WHITEHALL MANUFACTURING •P.O. BOX 3527 •City of Industry, CA 91744-0527 U.S.A.
Phone [phone] •[phone] •Fax [phone] •www.whitehallmfg.com
6
•To avoid damage to the thermometer, do not drop the thermometer or expose it to
temperatures above 60°C (140°F).
•No parts shall be serviced or maintained while in use with a patient.
•To avoid the risk of electric shock, this equipment must only be connected to a supply
mains with protective earth.
•Connect the power cord to a Ground Fault Circuit Interrupter (GFCI) medical grade
receptacle.
•No parts of the Whirlpool, including the power supply cord, are repairable or
replaceable by service personnel.
•No modification of the Whirlpool is allowed.
•To protect stainless steel surfaces, use soft water (i.e., water with low concentrations of
ions and in particular low in ions of calcium and magnesium) in the tub.

WHITEHALL MANUFACTURING •P.O. BOX 3527 •City of Industry, CA 91744-0527 U.S.A.
Phone [phone] •[phone] •Fax [phone] •www.whitehallmfg.com
7
Intended Use
Whitehall Whirlpools are intended to facilitate hydrotherapy. Tub size, water temperature,
and water circulation requirements are determined by the medical professional treating the
patient.
Whirlpools are intended for use in professional healthcare and supervised athletic training
facilities only.
Muscle or joint pain are the typical indications for hydrotherapy, and Whirlpools can be
used for any part of the body below the neck. Suitability of treatment is determined by the
medical professional treating the patient.
Contraindications
Patient Groups in which hydrotherapy is contraindicated:
· Active infection anywhere in the body
· Open wounds
· Loss of temperature sensation
· Hydrophobia
· Heat or cold intolerance
· Poor balance
· Kidney failure
Safety & Effectiveness has not been established in patients:
· With Cancer: Caution is advised when treating patients with cancer. It is best to
work with the consent of a physician.
· Who Hemorrhage: Caution is advised when treating a patient who has a tendency
to hemorrhage. Applications of heat and cold which cause vasodilation, which
increases the possibility of hemorrhage.
· Who are Pregnant: Caution is advised when treating someone who is pregnant.
Consult the patient’s healthcare provider with any questions or concerns you may
have.
User Skills
The medical professional using the Whirlpool must have the following skills:
•The ability to assist the patient
•Knowledge of hydrotherapy protocols
•To have read and understood this manual

WHITEHALL MANUFACTURING •P.O. BOX 3527 •City of Industry, CA 91744-0527 U.S.A.
Phone [phone] •[phone] •Fax [phone] •www.whitehallmfg.com
8
•To have become familiar with the Whirlpool before using it with a patient
Device Description
The Whirlpool consists of a welded stainless steel tub for holding water and a turbine
assembly mounted to the side of the tub. The turbine assembly is a motor-operated
centrifugal pump that circulates the water. The pump position can be adjusted up or down
and rotated to change the position of the water outlet, then locked with a handle. The tub
can be supported by a full-circumference skirt (-S), legs (-SL), or post bolted to the floor (-
SP). For –S and –SP models, water is drained by opening the drain valve to a fixed drain.
For –SL models, water is drained by either redirecting the water flow to the drain hose on
the turbine and then to a sink, by turning on the optional separate drain pump (-SDP) and
then draining to a sink or floor drain, or by opening up the drain valve under the tub to the
floor, after which the water will flow to a nearby floor drain. The interior of the tub and tub
rim are considered Type B Applied Parts, since they are likely to be touched by the
patient.
Water temperature may be adjusted by the operator depending on the desired treatment.
A thermometer mounted to the side of the tube is included with the Whirlpool. The
Whirlpool does not control water temperature.
For smaller Whirlpools, the patient sits comfortably next to the tub and places their
extremity (hand, foot, arm or leg) in the tub. For larger Whirlpools, the patient can enter
the tub and sit inside.

WHITEHALL MANUFACTURING •P.O. BOX 3527 •City of Industry, CA 91744-0527 U.S.A.
Phone [phone] •[phone] •Fax [phone] •www.whitehallmfg.com
9

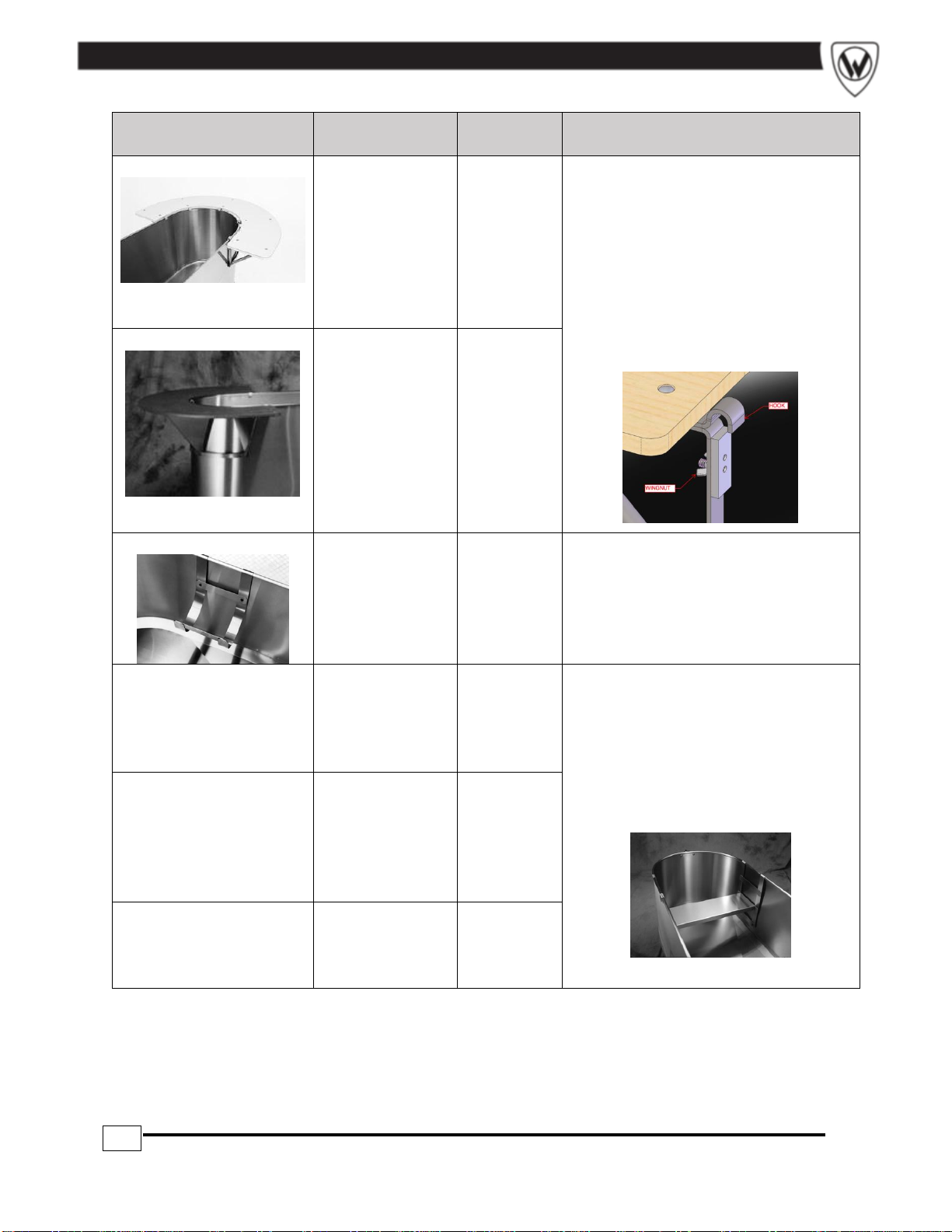

Options and Accessories
The following options are incorporated into the Whirlpool device and are not
detachable.
#
Description
Used on Models
SDO
Separate Drain and Overflow
Assembly
All –S models
SDP
Separate Drain Pump
All -SL models
GFI
Ground Fault Circuit Interruption
Cable
All
EGXX, where XX
indicates the color of
the powder coat
Powder Coat Paint
All except Slant Back
LOGO
Logo selected by customer
All except Slant Back
The following accessories are available:
#
Description
Used on
Models
Instructions
RS
Reclining Seat
L-75-S
L-90-S
L-105-S
L-105-SL
Hang seat on back edge of tub as
shown. Bottom of seat rests on
bottom of tub. For maintenance,
see the Disinfecting and Cleaning
Instructions section.

WHITEHALL MANUFACTURING •P.O. BOX 3527 •City of Industry, CA 91744-0527 U.S.A.
Phone [phone] •[phone] •Fax [phone] •www.whitehallmfg.com
10
#
Description
Used on
Models
Instructions
TTS1
Tank Top Seat
for 508 mm (20
inch) wide tubs
H-60-S
H-75-S
H-90-S
S-85-S
S-85-SL
1. Loosen wing nuts on the lower
mounting clip assemblies
2. Position tank top seat assembly
over radius of tank and align hooks
with tank rim
3. Push up on the lower mounting clip
assemblies and tighten wing nuts
to clamp seat to the Whirlpool rim
4. For maintenance, see the Error! R
eference source not found.
section.
TTS2
Tank Top Seat
for 610 mm (24
inch) wide tubs
H-105-S
S-90-S
S-90-SL
S-110-S
S-110-SL
L-75-S
L-90-S
L-105-S
L-105-SL
ARS
Arm Rest
Support
All
Hang support on edge of tank as
shown. For maintenance, see the
Disinfecting and Cleaning
Instructions section.
AS1
Adjustable
Suspension
Seat for 508
mm (20 inch)
wide tubs
H-60-S
H-75-S
H-90-S
S-85-S
S-85-SL
Hang seat supports on sides of
tub. Hang seat on seat supports.
Adjust height of seat as desired.
For maintenance, see the
Disinfecting and Cleaning
Instructions section.
AS2
Adjustable
Suspension
Seat for 610
mm (24 inch)
wide tubs,
except Lo-Boy
H-105-S
S-90-S
S-90-SL
S-110-S
S-110-SL
AS3
Adjustable
Suspension
Seat for Lo-
Boy
L-75-S
L-90-S
L-105-S
L-105-SL

WHITEHALL MANUFACTURING •P.O. BOX 3527 •City of Industry, CA 91744-0527 U.S.A.
Phone [phone] •[phone] •Fax [phone] •www.whitehallmfg.com
11
Facility Requirements
The following are needed prior to using your Whirlpool:
•Clean water source for filling tub
•Drain plumbed per Figure 1 (-S and –SP models only), installed by licensed
plumber
•A sink or floor drain (-SL models only)
•Medical-grade GFCI receptacle, installed by licensed electrician
•Ability to install floor anchors (-S and –SP models only)
•Environmental conditions within those specified in the Specification section of
this manual
NOTE: The emissions characteristics of this equipment make it suitable for use in
industrial areas and hospitals (CISPR 11 class A). If it is used in a residential environment
(for which CISPR 11 class B is normally required) this equipment might not offer adequate
protection to radio-frequency communication services. The user might need to take
mitigation measures, such as relocating or re-orienting the equipment.

WHITEHALL MANUFACTURING •P.O. BOX 3527 •City of Industry, CA 91744-0527 U.S.A.
Phone [phone] •[phone] •Fax [phone] •www.whitehallmfg.com
12

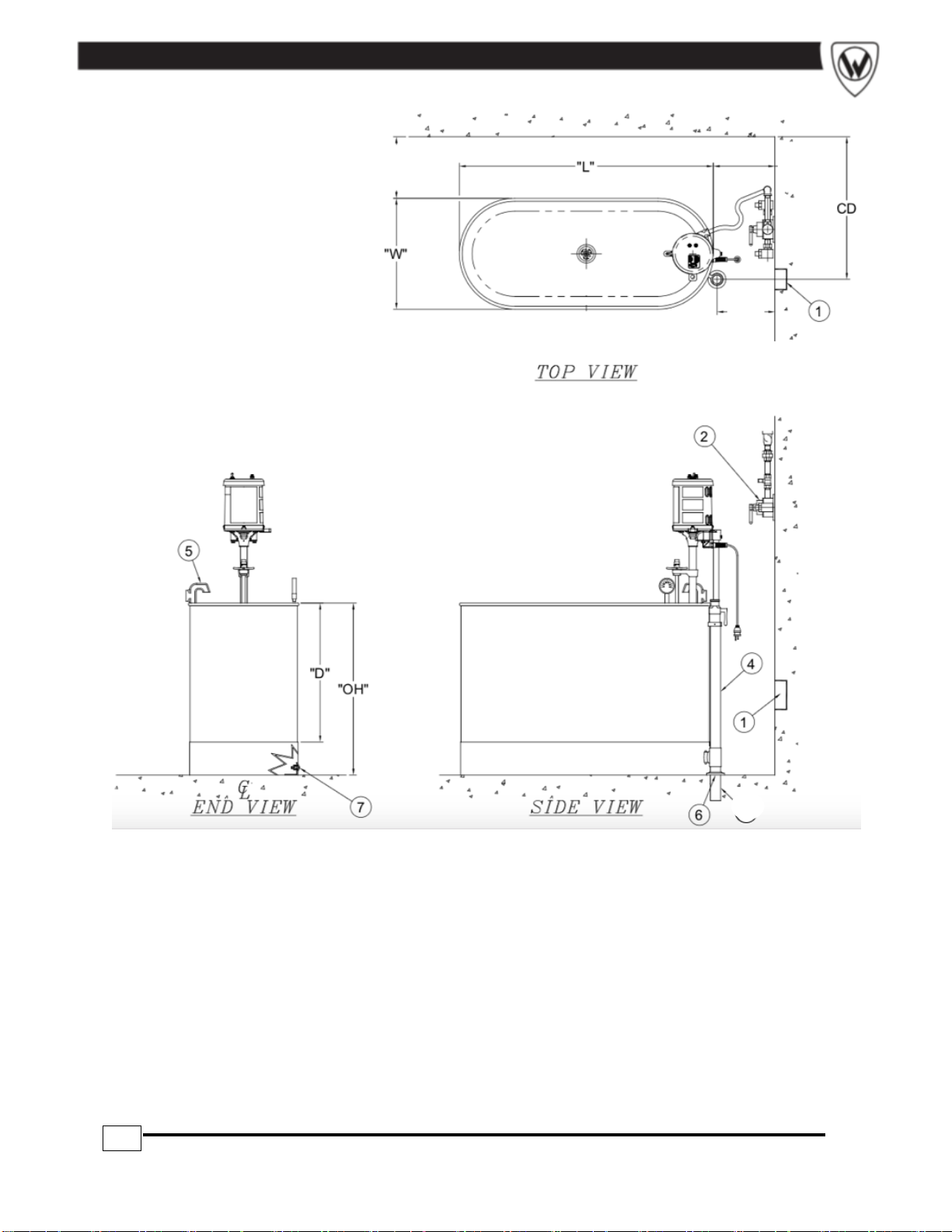

Figure 1:-S and –SP Whirlpool installation diagram - see table below for L, W, D, OH, CW, and CD values.
①Mains input (medical grade GFCI)*
⑤Filler inlet assembly
②Optional thermostatic mixing valve
⑥51 mm (2 inch) Drain*
③51 mm (2 inch) outer diameter x 127 mm (5
inch) long drain tube coupling
⑦Mounting clip assembly
④51 mm (2 inch) standard drain and overflow
assembly
* Customer provided
③
Key:
L = Length
W = Width
D = Depth
OH = Overall Height
CD = Center of Drain to Wall
305 mm
(12 in)
REC. MIN.
279 mm
(11 in)
MIN.

WHITEHALL MANUFACTURING •P.O. BOX 3527 •City of Industry, CA 91744-0527 U.S.A.
Phone [phone] •[phone] •Fax [phone] •www.whitehallmfg.com
13
Model #
Dimension, mm (inches)
L
W
D
Overall
Height
Center of
Drain to Wall
P-10-S
559 (22)
330 (13)
305 (12)
457 (18)
673 (26.5)
P-15-S
635 (25)
381 (15)
533 (21)
P-22-S
711 (28)
381 (15)
457 (18)
610 (24)
E-15-S
635 (25)
330 (13)
381 (15)
533 (21)
E-22-S
711 (28)
381 (15)
457 (18)
610 (24)
E-22-SP
864 (34)
E-27-S
533 (21)
686 (27)
E-45-S
813 (32)
635 (25)
787 (31)
H-60-S
914 (36)
508 (20)
711 (28)
864 (34)
737 (29)
H-75-S
1067 (42)
H-90-S
1219 (48)
H-105-S
610 (24)
787 (31)
L-75-S
1321 (52)
457 (18)
610 (24)
L-90-S
1524 (60)
L-105-S
1676 (66)
L-105-SL
699 (27.5)
N/A*
S-85-S
1219 (48)
508 (20)
635 (25)
787 (31)
737 (29)
S-85-SL
889 (35)
N/A*
S-90-S
1168 (46)
610 (24)
878 (31)
787 (31)
S-90-SL
889 (35)
N/A*
S-110-S
1422 (56)
787 (31)
787 (31)
S-110-SL
889 (35)
N/A*
SB-100-S
1765 (69.5)
851 (33.5)
470 (18.5)
597 (23.5)
762 (30)
*-SL models can drain either through a horizontal pipe under the tub, or via the drain hose
on the turbine assembly

WHITEHALL MANUFACTURING •P.O. BOX 3527 •City of Industry, CA 91744-0527 U.S.A.
Phone [phone] •[phone] •Fax [phone] •www.whitehallmfg.com
14
Instructions
Installation Instructions
To install tub
1. -S models:
a. Connect tub drain to installed drain line using supplied 51 mm (2 inch) drain
tube coupling and escutcheon and position the tub in desired location.
b. Trace outline of skirt on floor near the four holes (for all but slant back) or six
holes (for slant back) in the base of the skirt.
c. Mark location of holes directly below them on floor.
d. Disconnect drain tube coupling and move tub aside. Depending on the
model, 2 people may be required to move the tub.
e. Measure 19 mm (3/4 inch) inward (for all but slant back) or 32 mm (1-1/4
inch) inward (for slant back) from the lines marked in step b at the hole
locations marked in step c.
f. Remove and set aside attaching hardware from mounting clip assemblies.
g. Attach brackets to floor using 6.35 mm (1/4 inch) bolts, aligning the brackets
so they are just inward from and parallel to the line drawn in step b to allow
for the sheet metal thickness of the tub skirt.
h. Lift the tub over the brackets and attach with the bolts and washers using a
Phillips screwdriver.
i. Attach filler inlet assembly.
2. -SP models:
a. Connect tub drain to installed drain line using supplied 51 mm (2 inches)
outer diameter drain tube coupling and escutcheon and position tub in
desired location, keeping at least 30.5 cm (12 inches) clearance around
outside of tub (see Figure 1).
b. Mark bolt hole locations in post onto floor.
c. Set tub aside and install 9.53 mm (3/8 inches) anchors in floor.
d. Re-connect tub drain to installed drain line and tighten connections.
e. Attach filler inlet assembly.

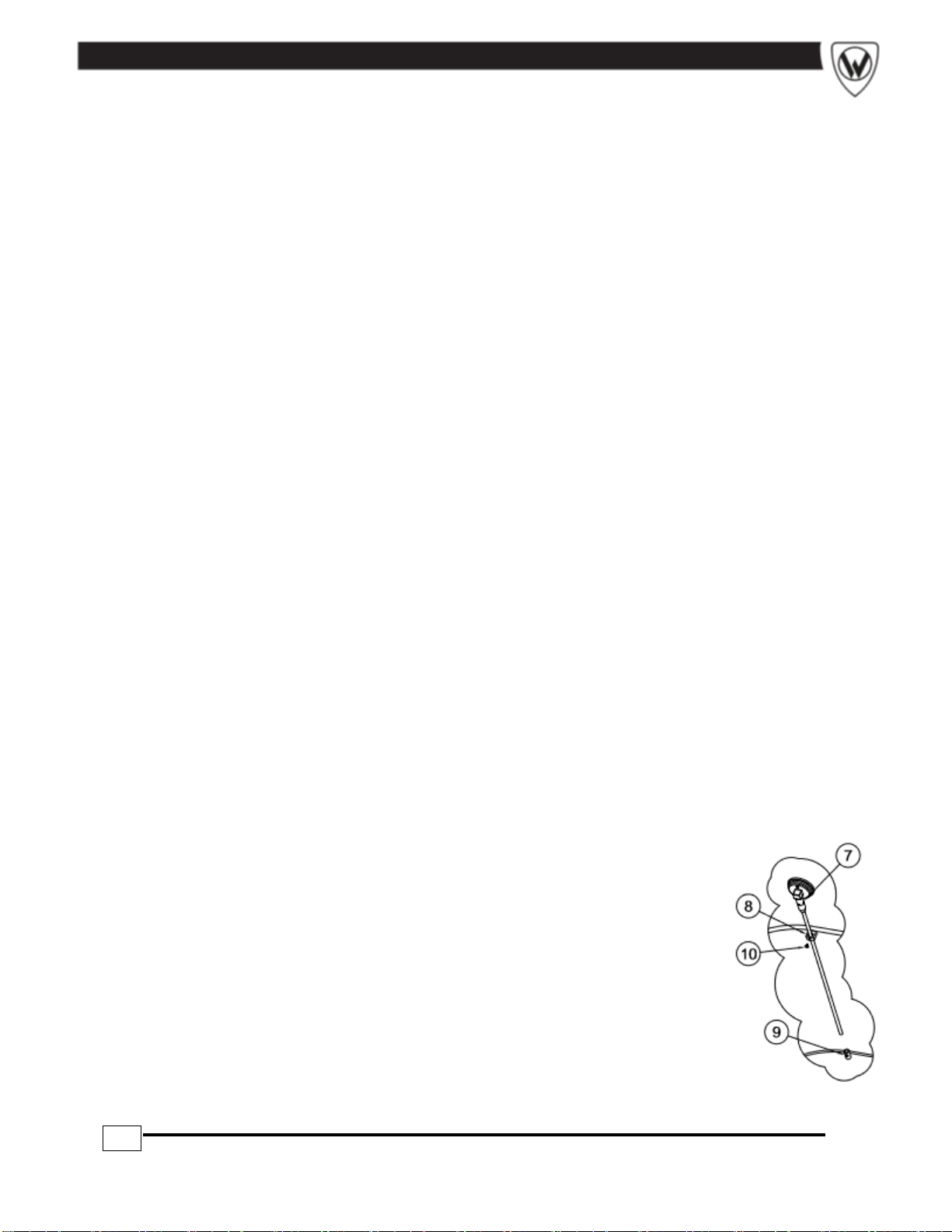

To install thermometer, insert sensing rod (7) through upper bracket
(8) and into lower bracket (9), then tighten screw (10).
Figure 2: Installing thermometer

WHITEHALL MANUFACTURING •P.O. BOX 3527 •City of Industry, CA 91744-0527 U.S.A.
Phone [phone] •[phone] •Fax [phone] •www.whitehallmfg.com
15
NOTE: The turbine assembly can weigh as much as 22 kg
(48 lbs). It is recommended that 2 people mount the turbine
assembly onto the tub.
To install the turbine (3) onto tub,
1. (Figure 3) Loosen handle (5) then lower turbine support
rod (6) into turbine support tube. Tighten handle (5)
when turbine is at desired height.
2. For –SL models (Figure 5) and -SL-SDP models (Figure
4): Place discharge nozzle (5) into storage socket (6).
For –SL-SDP models only: water will flow through hose if
discharge nozzle (5) is lower than water level.
3. Turn the pressure control valve handle (11) fully
clockwise, then fully counterclockwise to completely
lubricate the plunger assembly.
4. For –SL–SDP models only (Figure 4): Insert electrical
cord twist-lock plug (7) into socket (9) and turn clockwise
a quarter turn to lock in place.
5. Turn the turbine power switch (13) off.
6. Plug Whirlpool power cord into medical-grade GFCI
outlet.

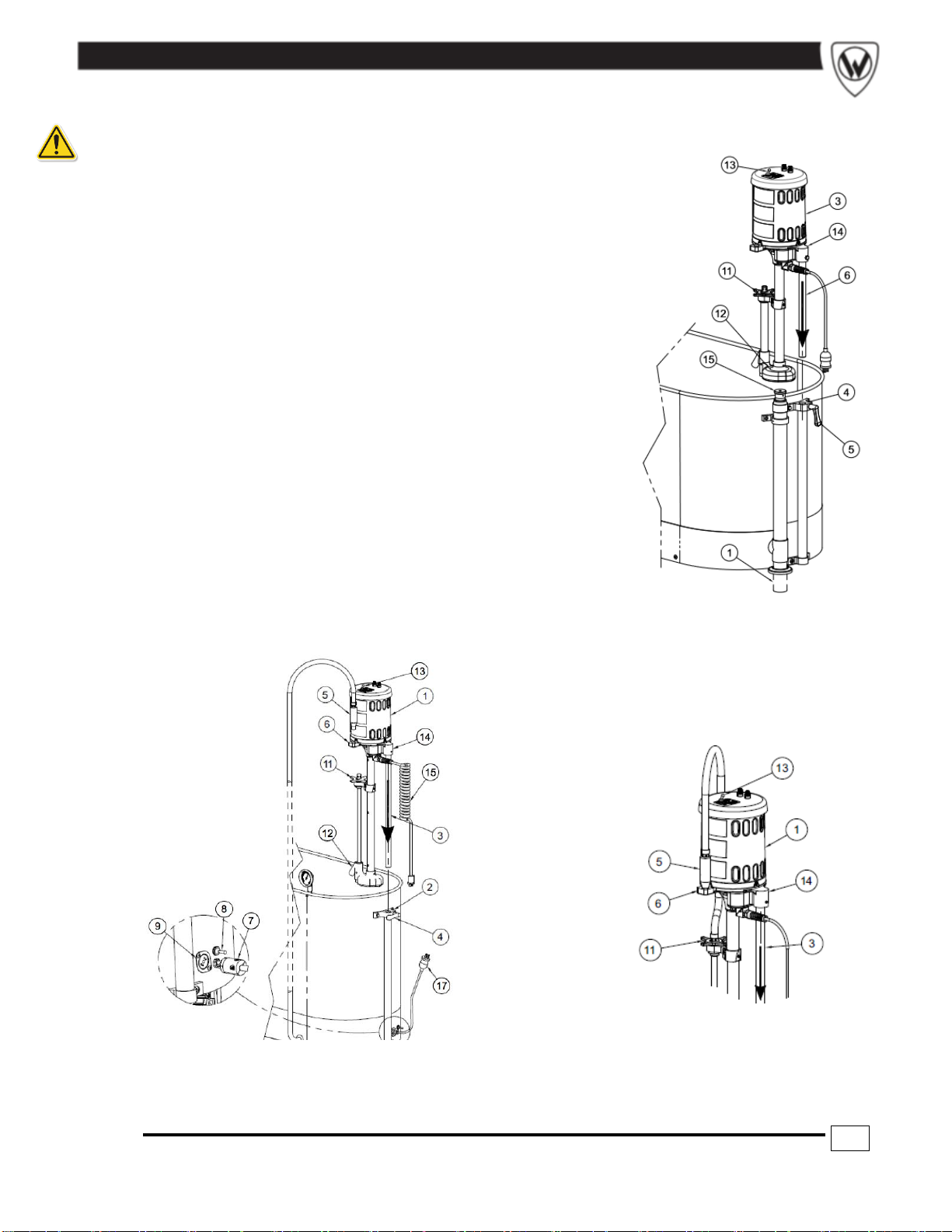

Figure 3: Installing the turbine on the tub. –S
model with standard drain and overflow shown.

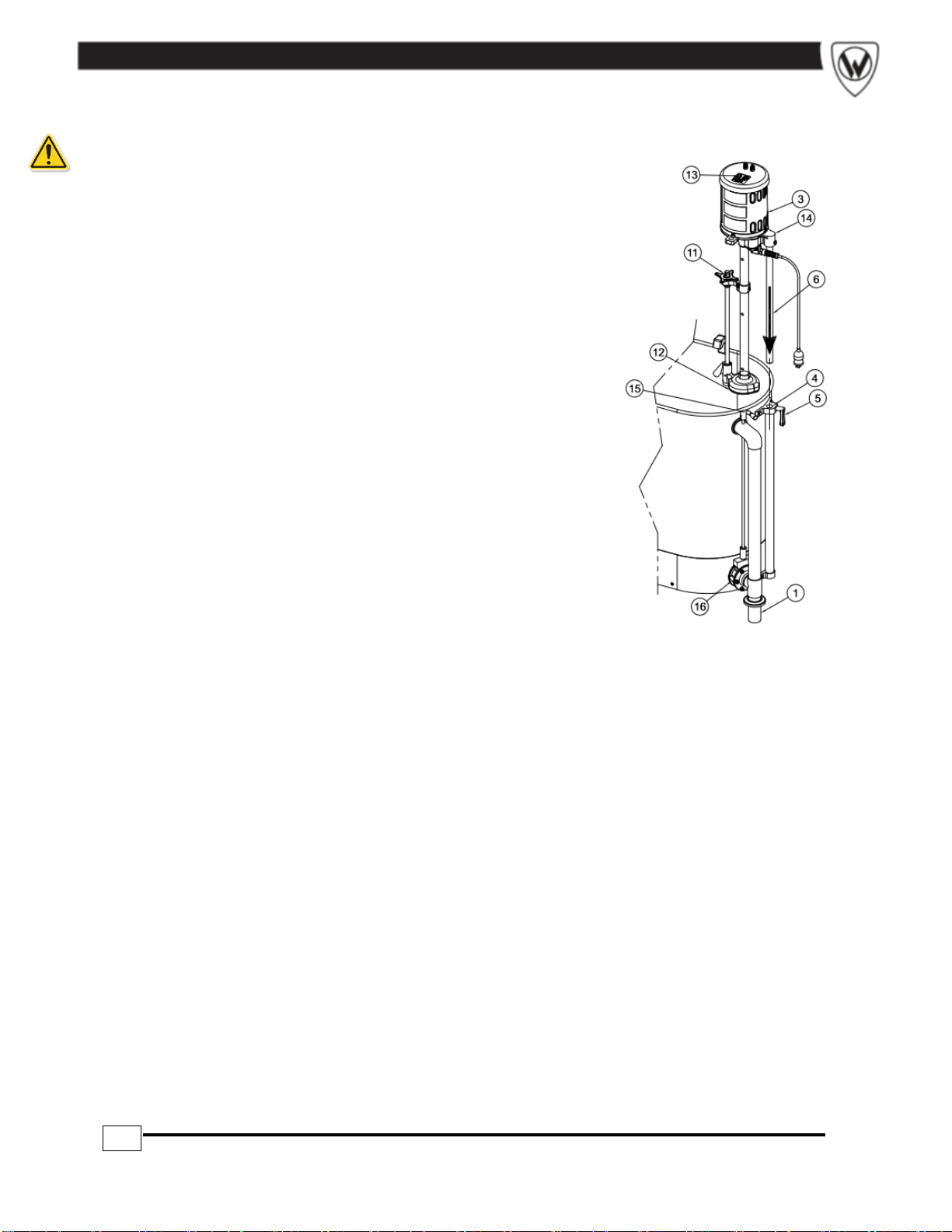

Figure 4: Detail of –SL-SDP Whirlpools
Figure 5: Detail of -SL model
without -SDP

WHITEHALL MANUFACTURING •P.O. BOX 3527 •City of Industry, CA 91744-0527 U.S.A.
Phone [phone] •[phone] •Fax [phone] •www.whitehallmfg.com
16
Operating Instructions
Refer to warnings on page 5 before operating the Whirlpool.
1. Ensure Whirlpool power cord is plugged into
medical-grade GFCI outlet.
2. Fill tub with water so that the bottom of turbine is at
least 15.2 cm (6 inches) below surface of water.
3. Turn the pressure control valve handle (11) fully
clockwise. This will generate maximum water
circulation.
4. Turn the turbine power switch (13) on.
5. Adjust position of turbine by slowly pushing down on
and rotating the top of the motor support casting (14)
until the bottom of the turbine (12) is at the desired
location. Tighten handle (5) to lock in place.
6. Adjust pressure control valve handle (11) to change
level of water circulation.
7. Turn the turbine power switch (13) off to stop
circulation.
8. To electrically isolate the Whirlpool from supply
mains, simply unplug the Whirlpool at the wall outlet,
if required.

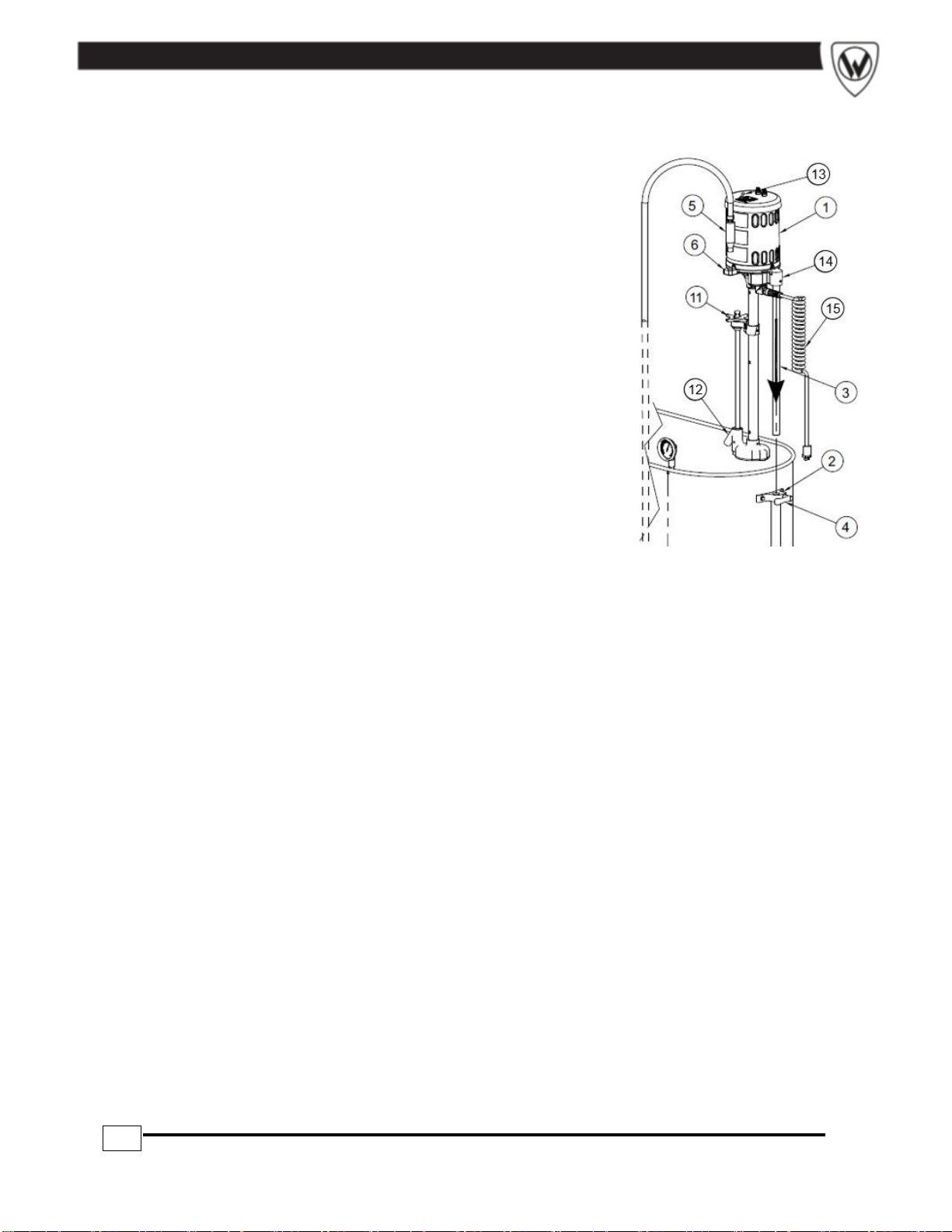

Figure 6: Operating the Whirlpool. -S model
with -SDO option shown.

WHITEHALL MANUFACTURING •P.O. BOX 3527 •City of Industry, CA 91744-0527 U.S.A.
Phone [phone] •[phone] •Fax [phone] •www.whitehallmfg.com
17
Draining Instructions
1. Turn the turbine power switch off to stop water
circulation.
2. –SL models w/o separate drain pump (Figure 7):
Either open drain valve (2) and drain to floor or
a. Lower turbine to lowest position and lock in place.
b. Lift discharge nozzle (5) from storage socket (6)
and place in sink.
c. Turn pressure control valve handle (3) fully
counterclockwise. This diverts water to the hose
(1).
d. Place and hold discharge nozzle (5) into sink
then turn the turbine power switch (4) on to start
draining to sink.
e. When water stops discharging from the nozzle, turn the turbine power switch (4) off.
f. Drain remaining water using drain valve (2) or by using a dry sponge.
3. -S and –SP models with:
a. Standard drain and overflow (Figure 8 and Figure 9): Lift combination drain and
overflow assembly handle (15).
b. Separate drain and overflow (Figure 10): Turn handle (15) clockwise to open drain
valve (16).

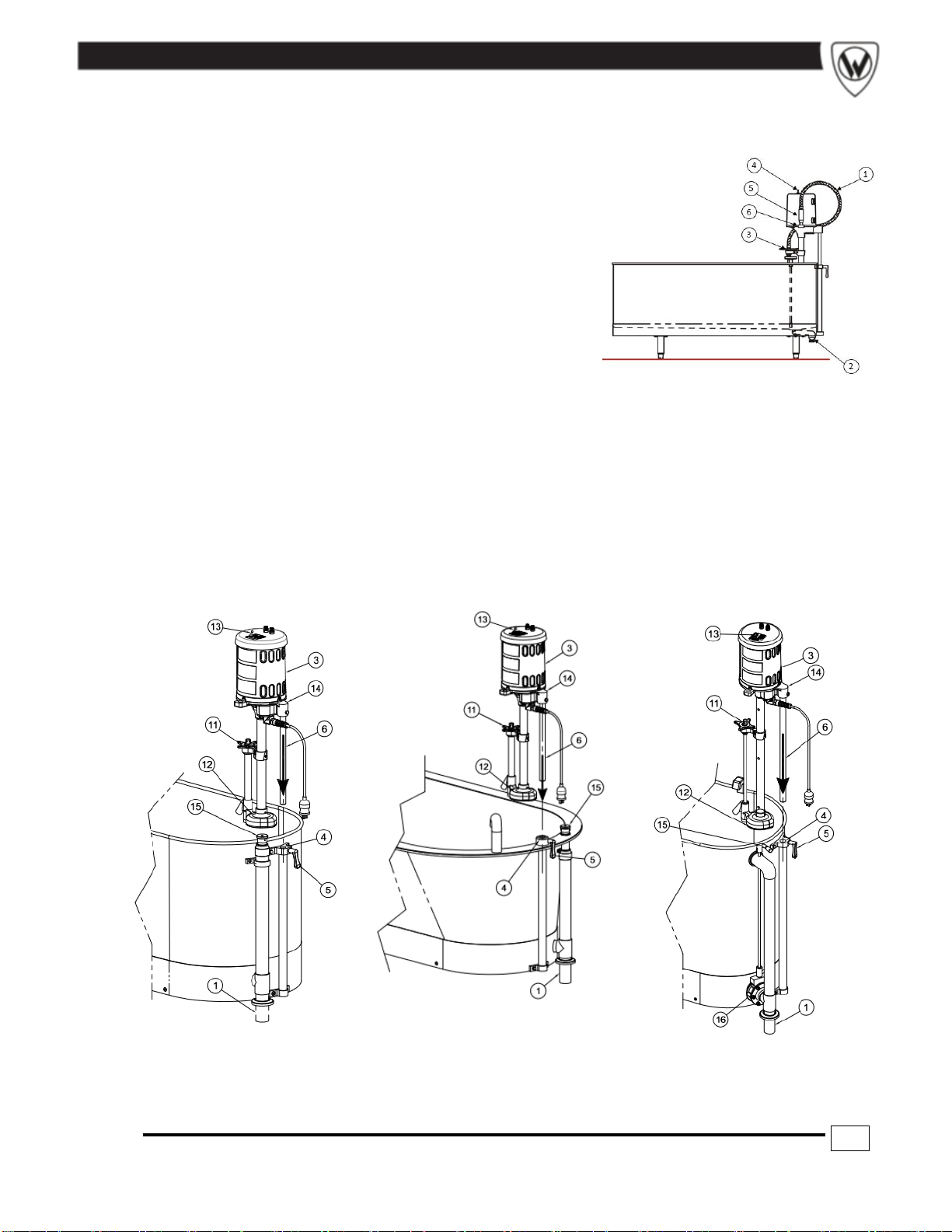

Figure 8: -S model with standard drain
and overflow
Figure 9: SB-100-S with standard drain and
overflow
Figure 10: -S model with separate
drain and overflow (-SDO)
Figure 7: Draining the tub on the -SL model

WHITEHALL MANUFACTURING •P.O. BOX 3527 •City of Industry, CA 91744-0527 U.S.A.
Phone [phone] •[phone] •Fax [phone] •www.whitehallmfg.com
18
4. –SL models with separate drain pump (-SDP, Figure 11):
a. Place discharge nozzle (5) into floor drain or sink.
b. Turn the drain pump switch (18, Figure 4) on. When
water stops discharging from the nozzle, turn the
drain pump switch off.
c. Some residual water will remain in the drain pump.
To remove this water, lower the discharge nozzle (5)
to the floor and clean with a towel or sponge.
d. Any residual water in the tub may be removed by
sponge drying.
e. Place discharge nozzle (5) into socket (6). Note:
water will flow through hose if discharge nozzle (5) is
lower than water level.
Figure 11: -SL Whirlpool with separate drain
pump (-SDP)

WHITEHALL MANUFACTURING •P.O. BOX 3527 •City of Industry, CA 91744-0527 U.S.A.
Phone [phone] •[phone] •Fax [phone] •www.whitehallmfg.com
19

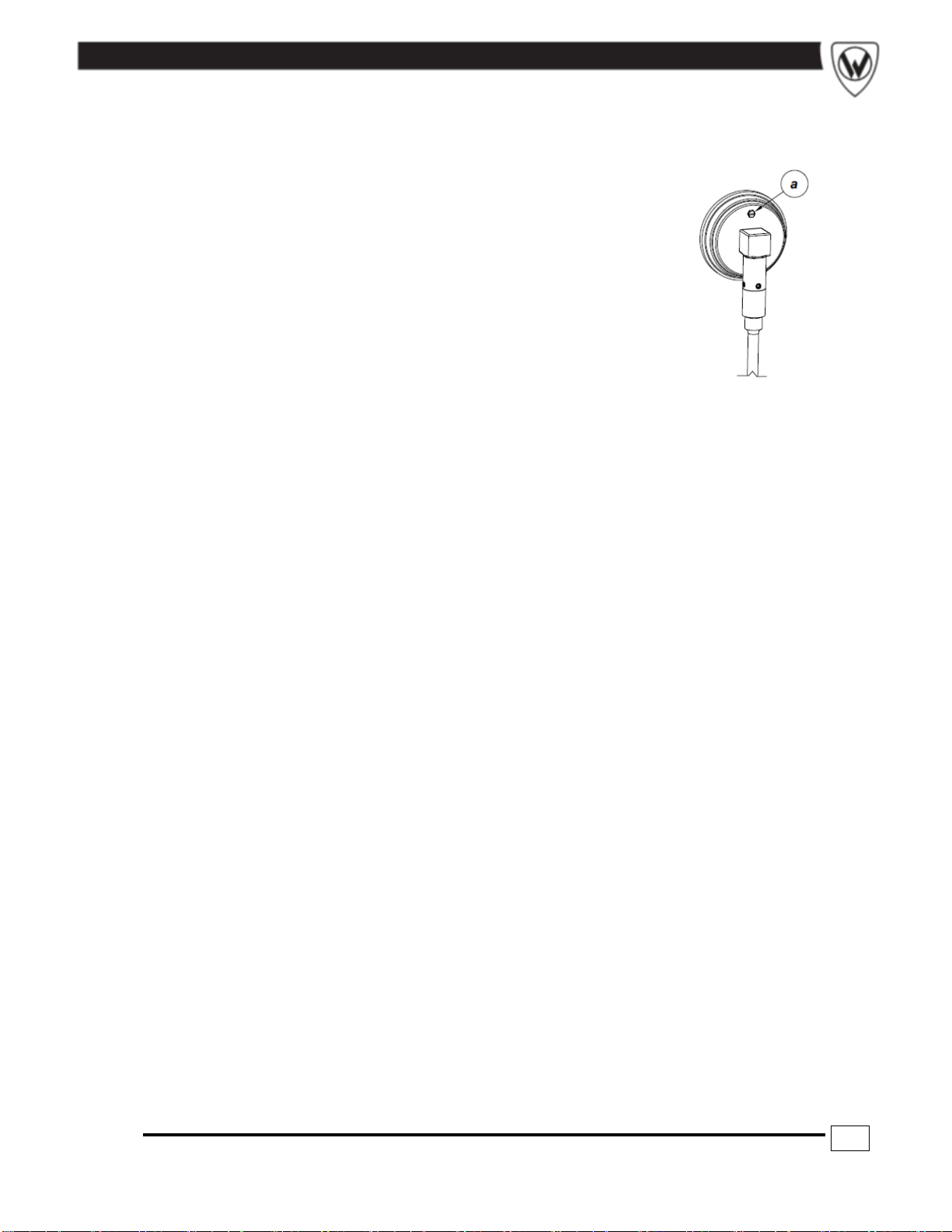

Thermometer Calibration Instructions
1. Fill the tub so that the bottom of the thermometer tip is
immersed in at least 10.2 cm (4 inches) of water.
2. Place the stem tip of a calibrated thermometer next to the tip of
the Whirlpool thermometer.
3. Turn on the turbine assembly.
4. If the reading on the Whirlpool thermometer is not the same as
that of the calibrated thermometer, turn the external adjustment
screw (a) so that the Whirlpool thermometer reading is identical
to the calibrated thermometer.
5. Re-calibration shall be performed at least every 12 months or
as needed.

WHITEHALL MANUFACTURING •P.O. BOX 3527 •City of Industry, CA 91744-0527 U.S.A.
Phone [phone] •[phone] •Fax [phone] •www.whitehallmfg.com
20
Disinfecting and Cleaning Instructions
Important:
1. Do not use abrasive compounds or applicators such as metal brushes –they can
damage the whirlpool's appearance. Do not allow steel wool to come in contact with
stainless steel. Steel particles can embed into the stainless steel surface and create
rust.
2. Avoid cleaning or disinfecting products that contain strong acids or contain chlorine,
fluorine, bromine, or iodine, as these products can damage the protective chromium
oxide layer, resulting in corrosion and leaks. If such products are used on stainless
steel, keep the exposure brief (less than 15 minutes) and thoroughly rinse stainless
steel surfaces of all residue.
Recommended cleaning materials:
a. Sponge (natural or artificial)
b. Soft-bristle brush
c. Soft cloth (e.g. microfiber cloth)
The tub, thermometer, and turbine shall be disinfected and cleaned after each patient.
Disinfecting and Cleaning the Tub and Thermometer
1. Drain the tub following the draining instructions above.
2. Verify that the turbine is off.
3. Remove any loose objects or debris that may be present in the Whirlpool tub.
To disinfect, use a stainless steel hard surface disinfectant per the manufacturer’s
instructions with one of the recommended cleaning materials above.
To clean, use a mild soap solution with one of the recommended cleaning materials
above.
Rinse thoroughly prior to use.
Disinfecting and Cleaning the Turbine
1. Drain the tub following the draining instructions above.
2. For tubs greater than 75.7 L (20 US gallons), raise turbine, place a large clean bucket
in the tub and lower the bottom of the turbine into the empty bucket.
3. Fill the bucket or tub with water so the bottom of the turbine is at least 15.2 cm (6
inches) below the surface of the water.
4. Add disinfectant solution to the water per manufacturer’s instructions.
5. Ensure the aerator control valve is in the open position.
6. Turn on the turbine for 5 seconds and turn it off. Wait 10 minutes.
