Morris MPD-8636 User manual

Read all instructions and explanations before use.
Follow the instructions carefully.
Keep the operation instructions handy for later use.
if the appliance is sold or passed on then ensure
that the new owner always receives these operation
instructions.This manual is available on website:
www.midea.com.cn
CAUTION: HOT SURFACE !
CAUTION: RISK OF FIRE !
MPD-8636 / MPD-9637 / MPD-1038
Herewith, Amiridis-Savvidis S.A. states that this product, complies with the requirements
of below directives:
EMC-Directive: 14 / 30 / EU
Low Voltage Directive: 14/ 35 / EU
CE Marking: 93 / 68 / EEC
RoHS Directive: 11 / 65 / EU
ErP Directive: 09/125/EC
The detailed declaration of conformity can be found at www.morris.gr
AMIRIDIS - SAVVIDIS S.A.
87A, 17th November str.
P.C. 55534, Pylea, Thessaloniki, Greece
T. [phone] | F. [phone]
www.amiridis-savvidis.gr

• This product belongs to Category Ⅰ electrical appliances, and
only for drying textiles which have been washed with water in
the household. Please pay attention to the safety of power
use during the operation!
•The power source with reliable earthing must be used. Its
earth wire must be buried under the ground and shall not be
connected with the public utilities such as city water pipe or
gas pipe etc. The earth wire and null wire shall be
distinguished and shall not be connected together.
• The power wire shall be met IEC and must be able to
withstand the current above 10A. To ensure you and your
family's safety, please make improvement immediately if any
power use at your home does not meet the above-mentioned
requirements.
• Do not put more load than recommended. Obey the maximum
load volume. Please check and refer to Drying Programmes
Table in the user manual.
• That the tumble dryer is not to be used if industrial chemicals
have been used for cleaning.
• Do not dry unwashed items in the tumble dryer.
• Items that have been soiled with substances such as cooking
oil, acetone, alcohol, petrol, kerosene, spot removers,
turpentine, waxes and wax removers should be washed in hot
water with an extra amount of detergent before being dried in
the tumble dryer.
• Items such as foam rubber (latex foam), shower caps,
waterproof textiles, rubber backed articles and clothes or
pillows fitted with foam rubber pads should not be dried
in the tumble dryer.
• Fabric softeners, or similar products, should be used as
specified by the fabric softener instructions.
1 2
CONTENTS SAFETY INSTRUCTIONS
Safety Instructions
SAFETY INSTRUCTIONS
Safety Instructions ..................................................
INSTALLATION
Product Description ................................................
Installation ...........................................................
OPERATIONS
Quick Start .............................................................
Before Each Drying ..................................................
Control Panel .........................................................
Other Functions......................................................
Drying Programmes Table .......................................
Consumption Data...................................................
MAINTENANCE
Cleaning And Care .................................................
Trouble Shooting ....................................................
Technical Specifications .........................................
Product Fiches.........................................................
2
7
7
9
10
12
14
17
18
19
22
24
25
Warning!
！
To prevent any damages to your and others' life or
property, you have to follow the safety instructions.

• The final part of a tumble dryer cycle occurs without heat
(cool down cycle) to ensure that the items are left at a
temperature that ensures that the items will not be damaged.
• The lint trap has to be cleaned frequently.
• The lint must not to be allowed to accumulate around the
tumble dryer.
• Adequate ventilation has to be provided to avoid the
back flow of gases into the room from appliance burning
other fuels, including open fires.
• The exhaust air must not be discharged into a flue which
is used for exhausting fumes from appliance burning gas
or other fuels.
• The appliance must not be install behind a lockable door,
a sliding door or a door with a hinge on the opposite side
to that of the tumble dryer. In such a way that a full
opening of the tumble dryer door is restricted.
• Oil-affected items can ignite spontaneously, especially
when exposed to heat sources such as in a tumble dryer.
The items become warm, causing an oxidation reaction in
the oil. Oxidation creates heat. If the heat cannot escape,
the items can become hot enough to catch fire. Piling,
stacking or storing oil-affected items can prevent heat
from escaping and so create a fire hazard.
• If it is unavoidable that fabrics that contain vegetable
or cooking oil or have been contaminated by hair care
products be placed in a tumble dryer they should first be
washed in hot water with extra detergent-this will reduce,
but not eliminate, the hazard.
• The appliance should not be overturned during normal use
or maintenance.
• Remove all objects from pockets such as lighters and
matches.
• This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall not be
made by children without supervision.(This warning is
only for EUROPEAN market)
• If the power cable is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
• This appliance is for indoor use only.
• The openings must not be obstructed by a carpet.
• Children of less than 3 years should be kept away unless
continuously supervised.
• If the appliance appears high temperature abnormally ,
please draw the mail plug immediately.
• The appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning
use of the appliance by a person responsible for their
safety. Children should be supervised to ensure that they
do not play with the appliance.(This warning is not for
EUROPEAN market)
3 4
SAFETY INSTRUCTIONSSAFETY INSTRUCTIONS
Never stop a tumble dryer before the end of the drying
cycle otherwise too much heat will diffuse and may
cause harm.
Warning!
！

5 6
SAFETY INSTRUCTIONSSAFETY INSTRUCTIONS
Correct Disposal of this product:
This marking indicates that this product should not
be disposed with other household wastes throughout
the EU. To prevent possible harm to the environment
or human health from uncontrolled waste disposal,
recycle it responsibly to promote the sustainable
reuse of material resources. To return your used
device, please use the return and collection systems
or contact the retailer where the product was
purchased. They can take this product for
environmental safe recycling.
Damage danger
Explosion danger
Injury danger
Electric shock hazard
•Do not pull the power cord forcefully. Please disconnect the
mains plug instead..
•Please do not plug/draw the mains plug with wet hands.
•Do not damage the power cord and the power plug.
•Do not disassemble or install the dryer without any instruction
or supervision.
•Do not stack this dryer on washing machine without stacking
kits.(if you want to stack this dryer on washing machine,
please purchase the independent parts and it must be installed
by the manufacturer, its service agent or similarly qualified
persons to avoid any hazards.)
•Do not lean on the opened door of the dryer.
•Do not put any pyrotoxin on the dryer, such as the candle,
electric cooker.
•Do not dry over the rated capacity.
•Do not operate the dryer without the filter door and filter base.
•Do not dry the clothes before being spun.
•Do not expose the dryer directly under the sun, indoor use
only.
•Do not install the dryer in humid and drenching environment.
•While cleaning and maintenance, please do remember to
pull out the power plug and do not directly wash the dryer
with water.
Please do not dry the clothes with any flammable substances
such as coal oil or alcohol. Otherwise, there may be explosion.

7 8
INSTALLATION
Accessories
The following parts are optional for specific models.
If your dryer has following parts, please wear gloves and them
as per the instruction below .
install
Hose holder
Condensing drain hose
Remove the
drain hose
from the
housing
drawer.

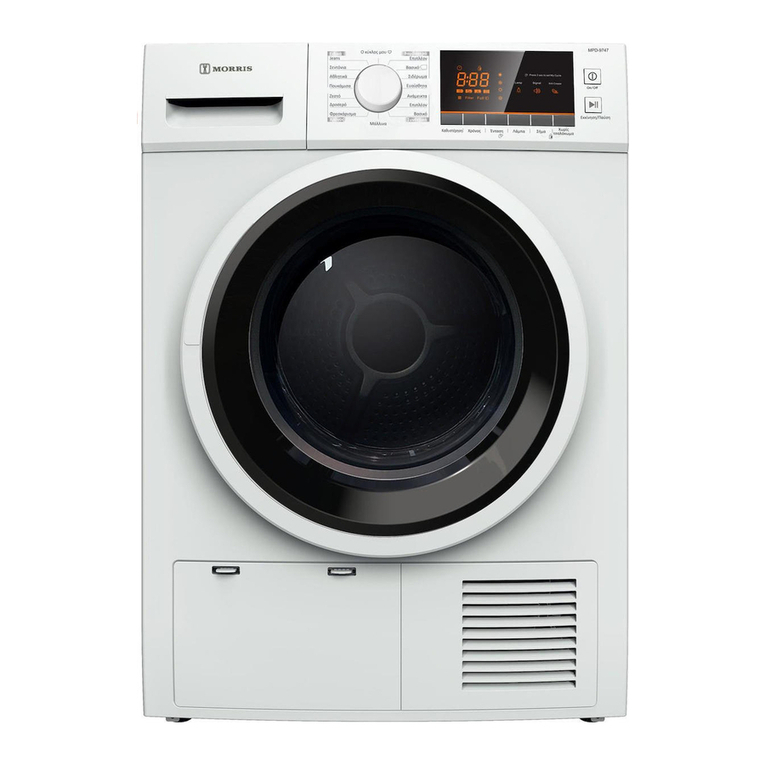

Product Description
Max.120cm
200cm
Put the hose holder on the washing
basin or any other sink.
Installation
INSTALLATION
Installation Position
Transport
Move cautiously. Do not grasp any salient parts of machine. The machine
door can not be used as the handle for delivery. If the dryer can’t be transported erectly,
the dryer could be slant to right less than 30°.
Level Adjusting
Once in its permanent operating position,
check that the dryer is absolutely level with the aid
of a spirit level. If it is not, adjust the feet with a tool.
Power Supply Connection
1.It is recommended that, for your convenience, the machine is positioned close to
your washing machine.
2.The tumble dryer must be installed in a clean place, where dirt does not build up.
Air must be able to circulate freely all round the appliance. Do not obstruct the
front air inlet or the air intake grilles at the back of the machine.
3.To keep vibration and noise within minimum level when the dryer is in use, it
placed on a firm and level surface.
4.The feet must never be removed. Do not restrict the floor clearance through
deep pile carpets, strips of wood or similar. This might cause heat built-up which
would interfere with the operation of the appliance.
should be
1.Make sure that the voltage of the power supply is the same as the electric specification
2.Do not connect the dryer with the power connection board, the universal plug or socket,
of the dryer.
Power Cord
Filter door
Container
Door
Control panel
Air inlet
Filter base
Maintenance cover
Drum
Top board
Connector
Insert the drain
hose and the
external drainage
hose into the
connector.
do not use multi-plug adapters and extension cables.
Note: Please see the products you purchased in kind prevail.

910
OPERATIONS
After Drying
Drying
Buzzer beep or " :00"on display.0
1 2 3 4 5
open the door and
take out laundry
pull out the
container
pour out
condensate water
clean the filter power off
Quick Start
Before using, please make sure it's installed properly.
Note!
1
plug in
2
load
3
close door
start
on select program select function
or default
• If the socket with a switch is used, please press the switch to turn off the power
directly.
Note!
OPERATIONS
Never overload.
• Not for textile with dropping water. The dryer could be damaged, even fire.
•
1.Before drying, thoroughly spin the laundry in washing machine. High spin speed can
the drying time and save energy consumption.
2.For uniform drying result, sort the laundry according to fabric type and drying programme.
3.Before drying, please close zips, hooks and eyelets, button up, tie fabric belts, etc.
4.Do not over dry the clothes, because over dried clothes can easily get creases.
5.Do not dry the articles containing rubber or similar elastic materials.
6.The door can be opened only after the programme of the drying machine finishes to
from being scalded by hot steam or over heated drying machine.
7.Clean the lint filter and empty container after each use to avoid extension of drying time
and energy consumption.
8.Do not dry these clothes after dry-clean process.
9.
reduce
prevent human skin
Please choose the related programme when dealing with wool material clothes, to make
the cloth more fresh and fluffy.
The reference weight of dry clothes (each)
Mixed-fabric clothes
(about 800g)
Jacket
(about 800g cotton)
Jeans
(about 800g)
Towel quilt
(about 900g cotton)
Single bedsheet
(about 600g cotton)
Short sleeve shirt
(about 180g cotton)
Work clothes
(about 1120g)
Short pants
(about 70g cotton)
Sleepwear
(about 200g)
Socks
(about 50g
mixed-weave)
Long sleeve shirt
(about 300g cotton)
Note!
Before Each Drying
•
Put some clean rags into the drum.
Plug the power, press 【On/Off 】
Select the 【Refresh】 Programme, press 【Start/Pause】 button
After finishing this programme, please follow the “cleaning and care ”
(refer to page 19) to clean the filter door.
• During drying, the compressor and the water will generate some noise
which is entirely normal.
Leave it to stand for 2 hours after transporting. Before first use, please use
the soft fabric to clean the inside drum. .
1.
2. .
3. .
4.
Note!

Please pay attention to use the drying machine if the materials of your clothes can not be
dried by it or contain the symbols as follows:
Dry
Dry clean
Line dry / hang to dry Drip dry
Do not dry clean
Normal Do not dry
In the shade
Dry flat
Not tumble dry normal
Dry clean normal cycle
with any solvent
Dry clean normal cycle
petroleum solvent only
OPERATIONS OPERATIONS
11 12
Control Panel
On/Off
Product is switched on or off.
1
1
Start/Pause
the button to start or pause the
drying cycle.
Press
1
2
Specialty function
These buttons are used for setting
additional functions.
3
Display
This display shows the setting, estimated
remaining time and status messages of
your dryer.
4
Programmes
Different Dryer cycle can be selected
according to the user's needs to ensure
the clothes drying results are more
effective.
5
2
1
3
54
Bed Linen

OPERATIONS OPERATIONS
13 14
Programme selector
Other Functions
• Instructions of the 【Delay】function
1. When the LED display screen brightens up, rotate
the programme knob to select the desired programme.
2.Select the【Delay】,【Time】,【Intensity】,【Anti-Crease】or【Signal】
functions for additional options.
3.Press the【Start/Pause】button.
Press the 【On/Off】button.
Programme start
Programme end
1.The drum will stop running after the programme ends. The display will show " ",
also the status light of "End" and related light will illuminate. The dryer will start
Anti-crease function if user doesn’t remove the load in time (refer to page 15).
Please press key to cut off power and pull the plug out.
2.Deal with the problems accroding to “Malfunction display and solutions , if there
is an unexpected stop during the drying procedure and the dryer shows information
(refer to page 22 ).
【 】
【On/Off】
”
The drum will keep rotating after the programme starts. The status light in the
display area will flash in sequence, and the displayed remaining time will change
automatically.
This function is used for delaying clothes drying time within 24 hours. The delay
time means the programme will start after x hours. When the delay programme
starts, the time starts to countdown on the display and the delay icon blinks.
Steps in details:
1.Load your laundry and make sure the machine door is closed.
2.Press the 【On/Off】button,then to turn the programme selector knob and
select a desired programme.
3.You can select the 【Anti-Crease】or【Signal】functions according to your need
4.Press the【Delay】 button.
5.Continue to press the 【Delay】to select the delay time.
6.After the 【Start/Pause】 button is pressed, the Dryer is at the running condition.
The drying procedure will be automatically performed when the delay time is over.
7.If you press the【Start/Pause】button again, the delay function will be paused.
8.If you want to cancel the “Delay” function, please press the 【On/Off】button.
Fliter
Please clean the filter when the“ ” is lighting, after the dryer stops.
Tank
Please empty the container when the“ ” is lighting, after the dryer stops.
Delay start
Child lock
Remaining Time indicator/Error message
Cycle phase status
Clean filters (warning)
Empty water container (warning)
Dryness level (four grades)
Drum lamp indicator
Signal indicator
Anti-crease mode
Time
My cycle
The wool drying cycle of this machine has been approved
by The Woolmark Company for the drying of machine
dryable wool products provided that the products are
dried according to the instructions on the garment
label and those issued by the manufacturer of this tumble
dryer.
Note: Above mentioned feature (Apparel Care) is available for
models MPD-1038 and MPD-9637.

15 16
OPERATIONS OPERATIONS
• Instructions of the Anti-Crease function【 】
At the end of the drying cycle,the anti-crease phase time is 30 minutes (default )
or 120 minutes (selected).
This function prevents the laundry from creases. The laundry can be removed
during the anti-crease phase. Except 【Cool】,【Wool】and【Refresh】, all
the other programmes have this function.
Set the buzzer on or off. In general condition, the buzzer is off. Please touch
it if needed.
When the buzzer is on:
1.The dryer will make the leading sound if press the extra function buttons.
2.If the programme knob is rotated when the dryer is running,the dryer will
remind the operator that it is an invalid programme selection.
3.When the drying programme is done, the buzzer will beep to remind the user.
• Instructions of the【Signal】function
•【 】Instructions of the Child Lock function
1.This machine incorporates a special child safety lock, which can prevent
children from carelessly pressing buttons or making the faulty operation.
2.When the dryer is at the operation status, press the【Anti-Crease】and
【Signal】buttons at the same time for over 3 seconds to start child lock
function. When child lock function is set, the display will show Child lock
icon and no key can have an effect on the dryer except 【On/Off】button.
To activate the child lock function, the【Anti-Crease】and 【Signal】buttons
shall be pressed at the same time for over 3 seconds.
• Instructions of the 【My Cycle】 function
Used to define and save your favorite proragmmes that are used frequently.
1.Use the programme knob to select the required programme and other drying
functions.
2.Press and hold the 【Intensity】 button for 3 seconds until the beep and the
required programme has been saved.
3.Turn the programme selector to the 【My Cycle】 position, then you can start
your favorite proragmmes. If you want to change the 【My Cycle】 settings,
repeat the steps (1) and (2).
• Instructions of the 【Time】 function
When the warm or cool or refresh programme is selected, the 【Time】button can be
used to adjust the drying time in 10 min. steps.
• Instructions of the 【Intensity】 function
Use for adjusting the dryness level of the laundry.
The level has four grades.
The drying time increases 5 minutes in every grade.
1.The intensity function can be activated only before the programme starts.
2. Press the 【Intensity】 button repeatedly to select the drying time.
3.Except the 【Cotton Iron】【Delicate】【Wool】【Warm】【Cool】
【Refresh】, all the other programmes can be set with the 【Intensity】function.
• Instructions of the 【Lamp】 function
The lamp inside the drum will be on for lighting about 3 minutes when the button
is pressed or 1 minute when the door is open.

17 18
OPERATIONS
Drying Programmes Table
• This symbol means the energy efficiency test programme “standard cotton
programme”, which is in accordance with Regulation 392/2012/EU, measured in
accordance with EN 61121 and suitable for drying normal cotton load at rated
load capacity.
• Thick or multi-layered fabrics,e.g. bedlinen, jeans, jackets etc, are not easy to dry. You'd
better choose Cotton Extra programme or use “Intensity”function(refer to page 15).
• As the uneven material, thick and multi-layered clothes are not easy to dry, it is better
to choose the appropriate time drying programme to dry them if some parts of the
clothes still damp after programme finishes.
“F All data was measured in accordance with EN 61121.
The actual consumption may differ from the values given in the table, depending on the
amount of the laundry, type of fabric, residual moisture and any functions selected.
Note!
OPERATIONS
Y N
YN
Y N
Y N
Y N Y Y
Iron
For non-iron washing made of synthetic and blended fabrics,cotton.
For cottons and coloureds made of cotton or linen.
Standard Standard
Synthetics
Shirts
Jean Bed linen
Extra Sports
My Cycle
Cotton
Extra
(max)
Weight
Special
Programme
Define and save your favorite programme.
Warm
Time
To warm clothes from minimum 10 min. to maximum 120 min.(in 10 min. steps). To dry thin synthetic fabrics which are not ironed, such as easy care shirts.
table linen, baby clothes, socks.
To dry thick or multi-layered synthetic fabrics. Drying level: extra dry. To dry cotton pieces of clothing. Drying level: applicable to iron. To dry cotton pieces of clothing. Drying level: cupboard dry. To dry cotton pieces of clothing. Drying level: extra dry.
Application/Properties
Wool Cool Refresh
T o air clothes without heating from minimum 10 min. to maximum 30 min.
To dry jeans or leisure clothes that are spun at high speeds in the washing machine. If you can not determine what the clothing's material is, please choose Mix. To dry sportswear, thin fabrics, polyester,which are not ironed. For easy care clothes such shirts and blouses with anti-crease mechanism
for minimum ironing effort. Place clothes loosely in the dryer. Once dried.
hang it on a clothes hange.
time from minimum 20 min. to maximum 150 min.(in 10 min. steps). To refresh the clothes that have been kept at closed environments for a long
Delay Time
Delicate YN
Wool
My Cycle Y
Delicate To dry delicate laundry that is suitable for drying or laundry which is
at a lower temperature.advised to be hand-washed
Mix Mix Y N
To dry sheets or other large sized textiles.
To dry a few machine washable clothing.
10.0kg 10.0kg
1.0kg 4.0kg 3.0kg 5.0kg 5.0kg 1.0kg 1.0kg 1.0kg 4.0kg
9.0kg 8.0kg 9.0kg 8.0kg
1.0kg 3.5kg 3.0kg 4.5kg
4.5kg 1.0kg 1.0kg 1.0kg 3.5kg
1.0kg 3.5kg 3.0kg 4.0kg
4.0kg 1.0kg 1.0kg 1.0kg 3.5kg
1
1
Modle Program
capacity
Spin Speed /
Residual
Humidity
Drying
Time
Energy
Consumption
MPD-8636
Cotton Standard
Cotton Iron
Synthetic Standard
Cotton Standard
Cotton Iron
Synthetic Standard
Cotton Standard
Cotton Iron
Synthetic Standard
8kg
8kg
3.5kg
9kg
9kg
3.5kg
10kg
10kg
4kg
1000rpm / 60%
1000rpm / 60%
800rpm / 40%
1000rpm / 60%
1000rpm / 60%
800rpm / 40%
1000rpm / 60%
1000rpm / 60%
800rpm / 40%
190min
140min
70min
199min
150min
70min
215min
165min
75min
1.51kWh
0.95kWh
0.48kWh
1.69kWh
1.08kWh
0.48kWh
1.82kWh
1.22kWh
0.52kWh
Consumption Data ❶
3
(in 10 min. steps).
MPD-1038
MPD-9637

19 20
MAINTENANCEMAINTENANCE
drying time and energy consumption.
• Disconnect the power cord before cleaning!
• Do not operate the dryer without the filter!
• Clean the filter after each cycle to prevent fluff accumulation inside the dryer.
• The fluff accumulated on the filter will block the air circulation, which will increase
Note!
Empty the water container
Clean the Primary Filter
1. Hold and pull out the water container
with two hands.
2. Tilt the water container, pour out the
condensate water into basin.
3. Install the water container.
Clean the filters
Cleaning And Care
• Empty the water container after each use.Otherwise,the programme will be
paused and the” ” icon will light. After the container is emptied, the dryer
can be restarted by pressing 【Start/Pause】 button.
• Do not drink the condensate water.
• Do not use the dryer without the water container.
Warning!
！
This dryer has a primary door fluff filter and a filter in front of the heat exchanger
for added protection. Make sure you clean the filters after each cycle .
1. Open the door.
2. Take out the primary filter.
3. Open the filter and remove the fluff on
the filter, clean it in water.
4. Dry the Primary Filter thoroughly before
installing it back.
running
• Take notice of the direction before
insert the Primary Filter.
Note!
Clean the heat exchanger filter
1. Open the cover.
2. Unlock three locking levers and take out the
filter handle.
3. Remove the Heat Exchanger Filter and clean it.
If there is too much fluff on the filter, clean it in
running water. Dry the filter thoroughly before
installing it back.
4. Clean the rubber sealings both at the filter and handle.
5. Re-insert the filter.
6. Lock three locking levers and make sure that the
levers are in right lock position.
7. Close the cover until there is a click sound.
Primary Filter
As necessary, approx. once every 2 months, remove the fluff from the heat
exchanger using a vacuum cleaner with a dusting brush attached. Clean the heat
exchanger without applying any pressure. Otherwise the heat exchanger could
be damaged.
•
Clean heat exchanger
Warning!
！
Do not touch the heat exchanger with your hand,
which may result in cause an injury.
Heat Exchanger Filter

21 22
MAINTENANCEMAINTENANCE
Clean Tumble dryer
Warning!
！
• Disconnect the power cord before cleaning!
• Clean the dryer with a wet cloth which is only damped
by clean water. Otherwise, the chemical cleaners may
damage the plastic surfaces and other parts.
• Please wear gloves when cleaning.
•
• Clean the door, especially the inside window.
• Clean the sealing around the front support.
• Clean the humidity sensor in side of the drum.
• Take out all the filters, clean the sealing and air tunnel.
Before starting the dryer, dry all parts with a soft cloth.
Prepare a wet cloth damped by clean water.
Trouble Shooting
“ ”E32
“ ”E33
Dispiay Reason Solutions
Humidity sensor error
Temperature sensor error Please contact your local
problem occurs.
service center if the
• Only authorised technicans can carry out repairs.
• Before you call service,
problems yourself or if you have followed the user instructions.
• If the LED displays other prompt and the dryer can not work ,please call
service.
• A technician will charge you for advice, even during the warranty period.
please check if you have dealt with the
Warning!
！
“ ”E64 BLDC motor communication error

23
MAINTENANCE
24
MAINTENANCE
If you cannot deal with the problems by yourself and need help:
• Press the 【On/Off】button.
• Pull out the mains plug and call the service.
Warning!
！
• Clean lint filter and .
• Empty container.
• Check drain hose.
• Dryer installation place is too restricted.
• Clean the moisture sensors.
• Keep the Air inlet clean.
• Use higher drying intensity level programme or
time programme.
heat exchanger
• “ ”is lighting
•“ ”is inglight
Problem Solution
•Display is not on
• Check if the power supply works.
• Check if the mains plug is inserted.
• Check the selected programme .
• Press the 【On/Off】button.
• Empty water container.
• If the light is still on, please call the service.
• Clean heat exchanger.
• Clear lint filter.
•Dryer does not start
• the door has closed.
• Check the programme has set.
• Check the start button has selected.
Check the
•Degree of dryness was
reached or drying time too
long
not
•The rated capacity is the maximum capacity, make sure that the dry clothes which are
loaded to the appliance do not exceed the rated capacity each time.
•Do not install the tumble dryer in a room when there is a risk of frost occurring. At
temperatures around freezing point the tumble dryer may not be able to operate
properly.
•There is a risk of damage if the condensate water is allowed to freeze in the pump,
hoses and / or condensate water container.
Technical Specifications
Rated capacity
Rated frequency
Dimension(L*W*H)
Rated input power
Rated voltage
Weight of product
Model
Parameter
Ambient temperature
+5°c ~ +35°c
220-240V~
640*595*845(mm)
650W
50kg
50Hz
Note!
MPD-8636 / MPD-9637 / MPD-1038
Refrigerant R134a
Quantity of refrigerant
405g
Contains fluorinated greenhouse gases covered by the Kyoto Protocol.
Hermetically sealed.
8.0kg/9.0kg/10.0kg
GWP
CO - eq
2
1430
0.58T

25
MAINTENANCE
26
MAINTENANCE
8.0
MPD-8636
kg
Condenser
A+++
177.0kWh/year
Automatic
N/A
1.50kWh
0.79kWh
0.2 W
0.8 W
10 min
144min
190min
110min
B
80.5%
80.5%
80.5%
65dB
Model
Rated Capacity
Dryer Type
Energy efficiency class
Weighted annual energy consumption (AE )
Automatic or non-automatic
EU Ecolabel
Energy consumption of the standard cotton programme
Energy consumption of the standard cotton programme at full load
Energy consumption of the standard cotton programme at partial load
Power consumption of the off-mode (Po)
Power consumption of the left-on mode (Pl)
Duration of the left-on mode
Programme time of the 'standard cotton programme'
Weighted programme time of the standard cotton programme at full and partial load
Programme time of the standard cotton programme at full load
Programme time of the standard cotton programme at partial load
Condensation efficiency class A (most efficient) to G (least efficient)
Average condensation efficiency of the standard cotton programme at full load
Average condensation efficiency of the standard cotton programme at partial load
Weighted condensation efficiency for the standard cotton programme at full and load
Sound power level for the standard cotton programme at full load
❶
c
Product Fiches
9.0
MPD-9637
kg
Condenser
/ A+++
194.0kWh/year
Automatic
N/A
1.68kWh
0.85kWh
0.2 W
0.8 W
10 min
154min
199min
120min
B
80.5%
80.5%
80.5%
65dB
Model
Rated Capacity
Dryer Type
Energy efficiency class
Weighted annual energy consumption (AE )
Automatic or non-automatic
EU Ecolabel
Energy consumption of the standard cotton programme
Energy consumption of the standard cotton programme at full load
Energy consumption of the standard cotton programme at partial load
Power consumption of the off-mode (Po)
Power consumption of the left-on mode (Pl)
Duration of the left-on mode
Programme time of the 'standard cotton programme'
Weighted programme time of the standard cotton programme at full and partial load
Programme time of the standard cotton programme at full load
Programme time of the standard cotton programme at partial load
Condensation efficiency class A (most efficient) to G (least efficient)
Average condensation efficiency of the standard cotton programme at full load
Average condensation efficiency of the standard cotton programme at partial load
Weighted condensation efficiency for the standard cotton programme at full and load
Sound power level for the standard cotton programme at full load
❶
c

27
MAINTENANCE
10.0
MPD-1038
kg
Condenser
A+++
212kWh/year
Automatic
N/A
1.80kWh
0.94kWh
0.2 W
0.8 W
10 min
160min
215min
130min
B
80.5%
80.5%
80.5%
65dB
Model
Rated Capacity
Dryer Type
Energy efficiency class
Weighted annual energy consumption (AE )
Automatic or non-automatic
EU Ecolabel
Energy consumption of the standard cotton programme
Energy consumption of the standard cotton programme at full load
Energy consumption of the standard cotton programme at partial load
Power consumption of the off-mode (Po)
Power consumption of the left-on mode (Pl)
Duration of the left-on mode
Programme time of the 'standard cotton programme'
Weighted programme time of the standard cotton programme at full and partial load
Programme time of the standard cotton programme at full load
Programme time of the standard cotton programme at partial load
Condensation efficiency class A (most efficient) to G (least efficient)
Average condensation efficiency of the standard cotton programme at full load
Average condensation efficiency of the standard cotton programme at partial load
Weighted condensation efficiency for the standard cotton programme at full and load
Sound power level for the standard cotton programme at full load
❶
❶
Remarks:
Energy consumption per year, based on 160 drying cycles of the standard cotton
programme at full and partial load, and the consumption of the low-power modes.
Actual energy consumption per cycle will depend on how the appliance is used
The 'standard cotton programme' used at full and partial load is the standard
drying programme to which the information in the label and the fiche relates,
that this programme is suitable for drying normal wet cotton laundry and that
it is the most efficient programme in terms of energy consumption for cotton.
c
