Morris MPD8534 User manual

Tumble Dryer
OWNER’S MANUAL
Before using your tumble dryer, please read this
manual carefully and keep it for future reference.
Inside you will find many helpful hints on how to use
and maintain your tumble dryer properly. Just a little
preventative care on your part can save you a great
deal of time and money over the life of your tumble
dryer. You’ll find many answers to common problems
in the chart of troubleshooting tips. If you review the
chart of troubleshooting tips first, you may not need
to call for service.
Read This Manual
CAUTION: HOT SURFACE !
CAUTION: RISK OF FIRE !

Safety information
Catalogue
Catalogue
1
Dry Care Symbols
Safety notes
!
Dry
Dry clean Do not dry clean Dry clean normal cycle
with any solvent
Normal Not tumble dry normal
Do not dry
Dry flat
Drip dry
Line dry / hang to dry In the shade
A
F
Dry clean normal cycle
petroleum solvent only
To prevent any damages to your and others' life or property,
you have to follow the safety notes.
Please pay attention to use the drying machine if the materials of your
clothes can not be dried by it or contain the symbols as follows:
Safety information..............................................................1
Installation........................................................................6
Attention and advice...........................................................7
Part description............................................................... ..8
Description of controls.......................................................10
Operation instruction.........................................................11
Programme table..............................................................12
Specialty drying function...................................................13

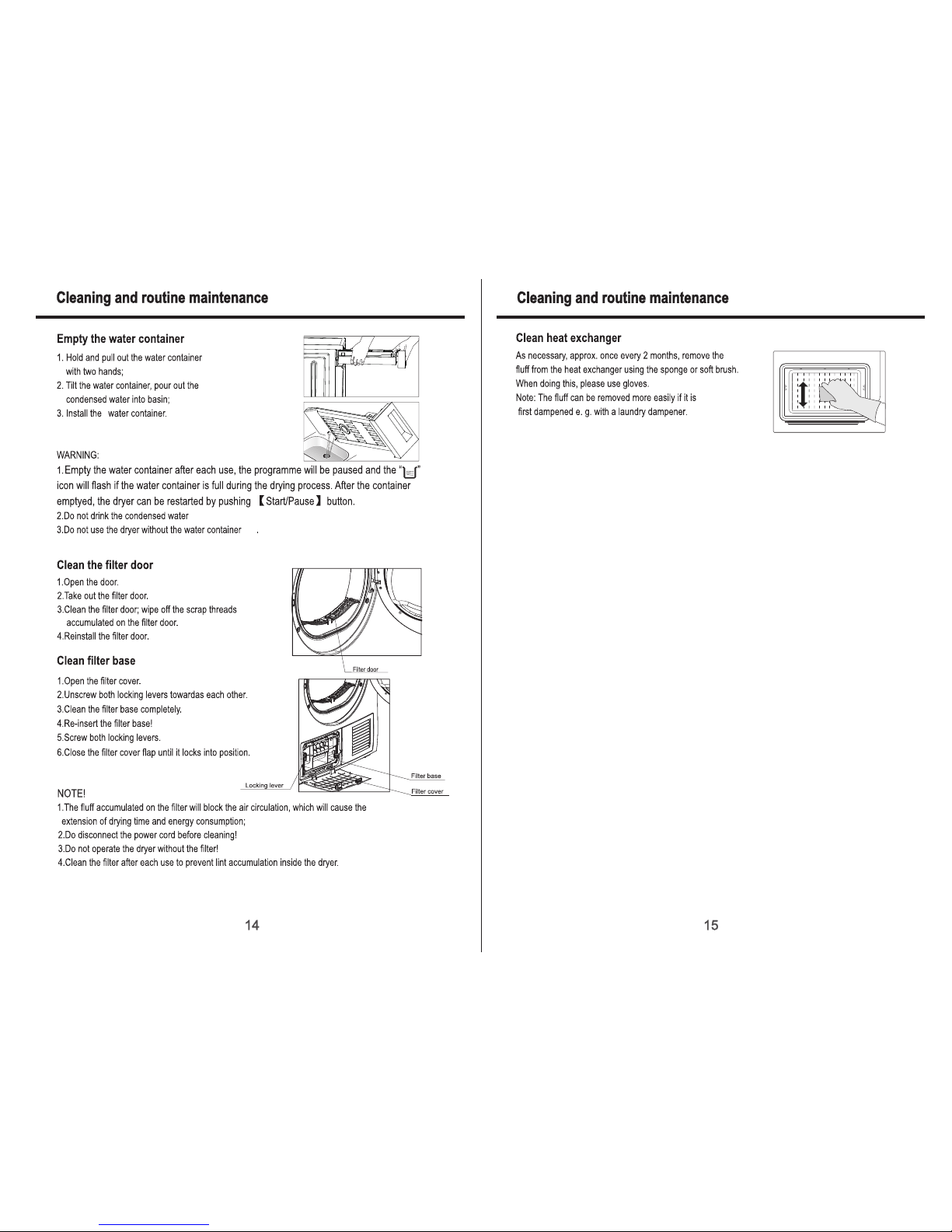

Cleaning and routine maintenance.....................................14
Malfunction display and solutions......................................16
Precautions.....................................................................17
Technical specifications....................................................18
Product fiche....................................................................19
1.This product belongs to CategoryⅠelectrical appliances, and
only for drying textiles which have been washed with water in
the household. Please pay attention to the safety of power
use during the operation!
2.The power source with reliable earthing must be used. Its
earth wire must be buried under the ground and shall not be
connected with the public utilities such as city water pipe or
gas pipe etc. The earth wire and null wire shall be
distinguished and shall not be connected together.
3.The power wire shall be met IEC and must be able to
withstand the current above 10A. To ensure your and your
family's safety, please make improvement immediately if any
power use at your home does no the above-mentioned
requirements.
4.The maximum mass of dry textile material is 8 kilograms to
be used in the appliance.

2 3
Safety information
Catalogue
Safety information
5.That the tumble dryer is not to be used if industrial chemicals
have been used for cleaning.
6.Do not dry unwashed items in the tumble dryer.
7.Items that have been soiled with substances such as cooking
oil, acetone, alcohol, petrol, kerosene, spot removers,
turpentine, waxes and wax removers should be washed in hot
water with an extra amount of detergent before being dried in
the tumble dryer.
8.Items such as foam rubber (latex foam), shower caps,
waterproof textiles, rubber backed articles and clothes or
pillows fitted with foam rubber pads should not be dried in the
tumble dryer.
9.Fabric softeners, or similar products, should be used as
specified by the fabric softener instructions.
10.The final part of a tumble dryer cycle occurs without heat
(cool down cycle) to ensure that the items are left at a
temperature that ensures that the items
will not be damaged.
11.The lint trap has to be cleaned frequently.
12.The lint must not to be allowed to accumulate around the
tumble dryer.
13.Adequate ventilation has to be provided to avoid the back
flow of gases into the room from appliance burning other fuels,
including open fires.
14.WARNING: never stop a tumble dryer before the end of the
drying cycle unless all items are quickly removed and spread
out so that the heat is dissipated.
15.The exhaust air must not be discharged into a flue which is
used for exhausting fumes from appliance burning gas or
other fuels.
16.The appliance must not be install behind a lockable door, a
sliding door or a door with a hinge on the opposite side to
that of the tumble dryer. In such a way that a full opening of
the tumble dryer door is restricted.
17.Keep pets away from this appliance.
18.Oil-affected items can ignite spontaneously, especially
when exposed to heat sources such as in a tumble dryer.
The items become warm, causing an oxidation reaction in
the oil. Oxidation creates heat. If the heat cannot escape,
the items can become hot enough to catch fire. Piling,
stacking or storing oil-affected items can prevent heat from
escaping and so create a fire hazard.
19.If it is unavoidable that fabrics that contain vegetable or
cooking oil or have been contaminated by hair care products
be placed in a tumble dryer they should first be washed in
hot water with extra detergent-this will reduce, but not
eliminate, the hazard.
20.The appliance should not be overturned during normal use
or maintenance.
21.Remove all objects from pockets such as lighters and
matches.
22.This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.

4 5
Safety information
Catalogue
Safety information
23.If the power cable is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons
in order to avoid a hazard.
24.This appliance is for indoor use only.
25.The openings must not be obstructed by a carpet.
26.Children of less than 3 years should be kept away unless
continuously supervised.
27.If the appliance appear high temperature abnormally ,
please draw the mail plug immediately.
Correct Disposal of this product:
This marking indicates that this product hould not be
disposed with other household wastes throughout the
EU. To prevent possible harm to the environment or
human health from uncontrolled waste disposal, recycle
it responsibly to promote the sustainable reuse of
material resources. To return your used device, please
use the return and collection systems or contact the
retailer where the product was purchased. They can take
this product for environmental safe recycling.
Injury danger
Electric shock hazard
1.Do not draw the power cord forcefully to pull out the mains
plug.
2.Please do not plug/draw the mains plug with wet hands.
3.Do not damage the power cord and the power plug.
1.Do not disassemble and install the dryer under no instruction
or supervision.
2.Do not stack this dryer on washing machine without stacking
kits.(if want stacking on washing machine, please purchase
the Independent parts and it must be installed by the
manufacturer, its service agent or similarly qualified persons
in order to avoid a hazard.)
3.Do not lean on the opened door of the dryer.
4.Do not put any pyrotoxin on the dryer, such as the candle,
electric cooker.
Damage danger
1.Do not dry over the rated capacity.
2.Do not operate the dryer without the filter door and filter base.
3.Do not dry the clothes before being spun.
4.Do not expose the dryer directly under the sun, and indoor
use only.
5.Do not install the dryer in the humid and drenching
environment.
6.At the cleaning and maintenance, please do remember to pull
out the power plug and do not directly wash the dryer with
water.
Explosion danger
Please do not dry the clothes with some flammable substances
such as the coal alcohol or there will be the explosion.

6 7
Catalogue
Installation
Installation Position
Level Adjusting
Once in its permanent operating position,
check that the dryer is absolutely level with the aid
of a spirit level. If it is not, adjust the feet with a tool.
Power Supply Connection
1.Make sure that the voltage of the power supply is the same as the electric specification of the dryer.
2.Do not connect the dryer with the power connection board, the universal plug or socket.
1.It is recommended that, for your convenience, the machine is positioned close to your washing
machine.
2.The tumble dryer must be installed in a clean place, where dirt does not build up. Air must be able
to circulate freely all round the appliance. Do not obstruct the front air inlet or the air intake grilles
at the back of the machine.
3.To keep vibration and noise to a minimum when the dryer is in use, it should be placed on a firm
and level surface.
4.The feet must never be removed. Do not restrict the floor clearance through deep pile carpets,
strips of wood or similar. This might cause heat built-up which would interfere with the operation
of the appliance.
used as the handle for delivery. If the dryer can’t be transported erect, the dryer could be slant
Transport
Move cautiously. Do not grasp any salient parts of machine. The machine door can not be
to right less than 30° .
Attention and Advice
1.Before drying, thoroughly spin the laundry in washing machine. High spin speed can reduce the drying
time and save energy consumption.
2.For uniform drying result, sort the laundry according to fabric type and drying programme.
3.Before drying, please close zips, hooks and eyelets, button up, tie fabric belts, etc.
4.Do not over dry the clothes, because over dried clothes can easily get creases or shrinkage.
5.Do not dry the articles containing rubber or similar elastic materials such as raincoats, bicycle covers and
6.The door can be opened only after the programme of the drying machine is completed. Do not open the
7.Clean the lint filter and empty container after each use to avoid extension of drying time and energy
9.The weight references as follows:
Blended Coats
(about 800g)
Jackets (about
800g in cotton)
Towel Quilts
(about 900g
in cotton)
Shirts (about
300g in cotton)
Work Clothes
(upper and lower)
(about 1120g in
cotton)
Underpants
(about 70g in
cotton)
Undershirts
(about 180g in
cotton)
Single Sheets
(about 600g in
cotton)
Jeans Trousers
(about 800g)
Pajamas
(about 200g)
Socks (about 30g in
blended material)
consumption.
Attention
etc.
door before the programme finished, as the skin may be scalded by steam or hot surface.
Advice
a)Put some clean rags into the drum.
b)Plug the power, press .【On/Off 】
c)Select the 【Time】 Programme, press 【Start/Pause】 button.
d)After finishing this programme, please follow the “cleaning and routine maintenance” (refer to page 14)
to clean the filter door.
Leave it to stand for 2 hours after transporting. Before first use, please use the soft fabric to
to clean the inside drum.
8 .. Please choose the related programme when deal with wool material clothes, to make the cloth more fresh
. and fluffy.
During drying, the compressor and the water pump generate some noise which is entirely normal.

8 9
Catalogue
Part description
Part Description
Power Cord
Filter door
Container
Door
Control panel
Air inlet
Filter base
Filter cover
Drum
Accessories
The following parts are optional for specific models.
If your dryer has following parts, please them instruction
below .
install following the
Hose holder(optional)
Condensing drain
hose(optional)
Step 1: removing the drain hose from the
hose connector using glove.
Step 2: insert the external drainage hose.
Installation step:
Part description
Quick start
1.Check if the container and filters
have been cleaned up
3. Close the machine door
2. Open the door and
load the laundry
4. Plug the power cord and
press the【On/Off】key 8.Press the 【 】keyOn/Off
7. Remove the laundry when
6. Press the 【Start/Pause】button
9. Clean the filters and
empty container
10.Unplug the power cord
5. Select the desired
programme finished
Max.120cm
200cm
Step 3: put the hose holder on the washing basin or any other sink.

12 13
Programme table
Iron
For non-iron washing made of synthetic and blended fabrics,cotton.
For cottons and coloureds made of cotton or linen.
Standard Standard
Synthetics
Wool Silk Leisure
Extra Refresh Iron
Mix
3.5kg 8.0kg 3.5kg
Cotton
Extra
(max)
Weight
Special
Programme
For refreshing or gently cleaning textiles with commercially available dry cleaning products.
To dry silk using warm air and gentle movement. For leisure clothing,such as jeans,sweatshirts,etc,of different material thicknesses(e.g.at the neck,cuffs and seams). For a fluffy and fresh wool clothing(Can not be used for drying of wool clothing), After the procedure, Please take out the clothing at once, let it dry in the air.
1.0kg
Note: The above programme is only recommended for use, the user can according to personal habits to choose the right programme.
Thick or multi-layered fabrics,e.g. bedlinen, jeans, jackets etc, are not easy to dry. You'd better choose Cotton Extra programme.
1.0kg
8.0kg
If you can not determine what the clothing's material is, please choose Mix.
Time
Time
The dryer shall continue running from 10 to 120 minutes. To dry thin synthetic
fabrics which are not ironed, such as easy care shirts, table linen,
baby clothes, socks. Drying level: cupboard dry.
To dry thick or multi-layered synthetic fabrics. Drying level: extra dry. To dry cotton pieces of clothing.
Drying level: applicable to iron.
To dry cotton pieces of clothing.
Drying level: cupboard dry.
To dry cotton pieces of clothing.
Drying level: extra dry.
Application/Properties
To dry thin synthetic fabrics which are also to be ironed, such as knitwear, shirts.
Drying level: applicable to iron.
Specialty drying function
(1).This machine incorporates a special child safety lock, which can prevent children from carelessly
(2).When the dryer is at the operation state, press the【 】and Anti-Crease 【Signal】buttons at the
same time for over 3 seconds to start child lock function. When child lock function is set, the display
2. Instruction of the child lock feature【 】
pressing keys or making the faulty operation.
Specialty drying function
3. Instruction of the Anti-Crease function【 】
At the end of the drying cycle,the anti-crease phase time is 30 minutes (default ) or 120 minutes (selected).
The 【Anti-Crease】 light shall illuminate when the anti-crease function is selected. This function
prevents the laundry from creases. The laundry can be removed during the anti-crease phase. Except
time for over 3 seconds to release the child lock function.
start state of the child lock, the【Anti-Crease】and 【Signal】buttons shall be pressed at the same
will show “Child Locked” icon and no key can effect to the dryer except 【On/Off】button. Under the
【wool】and 【fresh】, all the other programmes have this function.
1. Instruction to the delay drying procedure
This function is used to delay clothes drying within 24 hours. You can press this key continuously; it can
be selected within 1-24 hours. The delay time means drying procedure will start in x:xx hours.
When the delay procedure starts, the display will only show the delay start time and flash DELAY icon.
Steps in details
(1).Load your laundry and make sure the machine door is closed.
(2).Press the 【On/Off】button,then to turn the programme selector knob and select a desired
(3).You can select the 【Anti-Crease or 【Signal】functions according to your 】need.
(4).To press the 【Delay】 key.
(5).Continue to press the 【Delay】to select the delay time.
(6).After the 【Start/Pause】 key is pushed, the Dryer is at the run condition. The drying procedure
will be automatically performed when the delay time is over.
(7).If you push the【Start/Pause】button again, the delay function will be paused.
(8).If you want to cancel the “Delay” function, please press the 【On/Off】button.
After 30s, the display will light DELAY icon and show “-”.
programme.
4. Signal【】
Set up the buzzer on or off. In general condition, the buzzer is off. Please touch it if needed.
When the buzzer on:
(1) The dryer will give the leading sound if press the extra function buttons.
(2) If the dryer is running, rotate the function choosing knob, the dryer will remind the operator
it is an invalid choose.
(3) When the drying programme is done, the buzzer will also remind the user.
5. Instruction of the drum light
For your convenience, this function can help you to see clearly when you open the machine door.

Brand: MORRIS
Model: MPD-8534
Rated capacity: 8kg
Dryer Type: Condenser
Energy efficiency class: A++
Energy consumption 236.0kWh per year, based on 160 drying cycles of the standard cotton
programme at full and partial load, and the consumption of the low-power modes. Actual
consumption per cycle will depend on how the appliance is used.
Automatic or non-automatic:Automatic
EU Ecolabel: N/A
Energy consumption of the standard cotton programme at full load: 1.98 kWh
Energy consumption of the standard cotton programme at partial load: 1.08 kWh
Power consumption of the off-mode (Po): 0.01 W
Power consumption of the left-on mode (Pl): 0.6 W
Duration of the left-on mode: 10 min
The 'standard cotton programme' used at full and partial load is the standard drying
programme to which the information in the label and the fiche relates, that this
programme is suitable for drying normal wet cotton laundry and that it is the most
efficient programme in terms of energy consumption for cotton.
Weighted programme time of the standard cotton programme at full and partial load: 149 min
Programme time of the standard cotton programme at full load: 195 min
Programme time of the standard cotton programme at partial load: 115 min
Condensation efficiency class B on a scale from G (least efficient) to A (most efficient).
Average condensation efficiency of the standard cotton programme at full load: 80.1%
Average condensation efficiency of the standard cotton programme at partial load: 80.1%
Weighted condensation efficiency for the standard cotton programme at full and partial
load: 80.1%
Sound power level for the standard cotton programme at full load: 69dB
energy
Overall Size
Net Weight
Rated Drying Capacity
595×622×845(mm)
52kg
8.0kg
Power supply 220-240V~
Ambient temperature
Refrigerant R134a
50Hz
+5c +35c
。~。
Rated power 650W
Contains fluorinated greenhouse gases covered by the Kyoto Protocol.
Hermetically sealed.
Note:
1.The rated capacity is the maximum capacity, make sure that the dry clothes which are loaded to
the appliance do not exceed the rated capacity each time.
2.Do not install the tumble dryer in a room when there is a risk of frost occurring. At temperatures
around freezing point the tumble dryer may not be able to operate properly.
3.There is a risk of damage if the condensed water is allowed to freeze in the pump, hoses and / or
condensed water container.
