Morris WIW-81413S User manual

WIW-81413S
WIW-91407DL
WIW-10159
WIW-12149

SAFETY INSTRUCTIONS
Safety Instructions ..................................................
INSTALLATION
Product Description ................................................
Installation ...........................................................
OPERATION
Quick Start .............................................................
Before Each Washing ..............................................
Detergent Dispenser ...............................................
Control Panel .........................................................
Option....................................................................
Other Functions .....................................................
Programmes ..........................................................
Washing Programmes Table .....................................
MAINTENANCE
Cleaning And Care .................................................
Trouble Shooting ....................................................
Technical Specifications .........................................
Product Fiches ........................................................
2
8
9
12
13
14
15
16
18
20
21
22
25
26
27
1
CONTENTS

2
Safety Instructions
For your safety,the information in this manual must be followed
to minimize the risk of fire or explosion, electric shock, or to
prevent property damage, personal injury or loss of life.
Explanation of the symbols:
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
•
The electric shock!
SAFETY INSTRUCTIONS
This combination of symbol and signal word indicates
a potentially dangerous situation which may result in
death or serious injuries unless it’s avoided.
Warning!
！
This combination of symbol and signal word indicates
a potentially dangerous situation which may result in
slight or minor injuries.
Note!
This combination of symbol and signal word indicates
a potentially dangerous situation which may result in
slight or minor injuries or damage to property and the
environment.
Caution!
Warning!
！
•The new hose-sets supplied with the appliance are to be
used and that old hose-sets should not be reused.
• Before any maintenance the device, unplug the appliance
from the mains.

3
•Always unplug the machine and turn off the water
supply after use. The max. inlet water pressure, in
pascals. The min. inlet water pressure, in pascals.
•To ensure your safety, power plug must be inserted into an
earthed three-pole socket. Check carefully and make sure that
your socket is properly and reliably earthed.
•Make sure that the water and electrical devices must be
connected by a qualified technician in accordance with the
manufacturer's instructions and local safety regulations.
Risk to children!
EN countries: the appliance can be used by children aged from
8 years and above and persons with reduced physical, sensory
or mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning use
of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children without
supervision.
•
•Children of less than 3years should be supervised to ensure
that they do not play with appliance.
•Animals and children may climb into the machine. Check the
machine before every operation.
•Kids should be supervised that they do not play with the
appliance.
SAFETY INSTRUCTIONS
Pull out its plugs from the power socket before cleaning or
maintenance.
Do not use any socket with rated current less than that of
appliance. Never pull out power plug with wet hands.
Please remember to disconnect water and power supply
immediately after the clothes are washed.
•
•
•

4
• Remove all packages and transport bolts before using
the appliance. Otherwise, serious damage may result.
• Glass door may be very hot during the operation. Keep
kids and pets far away from the machine during the
operation very wet rooms as well as in the rooms with
explosive or caustic gas.
Risk of explosion!
•
•
Do not wash or dry articles that have been cleaned in, washed
in, soaked in, or dabbed with combustible or explosive
substances( such as wax, oil, paint, gasoline, degreasers,
dry-cleaning solvents, kerosene, etc.) This may result in fire
or explosion.
The washer dryer is not to be used if industrial chemicals
have been used for cleaning.
The exhaust air must not be discharged into a flue which
is for exhausting fumes from appliances burning gas or
other fuels.
Before hand thoroughly rinse items of washing by hand.
• This washing machine is for indoor use only.
• It isn't intended to be built-in using.
• The openings must not be obstructed by a carpet.
• Washing machine shall not be installed in bath room or
very wet rooms as well as in the rooms with explosive
or caustic gases.
•The washing machine with single inlet valve only can be
connected to the cold water supply. The product with
double inlet valves should be correctly connected to the
SAFETY INSTRUCTIONS
Caution!
Installing the product!

5
•
hot water or cold water supply.
Plug must be accesible after installation.
The appliance must not be installed behind a lockable
door, a sliding door or a door with a hinge on the
opposite side to that of the washer dryer.
The applaince should not be installed at a humid
place.
Remove all packages and transport bolts before using the
appliance. Otherwise, serious damage may result.
Risk of damaging appliance!
• Your product is only for home use and is only designed
for the textiles suitable for machine washing.
• Do not climb up and sit on top cover of the machine.
• Do not lean against machine door.
• Cautions during Handling Machine:
1.Transport bolts shall be reinstalled to the machine by
a specialized person.
2.The accumulated water shall be drained out of the
machine.
3.Handle the machine carefully. Never hold each protruded
part on the machine while lifting. Machine door can
not be used as the handle during the conveyance.
4.This appliance is heavy. Transport with care.
• Please do not close the door with excessive forces. If it
is found difficult to close the door, please check if the
clothes are put in or distributed well.
•It is forbidden to wash carpets.
Operating the appliance!
SAFETY INSTRUCTIONS
•
•
•
•

6
• Make sure that all pockets are emptied. Sharp and rigid
items such as coin,brooch,nail,screw or stone etc. may
cause serious damages to this machine.
• Please check whether the water inside the drum has
been drained before opening its door.Please do not open
the door if there is any water visible.
• Be careful of burning when the product drains hot
washing water.
• Never refill the water by hand during washing.
• After the program is completed, Please wait for two
minutes to open the door.

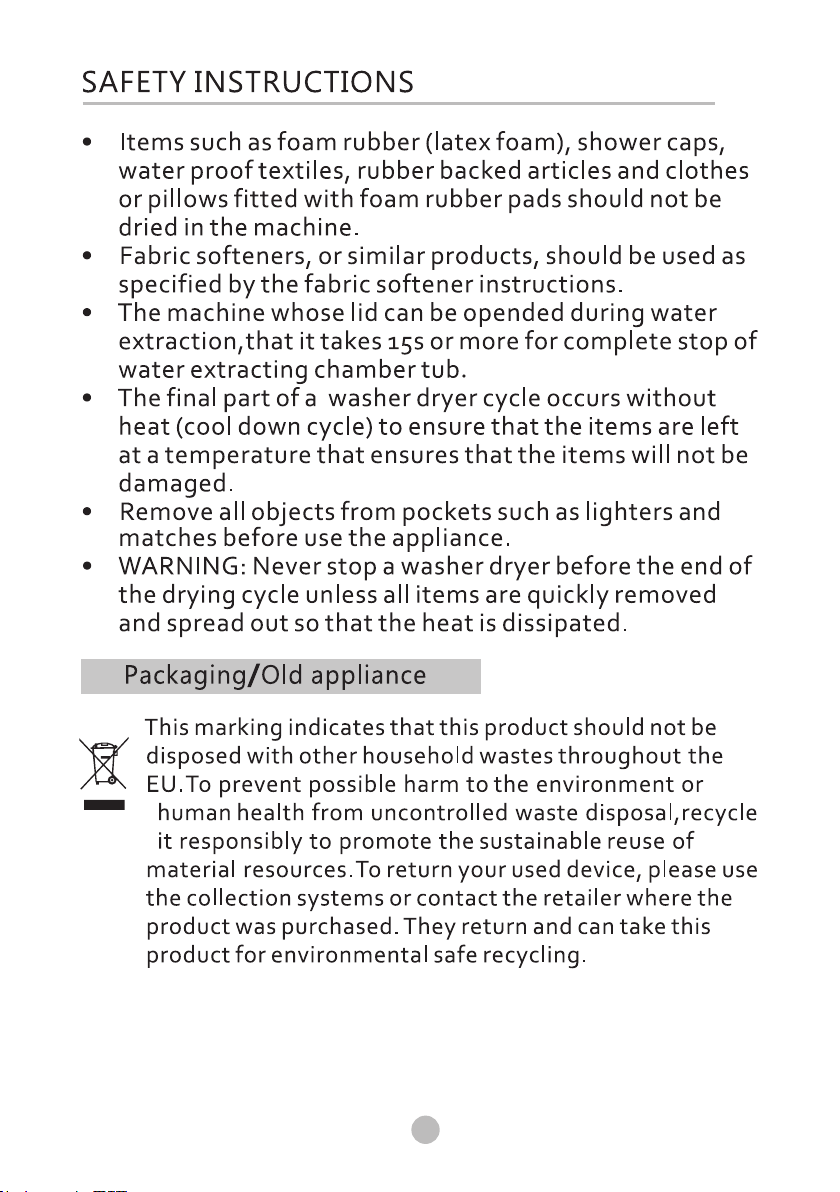

SAFETY INSTRUCTIONS
• Before washing the clothes at first time, the product
shall be operated in one round of the whole procedures
without the clothes inside.
• Flammable and explosive or toxic solvents are forbidden.
Gasoline and alcohol etc.Shall not be used as detergents.
Please only select the detergents suitable for machine
washing, especially for drum.
•
Before using the washing machine, the product shall be
calibrated.

7

8
Accessories
Product Description
Transport
plughole
Supply hose
cold water
Drain hose
(optional
support
)
• The product line chart is for reference only, please refer to real product as
standard.
Note!
Drum
Control panel
Power supply cord
Detergent dispenser
Service filter
Door
Water supply hose
Top cover
Drain hose
Owner’s manual
INSTALLATION

9
INSTALLATION
Installation
Before installing the machine, the location characterized
follows shall be selected:
1.Rigid, dry, and level surface
2.Avoid direct sunlight
3.Sufficient ventilation
4.Room temperature is above 0℃
5.Keep far away from the heat resources such as coal or gas.
as
Unpacking the washing machine
1. Remove the cardboard box and styrofoam packing.
2. Lift the washing machine and remove the base packing.
3. Remove the tape securing the power supply cord and drain hose.
4. Remove the inlet hose from the drum.
Make sure the small triangle
foam is removed with the bottom one together. If not, lay the unit down with side
surface, then remove the small foam from the unit bottom manually.
Please take the following steps to remove the bolts:
1.Loosen 4 bolts with spanner and then remove them.
2.Stop the holes with transport hole plugs.
3.Keep the transport bolts properly for future use.
Remove transport bolts
•
•
Stability is important to prevent the product from
wandering!
Make sure that the product should not stand on
the power cord.
Warning!
！
•
•
Packaging material (e.g. Films, Styrofoam) can be
dangerous for children.
There is a risk of suffocation ! Keep all packaging
well away from children.
Warning!
！
•
• product
you
You must remove the transport bolts from the backside before using the product.
You’ll need the transport bolts again if you move the , so make sure
keep them in a safe place.
Warning!
！
w
w
W> 20mm
Installation area

10
INSTALLATION

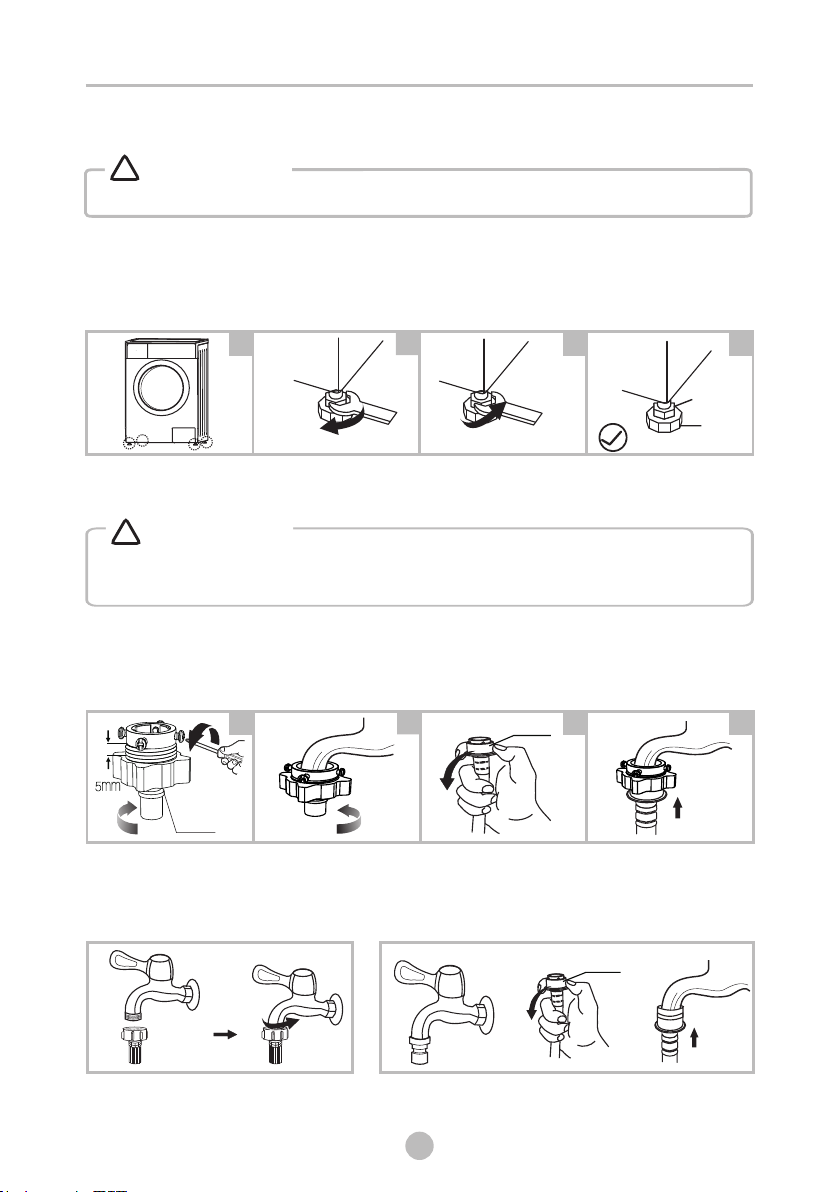

1.Check if the legs are closely attached to the cabinet. If not, please turn them to
their original positions tighten the nuts.
2.Loosen the lock nut turn the feet until it closely contacts with the floor.
3.Adjust the legs and lock them with a spanner, make sure the machine is steady.
Levelling the washing machine
• The lock nuts on all four feet must be screwed tightly against the housing.
Connect Water Supply Hose
Connect the inlet pipe as indicated, There are two ways to connect the inlet pipe.
1.Connection between ordinary tap and inlet hose.
• To prevent leakage or water damage, follow the instructions in this chapter
Do not kink, crush, modify or sever .
!
• water inlet hose
234 1
Raise Lower
Lock nut
foot
Warning!
！
Warning!
！
Loosen clamp nut and
four bolts
Tighten clamp nut Press slide bushing,
insert inlet hose into
connecting base
slide bushing
2341
Connection finished
clamp nut
Tap with threads and inlet hose Special tap for washing machine
2.Connection between screw tap and inlet hose.
slide bushing

11
INSTALLATION
Warning!
！

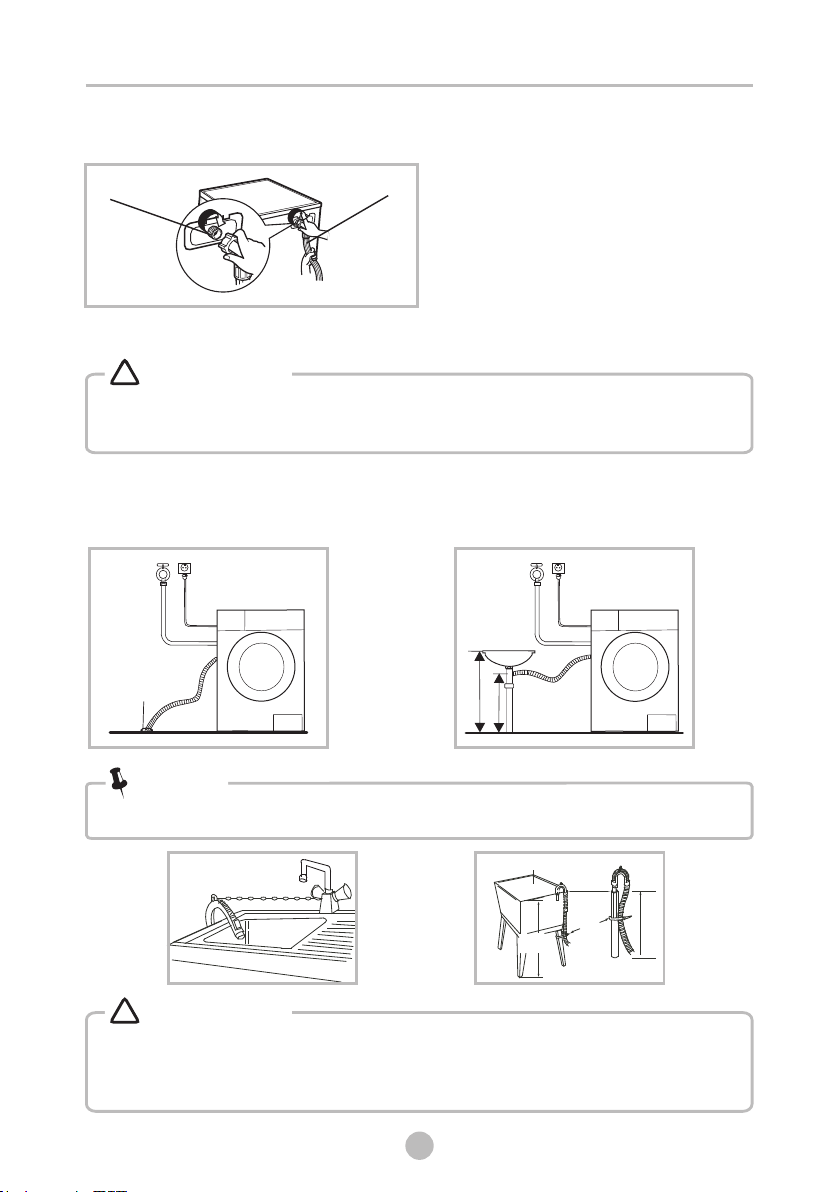

Drain Hose
There are two ways to place the end of drain hose:
1.Put it into the water trough. 2.Connect it to the branch drain pipe of
the trough.
•
• If drain hose is too long, do not force it into washing machine as it will cause
abnormal noises.
When installing drain hose, fix it properly with a rope.
•
• Position drain hose properly ,otherwise damage might result of water leakage.
Do not kink or protract the drain hose.
Water
trough
Min.60cm
100cm
Max.
Trough
Hose Retainer
Bind
Max.100cm
Min.60cm
Min.60cm
Max.100cm
If the machine has • drain hose support, please install it like the following .
Warning!
！Warning! ！
Note!
water supply hose
water Inlet valve
Connect the other end of inlet pipe to the inlet valve at the backside of product
and fasten the pipe tightly clockwise.

12
Before washing, please make sure it’s installed properly.
Before washing at first time, the washing machine shall be operated in one
of the whole procedures without clothes in as follows.
•
•
round
1. Before Washing
Open tap
Load
Close door
Plug in
Add detergent
Quick Start
• Detergent need to be added in "case I “after selecting pre-washing for machines
with this function.
1 2 3 4 5
2. Washing
Note!
Caution!
OPERATION
Main
Wash
Pre Wash
Softener

Knot the long strips,zip or
button
• When washing a single clothes, it may easily cause great eccentricity and give
alarm due to great unbalance. Therefore it is suggested to add one or two
more clothes to be washed together so that draining can be done smoothly.
• Don’t washing the clothes touching with kerosene, gasoline, alcohol and
other flammable materials.
• The working condition of the washer should be(0-40)℃.If used under 0℃,the
inlet valve and draining system may be damaged. If the machine is placed under
condition of 0℃or less, then it should be transferred to normal ambient
temperature to ensure the water supply hose and drain hose are not frozen
before use.
• Please check the labels and the explanation of using detergent before wash. Use
non-foaming or less-foaming detergent suitable for machine washing properly.
Take out the items out of
the pockets
Put small clothes into the
pillow slip
Check the label
Before Each Washing
Turn easy-pilling and
long-pile fabric inside out
Separate clothes with
different textures
Warning!
！
OPERATION
13

Programme
Cotton
Synthetic
Mix
Bed Linen
Baby Care
20oC
Drum Clean
Spin Only
Rinse & Spin
Means must ○ Means optional
Programme
Wool
Delicate
Quick Wash 15’
ECO 40-60

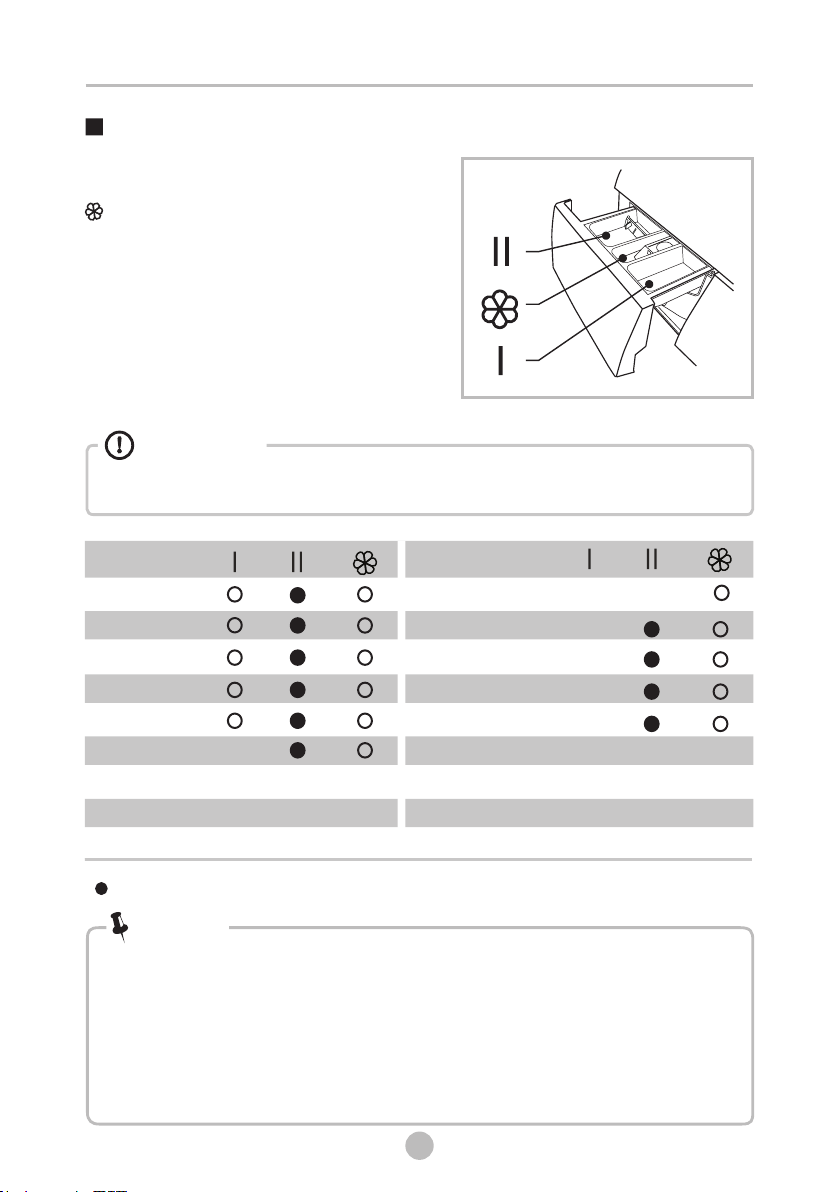

Detergent Dispenser
Pre Wash detergent
Main Wash detergent
Softener
II
I
Pull out the dispenser
• As for the agglomerated or ropy detergent or additive, before they are
poured the detergent box, it is suggested to use some water for
dilution to prevent inlet of detergent box from being blocked and
overflowing while filling water.
•
into
the
Please choose suitable type of detergent for the various washing
temperature to get the best washing performance with less water and
energy consumption.
Note!
Caution!
• Detergent only need to be added in "case I “after selecting pre-washing
for machines with this function.
OPERATION
14

On/Off
Product is switched On/Off.
Start/Pause
Press the button to start or pause the
washing cycle.
Programmes
Available according to the laundry type.
Option
This allows you to select an additional
function and will light when selected.
Note!
The chart is for reference only, Please refer to real product as standard.•
1
1
3
1
2
4
Display
The display shows the settings, estimated time remaining, options, and status messages
for your washer. The display will remain on through the cycle.
5
OPERATION
Control Panel
Model: WIW-81413S, WIW-91407DL, WIW-10159, WIW-12149
Pre Wash
B
Door Lock
D
Display
A
Wash Time Delay Time
Speed Error
End Temp.
AB C
G
Reload
C
Child Lock
E
D E
H IF J
Extra Rinse
F
Speed Wash
G
Delay
H
SpaCare
I
Pre Wash-Wash-Rinse-Spin
J
15

Delay
Set the Delay function:
1. Select a programme; 2.Press the Delay button to choose the time(the delaying time is 0-24 H.);
3.Press [Start/Pause] to commence the delay operation
Choose the Programme Start
Setting time
Delay
Cancel the Delay function:
Press the [Delay] button until the display be 0H.It should be pressed before starting the
programme. If the programme already started, should switch off programme to reset a new one.
Option
Caution!
• If there is any break in the power supply while the machine is operating, a
special memory stores the selected programme and when the power is
restarted, the program will continue.
16
OPERATION
Soil
The washing time will increase or decrease after you select it.
Soil Level
Extra Rinse
The laundry will undergo extra rinse once after you select it.
Pre Wash
The Prewash function can get an extra wash before main wash,it is suitable for washing the
dust rises to surface of the clothes;You need to put detergent into the Case (I) when select it.
Pre Wash
Extra Rinse
Speed
Wash
Speed Wash
The function can decrease the washing time.
My Cycle
To memory the frequently used programme.
After choosing the programme and setting the options, press [Temp.] 3 sec. before
start to wash.The default setting course is Cotton.

OPERATION
• Don't use the Reload function when the water level is over the edge of the
inner tub or the water temperature is high.
Reload
This operation can be executed during the washing progress. When the drum is still
rolling and there is large amount of water with high temperature in the drum, the
state is unsafe and the door cannot be opened forcefully. To reload, press
[Start/Pause] for 3 sec., to start adding the clothes in the midway. Please follow the
steps as bellow:
1.Wait until the drum stops rotation.
2.The door lock is unlocked.
3.Close the door when the clothes are reloaded and press the [Start/Pause]
button.
Start
P 3sress[Start/Pause]ec.
Clothes
Reload the clothes
Caution!
17
SpaCare function can be selected by choose “Cotton”, ”Bed Linen” , ”Mix”and “Baby
Care”. The customers can see the steam in the drum when operate SpaCare function. The
SpaCare cannot be used simultaneously With Pre Wash and Speed Wash.
SpaCare SpaCare

Speed
Press the button to change the speed.
1400: 0-400-600-800-1000-1200-1400
1500:
0-400-600-800-1000-
1200-1400-1500
Temp.
℃,Press the button to regulate the temperature(Cold,20 30℃, 40℃,60℃,90℃)
Other Functions
18
OPERATION
Programme Default Speed(rpm)
Cotton
Synthetic
Mix
Bed Linen
Baby Care
20oC
Drum Clean
Programme
Spin Only
Rinse&Spin
Wool
ECO 40-60
Intensive
Quick 15’
Default Speed(rpm)
800
800
1400
1000
800
–
800
1000
600
800
1500 1500
1000
Model: WIW- 81413S / WIW-91407DL / WIW-12149 - WIW-10159
1200
1400 1400
800
800
1500
1000
800
–
1200
800
1000
600
800
1000
1500
1400

19
Mute the buzzer
To act the buzzer function, press the button again for 3 seconds. The setting
until the next reset. will be kept
• MuAfter ting the buzzer function, the sounds will not be activated any more.
Caution!
OPERATION
Press the [Speed]button for 3sec., to
mute the buzzer.
Speed
Choose the Programme
The "Child Lock" will lock all buttons except Power button and Child Lock
button
When child lock is activated and program starts, child lock indicator will switch on,
and the CL and remaining time on the display are alternately displayed in 0.5s.
Press the other buttons will make child lock indicator flash for 3s. when program
finish,CL and END alternate for 10s in 0.5s, then the child lock lights flash for 3s
•Only press and hold the two buttons to release the child lock, even power off,
switch off and program end
•
•Please release child lock before selecting program and staring washing
Caution!
Child Lock
To avoid mis operation by children.
Press [ ] and [ ]
3 sec. till buzzer beep.
Delay SpaCare
Delay SpaCare
