The 1218C Outdoor Ethernet Switch Assembly is an accessory to the 1218C Electronic Tank Gauge. The
Switch Assembly allows the user to network up to 5 or 8, depending on model, Ethernet enabled devices.
A common application is to use the Ethernet Switch to connect several 1218C Electronic Tank Gauges to a
network or wireless client device.

Input Power
100 – 240 VAC, 50/60Hz
Operating Temperature
-40°F to 140°C (-40°C to 60°C)
Enclosure Rating
NEMA 4X
Maximum Wiring Distance
Ethernet – 330ft (CAT5e cable recommended)

Warnings
• Fire Hazard – Death or serious injury could result from spilled liquids.
• You must be trained to install or maintain this Electronic Tank Gauge. Stop now if you have not been trained.
• Anymodicationofthisunitbeyondwhatisoutlinedinthisinstructionwillvoidproductwarranty.
• For your safety, it is important to follow local, state, federal and/or OSHA rules that apply to working
inside, above, or around the storage tank and piping area. Use all personal protective equipment required for
workinginthespecicenvironment.
• This device is intended to be used as an auxiliary warning to the operator of an abnormal condition of
thesystem,suchasapossibleoverllsituationandshouldnotbetheonlysysteminplacetopreventan
unwantedcondition,suchaspreventingatankfromoverlling.Itisthesoleresponsibilityoftheoperatorto
continuously prevent any spillage regardless of the situation.
• Tankscouldbeunderpressure.Vaporscouldbeexpelledfromtankvents,piping,valvesorttingswhile
performingmaintenance.Vaporscouldcatchreorcauseanexplosion.Avoidsparks,opename,orhot
tools when working on tank system.
• Use a dampened cloth when cleaning the alarm enclosure to prevent static buildup and discharge.
• Intheeventofmalfunction,contactMorrisonBros.Co.CustomerService.



2
Morrison Bros. Co. ‑ Dubuque, IA ‑ 800‑553‑4840
1218C‑0199 PP
rev. 3-22-18
!
• Risque d’incendie – Un déversement de liquide pourrait entraîner des blessures graves ou la mort.
• Vous devez avoir reçu une formation pour installer cette jauge de réservoir électronique ou en assurer la
maintenance. Arrêtez-vous immédiatement si vous n’avez reçu aucune formation à cet effet.
• Touteslesmodicationsapportéesàcetteunitéautresquecellesindiquéesdanscesdirectivesengendreront
l’annulation de la garantie du produit.
• Pour assurer votre sécurité, il est important de vous conformer à la réglementation locale, d’État, fédérale
ou OSHA régissant les travaux à l’intérieur, au-dessus ou autour du réservoir de stockage et de la zone de
canalisation. Utilisez tout l’équipement de protection individuelle exigé pour travailler dans l’environnement
spécique.
• Cet appareil est destiné à être utilisé comme mécanisme avertissant l’opérateur d’un état anormal du système
tel une situation de remplissage excessif et ne devrait pas être le seul système en place pour empêcher un état
indésirable, par exemple, un réservoir qui se remplit trop. L’opérateur a l’entière responsabilité de s’assurer
continuellement de prévenir tout déversement, quelle que soit la situation.
• Les réservoirs pourraient être sous pression. Des vapeurs pourraient être expulsées des conduits d’aération,
des canalisations, des soupapes ou des raccords du réservoir durant la maintenance. Les vapeurs pourraient
s’enammerouengendreruneexplosion.Évitezlesétincelles,lesammesnuesoulesoutilschaudslorsde
travaux menés dans le système du réservoir.
• Utilisezunlingehumidepournettoyerl’enceintedel’alarmeandeprévenirl’accumulationd’électricité
statique et les décharges.
• Encasdedéfaillance,communiquezavecleserviceàlaclientèledeMorrisonBros.Co.
WARNING: ThisdeviceisintendedtobeinstalledinanOrdinaryLocation(UnclassiedLocation)andbe
used with other Ordinary Location devices.
Mounting
The Switch Assembly is designed to be mounted outdoors, near the 1218C installations. To maintain the NEMA
4X rating of the Switch Assembly:
•ThreeopeningshavebeenprovidedinthebottomoftheNEMA4Xenclosureforconnectionandwiring.
OnlyuseThomas&BettsCat.No.H050GR-TBorH050-TBorequivalenthubsintheoneopening
for½”conduitandThomas&BettsCat.No.H075GR-TBorH075-TBorequivalenthubsinthetwo
openings for ¾” conduit.
•Anyunusedopeningsintheenclosuremustbecoveredwithaconduitholeseal.
•Mountingtabshavebeenprovidedwiththeproducttomounttheenclosure;donotmakeadditionalholes
in this enclosure.
•Ensurethatbothcoverlatchesarelatchedatalltimes.
Failure to follow these instructions voids any assurance that the enclosure is NEMA 4X.

3
Morrison Bros. Co. ‑ Dubuque, IA ‑ 800‑553‑4840
1218C‑0199 PP
rev. 3-22-18
Wiring
The Outdoor Ethernet Switch Assembly contains a power supply module and Ethernet switch module mounted
on an assembly bracket. The modules will need to be removed from the mounting bracket to complete the
requiredwiring.UseaPhillipsheadscrewdrivertoremovetheDINrailstopfromthebracketshowninFigure
1. Use a small slot head screwdriver to pry the release tab of the power supply module. Now slide the modules
off of the mounting bracket.
The Switch Assembly is provided with the DC power supply pre-wired to the Switch module. Therefore, the
user will only need to provide the AC input and ground wiring to the assembly. The AC input power should be
wired to the power supply connections labelled ‘L’, ‘N’, and Ground (symbol) in the Ethernet Switch Assembly
as shown in Figure 2. The Ethernet Switch module provides a ground connection which should be connected
to earth ground, see Figure 3. A grounding stud is provided to tie all ground connections together. Once all
connectionsaremade,mountthemodulesbackontheassemblybracketandsecurethemoduleswiththeDIN
rail stop.

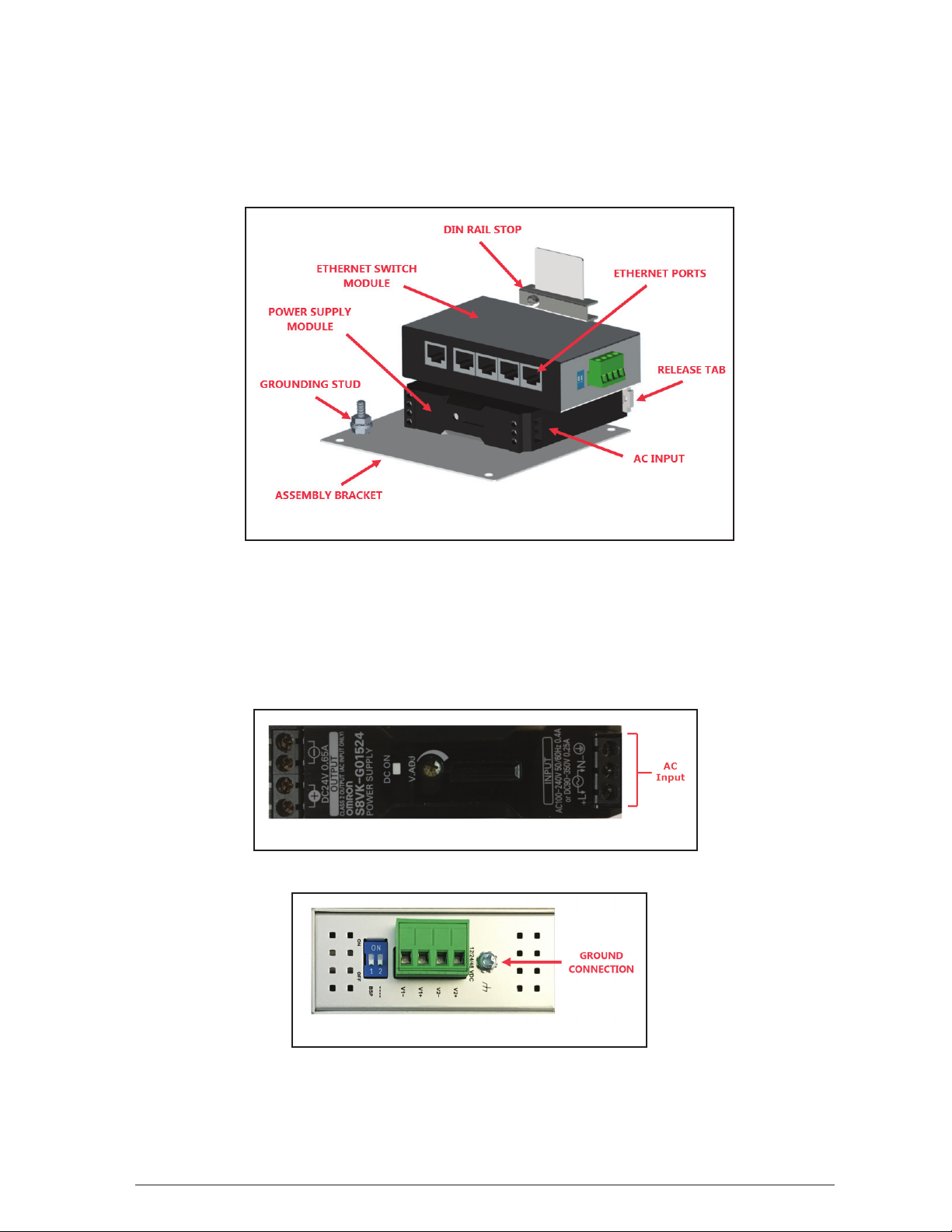

Figure 1 – Ethernet Switch Assembly Bracket
Figure 2 – AC Input Connections
Figure 3 – Switch Module Ground Connection

4
Morrison Bros. Co. ‑ Dubuque, IA ‑ 800‑553‑4840
1218C‑0199 PP
rev. 3-22-18
The Switch Assembly provides 5 or 8 Ethernet ports, depending on the model. One of these Ethernet ports are
required to connect the Switch Assembly to a network or computer, leaving the remaining ports available for
othernetworkeddevices(1218CElectronicTankGauges,1218CWirelessClient,1218CExternalInput/Output
Expansion Module, 1218C Cellular Gateway, Modbus devices, etc.). Once all connections are made and devices
areallpoweredon,verifytheconnectionindicatorsforeachoccupiedEthernetportareilluminatedorashingas
shown in Figures 4 and 6.
Figure 4 – Ethernet Switch Connection Indicators (5-port)
ETHERNET
CONNECTION
INDICATORS
POWER
SUPPLY
INDICATOR
5-port Ethernet Switch
One port is used to connect
to network (i.e. Wireless
Client, Cellular Gateway,
Ethernet Switch, etc.)
Up to 4 ports can be used to
connect devices (i.e. 1218C)
Figure 5 – 5-port Ethernet Switch Inputs/Outputs
Figure 7 – 8-port Ethernet Switch Inputs/Outputs
Figure 6 – Ethernet Switch Connection Indicators (8 port)
ETHERNET
CONNECTION
INDICATORS
POWER
SUPPLY
INDICATOR
8-port Ethernet Switch
One port is used to connect
to network (i.e. Wireless
Client, Cellular Gateway,
Ethernet Switch, etc.)
Upto7portscanbeusedto
connect devices (i.e. 1218C)
