Morrison ECOHEAT EH160 User manual

INSTALLATION AND USER MANUAL
ECOHEAT
EH160
EH200
EH260
www.morrisonsustainableenergy.com/products/morrison-domestic-hot-water-systems

INSTALLATION AND USER MANUAL
ECOHEAT
V1REV4EN1221
1. INTRODUCTION ................................................................................................ 1
2. GENERAL INDICATIONS................................................................................... 1
3. TECHNICAL INFORMATION ............................................................................. 3
4. INSTALLATION STEPS ..................................................................................... 6
5. PLACING ECOHEAT.......................................................................................... 6
6. AIR CONNECTION............................................................................................. 7
7. HIDRAULIC CONNECTION ............................................................................... 8
8. ELECTRICAL CONNECTION............................................................................. 9
9. COMISSIONING. CONTROLLER......................................................................10
10. WARRANTY CONDITIONS...............................................................................20
www.morrisonsustainableenergy.com/products/morrison-domestic-hot-water-systems

INSTALLATION AND USER MANUAL
ECOHEAT
1V1REV4EN1221
1. INTRODUCTION
This product, has been manufactured according to the European Quality Standards,
incorporates prime grade materials and its correct working has been tested before it leaves
our facilities.
Through this Installation and User Manual, you will be guide towards the correct and safety
installation of the product. It is necessary to carefully read this manual before making any
handling to avoid problems arising from the misuse of the product.
The company CLIMER TECHNOLOGY reserves the right to modify the information included
in this document at any time without prior notice.
2. GENERAL INDICATIONS
2.1. Safety notes
- The incorrect or inappropriate use of this product could lead to hazardous situations,
causing damage or injuries to the user, third parties or even to the product itself or
material goods.
- The installer has the responsibility to install the minimum safety devices (hydraulic
and electrical) set out in this Manual. In case of failure, the lack of any device may
cause burns or other injuries.
- The installer has the responsibility to inform the user about the function and
placement of the safety devices installed into the device and the installation.
- The water outlet temperature could reach 62 degrees. Do not touch the pipes while
the system is working to avoid any risk of burns.
2.2. Installer’s qualification
Since the installation of the ECOHEAT involves handling coolant as well as carry out
welding work, it is needed the technical staff have the official certification that accredits
them as authorized to handle coolants.
The installer must explain the user the application of the product and the use and
management of the unit, and he should provide the user all the documentation supplied
with the equipment.

INSTALLATION AND USER MANUAL
ECOHEAT
2V1REV4EN1221
2.3. Package contents
The ECOHEAT system comprises the following components:
- ECOHEAT
- Silent-Blocks
- User Manual
2.4. Indications about transport and unpacking the unit
The unit is supplied packed into a wooden pallet properly secured to prevent damage
during transport.
The material used to the packing are recyclables, so dispose it in an appropriate container.
Use a forklift or hand pallet truck to transport the unit to the installation site, always
introducing the forks into the bottom of the pallet being careful not to damage the unit.
In case you identify any damage at the time of the reception of the unit, it is mandatory to
register it in the reception note of the transport company, and then, submit the complaint.
For this reason, it is recommended to make a thorough visual inspection of the goods
before signing the reception note.

INSTALLATION AND USER MANUAL
ECOHEAT
3V1REV4EN1221
3. TECHNICAL INFORMATION

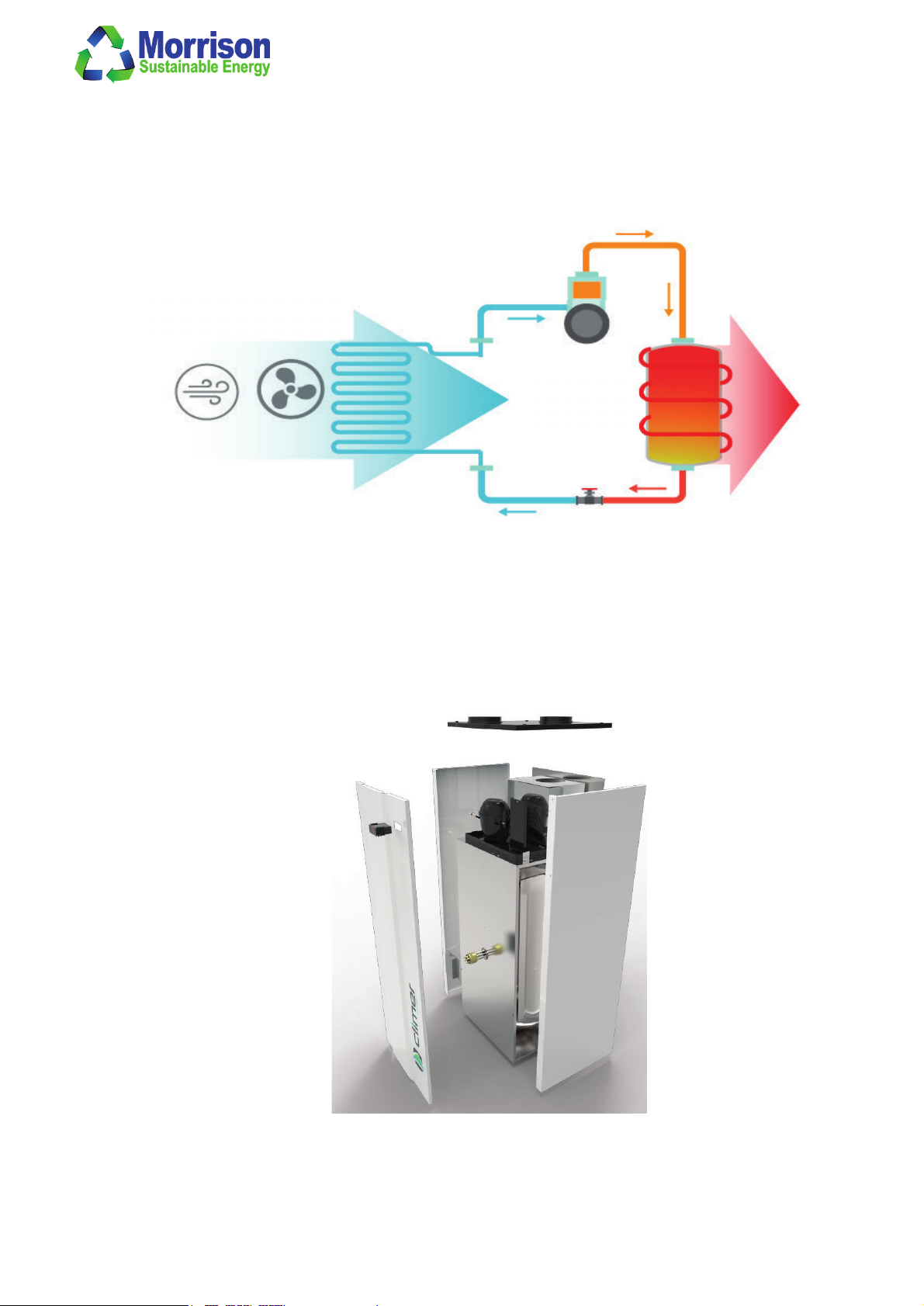

3.1. Operating Principle
Figure 1: Operating principle
3.2. Dimension drawings
It is possible to remove the side and front casing access easily to any part of the system.
Figure 2: Exploded view
Evaporator: Extracts
energy from the ambient
air
Compressor
Expanssion valve
Condenser:
Transfers energy
to the water
DHW

INSTALLATION AND USER MANUAL
ECOHEAT
4V1REV4EN1221

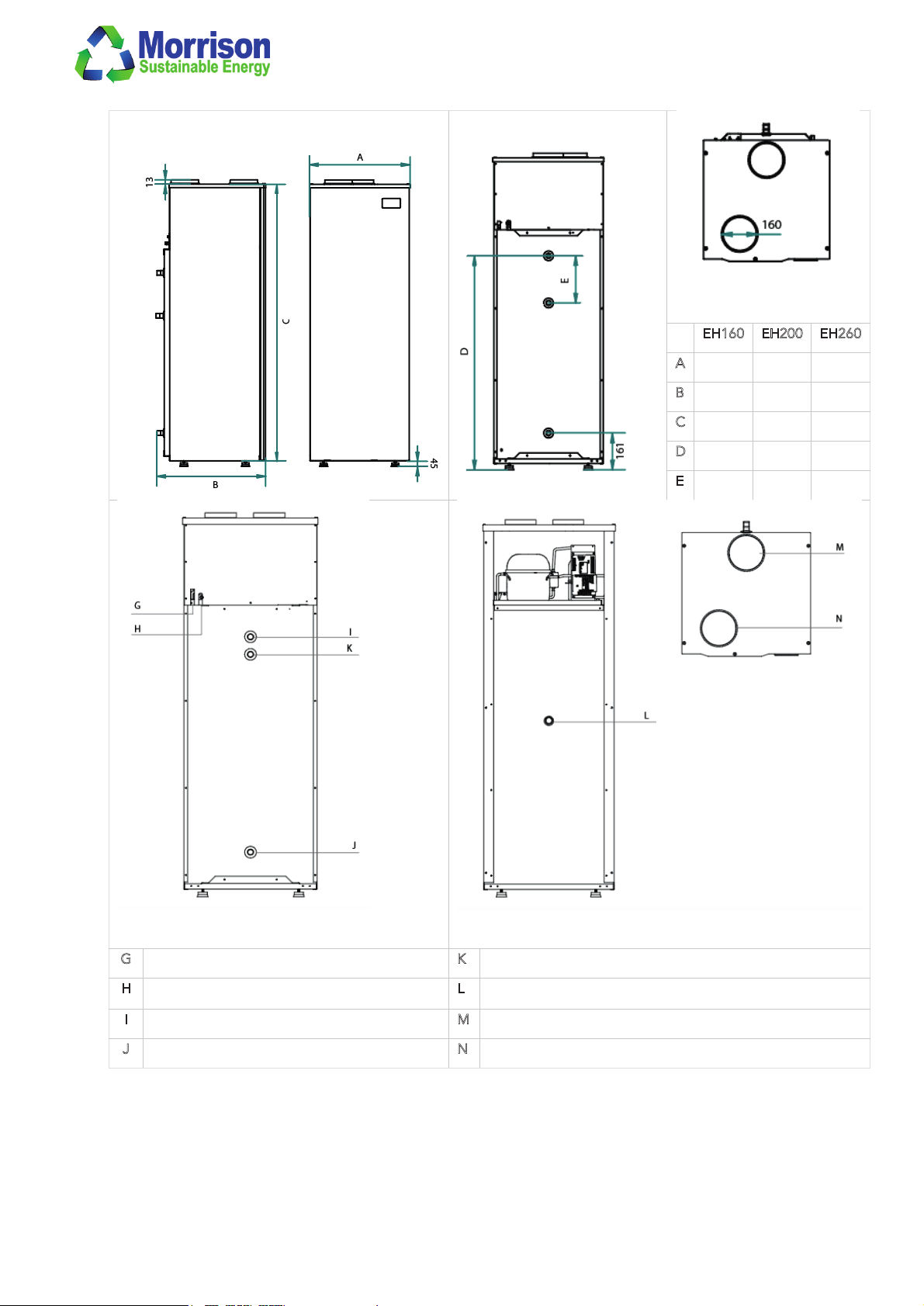

Figure 3: Dimensions, mm
EH160 EH200 EH260
A 585 585 585
B 587 587 587
C 1297 1527 1945
D 824 1074 1399
E 94 194 194
Figure 4. Back connections Figura 5. Front connections
G Power supply, 230 V/1PH/50 Hz K Recirculation connection, ¾ ‘’
H Condensate drain L Electrical heater, 1500 W
I Hot water outlet, ¾ ‘’ M Exhaust air connection (160 mm)
J Cold water inlet, ¾ ‘’ N Intake air connection (160 mm)

INSTALLATION AND USER MANUAL
ECOHEAT
5V1REV4EN1221
3.3. Technical data
Cylinder EH160 EH200 EH260
Capacity, L 160 200 260
Maximum operating pressure, bar 6
Heat pump data
Energy Efficiency Class A
Load profile L L XL
Heating capacity range, W 1840 – 2200
Input power range, W 460 – 600
COP 3,7 – 2,5
Minimum ambient temperature, ºC 5
Maximum water temp. HP, ºC 60
Maximum water temp. electrical heater, ºC 62
Refrigerant R134a
Charge, g 950
Electric data
Power supply, V/ph/Hz 230 / 1 / 50
Electric heater power, W 1500
Maximum absorbed power, W 2100
Maximum intensity, A 21
Air data
Air flow, m3/h 450
Maximum pressure drop, Pa 70
Intake/Exhaust connection, mm 160

INSTALLATION AND USER MANUAL
ECOHEAT
6V1REV4EN1221
4. INSTALLATION STEPS
Before starting the installation, check the availability of all the necessary components and
tools:
- Drill
- Screwdriver
- Hydraulic installation components
- Electric installation components
Once it has been checked that it is available all the necessary components and tools, the
installer should follow the next steps:
1. Placing the ECOHEAT
2. Hydraulic installation
3. Air connections
4. Electric installation
5. Commissioning
5. PLACING ECOHEAT
The place where the system will be installed should allow an easy access in order to make
maintenance work or inspection.
Air outlet of ECOHEAT is around 5-10 degrees below inlet temperature, so in case that the
exhaust air would not be ducted, the room temperature will be considerably reduced.
Beside these factors, it is important to take into account the following indications regards the
installation site:
- The system has been designed and manufactured for it indoors utilization. Install the
system in a dry, frost-free room at a minimum temperature of 5 ºC.
- Installer must install the supplied Silent blocks to avoid the transmission of vibration.

INSTALLATION AND USER MANUAL
ECOHEAT
7V1REV4EN1221

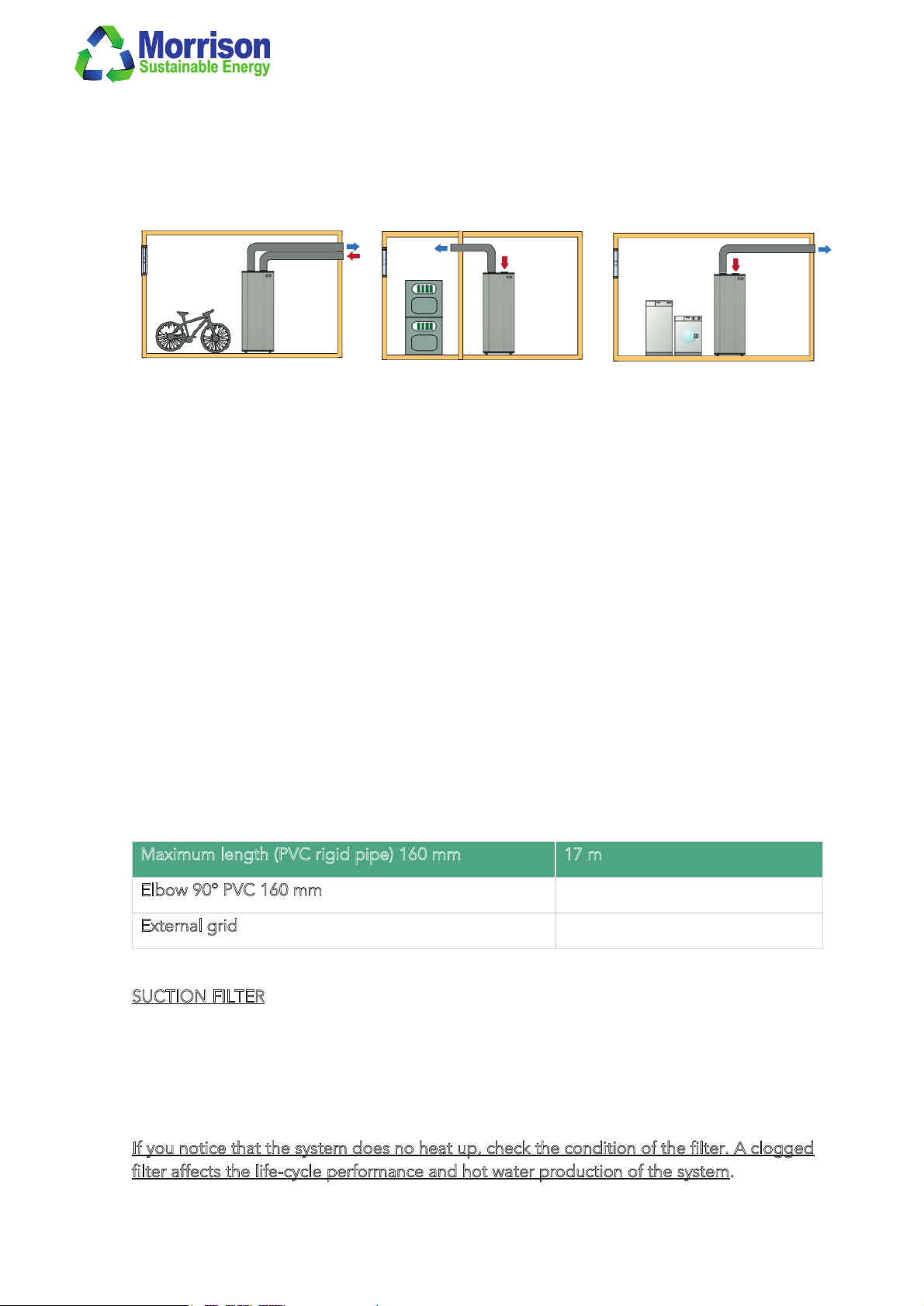

6. AIR CONNECTION
Ecoheat unit has two air connections located at the top cover of the system.
There are different installations possibilities:
Since the temperature of the exhaust air is lower than the intake air flow, the user can recover
this cold air to refresh a room. In this case, it is recommended to install a double duct, one to
the room and other to outdoors. Using a gate, the user can stop the air flow conducting it to
outdoors when cooling isn’t needed.
IMPORTANT:
- Do not use flexible duct! Only smooth PVC pipe is allowed.
- Do not use anti-insect grid.
When the inlet and outlet ducting is needed, use only rigid smooth PVC tube.
The pressure drop in the whole air circuit (pipes and accessories) must be lower than the
static pressure of the system, 70 Pa.
In the following table is shown the allowed total pipe length (intake + exhaust). The
equivalent length of any accessory installed in the circuit must be subtract to the maximum
allowed pipe length:
Maximum length (PVC rigid pipe) 160 mm 17 m
Elbow 90º PVC 160 mm 3 equivalent meters
External grid 2 equivalent meters
SUCTION FILTER
The system includes in the air intake a filter for the protection of all the elements of the
refrigeration circuit. This filter should be checked every 6 months to verify that is has not been
clogged. To do this, remove the filter from the suction duck and check if the channels allow
air passage. Otherwise, wash it with water or replace with a new one.
If you notice that the system does no heat up, check the condition of the filter. A clogged
filter affects the life-cycle performance and hot water production of the system.

INSTALLATION AND USER MANUAL
ECOHEAT
8V1REV4EN1221

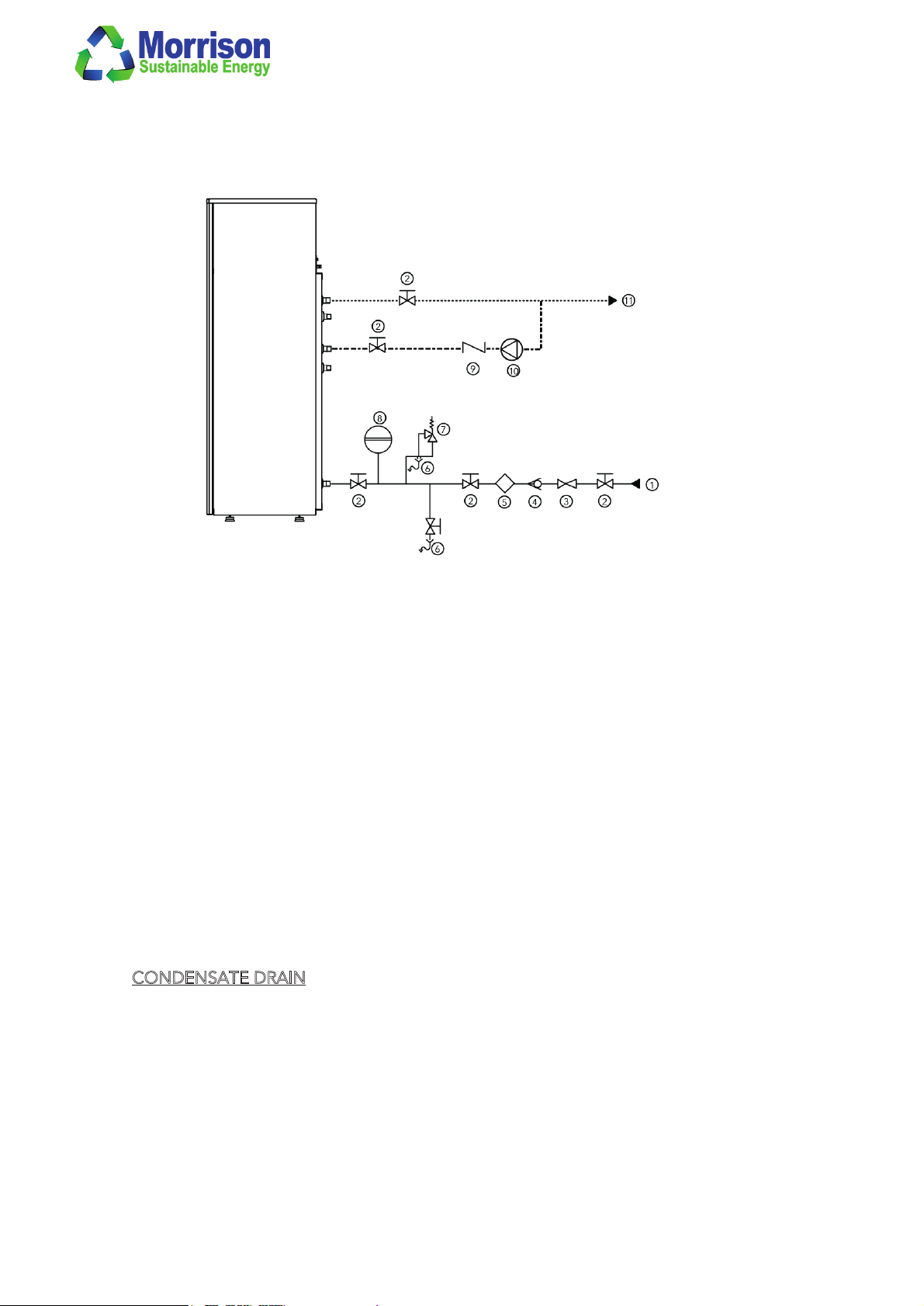

7. HIDRAULIC CONNECTION
The hydraulic connections are shown in the following scheme:
The installer must install the following components of the hydraulic circuit:
- Cold water inlet (1)
- Ball valves (2)
- Pressure reducing valve (3)
- Non- return valve (4)
- Lined Filter Strainer (Y Type) (5)
- Drain (6)
- Safety valve (7)
- Expansion vessel (8)
- Check valve (9)
- Recirculation pump (10)
- DHW (11)
Once the hydraulic connections are made, vent the circuit to avoid the air inside the
installation.
CONDENSATE DRAIN
The condensation in the evaporator could produce a constant water flow that has to be
drained properly. The condensate drain is located in the back of the system (Figure 4, H).
Connect the condensate drain to the wastewater network making a siphon.
Ensure that water can flow freely.

INSTALLATION AND USER MANUAL
ECOHEAT
9V1REV4EN1221

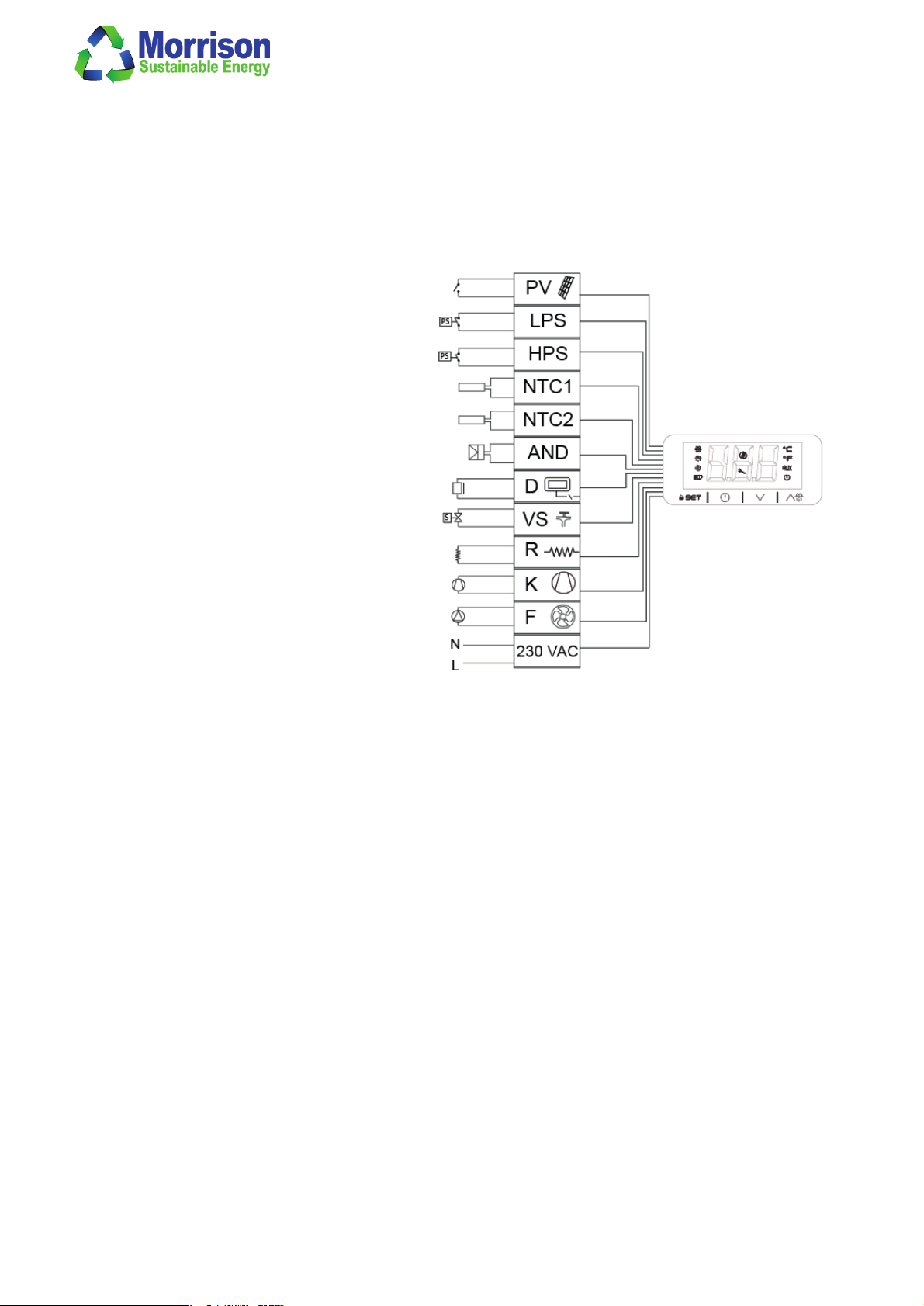

8. ELECTRICAL CONNECTION
The power supply of the system is 230 V/1/50 Hz. The power line must be protected by a
circuit breaker of 2 poles / 16 A.
The connection scheme is shown in the picture above.
PV: Photovoltaic connection
LPS: Low pressure switch
HPS: High pressure switch
NTC1: Water temperatur probe
NTC2: Ambient temperature probe
AND: Anode
D: Display
VS: Solenoid valve
R: Electrical heater
K: Compressor
F: Fan
230 VAC: Power supply

INSTALLATION AND USER MANUAL
ECOHEAT
10 V1REV4EN1221
9. COMISSIONING. CONTROLLER.

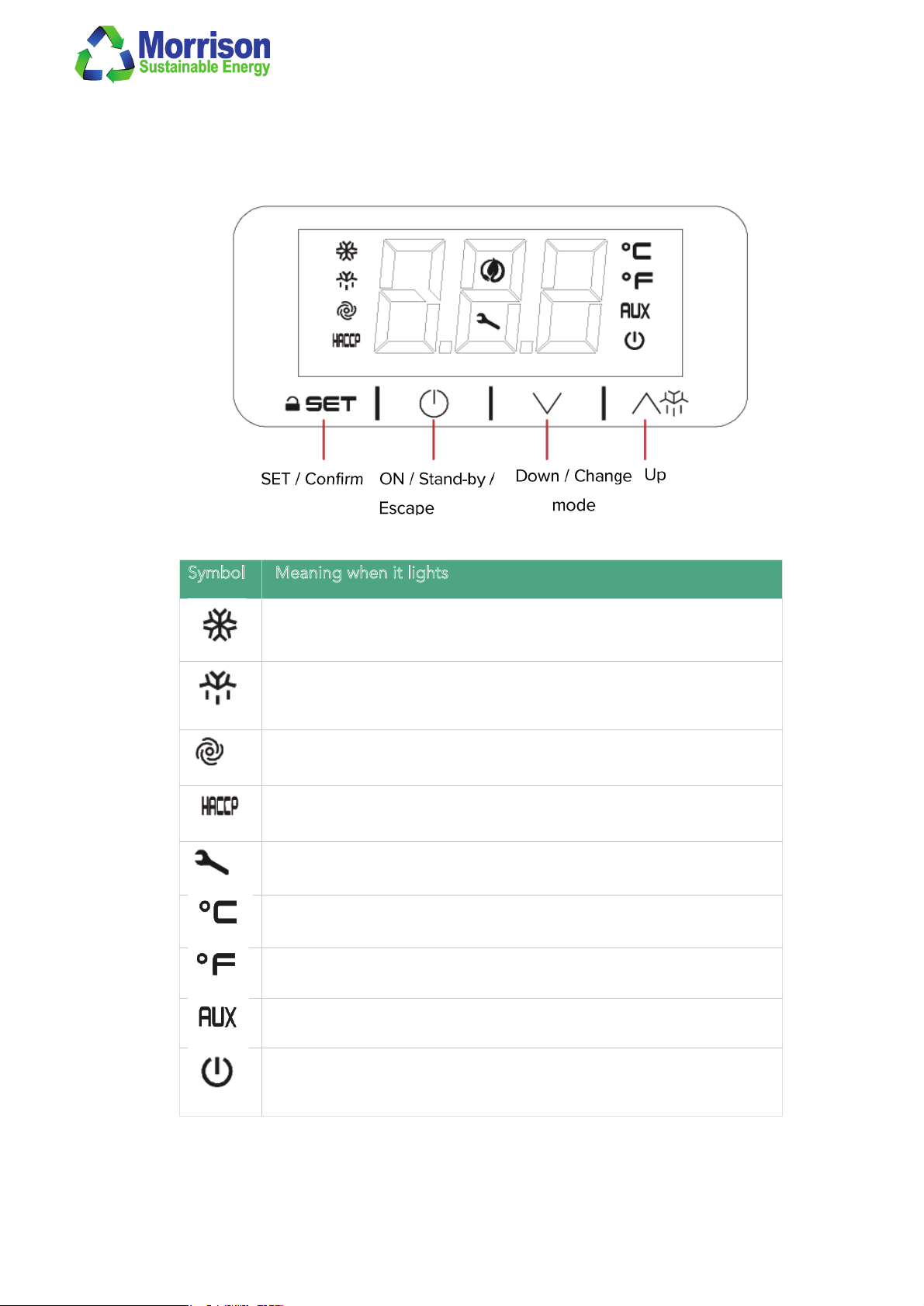

9.1. USER INTERFACE DESCRIPTION
R
E DE SCR I
P TI
Symbol Meaning when it lights
Compressor switched on
Defrost active
Fan switched on
Alarm active
Compressor working hours exceeded
Unit in ºC
Unit in ºF
Electric heater switched on
Stand by

INSTALLATION AND USER MANUAL
ECOHEAT
11 V1REV4EN1221

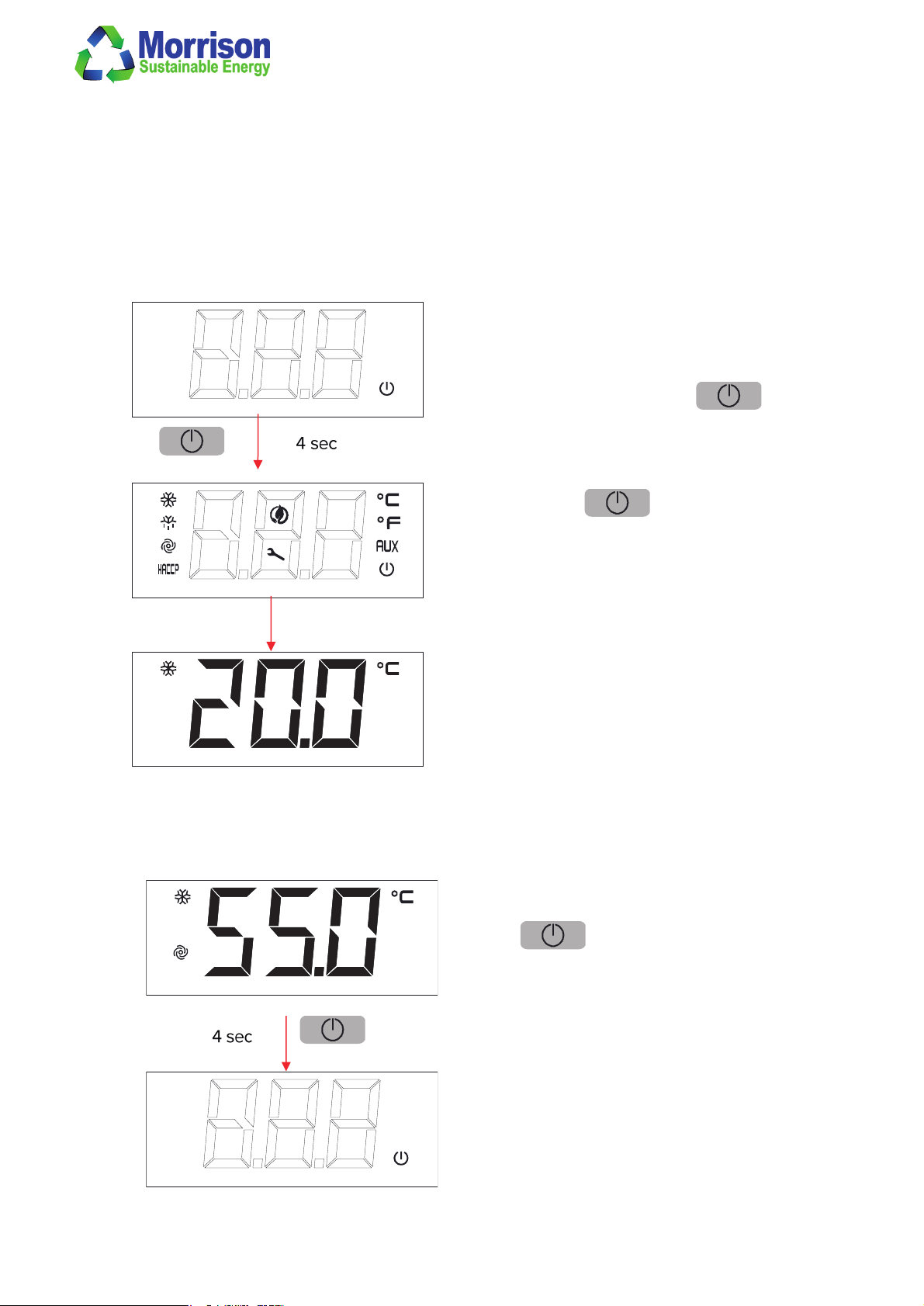

9.2. INSTALLATION- Switching on
After full installation of the water heater (power and water pipes connected) and after the
water heater tank is full of water, power can be turn ON.
9.3. Switching OFF
1. After filling the tank of water, connect the
mains plug to the mains supply.
The screen will show the symbol
2. Hold the key for 4 seconds. The
display will show the icons.
3. The screen will show the water
temperature
To switch off the system, hold the
key for 4 seconds

INSTALLATION AND USER MANUAL
ECOHEAT
12 V1REV4EN1221

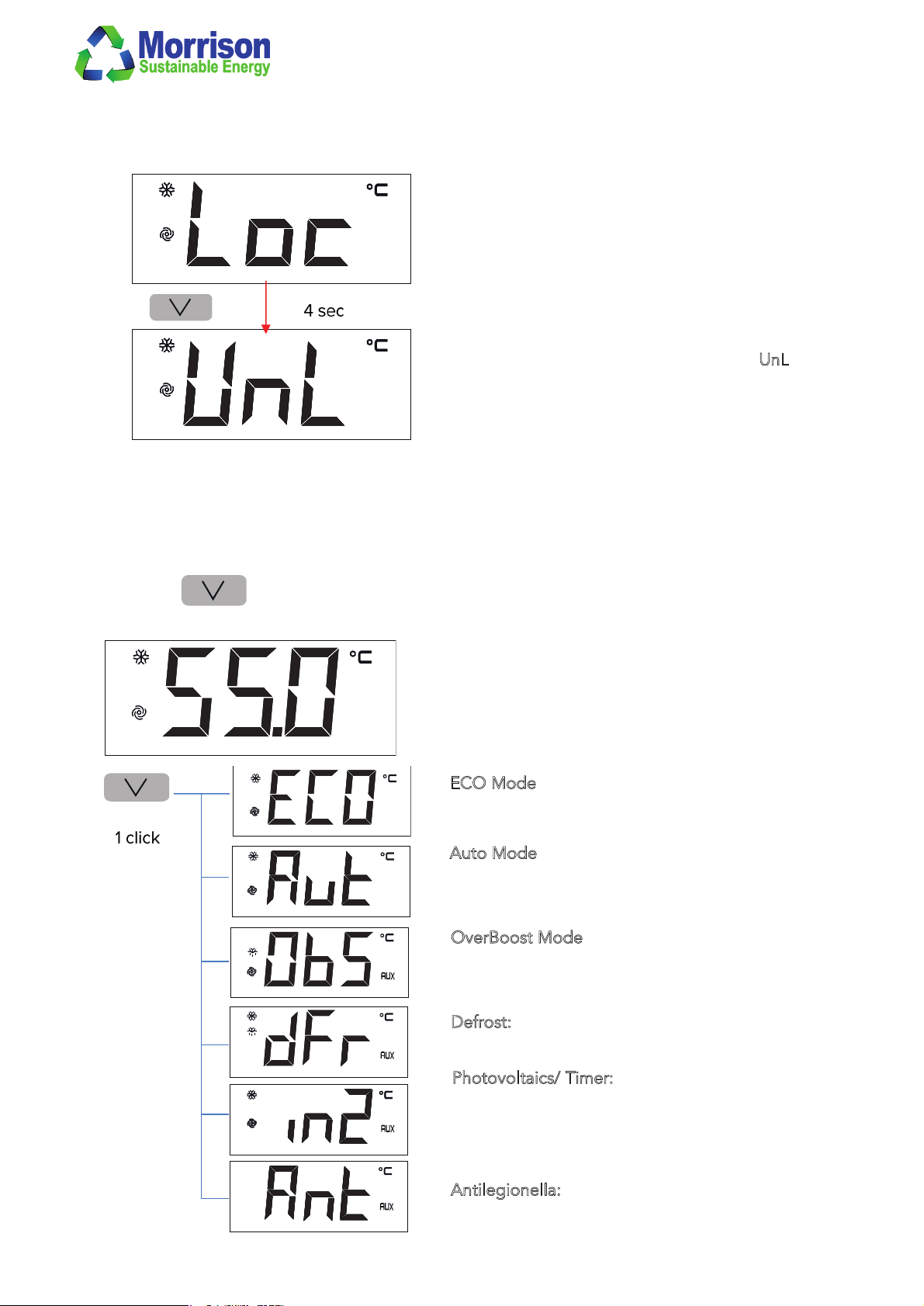

9.4. Unlocking the keypad
9.5. Displaying the operating mode
At first initial power ON, the product goes, by default, in Eco mode. By touching one time
the key, the controller will show the mode in operation in this moment.
When 30 have elapsed without the keys being
pressed, the display will show the ‘’ LOC’’ label
and the keypad will lock automatically
Touch any key until the screen shows UnL, to
unlock the keypad
ECO Mode: Heating only by heat pump technology
Auto Mode: Heating by heat pump and electric heater
only if the water temperature falls drastically
OverBoost Mode: Simultaneously heating by heat pump
and electrical heater to achieve the temperature setpoint
as quickly as possible
Defrost: Defrost cycle active
Photovoltaics/ Timer: Automatic working due to the
existence of surplus energy from PV installation or Off-
Peak Rate
Antilegionella: Automatic disinfection by thermal shock

INSTALLATION AND USER MANUAL
ECOHEAT
13 V1REV4EN1221

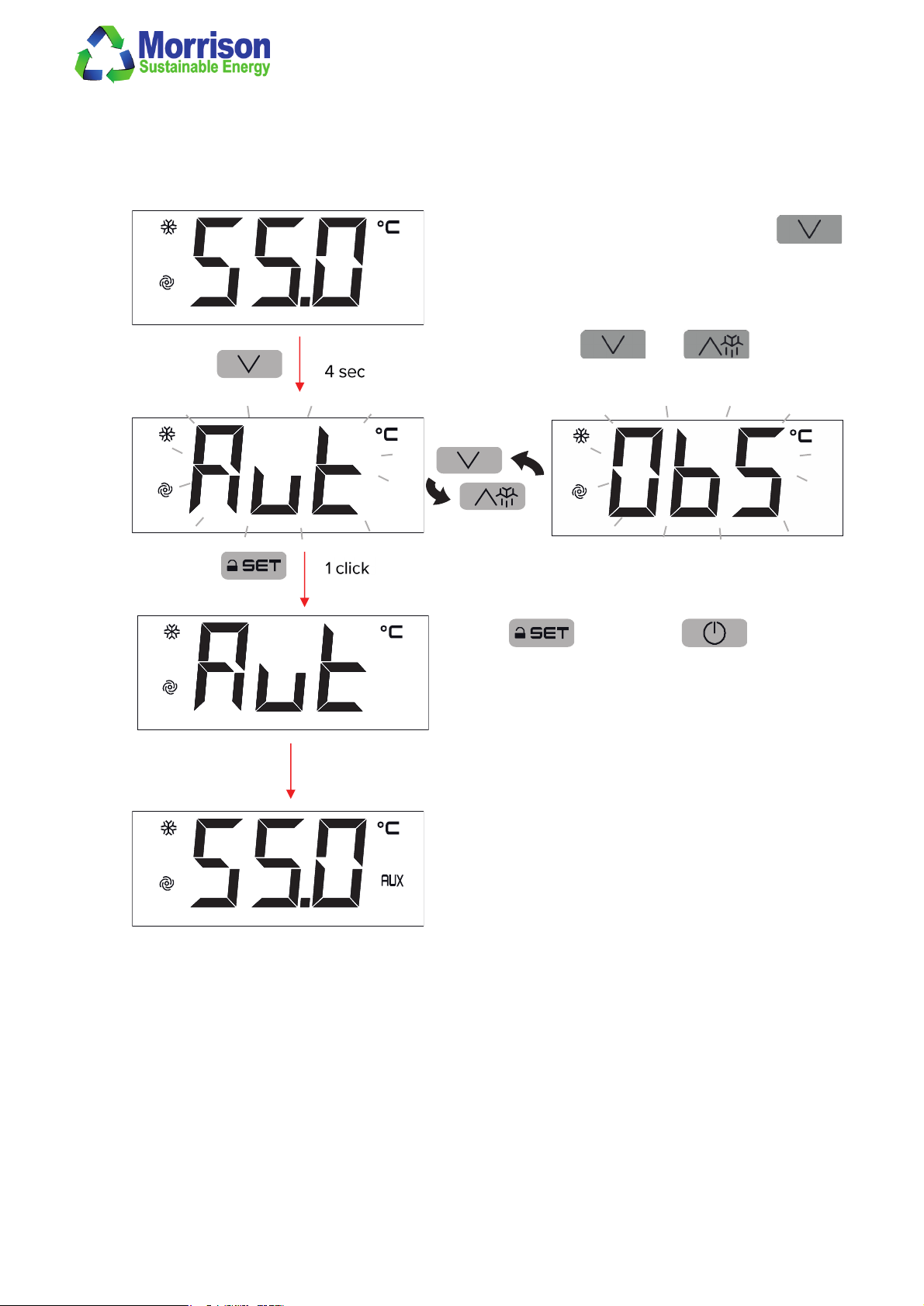

9.6. Changing operating mode
To change the operating mode, touch the key
for 4 seconds.
The screen will show blinking the selectable operating
modes. Use the and keys to select
the operating mode.
Touch to confirm or to cancel
The screen will show again the water temperature

INSTALLATION AND USER MANUAL
ECOHEAT
14 V1REV4EN1221
9.7. ECO Mode
ECO mode: Maximum savings. The system heats water only by heat pump technology.
This is the factory default mode.

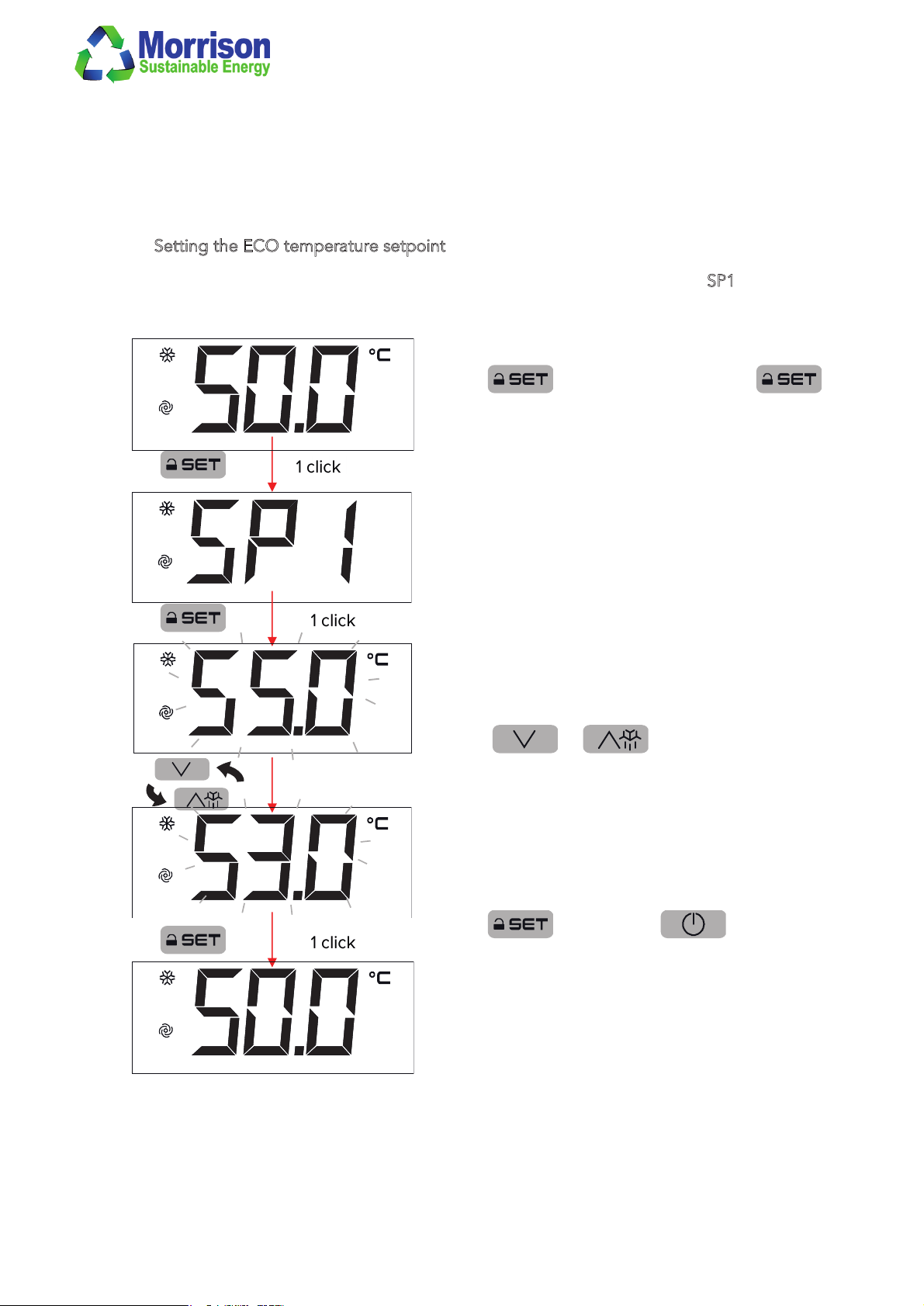

Setting the ECO temperature setpoint
The water temperature set point in ECO mode can be changed with the SP1 parameter.
Touch key and select SP1. Touch to
confirm.
The display will show the programmed temperature
Touch or to select the desired
temperature
Touch to confirm or to cancel

INSTALLATION AND USER MANUAL
ECOHEAT
15 V1REV4EN1221
9.8. AUTO Mode
It maintains a steady temperature by the heat pump and only use the electrical heater if
the temperature falls drastically.

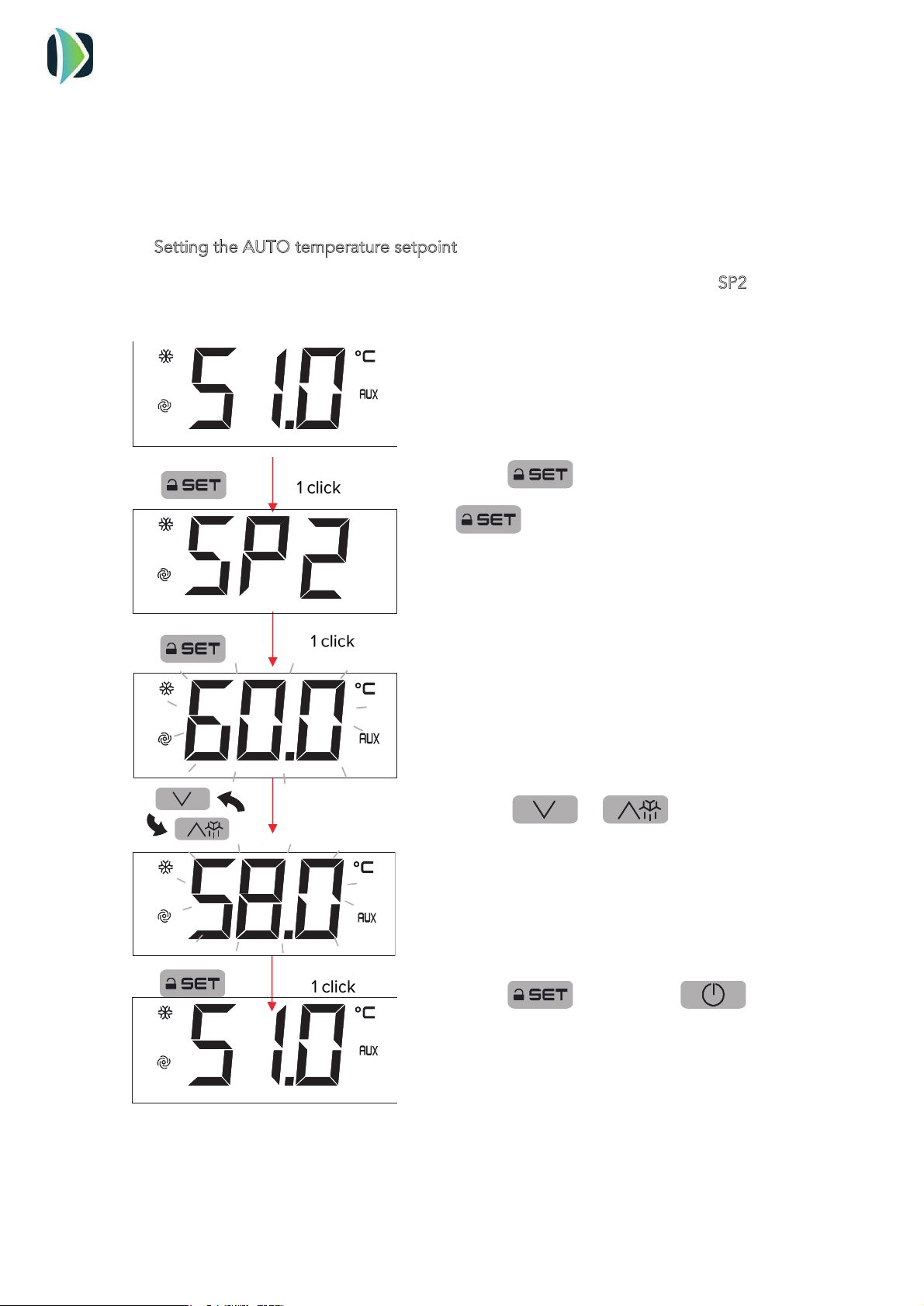

Setting the AUTO temperature setpoint
The water temperature set point in AUTO mode can be changed with the SP2 parameter.
Touch key and select SP2. Touch
to confirm.
The display will show the programmed
temperature
Touch or to select the
desired temperature
Touch to confirm or to
cancel

INSTALLATION AND USER MANUAL
ECOHEAT
16 V1REV4EN1221

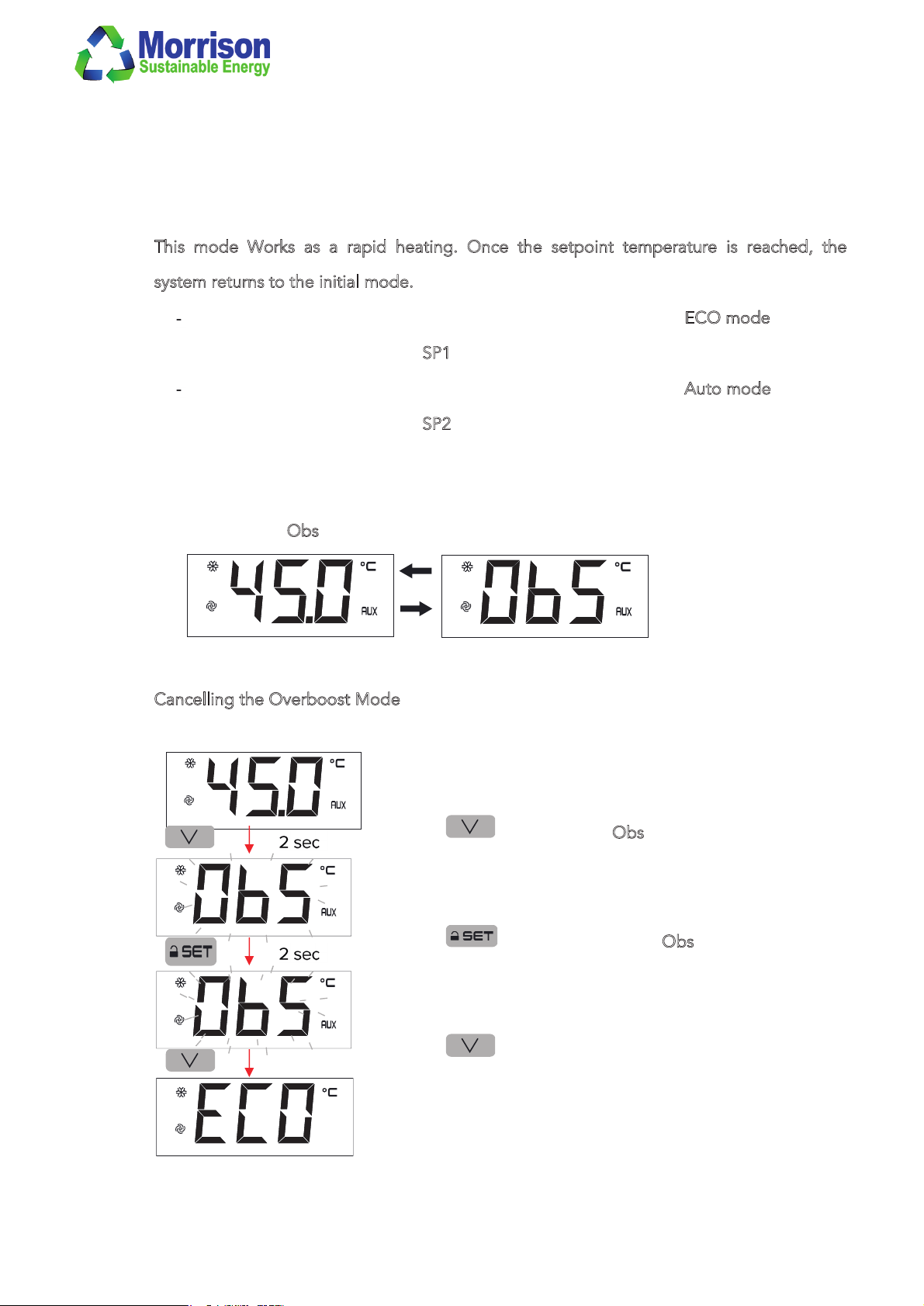

9.9. OVERBOOST Mode
Select this mode to achieve a fast heating by using simultaneously heat pump and electric
heater.
This mode Works as a rapid heating. Once the setpoint temperature is reached, the
system returns to the initial mode.
If Overboost mode is switched on when the system Works from ECO mode: The
system heats the water up to SP1, and then returns to ECO again
If Overboost mode is switched on when the system Works from Auto mode: The
system heats the water up to SP2, and then returns to Auto again
When Overboost mode is active, the display automatically changes showing the water
temperature and Obs.
Cancelling the Overboost Mode
Touch for 2 seconds, Obs will blink on
the screen
Touch for 2 seconds again, Obs will
blink faster
Touch and the mode will be changed for
the initial mode.
Use las teclas y para
seleccionar la temperatura deseada.

INSTALLATION AND USER MANUAL
ECOHEAT
17 V1REV4EN1221

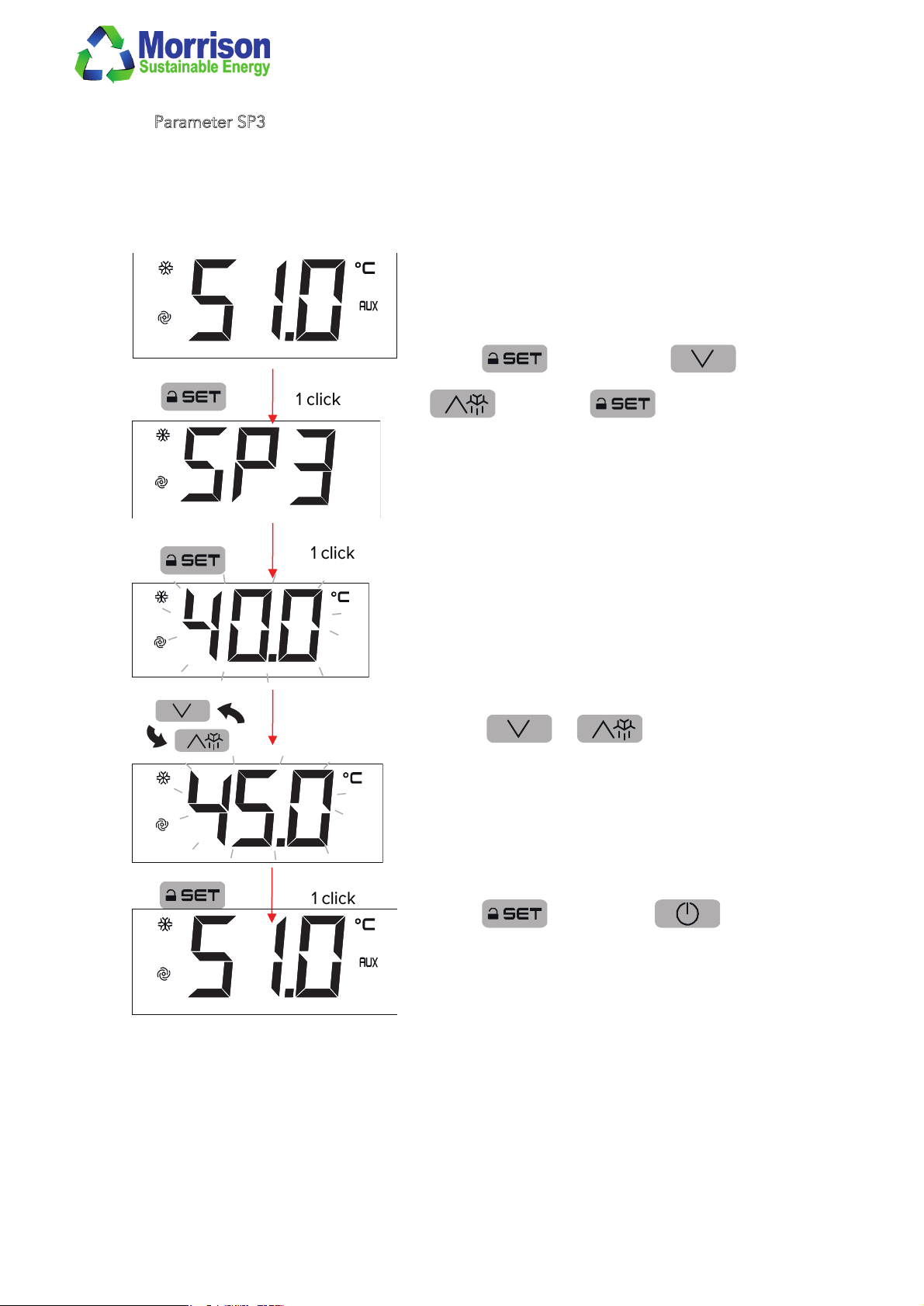

Parameter SP3 allows to set the minimum temperature that Overboost can be actived.
To change it value, follow the procedure:
Touch and select with and
SP3. Touch to confirm
The display will show the programmed
temperature
Touch or to select the desired
temperature
Touch to confirm or to cancel

INSTALLATION AND USER MANUAL
ECOHEAT
18 V1REV4EN1221

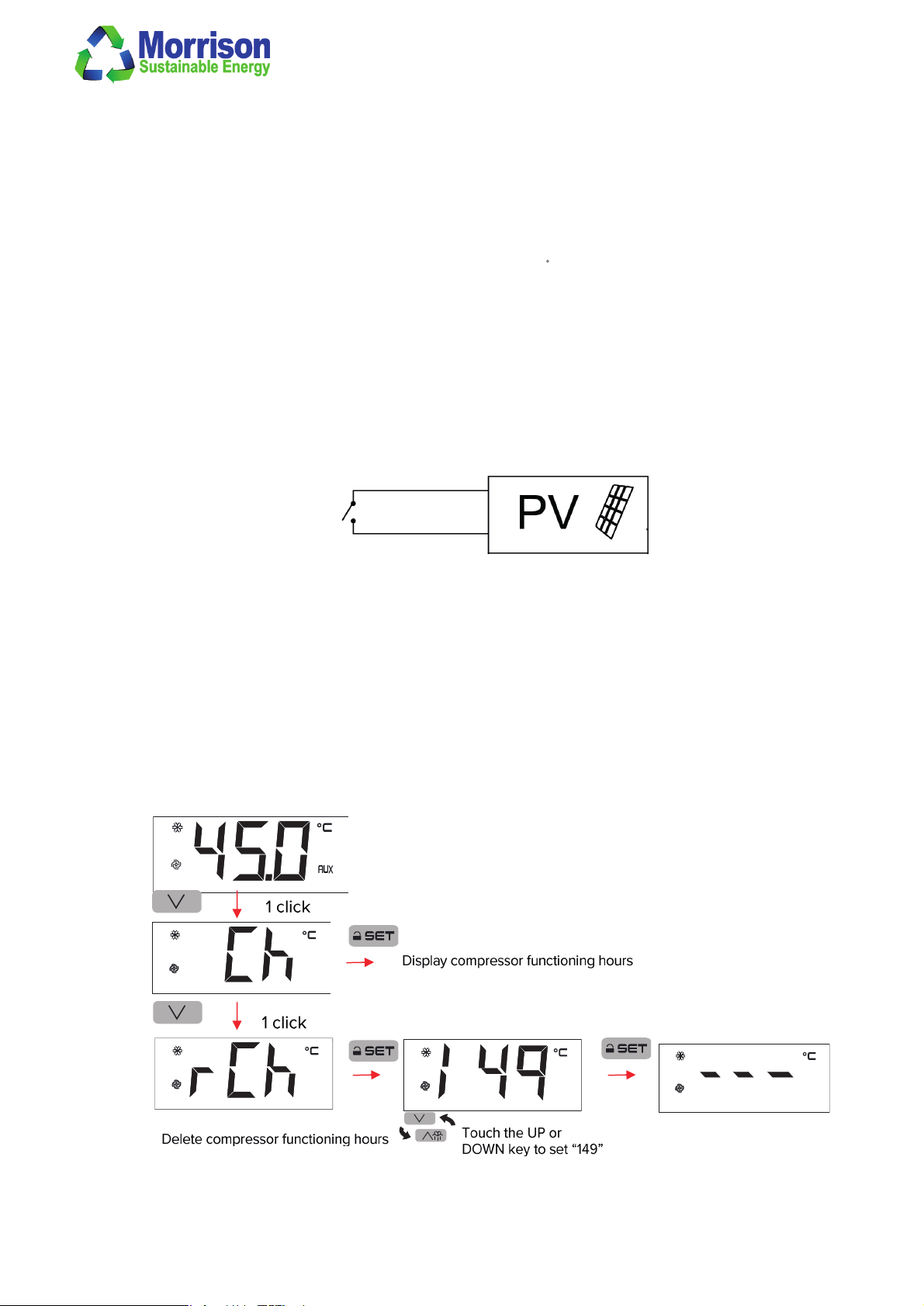

9.10. Photovoltaic input
Working on this mode, the system automatically heats the water due to electric energy
surplus or by Off Peak rate.
The parameters of this mode can only be changed by the Installer’s Menu.
Contact with the technician for more information.
The system can be combined with and Photovoltaic Inverter to take advantage of the
surplus energy generated by the panels, by forcing the system working and storing this
energy in useful hot water.
The system has in the electric boar two terminals to connect a zero-voltage contact.
When the contact is closed, the system automatically changes to Photovoltaic mode and
the heat pump and electric heater work to achieve the programmed temperature. When
the contact is opened, the system returns to the previous mode.
This contact can be also used for Off Peak Rates. To do it, connect into the contact a timer
with a zero-voltage output.
9.11. Displaying/deleting compressor functioning hours
