MORryde PatioEX User manual

VAN-AW-INFOBOOK-PATIOEX-03

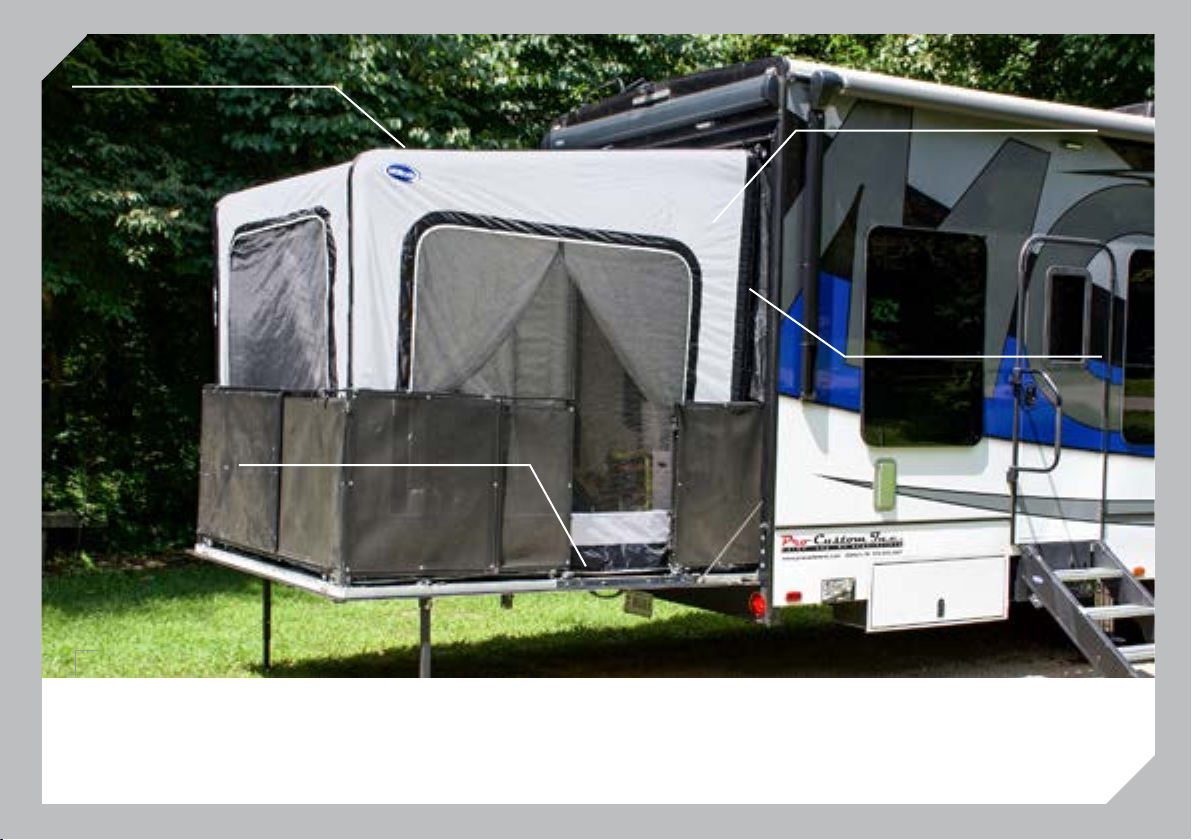

Heavy Duty PE groundsheet:
Provides a robust, high-sided,
waterproof base
AirSpeed® Single Point Ination:
Quick & easy ination through one valve
Sentinel Pro - Highly waterproof,
double ripstop and reliable fabric
Skylight window - Running
along the roof line of the awning
to enhance light during the day
The revolutionary and innovative PatioEx is the perfect extension to your Toy Hauler or 5th Wheel trailer. Using Vango AirBeam® technology
and inating in minutes, the PatioEx attaches to the rear of a Toy Hauler or 5th Wheel rear-ramp door frame using magnets and secures to the
ramp door with Vango’s registered SkyTrack® system. An amazing place to relax, the large diamond clear windows create a bright and airy
room. Featuring a unique versatile window construction with mesh mosquito screens, diamond clear windows and decorative privacy shades.
Customise your space with Vango’s internal SkyTrack® system enabling you to easily attach lighting, storage or the included SkyLiner shade.

Thank you for buying PatioEx
The Great Outdoors. A place in which to explore, make memories, reach the edge of your limits, or just spend time together. It’s a
place for adventure. Big or small, long or short, action-packed or calm, or something in between, your adventure is out there.
At MORryde, we have a passion for solving problems. Whether we’re fabricating custom solutions, modifying a commercial chassis or
engineering innovative products, we answer to a wide range of markets and provide solutions for a variety of needs. At MORryde, it’s
simply about doing MORE for our customers, and it doesn’t stop at the sale. Designed in collaboration with MORryde and Vango, the
PatioEx allows you to expand your space with the reassurance for quality, innovation and peace of mind.
Supplied with your awning:
Oversized carry bag
Bracer beam
SkyLiner Shade
Double Action pump and carry bag
Hardwearing PE footprint
Under Ramp securing straps
Sky hooks

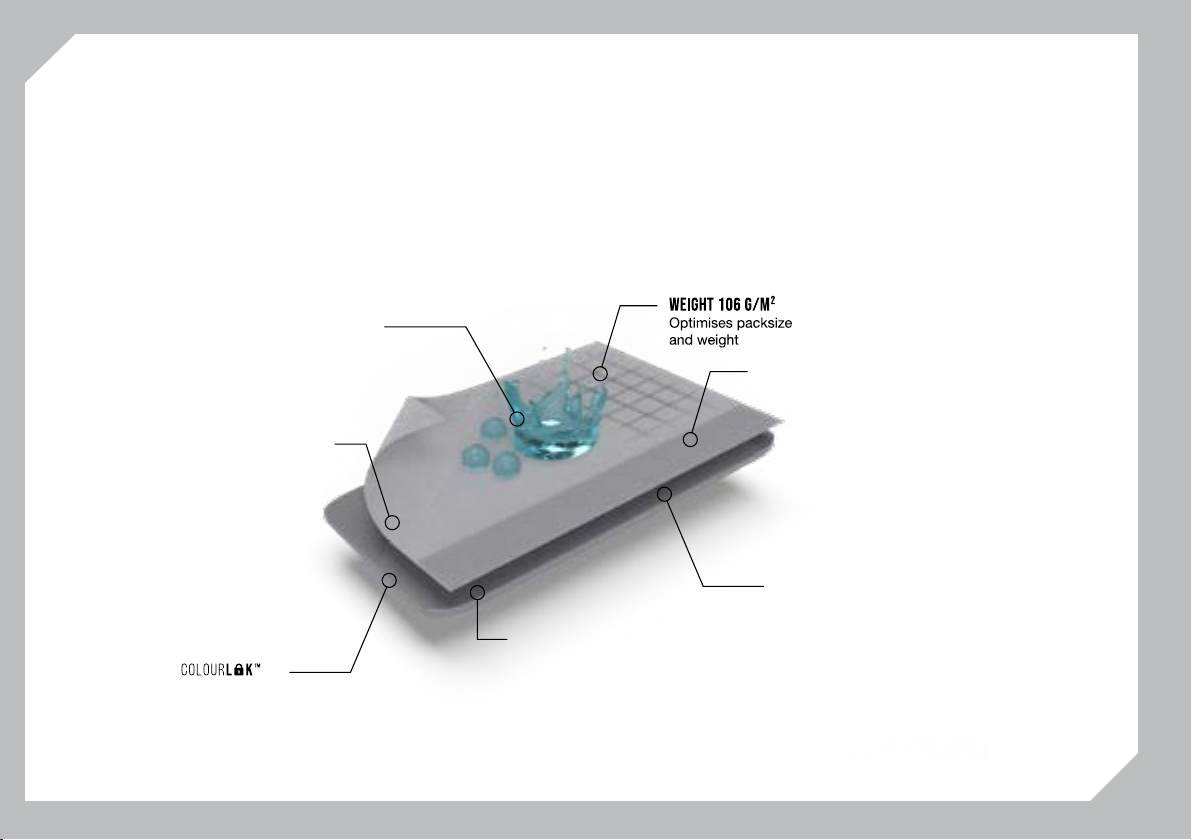

About Sentinel Pro Fabric
fire retardant
Meets ISO5912
standards
fully factory seam taped
For complete peace of mind
from weather ingress
Waterproof
Waterproof and easily cleaned
upf50+
Ultraviolet protection factor
double ripstop weave
Increased strength and durability
Aids colour retention
from UV light
Vango Sentinel Pro fabric is designed for dedicated Motorhome, RVs and 5th Wheel trailers, who embark on several trips a year.
The blend of bres and the double ripstop weave construction is 245% stronger than our entry level awning fabric, ensuring
longevity against wear and tear. Our ColourLok™ technology enhances resistance to UV fading.
Sentinel Pro is extremely waterproof and will perform in all weathers.
grey violet

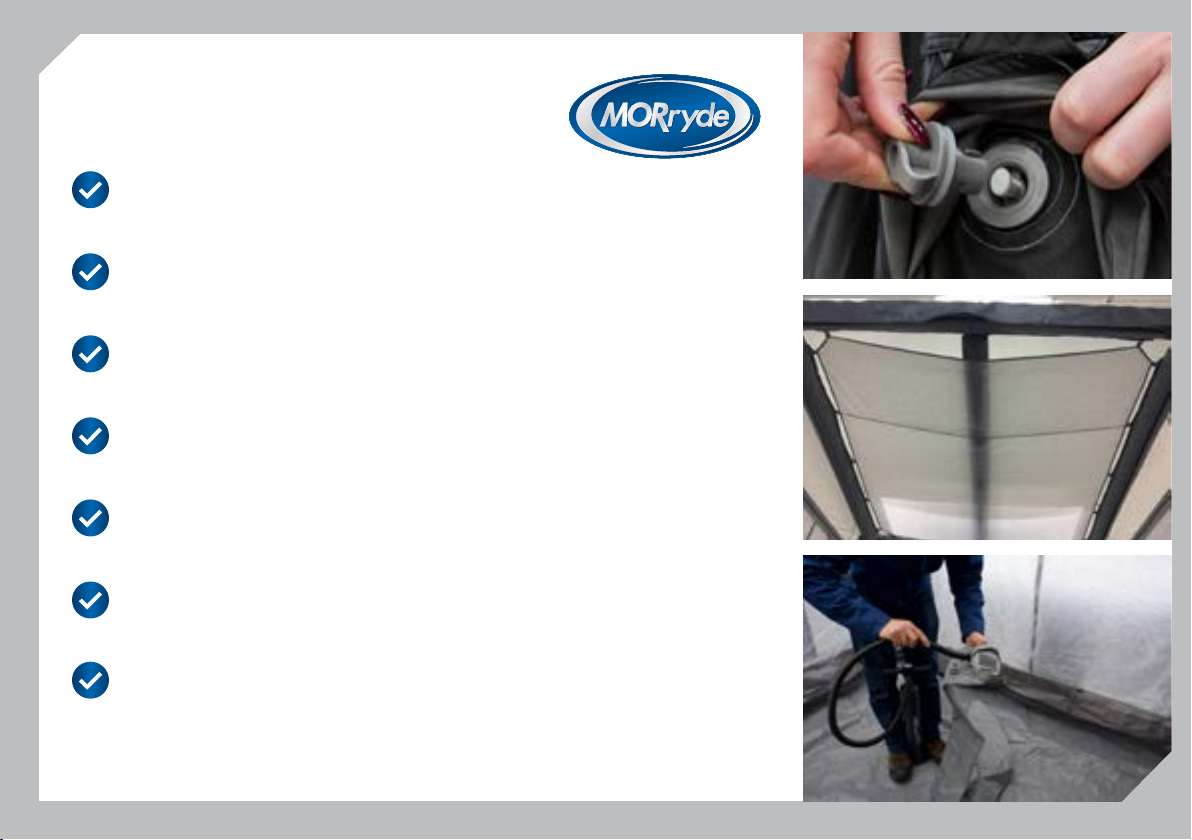

Extended living area
Versatile overhead skyliner shade
Quick and easy to set up
Adjustable shades for your privacy
Built in mesh screens
Compact pack size
Magnetic seal system
Key Features

This awning has two valves. When inflating your
awning please ensure one valve is closed whilst you
attach the pump to the other valve.
When deflating your awning please open
both valves to help the air escape
quicker and easier.
INFLATING DEFLATING
1
2
3
A
B
3
12
7psi
A
B
A
B
A
B
Technology

Pitching Instructions
PatioEx - Pitching
ES - Esta tienda
debe tenderse entre
por lo menos dos
personas.
IT - Questa tenda
deve essere eretto
da almeno 2
persone
FR - Cette tente
doit tre ŽrigŽe
par au moins 2
personnes
DE - Dieses Zelt
sollte von mindes-
tens zwei Personen
aufgestellt werden
CZ - Tento stan
postaven
EN - This tent
should be
erected by at
least 2 people
PITCHING
1
2
A.
ES - Esta tienda
debe tenderse entre
por lo menos dos
personas.
IT - Questa tenda
deve esse re eretto
da almeno 2
persone
FR - Cette tente
doit tre ŽrigŽe
par au moins 2
personnes
DE - Dieses Zelt
sollte von mindes -
tens zwei Personen
aufgestellt werden
EN - This
awning should
be erected by at
least 2 people

iv.
5
6
ii.
3
4
i. 1
2
iii.
3x2 4
5
B.

6
8x2
9x3
7
C.
1
2

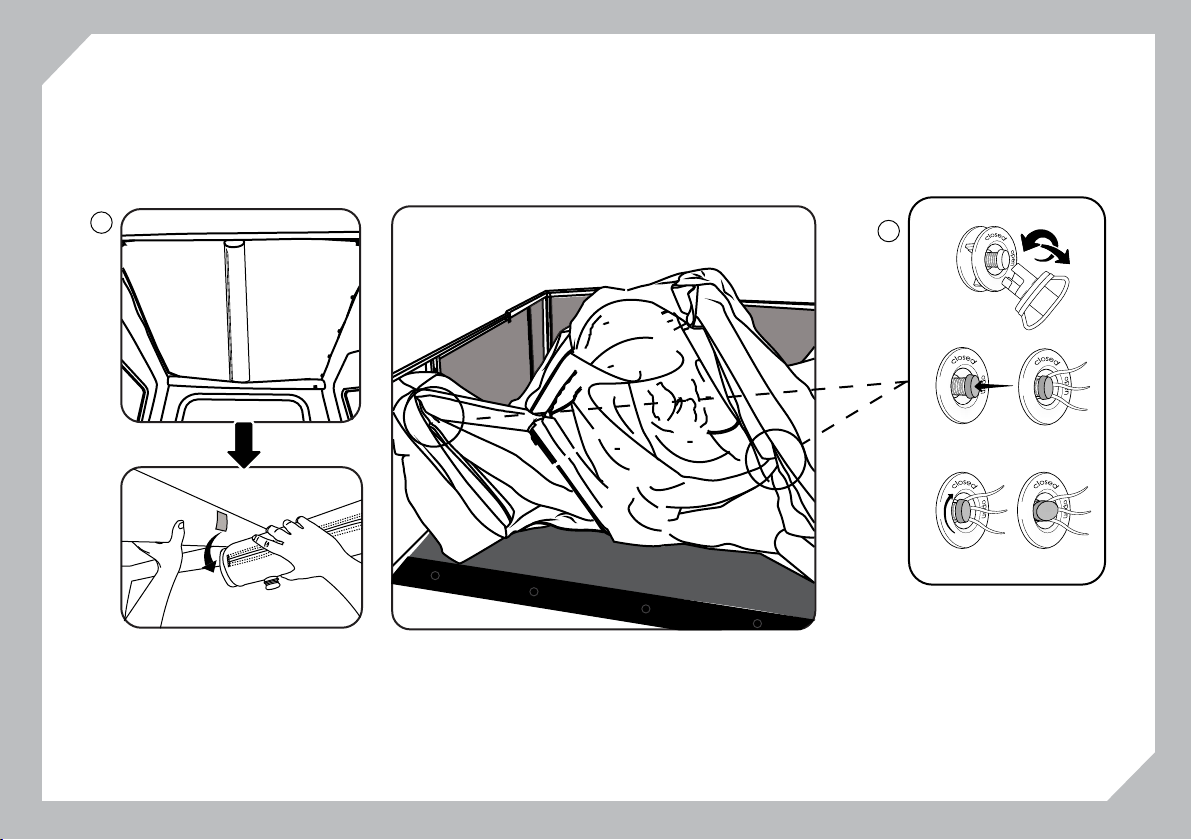

PatioEx - Taking Down & Packing
1
4x3
3x2
2
A.

56i. 1
2
ii.
iii.
B.

8
9
7
1
C.
10

Maintaining your AirBeams®
In the event of beam/s deating please check all valves are tight,
should they still deate please contact your retailer or the PatioEx
Vango customer service team for advice. AirBeams should not be
unzipped once inated as this may cause them to burst.
Storage and maintenance
Whenever possible pack your awning away when dry. If wet, dry
thoroughly at the rst opportunity, especially if it is to be stored.
Awnings stored wet will cause mould to grow, which will degrade the
fabric. Before storage, remove dirt and stains by washing with a mild
soap solution. Never use detergent. Rinse and dry thoroughly.
Fire and safety
Awning fabrics and re don’t mix. Keep naked ames away from the
material. In case of a re, keep track of where the zip pullers are for
quick escape. Never use a BBQ or light stoves inside your awning.
Caring for
Your Awning
Zips
Never force zips. Always pitch your awning with the door zips closed.
The life of your awning zips can be extended by regular cleaning. Do
this by running a toothbrush over the zip teeth to remove dust and
built up dirt.
Sun Damage
Awning fabrics will eventually weaken with extended exposure to
sunlight and fading may occur, however with normal holiday or
weekend use your awning should have many years of life.
Bad Weather
If rainy weather is anticipated, we would advise to close all windows.
In stormy weather and if high winds are anticipated we would advise
you to take down your PatioEx awning to avoid any damage.
Spare AirBeam®Tubes
Placement Part Number Quantity
Main Tube AT030 1
Bracer Beam AT023 1

Ventilation and condensation
All awnings are prone to condensation when the temperature in
the awning becomes warm and humid from people, heaters and
lack of ventilation. When warm air inside the awning hits the cool
fabric of the awning, the moisture condenses into liquid form.
The air held within the beams of a PatioEx circulates. If the
outside temperature is much cooler than inside the awning, then
the air cools in the beams quickly. The warm, humid air inside
the awning then condensates on to the area of the beams. This
moisture can then appear as water droplets on the AirBeam®
and in some cases may create pools of water at the base of the
AirBeam®. If the prevailing conditions are particularly prone to
condensation, remove items from around the base
of the beams.
How to prevent condensation?
To prevent condensation, ventilate your awning and reduce the
internal humidity by promoting good airow. Examine your awning
for venting options and open them to let the moist air ow out. If
the weather conditions permit, leave the upper and lower sections
of the door open, mesh sections can be kept fully zipped. Store
wet stu outside; towels, waterproofs, swimming trunks… keep
that soggy, wet stu out or near a vent or door.
Try not to touch the fabric or leave belongings close to the
walls. If pressure is applied water may seep through. When
pitching, nd a spot with a natural breeze to reduce the amount
of condensation and enhance air circulation, and don’t pitch too
close to the water as rivers and lakes can increase humidity.
Keeping
Condensation Away
