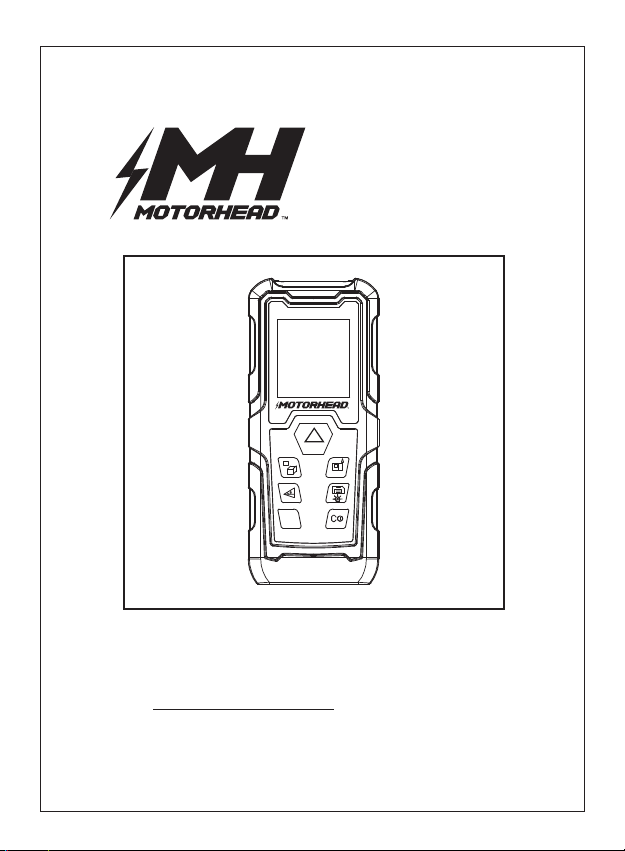

Motorhead MH-02-LM-B1-196-1 User manual

1
196Ft/60M
Laser Distance Measure
w/ Digital Level &
50-Set Data Storage
(MH-02-LM-B1-196-1)
Customer Service
Phone # [phone]
E-Mail: [email protected]
Register your tool on MOTORHEADTOOL.COM for a Free Extended
Warranty!
ON
DIST
UNITS
+
-
/

2
Safety Instructions .......................................................................................................3
Instrument Care and Maintenance .........................................................................5
Faults, Causes & Troubleshooting ..........................................................................7
Error Messages ...............................................................................................................7
Technical Specification ...............................................................................................8
Display screen overview..............................................................................................9
Illustrations of Display Screen Icons.......................................................................9
Touch Buttons & Their Functions............................................................................11
Instrument Functions, Applications and Operations......................................13
Warranty..........................................................................................................................19
CONTENTS
Laser Distance Measure (MH-02-LM-B1-196-1)

3
! Be sure you’ve read and understood all provisions and operating
instructions contained herein before use of the instrument. Failure to
follow these safety rules and operating instructions may result in laser
radiation, electric shock or personal injury, which are all dangerous.
! Don’t try in any way to change the properties of the laser device as it
may expose you to laser radiation hazard.
! Don’t look directly into the laser beam as the laser device generates
radiation. It is a Class 2 laser product and can have the laser function
turned on only when the instrument is in use.
! Any operation or use outside those described in this manual may
result in laser radiation and personal harm.
! The operation of this instrument together with other optical
instruments will increase harm to human eyes.
! The instrument has a built-in laser generator which emits Class II
levels of laser radiation with wavelength 620-670nm and max output
power ≤1mW. Laser beams at this level won’t cause optical damage.
However, don’t look directly into the laser beam as it will cause
instant blindness.
! The label is on the back of the instrument, on top of which the
triangle mark indicates the position of the laser rangefinder emitting
the laser beam. In use of this instrument, full attention shall be given
to the position of laser beam emission and persons nearby in the
workplace, in order to avoid any harm due to direct transmission into
human eyes.
Safety Precautions
Laser Distance Measure (MH-02-LM-B1-196-1)

4
1. Don’t remove or damage any warning label fixed on the instrument.
2. Keep the instrument out of the reach of children. Don’t point the
laser beam emitted from the instrument at any person.
3. Don’t operate the instrument when there are children nearby or
leave it within reach of children without parental supervision.
4. Don’t place the instrument somewhere that the laser beam can be
intentionally or unintentionally ignored.
5. Don’t emit the laser beam to a highly reflective surface as the laser
beam will be easily reflected back to the eyes of the user or
bystanders.
6. Deactivate the laser function when the instrument isn’t in use. Failure
to do so will increase the risk of inadvertently looking into the laser
beam.
7. Don’t try to alter the properties of the laser. Failure to do so may
result in serious laser radiation injury.
8. Don’t try to repair or disassemble this instrument on your own.
Unauthorized repair may result in serious laser radiation injury. Any
repair must be conducted bya licensed technician.
9. Don’t use this instrument in a place where flammables exist, such as
flammable liquids, gasses and dusts.
10. The performance of the instrument can be guaranteed only with the
use of original spare parts.
11. Keep the instrument out of reach of children.
Laser Distance Measure (MH-02-LM-B1-196-1)

5
1. Opening or repairing the device
2. Measuring in direct sunlight.
3. Measuring outside of specified range.
4. Immersing the equipment in water.
5. Cleaning the lens using alcohol or any other organic solvent.
6. Wiping the lens directly with fingers or other rough surfaces.
7. Powering the equipment beyond the rated DC voltage.
In order to maintain good performance of the instrument, basic care
and maintenance is required as follows:
1. Don’t expose the instrument to an extremely cold or hot environment.
Do not subject the instrument to external compression or vibration for
extended durations.
2. Keep this instrument indoors and place it in the packaging container
when not in use.
3. Keep the instrument far away from dusty and moist environments
when in use. Clean only with a soft cloth slightly moistened by water.
Make sure to squeeze the moistened cloth to remove excess
moisture. Cleaning with corrosive or volatile substances will
permanently damage the instrument.
4. Take care of optical components (such as laser receiving lens and
laser beam emitting holes) the same as spectacles and cameras.
Optical components can be cleaned only with clean soft cloth or
cotton bud slightly moistened by distilled water and then squeezed
dry.
5. Don’t touch the lens of the instrument with hand.
6. Check the battery level of the instrument regularly and remove the
battery if the instrument isn’t intended to be used for an extended
period.
Refrain From:
Instrument Care and Maintenance
Laser Distance Measure (MH-02-LM-B1-196-1)

7. Replace the battery when the battery indicator icon on the screen
indicates the power is empty.
8. Don’t disassemble the instrument on your own. Unauthorized
disassembly may result in laser radiation injury.
9. Don’t try to change any optical parts installed on the instrument lens.
FCC SAFETY
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause Harmful interference, and
(2) This device must accept any interference received, including
interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or
more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
6
Laser Distance Measure (MH-02-LM-B1-196-1)

7
Faults, Causes & Troubleshooting
Fault
The
instrument
can’t be
started.
Error code
displayed on
the screen
Causes
Low battery
Power button has
poor contact.
Refer to error
information.
Refer to error
information.
The battery is
incorrectly cradled.
Reload the battery
according to the cell
polarity inside the
battery compartment.
Troubleshooting
Replace with a new
battery
Try to press the power
button slightly hard, if
this doesn’t function
please contact MH
customer service.
Error Messages
The following error messages may appear on the screen
when you are using the instrument:
Error
Code
ERR02
Cause of Error Remedy
Please measure
within the effective
measurement range.
Change to another
target or place a
piece of white paper
on the target.
Error distance (e.g. out
of range or can't test)
The target to which the
laser beam is pointed
reflects the laser beam
poorly.
ERR03
ERR06 Low battery Replace with a new
battery.
Laser Distance Measure (MH-02-LM-B1-196-1)

8
Laser Distance Measure (MH-02-LM-B1-196-1)
Technical Specification
Recommended Operating
Environment
Indoor, 0%~80%RH, altitude
0~2000m
0.05-60m
122*52*26mm
5 min
20 sec
0~40°C
-20~60°C
Auto save 50 data sets
Meter / Inch /Feet
3V DC (Two 1.5V“AAA”
batteries)
More than 5000 single
measurements
White wall or a piece of A4
white paper
Class-II, with wavelength
620~670nm and max output
≤1mW
±2mm, with a 0.05mm/m
increment
Measuring Range
Measuring Accuracy
Instrument Dimension
Recommended Target
Laser Radiation Class and Type
Instrument Auto-off Time
Laser Auto-off Time
Battery
Storage Temperature
Data Auto Save
Supported Measurement units
Ambient Temperature for
Operation
Battery Life (AAA alkaline
batteries shall be used)
Laser Distance Measure (MH-02-LM-B1-196-1)

9

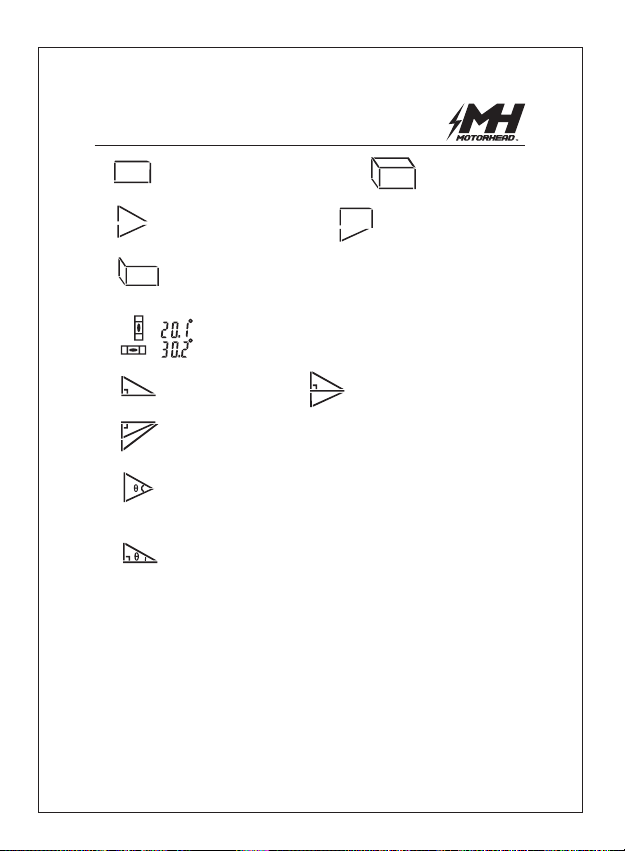

Display Screen Overview (Figure 1)
Illustrations to Display Screen Icons
1. Functional icon display
2. Battery power level display
3. Laser icon
4. Measurement benchmark
display icon
5. Instrument X/Y bi-directional
level testing icon
6. MAX/MIN icons in continuous
measurement
7. Laser ranging signal strength
icon
8. Historic record icon
9. Ranging data display primary
vision area
10. Measurement error indicator
icon (It will appear with ERR02
or ERR03)
•Full Battery;
Strong Laser Signal;
Historic Record;
Weak Laser Signal;
Measurement error indication
Low Battery;
•Pre-reference; Post-reference; Extended Reference;
Laser Distance Measure (MH-02-LM-B1-196-1)
FIG. 1
X
Y
1
2
3
4
5
6
7
8
10
9

10
•Rectangular area measurement;
Triangle area measurement;
Rectangular area cumulative measurement;
Cubic volume
measurement;
Right trapezoidal area
measurement;
•X/Y bi-directional level testing;
Pythagorean theorem;
Dual Pythagorean theorem -;
Measure the distance between any two points in the space
(NOTE: Two points to be measured must be on the same
vertical plane with the instrument’s measuring reference);

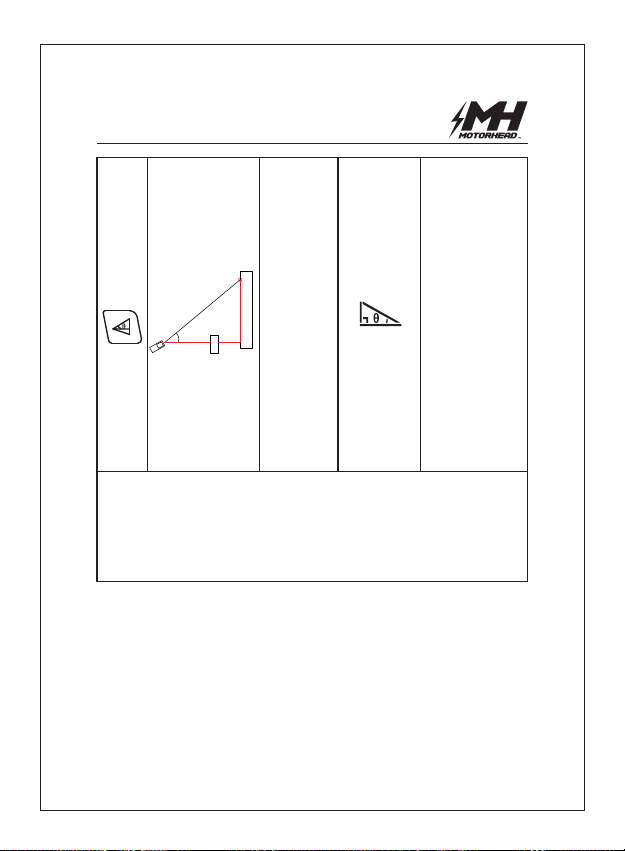

Measure the vertical and horizontal distances of any point
in the space from a measuring reference
Dual Pythagorean theorem +;
Laser Distance Measure (MH-02-LM-B1-196-1)
X
Y

11
1.POWER ON/MEASURE Button: Tap
this button quickly to start the
instrument; tap this button quickly to
start a single measurement; and keep
tapping this button to start a
continuous measurement.

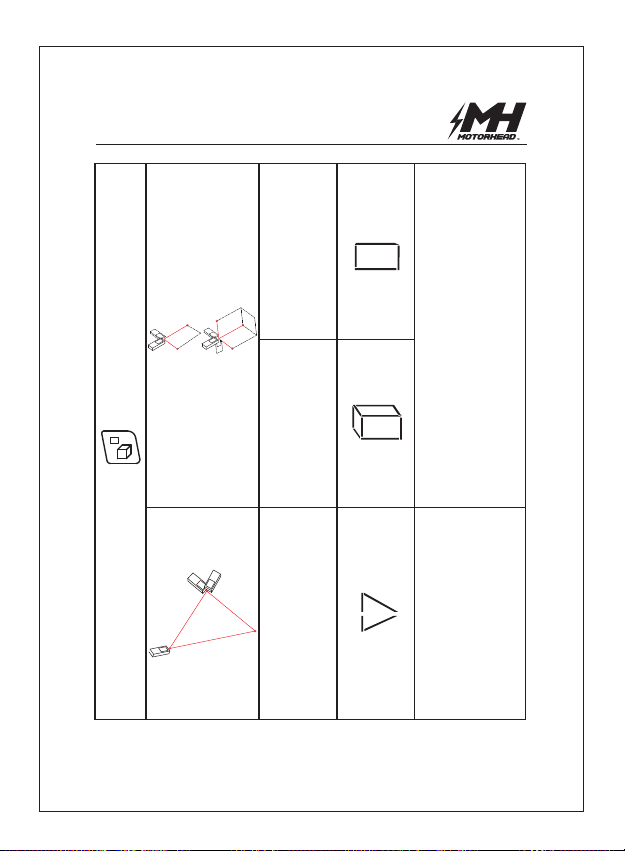

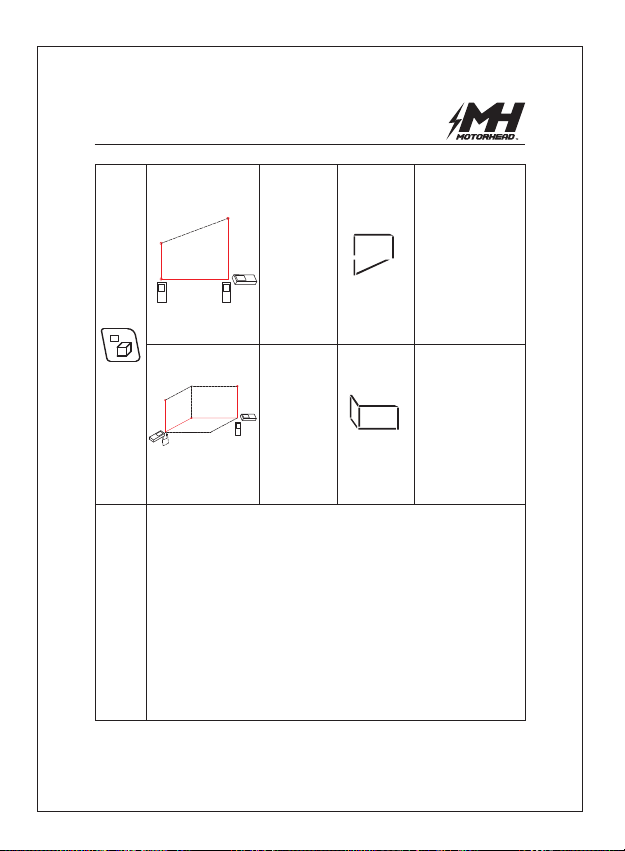

2.FUNCTION APPLICATION Button: Tap this button quickly to enter
into rectangular area measurement, cubic volume measurement,
triangle area measurement, right trapezoidal area measurement,
rectangular area cumulative measurement
3.ADDITIONAL FUNCTION Button: Tap this button quickly to enter
into instrument X/Y bi-directional level testing, Pythagorean
theorem, dual Pythagorean theorem +, dual Pythagorean theorem -,
measurement of distance between any two points, and measure-
ments of vertical and horizontal distances of any point to the
measurement reference.
4.ADD/SUBTRACT/HISTORICAL DATA DELETION OPERATION
Button: Tap this button quickly to enter into measurement based
on cumulative addition or subtraction; keep tapping this button
(about 3 seconds) to delete the historical data. (Note: (1): Only one
historical data can be deleted at a time. (2): After deleting data,
please press shutdown to exit)
Touch Buttons & Their Functions
Laser Distance Measure (MH-02-LM-B1-196-1)
ON
DIST
UNITS
+
-
/
1
2
3
4
5
6
7

12
5.MEASUREMENT REFERENCE SETTING/UNIT SETTING Button:
Tap this button quickly to set the measurement reference. This
instrument has three measurement references, i.e. post-reference,
pre-reference, and extended reference. Keep tapping this button
for a bit longer to set the unit of measurement (including: m,
in(decimal display mode), in(score display mode),ft, and
“ft+/in”(feet + inches (score display)).
6.HISTORIC RECORD/BACKLIGHT Button: Tap this button quickly
to enter into historic record page, keep tapping this button (about
3 seconds) to turn backlight on or off.
7.EXIT/POWER OFF Button: Tap this button quickly to exit the
current measurement mode and return to the start interface; and
keep tapping this button to shut down this instrument.
Laser Distance Measure (MH-02-LM-B1-196-1)

13
Instrument Functions, Applications, and Operations
MIN
MAX
Basic Functions
Touch
Button
Corresponding
Display Icon
Function Description
Single
measurement
Continuous
measurement
Max value
and min
value in
continuous
measurement
Start
Interface
Tap this button to
activate the laser
function, aim at the
target, and tap this
button again to start
measurement.
Keep tapping this
button to enter into
continuous
measurement mode;
For dimension
selected
for afixed position,
the continuous
measurement
mode can be applied
to find the point of
the desired distance
or to find the max
and minvalues.
Operation
Description
Laser Distance Measure (MH-02-LM-B1-196-1)
ON
DIST
3.000m
6.234m
max
min

14
Rectangular
area
measurement
Tap this
button to
select the area
measurement
modes or the
cubic volume
measurement
mode, and
carry out
corresponding
measurement
operations.
Tap this
button to
select the
triangle area
measurement
mode, and
proceed with
the
measurements
of three sides
of the triangle.
Cubic
volume
measurement
Triangle
area
measurement
Laser Distance Measure (MH-02-LM-B1-196-1)
31
2
m2
m3
m2
11
22
3

15
NOTES:
1. Under the said triangle area measurement mode,
make sure the corresponding three points be
correctly located when placing the instrument.
2. Under the said right trapezoidal area measurement
mode, make sure three sides to be measured be
mutually perpendicular to each other as shown in the
figure.
Right
trapezoidal
area
measurement
Tap this
button to
select the right
trapezoidal
area
measurement
mode and
proceed with
corresponding
measurements
Tap this
button to
select
accumulative
area
measurement
mode and
proceed with
corresponding
measurements.
Accumulative
area
measurement
Laser Distance Measure (MH-02-LM-B1-196-1)
m2
3
2
1
23
4
m
S=S1+S2+...+Sn
2m23
1

Additional Functions
Touch
Button
Corresponding
Icon
Function Description
Automatically
detect the
instrument’s
X/Y
bi-directional
levelness,
with accuracy
of 0.8°
Pythagorean
theorem
measurement
Dual
Pythagorean
theorem +
measurement
Dual
Pythagorean
theorem -
measurement
Tap this button to
enter into auto
detection of the
instrument’s X/Y
bi-directional
levelness.
Tap this button to
enter into
corresponding
Pythagorean
theorem
measurement
mode and
proceed with
corresponding
measurements.
Operation
Description
16
Laser Distance Measure (MH-02-LM-B1-196-1)
X
Y
2
A B
1
23
A BO
1
2
3
AB
O
1

Measure the
distance
between
any two
points
on the
vertical
plane by
making
use of the
theory
by which two
known sides
of a
triangle and
the included
angle
thereof
can be
used to
determine the
length of the
other side.
Tap this
button to
select the
desired
measurement
mode and
proceed with
corresponding
measurement.
NOTES:
1. Make sure the
measurement
reference remain
unchanged
throughout
measurements
(i.e., the
reference for
the second
measurement
is unchanged in
relation to the
reference for the
first
measurement).
2. Make sure two
points to be
measured are
on the same
vertical plane
with the
reference point.
Failure to do so
may result in
incorrect
measurements
17
Laser Distance Measure (MH-02-LM-B1-196-1)
1
2
α

NOTE: Under any of the Pythagorean theorem measurement
modes, the measurement of the right-angle side must be correct
(meaning that the laser beam is relatively perpendicular to the
plane to be measured); otherwise, the result will vary greatly.
Measure the
vertical and
horizontal
distances of a
point in the
space to the
reference,
with both
measurements
displayed on
the screen
concurrently.
Tap this
button to
select this
measurement
mode and
proceed with
corresponding
measurements.
NOTE:
After reference
selection, the
calculation of
measurement
result starts
from the
reference
position
18
Laser Distance Measure (MH-02-LM-B1-196-1)
1
Horizontal
vertical
α

19
MOTORHEAD warrants its electronic measuring tools against
deficiencies in materials and /or workmanship for two years from date
of purchase WITH PROOF of SALE.
This Warranty does not cover deficiencies caused by accidental
damage, wear and tear, use other than in accordance with the
manufacturer’s instructions or repair or alteration of this product not
authorized by MOTORHEAD.
Repair or replacement under this Warranty does not affect the expiry
date of the Warranty. To the extent permitted by law, MOTORHEAD
shall not be liable under this Warranty for indirect or consequential loss
resulting from deficiencies in this product. This Warranty may not be
varied without the authorization of MOTORHEAD.
This Warranty does not affect the statutory rights of consumer
purchasers of this product. This Warranty shall be governed by and
construed in accordance with the laws of the country sold where in and
MOTORHEAD and the purchaser each irrevocably agrees to submit to
the exclusive jurisdiction of the courts of that country over any claim or
matter arising under or in connection with this Warranty.
For warranty service please call MOTORHEAD Customer Service at
1-866-608-5212 or e-mail [email protected].
Register your product at MOTORHEADTOOL.COM for a free extended
warranty and additional offers!
Two-Year Limited Warranty
Laser Distance Measure (MH-02-LM-B1-196-1)

20
WARNING: For adult use only. This product is not a toy. Keep out of
reach of children.
WARNING: For adult use only. Not for children 17 years of age or
younger.
WARNING: Wear safety goggles – user and bystander.
CAUTION
LASER RADIATION. DO NOT STARE INTO BEAM.
WARNING: LASER LIGHT. LASER RADIATION. Avoid direct eye
exposure.
Do not stare into beam. Only turn laser beam on when
needed. Class 2 Laser Product.
CAUTION:
Do not mix old and new batteries.
Do not mix alkaline, standard (carbon-zinc),
or rechargeable (nickel-cadmium) batteries.
Caution -- use of controls or adjustments or
performance of procedures other than those specified
herein may result in hazardous radiation exposure
WARNING: This product can expose you to chemicals including lead
and lead compounds, Di(2-ethylhexyl)phthalate (DEHP), which are
known to the State of California to cause cancer ,and chemicals
including Di-n-butyl Phthalate (DBP)，which are known to the State of
California to cause birth defects or other reproductive harm.
For more information go to www.P65Warnings.ca.gov.
Customer Service: 1-866-608-5212
Monday – Friday
8:00 AM – 8:00 PM EST
[email protected]
Laser Distance Measure (MH-02-LM-B1-196-1)
