Motorline PERSA 400 User manual

V2.0
REV. 12/2016
PERSA 400
EN
USER’S AND INSTALLER’S MANUAL
EN

A B
B
A
B
B
A
A
A

B
A

A



A
A B
ENEN
. CONTENT . SAFETY INSTRUCTIONS
INDEX STANDARDS TO FOLLOW
STANDARDS TO FOLLOW
INSIDE PACKAGE
TECHNICAL SPECIFICATIONS
UNLOCK MOTOR
VERTICAL INSTALLATION MEASURES
HORIZONTAL INSTALLATION DIMENSIONS
INSTALLATION STEPS
MICROS ADJUSTMENT
INSTALLATION MAP
. SAFETY INSTRUCTIONS
. PACKAGE
. OPERATOR
. INSTALLATION
. MAINTENANCE
V/V MOTOR
V MOTOR
V/V MOTOR
V MOTOR
MAINTENANCE
FINAL CONSUMERS INSTRUCTIONS
INSTRUCTIONS FOR SPECIALIZED INSTALLERS
. COMPONENTS TEST
. CONNECTION SCHEME
. TROUBLESHOOTING
ATTENTION:
Importance of the Manual:
• It is important for your safety that these instructions are followed.
• Keep these instructions in a safe place for future reference.
Responsibility:
• The ELECTROCELOS S.A. is not responsible for the improper use of the product, or other
use than that for which it was designed.
• The ELECTROCELOS S.A. is not responsible if safety standards were not taken into
account when installing the equipment, or for any deformation that may occur.
• The ELECTROCELOS S.A. is not responsible for insecurity and malfunction of the product
when used with components that were not sold by the them.
• The ELECTROCELOS S.A. informs that, to guarantee greater compatibility and proper
functioning, install only components MOTORLINE.
Mechanism use:
• This product was designed and manufactured strictly for the use indicated in this
manual.
• This control board is not appropriate for inflammable or explosive environments.
• Any other use not expressly indicated may damage the product and / or can cause
physical and property damages, and will void the warranty.
• Do not make any changes to the automation components and / or their accessories.
• Control board for indoor use.
• Keep remote controls away from children, to prevent the automated system from being
activated involuntarily.
• The customer shall not, under any circumstances, attempt to repair or tune the
automatism. Must call qualified technician only.
To Installer:
• The installer must have certified professional knowledge at the level of mechanical
assemblies in doors and gates and control board programmation. He should also be
able to perform electrical connections in compliance with all applicable regulations.
• The installer should inform the customer how to handle the product in an emergency
and provide him the manual.

A BA B



ENEN

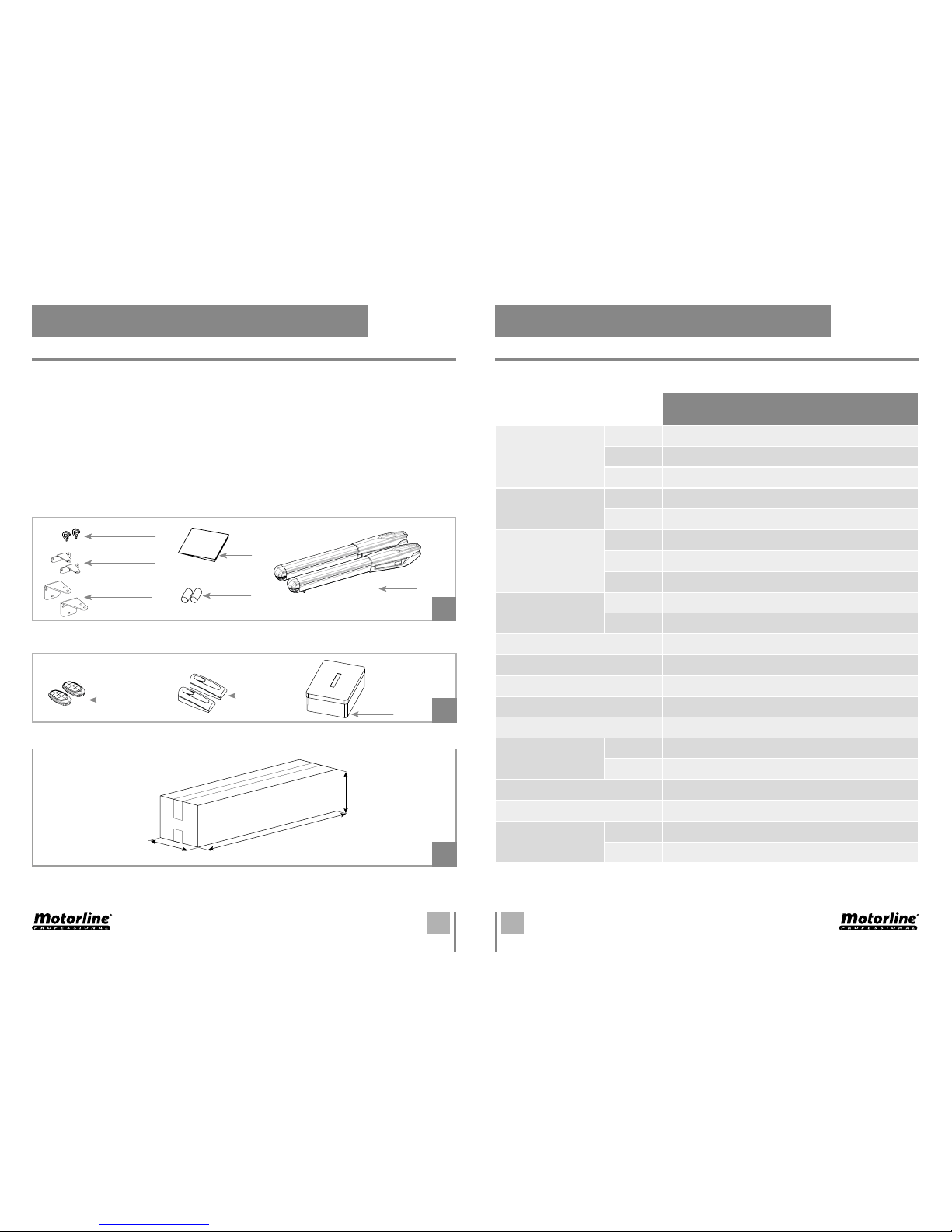

In the package you will find the following components:
01 • 02 Swing operators
02 • 01 Central de controlo
03 • 02 Remote controls (4 channels)
04 • 02 Front supports
05 • 02 Rear supports
06 • 02 Capacitors [12,5μF (230V) or 35μF (110V)]
07 • 01 Photocells
08 • 01 User’s manual
09 • Release keys
PERSA specifications are as follow:
. PACKAGE . OPERATOR
INSIDE PACKAGE TECHNICAL SPECIFICATIONS
PERSA
• Power Supply
V AC V /Hz
V AC V /Hz
V DC V
• Power /V W
V W
• Current
V ,A
V ,A
V A
• RPM /V  RPM
V  RPM
• Noise level dB
• Force N
• Operating temperatures -C a C
• Thermal protection C
• Protection class IP
• Working frequence /V 
V Intensive
• Course 
• Max leaf lenght 
• Capacitor V ,F
V F
07•
03•
09•
04•
06•01•
02•
08•
05•
Electronic components in the kit:
Kit Package:
PERSA
mm
mm
mm

A BA B

A
A
BB




ENEN
A?? mm
BA - 56mm
PERS  operator must be installed with a small inclination , to prevent water infiltration
through the extension arm.
For this, the front support must be fixed to the gate with a height lower than the height of the
rear support. See example below:
Exemplo:
• If the height of the rear bracket (dimension A) is set at  mm, then the height of the front
bracket (dimension B) will be  mm (mm-mm).
Dimension A • Vertical distance from the floor to the top of the rear support.
Dimension B • Vertical distance from the floor to the top of the front support.
• Set dimension A (this can be any size of your choice).
• After you set dimension A, subtract 56mm to find dimension B.
It is very important that these dimensions are respected! Only this way can be assured the
correct functioning and durability of the operators!
It is also very important to have a levelled ground/terrain!

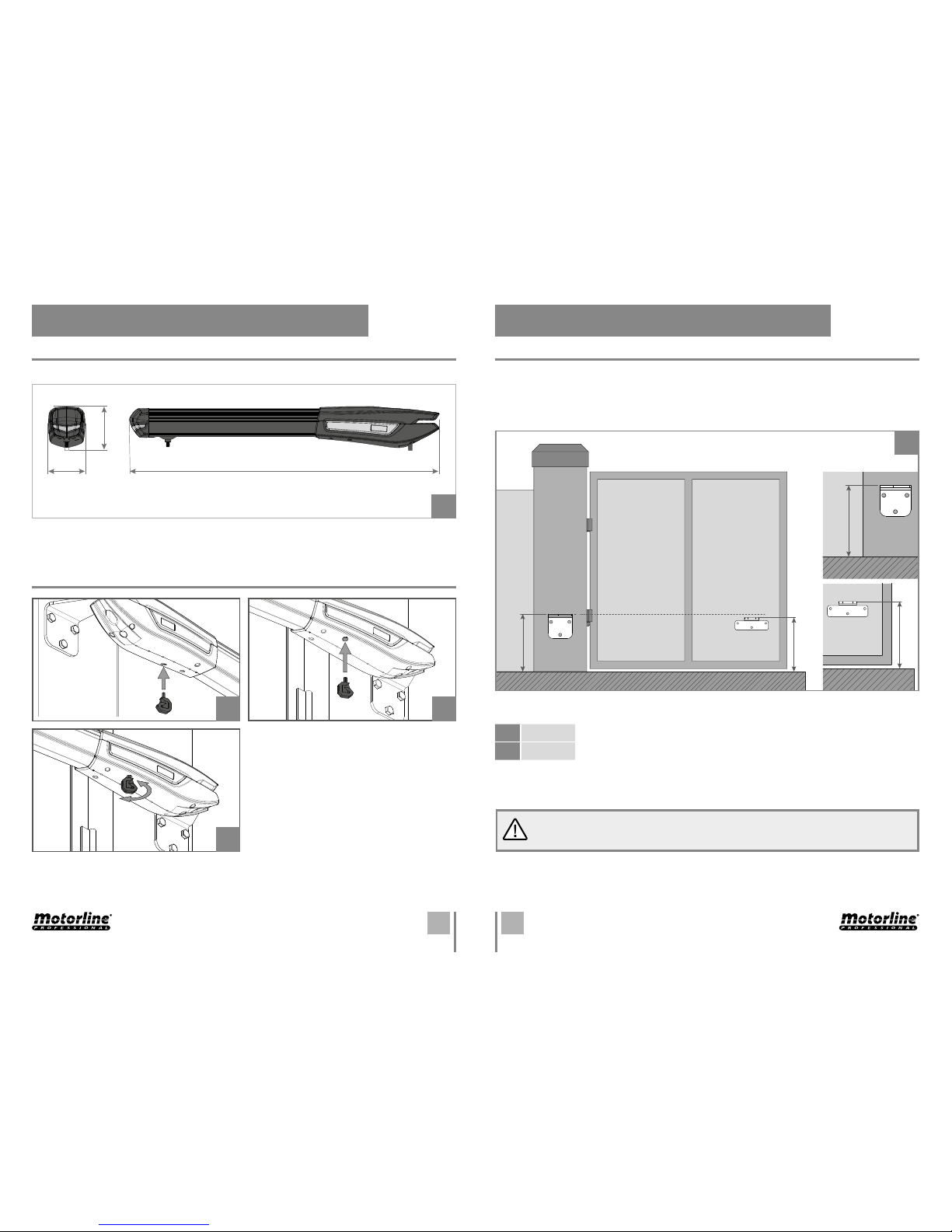

VERTICAL INSTALLATION DIMENSIONS
. OPERATOR
TECHNICAL SPECIFICATIONS
LOCK/UNLOCK MOTOR
. INSTALLATION
Place the unlocking key in the slot signed on
image 05 (motor installed on the left) or 06
(motor installed on the right).
Turn the key to lock or unlock the motor.
PERSA  dimensions are the following:
mmmm
,mm

A BA B
X
Y
W
X
W
Y
 
(770mm)
(770mm)
ENEN
HORIZONTAL INSTALLATION DIMENSIONS
On the Illustrated diagrams below and on the next page, are the horizontal dimensions
for the installation of the automated system.
INTERIOR OPENING
(EXTERIOR)
(INTERIOR)
Axis of rotation of the
motor, on the rear support
Distance between the
centers of the holes
on the supports from
operator
Opening
direction
Axis of rotation of the gate
(center of the door hinge)
Axis of rotation of the
motor, on the front bracket
Closing mechanical
stopper
*Opening mechanical stopper
HORIZONTAL INSTALLATION DIMENSIONS
EXTERIOR OPENING
(EXTERIOR)
(INTERIOR) Distance between the centers of the
holes on the supports from operator
Axis of rotation of the gate
(center of the door hinge)
Axis of rotation of the motor,
on the front support
Closing mechanical
stopper
Axis of rotation of the
motor, on the rear support
Opening
direction
*Opening
mechanical stopper
. INSTALLATION . INSTALLATION
y
160
150
170
180
190
200
210
220
230
130 140 150 160 170 180 190 210 220200
x
100
150
y
150
160
170
180
190
200
150
140
130
120 160 170 180
x
During the installation process, it is
required to respect the dimensions
that are within the highlighted
area: (ex: y; x)
During the installation process, it is
required to respect the dimensions
that are within the highlighted
area: (ex: y; x)
X and Y in (mm) X and Y in (mm)
Legend:
Dimension X - Horizontal distance
between hinge axis of the door and
the rear axle of the motor.
Dimension Y - Vertical distance
between hinge axis of the door and
the rear axle of the motor.
Dimension W - Distance between axis
of the motor brackets (mm).
Legend:
Dimension X - Horizontal distance
between hinge axis of the door and
the rear axle of the motor.
Dimension Y - Vertical distance
between hinge axis of the door and
the rear axle of the motor.
Dimension W - Distance between axis
of the motor brackets (mm).
* The installation of opening stopper is not mandatory. * The installation of opening stopper is not mandatory.

A BA B
13
12
14
15




 
ENEN
Pay attention to the installation dimensions mentioned on pages B, A and B!
 • Fix the supports.
• The rear support must be fixed on the pillar
or wall.
• The front support must be fixed on the gate.
Respect the height and distance measures
between the front and rear supports.
It can be fixed by using screws with
mechanical bushing or chemical welding
process,becauseboth provideanappropriate
support.
. INSTALLATION

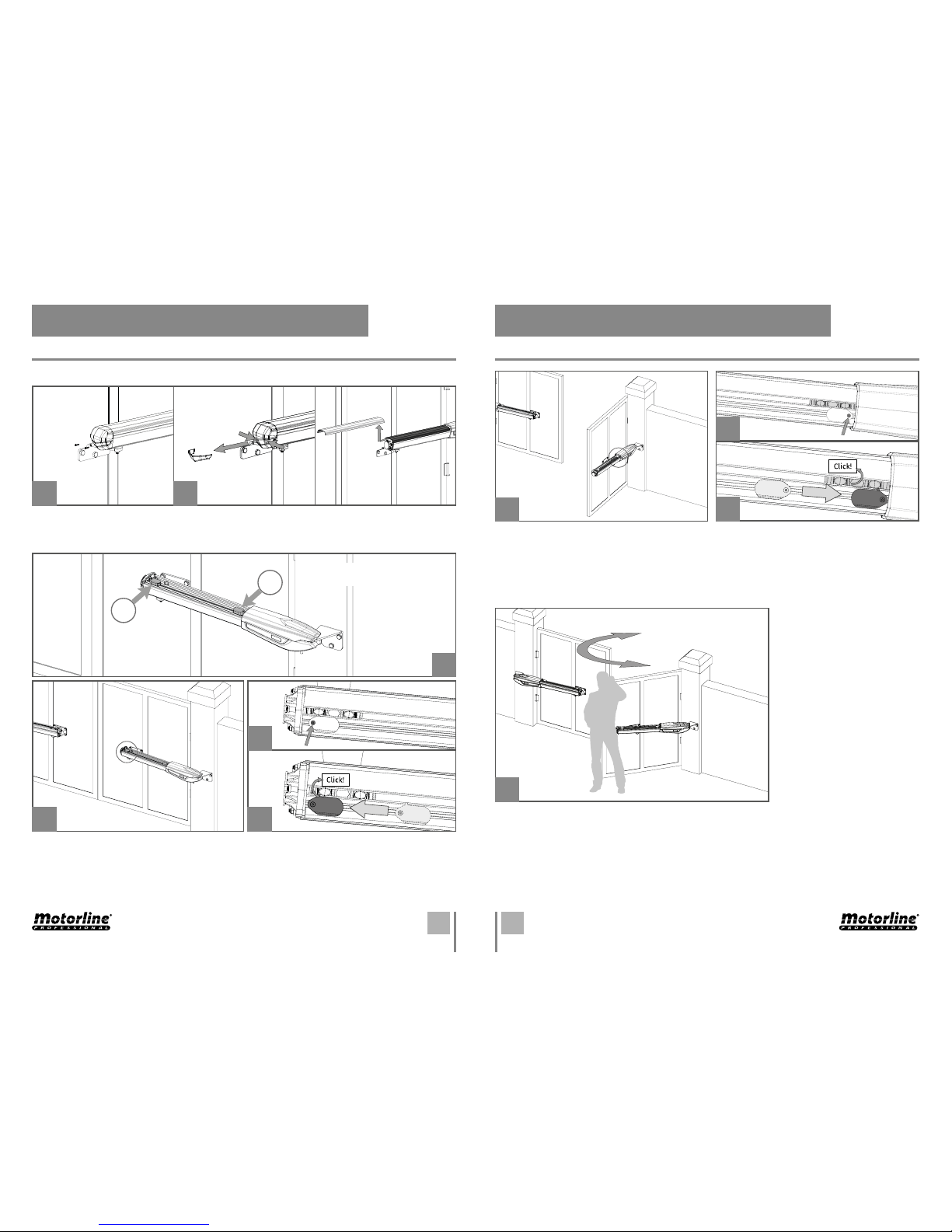

INSTALLATION STEPS INSTALLATION STEPS
 • Test the movement.
 • Install the operator on the supports
• The operator must be placed on both suppor-
ts the same time to avoid leaving the operator
suspended by only one of the supports.
To make the task easier, you should unlock the
operator in order to be able to stretch/retract
arm easily (see page B),to get the correct po-
sition for supports.
• Install the pins removed earlier on each side with a small amount of lubricant for less
friction.
• Unlock the motor and move the door manually to see if the door opens and closes uniformly
and correctly, without any irregular friction during its entire movement.
This will ensure that the motor is not subjected to problems during operation.
. INSTALLATION
 • Connecting the motor to control board and con-
figuring control devices.
• With the motor installed, connect it to control board
for system configuration (see control board user
manual).
It is important to configure the desired control
devices (remote controls, wall switch, etc.) and other
additional components such as antenna, flashing light,
key selector, among others.
It is important to respect this installation order!
Otherwise, it is not possible to ensure correct installation and the motors may not work
properly!

A B
A
B
B
A
 







ENEN
01 • Unlock the motor (see page 3A).
02 • Remove the chrome clip with a screwdriver.
03 • Unfasten the two front screws, remove the cover and the profile cover.
03 • Take the gate to the closed position.
04 • Loosen the screw shown in the image (21), so that it is possible to move the micro-switch in
the profile.
05 • Adjust the closure micro-switch (A) until it makes * click * on the pressure piece. Tighten the
screw to secure the micro in that position.
06 • Take the gate to the open position.
07 • Loosen the screw shown in the image (24), so that it is possible to move the micro-switch
in the profile.
08 • Adjust the closure micro-switch (B) until it makes *click* on the pressure piece. Tighten the
screw to secure the micro in that position.
A • Close Micro-Switch.
B • Open Micro-Switch.
Example of the gate with inside opening
09 • Test the door manually and
if necessary readjust the micros,
as indicated in the previous
paragraphs.
10 • When finished, place the
profile cover and the plastic
cover.
11 • Repeat the whole process
for the other motor.
. INSTALLATION
MICROS ADJUSTMENT
. INSTALLATION
MICROS ADJUSTMENT



A

EN
. INSTALLATION

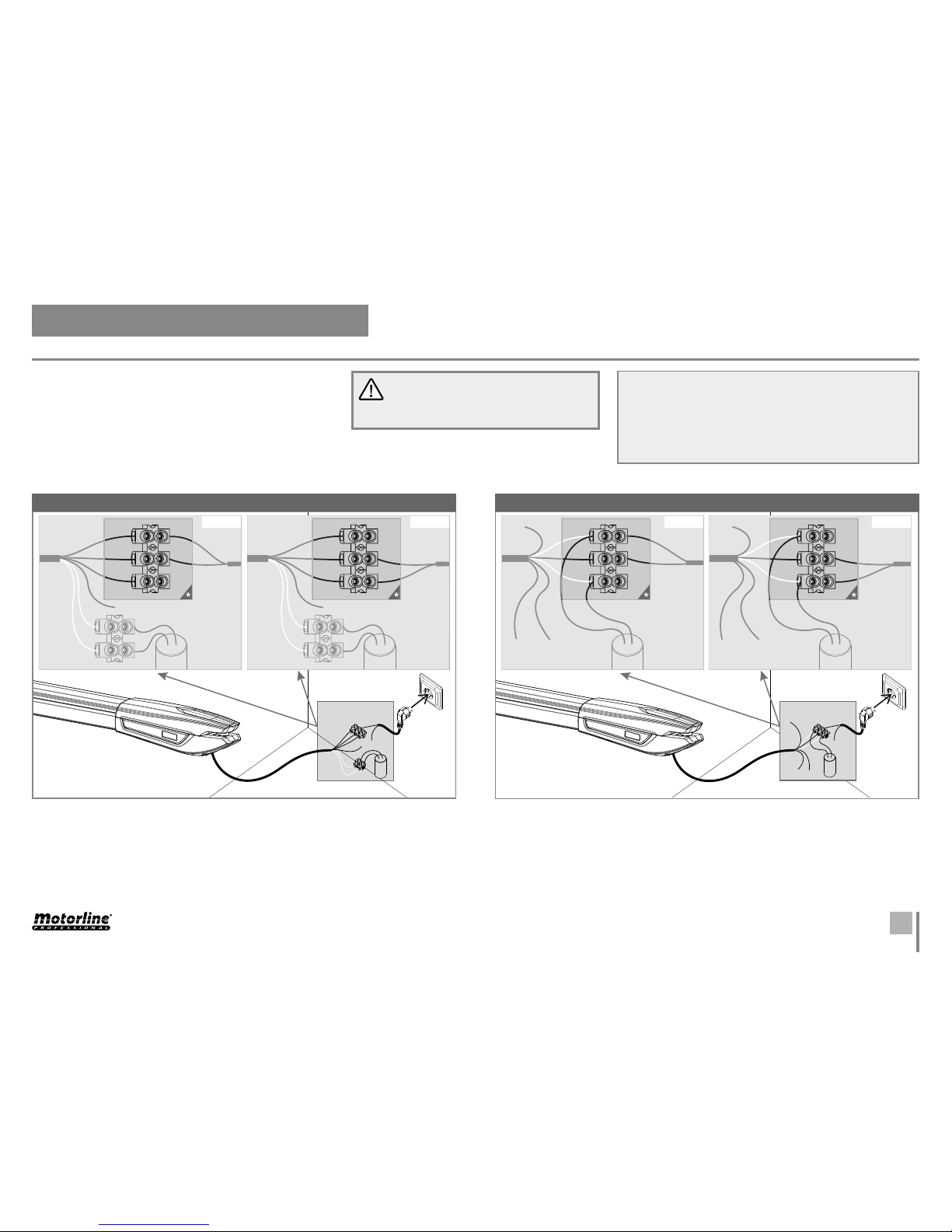

INSTALLATION MAP
INTERIOR
PHOTOCELLS
EXTERIOR
PHOTOCELLS
GATE STOPPER
EXTERIOR
PHOTOCELLS
KEY
SELECTOR
MOTOR WARNING
LAMP
ANTENNA
CONTROL
BOARD
JUNCTION BOX
LEGEND: • Connection cables
It is important to use mechanical stoppers in the opening and closing position of the
gate. If not respected, components of the automation may suffer efforts for which
they were not prepared, and as a result will be damaged.
It is important to use junction boxes for connections between motors, components
and control unit. All cables must enter and exit on the bottom of the junction and
control board box.


A B
V
PU
SERR.
L N
LAMP
230V
MOTORE 1
AP COM CH
MOTORE 2
AP COM CH
1 1 12 2 23 3 34 45
5
6 7 8 9 10
1 12
2
3 4 5 6 7 8 9 10 11
MOT.2
SERR.
+ -
+ V
CN1 CN2
MOT.1
LAMP
+ -
BAT
+12V-
12/20V S.P.
+
1 2
ENEN
Test A • Make the connections as indicated in the image.
If the motor works, the problem is in the control board. If it does not operate, do the test B.
Test B • Loosen the 4 screws to remove the cover and access the internal connections.
Make the connections as indicated in the image.
If the motor works, the problem is on the diode(s) or on the micro(s). If it does not operate,
replace with a new 24V engine and re-test to ensure that all is ok.
To detect which are the components with problems in a V PERSA automatism installation,
it is necessary to conduct tests with a direct connection to a external power supply (bateria
V). In the scheme below is shown how it should be done this link.
NOTES:
• Once you connect the wires to a V battery, the motor must work for one direction. To test
the reverse movement, change the position of the wires connected to the battery.
. COMPONENTS TEST
MOTOR A 24V
. CONNECTION SCHEME
V/V MOTOR
V MOTOR
S A
S B
Connectionsshouldbe madeas shownabove,connectingthe  motor wirestothe appropriate
inputs of the central and capacitor.
NOTE: The white motor wires are connected directly to the capacitor wires!
MOTOR WIRES |CONNECTIONS
Yellow/Green
Brown
Blue
Black
White
White
Wires color Motor  wires Motor  wires
Ground Wire
MOTOR-AP
MOTOR-COM
MOTOR-CH
Capacitor
Capacitor
Ground Wire
MOTOR-CH
MOTOR-COM
MOTOR-AP
Capacitor
Capacitor

A
EN
110V /230V MOTOR
All tests must be performed by qualified per-
sonnel due to serious danger associated with
the misuse of electrical systems!!
To detect if the malfunction is on the control board or on the
motor is, sometimes, necessary to perform tests with connection
directly to a V/V power supply.
For this, it is necessary to interpose a capacitor on the connection
in order to the automatism to work (check the type of capacitor to
be used in the product manual).
The diagram below, shows how to make that connection and how
to merge the differentcomponents wires.
NOTES:
• To perform the tests, there is no need to remove the automatism
from the place it is installed, because in this way, it is possible to un-
derstand if the automatism can function properly connected directly
to the current.
• You should use a new capacitor during this test to ensure that the
problem does not lie on it.
01 • Replace the brown and black wires by white wires and connect in the terminal.
02 • Connect the capacitor in the terminal, in the same white wires inputs.
03 • Connect the power supply wires in the opening the motor will rotate one way and
during the closing, the motor will rotate the opposite way.
04 • Finally, connect it to a 230V or 110V plug, depending on the motor/control board in test.
If the motor works, the problem is in the microswitches.
If the motor does not work, normally the problem is on the motor. Replace it with a new
one and test again.
01 • Connect the 3 automation wires in the terminal.
02 • Connect the two automation white wires with the capacitator wires.
03 • Connect the power supply wires in the opening the motor will rotate one way and
during the closing, the motor will rotate the opposite way.
04 • Finally, connect it to a 230V or 110V plug, depending on the motor/control board in test.
If the motor works, the problem is in the control board.
If the motor does not, make the TEST 2.
Motor Motor
Black Black
Blue Blue
Brown Brown
COM COM
COM
Power
Supply
AUTOMATION
Ground Wire
White White
White
White
White
White
Phase OPEN OPENCLOSE CLOSE
Fase
Capacitor
,F (V)
/F (V)
Capacitor
,F (V)
/F (V)
Capacitor
,F (V)
/F (V)
Motor Motor
Power
Supply
Power
Supply
Power
Supply
Power
Supply
Power
Supply
AUTOMATION
Ground Wire Fio Terra
Black BlackBrown Brown
Phase
Phase
Blue
White
White
Blue
COM
Capacitor
,F (V)
/F (V)
. COMPONENTS TEST
TEST 1 - CONTROL BOARD FUNCTIONING TEST 2 - MICROS FUNCTIONING
