Motorola solutions PMLN8334 User manual

Audio Adapter (Active)
PMLN8334 User Guide
*MN008132A01*
MN008132A01-AA
JUNE 2022
© 2022 Motorola Solutions, Inc. All rights reserved

Contents
Disclaimer.................................................................................................................... 3
Safety and Legal..........................................................................................................4
Intellectual Property and Regulatory Notices.................................................................................4
Conformity Markings......................................................................................................................5
Icon Conventions........................................................................................................ 6
Foreword......................................................................................................................7
Attention!........................................................................................................................................7
Chapter 1: Product Overview...................................................................................8
1.1 Radio Operation with Adapter..................................................................................................8
Chapter 2: Attaching the Adapter and Accessory................................................. 9
Chapter 3: Removing the Adapter and Accessory.............................................. 11
Chapter 4: Cable Management...............................................................................12
Chapter 5: Service and Warranty...........................................................................13
MN008132A01-AA
Contents
2

Disclaimer
The information in this document is carefully examined, and is believed to be entirely reliable.
However, no responsibility is assumed for inaccuracies.
Furthermore, Motorola Solutions reserves the right to change any products to improve readability,
function, or design. Motorola Solutions does not assume any liability arising out of the applications or
use of any product or circuit described herein; nor does it cover any license under its patent rights, nor
the rights of others.
MN008132A01-AA
Disclaimer
3

Safety and Legal
This section provides the safety and legal information for this product.
Intellectual Property and Regulatory Notices
Copyrights
The Motorola Solutions products described in this document may include copyrighted Motorola
Solutions computer programs. Laws in the United States and other countries preserve for Motorola
Solutions certain exclusive rights for copyrighted computer programs. Accordingly, any copyrighted
Motorola Solutions computer programs contained in the Motorola Solutions products described in this
document may not be copied or reproduced in any manner without the express written permission of
Motorola Solutions.
No part of this document may be reproduced, transmitted, stored in a retrieval system, or translated
into any language or computer language, in any form or by any means, without the prior written
permission of Motorola Solutions, Inc.
Trademarks
MOTOROLA, MOTO, MOTOROLA SOLUTIONS, and the Stylized M Logo are trademarks or
registered trademarks of Motorola Trademark Holdings, LLC and are used under license. All other
trademarks are the property of their respective owners.
License Rights
The purchase of Motorola Solutions products shall not be deemed to grant either directly or by
implication, estoppel or otherwise, any license under the copyrights, patents or patent applications
of Motorola Solutions, except for the normal non-exclusive, royalty-free license to use that arises by
operation of law in the sale of a product.
Open Source Content
This product may contain Open Source software used under license. Refer to the product installation
media for full Open Source Legal Notices and Attribution content.
European Union (EU) and United Kingdom (UK) Waste of Electrical and
Electronic Equipment (WEEE) Directive
The European Union's WEEE directive and the UK's WEEE regulation require that products sold
into EU countries and the UK must have the crossed-out wheelie bin label on the product (or the
package in some cases). As defined by the WEEE directive, this crossed-out wheelie bin label means
that customers and end-users in EU and UK countries should not dispose of electronic and electrical
equipment or accessories in household waste.
Customers or end-users in EU and UK countries should contact their local equipment supplier
representative or service centre for information about the waste collection system in their country.
Disclaimer
Please note that certain features, facilities, and capabilities described in this document may not be
applicable to or licensed for use on a specific system, or may be dependent upon the characteristics of
MN008132A01-AA
Safety and Legal
4

a specific mobile subscriber unit or configuration of certain parameters. Please refer to your Motorola
Solutions contact for further information.
© 2022 Motorola Solutions, Inc. All Rights Reserved
Conformity Markings
MN008132A01-AA
Safety and Legal
5

Icon Conventions
The documentation set is designed to give the reader more visual clues. The following graphic icons
are used throughout the documentation set.
DANGER: The signal word DANGER with the associated safety icon implies information that, if
disregarded, will result in death or serious injury.
WARNING: The signal word WARNING with the associated safety icon implies information that,
if disregarded, could result in death or serious injury, or serious product damage.
CAUTION: The signal word CAUTION with the associated safety icon implies information that,
if disregarded, may result in minor or moderate injury, or serious product damage.
CAUTION: The signal word CAUTION may be used without the safety icon to state potential
damage or injury that is not related to the product.
IMPORTANT: IMPORTANT statements contain information that is crucial to the discussion
at hand, but is not CAUTION or WARNING. There is no warning level associated with the
IMPORTANT statement.
NOTE: NOTICE contains information more important than the surrounding text, such as
exceptions or preconditions. They also refer the reader elsewhere for additional information,
remind the reader how to complete an action (when it is not part of the current procedure,
for instance), or tell the reader where something is on the screen. There is no warning level
associated with a notice.
MN008132A01-AA
Icon Conventions
6

Foreword
Attention!
The PMLN8334 Audio Adapter (Active) is only compatible with audio accessories product.
This PMLN8334 Audio Adapter (Active) is non-certified for ATEX/IECEx, TIA4950, or any Hazardous
Location certification. It provides functionality and operation of existing GCAI audio accessories to the
APX N radio.
Purchaser assumes all responsibility for the use, testing, certifications, and compliance with relevant
regulatory requirements of this adapter, any accessories used with the adapter and the combination of
the adapter with such accessories.
MN008132A01-AA
Foreword
7

Chapter 1
Product Overview
The PMLN8334 is an Audio Adapter (Active).
NOTE: Contact a Motorola Solutions representative for your radio compatibility with the audio
accessory adapter and applicable audio accessories.
1.1
Radio Operation with Adapter
The radio operation changes when the adapter with an audio accessory is attached to the radio. For
example, the radio audio is muted and routed through the adapter to the attached audio accessory.
When the adapter without an audio accessory, is attached to the radio, the radio functions normally,
however, this practice is not recommended.
MN008132A01-AA
Chapter 1 : Product Overview
8

Chapter 2
Attaching the Adapter and Accessory
Procedure:

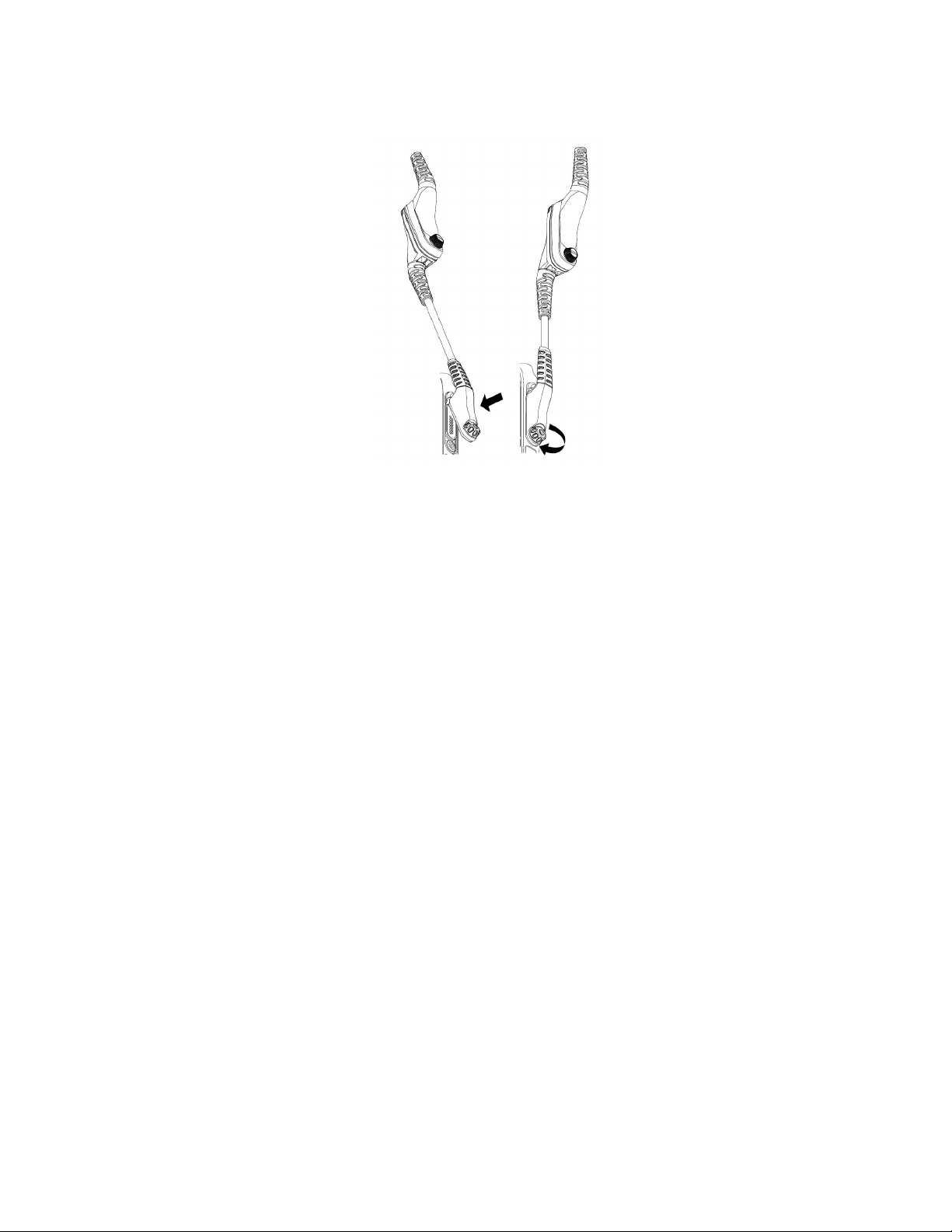

1To attach the audio accessory to the adapter, hook on the accessory Global Core Accessory
Interface (GCAI) connector to the adapter.
Number Description
1 Adapter
2 Accessory GCAI connector
2Insert the accessory GCAI connector and turn the screw clockwise.
MN008132A01-AA
Attaching the Adapter and Accessory
9

3To attach the adapter to the radio, hook the GCAI Mini connector and turn the screw clockwise.
4Turn on the radio.
MN008132A01-AA
Chapter 2 : Attaching the Adapter and Accessory
10

Chapter 3
Removing the Adapter and Accessory
Procedure:

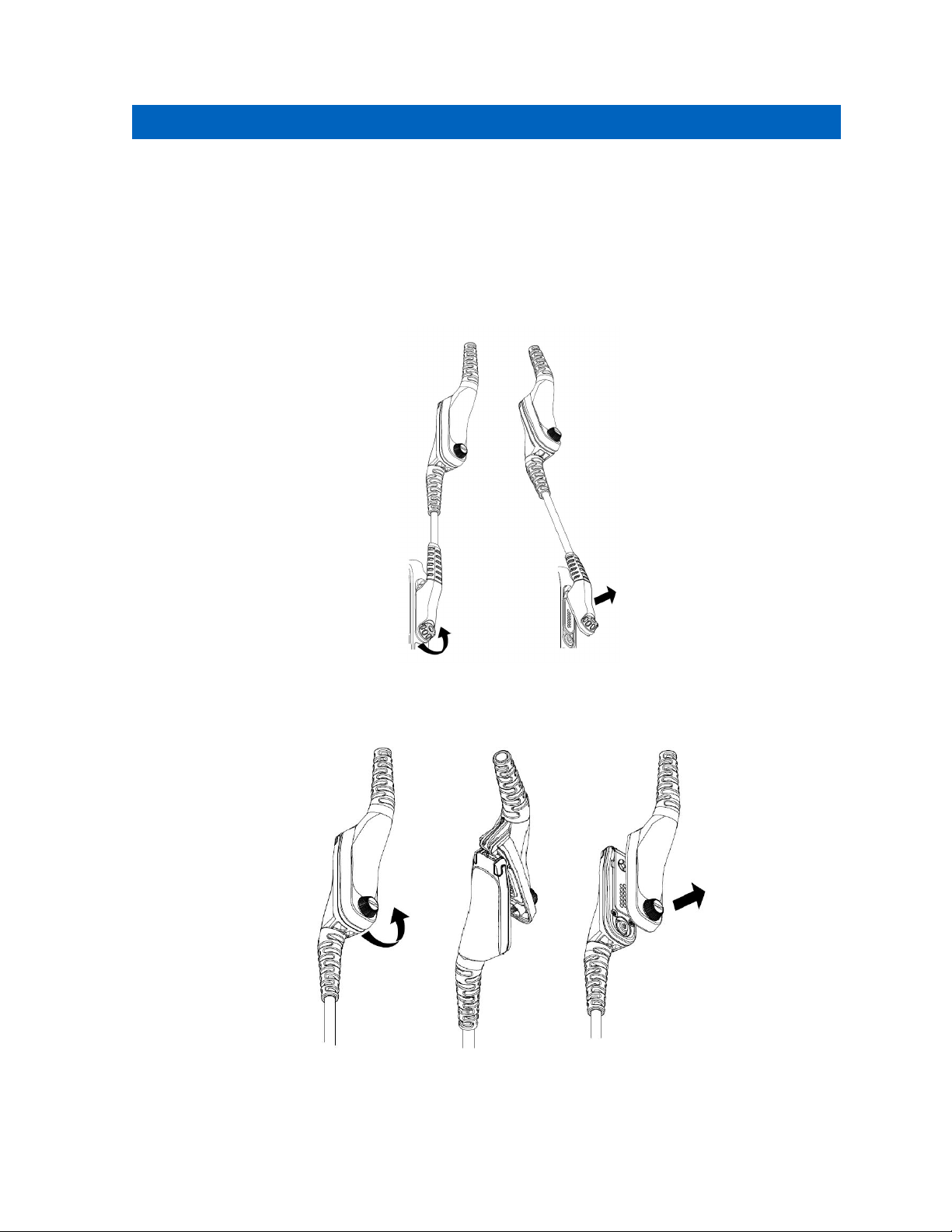

1Turn off the radio.
2To remove the adapter from the radio, turn the screw anti-clockwise and detach the Global Core
Accessory Interface (GCAI) Mini connector.
3To remove the GCAI audio accessory from the adapter, turn the screw anti-clockwise and
detach the connector.
MN008132A01-AA
Removing the Adapter and Accessory
11

Chapter 4
Cable Management
This section describes the recommended cable position.
Figure 1: Recommended
Figure 2: Not Recommended
To ensure optimum range and user experience, it is recommended to avoid crossing accessory cable
with the radio antenna.
MN008132A01-AA
Chapter 4 : Cable Management
12

Chapter 5
Service and Warranty
The PMLN8334 Audio Adapter is not repairable. Order a replacement adapter as necessary.
The audio adapter is covered under the standard Motorola Solutions one-year limited warranty.
Refer to your Motorola Solutions dealer or point-of-purchase for detailed information on warranty
replacement.
MN008132A01-AA
Service and Warranty
13
