GETTING STARTED
This Interactive End User Toolkit (IEUTK) covers the basic operation of the APX 6500 O2 Control Head.
However, your dealer or system administrator may have customized your radio for your specific needs. Check with your dealer
or system administrator for more information.
Adobe Flash player is required to run the demos included with this kit.
Please refer to the Adobe website (http://get.adobe.com/flashplayer/) to update/download/install the Adobe Flash Player.
Notations Used in This Tutorial
Throughout the text in this toolkit, you will notice the use of WARNING, Caution, and Note. These notations are used to
emphasize that safety hazards exist, and the care that must be taken or observed.
Note: An operational procedure, practice, or condition, etc., which is essential to emphasize.
An operational procedure, practice, or condition, etc., which may result in
injury or death if not carefully observed.
An operational procedure, practice, or condition, etc., which may result in
damage to the equipment if not carefully observed.

APX 6500 O2 CH
10 NEXT >< PREVCONTENTS
❑O2 Control Head
RADIO PARTS AND CONTROLS
Emergency
Button*
Menu Select
Buttons
Up & Down
Buttons*
Dimmer
Button Multi-function
Knob*
Power Button
Home
Button* Bluetooth
Indicator**
LED
Indicators
Accessory Port
(Microphone)
NUIS ZONE SCNL CHAN

APX 6500 O2 CH
11 NEXT >< PREVCONTENTS
FLEET MAP
Z1 Z2 Z3 Z4 Z5 Z6
C1
C2
C3
C4
C5
C6
C7
C8
C9
C10
C11
C12
C13
C14
C15
C16

APX 6500 O2 CH
12 NEXT >< PREVCONTENTS
❑Turning on/off the Radio
PREPARING YOUR RADIO FOR USE
Press the Power Button briefly to power on the radio.
After a short time, the red, yellow and green LEDs light up.
The display then shows Zone and channel text, and menu
items display on the screen.
The backlight will turn on to the last selected dim level.
Note:
Pressing the Power Button before the LED lights up will
be ignored.
If FAIL ##/## appears in the display, the radio will not
function until the condition has been corrected.
If ERROR ##/## appears, some non-critical data has been
changed.
If the power-up test is unsuccessful, you see Error XX/YY
(XX/YY is an alphanumeric code).
Turn off the radio, check the battery, and turn the radio
back on. If the radio fails the power-up test again, record
the Error XX/YY code and contact your dealer.
If CH MISMATCH appears, means that either the Control
Head has been connected to an incompatible transceiver,
or vice versa.
If your radio does not power up, contact your dealer.
To turn off the radio, press the Power Button after the LEDs
light up.
Power Button

APX 6500 O2 CH
13 NEXT >< PREVCONTENTS
❑Validating Compatibility During Power Up
PREPARING YOUR RADIO FOR USE
The radio validates and updates the software and hardware of your control head(s) during power up.
Follow the procedure below when your radio runs this task.
Procedure:
1 The display shows Maintenance mode remote device; promptly followed by other maintenance statuses.
2 The display shows Update done please reset upon completion.
OR
The display shows Update failed please reset when it fails to update.
3 Press the Power Button to reset.
The radio runs the usual power up operation if the software updates are complete.
OR
The radio runs the Maintenance Mode if the updates are not complete and repeat step 1.

APX 6500 O2 CH
14 NEXT >< PREVCONTENTS
❑Adjusting the Volume
PREPARING YOUR RADIO FOR USE
To increase the volume, rotate the Multi-function Knob
(MFK) clockwise.
The display shows volume bars and volume level when you
change the volume.
To decrease the volume, rotate the Multi-function Knob
counterclockwise.
Multi-function Knob (MFK)

APX 6500 O2 CH
15 NEXT >< PREVCONTENTS
❑Accessing the Preprogrammed Functions
IDENTIFYING RADIO CONTROLS
You can access various radio functions through one of the following ways:
• A short or long press of the relevant programmable buttons.
OR
• Use the Menu Select Buttons ( ).
Using the Menu Select Buttons
The Menu Select Buttons allow to access the menu entries of features.
Note: Check with your dealer or system administrator for the list of features activated in your radio.
Your radio may be preprogrammed differently from the following example, but the steps for selecting a zone may appear as
shown below:
• Press the Menu Select button ( ) directly below Zone.

APX 6500 O2 CH
16 NEXT >< PREVCONTENTS
IDENTIFYING RADIO CONTROLS
Using the Navigation Buttons
Home Button
The button returns you to the Home (default) screen. In most cases, this is the current mode.
For selected radio features, the button is also used to save user-edited radio settings or information before returning you to
the Home screen.
Note: Some features do not require you to press to go to the Home screen. Refer to the individual feature sections in this
manual for further details on saving user-edited radio settings or information.
Dimmer Button
Use this button to adjust the brightness of the display.
Long press to toggle between day and night mode.
Up and Down Buttons
By default, the and buttons are used as up and down arrow input. These buttons are programmable.
They can be programmed to navigate through zones, channels and to increase and decrease the volume of the radio.
4-Way Navigation Button (on keypad mic)
Use this button to scroll up , down , left or right .
Press and release one of the button to scroll from one entry to the next one.
Press and hold one of the button to have the radio toggles through the list automatically (release the button to stop).

APX 6500 O2 CH
17 NEXT >< PREVCONTENTS

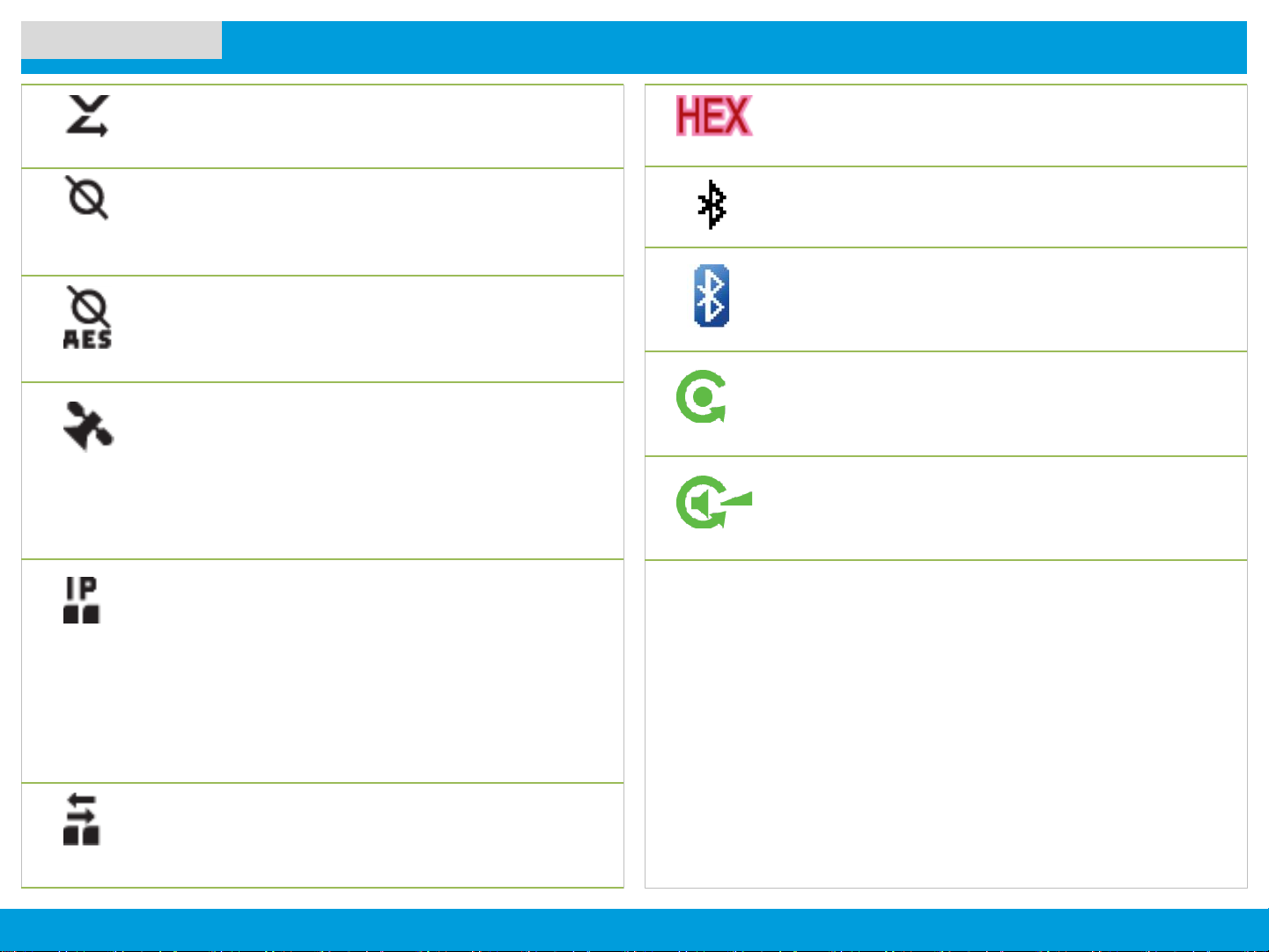

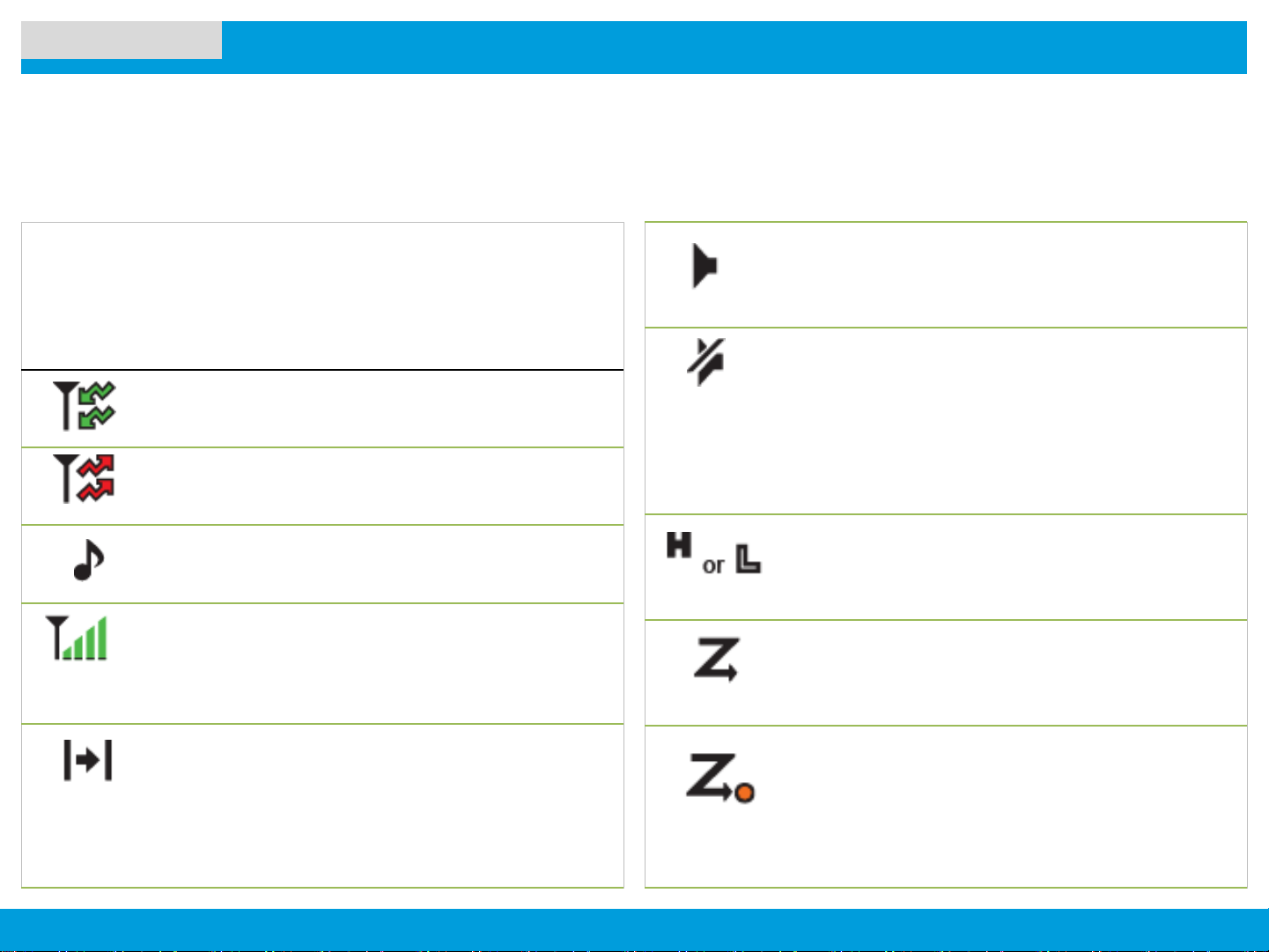

❑Status Icons
IDENTIFYING STATUS INDICATORS
The liquid crystal display (LCD) of your radio shows the radio
status, text entries, and menu entries.
The following are the icons that appear on the radio’s display.
Receiving
Radio is receiving a call or data.
Transmitting
Radio is transmitting a call or data.
Call Received
Radio has received an Individual Call.
Received Signal Strength Indicator (RSSI)
The number of bars displayed represents the received
signal strength for the current site, for trunking only. The
more stripes in the icon, the stronger the signal.
Direct
• On = Radio is currently configured for direct
radio to radio communication (during
conventional operation only).
• Off = Radio is connected with other radios
through a repeater.
Monitor (Carrier Squelch)
Selected channel is being monitored (during conventional
operation only).
In-Call User Alert
• On = The feature is enabled. Voice muting of the
affiliated trunking talkgroup or selected conventional
channel is activated.
• Off = The feature is disabled. Voice muting of the
affiliated trunking talkgroup or selected conventional
channel is deactivated.
Power Level
• L = Radio is set at Low power.
• H = Radio is set at High power.
Scan
Radio is scanning a scan list.
Priority-One Channel Scan
• Blinking dot = Radio detects activity on
channel designated as
Priority-One.
• Steady dot = Radio detects activity on channel
designated as Priority-Two.

APX 6500 O2 CH
18 NEXT >< PREVCONTENTS
IDENTIFYING STATUS INDICATORS
Vote Scan Enabled
The vote scan feature is enabled.
Secure Operation
• On = Secure operation.
• Off = Clear operation.
• Blinking = Receiving an encrypted voice call.
AES Secure Operation
• On = AES Secure operation.
• Off = Clear operation.
• Blinking = Receiving an encrypted voice call.
Location Signal
• On = Location feature is enabled, and location
signal is available.
• Off = Location feature is disabled.
• Blinking = Location feature is enabled, but no
location signal is available.
User Login Indicator (IP Packet Data)
• On = User is currently associated with the
radio.
• Off = User is currently not associated with the
radio.
• Blinking = Device registration or user
registration with the server failed
due to an invalid username or pin.
Data Activity
Data activity is present.
Hexadecimal
Indicates that the text entry is currently in hexadecimal
mode.
Bluetooth On
Bluetooth is on and ready for Bluetooth connection.
Bluetooth Connected
Bluetooth is currently connected to the external Bluetooth
device.
MFK is in Mode Change feature
Turn the MFK to change the channel.
MFK is in Volume Change feature
Turn the MFK to adjust the volume.

APX 6500 O2 CH
19 NEXT >< PREVCONTENTS
❑LED Indicator
IDENTIFYING STATUS INDICATORS
The LED indicator shows the operational status of your radio.
LEDs Red
Yellow
Green

APX 6500 O2 CH
20 NEXT >< PREVCONTENTS
IDENTIFYING STATUS INDICATORS
Solid red –Radio is transmitting.
Blinking red –Radio is transmitting at low battery condition.
Rapidly blinking red –Radio has failed the self test upon powering up or encountered a fatal error.
Solid yellow (Conventional Only) –Channel is busy.
Blinking yellow –Radio is receiving a secured transmission.
Solid green –Radio is powering up, or is on a non-priority channel while in the Scan List Programming mode.
Blinking green –Radio is receiving an individual or telephone call, or is on a Priority-Two channel while in the Scan List
Programming mode.
Rapidly blinking green –Radio is on a Priority-One channel while in the Scan List Programming mode.
