Movin' On GPS MOSS-MDVR-820 User manual

MOSS-MDVR-820
Mobile Digital Dual SD Recorder
User Manual
Before installing and using, please be sure to read the manual, in order to properly use and protect your
DVR. The first part of the statement concerns with matters to be addressed before installing and usage.
!Attention
"To protect your rights, before using and installing, please carefully read the contents of the
manual.
"This product is used for vehicle internal use, in order to prevent short-circuit or the risk of electric
shock, do not have the DVR in an area that can be susceptible to water or humidity.
"Event of any solid or liquid into the machine, please disconnect the power of the machine
immediately, and ask the qualified technical staff to check, then restart it.

!Installation Environment
"8-36V DC power supply, please confirm the local power supply before power on.
"If the machine were not used for a long time, please completely disconnect the power supply.
"Please select the appropriate location for the installation of the machine, where the air can flow
freely around the machine to avoid overheating or water flow.
"Machine can not be installed near the radiators, under the vehicles hood, In direct sunlight,
extreme dust, rain water, or near the area where the mechanical vibration or impact happens.
!Package List
Name
Quantity
Dual SD card Mobile DVR
1
User Manual
1
Certificate of approval
1
Remote Control (batteries not included)
1
Connecting Cable
3
Contents
1Product Overview......................................................................................................................................................2
2Basic functions ..........................................................................................................................................................2
2.1 Audio/Video Compression Format..................................................................................................................2
2.2 Audio/video recording mode...........................................................................................................................3
2.3 Image quality when monitoring, recording, playback.....................................................................................3
2.4 Total Resources ...............................................................................................................................................3
2.5 Audio video synchronous recording................................................................................................................3
2.6 Access detection ..............................................................................................................................................3
2.7 Signal loss alarming function ..........................................................................................................................4
2.8 Alarm linkage ..................................................................................................................................................4
2.9 Alarm pre-recording ........................................................................................................................................4
2.10 Full duplex.......................................................................................................................................................4
2.11 Malfunction alarming function........................................................................................................................4
2.12 Self-test the status and self-recovery ...............................................................................................................4
2.13 Front-end device control and multi-channel monitor and switch....................................................................4
2.14 Networking ......................................................................................................................................................5
2.15 Data backup .....................................................................................................................................................5
2.16 Authority, encryption, data safety ...................................................................................................................5
2.17 Log function ....................................................................................................................................................5

3Features .....................................................................................................................................................................5
3.1 Operating system ...................................................................................................................................................5
3.2 Compression format ..............................................................................................................................................5
3.3 Monitoring and Recording.....................................................................................................................................6
3.4 Index and Playback................................................................................................................................................6
3.5 SD card storage and data backup...........................................................................................................................6
3.6 Control...................................................................................................................................................................6
3.7 Others.....................................................................................................................................................................6
4Technical Parameters ..............................................................................................................................................7
5Instruction of Installation ..........................................................................................................................................9
5.1 Instruction of External Interface Wiring .........................................................................................................9
5.2 Instruction of SD Card Installation................................................................................................................10
6Instruction of Using .................................................................................................................................................10
6.1 Instruction of Front Panel ..............................................................................................................................10
6.2 Instruction of Remote Control Operation......................................................................................................11
6.3 Menu Setting Instruction: ..............................................................................................................................13
6.4 DVR Video Playback Instruction ..................................................................................................................24
6.5 Video Backup ................................................................................................................................................24
6.6 PTZ control....................................................................................................................................................25
6.7 Video Data Volume.......................................................................................................................................26
1 Product Overview
The four-channel embedded digital SD card video recorder is designed for automotive usage. It uses
embedded processor and embedded operating system, combined with video / audio compression /
decompression, GPS, video recorder, and with stable SD card storage technology. Widely used for buses,
ships, trains, and other forms of transportation.
2 Basic functions
2.1 Audio/Video Compression Format
The video adopts latest IS014496-10 (H.264) video compression technology, high compression rate to
ensure a better image quality under less storage; the audio adopts ADPCM compression method, output a
better voice with low distortion.

2.2 Audio/video recording mode
"Compression format:
The audio video data are stored through special files, encrypted to prevent data loss under
frequent power failure circumstances.
"Compression stream:
Image quality with 8 levels and adjustable (192kbps-1536kbps/channel).
"Storage:
Support 2 x 64G SD card, auto overwritten and cycle storage.
2.3 Image quality when monitoring, recording, playback
"Resolution:
Monitoring: 720x576/CH; Recording: 720x576/CH; Playback: 720x576/CH
"Frequencies:
The monitoring, recording and playback are all with 25fps
"Horizontal resolution for monitoring:
More than 270TV lines per channel.
"Horizontal resolution for playback:
More than 270TV lines per channel.
2.4 Total Resources
"Support 4 channels D1 (704x576) simultaneous recording, total 100fps.
"Support 4 channels D1 (704x576) simultaneous playback, total 100fps.
2.5 Audio video synchronous recording
"Record and playback the audio/video/GPS positioning data simultaneously. The information can
be checked by CMS software which can be installed on computer.
2.6 Access detection
"When after open motion detecting video recording equipment in camera detects movement, the
monitoring area can start recording, trigger the alarm, warning area size, location, number, area
and alert in sensitivity or removal of alert, and other functions, can be set up.

2.7 Signal loss alarming function
"When the video signal gets lost, the device will send alarm signal via internet. Responding in less
than 5 seconds with log information. NOTE this function will not work when a channel is not in
recording status or if a channel is displaying in full screen.
2.8 Alarm linkage
"Support 4CH alarm input (8-36v high level voltage to trigger); 1CH alarm out (by relay, max.
500mA, switch ON); When the alarm is triggered, the audio recording will be started automatically
(30-330s, adjustable).Alarm out will close for (5s-900s, adjustable) and send alarming signal,
responding in less than 1s.
2.9 Alarm pre-recording
"Alarm video mode, alarm pre - recorded more than 5 s video, audio, positioning data.
2.10 Full Duplex
"Under full loading status, users can index, playback the recorded data with no frame loss.
2.11 Malfunction alarming function
"If the DVR fails to work, an alarm switch comes ON, showing alarm information for 6 minutes.
2.12 Self-test the status and self-recovery
"When in working status, the “RUN” indicator will constantly flashes and check the device.
2.13 Front-end device control and multi-channel monitor
"The DVR can control PTZ cameras through default protocols (RS-485, PELCO-D, 9600 baud
rate), 4 channels real time, switchable to monitoring mode.

2.14 Networking
"Combining the CMS software with built-in 3G module, the car can be monitored remotely.
2.15 Data backup
"To backup the SD data into computer via SD card reader;
"Downloading the SD data remotely through network.
"Transfer the SD card data to computer, download and play the media via unique DVR player
software. Users can also switch the SD files into universal AVI format to make it workable in other
players.
2.16 Authority, Encryption Data
"Enter the DVR by password, default for “6666”. Data is stored in a special file system to ensure
its encrypted and safe.
2.17 Log function
"The log includes the alarming and malfunction information, stored into SD card. It can be checked
via computer.
3 Features
3.1 Operating system
"Embedded Linux operating system, highly stable.
"English/Chinese menu switchable.
"Graphical user interface
3.2 Compression format
"H.264 format.

3.3 Monitoring and Recording
"Monitor: 4CH D1 (PAL: 704x576; NTSC: 704x480 )
"Record: PAL 100fps, NTSC 120fps, full real-time 4CH CIF, HD1, D1recording.
"Record mode: by alarm, schedule, manual, motion detection.
"Support 4CH video and 4CH audio meanwhile recording.
"Record image quality: 8 levels adjustable
"Video recorded in special file system to ensure lifespan and safety of SD card.
"Reliable evidence with unchangeable audio/video data.
3.4 Index and Playback
"Index and playback by time.
"Support 4CH Video, 1CH audio (any channel can be chosen), index and playback at the same time,
support amplifying in one channel.
"Data only played by DVR playback software
3.5 SD card storage and data backup
"Support two SD cards, with each 64G max.
"The SD card data can be backed up via PC software.
"Support USB backup,
3.6 Control
"Dual MCU control, to ensure DVR stability.
"Support remotely control by remote controller
3.7 Others
"Upgrade through USB or SD card, easy maintainance.
"Protect by password, to avoid data damage.
"Delayed shutdown: default for 5s, adjustable
"Anti-pulse and low voltage protection
"Real-time timer
"Anti-shock for the PCB panel and parts.
"Watch dog function to avoid system crush.

4 Technical Parameters
Items
Device parameters
Performance index
Name
Product Name
4 Channel Mobile DVR (SD Storage)
System
Operation System
Linux
Operation Interface
Graphical Interfaces, Chinese/English optional
File System
Proprietary Format
System Privileges
User Password
Video
Video Input
4ch Independent Input: 1.0Vp-p，75Ω.Both B&W and Color Cameras
Video Output
1 Channel PAL/NTSC Output, 1.0Vp-p，75Ω，Composite Video Signal
Video Display
1 or 4 Screen Display
Video Standard
PAL:25frames/Sec; NTSC:30frames/Sec
System Resources
PAL:100 Frames; NTSC:120 Frames
Audio
Audio Input
Four Channels Independent Input 600Ω
Audio Output
1 Channel (4 Channels Can Be Converted)
Basic Output Level
1.0—2.2V
Distortion Plus Noise
≤-30dB
Recording Mode
Sound And Image Synchronization
Audio Compression
ADPCM
Digital
Processing
& Storage
Image Compression
H.264 Fixed Code Stream
Image Format
PAL:4xCIF (352x288), or 4xHD1(704x288), or 4xD1(704x576)
NTSC:4xCIF (352x240), or 4xHD1(704x240), or 4xD1(704x480)
Video Stream
CIF: 24K-112KByte/s; HD1 & D1: 24K-192KByte/s;
Video Taking Up Of Hard Disk
CIF: 85M-394MByte / hour / channel
HD1 & D1: 85M-675MByte / hour / channel
Playback Resolution
PAL:1 or 4xCIF (352x288); 1 or 4xHD1(704x288); 1 or 4xD1(704x576)
NTSC:1 or 4xCIF (352x240); 1 or 4xHD1(704x240); 1 or 4xD1(704x480)
Audio Bitrate
4KByte / s / channel
Audio Storage of Hard Disk
14MByte / hour / channel
SD Storage
Double SD card storage, Support Max 2 x 64GB
Image Quality
Eight Grades to Choose
Alarm
Alarm in
4 Channels Independent Input. High Voltage Trigger
Alarm out
1 Channels Independent output
Motion Detect
available
USB
Interface
Host Access
One For USB Disk Backup
Network
Interface
Wire line Access
One RJ45 Ethernet Port
Wifi
Can Expand One Wifi Module Outside
3G
One WCDMA or CDMA2000 Module Inside
GPS
Interface
GPS
Can Expand GPS Module Inside
Extend
Interface
RS232
Convenient to connect with other vehicle equipment
RS485
Convenient to connect with other vehicle equipment and PTZ Camera
Intercom
Can Expand Intercom Module Inside

G-Sensor
Can Expand G-Sensor Module Inside
Canbus
Can Expand Canbus Module Inside
Others
Power Consumption
DC8-36V 5% 8W（without HDD）
Working Temperature
-20℃~ +60℃
Clock
Built-In Clock, Calendar
Packaging
Product Size
154(L) x 190(W) x 52(H)mm
Product Weight
0.9KG(without HDD)
Package
1 per box- 10 per carton
Box Size
220(L) x 110(W) x 175(H)mm
Carton Size
570(L) x 465(W) x 195(H)mm
Carton Weight
9kgs/11kgs (without HDD)
Optional functions:
MDVR-820C: Basic Type (Pin Aviation Connector)
+A: GPS Function +B: 3G Function
+C: Pin Aviation Connector +D: RS485&RS232
+E: Lan Port +G: G-Sensor Function
+H: Intercom Function +W: Wifi Function
+K: Canbus

5 Instruction of Installation

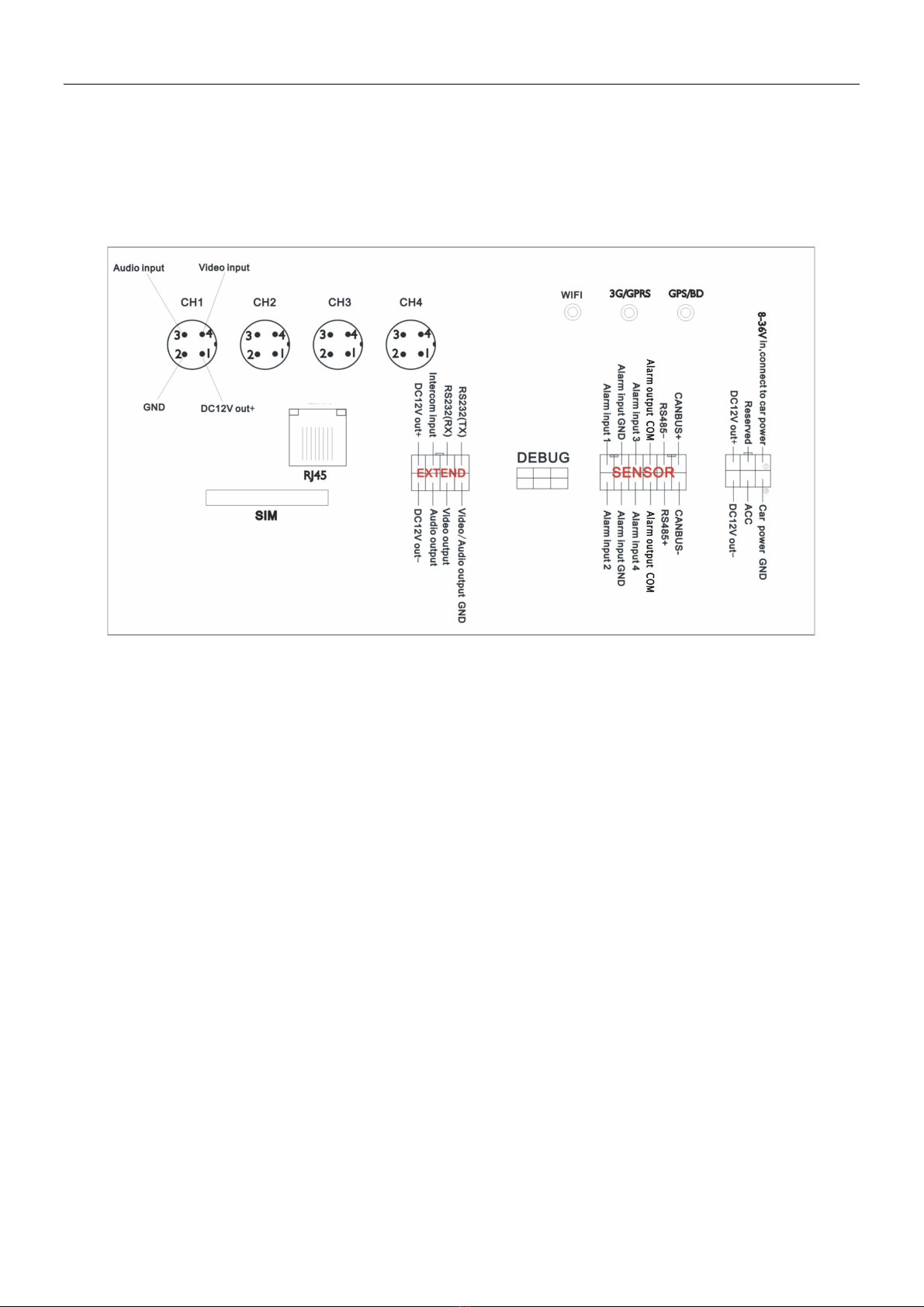

5.1 Instruction of External Interface Wiring
Remarks:
"If the power supply is 12V, then the current of 12V output can be just 1A. So if there are more than
3pcs cameras, we suggest customers to get power for other cameras from the 12V vehicle power
directly.
"RS485 、RS232 、LINK、CANBUS interface are optional interface, available only when you listed
in the order for this interface.
"Ports:
DEBUG: testing port
EXTEND: intercom connecting port
SENSOR: alarm port

5.2 Instruction of SD Card Installation
Unlock the main board with key, make sure the “arrowhead” point to the left “turn on” and
then switch it to the “turn off”.
Note: The lock in the main board can also control the power. When the main board is locked, it
also means the machine starts. So before turn it on, please make sure all the cables in the
system are well connected. Otherwise the power in the car once connected, it will damage
the machine.
6 Instruction of Using

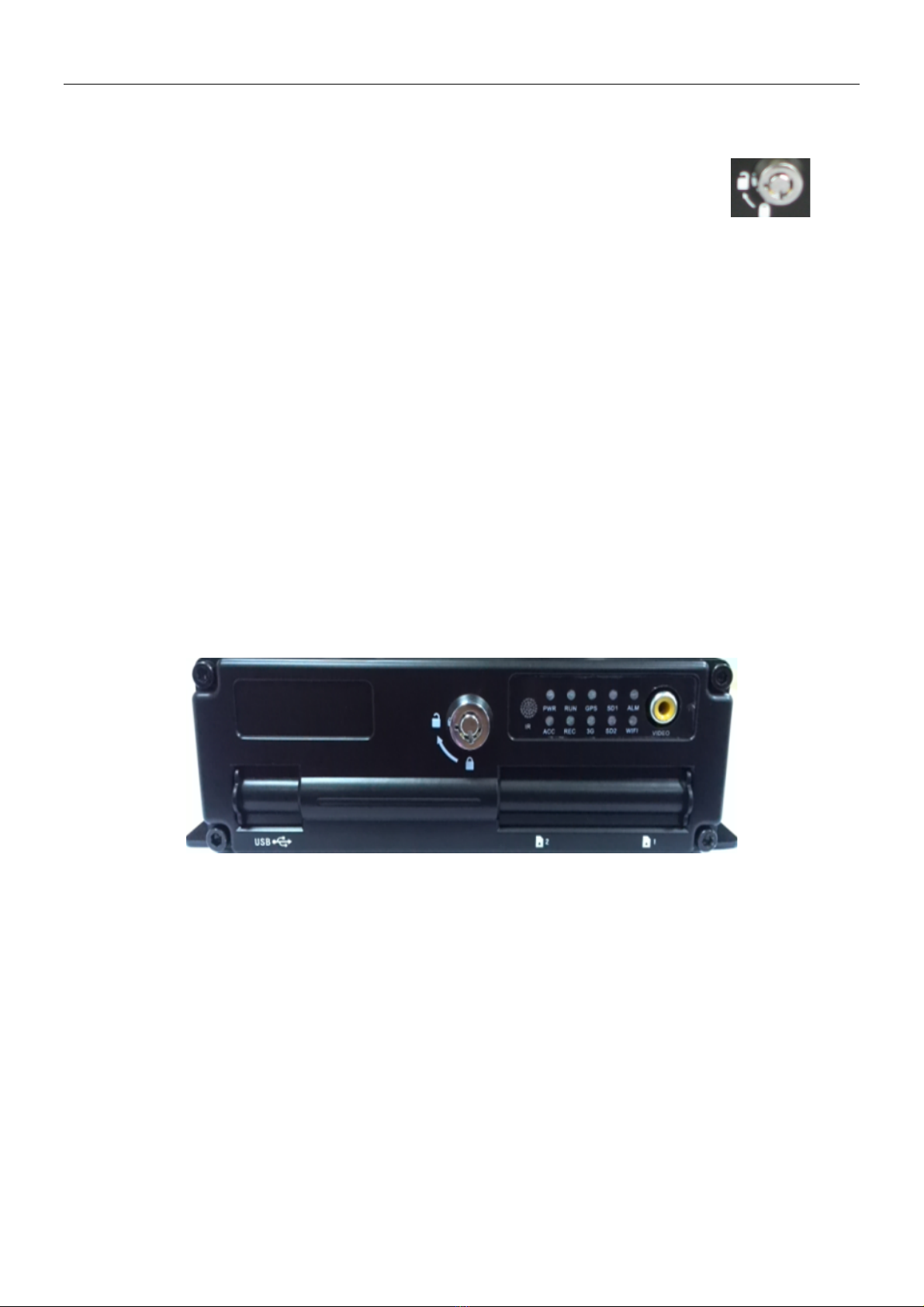

6.1 Instruction of Front Panel
Use Cleaned updated logo images
"LED
#PWR LED: lighting while work starts. Power LED on.
#ACC LED：Vehicle starts LED indicator
#RUN LED: LED flashing when machine is normal working.
#REC LED: when video is recording, LED is flashing.
#GPS LED: GPS working LED indicator
#3G LED: 3G working LED indicator
#SD1 LED: When recording, playing, backup, LED is flashing
#SD2 LED: When recording, playing, backup, LED is flashing
#ALM LED: when detecting alarm signal, LED is flasing

#WIFI LED: when wifi module is running the LED is on.
"Key and Other Descriptions
#IR: infrared receiving window.
#LOCK: while removing the hard drive, use the key to unlock in order to remove the hard
drive, unlock after machine’s auto-disconnects the power, the power auto-connect after
being locked.
#USB: Backup the video data via USB Disk (Ports on Demand, This function is valid, SD2 is
invalid.
#1: SD card1 slot
#2: SD card2 slot
#Video: Video output

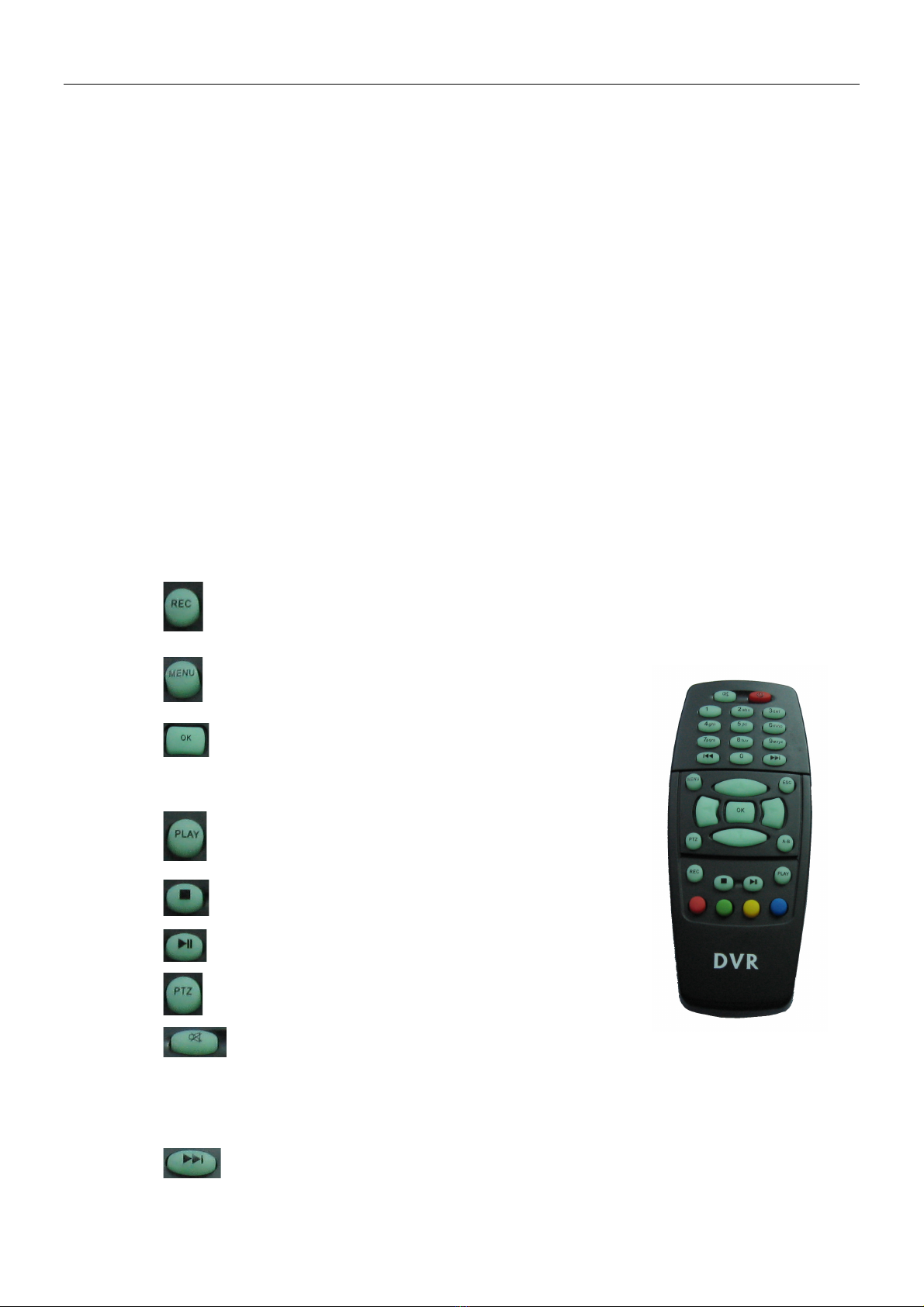

6.2 Instruction of Remote Control Operation
"：Record
"：Lead to menu
"：Enter the submenu to do the settings and also confirm the
settings
"：For playback on the mobile DVR
": Stop when record and playback
"：Pause/Play when playback
"：Into PTZ control mode.
"：Mute key, to turn on or turn off audio output when
playback videos with audio.(The audio input of the playback device must be connected to the
audio output of the DVR.)
"：Fast-forward when video playback, play speed can be x2, x4, x8, press one time is x2,
press two times is x4, and press 3 times is x8.

"：① Exit when video playback or backup. ②Exit from PTZ mode.
":①Upward for MENU selection. ②”UP” direction for PTZ control mode.
":①Downward for MENU selection. ②”Down” direction for PTZ control mode.
": ①Towards to left for MENU selection or MENU setup. ②”Left” direction for PTZ control
mode.
": ①Towards to right for MENU selection or MENU setup. ②”Right” direction for PTZ control
mode.
": ①screen zoom the first channel video when surveillance, record ②Enter password or
set system password.
": ①screen zoom the second channel video when surveillance, record ②Enter password
or set system password.
": ①screen zoom the third channel video when surveillance, record ②Enter password or
set system password.
": ①screen zoom the fourth channel video when surveillance, record and playback ②
Enter password or set system password.
": Enter password or set system password.
": Enter password or set system password.
": Enter password or set system password.
": Enter password or set system password.
": Enter password or set system password.
": ①4 channel display when surveillance, record and playback. ②Enter password or set
system password.
Remark: When the DVR is in alarm condition, the remote control is invalid.

6.3 Menu Setting Instruction:

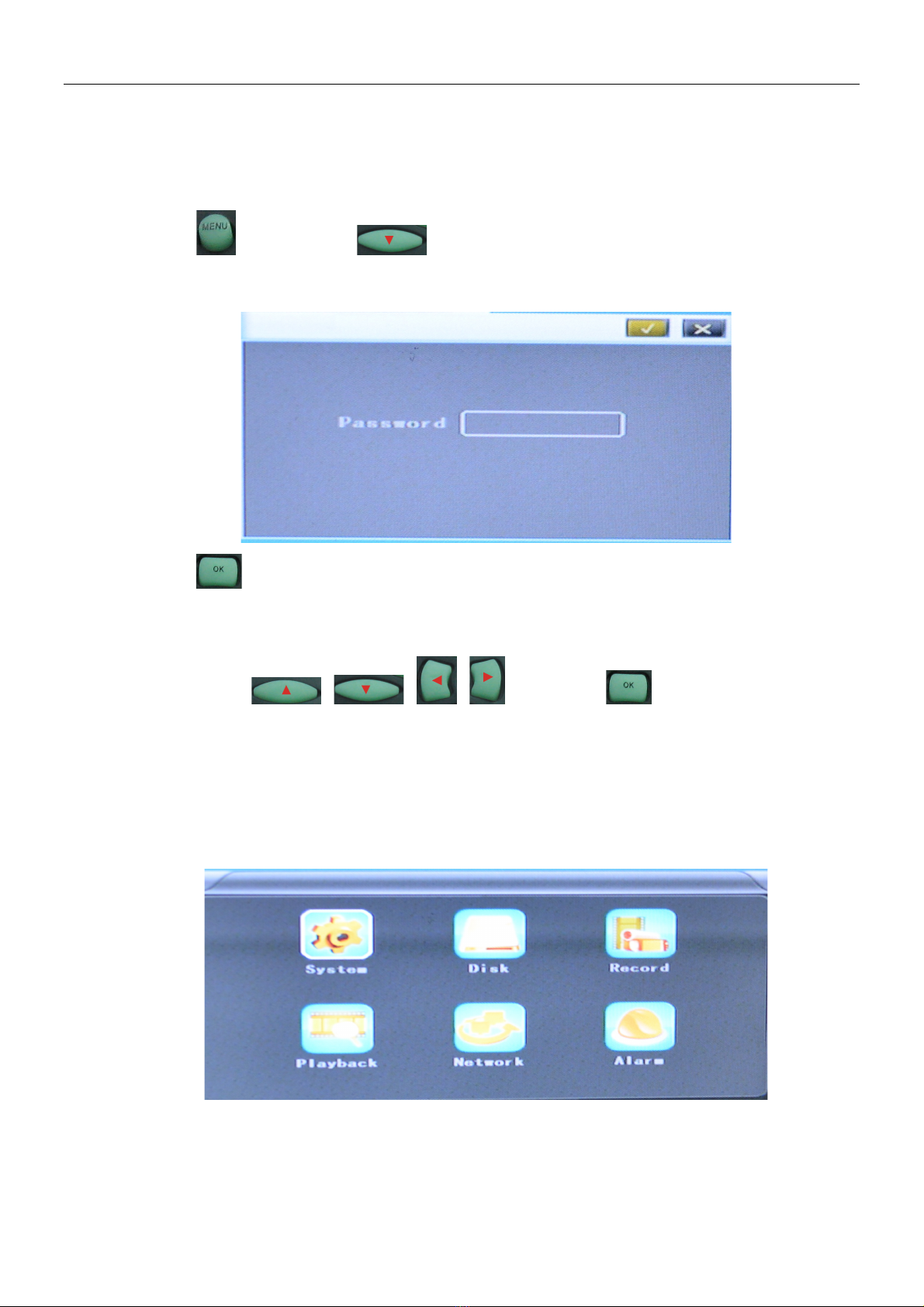

First press" "key, next press" " to enter the default password"6666",
then press“”to enter the main menu interface;
There are "System"、"Disk"、"Record"、"Playback"、"Network" and "Alarm"options, select the option by
pressing these buttons" , , , " ,then press " "to enter.
Basic Settings: includes options of “system setting”, “PTZ setting”, ”system info”, “vehicle
info”. .

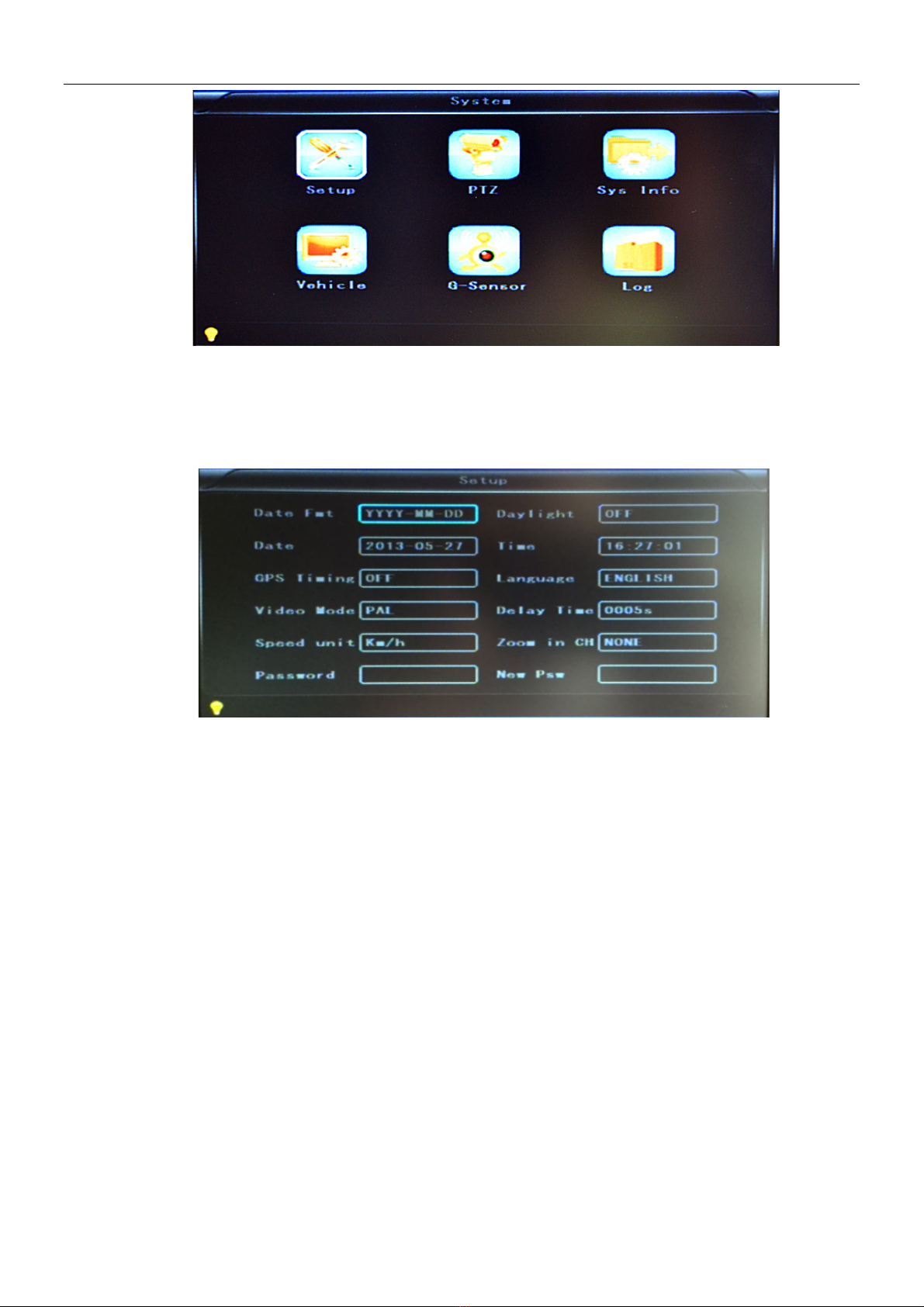

$System Setting: " Setup" and "Info "

"Setup: Set the System time, Car Number, TV system, Language，etc.
#Date format: Offer 3 display methods like “y/m/d, m/d/y, d/m/y” for personal habit.
#Daylight saving time: suitable for according countries or areas.
#Date: Adjust the date of SD recorder
#Time: Adjust the time of SD recorder
#Time zone: differs by countries.
#Language: Set "English", restart the DVR after setting.
#Video Mode: Set "PAL" or "NTSC", have to restart the DVR after setting.
#Delay Time: DVR Time-lapse turn off function after the car ignition off, the default time is 5S,
and 30s,60s,120s,300s,600s,1200s,1800s,3600s,7040s all could be set，have to restart the
DVR after setting.
#Speed unit: KM/H and MPH
#Amplifying channel: Choosing which channel to see when power on each time. This is also
useful when backing the car.

#Password: Enter the default password before changing the new password (Note: You have to
enter the original password after press "OK", otherwise the DVR will keep staying in the
changing password status, and the remote control will not work.
#New password：Enter the new password
Operating Way:
Enter the menu, press“ 、”to select the options ,then press“ ”to enter the
modification mode，adjust the number by pressing“ ,,, ”，press“ ”to
save after adjustment。Press” ”key to exit after all settings done.
"PTZ settings: Adjust and control the camera with external PTZ device.
#Protocols: default PELCO-D, support PELCO-D.PELCO-
#Bit rate: under RS485 port: 2400bps,4800bps,9600bps,38400bps,57600bps
#Channel-Address: Channel one-Device address
#Channe2-Address: Channel two-Device address
#Channe3-Address: Channel three-Device address
#Channe4-Address: Channel four-Device address
"System Info: Display DVR hardware code number，software version information( only view,
couldn’t be changed)；Reset the Factory Settings

#Device encoding: only for this DVR, the code is unique.
#Software version: the version No. of DVR software.
#IMIE: IMIE No. of 3G network or module
#Strength Of 3G signal: strength value:99, unknown: 0-31
#Strength Of GPS signal: AA-BB(AA: GPS No.;BB: GPS strength. Show signal strength of
max.3
#Satellite each cycling time.
#Reset the Factory Settings:
#Select “Reset CFG”，there is a Reset interface after press“ ”, confirm to Reset ,cancel
to return the original interface.
"Car information: details of car plate number, route and driver code.

#Car plate number: can be showed by English, Chinese simplified language, Numbers or
common symbols.
#Route: the driving route and code
#Driver code: set up the driver code information
"G-sensor:
#GSensor-X：0000mg( default value, this value will change accordingly if the X direction
gravity accelerated speed value is changeable)
#GSensor-Y：0000mg(default value, this value will change accordingly if the Y direction
gravity accelerated speed value changeable )
#GSensor-Z：0000mg(default value, this value will change accordingly if the Z direction
gravity accelerated speed value is changeable)

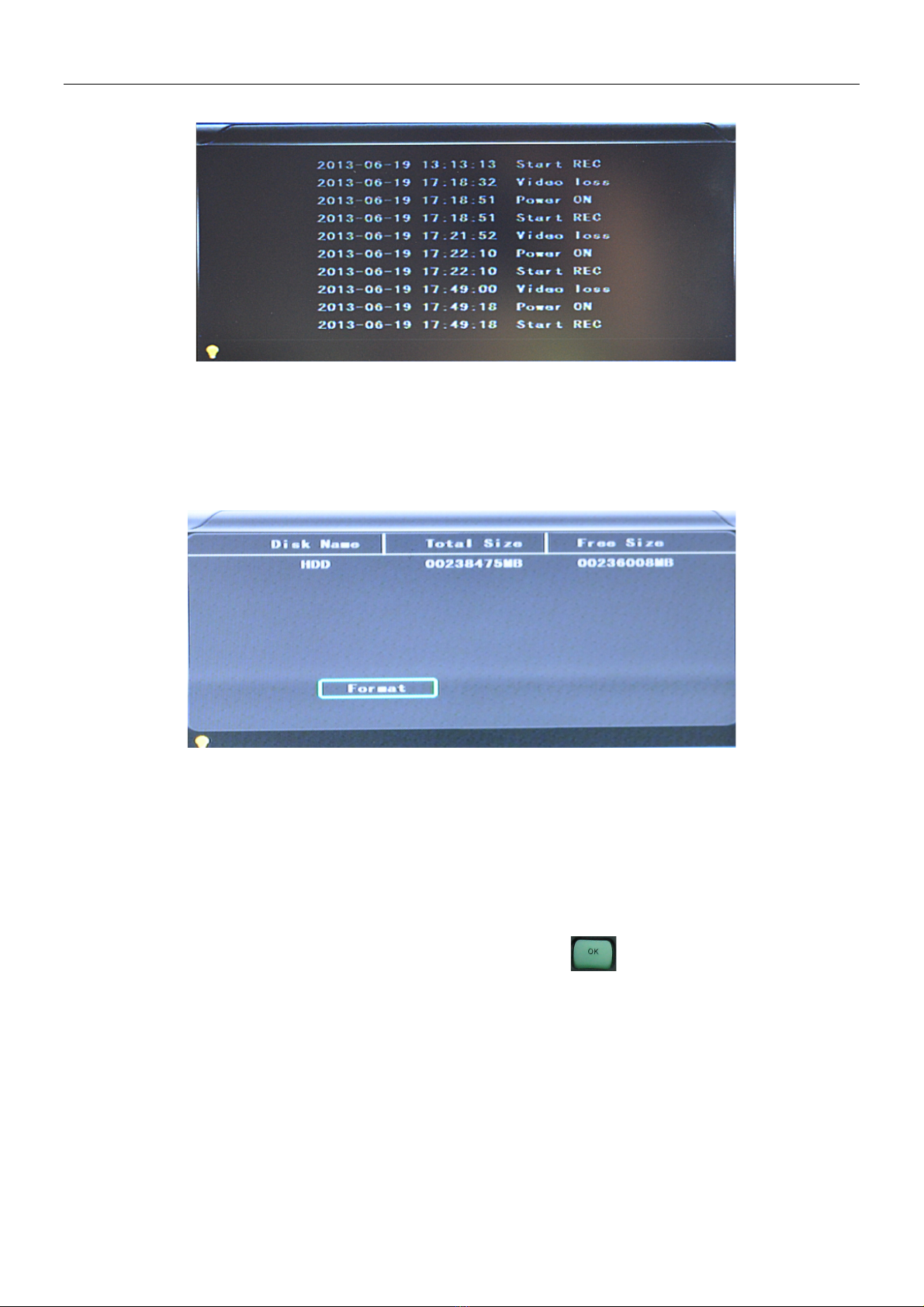

"LOG information
#User action log, alarm logging, equipment status log
$Disk：Check and format
#Disk Name：Display the system recognized SD card name
#Total Size: Display the total size of SD
#Free Size: Display the remaining Capacity of SD
#Format: Format SD(only format the head.h files of SD)
Select this item，there is a format interface after press“ ”, confirm to format, cancel to
return the original interface.

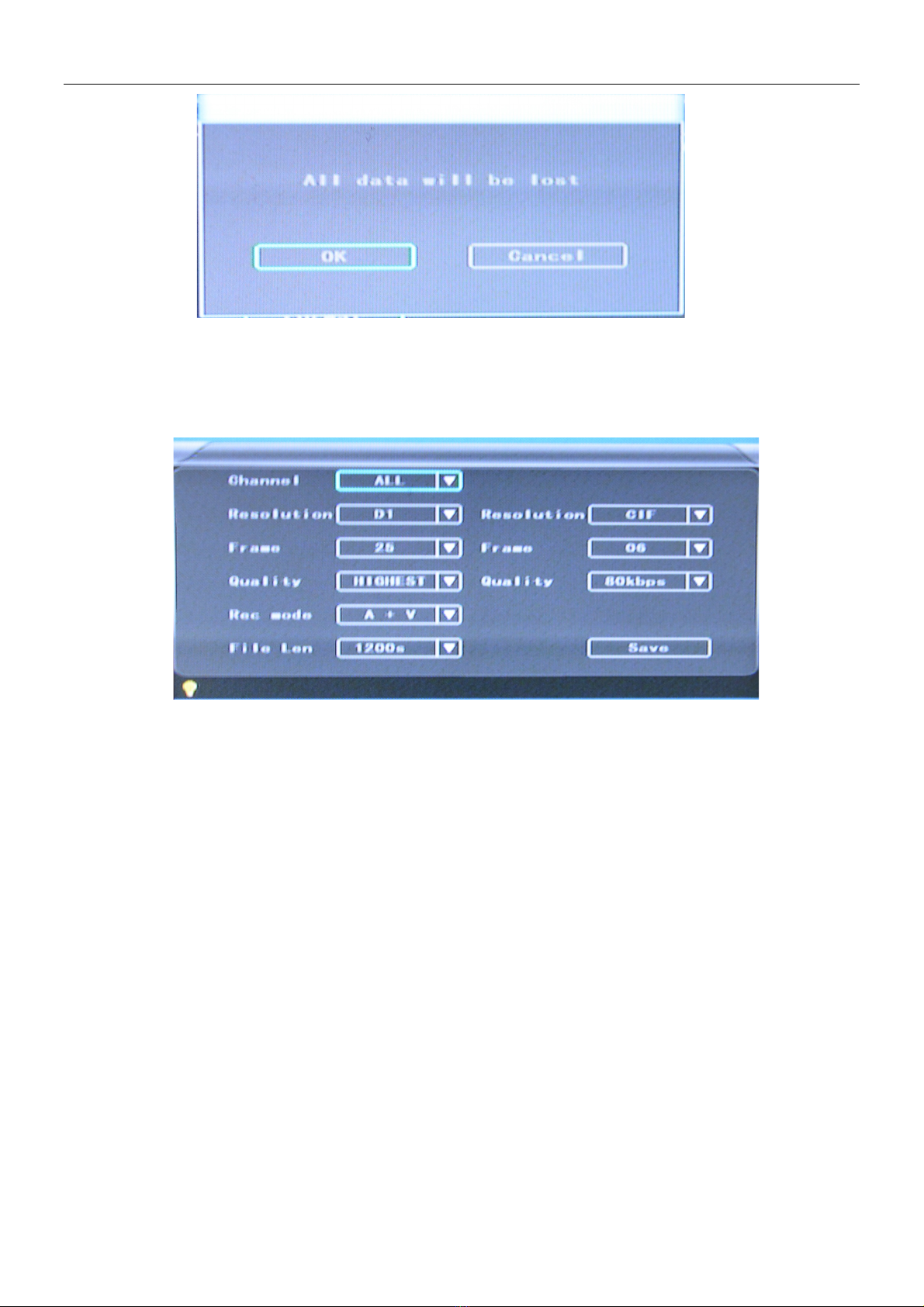

$Record: the video files setting
#Channel: select the channel setting (the information of each channel could be set
independently)
#Resolution：CIF/HD1/D1；
The left side is the local storage information,
The right side is network transmission information; local “CIF, HD1, D1”is optional, only “CIF” for
network transmission
#Frame：1-25/30fps
The left side is local storage information,
The right side is network transmission information.
#Quality：Video quality setting
The left side is the local video quality (total 8 grade，LOWEST—HIGHEST)
The right side is the network transmission quality (total 9 grades，
32kbps/48kbs/64kbps/80kbps/112kbps/144kbps/192kbps/256kbps/384kbps)
单通道帧率
