OPERATION MANUAL
OFFICE PRO 12 and OFFICE PRO 24
READ THIS MANUAL CAREFULLY FOR INSTRUCTIONS ON CORRECT
INSTALLATION AND USAGE, AND READ ALL SAFEGUARDS.
NO POSTAGE
NECESSARY
IF MAILED
IN THE
UNITED STATES
     
FIRST-CLASS MAIL PERMIT NO. 8390 LONG BEACH, CA
BUSINESS REPLY MAIL
DENSO SALES CALIFORNIA, INC.
3900 VIA ORO AVENUE
LONG BEACH CA 90810-9969
SECCION EN ESPANOL
SECTION EN FRANÇAIS
~
‘

LIMITED WARRANTY
DENSO SALES CALIFORNIA, INC. ("DENSO") warrants its MOVINCOOL
Products only to the extent stated in its official written warranties. Unless
otherwise specifically provided in writing by DENSO, DENSO warrants to end-
user that the Products shall be free of defects in materials or workmanship and will
function in accordance with DENSO's published specifications under ordinary in-
tended use and service for a period of twelve (12) months after delivery to the end-
user; provided, however, in the case of the compressor element of the Products
such warranty shall be for a period of thirty six (36) months after delivery to the
end-user. DENSO shall, at its sole option, repair or replace any defective Product
covered by this warranty. Such remedy shall be end-user's sole remedy with
respect to any particular defect in the Products.
This warranty does not cover defects or malfunctions which result from causes
beyond DENSO's control, including, without limitation, (i) unusual physical or
electrical stress; (ii) accident, neglect, abuse, misuse or other abnormal use; (iii)
failuretoperform routinemaintenanceinaccordancewith DENSO'Srecommended
procedures; (iv) normal wear and tear; (v) repairs or attempted repairs by an
unauthorized person; (vi) modifications or alterations to the Products; (vii) use with
supplies or devices not supplied or approved by DENSO; or (viii) improper
servicing. This warranty shall extend only to the original end-user and shall be void
if any labels or other identifying marks permanently affixed to Products when
shipped by DENSO are removed, altered, defaced or obliterated.
The aforesaid warranty is the only warranty made by DENSO with respect to the
Products and is in lieu of all obligations or liabilities on the part of DENSO for
damages arising out of or in connection with the sale, use or performance of the
Products, including, without limitation, any lost profits or any other consequential,
incidental, special or exemplary damages of any kind. DENSO DISCLAIMS ALL
OTHER WARRANTIES WITH REGARD TO THE PRODUCTS, INCLUDING ALL
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR USE. THERE
ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION CON-
TAINED HEREIN.
PURCHASE DATE: _____________________________________________________
SERIAL NUMBER: _____________________________________________________

DETACH HERE

© 2003 DENSO SALES CALIFORNIA, INC.
All rights reserved. This book may not be reproduced or copied, in
wholeorinpart, withoutthewrittenpermission ofthepublisher.DENSO
SALES CALIFORNIA, INC. reserves the right to make changes
without prior notice. MovinCool is a registerd trademark of
DENSO Corporation.

OPERATION MANUAL
OFFICE PRO 12 and OFFICE PRO 24

ii

iii
Table of Contents
FOREWORD ..................................................................................... 1
Definition of Terms .................................................................... 1
GENERAL WARNINGS & CAUTIONS ............................................. 2
INVENTORY ...................................................................................... 3
INSTALLATION ................................................................................. 4
Choosing an Installation Site.................................................... 4
Moving the Unit.......................................................................... 5
Plugging in the Unit ................................................................... 6
FEATURES ........................................................................................ 7
OPERATION...................................................................................... 8

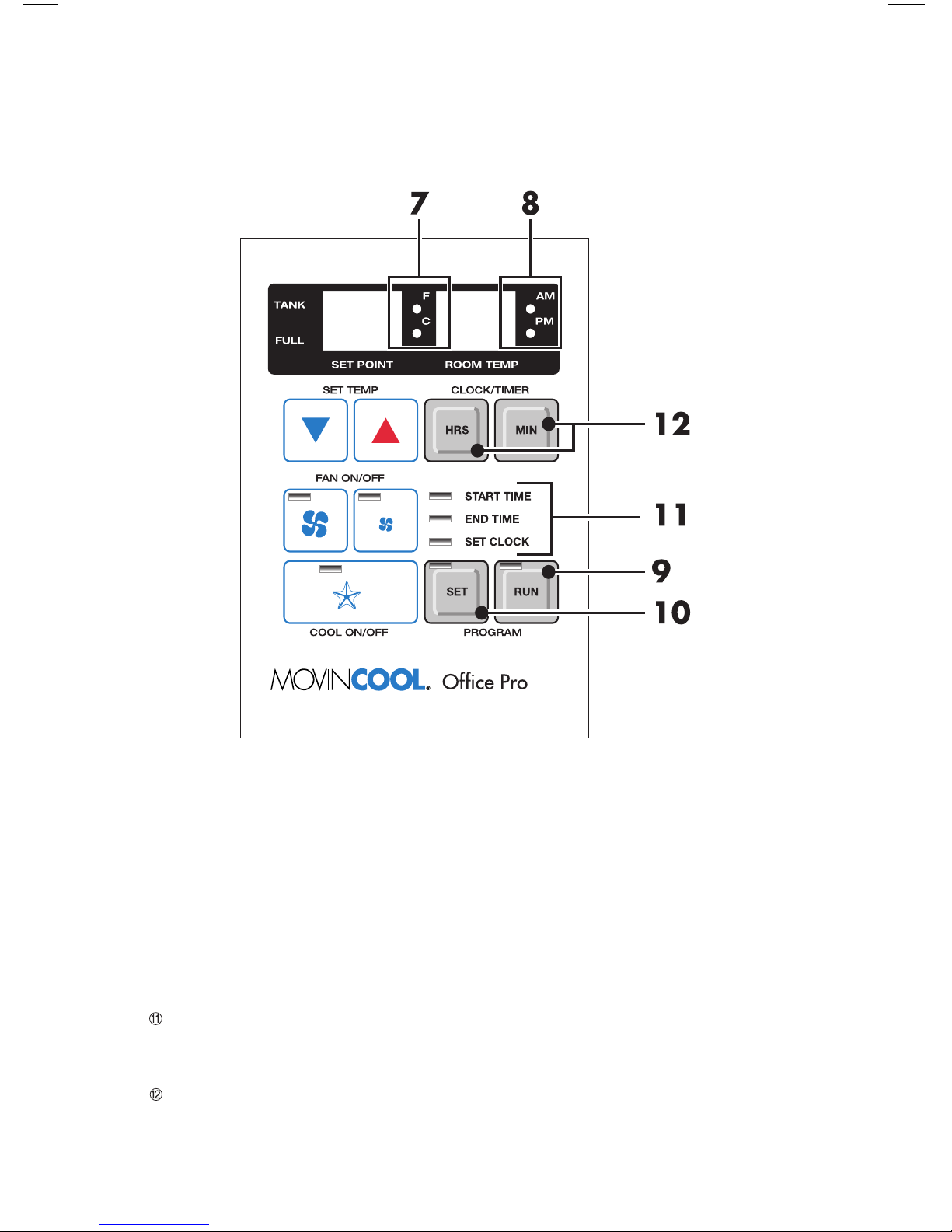

Control Panel ............................................................................. 8
Operating in COOL Mode ....................................................... 10
Operating in Fan Only Mode ................................................... 10
Changing from Fan Only Mode to COOL Mode .................... 10
How to Set a Program ............................................................. 11
Operating Modes ..................................................................... 13

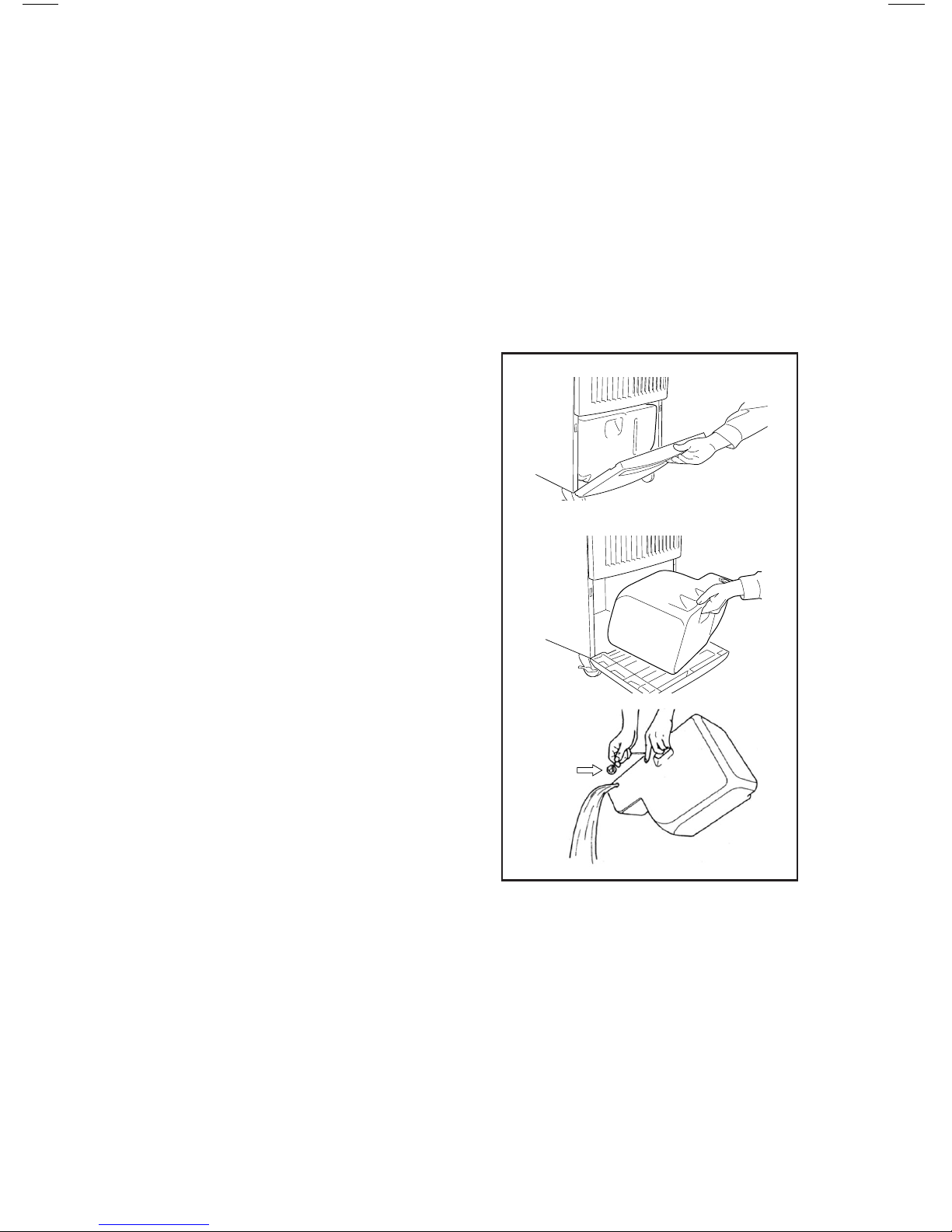

Emptying the Drain Tank ......................................................... 14
Drain Pump Kit (Optional) ....................................................... 15
DAILY INSPECTION & MAINTENANCE ........................................ 17
Emptying the Drain Tank ......................................................... 17
Cleaning the Air Filters............................................................ 17
FIlter Removal Method (both models) ................................... 17
Filter Cleaning Method ............................................................ 18
In-Season/Off-Season Inspection & Maintenance ............... 18
TROUBLESHOOTING .................................................................... 19
Self-Diagnostic Codes ............................................................ 19
TECHNICAL SPECIFICATIONS ..................................................... 20
SECCIÓN EN ESPAÑOL ................................................................ 21
SECTION EN FRANÇAIS ............................................................... 45

iv

1
FOREWORD
Congratulations on purchasing the MovinCool portable air conditioner.
This manual explains how to install and operate the MovinCool Office
Pro 12 and Office Pro 24 portable air conditioning units. Please read
this operation manual thoroughly to familiarize yourself with the fea-
tures of the unit and to ensure years of reliable operation. You may also
find it useful to keep this operation manual on hand for reference.
Components and/or procedures are subject to change without prior
notice.
Definition of Terms
WARNING: Describes precautions that should be observed in
order to prevent injury to the user during installation or unit opera-
tion.
CAUTION: Describes precautions that should be observed in
order to prevent damage to the unit or its components, which may
occur during installation or unit operation if sufficient care is not
taken.
NOTE: Provides additional information that facilitates installation
or unit operation.

2
GENERAL WARNINGS & CAUTIONS
•All electrical work, if necessary, should only be performed by
qualified electrical personnel. Repair to electrical components by
non-certified technicians may result in personal injury and/or
damage to the unit. All electrical components replaced must be
genuine MovinCool parts, purchased from an authorized reseller.
•The proper electrical outlet for MovinCool units must be equipped
with a UL approved ground-fault breaker to prevent electrical shock
from the unit.
•Because of potential safety hazards under a certain condition, we
strongly recommend against the use of an extension cord. However,
if you still elect to use an extension cord, it is absolutely necessary
that it will be a UL listed, 3-wire grounding type appliance extension
cord, having a 3-blade grounding plug and a 3-slot receptacle that
will plug into the appliance. The marked rating of the extension cord
should be 115 V, 15 A or equivalent.
•The Office Pro 12 is equipped with a ten (10) foot (3 meter) power
cord. The Office Pro 24 is equipped with a six (6) foot (1.8 meter)
power cord. If replacement, fixed location (hard wired) or power
cord lengthening (extension cord) cords are required, contact your
reseller or a qualified electrician for approved replacement meth-
ods.
•Never fold or place heavy objects on the power cord. This could
result in damage to the power cord causing electrical shock or fire.
•Do not place water or any other liquid on the unit. This can cause
damage to the unit and increase the risk of electrical shock.
•Do not sit or stand on the unit.

3
INVENTORY
After unpacking your MovinCool unit, please check to make sure you
have the following items:
•Office Pro 12 or Office Pro 24 MovinCool Unit (1)
•Operation Manual/Warranty Card (1)
NOTE: If any of these items were not included in the box or appear
damaged, please contact your MovinCool reseller for replacement.
OFFICE PRO 12 MOVINCOOL UNIT OFFICE PRO 24 MOVINCOOL UNIT
OPERATION MANUAL /
WARRANTY CARD

4
INSTALLATION
Choosing an Installation Site
CAUTION: Following are some precautions to consider before
choosing your installation site. Please review carefully as improper
installation may result in personal injury or damage to the unit.
•Do not use the unit in areas where leakage of flammable gas may
occur.
•Do not use the unit in areas where it will be exposed to rain or
water.
•Do not use the unit in an atmosphere of excessively corrosive gas
or vapor.
•Do not use in areas where the temperature is outside the allowable
operating range.
•Do not install the unit in sloping areas. The unit may move or topple
over even if the casters are set to the LOCKED position.
•Install the unit in areas that can withstand the weight of the unit.
The Office Pro 12 unit weighs approximately 200 lbs (91 kg) and the
Office Pro 24 weighs approximately 245 lbs. (111 kg) (when the
drain tank is full of water).
•Allow 18 inches of unobstructed airflow for both the air inlets and
outlets.
•Do not use the unit above 95˚F 50% RH.

5
INSTALLATION (cont.)
Moving the Unit
Unlock the casters and push the MovinCool unit using the side handles
to a flat, level surface and set the casters back to the LOCKED position.
SIDE HANDLES
LOCKED
UNLOCKED

6
INSTALLATION (cont.)
Plugging in the Unit
•Check the prongs and surface of the power cord plug for dust/dirt. If
dust and/or dirt are present, wipe off with a clean, dry cloth.
• Check the power cord, plug and prongs for damage or excess play.
If any damage or excess play is found, contact your MovinCool
reseller for repair.
•For the Office Pro 24 model, fully insert plug into the A/C outlet and
rotate clockwise until it locks in place.
WARNING:
•If the power cord or plug is damaged, repair should only be
performed by qualified electrical personnel.
•Do not connect/disconnect the power cord or attempt to
operate buttons with wet hands. This could result in electrical
shock.
CAUTION:
•Office Pro 12 model ONLY: The AC outlet (115 VAC Single Phase,
60Hz) needs to be rated at 15A or higher. Do not share the outlet
with any other instrument or equipment.
•Office Pro 24 model ONLY: The AC outlet (208/230 VAC Single
Phase, 60Hz) needs to be rated at 20A or higher. Do not share
the outlet with any other instrument or equipment.
NOTE:
•Make sure the AC outlet is free of dirt, dust, oil, water, or any
other foreign matter.
•The Office Pro 12 model is equipped with an approved NEMA
plug configuration (L5-15). The appropriate outlet must be used
for this plug type.
•The Office Pro 24 model is equipped with an approved NEMA
plug configuration (L6-20). The appropriate outlet must be used
for this plug type.

7
FEATURES
Both Models feature:
•An electronic control panel, which allows the user to control the
unit’s operation easily.
•Dual fan speeds (either HIGH or LOW) in both COOL and Fan
Only modes.
•Digital display that indicates the temperature SET POINT (either
Fahrenheit or Celsius) in which the COOL Mode will operate in.
This is also the temperature the units will try to maintain. The
Temperature SET POINT can be adjusted between 65ºF and 95ºF
by the SET TEMP buttons (▼/▲).
•Acondensate drain TANK FULL indicator display (LED).
• An automatic restart feature when the power is lost and regained.
The unit will return to the operating mode it was in prior to the loss
of power. Any preset program will be retained in the memory in the
event power loss occurs.
•Aprogrammable Clock/Timer function. This allows the user to
program a specific time of day that the unit will begin to
operate/start and turn off/end (Automatic Operation).
•Atwo-digit room temperature display.

8
OPERATION
Control Panel
Before operating the unit, it is important to familiarize yourself with the
basic controls located on the control panel.
➀COOL ON/OFF Activates/deactivates the COOL mode/
Button turns the unit off.
➁FAN ON/OFF Activates/deactivates the HIGH or LOW
Buttons fan mode.
➂SET TEMP Increases/decreases the temperature
Buttons (▼/▲)set point.
➃TANK FULL LED Flashes when the drain tank is full.
➄SET POINT Indicates the current temperature set
Display point; also used to display clock hour
when programming.
➅ROOM TEMP Indicates the current room temperature;
Display also used to display the clock minutes
when programming.

9
OPERATION (cont.)
Control Panel (Cont.)
➆Temperature Scale Illuminates to indicate the current
LED temperatures being displayed are
either in °C or °F; also displays
the clock when programming.
➇AM/PM LED Illuminates to indicate AM or PM time of day.
➈Program RUN Activates/deactivates a program.
Button
➉Program SET Allows the user to program the unit or
Button check the current program.
START TIME LED Illuminates to indicate the current step
END TIME LED that is being programmed into the unit.
SET CLOCK LED
CLOCK/TIMER Allows the user to set the clock and program
Buttons the start and end time of operation.

10
OPERATION (cont.)
Operating in COOL Mode
➀The unit can be operated in COOL mode by pressing the COOL
ON/OFF button (LED illuminates).
NOTE: In COOL mode the unit can only be turned off by pressing
the COOL ON/OFF button again, not by pressing the fan buttons.
➁Change the fan speed by pressing the HIGH or LOW fan buttons.
➂Change the temperature set point by pressing the SET TEMP
buttons (▼/▲).
NOTE: When turning the unit on, the set point and fan speed are
determined by the last operating mode (program mode not in-
cluded).
Operating in Fan Only Mode
➀The unit can also be operated in Fan Only mode by pressing either
the HIGH or LOW fan buttons (LED illuminates).
➁The unit can then be turned off by pressing the fan speed button
that is illuminated.
Changing from Fan Only Mode to COOL Mode
The COOL mode can be activated while the unit is operating in Fan Only
mode. To do this, simply press the COOL ON/OFF button (LED illumi-
nates).
NOTE: The Fan Only mode will not operate after the COOL mode
has been activated. After the COOL mode has been activated, the
unit cannot be turned off by pressing the fan buttons. The COOL
ON/OFF button must be pressed.

11
OPERATION (cont.)
How to Set a Program
➀Setting a START TIME
Press the Program SET button. The Program SET button and
START TIME LEDs will illuminate. Press the HRS and MIN buttons
to set the START TIME.
➁Setting an END TIME
Press the Program SET button until the END TIME LED illuminates.
Press the HRS and MIN buttons to set the END TIME.
➂Setting the CLOCK TIME
Press the Program SET button until the SET CLOCK LED illumi-
nates. Press the HRS and MIN buttons to set the current clock time
into the unit.
NOTE: The AM/PM LED will change with the HRS button.
➃Programming the Temperature SET POINT
Press the Program SET button until the current SET POINT tem-
perature display begins to flash on and off. Select a new desired
SET POINT temperature (65ºF – 95ºF) by pressing the SET TEMP
buttons (▼/▲).
➄Programming the Fan Speed
Press the Program SET button until one of the Fan Speed button
LEDs (HIGH/LOW) begin to flash. This is the current programmed
Fan Speed. To change the programmed Fan Speed, simply press
the other Fan Speed button.
➅Exiting the Program SET Function
After changing any of the above settings, continue pressing the
Program SET button until the Program SET button LED turns off.
The unit will then return to the previous mode.
➆Activating/Deactivating a Preset Program
Press the Program RUN button to activate/deactivate a preset
program. The Program RUN LED will illuminate when activated.

12
OPERATION (cont.)
How to Set a Program (Cont.)
NOTE:
•The unit will return to the previous mode if a program is turned
off while it is running.
•The Program RUN LED flashes while a program is running. It is
illuminated continuously when the program mode is activated.
•While a program is running, the program can only be stopped
by pressing the Program RUN button. All other buttons are
inoperable when a program is running.
•The unit returns to the previous mode at the end of a program.
•The unit does not have to be running to set a program.
•During programming, the unit returns to the previous mode if
no activity occurs within approximately 35 seconds.

13
OPERATION (cont.)
Operating Modes
Both Office Pro models operate in two modes, Fan Only and COOL.
When in Fan Only mode, the unit circulates the surrounding air. When in
COOL mode, the compressor is operational and cool air is circulated.
•COOL Mode
Both models will operate in Fan Only mode for approximately 90
seconds before the compressor engages. (Time delay setting is 90
± 15 seconds.)
•Temperature Control
The room temperature thermistor allows the unit to switch automati-
cally between COOL and Fan Only modes. This is dependent upon
inlet air temperature versus SET POINT temperature.
•Fan Mode Control DIP Switch
The Fan Mode Control DIP Switch determines whether the FAN will
continue to operate or stop when the compressor cycles off. (SET
POINT temperature equals inlet air or room temperature.) The unit
has been preset at the factory for continuous fan operation.
•Temperature Scale Display DIP Switch
The Temperature Scale Display DIP Switch changes the
temperature(s) that are displayed to either °C or °F. The unit has
been preset from the factory to display the temperature(s) in °F.
NOTE: If you wish to change the fan mode operation
(COOLOPERATE to COOLSTOP), and/or the Temperature Scale
Display (°F to °C), contact your MovinCool reseller.

14
OPERATION (cont.)
Emptying the Drain Tank
During COOL mode, condensate will accumulate in the drain tank.
When the drain tank becomes full, the FULL TANK LED will flash and
the unit will shut off automatically.
NOTE: If you want to empty the drain tank, while the unit is in
operation, press the COOL ON/OFF button to turn the unit off. If a
program is running, you must first press the Program RUN button.
➀Open the drain tank lid.
➁Pull the drain tank from the unit.
➂Remove the cap and empty the
drain tank.
➃Replace the cap and return the drain tank to the unit.
➄Close the drain tank lid.
➅If the Program RUN LED is flashing, press the COOL ON/OFF
button to continue running the program. If the Program RUN LED is
illuminated continuously, no further steps are necessary. If no
program exists or the program was deactivated, press the COOL
ON/OFF button to restart the unit.
CAP
