OPERATION
MANUAL
CLIMATE PRO K36
CLIMATE PRO K60
CLIMATE PRO K63
R
R
R
R

2

3
SERIAL NUMBER LOCATION
Please read this manual carefully and keep it for future reference.
La versión en español está disponible en www.movincool.com
La version française est disponible sur www.movincool.com
© 2020 DENSO PRODUCTS AND SERVICES AMERICAS, INC. All rights reserved.
MovinCool® and Climate Pro® are registered trademarks of DENSO Corporation.
00
Month Year Sequential Model
number name
00 0000 000

4
TABLE OF CONTENTS
SERIAL NUMBER LOCATION 3
SAFETY PRECAUTIONS 6
NAMES OF PARTS 10
CONTROL PANEL 12
Overview 12
Home Screen 13
Mode Screen 14
Menu Screen 15
Seing Screen 16
INSTALLATION 17
Placement of the Unit 17
Accessories 18
Typical Installation Options 19
Plugging in the Unit 20
LCDI (Leakage Current Detection Interrupter) Power Cord 21
External Warning Device Connection 22
External Alarm Device Connection 24
INITIAL SETTINGS 26
Privacy Disclosure Screen 26
Selecting Time Zone 27
Seing Daylight Savings 30
Clock Seing 32
Removing Securing Tapes and Sheet 35
Installing the Drain Tanks 35
OPERATION 36
Cool Mode 36
Fan Only Mode 38
Schedule Mode 40
Starting Schedule Mode Operation 41
Stopping Schedule Mode Operation 43
Temporary Stop During Schedule Mode 44
Seing / Editing / Viewing Schedule 45

5
Clearing Schedule 48
Adjusting Brightness 50
Fan Mode 52
Changing Temperature Scale 54
Key Lock 56
Key Unlock 57
Temporary Stop During Key Lock 58
Service Information 59
Self-Diagnostic Codes 62
List of Self-Diagnostic Codes 63
Emptying the Drain Tanks 64
CONDENSATE PUMP KIT 65
Removing the Tab 66
Hose Installation 67
Testing 69
MAINTENANCE 70
70
72
Cleaning Air Filters
Cleaning the Unit
Before Long Term Storage 72
TROUBLESHOOTING 73
TECHNICAL SPECIFICATIONS 74
DATA PRIVACY DISCLOSURE 76
WARRANTY STATEMENT 78

6
SAFETY PRECAUTIONS
OPERATION
Do not touch electrical parts or switch buon with wet or oily hands.
This may cause fire, electric shock or malfunction.
Do not put a finger, a rod or other objects into the air outlet or inlet.
Touching fan or heat exchanger may result in injury or malfunction.
Do not place or use flammable spray near the unit.
This may cause explosion or fire.
Do not use the unit in an environment which contains excessive amounts of flammable
gas, conductive dust or oil.
This may cause explosion or fire.
Do not use the unit in an environment which contains corrosive gas or vapor.
This may deteriorate the insulation and result in electric shock or fire. This may corrode
pipes and result in leaks.
Do not wash the unit with water.
This may cause fire, electric shock or malfunction.
Safety symbols and meanings
This must not be done. This must be done. Ensure unit is grounded.
WARNING Indicates a hazardous situation which, if not avoided,
could result in death or serious injury.
CAUTION Indicates a hazardous situation which, if not avoided, could
result in minor or moderate injury, damage to the unit or its
components and/or property.
Serious injuries include: loss of vision, bodily injuries, burns, electric shock, fractures or poisoning, which
require prolonged medical treatment and will leave after-effects.
Minor or moderate injuries include: bodily injuries, burns or electric shock, which do not require prolonged
medical treatment.
Property includes: housing, household goods, livestock or pets.
This appliance is not intended for use by persons (including children) with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge, unless they have been given supervision
or instruction. Children should be supervised to ensure that they do not play with the appliance.
To reduce the risk of injury or property damage, read “Safety Precautions” carefully before operating
the appliance.
The seriousness is classified by the following indicators:
WARNING

7
Do not point the airflow directly on your body for long periods of time or make your
body too cold.
This may result in health problems.
Do not use an extension cord or multi-socket plug.
This may generate heat and cause a fire or electric shock.
Do not use damaged power cord/plug or modify the cord/plug.
This may generate heat and cause a fire or electric shock.
Do not heat, pull, wind, bundle or place heavy objects on the power cord.
This may generate heat and cause a fire or electric shock.
If an abnormality such as a burning smell occurs, stop the operation and turn the
breaker OFF.
This may cause fire, electric shock or malfunction. Stop the operation immediately
and consult your MovinCool dealer or qualified technician.
INSTALLATION
Do not install the unit in a place where flammable gas may generate, flow, gather or
leak. Do not install the unit in a place where conductive dust or oil is floating.
This may cause explosion or fire.
Installation and electrical work must be performed in accordance with national wiring
regulations by qualified electrical personnel.
Improper installation or electrical work may cause fire, electric shock, injury,
malfunction or water leaks.
Install an earth leakage circuit breaker to the mains power source.
Improper installation or electrical work may cause fire, electric shock, injury,
malfunction or water leaks.
Use only official accessories and consult your MovinCool dealer or qualified technician
for installing the accessories to the unit.
Non-genuine accessories or incomplete installation may cause fire, electric shock or
water leaks.
Ensure effective grounding.
Incomplete grounding may result in fire or electric shock. Contact your MovinCool
dealer or qualified technician.
RELOCATION/REPAIR
Do not repair, disassemble or modify the unit yourself.
This may cause fire, electric shock, injury, water leaks or malfunction. Contact your
MovinCool dealer or qualified technician.
If the unit is soaked due to natural disaster, consult your MovinCool dealer.
If you keep using the unit, it may result in fire, electric shock or malfunction.

8
OPERATION
Do not operate without panels or fan guards.
Touching high-voltage, high-temperature or rotating parts may cause electric shock,
injury or burns.
Do not use the unit in sloping, non-level areas.
Use the unit only on a smooth, flat, level surface. There is a risk of electric shock due
to water leaks or injury due to toppling.
Do not operate the unit without air filters.
Touching the heat exchanger may cause injury. If dust or dirt enters the unit, it may
result in malfunction or poor operation of the unit.
Do not tilt the unit while moving to another place.
This may cause injury due to toppling or property damage due to water leaks from the
unit.
Do not press the control buttons with a sharp-pointed object such as a ballpoint pen
or a fingernail.
This may cause electric shock or malfunction.
Do not sit, stand or place objects on top of the unit.
This may cause injury due to toppling or falling.
Do not place water containers on the unit.
If the containers fall over, water spilling into the unit may cause electric shock or
malfunction.
Do not expose combustion appliances to the direct air flow.
This may cause incomplete combustion.
Do not expose animals or plants to the direct air flow.
This may have negative effects on plants and animals.
Do not use the unit to preserve food, plants, animals, precision devices, or works of art.
This may have negative effects on the quality of objects.
Ensure adequate ventilation when operating with combustion appliances.
Poor ventilation may cause headaches due to lack of oxygen.
Lock the caster while operating.
Failure to lock casters may cause injury due to moving or falling.
CAUTION

9
Unlock the caster to move the unit.
Failure to unlock the caster may cause injury due to falling.
When the tanks are full, empty water immediately.
Water leaks from the unit may cause property damage, or injury due to wet floor.
Never pull the power cord to disconnect the unit from the outlet. Grasp the plug directly and
pull it from the outlet.
This may cause generation of heat or fire due to cord damage.
When cleaning, wipe the external surface with either a dry cloth or a cloth dampened
in a mild cleaner.
If you use organic solvent such as benzene or thinner, it may cause a crack or a scratch.
This may result in electric shock or injury.
When cleaning, stop the operation and remove the power plug from the outlet.
If you touch high-voltage or rotating parts, it may cause electric shock or injury.
When not using the unit for a long period of time, disconnect the power plug.
Failure to disconnect the power plug may cause generation of heat or fire due to
accumulated dust.
INSTALLATION
Do not install the unit on ships, in vehicles or locations subject to vibration.
Improper installation may cause injury, refrigerant leaks, water leaks or malfunction.
Do not expose the unit to rain or an environment where it may be exposed to excess
water.
This may cause electric shock or leakage.
Install the unit in a place which is strong enough to withstand the weight of the unit.
Improper installation may cause injury or the unit damage due to falling.
Install spark guards if the unit is installed in area where sparks are present.
Improper installation may cause fire or water leaks.

10
NAMES OF PARTS
Condenser Air Outlet Flange
Cold Air Outlet Grill
Caster
Power Cord Holder
Control Panel
Service Panel
Power Cord
B
Handles
C
B
A
D
E
E
F
H
G
Service Panel for Pump

11
NAMES OF PARTS
Condenser Filter
Drain Tank (Climate Pro K36)
Front Panel
Side Panel
Drain Tank Cover
Evaporator Filter
I
N
O
Condensate Pump (Climate Pro K60 & K63)
P
N
O
P

12
CONTROL PANEL
OVERVIEW
START
STOP
AUTO
COOL
75
MODE
FAN SPEED
SET TEMP
MENU
MON 12:00 PM
M
START/
S
“STAR
T
“STOP”
Mul
t
Pre
s
valu
e
Acti
v
F
CLIMATE PRO ___
Multi-function buons
Press the buons to set the adjacent
values on the LCD screen.
Active buons will be lit.
START/STOP buon
“START” is active only on the HOME screen.
“STOP” is active on all screens.
Model Name and Designation
LCD

13
HOME SCREEN
Note:
If no buon is pressed for 15 minutes, the screen saver appears. Press any buon to return to
the HOME screen.
START
STOP
AUTO
COOL
75
86
ROOM
TEMP
MODE
FAN SPEED
SET TEMP
MENU
MON 12:00 PM
F
MovinCool ConnectDay/Time
Menu
Increase set temperature
Decrease set temperature
Increase fan speed
Decrease fan speed
Fan mode: On/Auto
Room temperature
Set temperature
Mode:
Cool/Fan/Schedule
Fan Speed:
Hi/Mid/Low

14

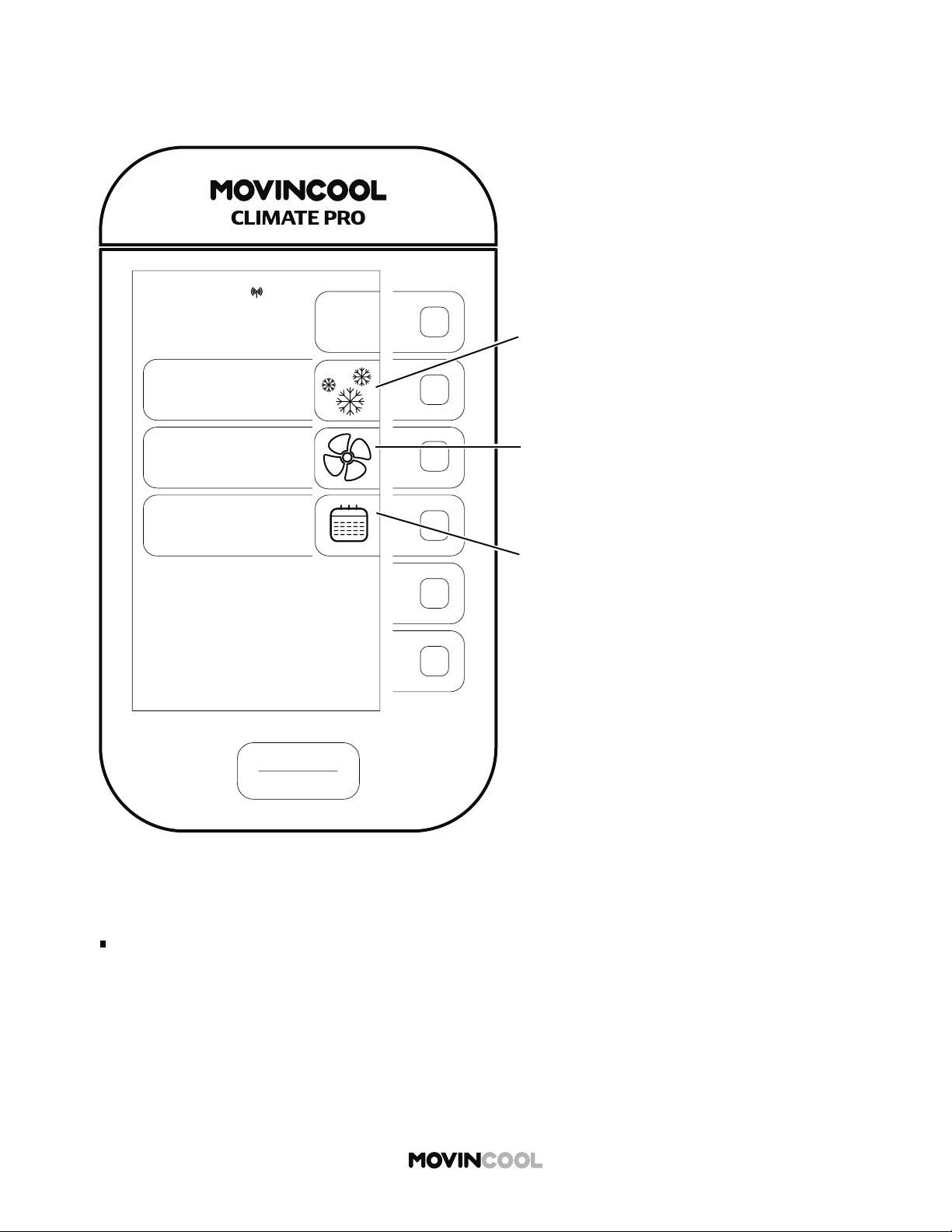

MODE SCREEN
HOME > MODE
Note:
If no buon is pressed for 30 seconds, the screen automatically returns to the HOME screen.
START
STOP
BACK
COOL
FAN
SCHEDULE
MODE
MON 12:00 PM
COOL MODE icon
This icon is displayed on the HOME screen
during COOL MODE operation.
FAN MODE icon
This icon is displayed on the HOME screen
during FAN ONLY MODE operation.
SCHEDULE MODE icon
Press the adjacent buon to go to
the SCHEDULE screen.
- Starting Schedule Mode Operation
- Stopping Schedule Mode Operation
- Seing/Editing/Viewing Schedule
- Clearing Schedule

15
MENU SCREEN
HOME > MENU
Note:
If no buon is pressed for 30 seconds, the screen automatically returns to the HOME screen.
START
STOP
MENU BACK
SETTING
SERVICES
KEY LOCK
MON 12:00 PM
SETTING icon
Press the adjacent buon to go to
the SETTING screen.
(DAY & TIME/DISPLAY/FAN MODE/
TEMP SCALE)
SERVICES icon
Press the adjacent buon to go to the
SERVICES screen.
Machine information can be displayed:
- Machine status
- Machine records
KEY LOCK icon
Press the adjacent buon to lock
all buons.

16
SETTING SCREEN
HOME > MENU > SETTING
Note:
TEMP SCALE is only displayed while the unit is idle.
If no buon is pressed for 30 seconds, the screen automatically returns to the HOME screen.
SETTING
DAY & TIME
DISPLAY
FAN MODE
TEMP SCALE F
t
t
t
START
STOP
MON 12:00 PM
BACK
DAY & TIME icon
Press the adjacent buon to go to
the DAY & TIME screen.
- Daylight saving (ON/OFF)
- Select time zone
- Auto adjust (ON/OFF)
- Clock seing
DISPLAY icon
Press the adjacent buon to go to
the DISPLAY screen for adjusting
LCD brightness.
FAN MODE icon
Press the adjacent buon to go to
the FAN MODE screen.
(ON/AUTO)
TEMP SCALE icon
Press the adjacent buon to
change temperature scale.
(°F/°C)

17
PLACEMENT OF THE UNIT
INSTALLATION
Install the unit in a place which is strong enough to withstand the weight of the unit.
Incorrect installation may cause injury or the unit damage due to falling.
1. Unlock the casters and move the unit to a flat, level surface and then set the casters back
to the locked position. Use the front or rear handles to move the unit smoothly.
*1 Approximate weight when the drain tanks are full of water
*2 Including the condensate pump
MODEL UNIT WEIGHT
Climate Pro K36 536 lb (243 kg) *1
Climate Pro K60 575 lb (261 kg) *2
Climate Pro K63 642 lb (291 kg) *2
2. Ensure the air inlets and outlets are not blocked. Keep a minimum clearance of 24 inches
(610 mm) from walls or other objects.
3. Unit weight table for 3 models
CAUTION
WARNING
Installation and electrical work must be performed by qualified electrical personnel.
Incorrect installation and/or electrical work may cause fire, electric shock, injury,
malfunction or water leaks.
To avoid explosion or fire:
Do not install the unit in a place where flammable gas may generate, flow, gather or leak.
Do not install the unit in a place where conductive dust or oil is floating.
Unlocked
Locked

18
ACCESSORIES
Nozzle Adapter Kit
Cold Air Extension Duct
Self-Supported Duct
Condenser Air Plenum
Nozzle Kit
Trim Ring
Ceiling Tile
Evaporator Air Plenum
WARNING
Cold Air Flange Kit
Use only official accessories and consult your MovinCool dealer or qualified technician
for installing accessories to the unit. Non-genuine accessories or incomplete installation
may cause fire, electric shock or water leaks.
Condensate Pump Kit
Condensate Tank
A
B
C
D
E
G
A

19
TYPICAL INSTALLATION OPTIONS
Option 1:
No negative air pressure in the room
Operating condition:
- Climate Pro K36: 65°F (18°C), 50%RH to 95°F (35°C), 60%RH
- Climate Pro K60 & K63: 65°F (18°C), 50%RH to 105°F (41°C), 50%RH
Option 2:
Negative air pressure in the room
Operating condition:
- Climate Pro K36: 65°F (18°C), 50%RH to 95°F (35°C), 60%RH
- Climate Pro K60 & K63: 65°F (18°C), 50%RH to 105°F (41°C), 50%RH

20
PLUGGING IN THE UNIT
Check the power supply outlet rating, recommended fuse size, and NEMA plug configuration below.
MODEL MINIMUM POWER SUPPLY RATING RECOMMENDED FUSE SIZE
NEMA PLUG
CONFIGURATION
Climate Pro K36 208/230V, 1 phase, 60 Hz, 30A 30A maximum 6-30
Climate Pro K60 208/230V, 1 phase, 60 Hz, 50A 50A maximum 6-50
Climate Pro K63 460V, 3 phase, 60 Hz, 20A 20A maximum L16-20
WARNING
Insert the power plug properly into the outlet. Incomplete insertion may cause fire or electric
shock.
To avoid fire, electric shock or malfunction:
Do not connect or disconnect the power plug with wet or oily hands.
Do not turn the unit on or o by connecting or disconnecting the power plug.
To avoid generation of heat, fire or electric shock:
Do not use an extension cord or multi-socket plug.
Do not heat, pull, wind, bundle or place heavy objects on the power cord.
Do not use damaged power cord/plug or modify the cord/plug.
Qualified personnel must replace the damaged power cords with one of the same LCDI
(Leakage Current Detection Interrupter) cord, obtainable from the AC manufacturer.
Incorrect replacements may cause fire, electric shock, injury or malfunction.
Always use fuses with correct capacity. Using copper or other wire may result in fire or
malfunction.
