  9. MP-Man XV-DK700HDMI User manual

MP-Man XV-DK700HDMI User manual

PROGRESSIVE SCAN
IMPORTANT
READ THESE INSTRUCTIONS
BEFORE USE AND RETAIN
FOR FUTURE REFERENCE.
INSTRUCTION MANUAL
XV-DK700HDMI
WI TH M ULTI AU DI O
IMPORTANT SAFEGUARDS
For your protection, please read these safety instructions completely before operating the appliance,
and keep this manual for future reference.
Carefully observe all warnings, precautions and instructions on the appliance and in the operating
instructions, and adhere to them.

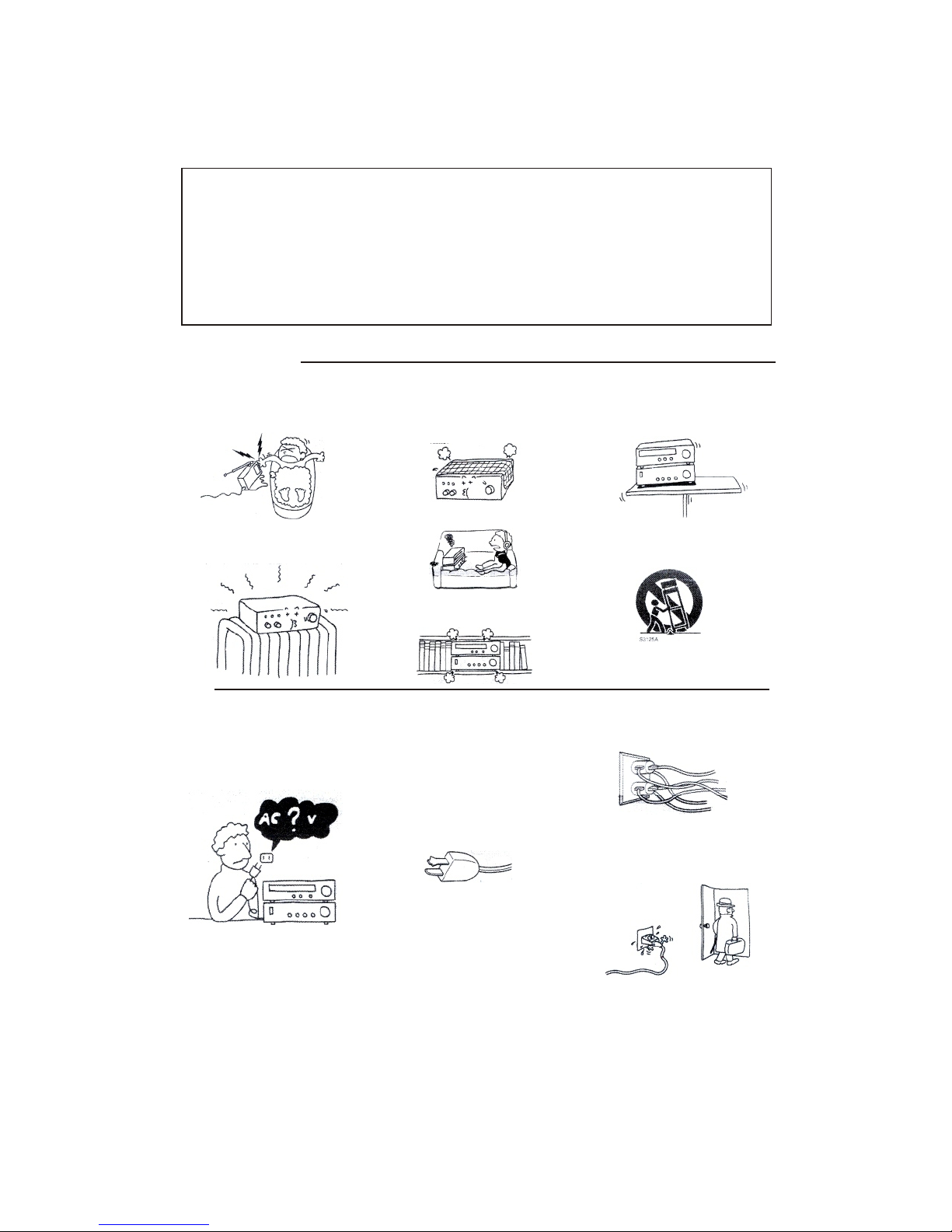

INSTALLATION
Water and Moisture - Do not use powerling
operated appliances near water - for example,
near a bathtub, washbowl, kitchen sink, or
laundry tub, in a wet basement, or near a
swimming pool, etc.
Ventilation - The slots and openings in the cabinet
are provided for necessary ventilation. To ensure
reliable operation of the appliance, and to protect
it from overheating, these slots and openings must
never be blocked or covered.
- Never cover the slots and openings with a cloth
or other materials.
Accessories - Do not place the appliance on an
unstable cart, stand, tripod, bracket, or table. The
appliance may fall, causing serious injury to a
child or an adult, and serious damage to the
appliance,Use only a cart, stand, tripod, bracket,
or table recommended.
Heat - Do not place the appliance near or over a
radiator or heat register, or where it is exposed
to direct sunlight.
- Never block the slots and openings by placing
the appliance on a bed, sofa, rug or other similar
surface. - An appliance and cart combination should be
moved with care. Quick stops, excessive force,
and uneven surfaces may cause the appliance
and cart combination to overturn.
WALL or Ceiling Mounting - If your appliance
can be mounted to a wall or ceiling, mount it only
as recommended.
- Never place the appliance in a confined space,
such as a bookcase, or built-in cabinet, unless
proper ventilation is provided.
USE
Power Source - This appliance should be
operated only from the type of power source
indicated on the marking label. If you are not sure
of the type of electrical power supplied to your
home, consult your dealer or local power company.
For those appliances designed to operate from
battery power, or other sources, refer to the
operating instructions.
Grounding or Polarization - This appliance is
equipped with a polarized AC power cord
Plug(a plug having one blade wider than the
other), or with two-wire grounding type plug )
Plug having a second pin for grounding).
A follow the instructions below:
- For the appliance with a polarized AC power
Cord plug:
This plug will fit into the power outlet only
one way. This is a safety feature. If you are unable
to insert the plug fully into the outlet, try reversing
The plug. If the plug should still fail to
fit, contact your electrician to have a suitable outlet
Installed. Do not defeat the safety purpose of the
Polarized plug by forcing it in.
Overloading - Do not overload wall outlets,
extension cords or convenience receptacles
beyond their capacity, since this can result in fire
or electric shock.
When not in use - Unplug the power cord of the
appliance from the outlet when left unused for a
long period of time.
To disconnect the cord, pull it out by grasping the
plug. Never pull the plug out by the cord.
Power-Cord Protection - Route the power cord
so that it is not likely to be walked on or pinched
by items placed upon or against them, paying
particular attention to the plugs, receptacles, and
the point where the cord exits from the appliance.
Lightning - For added protection for this appliance
during a lightning storm, or when it is left
unattended and unused for long periods of time,
unplug it from the wall outlet and disconnect the
antenna or cable system. This will prevent damage
to the appliance due to lightning and powerline
surges.
Cleaning - Unplug the appliance from the wall
outlet before cleaning or polishing it. Do not use
liquid cleaners or aerosol cleaners. Use a cloth
lightly dampened with water for cleaning the
exterior of the appliance. Clean the appliance only
as recommended.
Object and Liquid Entry - Never push objects
of any kind into the appliance through openings
as they may touch dangerous voltage points or
short out parts that could result in a fire or
electric shock. Never spill liquid of any kind on
the appliance.

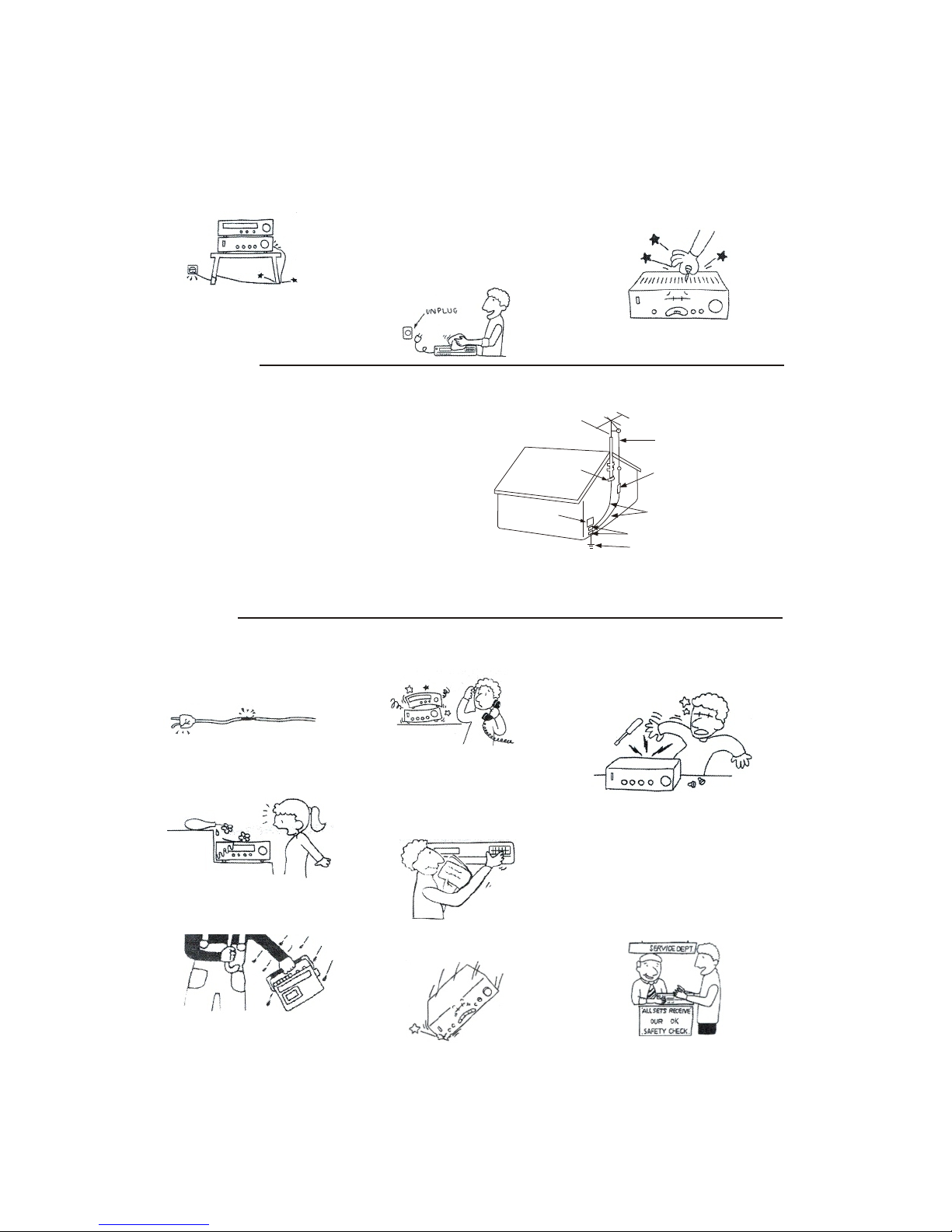

ANTENNAS
Outdoor Antenna Grounding - If an outdoor antenna or cable system is
installed, follow the precautions below.
An outoor antenna system should not be located in the vicinity of
overhead power lines or other electric light or power circuits, or where it
can come in contact with such power lines or circuits.
WHEN INSTALLING AN OUTDOOR ANTENNA SYSTEM, EXTREME
CARE SHOULD BE TAKEN TO KEEP FROM CONTACTING SUCH
POWER LINES OR CIRCUITS AS CONTACT WITH THEM IS ALMOST
INVARIABLY FATAL.
Antenna Grounding According to the National Electrical code
Antenna Lead-in Wire
Antenna Discharge Unit
(NEC Section 810-20)
Grounding Conductors
(NEC Section 810-21)
Ground Clamps
Power Service Grounding
Electrode System
(NEC Art 250 Part H)
Electric Service
Equipment
Ground Clamp
Be sure the antenna system is gorunded so as to provide some protection
against voltage surges and built-up static charges. Section 810 of the
National Electrical Code provides information with respect to proper
grounding of the mast and supporting structure, Grounding of the lead-in
wire to an antenna discharge unit, size of grounding conductors, location
of antenna-discharge unit, connection to grounding electrodes, and
requirements for the grounding electrode. NEC-NATIONAL ELECTRICAL CODE
SERVICE
Damage Requiring Service- Unplug the
appliance from the wall outlet and refer
servicing to qualified service personnel under
the following conditions:
- When the power cord or plug is damaged or
frayed.
- The appliance does not appear to operate
normally or exhibits a marked change in
performance. - This indicates a need for service.
Servicing - Do not attempt to service the
appliance yourself as opening or removing covers
may expose you to dangerous voltage or other
hazards. Refer all servicing to qualified service
personnel.
- If liquid has been spilled or objects have fallen
into the appliance.
- If the appliance does not operate normally
when following the operating instructions, adjust
only those controls that are specified in the
operating instructions. Improper adjustment of
other controls may result in damage and will
often require extensive work by a qualified
technician to restore the appliance to normal
operation.
- If the appliance has been exposed to rain or
water.
- If the appliance has been subject to excessive
shock by being dropped, or the cabinet has been
damaged.
Replacement parts- When replacement parts are
required, be sure the service technician has used
replacement parts specified that have the
same characteristics as the original parts.
Unauthorized substitutions may result in fire,
electric shock,or other hazards.
Safety Check - Upon completion of any service
or repairs to the appliance, ask the service
technician to perform routine safety checks)as
specified ) to determine that the appliance
is in safe operating condition.
1. WARNING:To reduce the risk of fire or electric shock, do not expose this apparatus to
rain or moisture. The apparatus shall not be exposed to dripping or splashing and that no
objects filled with liquids, such as vases, shall not be placed on apparatus.
2. WARNING: The mains plug is used as the disconnect device, the devices shall remain
readily operable.
1
FRONT PANEL
The front of the DVD player

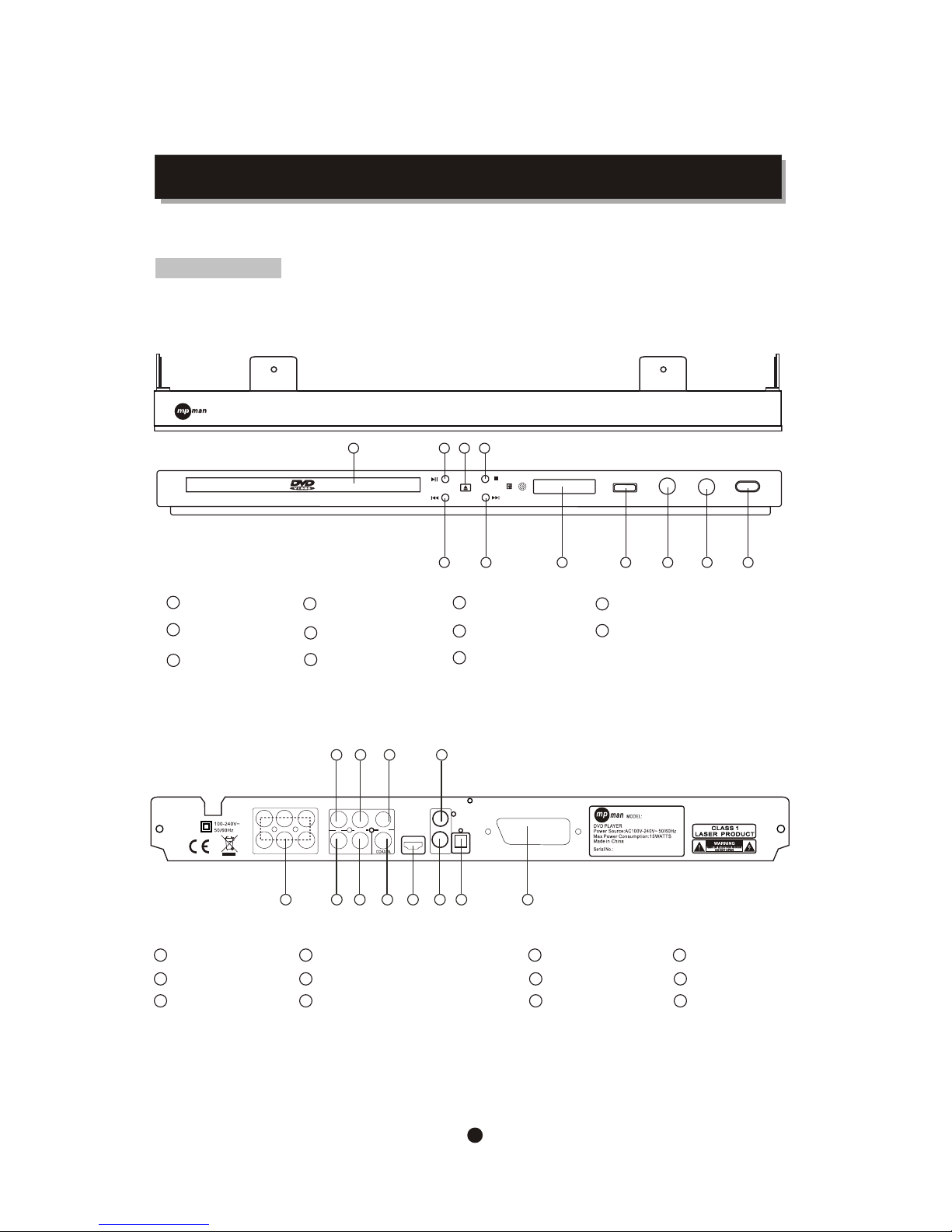

FRONT PANEL AND REAR PANEL ILLUSTRATION
The back of the DVD player
2
3
4
1
NEXT
USB FAUCET
STOP
OPEN/CLOSE
CD DOOR
PLAY/PAUSE
5
6
7
PREV
DISPLAY
MIC1
MIC2
8
POWER
9
10
11
2S-Video output jack
5
3 6
Digital signal COAXIAL output jack 7
4
8
9
VIDEO output jack
1
SCART output jack
Y output jack
LEFT output jack
RIGHT output jack Pb/Cb output jack
Pr/Cr output jack
10
11
SCART output jack
5.1CH output jack
USB MIC.1 MIC.2POWER
12 3 4 5 6 7
911
810
XV -DK 70 0H DM I
YPb/Cb
HDMI
VIDEO
LRS-VI DE O
Pr/Cr
OPTICA L
FRFL
SRSL CE N
SW
SCART XV-DK70 0H DM I
1 2 3 4 5 6 7
8 9 10 11
12
HDMI output jack
12
2
When use, direct the remote control to the infra-red sensor (within 45 degrees)
Do not put remote control near to the place with high temperature or moisture
Do not put water or any other object on remote control
Do not use new and old batteries or different type batteries together
Please replace batteries when find remote control is out of work or weak sensitivity.

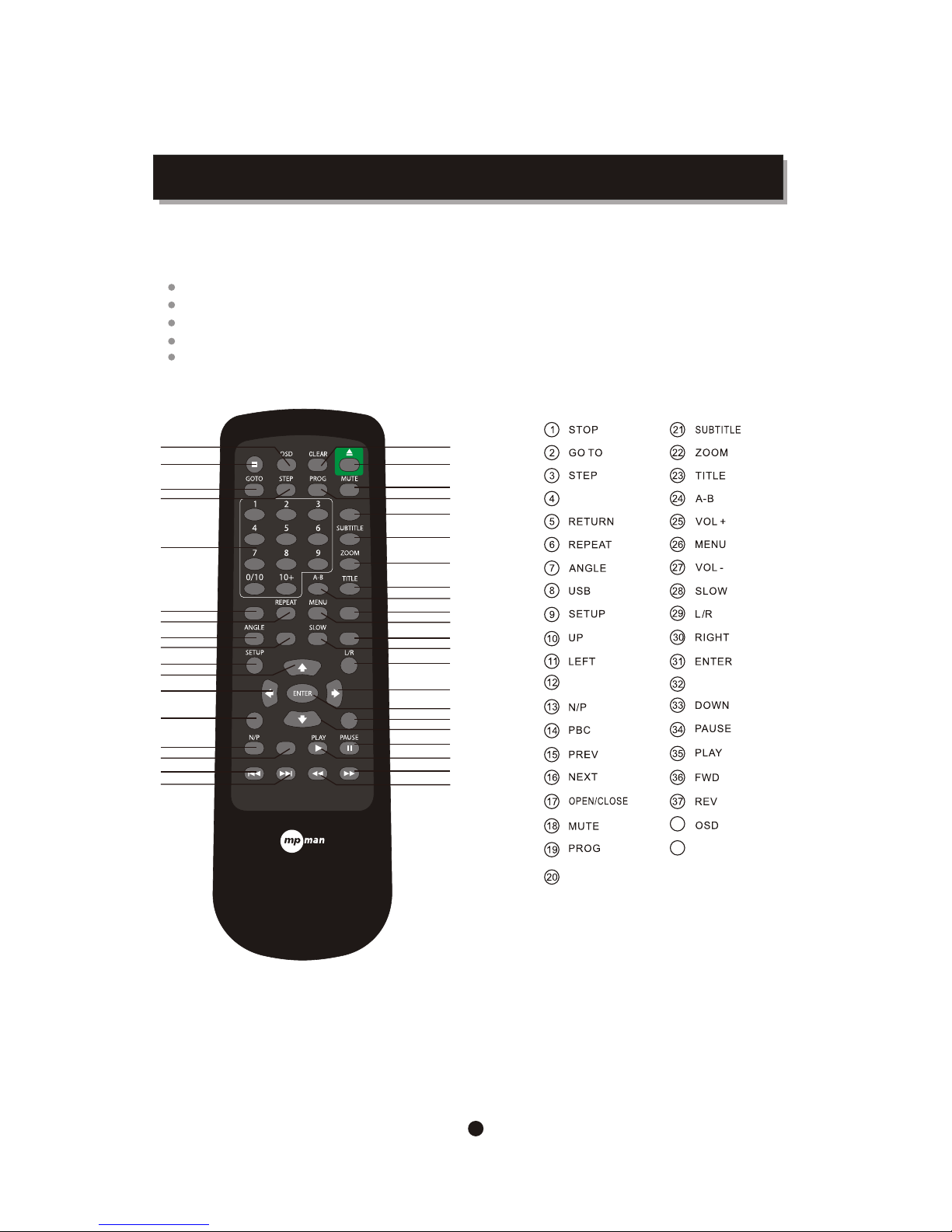

REMOTE CONTROL
0-9 NUMBER
LANGUAGE
38
39 CLEAR
STOP
PBC
VOL+
VOL-
RETURN
MI C
USB
LANGUAGE
XV-DK700HDMI
RESET
18
20
21
22
23
25
19
2
24
35
26
27
29
32
34
37
36
30
28
33
31
3
6
8
14
16
4
5
7
9
12
13
15
11
17
10
1
38 39
RESET
MIC
3
Set on “PARENTAL CONTROL” under "Rating", Press "enter" and input code 8888 (The original factory
code is 8888). After input and confirm the code, press “PARENTAL CONTROL” and choose the desired
rating. Move below to “SET PASSWORD”, press enter and input the code “8888”,then input the new code,
Under “SET PASSWORD”, input again the code, and confirm. The function of “PARENTAL CONTROL” is
effective.
OSD SETUP
Setup Menu
This player allows you to customise the performance to your personal preferences.
Language Setup
Video setup
Audio Setup
Rating Setup
Misc Setup
Displaying the setup menu screen
The setup preferences.
The selected category will
provide you the setting details using the following screen.
Main Page
Parental Control :
Use Default Settings
Screen Saver
Misc
Rating Setup
Yes
No
Off
On
Adult
Set Password
1.Kid Safe
2.G
3.PG
4.PG-13
5.PG-R
6.R
7.NC-17
8.Adult
Setup
OSD Language
Subtitle
MPEG4 Subtitle
Audio
DVD Menu
Aspect Ratio
View Mode
TV System
Video Out
Language Setup
Video Setup
4:3PS
16:9
Fill
Original
Auto Fit
Pan Scan
NTSC
PAL
Auto
CVBS
S-Video
YUV
RGB
P-Scan
Western European
Central European
Auto
Off
English
Fr ench
German
Italian
Dutch
Po lish
Ro mania n
English
Fr ench
German
Italian
Dutch
Po lish
Ro mania n
English
Fr ench
German
Italian
Dutch
Po lish
Ro mania n
English
Fr ench
German
Italian
Dutch
Po lish
Ro mania n
HD Resolution
4:3LB
HD
Auto
480p/576p
720p
1080i
1080p
Audio Setup
Bass Management
Front Speakers
Center Speaker
Surround Speakers
Subwoofer
Test Tones
Center Spkr Delay
Surr Spkr Delay
Digital Output
Night Mode
Down Sampling
Of
On
Large
Small
Large
Small
None
Large
Small
None
None
Present
No Delay
0.3m
0.6m
1m
1.4m
1.7m
Off
Left
Right
Center
Left Surr
Right Surr
Subwoofer
No Delay
1m
2m
3m
4m
5.1m
Off
PCM
RAW
Of
On
Of
On
4
To open the disc tray, press
To close the disc tray , press again.
During DVD playback, press TITLE to display the DVD title menu or play the first title.
Note: this function is subject to the disc.
During DVD playback, press MENU to display the disc menu of the current title.
Note: This function is subject to the disc
During VCD/DVD playback, press
OSD to display the current time counter position as follows.
TITLE
MENU
During VCD/SVCD playback, Press PBC to select the mode of PBC On or PBC Off
PBC is: playback control used to navigate VCD/SVCD
These keys are used to input the time, as well as title, chapter and track numbers
When a CD,DVD or VCD is playing (with PBC off), press the 0-10 keys to select a track Directly.
When a numeric item is displayed on the screen, press the 0-10 keys to select the desired entry.,
During MPEG4,DVD, VCD or SVCD playback, press SLOW for slow motion playback.
Once you press SLOW, the disc will play at 1/2, 1/4, 1/6 and 1/8 normal speed.
Press PLAY to resume normal playback.
During MPEG4,DVD, CD or VCD playback, press PREV to play the previous chapter,title or track.
During MPEG4,DVD, CD or VCD playback, press NEXT to play the next chapter, title or track.
Each press of the REPEAT button will change the repeat mode.
During VCD,CD ,MP3playback,there are three modes: repeat Single, repeat All and Off.
During MPEG4/DVD,playback,there are three modes: repeat charpter, repeat title and Off.
Note:During VCD playback,the PBC mode must be set to Off
During playback, press A-B to select point A
Press it again to select point B. The player will repeat the section from A to B automatically.
Press A-B a third time to cancel A-B repeat and clear points A and B.
Note: During MPEG4/CD/VCD/SVCD playback, points A and B must be within the same track.
During MPEG4/DVD playback, points A and B can be selected from different chapters.
During MPEG4/DVD, CD or VCD playback, press REV To in reverse.
the disc at 2, 4, 8 and 16 times speed
Press PLAY to resume normal playback.
During MPEG4/DVD, CD or VCD playback, press FWD to forward. The disc at 2, 4, 8 and 16
Press PLAY to resume normal playback.
PBC
0-10 Keys
SLOW
PREV
NEXT
REPEAT
A-B
REV
FWD
OPEEN CLOSE
OSD
REMOTE CONTROL OPERATION
OPEN/CLOSE
OPEN/CLOSE
Press N/P when in STOP mode to select the mode from PAL / AUTO /NTSC .
N/P
VCD 2.0
Time_ _ :_ _:_ _ / _ _:_ _:_ _
Elapsed time Left time for the current track
DVD VIDEO
Time_ _ :_ _:_ _ / _ _:_ _:_ _
Elapsed time Left time for the current track
times speed.
RESET Im Stop Modus, drücken Sie diese Taste um den DVD-Player wieder auf den Standardmodus zu
setzen, dies wird nicht Ihre Passwort-Einstellung wiederherstellen.
5
REMOTE CONTROL OPERATION
MUTE
Press MUTE to turn off the audio.
Press MUTE again to resume normal sound.
R/L
During VCD/SVCD playback, press R/L repeatedly to select the
channel of audio-output: Left / Right / Mix / Stereo.
CLEAR
Press CLEAR to delete the numbers you have entered.
PLAY/PAUSE
Press PAUSE during playback to pause playback.
Press again to step forward one frame
Press PLAY to resume normal palyback.
NOTE:the step function is not available during CD playback
STOP
Press STOP once during playback to stop and hold playback.
Press PLAY to resume playback from the point you have pressed STOP.
Press STOP twice to stop playback completely.
RETURN
When the PBC is on, press return ,and you can select once again from the menu displaying.
This function is only valiable to VCD.
ZOOM
During VCD/SVCD/DVD/MPEG4 playback, press ZOOM to magnify the image
This function can zoom,can't lessen
as follows: Q 1 Q 2 Q 3
Q off
STEP
When playing
PLAY to resume normal play.
Press the SETUP button on you remote control to access the setup menu.The setup menu is a Multi-level
Use the ▼ or ▲ buttons to select the menu option that you need.
Use the and to go back to previous level menu or to enter the next level menu.
Press ENTER button to confirm selection.
Press SETUP button to exit setup.
SETUP
Menu.
MPEG4/DVD,VCD ,SVCD disc ,press STEP once , the picture changes to next frame ,Press
RESET
Under the stop mode,Press this key to reset the DVD player to default mode,this will not recover your
Password set up.
REMOTE CONTROL OPERATION
VOL
Press VOL + to increase the volume.
Press VOL - to reduce the volume.
ANGLE
During DVD playback,
Press ANGLE to view scenes from different
camera angles.
Press ANGLE repeatedly to change from
one camera angle to another.
Note: This function is disc specific.
SUBTITLE
During DVD playback,
Press SUBTITLE repeatedly to select from up to 32
subtitle languages.
Note: This function is disc specific (language
will vary).
LANGUAGE
Press LANGUAGE repeatedly to select from
up to 8 audio
languages/formats during DVD playback.
Press repeatedly to select from up to 4 audio
languages/formats during SVCD playback.
Note: This function is disc specific LANGUAGE
PROG
6
Press PROG to get program menu when reading DVD & VCD, then program your wanted songs. (DVD
GOTO
During MPEG4/DVD,VCD playback, press GOTO, and the menu will display as follow:
Title - - -
Track - - -
Use to select TITLE ,CHAPTER,TIME.
Use the number keys to input the desired time or track, then press ENTER to
Confirm.
During DVD playback, press SEARCH, and the menu will display as follow:
Use to select TRACK, TIME or DISC TIME.
Use the number keys to input the desired time,
title or chapter, then press ENTER to confirm.
Note: 1) TIME searches for an exact time in the track.
2) TRACK searches for a desired title or chapter.
3) For some DVD discs, the search function is unavailable.
Time --:--:--
Disc Time --:--:--
Cha pter - - -
Time --:--:- -
DVD:
VCD:
programme needs TITLE and MENU.)
USB
Choose this button to setup DVD, USB mode
Disc only: if you're only playing Disc (but no usb), after you put disc into the tray then it will play disc
automatically.
USB only: if you're only playing USB (but no disc), after you insert USB into USB port, you have to
press 'USB' button on the remote control, then you can see 'Disc' shown on the screen, press 'UP/
DOWN' button to choose 'USB' and then press 'Enter'button thus can play USB.
USB/DISC both: if you put disc in the tray and also insert the usb into the usb port at the meantime,
then it will play the disc automatically. if you want to switch to play usb, you have to press 'stop' button,
then press 'USB' button and choose 'USB' by pressing 'UP/DOWN' button, then press 'Enter' and it play
USB then. and if you want to switch to play 'DISC' again, then also you have to press 'stop' button, then
press 'USB' button again, choose 'DISC' and press 'Enter' button thus could play disc.
Karaoke (Microphone)
1.connect microphone into the Mic output on the front panel of the dvd player
2.press 'Mic' button on remote control, then change “Karaoke: Off” to “Karaoke: On” by pressing
'Enter' button, press 'Mic' button again to confirm.
3.if you want to adjust “Echo” and “Volume”, please press “Mic” button, then press “Enter” button
to choose “Echo” or “Volume” and adjust accordingly.
REMOTE CONTROL OPERATION
Program:
Cancel program:
When playing music, press right , up or down and enter to choose edit mode, and then Press left
and enter to choose the music you want.
After that, press right and enter to choose add to program , and then
up and enter to choose
program view , next press up to choose edit mode and then press Left and enter to choose the
music, press play to play the music.
After program, press stop twice, and press right to choose edit mode , and then press left to choose
the music you d like to cancel and enter to confirm your operation.
Press right and enter to choose clear program , then press Right to browse view and return to
play in order.
7
Note:
If you are playing songs or viewing Jpeg pictures, the maximum supported files on each folder is 500.
In the case of having more than 500 pictures or songs,then you need to create a new folder and make sure
each of them. Do not exceed more than 500 files. For example: if you have 1020 files then you need to create
3 different folders where in 2 of them you will need to record 500, Files in each and the third folder with the
remaining 20 files. This way the unit will be able to recognize the folders and thus play all the content .
Note:
If you are playing Mp3 songs or viewing Jpeg pictures, the maximum supported files on each folder is 500.
In the case of having more than 500 pictures or songs,then you need to create a new folder and make sure
3 different folders where in 2 of them you will need to record 500, Files in each and the third folder with the
remaining 20 files. This way the unit will be able to recognize the folders and thus play all the content .
This dvd player support an external hard disc up to 250G (but only if the hard disc file system format
is FAT32), if the file system format is NTFS,FAT or others, please find professional people to change
it to FAT32.
Support Hard Disc
REMOTE CONTROL IS INSENSITIVE OR DOES NOT WORK
Check the batteries of remote control and make sure that they are powerful and in good conductivity.
Direct the remote control to the IR sensor of the player.
Check whether there are some obstacles between the remote control and IR sensor.
ABNORMAL FUNCTION OPERATION
Turn off the power, and then turn on again.
DISC IS LOCKED IN THE TRAY
The disc can not be taken out of the tray when the player is reading, so you have
to turn off the power and turn on again, and press OPEN/CLOSE key immediately to open the tray.
8
TROUBLE SHOOTING
Notes:
There are many non-standardized MPEG4/DVD/WMA/CD-recording procedures and
copyprotection procedures now in use, and many different kinds of DVD R,DVD RW ,CD-R and CD-RW
blank disks, Therefore,in some cases read errors or read delays may be encountered. This is not a defect
of the device.
For CD-RW of CD-R,it may not be played according to the type of this disc.
.
.
++
Type of Disc
Audio Format
Signal Output
Frequency Response
S/N radio
THD
DVD/VCD/HDCD/CD/DVD+R/RW,
MPEG4/WMA,
Kodak Picture CD
MPEG 1, LAYER 1,
LAYER 2 , LAYER 3
Color System:
Audio System:
Video Output:
Audio Output: 2 Vpp
CD:
DVD:
> 92 dB
< 0.04%
PAL/NTSC/MULTI
AC-3 Digital output
Audio DAC 16bit/48KHz
1 Vpp (at 75 ohm)
4Hz 20KHz (EIAT)
4Hz 22KHz (48K)
4Hz 44KHz (96K)
Output Terminals
Power input
Dimensions
Video (composite) output X 1
S-Video output X 1
Digital coaxial output X1
YPbPr output X1
2.0ch output X 1
Body size :
Net weight :
W360XD235XH38mm
2.8KG
Scart output X1
Optical output X1
AC1 00-240V~ 50 /60Hz 15W
HDMI output X1

Other MP-Man DVD Player manuals

MP-Man XVD820 HDMI User manual

MP-Man

MP-Man XVD820 HDMI User manual

MP-Man XV-DK700HDMI User manual

MP-Man

MP-Man XV-DK700HDMI User manual

MP-Man PDV 798 DVBT User manual

MP-Man

MP-Man PDV 798 DVBT User manual

MP-Man XV-D500 HDMI User manual

MP-Man

MP-Man XV-D500 HDMI User manual

MP-Man XV-D320HDMI User manual

MP-Man

MP-Man XV-D320HDMI User manual

MP-Man XV-D800HDMI User manual

MP-Man

MP-Man XV-D800HDMI User manual

MP-Man XRDV32 User manual

MP-Man

MP-Man XRDV32 User manual

MP-Man XVD220 User manual

MP-Man

MP-Man XVD220 User manual

Popular DVD Player manuals by other brands

Philips DVP3886 user manual

Philips

Philips DVP3886 user manual

Philips DVP3880 user manual

Philips

Philips DVP3880 user manual

Coby TFDVD7100 - DVD Player - 7 owner's manual

Coby

Coby TFDVD7100 - DVD Player - 7 owner's manual

Sony DVP-NS710H operating instructions

Sony

Sony DVP-NS710H operating instructions

Inoi HV-670 user manual

Inoi

Inoi HV-670 user manual

THOMSON DTH211 owner's manual

THOMSON

THOMSON DTH211 owner's manual

Magnavox MDV2300 owner's manual

Magnavox

Magnavox MDV2300 owner's manual

Salora HDD-2510 instruction manual

Salora

Salora HDD-2510 instruction manual

BBK BBK931S Service manual

BBK

BBK BBK931S Service manual

JVC XV-N50BK Service manual

JVC

JVC XV-N50BK Service manual

Xoro HSD 202 manual

Xoro

Xoro HSD 202 manual

Sanyo FWDP105F B owner's manual

Sanyo

Sanyo FWDP105F B owner's manual

LG DP547H owner's manual

LG

LG DP547H owner's manual

Curtis DVD1041 instruction manual

Curtis

Curtis DVD1041 instruction manual

Philips DVD793C Specifications

Philips

Philips DVD793C Specifications

Pioneer DV-220V-K operating instructions

Pioneer

Pioneer DV-220V-K operating instructions

Polaroid DVP-110M Operation manual

Polaroid

Polaroid DVP-110M Operation manual

LG HT304SU-DH user manual

LG

LG HT304SU-DH user manual

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.
