OPERATION AND PARTS MANUAL
THIS MANUAL MUST ACCOMPANY THE EQUIPMENT AT ALL TIMES.
MODEL CX400/PX400
SUBMERSIBLE PUMPS
Revision #1 (12/03/10)
www.discount-equipment.com
Discount-Equipment.com
Discount-Equipment.com is your online resource for commercial and industrial
quality parts and equipment sales.
Locations:
Florida (West Palm Beach): 561-964-4949
Outside Florida TOLL FREE: 877-690-3101
Need parts? Check out our website at www.discount-equipment.com
Can’t find what you need?
Click on this link: http://www.discount-equipment.com/category/5443-parts/ and fill out
the request form.
Please have the machine model and serial number available in order to help us get
you the correct parts. One of our experienced staff members will get back to you with
a quote for the right part that your machine needs.
We sell worldwide for the brands: Genie, Terex, JLG, MultiQuip, Mayco, Toro/Stone,
Diamond Products, Magnum, Airman, Mustang, Power Blanket, Nifty Lift, Atlas Copco,
Chicago Pneumatic, Allmand Brothers, Essick, Miller Spreader, Skyjack, Lull, Skytrak,
Tsurumi, Husquvarna/Target, Whiteman-Concrete/Mortar, Stow-Concrete/Mortar, Baldor,
Wacker, Sakai, Snorkel, Upright, Mi-T-M, Sullair, Neal, Basic, Dynapac, MBW, Weber,
Bartell, Bennar Newman, Haulotte, Ditch Runner, Blaw-Knox, Himoinsa, Best, Buddy,
Crown, Edco, Wyco, Bomag, Laymor, Terremite, Barreto, EZ Trench, Takeuchi, Basic, Bil-
Jax, Curtis, Gehl, Heli, Honda, ICS/PowerGrit, Puckett, Waldon, ASV, IHI, Partner, Imer,
Clipper, MMD, Koshin, Rice, Gorman Rupp, CH&E, Cat Pumps, Comet, General Pump,
Giant,AMida, Coleman, NAC, Gradall, Square Shooter, Kent, Stanley, Tamco, Toku, Hatz,
Kohler, Robin, Wisconsin, Northrock, Oztec, Toker TK, Rol-Air, Small Line, Wanco, Yanmar
Discount-Equipment.com
TABLE OF CONTENTS
CX400/PX400 Submersible
Pump
Table of Contents..................................................... 2
Parts Ordering Procedures...................................... 3
Safety Information ................................................ 4-7
Dimensions.............................................................. 8
Specification ............................................................ 9

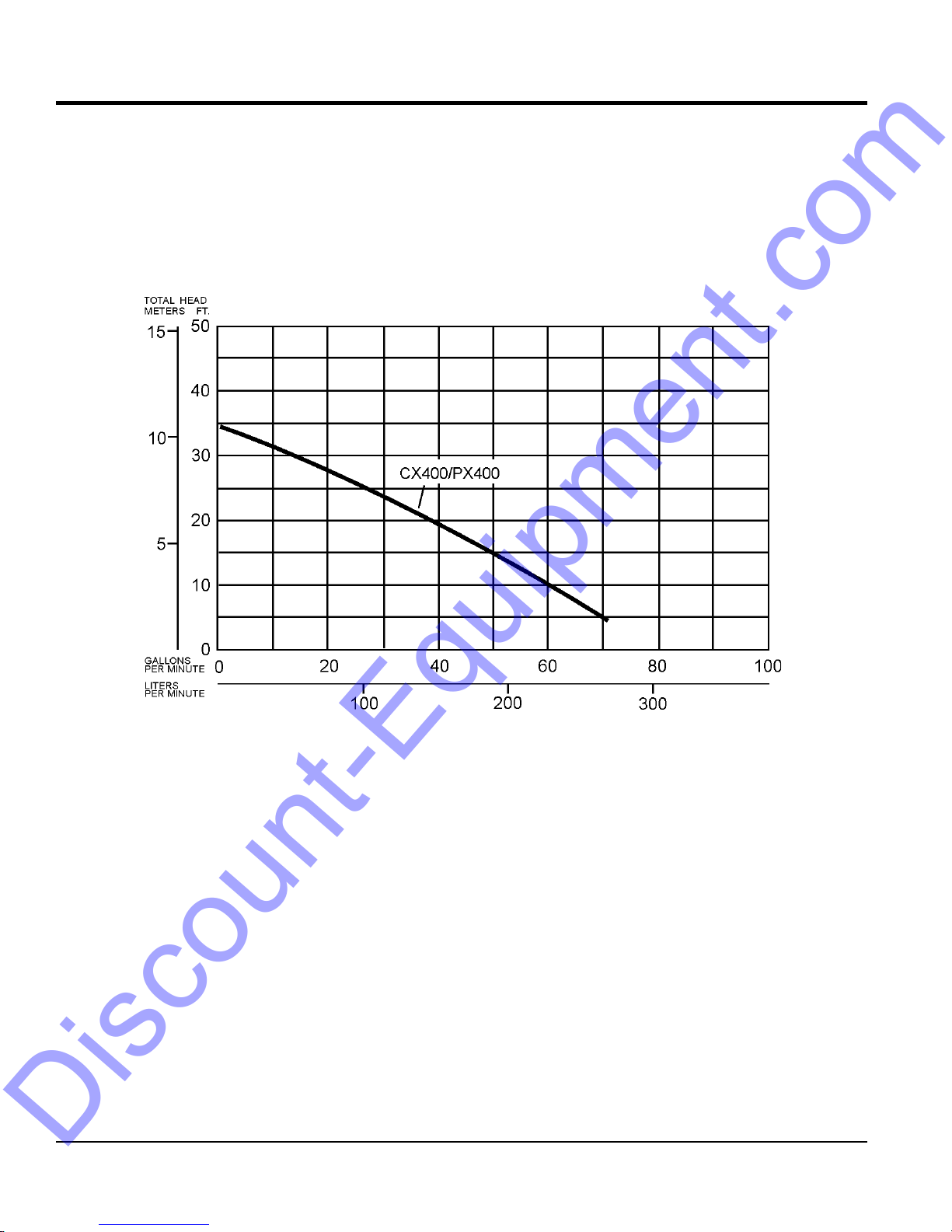

Performance Curve................................................. 10
General Information............................................... 11
Components .......................................................... 12
Direct Power Operation ......................................... 13

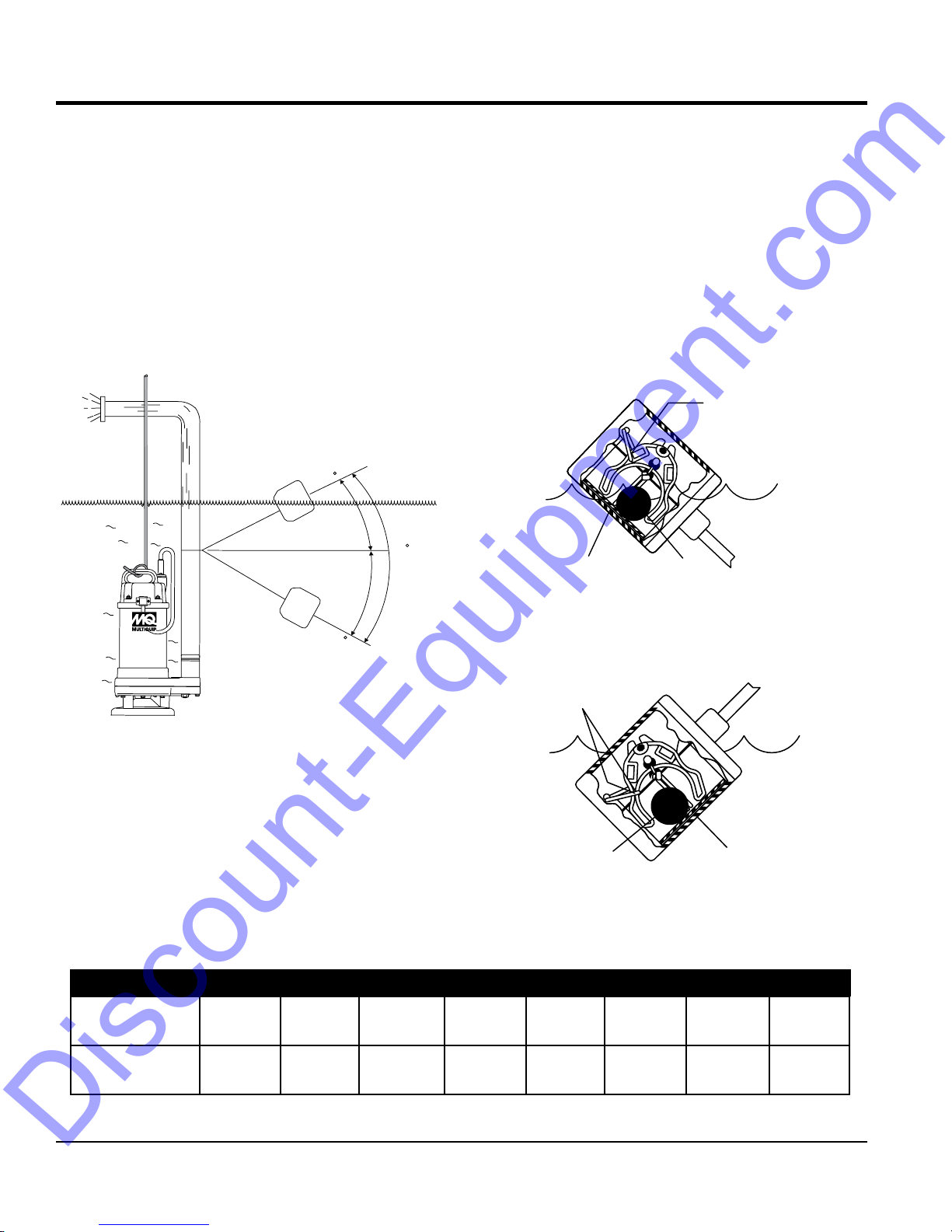

Float Switches ....................................................... 14
Float Switches ...........................................................................15
FloatSwitches(ControlBox).................................................................16
Operation..............................................................................17-20
Maintenance........................................................................21-23
Troubleshooting.........................................................................24
Control Box (CB3) Wiring Diagram ...................................25
Explanation of Code in Remarks Column.............. 26
Suggested Spare Parts ......................................... 27
Component Drawings
CX400 Pump Assembly.................................... 28-29
PX400 Pump Assembly.................................... 30-31
Terms and Conditions of Sale — Parts ................. 32
NOTICE
Specifications and part numbers are subject to change
without notice.
Discount-Equipment.com
SAFETY INFORMATION
