mQuvee SW-12 User manual

OWNER’S MANUAL
Please read this manual carefully before installing and operation.
EN
SW-12 | SW-15 | SW-28 | SW-43 | SW-45 | SW-51 | SW-75
SW-128 | SW-137 SW-152 | SW-192 | SW-242 | SW-24 | SW-30
SW-38 | SW-44 | SW-66 | SW-125 | SW-120 | SW-126 | SW-130
SW-180 | SW-215

23
1. EXPLANATION
This Instruction Manual is the universal-purpose version for the models
of wine cooler manufactured by our Co. The appearance of the units that
you purchase might be slightly dierent from the Manual, but it does not
aect your proper operations and usage.
Please read carefully the sections corresponding to the specic model
you choose, and keep the manual properly so as to facilitate your
reference at later time.
1.1 ELECTRICAL REQUIREMENT
• Make sure there is a suitable power Outlet (220-240V/50Hz) with
proper grounding to power the wine cellar.
• Avoid the use of three plug adapters or cutting o the third
grounding in order to accommodate a two plug outlet. This is a
dangerous practice since it provides no eective grounding for the
wine cellar and may result in shock hazard.
1.2 INSTALL LIMITATIONS
• Do not install your wine cellar in any location not properly insulated
or heated e.g. garage etc.
• Select a suitable location for the wine cellar on a hard even surface
away from direct sunlight or heat source e.g. radiators, baseboard
heaters, cooking appliances etc. Any oor unevenness should be
corrected with the leveling legs located on the front and rear bottom
corners of wine cellar.
Table of Contents
1. EXPLANATION.......................................................3
1.1 Electrical Requirement....................................................................................3
1.2 Install Limitations .............................................................................................3
1.3 Use of Extension Cords....................................................................................4
1.4 Wine Cooler Installation..................................................................................4
1.5 Wine Cooler Features and Use Initial Setup.............................................5
1.6 Important Safety Instructions.......................................................................6
2. OPERATING YOUR WINE COOLER ...................7
3. TEMPERATURE SETTING....................................9
3.1 The temperature setting of wine cooler...................................................9
3.2 The temperature setting of SW-24............................................................10
4. STORAGE OF WINE BOTTLES..........................13
4.1 Bottle Loading Method.................................................................................13
4.2 Bottle and shelf safety...................................................................................14
4.3 Humidity percentage inside wine cooler...............................................14
5.MAINTENANCE.....................................................................14
6. TROUBLE SHOOTING.......................................................15
6.1 Problem and solution ..................................................................................16
6.2 Matters need attention................................................................................18
6.3 Warning!.............................................................................................................19

Avoid the use of an extension cord because of potential safety hazards
under certain conditions. If it is necessary to use an extension cord,
use only a 3-wire extension cord that has a 3-blade grounding plug
and a 3-slot outlet that will accept the plug. The marked rating of the
extension cord must be equal to or greater than the electrical rating of
the appliance.
1.3 USE OF EXTENSION CORDS
45
1.4 WINE COOLER INSTALLATION
1. When you receive the cabinet, please unpack the unit and make
sure there is no aws in its external appearance (from shocks,
deformation, ect.)
2. Open the door and check all interior ttings and supplied items if are
all complete (shelves, instruction, control panel, etc.) Please install it
according to the following points if the shelves or shelf brackets fall
o during transit.
3. After checking, if no problem, then, pls carry to the nal place, which
should be care as follows:
(A) Leaving space of minimum 5cm between your wine cooler
and left and right wall; at least 8cm between back of cabinet
and the wall.
(B) Position the wine cooler on a at level surface, if not, adjust
the feet of wine cooler to keep level.
4. Away from sources of heat and high humidity areas (laundry room
and bathroom, etc).
5. Do not tilt it at an angle of more than 45° when move the cabinet.
Allow a minimum 10 minutes interval between transit and
re-starting.
6. Make sure the ventilation is free if you wish to install your cabinet
into a worktable, otherwise, it will reduce the eect of usage.
• Before connecting the wine cellar to the power source, let it stand
upright for approximately 24 hours. This will reduce the possibility
of a malfunction in the cooling system from handling during
transportation.
• Once you have plugged the unit into an electrical outlet, let the
unit run for at least 30 minutes to acclimate before making any
adjustments.
• The wine cellar can be set to any temperature between 5°C~20°C
(41°F~68°F) to accommodate your wine storage requirements.
Shelving (Type and number of shelves will vary per model)
• Remove packing materials from shelves once unit is stable and ready
for storage.
• Disperse the bottles evenly to avoid concentrating weight in one
place. Bottles must not touch either the back of the cabinet or the
step at the bottom. .
• Make sure that the bottles are not all grouped together either at the
top or bottom of the cabinet.
• Only pull out one rolling shelf at a time. Never attempt to pull more
than one.
• The wine cellar will hold‘standard’Bordeaux sized bottles, as shown
below. If up to half of your collection consists of non-standard
Bordeaux-size bottles, your maximum capacity may be reduced
by 20-25%. If your collection consists mostly of these larger sized
bottles, your maximum capacity may be reduced by as much as 40%.
1.5 WINE COOLER FEATURES AND USE INITIAL SETUP

67
1.6 IMPORTANT SAFETY INSTRUCTIONS
Basic precautions when using:
• Only use your wine cooler for intended purposes, as described in this
guide.
• Never unplug the wine cooler by pulling out the power cord, grip the
plug rmly and pull straight out to remove from wall socket.
• Immediately repair or replace any worn or damaged cord, never use
a cord that is split or which shows signs of wear along its length or on
its ends.
• Children should be supervised to ensure that they do not play with
the appliance. Do not allow children to climb on, sit on or stand on
the wine cooler, nor hang from its shelves. They could damage the
cabinet.
• Do not use an extension cord. Do not operate this device if its
power cable or plug is damaged, or it does not work properly, or it
is damaged, or hasn’t work properly, or it is damaged, or has been
dropped. If the power cable is damaged, it will need to be replaced
by the manufacturer or his service agency or a similar qualied
person, to avoid any dangers.
• Do not place other appliance inside the cabinet.
2. OPERATING YOUR WINE COOLER

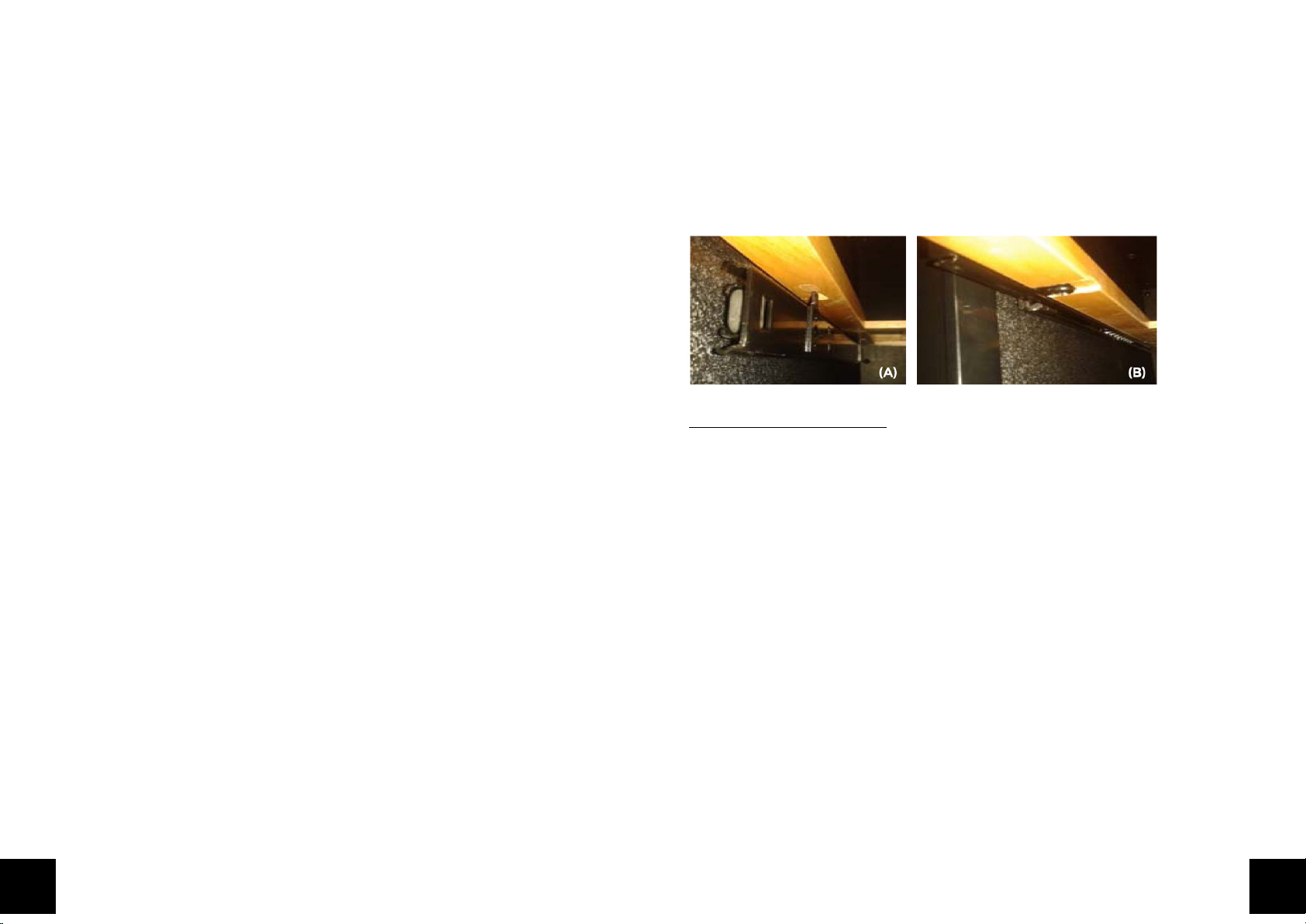

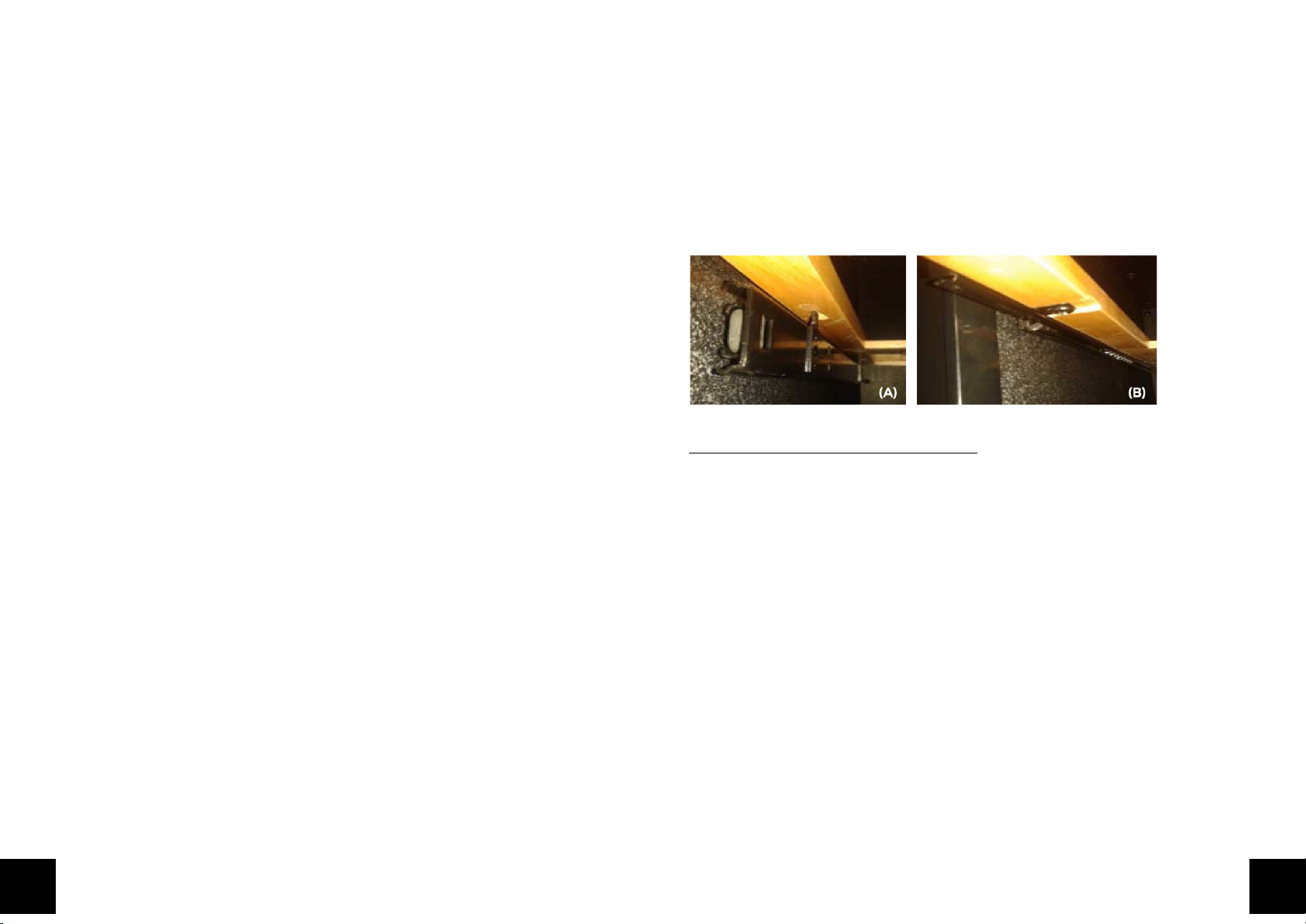

1. Removing the Shelf
Once wood shelf need to change, please check which kind of slider
To remove a rolling shelf:
1. Remove all bottles.
2. Pull the shelf out as far as it will go.
3. If design A, lift the shelf up and o the slides. Please make sure
the wood hole need to match with slider hook when you assemble
the shelf.
If design B, a) unscrew the wood shelf from slider b) take out the old
wood shelf and change new one c) Screw the wood shelf again from
shelf bottom as previous.
If design C, which without slider, please close the limit and take out
the shelf.

89
2. Installing Your Handle
1. Pull back the door seal behind handle location.
2. Insert screws into pre-drilled screw holes.
3. Attach gasket.
4. Attach handle.
5. Tighten screws and press door seal back into place.
3. Operating Your Wine Cooler
Each wine cellar includes an operating panel on the front of the unit.
This operating panel includes several features to operate and control the
temperature.
3. TEMPERATURE SETTING
3.1 THE TEMPERATURE SETTING OF WINE COOLER
3.1.1 Control panel for single zone
ON/OFF of the whole system
ON/OFF of inside cabinet LED light
Temperature Up setting
Temperature Down setting
3.1.2 Control Panel for dual zone
Upper Control Panel
ON/OFF of the whole system
ON/OFF of inside cabinet LED light
Temperature Up setting
Temperature Down setting

10 11
Down Control Panel
ON/OFF of the down zone system
ON/OFF of inside cabinet LED light
Temperature Up setting
Temperature Down setting
3.1.3 Change temperature display
Pushing the temperature key up and down for 5 seconds, then,
temperature display will be exchange between °C and F° .
1. Temperature UP, the upper zone’s temperature increases 1°C each
time the button Is pressed.
2. Temperature DOWN, the upper zone’s temperature decreases 1 °C
each time the button is pressed.
Upper Zone Temperature Display
3. Temperature UP, the lower zone’s temperature increases 1 °C each
time the button is pressed.
4. Temperature DOWN, the lower zone’s temperature decreases 1 °C
each time the button is pressed.
Lower Zone Temperature Display
5. Choose the mode of LED light
a) Mode 1 (Default setting): ECO, the panel will show ECO that
means the LED light is under Mode 1, at that time, the LED light
will be ON/OFF automatically when door open/close.
b) Mode 2 : when you press the LED light button for 5 seconds,
ECO on panel will disappear, at that time, the LED light is under
Mode 2, the LED light will be ON, but it will OFF automatically
after 4 hours.
6. Turn the Power ON and OFF.
7. Toggle the LED display between Celsius or Fahrenheit readings -
Press Button 1 and Button 2 simultaneously for 3 seconds to toggle
the LED display between Celsius or Fahrenheit readings.
8. Door alarm, when the door open for 60 seconds, the alarm will sound
and the panel will show H1.
3.2 THE TEMPERATURE SETTING OF SW24
1 2 3 4 5 6

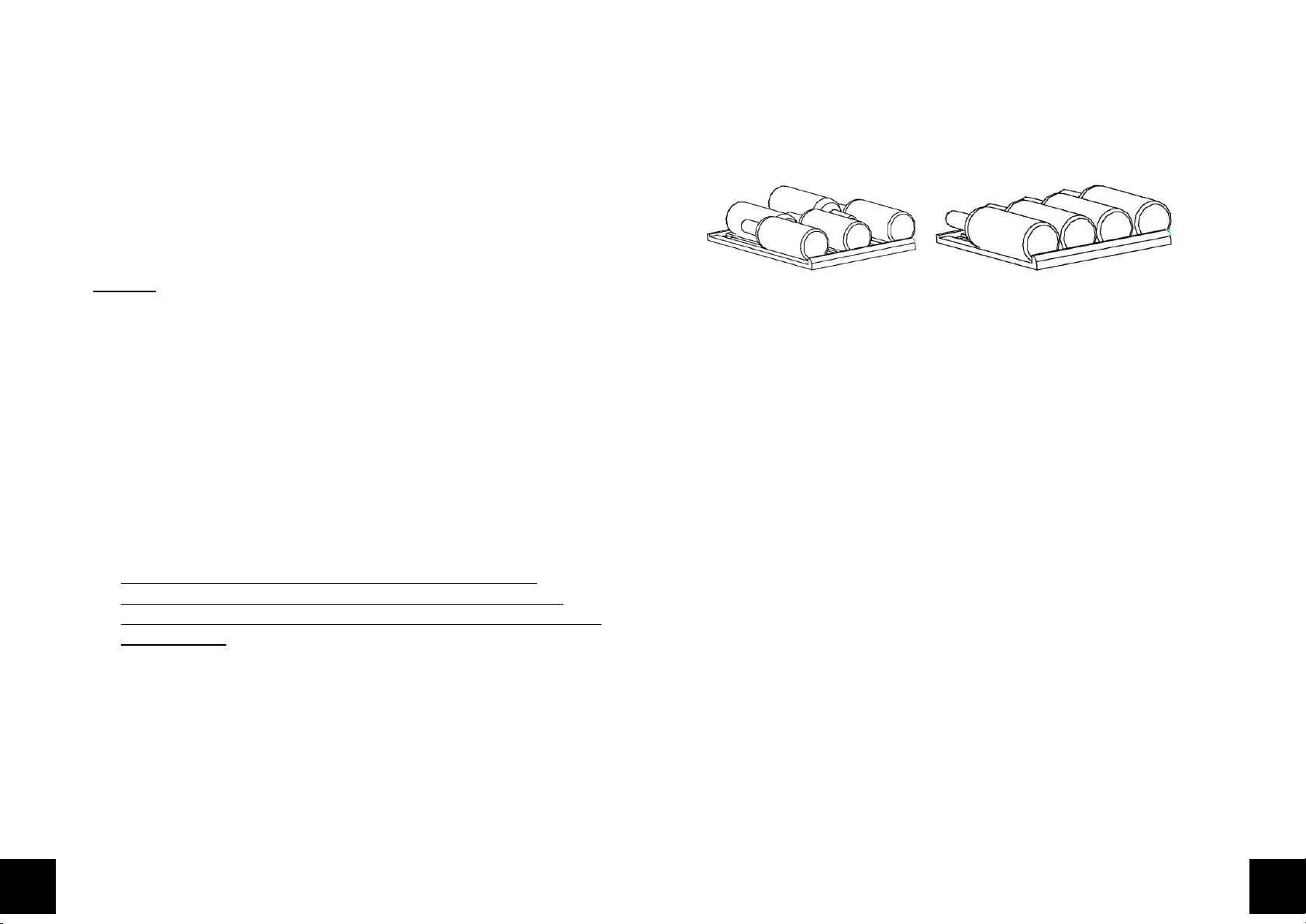

4. STORAGE OF WINE BOTTLES
• Wooden shelf capacity: 4,5,9 or 11 bottles/shelf.
• Bottom shelf capacity: 5, 8 or 12 bottles /shelf.
• Maintain a minimum 20mm between bottle and back plate.
• Ensure storage Bottle bottom Dia.78mm & Height 300mm,
otherwise, less Bottle loading.
4.2 BOTTLE AND SHELF SAFETY
Ensure bottle and shelf safety, check the following tips:
1. Spread your bottles out as evenly as possible over the shelves, so
weight is not concentrated in one point, and make sure your bottles
will not touch the back of the cabinet
2. Make sure bottles are not all grouped together at the top or bottom
of the cabinet
3. Following loading instructions provided in section 2, according to
the type of storage xtures with which your cabinet is equipped, and
never stack bottles on a sliding shelf.
12 13
4.3 The item will be used under the room temperature
ranging from 16 to 38 °C (61-100 °F).
4.4 Temperature setting range of cabinet is 5~20°C (41~68
F°) . Customers can set the temperature according to their
actual demands.
Remark:
• There is no heating element for single zone, so temperature for
single zone will be aected by the ambient temperature.
• Both the wine cooler and the indicator will turn on until the desired
temperature is achieved. Single Temperature zone is the same
operation.
• Thetemperaturereadoutshowstheactualcellar
temperature,itwilltemporarilyshowthesettemperaturewhile
makingadjustments,thenrevertsbackafter5seconds without any
operation.
• Temperatures may uctuate depending on whether the interior light
is ON or OFF and depending on the position of the bottles.
• The temp. of the top compartment must be set lower than
the bottom compartment, or at the same temp. as the bottom
compartment, but it cannot be set at temp. higher than the bottom
compartment.
4.1 BOTTLE LOADING METHOD

4. Due to Humidity will be uctuated based on Room Humidity and
Temperature, please make special lm to pack before storage inside
cabinet, which will ensure the label of bottle could not be damaged.
4.3 HUMIDITY PERCENTAGE INSIDE WINE
COOLER: 50%80%
5. MAINTENANCE
In order to ensure best performance & long-last reliable working item,
please follow the simple maintenance and cleaning operations as below:
• Make sure the power cord is unplugged before cleaning the back of
your cabinet, or before moving it.
• Clean the inside of your cabinet thoroughly once a year, after
unplugging and unloading it (uses water and a mild cleaning item,
then rinse carefully).
• To assure that your wine cooler provides long-lasting reliable
performance, you should check it regularly and inform your dealer if
anything unusual is found.
If still have problem after checking above, pls try to contact service center or
dealer.
14 15
6. TROUBLE SHOOTING
No working Plug or not?
Fuse break?
No power?
Heat source near the item?
Ventilation not well?
Door close not well or door
open too long?
Door sealing problem or
deformation?
Bottles loading too much in
same shelf?
Air inlet or outlet block?
Control setting problem?
Wine cooler placed not at?
Item touch the wall?
Some parts loose or taken o?
Ventilation space in the right
and le casing not enough?
Cooling problem
Noisy
Problem Solution

6.1 PROBLEM AND SOLUTION
Note: normal operation for following phenomenon: normale.
A) Compressor not start
Compressor will not start if room temperature is lower than desired
temperature, but item is still working with heater inside till desired
temperature achieved.
B) Compressor re-start
Compressor will stop working when cooling system in the cabinet
reaches presetting temperature, and re-start working until the desired
temperature is achieved. Allow a minimum 5 minute interval before
re-starting.
C) Dew on the surface of cabinet
The surface of wine cooler especially the glass door appears some frost
if item in a damp room. This is due to the moisture in the air coming into
contact with the cabinet. Please wipe it away with dry cloth.
D) Normal Operating sounds you may hear
• Boiling water, gurgling sounds or slight vibrations that are the result
of the refrigerant circulating through the cooling coils.
• Popping or cracking noises due to the auto defrost cycle melting
frost build-up.
1. The sound of compressor when starts or stops working.
2. The owing sound of refrigerant in the refrigeration system.
3. The evaporating sound of refrigerant in the evaporator.
E) Condensation formed inside the cabinet
Under the environment with high level of humidity or the door of wine
cooler has been left open for a long period or opened frequently, there
are much condensation, and pls wipe o the water from the door and
walls and leave the door closed as long as possible.
F) Heat function on bottom zone
Heat function on bottom zone will automatically be on as below reason:
• When setting temp. is upper than Room Temp.
• When inside bottom Temperature is lower than setting temp.
G) Indicator light
When temperature inside cabinet is out of range of setting temperature,
both up and down indicator light will be on. Once temperature reaches
setting temperature, then, this light will be o automatically.
Error codes
E9 - The signal cable is loose, it needs to re-connect the signal cable
E2.1 - Temperature Sensor
E2 - The main problem is refrigeration failure
H1 - Door alarm, when the door open for 60 seconds, the alarm will
sound and the panel will display H1.
16 17

6.2 MATTERS NEED ATTENTION
Waste disposal tips
Wrappageis used to protect electric appliance during transport and
every part of materials are recycled materials.
• Corrugated paperboard/paperboard (made from waste paper)
• Polystyrene block (foam uoride-free polystyrene)
• Plastic lm, bag (polystyrene)
• Packing string (polystyrene)
• Never let child play with packing materials, plastic lm may cause
suocation.
• Transport packing materials to public environmental collection
depot.
Waste cold wine coolerstill has many valuable raw materials and shall be
treated separately in residential area not adopting garbage classication.
• Waste cold wine cooler shall be scraped timely; take o plug, and
remove power soft cable. Destroy lock to prevent such situation that
a kid is locked by him/herself when playing the lock.
• Before sending the waste cold wine cooler to public collection depot,
cold circulation system shall not be damaged to ensure that the
refrigerant and oil of cold wine cooler suers no
leakage.
• For situations on waste collection date and
collection depot, please consult with local
environmental sanitation department or
government agency.
6.3 WARNING!
• Refrigerant and foam layer is ammable,
Pay attention to the re when maintenance,
installation, transportation and handling.
Used product need to be recycled by
specialized companies, do not arbitrarily
discarded.
• It is prohibited to place the machine in a place where is possible to
leak corrosive and ammable gas, it is easy to explode or damage
the machine.
• The grounding wires cannot be connected with the gas pipe, the
water pipe system, the lightning rod and the telephone. If ignore
this, it will hasthe possibility to cause the receiving an electric
shock accident.
• Cannotlengthen the power cord without authorization,
meanwhile, this appliance couldn’t share a socket with other
appliance, otherwise, it is easy to cause short circuit or damage
the electronic components.
• This product does not contain any spare parts, please do not
disassemble. The refrigerant used in this product is combustible,
non-professional maintenance personnel shall not repair the
machine, improper repair may be the risk of re or explosion. If
the machine is faulty, please contact the service personnel.
• Children should be supervised to ensure that they do not play
with the appliance.
• If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualied person in
order to avoid a hazard.
• WARNING: Keep ventilation openings, in the appliance enclosure
or in the built-in structure, clear of obstruction.
18 19
