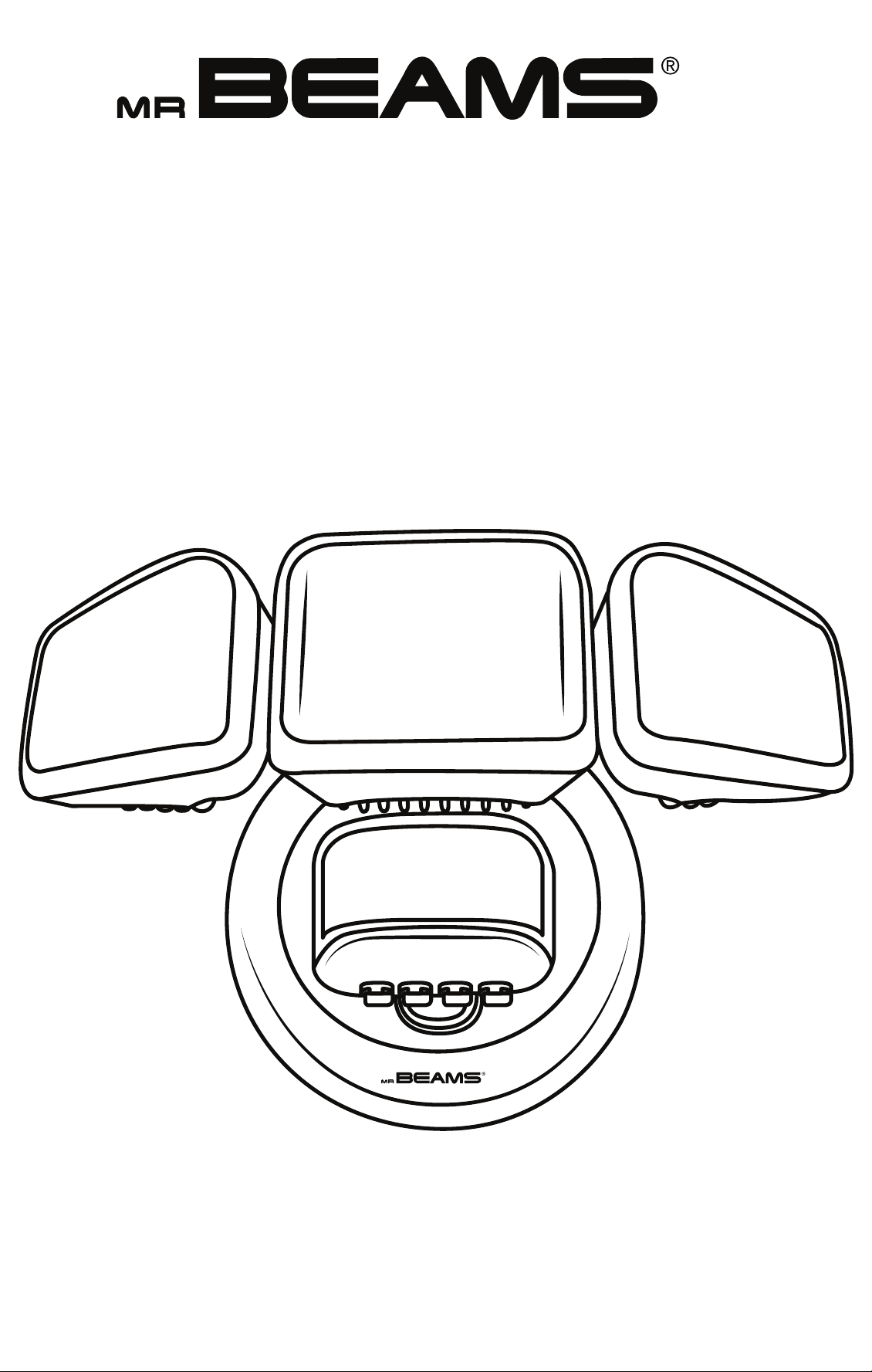

MR BEAMS PRO 3-HEAD
MOTION FLOOD LIGHT
USER MANUAL
SPECIFICATIONS:
Lumens
3900
Motion
Detection
Range
up to 50 ft
Motion
Detection
Angle
180º
Auto Shut Off
1-10 min
Weatherproof
UL Wet
Location
Ideal Mounting
Height
8-10 ft
Input Voltage
100-120v
ADJUSTABLE SETTINGS:
Range
Duration
Min
Dusk
Max
10 ft 50 ft
Late dusk - early dawn Early dusk - late dawn
1 minute 10 minutes
Reduce range to minimize false activations.
Adjust to determine preferred dusk and dawn setting.
Adjust illumination period after motion activation.
OPERATING MODES:
Test Mode Use during setup and adjustment to quickly check motion operation. Light sensor is
disabled and duration is set to 5 seconds.
Auto Mode Motion will activate the light from dusk to dawn based on the adjustable settings.
Light is on from dusk to dawn based on the adjustable settings. ‘Range’ and ‘Duration’
are ignored.
On Mode Light is continuously on and all adjustable settings are ignored. For using the home
light switch to control.
Temporarily changes light mode from ‘Auto’ to ‘On’ until mode is disabled or reverts
automatically at dawn. Cycle power twice [Off/On, Off/On]* using home wall switch
to enable and disable.
Remote
Override
TEST D2D
AUTO ON
MODE
CAUTION: RISK OF FIRE OR ELECTRIC SHOCK
This product must be installed in accordance with the applicable installation code by a person familiar
with the construction and operation of the product and the hazards involved
Disconnect power at the fuse or circuit breaker before installing.
NOTICE: Do not connect this light fixture to a dimmer switch or timer.
NOTE: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the warranty.
x2
*Cycling must be completed in more than 1 sec & less than 3 seconds for the light to register. Should nothing happen, adjust your cycling speed.
D2D Mode
(Dusk to Dawn)

Customer Support
Mailing Address
Mr Beams U.S.
600 Beta Drive, Unit 100
Mayfield Village, OH 44143
www.mrbeams.com
9 a.m. - 5 p.m. EST
[phone]
customerser[email protected]
MB12983
MR BEAMS PRO 3-HEAD
MOTION FLOOD LIGHT
USER MANUAL
SPECIFICATIONS:
Lumens
3900
Motion
Detection
Range
up to 50 ft
Motion
Detection
Angle
180º
Auto Shut Off
1-10 min
Weatherproof
UL Wet
Location
Ideal Mounting
Height
8-10 ft
Input Voltage
100-120v
ADJUSTABLE SETTINGS:
Range
Duration
Min
Dusk
Max
10 ft 50 ft
Late dusk - early dawn Early dusk - late dawn
1 minute 10 minutes
Reduce range to minimize false activations.
Adjust to determine preferred dusk and dawn setting.
Adjust illumination period after motion activation.
OPERATING MODES:
Test Mode Use during setup and adjustment to quickly check motion operation. Light sensor is
disabled and duration is set to 5 seconds.
Auto Mode Motion will activate the light from dusk to dawn based on the adjustable settings.
Light is on from dusk to dawn based on the adjustable settings. ‘Range’ and ‘Duration’
are ignored.
On Mode Light is continuously on and all adjustable settings are ignored. For using the home
light switch to control.
Temporarily changes light mode from ‘Auto’ to ‘On’ until mode is disabled or reverts
automatically at dawn. Cycle power twice [Off/On, Off/On]* using home wall switch
to enable and disable.
Remote
Override
TEST D2D
AUTO ON
MODE
CAUTION: RISK OF FIRE OR ELECTRIC SHOCK
This product must be installed in accordance with the applicable installation code by a person familiar
with the construction and operation of the product and the hazards involved
Disconnect power at the fuse or circuit breaker before installing.
NOTICE: Do not connect this light fixture to a dimmer switch or timer.
NOTE: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the warranty.
x2
*Cycling must be completed in more than 1 sec & less than 3 seconds for the light to register. Should nothing happen, adjust your cycling speed.
D2D Mode
(Dusk to Dawn)

CONTENTS
Additional materials needed:
Philips screwdriver
Ladder
Safety goggles
Work gloves
Voltage tester
Silicone sealant
WARRANTY:
1 YEAR WARRANTY AGAINST DEFECTS
All Mr Beams products are guaranteed against defects
in workmanship and materials for 1 year from
purchase. Warranties implied by law are subject to the
same time period limitation. Some states do not allow
limitations on how long an implied warranty lasts, so
this time limitation may not apply to you. If the product
fails due to a manufacturing defect during normal use,
return the product and dated sales receipt to the store
where purchased for replacement OR send the product
and the dated sales receipt to the address below. Not
covered – Repair service, adjustment and calibration
due to misuse, abuse or negligence, and consumable
parts (including batteries) are not covered by this
warranty. Unauthorized service, modification or
disassembling this product or any furnished
components will void this warranty in its entirety. This
warranty does not include reimbursement for
inconvenience, installation, setup time, loss of use,
postage, unauthorized service, or other products used
in conjunction with, but are not supplied by, Wireless
Environment. This warranty gives you specific legal
rights, and you may also have other rights which vary
from state to state.
REGISTER YOUR LIGHT TO EXTEND YOUR
WARRANTY TO TWO YEARS AT
MRBEAMS.COM/REGISTER
Lighting fixture and mounting hardware included:
(A) Mounting bracket
(B) 8-32 screws
(C )10-32 screw
BEFORE INSTALLATION:
INSTALL STEPS:
1. Determine the mounting location. The recommended mounting height is 8-10 feet. The location must have an
accessible junction box to install the light.
2. Cut power to the junction box by turning off the power breaker. Confirm there is no power by using a voltage tester.

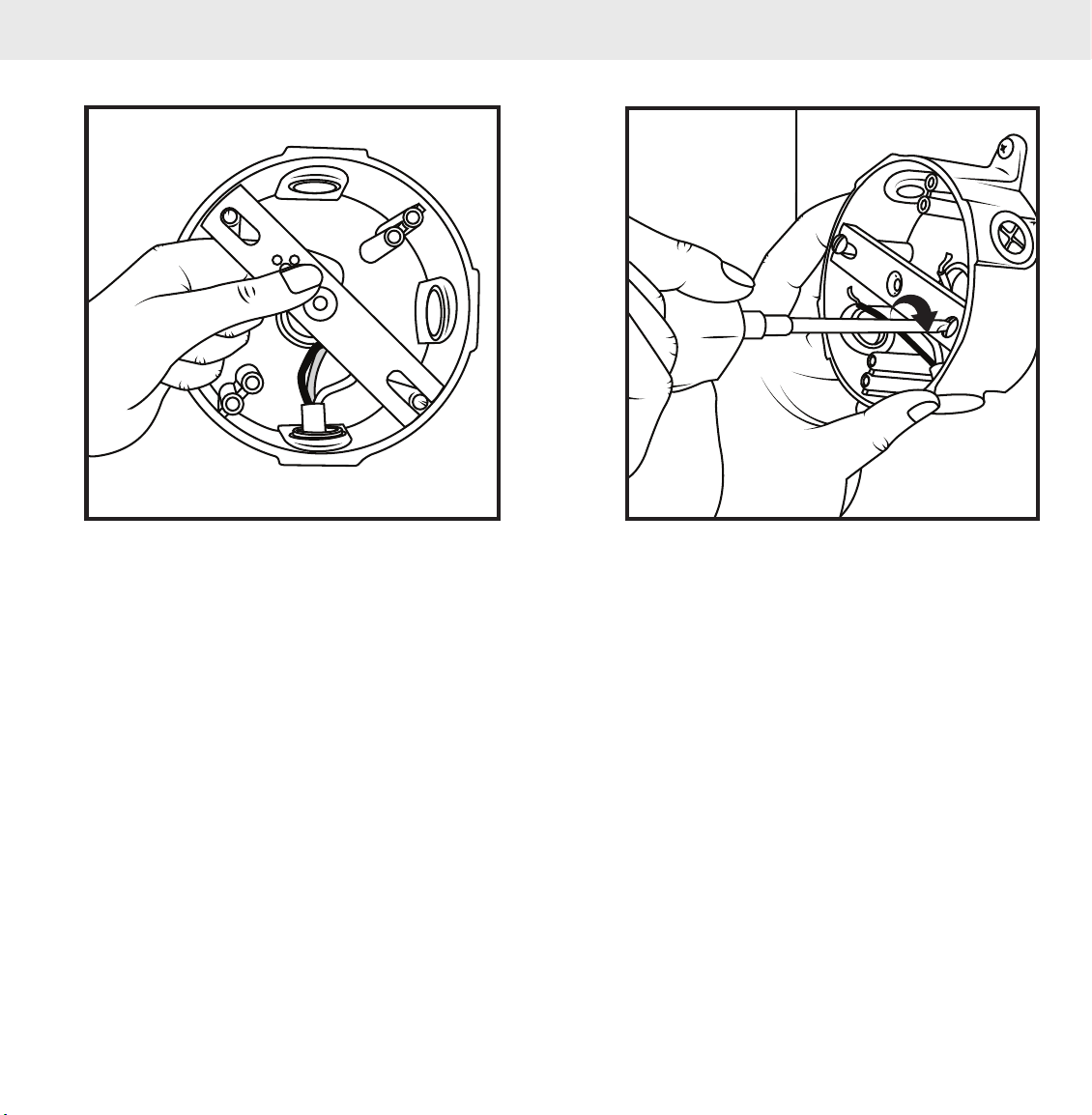

1. Insert one mounting bracket
screw (B) on each end of the
bracket with a Philips
screwdriver.
2.
5.
3. Pair the white (neutral) wire
from the junction box with
the white (neutral) wire from
the light fixture and connect
the ends with a wire nut (D).
Pair the black (live) wire from
the junction box with the
black (live) wire from the light
fixture and connect the ends
with a wire nut.
note: gently tug the wires to
ensure they’re secure and
tuck inside junction box.
4.
Insert the silicone cap (F)
into the screw hole. Use
appropriate exterior silicone
sealant to seal around the
outside of the fixture
between the canopy and the
house.
6. 7.
Align the light fixture’s base
to the junction box. Put the
mounting screw (C) through
the hole in the center of the
fixture, and drive the screw
through the center hole of
the mounting bracket. Be
sure that the wires are not
pinched during this step.
8.
TEST D2D
AUTO ON
MODE RANGE DURATION DUSK
MAX MAX MAX
x3
x2
CONTENTS
Cut power to the junction box
by turning off the power
breaker. Confirm there is no
power by using a voltage
tester. Align the mounting
bracket (A) to the screw
holes in the junction box.
note: Attach the ground wire
from your home to the
ground screw inside the
junction box.
PLEASE READ FULL INSTRUCTIONS BEFORE INSTALLING.

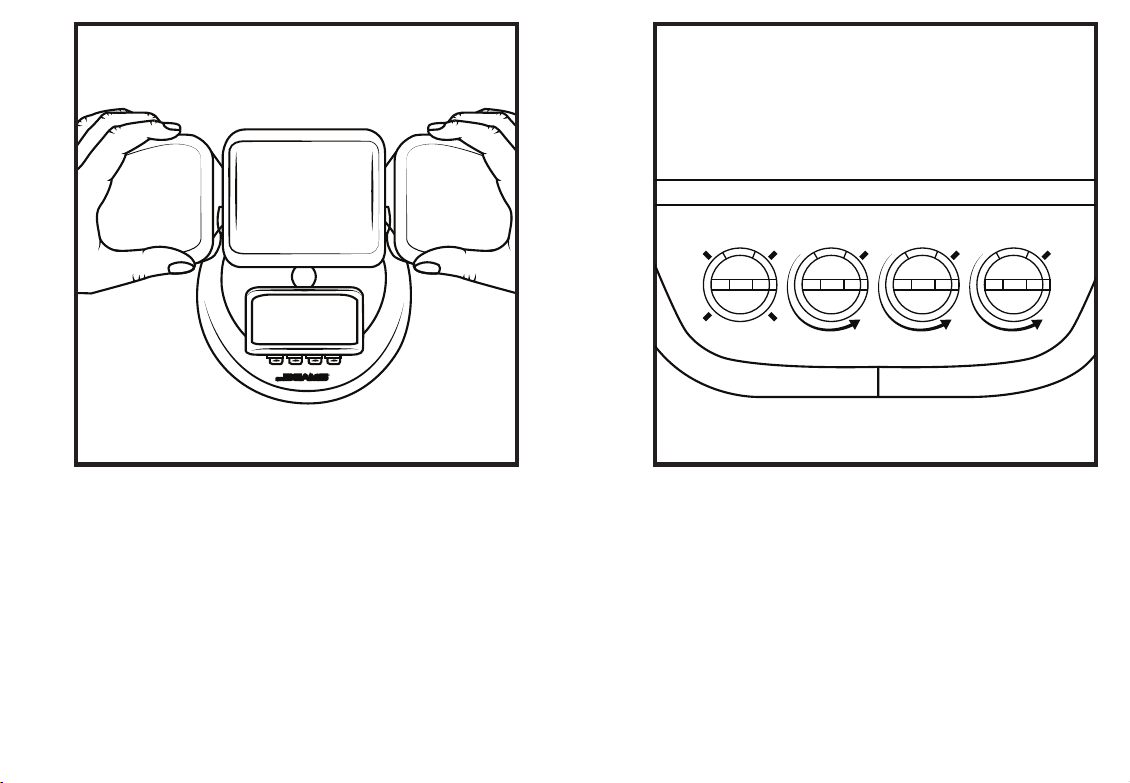

Adjust the spotlight heads and
motion sensor into the desired
positions.
(D) 18-12 wire nuts
(E) Silicone cap
Adjust the light settings to
your preference. See the
operating modes and
adjustable settings sections
on page 1 for additional details
and instructions.
If mounting to an eave, the
motion sensor must be
positioned in front of the light
heads (as shown above) for
optimum motion detection.
Before mounting, with the light
facing you and the sensor
centered and at the bottom,
push the sensor up and rotate it
180 degrees so the dials are
facing up.
note: Dials should always face
down when the light is mounted.
180°
