Mr. Coffee PR12A User manual

OPERATING INSTRUCTIONS FOR THE
MR. COFFEE@ ACCELw 12 CUP
COFFEEMAKERS
MODEL PRl2A and PRX20
MODE D’EMPLOI DES CAFETItRES
MR. COFFEE@ ACCELm DE 12 TASSES
MODELES PR12A et PRX20
Model PR12A
Modhle PR12A
For better tasting tea and
coffee, use Mr. Coffee
brand filters.
Pour un th6 et un cafe de
meilleur go0t, utilisez les
filtres originaux
Mr. Coffee.
Model PRX20
ModOle PRX20
FOR HOUSEHOLD USE ONLY
POUR USAGE DOMESTIQUE
UNIQUEMENT

IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions should
always be followed to reduce the risk of fire, electric shock, and/or injury
to persons, including the following:
1.
Read all instructions before using the machine.
2. Do not touch hot surfaces. Use handles or knobs.
3. To protect against electric shock, do not immerse cord, plugs, or
machine in water or other liquid.
4. Do not permit children to use this machine without close adult super-
vision.
5. Turn control switch OFF and unplug from outlet when not in use and
before cleaning. Allow to cool before putting on or taking off parts,
and before cleaning.
6. Do not operate any appliance with a damaged cord or plug or after
the appliance malfunctions, or has been damaged in any manner.
Return this appliance only to the nearest authorized service center
for repair.
7. The use of accessory attachments not recommended by
MR. COFFEE, inc. may cause hazards or injuries.
8. Do not use outdoors.
9. Do not let cord hang over edge of table or counter, or touch hot sur-
faces.
10. Do not place this appliance on or near a hot gas or electric burner or
in a heated oven.
11. To disconnect, turn any control to “off”, then remove plug from wall
outlet.
12. Do not use appliance for other than intended use.
13. Use on a hard, flat level surface only, to avoid interruption of air flow
underneath the appliance.
14.
Decanter Use and Care
Breakage may occur if the following instructions are not followed:
a. This decanter is designed for use with your Mr. Coffee cof-
feemaker
and therefore must never be used on a range top, or in
any oven
includina a microwave.
b. Do not set a hot decanter on a wet or cold surface.
c. Do not use a cracked decanter or a decanter having a loose or
weakened handle.
d. Do not clean the decanter with cleansers, steel wool pads, or
other abrasive materials.
e. Discard decanter immediately if it is ever boiled dry.
2

f. Avoid sharp blows, scratches, or rough handling.
15. WARNING: To reduce the risk of fire or shock, do not remove any
service covers. No user serviceable parts inside. Repair should be
done by authorized personnel only.
SAVE THESE INSTRUCTIONS
------I--------------------------
SPECIAL CORD SET
INSTRUCTIONS
1. A short power supply cord is provided to reduce the hazards resulting
from becoming entangled in, or tripping over a longer cord.
2. An extension cord may be purchased and used if care is exercised in
its use.
3. If an extension cord is used, the marked electrical rating of the exten-
sion cord must be at least 10 amps and 120 volts. The resulting
extended cord must be arranged so that it will not drape over the
counter top or table top where it can be pulled on by children or
tripped over accidentally.

Precautions When Using This Machine
Do’s . . . . . .
l Avoid areas of the coffeemaker which may become hot or emit steam
when the machine is “on”, particularly the filter basket and the water
reservoir.
l Avoid jerking or straining the power cord when unplugging. Grasp the
molded plug to unplug.
l Unplug the unit when not in use.
l Unplug the unit when wiping the exterior. Use only a damp cloth to
wipe.
l Place machine well back from edge of counter.
Don'ts . . . . . .
l Do NOT place a cloth or otherwise. restrict airflow beneath the appli-
ance.
l Never reheat a beverage by passing it through the brewing system.
l Do not use abrasive or caustic cleaning compounds to clean the ex-
terior of the unit.
l Do not store the machine until warmer plate has cooled.
l Do not place your hand underneath the brew funnel, in order to avoid
contact wlth any fluid.
l Do not permit children to use this machine without close adult supervi-
sion.
l The use of chemically softened water can inhibit proper filtration. This
will affect the beverage flavor and will cause a long drip time from the
brew funnel. Avoid using chemically softened water.
4

Congratulations! You are the owner of one of Mr. Coffee’s Accel 12-cup
coffeemakers. Mr. Coffee’s Accel line features “Accelerated Brewing For
Better Flavor” and will brew twelve cups in minutes. A glass-activated
Pause ‘N
Serve drip-stop valve allows you up to 30 ssconds to sneak a
cup m the coffee is still brewing.
The PRX20 model features a Programmable Timer and 2 hour
Automatic Shut Off. The PR12A model includes 4 hour Automatic Shut-
Off and a 2-6 Cup Switch when brewing smaller quantities of coffee.
Please read &f of the instructions in this booklet carefully before you
begin to use this appliance. Proper care and maintenance will insure the
long life of this appliance and its trouble-free operation. Save these
instructions and refer to them often for cleaning and care tips.
Introduction
Table of Contents
Page #
Important Safeguards ...........................................................................
2-3
Cord Set Instructions.. .............................................................................. 3
Precautions .............................................................................................. 4
Introduction .............................................................................................. 5
Setting the Clock and Timer (Model PRX20, only) ................................... 6
Clean Your Mr. Coffee Before Using the First Time.. ..............................
.7
Diagram of Parts...................................................................................... 7
Brewing Coffee ..................................................................................... 8-9
Automatic Pause
‘n Serve.......................................................................
.9
Automatic Shut-Off..................................................................................
.9
2-6 Cup Switch......................................................................................... 9
Cleaning Instructions ........................................................................ 10-11
Decanter Cleaning .................................................................................
11
If Service Is Required ............................................................................. 12
Limited Warranty.................................................................................... 13
5

Setting the Clock and Timer (Model PRX20, only)
IMPORTANT, Please Read Before First Use
l The clock on this model must be set first, before the coffeemak-
er will operate.
Please refer to setting the clock instructions, below.
indicatorPM
Hour Minute Brew
On/Off
AUTO OFF
Light
Control Switch
indicates Auto Brew needs to be reset On
- Off - Auto
To Set the Clock...
1. Slide the control switch to OFF.
2. Plug the power cord into your electrical outlet. The clock display will
flash until you set the time.
3. Alternately press and hold the HOUR and MINUTE buttons until you
reach the current time. The PM indicator light in the upper left display
corner will illuminate to indicate PM time.
To Pre-Set the Brewing Time...
Press and hold the BREW button while setting the desired brew time
with the HOUR and MINUTE buttons. The PM INDICATOR light will illu-
minate to indicate PM time.
To Automatically Brew at the Pre-Set Time...
1. Follow steps #l through #5 in “BREWING COFFEE”.
2. Always slide the control switch to OFF and then to AUTO.
3. Brewing will begin at the time you have preset and the coffee will remain
hot in the decanter for 2 hours. To keep your coffee hot for an additional
2 hours, slide the switch from AUTO
to ON.
IMPORTANT
To Reset Auto Brew at Pre-Set Time...
The programmable timer will NOT automatically brew the next day if
left in the AUTO position after its last use. This is a safety feature. If
the AUTO OFF light in the lower right hand corner of the clock display
is illuminated, reset AUTO BREW by sliding the control switch to OFF
and then to AUTO.
6

Clean Your Mr. Coffee Before Using the First Time
if the clock display on the Accei programmable timer model (model
PRX20) is flashing, the coffeemaker will not operate until the clock is
set See page 6 to set the clock.
Make sure your first cup of coffee is as good as can be by cleaning your
Mr. Coffee coffeemaker before its first use. Just follow these simple steps:
1. Wash the decanter, lid and removable black filter basket in a mixture of
mild detergent and water. Rinse each thoroughly. (Please refer to the
diagram of parts listed below)
2. Replace the black filter basket and close. Then, follow steps #4 through
#6 in the “BREWING COFFEE” section to clean the inside of your cof-
feemaker.
3. When the
brew cycle is finished, turn your coffeemaker off. Discard the
water in the decanter and rinse the decanter, lid and black basket.
Your coffeemaker is now ready to use.

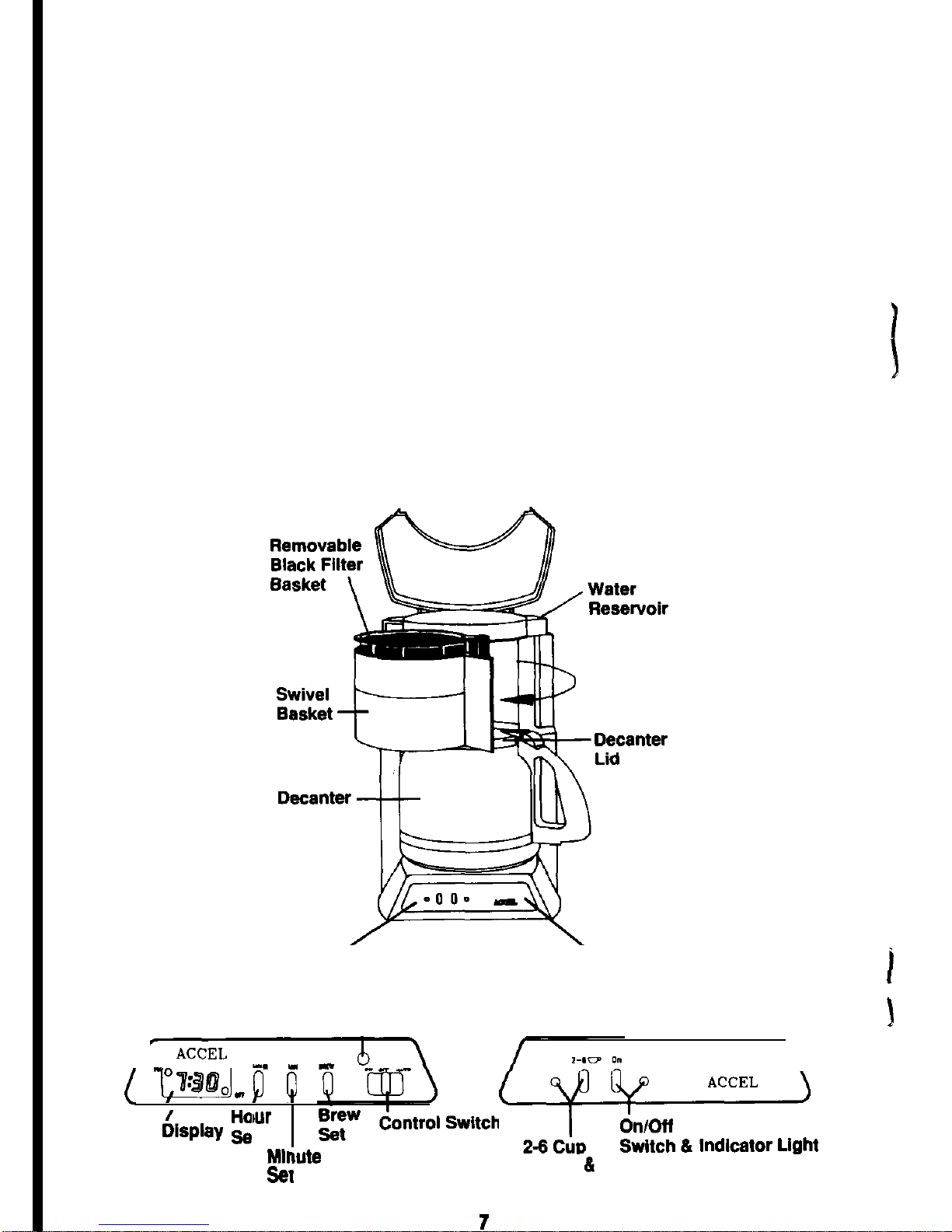

Diagram of Parts
Model PRX20 Control Panel
Model PR12A Control Panel
On/Off
Indicator Light
( w,p Q
bur
Clock &lay g
tMIT
--. lute
-
se1
-f%k-Ezt
2-6 cup
Switch 6
Indicator Light

SUGGESTED COFFEE MEASUREMENT CHART
For best results, use level tablespoons (tbls.) or level coffee scoops of drip
grind or grind recommended for automatic drip coffeemakers.
TO BREW: USE THIS MUCH GROUND COFFEE:
12 cups 11 tbls. or S-112 scoops
10 cups 9 tbls. or 4-l scoops
8 cups 7tbls. or 3-1/2 scoops
6 cups 6tbls. or 3scoops
4cups 5tbls. or 2-l/2 scoops
2cups
. 3tbls. or 1 1/2 scoop
‘Use more or less coffee to suit your taste.
2 level tablespoons = 1 level coffee scoop.
Brewing Coffee
If the clock display on the Accel programmable timer model (model
PRX20) is flashing, the coffeemaker will not operate until the clock
is set. See page 6 to set the clock.
1. Open the swivel basket to your left. Insert a Mr. Coffee brand paper fil-
ter into the black inner filter basket.
2. Add desired amount of coffee and shake slightly to level coffee. See
SUGGESTED COFFEE MEASUREMENT CHART found above.
3. Be sure the paper filter is properly centered before closing the swivel
basket.
4. Fill the decanter with tap water to desired capacity as marked on the
side of the decanter. (1 cup equals 5 ounces.) To brew 2 cups of cof-
fee, fill the decanter to the middle of the silver band. To brew 12 cups,
fill the decanter to the bottom of the pouring spout.
For easy and accurate filling, cup markings can also be found inside
the reservoir.
5. Pour water into the water reservoir. Place the empty decanter onto the
warmer plate.
6. Turn your coffeemaker switch ON. When coffee stops flowing, the
brewing cycle is complete.
7. Remove the black filter basket to discard the used grounds and filter.
Rinse the filter basket and replace.
Note: The programmable timer model, model PRX20 will automatically
shut-off in 2 hours. To keep your coffee hot for an additional 2 hours,
slide the control switch to OFF and then back to ON.

1
Brewing Coffee (Cont..)
The automatic shut-off model, model PR12A, will automatically shut-off
in 4 hours. To keep your coffee hot for an additional 4 hours, simply turn
your coffeemaker back on again.
8. To make another pot of coffee, repeat steps
#l through #7.
9. Be sure to turn your coffeemaker m when the decanter is empty
and you are no longer using your coffeemaker. Unplug the power cord
when not in use.
Automatic Pause ‘n Serve Drip Stop Valve
For your convenience, our Pause ‘n Serve feature allows you up to 32
SECONDS to sneak a cup while the coffee is still brewing. It also pre-
vents any remaining coffee in the filter basket from dripping onto the
warmer plate once the brew cycle is completed.
TO PREVENT INJURY FROM HOT OVERFLOW, REPLACE
DECANTER WITHIN 30 SECONDS, IF REMOVED DURING BREW-
ING.
Automatic Shut Off
(Programmable Timer Model PRX20, only)
Your coffeemaker will keep your coffee hot for 2 hours and then auto-
matically shut-off. To keep your coffee hot for an additional 2 hours, slide
the control switch to OFF and then to ON. When your decanter becomes
empty, turn your coffeemaker off by sliding the switch to OFF.
Automatic Shut Off
(Auto Shut Off Model PRX12A, only)
Your coffeemaker will keep your coffee hot for 4 hours and then auto-
matically shut-off. To keep your coffee hot for an additional 4 hours, turn
your coffeemaker back on again. When your decanter becomes empty,
turn your coffeemaker off by depressing the ON/OFF button until the
ON/OFF light is no longer illuminated.
2-6 Cup Switch (Auto Shut Off Model PR12A, only)
To ensure full flavor when brewing small batches, the 2-6 Cup Switch
electronically slows the brewing cycle for the first 4 minutes (about the
first two cups of coffee) and then returns to its normal speed.
To use this feature, depress the 2-6 Cup Switch so that the green light
illuminates. After the first 4 minutes, the 2-6 Cup Switch light will turn Off
indicating it has returned to its normal speed. The 2-6 Cup Switch must
be reset each time you wish to use this feature.
9
i

Cleaning Instructions
Your coffeemaker U be cleaned when you begin to notice excessive
steaming or the brewing time increases considerably. This condition is
caused by a buildup of lime and mineral deposits from your water. If the
pumping action stops before all the water has been pumped out of the
machine, then the appliance requires cleaning.
The frequency of cleaning depends on the hardness of water used. The
following table gives the suggested cleaning intervals.
SUGGESTED CLEANING INTERVAL
Type of Water Cleaning Frequency
Soft water every 80 brew cycles
Hard water every
40 brew cycles
Your coffeemaker may be cleaned by using MR. COFFEE CLEANER or
vinegar. For best.results use MR. COFFEE CLEANER. It is superior to
vinegar and has no unpleasant odor.
Using Mr. Coffee Cleaner
(Read caution statement on side panel of Mr. Coffee Cleaner box before
use)
1. Fill the decanter with 4-5 decanter cups of warm water.
2. Empty contents of one packet of MR. COFFEE CLEANER into the
decanter and stir with a plastic or wooden spoon until the cleaner is
completely dissolved. This will make a clear blue solution.
3. Pour the blue solution into the coffeemaker.
4. Place the empty decanter on the warming plate. The swivel basket
with the black filter basket in place should be closed.
5. Turn your coffeemaker on.
6. When the blue solution has stopped flowing, turn your coffeemaker
Off.
7. Discard the blue solution and thoroughly rinse the decanter, lid and
brew funnel.
8. Repeat steps 1-7 with clean water only (no blue solution).
Continue to rinse out the unit until you see no remaining traces
of the Mue solution.
9. If a normal brewing flow rate is not achieved, repeat the cleaning steps
1-8.
10
