Mr.SHOT SUN User manual

USER GUIDE
Instant Running Water Heater
Please read this guide carefully before using the product
®
Mr.SHOT ®

1
Index
Page No.
1
2
3
4
5
6
7
8
9 &10
11
12
13
14
Index
Introduction
Product Features &
Manual for installation and use
Installation Instructions
Product Components
Installation Images
Fixing Instructions
Knowing How & When the Device Works
Product Models & Features
Accessories List for the respective Models
Descaling Process &
Specifications
Common Problems And Ways To Handle
Conclusion
Contents

®
Mr.SHOT is a novel device designed to supply hot water instantaneously! Comparing to
®
other storage geysers, Mr.SHOT conserves electricity. It is the most advanced heater and
as such can be installed anywhere. The specialty of this heater is that it heats only the
amount of water economically needed for the use.
Dear Customer,
®
Welcome to the world of Mr.SHOT instant running water heater! Thanks for choosing
Mr.SHOT instant electric water heater the most durable, dependable and safe product in
the market today.
We are delighted to share that you are a owner of this product, which is first of its kind in
India, designed and developed by an exclusive team of experienced professionals. The
unique feature is that the geyser is corrosion proof. Tested to withstand any temperature of
hot water. The advanced German technology design aids to delay scale formation inside
the geyser.
We are pleased to proclaim that we are the manufacturers of India’s first 5 models and 9
®
colors in 1 instant running water heater. Some of the models of Mr.SHOT can be carried
anywhere and fitted everywhere based on your convenience.
Please read this User Guide carefully before using the product for the first time.
The User Guide will help you to understand the proper handling of the water heater, its
installation and work process and use.
You can directly contact the seller in your region or our company for after sales and service
of the product.
2
Introduction
®

3
Product Features
Good appearing, corrosion-proof and unbreakable ABS plastic body.
o
Heats water up to 75 C within 20 seconds.
It can be fitted anywhere and everywhere based on your convenience.
No pollution, hence environment-friendly.
Automatic power cut off in case of over-heating.
Auto on or manual reset facility available in some of the models.
Thin body design, streamlined appearance, international fashion.
Instant use, no need to waste your precious time.
Manufactured using advanced techniques and high-precision testing instruments.
The essential components of the product meet the ISI standards.
Ideal to use in houses, beauty salons, hostels, hotels, schools and factories where
there is an instant need of warm/hot water supply (Strictly not for drinking purpose).
Except a qualified technician, do not entertain others to dismantle, repair or change the
water heater or the wire of the device; failing which may result in fire, electricity
leakage, or damage to the product.
Ensure proper 3/20 gauge (2.5 Sq.mm) CTS copper wire, 16 A fuse and power plug.
Ensure all power and voltage related criteria are met for proper working of the water
heater.
Use only 220 Volts AC current and 16 A three pin plug. It is required that this
device be properly grounded. Do not share the plug base with any other electrical
appliances, failing which may cause fire or short circuit.
After completing the installation, make sure that the water overflows from the geyser
before switching on the heater.
Attention during installation
Manual for installation and use

4
Installation Instructions
1. This water heater must be installed by an experienced electrician.
2. Fix the water heater at your convenience. Refer to the appropriate pictures and
description of the model mentioned in page numbers xxxxxx
3. Use connecting tube to connect the water inlet from the faucet and the hot water pipe to
the outlet.
4. After completing the installation, turn on the cold / hot faucet and then turn on the power.
Note: Ensure the use of proper 3/20 Gauge (2.5 Sq.mm) CTS copper wire, 16 A fuse and
power plug. It is unsafe for the children or infirm person to use this appliance without proper
adult supervision. This is not a toy, therefore never allow any children to play with it.
Fix the pipe (as in the image)
1. Place the water heater at your convenient place.
2. Connect the water inlet / outlet with connecting tube .
3. After finishing installation, turn on the tap; turn on the power after ensuring supply of
water coming out from the tap.
Note: Use 16 A plug for the power wire.
1. It is required that this device be properly grounded and never dismantle the earthing of
the device for any reasons.
2. Don’t connect any water control points in the outlet of the device. The outlet is meant
only for the outflow of the heated water; therefore never block the water flow, especially
when the power is on.
3. If the power wire is not long enough or damaged, ask the electrician to replace it with
wire of good quality.
4. After using the device, please switch off the power, then turn off the water valve.
5. Keep the water outlet clean from any blockages, ensuring a smooth water flow.

5

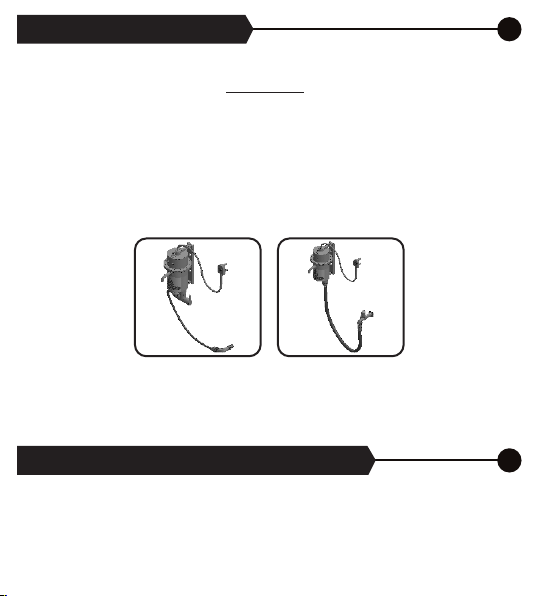

Product Components

6
Assembling Process
Should use Teflon tape
while connecting all joints
This basic assembling process is common for all the premium models of Mr.SHOT

7
Now plug into the power supply and ensure the water outflow through the geyser. Finally,
®
you can switch on the geyser and start enjoying Mr.SHOT s heated water endlessly.
Use Teflon tape to every water flow joint to avoid leakage.
®
For a clear understanding of the assembling process, watch the Mr.SHOT installation
videos from the channel and also visit the video streaming on our
website: www.mrshot.in For further details, you may use the QR Code also.
Fixing Instructions

8
Knowing How & When the Device Works
®
All the 5 models of Mr.SHOT has these special features :
1. Automatic on/off 2. Manual reset mechanism.
1. Automatic On/Off :
After ensuring proper water overflow from the geyser, switch on the power, this results
in glowing of the green light. Following 10 seconds after switching on, the hot water starts
flowing out. In the instance where there is no water input into the heater, the device heats
o
up the available water up to 70-80 C and then automatically shuts off and is indicated
by the glow of red light. There is no need to panic, instead ensure proper water supply into
the device or you can just switch off the power supply, if there is no need. In the event of
o
not noticing this, the available water inside the geyser cools down to 40-50 C, the device
automatically starts heating up the water resulting in the glow of green light again.
If this is not noticed, the same process keeps repeating. (Hence do not use this as on/off
of the device). Do not always keep the power on, switch on only when needed.
2. Manual Reset :
After ensuring proper water overflow from the geyser, switch on the power, this results
in glowing of the green light. Following 10 seconds after switching on, the hot water starts
flowing out. In the instance where there is no water input into the heater, the device heats
o
up the available water up to 70-80 C and then automatically shuts off and is indicated
by the glow of red light. There is no need to panic, instead ensure proper water supply into
the device or you can just switch off the power supply, if there is no need. If you need
continuous supply of hot water, just press the manual reset button once. Now the green
light glows indicating regular flow of hot water.
Manual Reset

9
Different ways to use it
DIRECT TAP
Product Models & Features
1) SUN 2)
®
Mr.SHOT ECONOMY 3) CLASSIC
4) PRIME 5) MAX
MODELS
Position the geyser in the method shown in the picture, and strictly avoid
using other positions which will harm the life of the geyser and will make you
ineligible to claim the warranty of the product.
Accessories List for the respective Models
1) Connecting Hose 1.5 Meters 1 No. 2) Royal union 1No. 3) Connecting Nipple 2 Nos.
4) Wall Screw 2 Nos. 5) Users manual 1 No.

10
Product Models & Features

11
Accessories List for the respective Models

12
Descaling Process
Specifications
In order to remove the salts and sediments that may accumulate in the device as a result of
the contact of hard water on the element for a long period of time, descaling is done. Unlike
®
the other storage geysers, the highlight of Mr.SHOT is that you yourself can do the
descaling easily without seeking the assistance of plumber and electrician.
HOW?
Pour a quantity of 100 ml HCL (that is 20% concentrated) along with 200 ml soft water into
the geyser. Leave the geyser for 15 minutes. Shake vigorously, then drain the acid water
completely and flush the geyser with fresh water for 2 minutes. Do this process on every 9
to 12 months interval depending on the hardness of water.
If descaling is not done on the device regularly, it may cause delay in the heating time of
water, which would increase the power consumption, obviously expend more money and
also the life of the device will be affected.
Voltage
Wattage
Thermostat & Element
Heating Element
Resistance to Water Hardness
:
:
:
:
:
220 - 240V
50Hz - 3 Kw
Certified
Coated direct immersion type with patented termination.
Safe up to 600 ppm

13
Common Problems And Ways To Handle
REASON (S) POSSIBLE SOLUTION (S)
water inlet and
Water leakage from
the
outlet joint
Water is too cold
a) The voltage may be too low
b) Water flow may be too high
Water is too hot
a) Water flow may be too low
b) The outlet tube might have
been blocked
a) Adjust the water valve
according to your desired
temperature
b) Clean the outlet or allow a
smooth water flow
INDICATION OF THE
PROBLEM(S)
a) The inlet/outlet joint(s) may
not be properly fitted.
b) The rubber ring of joint
might have been damaged
b) Replace the new rubber ring
a) Properly fix the water pipe
again
a) Check the voltage and wait
until the voltage becomes normal
b) Adjust the water valve to
decrease the water flow
a) The fuse wire may be too thin
or the switch /plug may be too
old or worn out
Replace with 16A fuse wire or
replace the switch/plug
The switch is shut
down or the fuse is
burnt
The power indicator
light is not glowing
a) May not be connected the
power
a) Connect to the power supply
Water temperature:
sometimes hot /
sometimes cold
b) Ensure normal water flow
a) Ensure normal voltage
a) Voltage may not be stable
b) Water flow may not be
stable
Remarks: Even after trying all these possible solutions, if the problem still persists,
please contact your nearest service center or the dealer from which the purchase has
been made, or our after sales and service department.
Do not dismantle the machine by yourself at any cost.

®
Thanks for buying our Mr.SHOT instant electric water heater.
®
For any service and support of Mr.SHOT , you can directly contact our seller in your
region or the after sales and service department of our company. We will be pleased to
be at your service.
In order to serve you better, please pay attention to the following details:
1. The product is guaranteed for a period of one year from the date of purchase during
which any repair/defects can be brought to the local maintenance department along
with the invoice and warranty card. We will not be able to undertake the maintenance
or service of your device without producing the warranty card (or) invoice, so keep it
carefully.
2. In case of any problems or non-working of the device, you should not dismantle or
reassemble the product, otherwise the product will lose its warranty right.
3. Our company will not take any responsibility for the accidents or any other
mishandling of this device.
4. For the convenience of product maintenance, please preserve the carton of the
product.
We believe that we have given you a useful and a long-lasting product in your hand!!
®
Enjoy the benefits of Mr.SHOT in your place!!!
14
Thank you!
Jai Hind!!!
Conclusion
®

Model :
Quantity : One
YES WE ASSOCIATES
162-163, Rasi Building, Ponnaiahrajapuram, Opp. Seetharam Hopital
Coimbatore - 641 001, Tamil Nadu, INDIA.
Phone : [phone] Cell : [phone]
www.mrshot.in
Manufactured and Marketed by :
Instant Running Water Heater
®
