Mr. steam Audiowizard 2.0 User manual

.steam

Feel Good Inc.

AudioWizard®2.0

Installation & Operation Manual

BOX CONTENTS:

AudioWiz-iS

(use with iSteam®control)

• AudioWizard

AudioWiz-BK

(use with eTempo & iTempo controls)

• AudioWizard

• AW Control

Table of Contents:

INSTALLATION ––––––––––––––––––––––––––

SafetyInstructions ....................2

BoxContents ........................2

ControlOptions ......................3

Wiring & Speaker Connections . . . . . . . . . .3

Dimensional Information . . . . . . . . . . . . . . .3

Locating the AudioWizard . . . . . . . . . . . . . .4

AW Control Cable Installation . . . . . . . . . . .4

AudioWizard Control Installation . . . . . . . . .4

Connecting the Control to AudioWizard . . .5

OPERATION ––––––––––––––––––––––––––––

SafetyInstructions ....................6

Pairing with a Bluetooth Device . . . . . . . . . .6

iSteamInterface ......................7

AW Control Interface . . . . . . . . . . . . . . . . . .7

Specifications ........................8

Warranty ............................8

_______________________________________________________________

As you follow these instructions, you will notice warning and caution

symbols. This blocked information is important for the safe and efficient

installation and operation of this AudioWizard control. These are types

of potential hazards that may occur during installation and operation

states a hazard may cause serious injury or death if

precautions are not followed.

signals a situation where minor injury or product

damage may occur if you do not follow instructions.

IMPORTANT NOTE:

This highlights information that is especially

relevant to a problem-free installation.

______________________________________________________________

These servicing instructions are for use by

qualified service personnel only. To reduce the risk of electric

shock, do not perform any servicing other than that contained

in the operating instructions.

WARNING

CAUTION

IMPORTANT SAFETY INSTRUCTIONS

•Read these instructions.

•Keep these instructions.

• Heed all warnings.

• Follow all instructions.

• Do not use this apparatus near water.

• Clean only with a dry cloth

• Install in accordance with the manufacturer’s instructions.

• Do not install near any heat sources such as radiators, heat

registers, stoves or other apparatus (including amplifiers)

that produce heat.

• Do not defeat the safety purpose of the polarized or

grounding type plug. A polarized plug has two blades

with one wider than the other. A grounding type plug has

two blades and a third grounding prong. The wide blade

or the third prong are provided for your safety. If the pro-

vided plug does not fit into your outlet, consult and

electrician for replacement of the obsolete outlet.

• Protect the power cord from being walked on or pinched,

particularly at plugs, convenience receptacles and the

point where they exit from the apparatus.

• Only use attachments/accessories specified by the

manufacturer.

• Unplug this apparatus during lightning storms or when

unused for long periods of time.

• Refer all servicing to qualified service personnel. Servicing

is required when the apparatus has been damaged in any

way, such as power-supply cord or plug is damaged, liquid

has been spilled or objects have fallen into the apparatus,

the apparatus has been exposed to rain or moisture, does

not operate normally or has been dropped.

steam

I N S TA L L AT I O N AudioWizard

™

2.0

__________________________________________________________________

AudioWizard™2.0

The AudioWizard sound system is the perfect way

to bring music into your steam room or shower.

The AudioWizard is easy to install and is compati-

ble with many audio sources such as portable

music players and smart phones equipped with

Bluetooth®.

The AudioWizard can be controlled with the

iSteam steambath control or with the AW stand-

alone control.

The AudioWizard is equipped with a Bluetooth®

transceiver and an amplifier to host your speakers.

Just pair your Bluetooth®device and start playing

your favorite music. Digital files or internet radio

from your audio device will be sent wirelessly to

the AudioWizard device located behind the wall,

above the ceiling, or within a vanity closet.

Prolonged use of the steam sys-

tem can raise excessively the internal human body

temperature and impair the body's ability to regu-

late its internal temperature (hyperthermia). Limit

your use of steam to 10 -15 minutes until you are

certain of your body's reaction. See the Mr. Steam

Residential Steam Bath Generator System Installa-

tion Operation and Maintenance manual (PUR

100472) for complete details on steam room use.

The manual can be downloaded at

www.mrsteam.com/support/downloads.html

SUB CH4 CH3 CH1

CONTROL AUDIO

INPUT

Power

Indicator

Speaker

Output

Audio

Input

Control

Connection

Wiring Connections and Dimensional Information

DO NOT connect speaker ground wires together.

DO NOT bridge channels

WARNING

Speaker Connections

All drawings are for illustrative purposes only.

AudioWizard

Mr.Steam

Speakers

iSteam

Control

S T E A M R O O M

Grounded

Wall Outlet

Steam

Generator

AW Control

iTempo or

iTempoPlus Control

AudioWizard

Mr.Steam

Speakers

S T E A M R O O M

Grounded

Wall Outlet

Steam

Generator

Diagram A

Diagram B

Control Options for the AudioWizard

Operating the AudioWizard with the iSteam control.

Operating the AudioWizard with the

AudioWizard stand-alone control.

Mounting Instructions

The Audiowizard can be mounted to a wall using

the keyhole slots provided, or placed on any

horizontal surface.

AudioWizard shall be connected

to a main socket with a protective earthing connec-

tion. The socket shall remain readily accessible.

steam

I N S TA L L AT I O N AudioWizard

™

2.0

__________________________________________________________________

AW Control Cable Installation

Do not force or twist cable connectors together.

Forcing or twisting cable connectors may damage the connectors.

Do not route the AudioWizard control cable inside conduit together with power

wires, close to hot water or steam piping. Do not strain, staple, pinch or otherwise damage the

AudioWizard control cable. Doing so may result in an inoperative installation.

Route the AudioWizard control cable from the AudioWizard to the desired control location.

If using an iSteam control see the iSteam Control IOM (PUR 100477) for complete details

on locating and installing the iSteam control.

AW Control Installation

(The AW control is not required when

used with an iSteam Control.)

To install the AW control, select the most

convenient location for the control. A

1” diameter hole is needed to mount the

control. Clean the surface, peel the back-

ing paper from the adhesive on the con-

trol, run a bead of silicone around the back

of the control to ensure a wtaer tight seal

and insert the control into the hole (see

illustration).

Pull off

adhesive gasket

Outside of control

SILICONE

1” diameter

CAUTION

All drawings are for illustrative purposes only.

Locating the AudioWizard

The AudioWizard control cable is 30ft and the power

cord is 6ft, ensure the control and AudioWizard are

located accordingly.

Locate in a dry location where the wireless signal will

not be interrupted. Test Bluetooth®signal before

mounting AudioWizard.

ELECTRIC SHOCK HAZARD!

To reduce the risk of fire or electric shock, do not

expose this apparatus to rain or moisture. DO NOT

install AudioWizard in the steam room or any location

where it may become wet.

WARNING

IMPORTANT NOTE: A hole larger

than 1 inch diameter will not be

sealed or covered by the AW Control.

steam

I N S TA L L AT I O N AudioWizard

™

2.0

__________________________________________________________________

AW Control

Control Pigtail

Control

Cable 30’

Blue Cap Audio Pigtail

(7-1/4”)

Command

Audio Stream

Smart Phone

Mobile Device

iSteam

Control

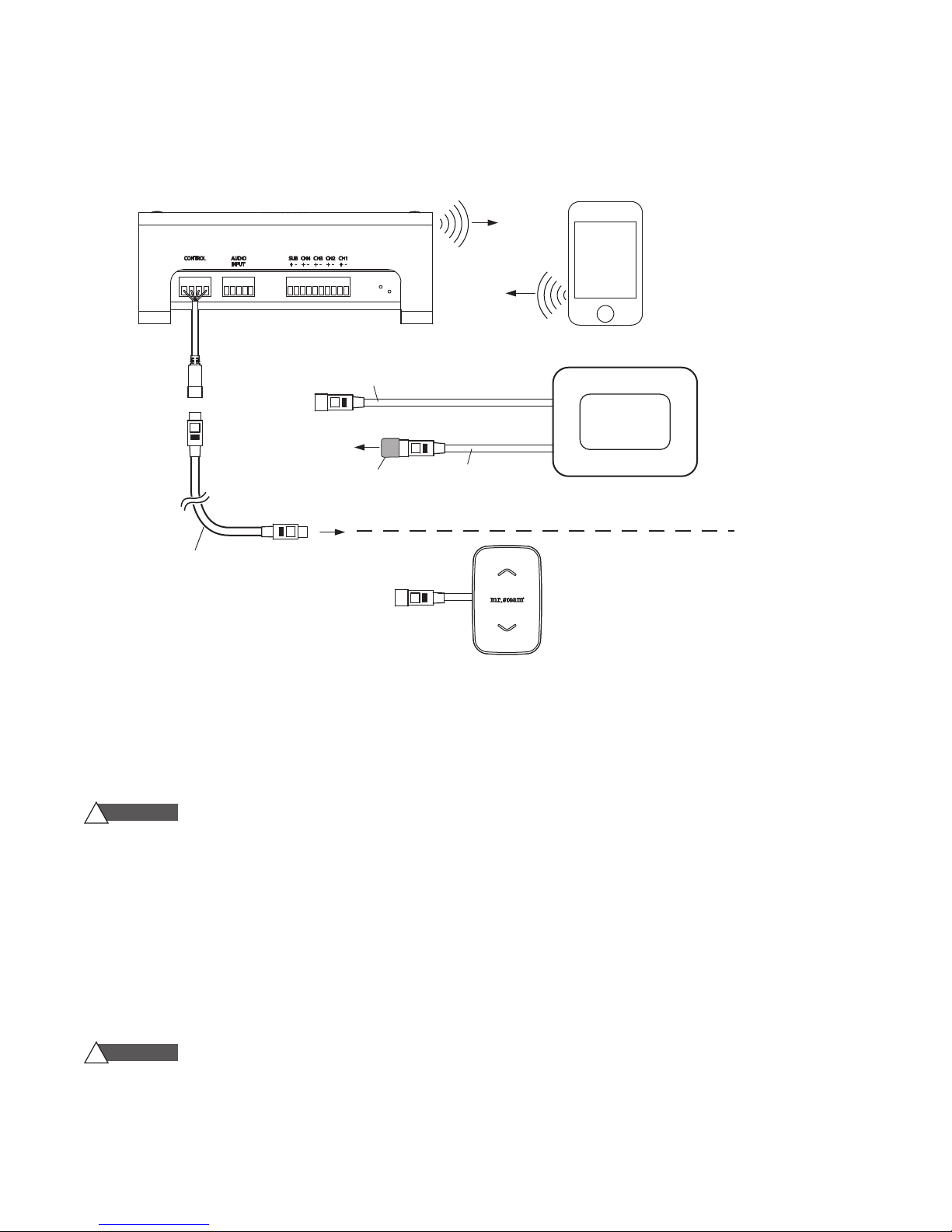

Connecting the Control to AudioWizard®

The AudioWizard must be connected to either the iSteam®con-

trol or the AW control as shown. AudioWizard is supplied with a

30 ft. cable that has 6-pin mini-din male connectors on each end.

Do not force or twist connectors together.

Forcing or twisting connectors may damage the connectors.

iSteam

iSteam's audio pigtail is the shorter of the two pigtails, it is cov-

ered with a bluecap. Remove the blue cap and plug in the cable.

AW Control

Plug the AudioWizard cable into the AW control pigtail.

All Audio wiring shall be installed in accordance

with National Electric Code and local electrical codes.

CAUTION

All drawings are for illustrative purposes only.

steam

O P E R AT I O N AudioWizard

™

2.0

__________________________________________________________________

1. Initiate pairing mode from your in-shower control.

iSteam

Press the Bluetooth button in the Music screen on the

iSteam control to initiate pairing. The AudioWizard

pairing mode will last for 2 minutes.

AW Control

Press and hold the UP and DOWN buttons simultane-

ously on the AW control for 2 seconds to initiate pairing.

When in pairing mode the AW keypad will light up.

The Audiowizard pairing mode will last for 2 minutes.

2. Open the Bluetooth settings on your device.

Refer to your device manufacturer for specific

instruction on how to reach these settings.

3. In these settings, turn Bluetooth on (if it is not

already on)

4. Choose “Mr. Steam Audio” from the list of available

devices.

IMPORTANT NOTE:

Phone conversations

may play through your AudioWizard, consult your

phone’s user manual to learn how to disconnect

call audio.

Your mobile device should now be paired with

the AudioWizard system and ready to use.

If more than one device tries to connect to the

AudioWizard system, the priority goes to the first

device that is available during searching.

Bluetooth Connection

Once the Bluetooth pairing is complete and con-

nection has been established between the devices,

the AudioWizard will be ready to start playing

audio.

If the device moves out of range and loses connec-

tion it should reconnect automatically as soon as it

moves back into range.

Pairing a Bluetooth Device to AudioWizard 2.0

As you follow these instructions, you will notice

warning and caution symbols. This blocked infor-

mation is important for the safe and efficient in-

stallation and operation of this AudioWizard

control. These are types of potential hazards that

may occur during installation and operation

states a hazard may cause serious

injury or death if precautions are not followed.

signals a situation where minor in-

jury or product damage may occur if you do not

instructions.

IMPORTANT NOTE:

This highlights information that is especially rele-

vant to a problem-free installation.

__________________________________________________________

Prolonged use of the steam system

can raise excessively the internal human body tem-

perature and impair the body's ability to regulate its

internal temperature (hyperthermia). Limit your use of

steam to 10 -15 minutes until you are certain of your

body's reaction. See the Mr. Steam Residential

Steam Bath Generator System Installation Operation

and Maintenance manual (PUR 100472) for complete

details on steam room use. The manual can be down-

loaded at ww.mrsteam.com/support/downloads.html

WARNING

CAUTION

IMPORTANT SAFETY INSTRUCTIONS

•Read these instructions.

• Keep these instructions.

• Heed all warnings.

• Follow all instructions.

• Do not use this apparatus near water.

• Clean only with a dry cloth

• Install in accordance with the manufacturer’s instructions.

• Do not install near any heat sources such as radiators, heat regis-

ters, stoves or other apparatus (including amplifiers) that pro-

duce heat.

• Do not defeat the safety purpose of the polarized or grounding

type plug. A polarized plug has two blades with one wider than

the other. A grounding type plug has two blades and a third

grounding prong. The wide blade or the third prong are pro-

vided for your safety. If the provided plug does not fit into your

outlet, consult and electrician for replacement of the obsolete

outlet.

• Protect the power cord from being walked on or pinched, partic-

ularly at plugs, convenience receptacles and the point where

they exit from the apparatus.

• Only use attachments/accessories specified by the manufacturer.

• Unplug this apparatus during lightning storms or when unused

for long periods of time.

• Refer all servicing to qualified service personnel. Servicing is re-

quired when the apparatus has been damaged in any way, such

as power-supply cord or plug is damaged, liquid has been

spilled or objects have fallen into the apparatus, the apparatus

has been exposed to rain or moisture, does not operate nor-

mally or has been dropped.

AUX

steam

O P E R AT I O N AudioWizard

™

2.0

__________________________________________________________________

B. AW Control

The AudioWizard will automatically

turn on when audio is sent to it.

AudioWizard automatically enters sleep mode

2 minutes after music stops.

The AW Control will light up when music is sent to the AudioWizard

and turn off when the AudioWizard enters sleep mode.

C. iSteam 1.0 Interface

AudioWizard 2.0 is compatible with iSteam 1.0.

However some of the buttons are no longer required.

All drawings are for illustrative purposes only.

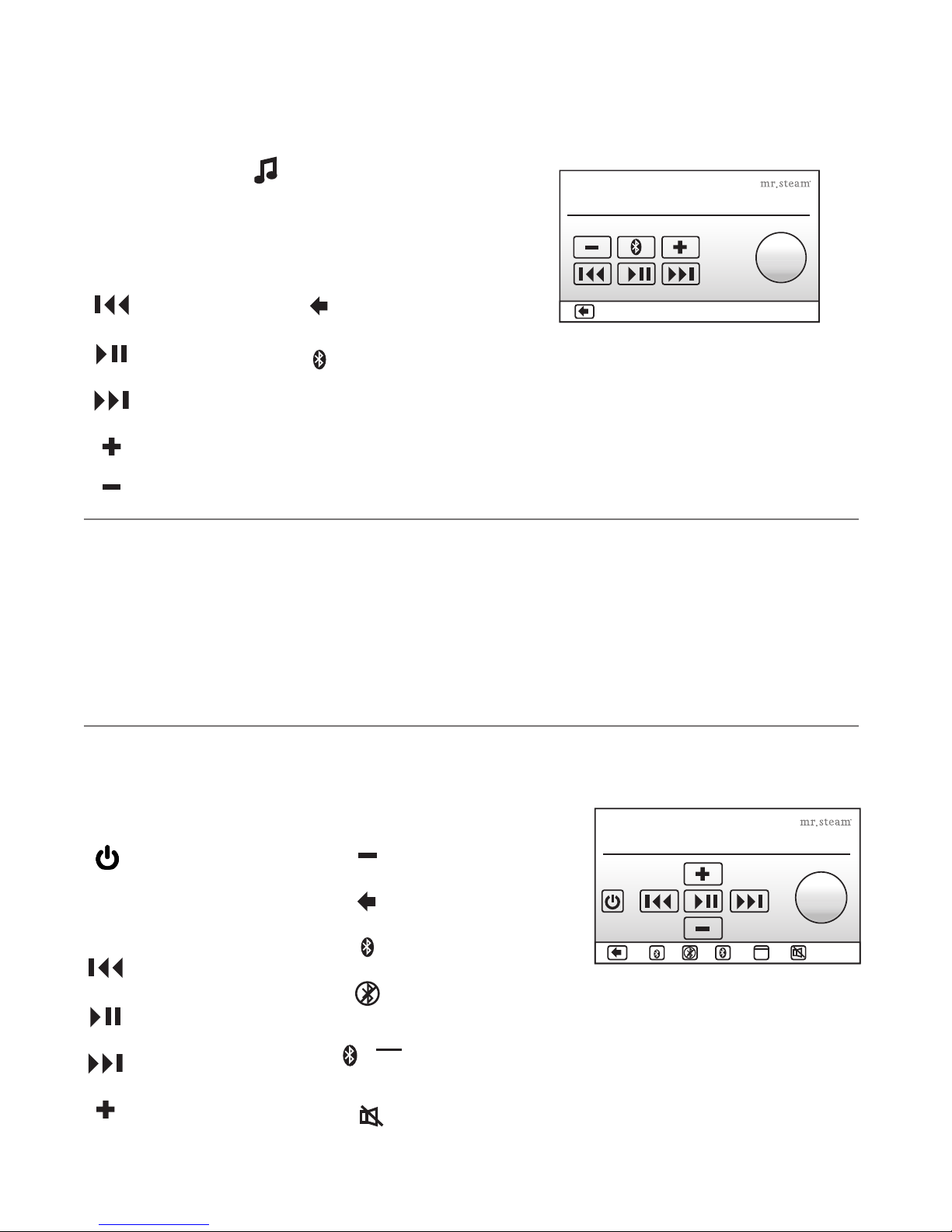

A. iSteam®2.0 Interface

Press the MUSIC button to access the AudioWizard screen

The Audiowizard will automatically turn on when audio

is sent to it.

AudioWizard automatically enters sleep mode 2 minutes

after music stops.

Previous Track

(Bluetooth®only

)

Play/Pause

(

Bluetooth only

)

Next Track

(Bluetooth only

)

Increase Volume

Decrease Volume

STOP

8:19 AM

MUSIC

Return to

Previous Screen

Bluetooth Pairing

Button

If you are using a Bluetooth audio source,

it must be connected for functions to work.

Please refer to the Bluetooth®pairing in-

structions in this manual.

Please note that the Play/Pause and

Change Track functions apply to Bluetooth

only, and will not work when playing audio

from a hard wired music source.

iSteam 2.0 Control

AudioWizard Interface

AUX

STOP

8:19 AM

MUSIC

iSteam 1.0 Control

AudioWizard Interface

Power button is no longer

needed, AudioWizard 2.0

automatically turns on when

music is streamed and turns

off when music is stopped.

Previous Track

(Bluetooth®only

)

Play/Pause

(

Bluetooth only

)

Next Track

(Bluetooth only

)

Increase Volume

Volume Up Press and hold up arrow

Volume Down Press and hold down arrow

Change Tracks Momentarily press up for

next track and down for

previous track.

Decrease Volume

Return to Previous Screen

Press to enter Pairing Mode

Unpair Bluetooth is not

used on AudioWizard 2.0

Music source buttons are no longer

used. AudioWizard 2.0 automatically

recognizes the music input.

Mute button is not used on AudioWizard 2.0

steam

O P E R AT I O N AudioWizard

™

2.0

__________________________________________________________________

steam

Feel Good Inc.

www.mrsteam.com

mr.steam®

Sussman-Automatic Corporation®I [email protected] I www.mrsteam.com

43-20 34th Street, Long Island City, NY 11101 I 9410 S. La Cienega Blvd. Inglewood CA 90301

1 800 76 STEAM

FAX

718 472 3256 I 1 800 72 STEAM

FAX

310 216 2944

2014 © Sussman-Automatic Corporation I Mr.Steam and des., AromaFlo, AutoFlush, AutoSteam, Butler Package, ChromaSteam, Clean Steam...Every Time,

Club Therapy, Digital 1, Express Steam, From Bathroom to Spa, iGenie, iSizing, iSteam, iSteam/Plus, Making Wellness a Way of Life, MusicTherapy, Spa Package,

Steam Genie, Steam on Demand, Steam@Home, iTempo, iTempo/Plus, SteamTherapy, Sussman, Valet Package, Virtual Spa System, Voice Genie and Voice Wiz-

ard are registered trademarks of Sussman-Automatic Corporation. AudioWizard, A Lifetime of Pleasure, Home Wizard, iButler, iSteamTV, iTempo, iTempo/Plus,
