MrCool Advantage Series User manual

Please read this manual carefully before installation and keep it for future reference.

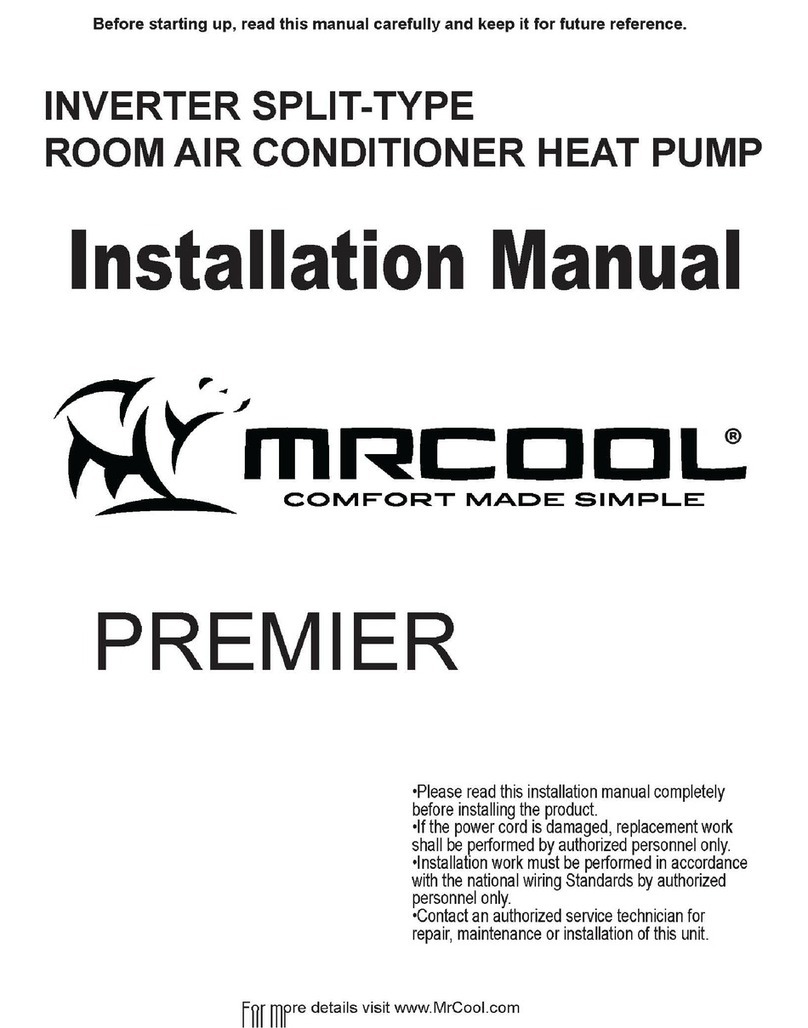

Installation Manual
Advantage Series
Installation Manual

Installation ManualInstallation Manual
Contents
Indoor Unit Installation ......... 10
1. Installation location ............................. 10
2. Attach mounting plate to wall .............. 11
3. Drill wall hole for connective piping ...... 11
4.
refrigerant piping ..................... 13
5. Connect drain hose............................... 14
6. Connect signal cable............................. 16
7. Wrap piping and cables ........................ 17
8. Connect indoor power wire .................. 17
9. Mount indoor unit ............................... 17
Outdoor Unit Installation .. 19
7
1. Installation location ...................... 19
2. Install drain joint .......................... 20
3. Anchor outdoor unit.................... 21
4. Connect signal and power cables 22
Safety Precautions ............................ 3
0
1
5
Accessories ......................................... 5
2
4
Parts .....................................................9
3
Installation Summary - Indoor Unit
.......
Page 1

Refrigerant Piping Connection ....... 24
A. Note on Pipe Length............................................... 24
B.
Connection Instructions – Refrigerant Piping ........... 24
1. Cut pipe ............................................................ 24
2. Remove burrs..................................................... 25
3. Flare pipe ends................................................... 25
4. Connect pipes..................................................... 26
Air Evacuation ................... 28
1. Evacuation Instructions ..................... 28
2. Note on Adding Refrigerant.............. 29
Electrical and Gas Leak Checks ....... 30
Test Run ............................................. 31
EU Disposal Guidelines ................... 33
6
7
8
9
10
MC MC
Contents
Page 2

Page 3
This symbol indicates ignoring instructions may cause death or serious injury.
This symbol indicates that ignoring instructions may cause moderate injury to
your person, damage to your unit, or other property.
Read Before Installation
Incorrect installation may cause serious damage or injury.
The seriousness of potential damage or injuries is classified as either a WARNING or CAUTION.
WARNING
CAUTION
WARNING
Do not modify the length of the power supply cord or use an extension cord to power the unit.
Do not share the electrical outlet with other appliances. Improper or insufficient power supply
can cause fire or electrical shock.
When connecting refrigerant piping, do not let substances or gases other than the refrigerant
enter the unit. The presence of other gases or substances will lower the unit’s capacity, and may
cause abnormally high pressure in the operation cycle. This may cause explosion and injury.
Do not allow children to play with the air conditioner. Children should be supervised around
the unit at all times.
1. Installation must be performed by an authorized technician. Improper installation may cause water
leakage, electrical shock, or fire.
2. Installation must be performed according to installation instructions. Improper installation may
cause water leakage, electrical shock, or fire.
(In North America, installation must be performed in accordance with the requirement of NEC and
CEC by authorized personnel only.)
3. Contact an authorized service technician for repair or maintenance of the unit.
4.
5. Install the unit in a firm location that can support the unit’s weight. If the installation location
cannot support the weight, or the installation is performed improperly, the unit may fall and cause
serious injury and/or damage.
This symbol indicates that you should never perform the indicated action.
Safety Precautions
Only use the included accessories and specified parts for installation. Using non-standard
parts can cause water leakage, elctrical shock, or fire and may cause the unit to fail.

For all electrical work, follow all appropriate wiring standards, regulations, and the Installation
Manual. You must use an independent circuit and single outlet to supply power. Do not connect
other appliances to the same outlet. Insuficient electrical capacity or defects in electrical work can
cause electrical shock or fire.
Page 4
WARNING
6.
7.
8.
9.
10.
11.
All wiring must be properly arranged to ensure that the control board cover can close properly. If
the control board cover is not closed properly, it can lead to corosion and cause the connection
points on the terminal to overheat , causing fire and/or electrical shock.
In certain functional environments, such as kitchens, server rooms, etc., the use of specially
designed air-conditioning units is highly recommended.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard
This appliance can be used by children aged from 8 years and above and persons with reduced
Physical, sensory or mental capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in a safe way and understand
the hazards involved. Children should not play with the appliance. Cleaning and user
maintenance should not be made by children without supervision.
CAUTION
For units that have an auxiliary electric heater, do not install the unit within 3 feet (1 meter)
of combustible materials.
Do not install the unit in a location that may be exposed to combustible gases. If combustible
gas accumulates around the unit, it may cause fire.
Do not operate your air conditioner in a wet room such as a bathroom or laundry room. Too
much exposure to water may cause electrical components to short circuit.
1. The product must be properly grounded during installation, or electrical shock may occur.
2. Install drainage piping according to the instructions in this manual. Improper drainage may
cause water damage to your home and property.
Note about Flourinated Gasses
1. This air-conditioning unit contains flourinated gases. For specific information on the type of gas
and the amount, please refer to the relevant label on the unit itself.
2. Installation, service, maintenance and repair of this unit must be performed by a certified
technician.
3. Product uninstallation and recycling must be performed by a certified technician.
4. If the system has a leak-detection system installed, it should be checked for leaks at least every
12 months.
5. Keep a record of all leak checks for the lifetime of the unit.
Safety Precautions
For all electrical work, fuse the specified cables. Connect cables tightly, and clamp them securely
to prevent external forces from damaging the terminal. Improper electrical connections may
overheat, causing fire and/or electrical shock.

Name
Shape Quantity
1
1
1
1
(for cooling & heating
models only)
Clip anchor
Mounting plate fixing
screw ST3.9 X 25
Remote control
Fixing screw for remote
controller holder ST2.9 x 10
Remote control holder
Dry battery AAA.LR03
Air freshening filter
Seal
Drain joint
Mounting plate
1
Accessories
The air conditioning system includes the following accessories. Use all of the installation parts and
accessories to install the air conditioner. Improper installation may result in water leakage, electrical
shock, fire, or equipment failure.
5
5
2
1
Optional
Parts
2
Page 5

1
1
1
Owner’s Manual
Installation Manual
Remote Control Manual
INVERTER SPLIT-TYPE ROOM AIR CONDITIONER
CS78421-548-754
IMPORTANTNOTE:
Read this manual carefully beforeinstalling
or operating your new air conditioning
unit. Make sure to save this manual for
futurereference.
Owner’s Manual
All Model Numbers
INVERTER SPLIT-TYPE ROOM AIR CONDITIONER
CS78421-548-754
IMPORTANTNOTE:
Read this manual carefully beforeinstalling
or operating your new air conditioning
unit. Make sure to save this manual for
futurereference.
Installation Manual
INVERTER SPLIT-TYPE ROOM AIR CONDITIONER
CS78421-548-754
IMPORTANTNOTE:
Read this manual carefully before installing
or operating your new air conditioning
unit. Make sure to save this manual for
futurereference.
Remote controller
illustration
Page 6
Name
Shape Quantity
Parts you must purchase.
Consult the dealer about
the pipe size.
Connecting pipe assembly
Liquid side
Gas side
6.35(1/4i n)
9.52(3/8in)
9.52(3/8in)
12.7(1/2in)
16( 5/8in)
Accessories
Smart Controller Kit 1
(w/ Manual in Controller Box)
Neoprene 1
(Sealant for Wall Sleeve)

Page 7
Select Installation Location
(Page 10)
Attach Mounting Plate
(Page 11)
Drill Wall Hole
(Page 11)
Installation Summary - Indoor Unit 2
Determine Wall Hole Position
(Page 11)
1 2
34
Minimum Ceiling
Clearance is
15cm (5.9in)
(4.75in)
>12cm (4.75in) >12cm
For Ceilings Greater
Than 9Foot Suggested
Floor Clearance is
230cm(90.55in)
For Ceilings Less
Than 9 Foot Suggested
Floor Clearance is
200cm(78.55in)

Page 8
Mount Indoor Unit
(Page 17)
STEP 8
Wrap Piping and Cable
(Page 17)
L N S
Connect Piping
(Page 24)
Connect Wiring
(Page 16)
Prepare Drain Hose
(Page 13)
567
8
9
Installation Summary - Indoor Unit

Page 9
Parts 3
Fig. 2.1
NOTE ON ILLUSTRATIONS
Illustrations in this manual for explanatory purposes. The actual shape of your indoor unit may vary.
Wall Mounting Plate
Refrigerant Piping
Signal Cable
Remote Control
Drainage Pipe
Louver
Remote Holder
Functional Filter
Front Panel
Outdoor Unit
Power Cable
( Units)
Power Cable

Page 10
Indoor Unit Installation 4
Installation Instructions – Indoor
Unit
PRIOR TO INSTALLATION
Before installing the indoor unit, refer to the
label on the product box to make sure that the
model number of the indoor unit matches the
model number of the outdoor unit.
Step 1: Select installation location
Before installing the indoor unit, you must
choose an appropriate location. The following
are standards will help you choose an
appropriate location.
Proper installation locations meet the
following standards:
Good air circulation
Convenient drainage
Noise from the unit will not disturb other
people
Firm and solid—the location will not vibrate
Strong enough to support the weight of the
unit
A location at least one meter from all other
electrical devices (e.g., TV, radio, computer)
DO NOT install unit in the following locations:
Near any source of heat, steam, or
combustible gas
Near flammable items such as curtains or
clothing
Near any obstacle that might block air
circulation
Near a doorway
In a location subject to direct sunlight
NOTE ABOUT WALL HOLE:
If there is no fixed refrigerant piping:
While choosing a location, be aware that you
should leave ample room for a wall hole (see
Drill wall hole for connective piping step)
for the signal cable and refrigerant piping that
connect the indoor and outdoor units. The
default position for all piping is the right side
of the indoor unit (while facing the unit).
However, the unit can accommodate piping
to left or right.

Page 11
Refer to the following diagram to ensure proper distance from walls and ceiling:
Step 2: Attach mounting plate to wall
The mounting plate is the device on which you
will mount the indoor unit.
Remove the screw that attaches the mounting
plate to the back of the indoor unit.
Place the mounting plate against the wall in a
location that meets the standards in the
Select Installation Location step. (See
Mounting Plate Dimensions for detailed
information on mounting plate sizes.)
Drill holes for mounting screws in places that:
• have studs and can support the weight of
the unit
• correspond to screw holes in the mounting
plate
Secure the mounting plate to the wall with
the screws provided.
5. Make sure that mounting plate is flat against
the wall.
r
the wall.
NOTE FOR CONCRETE OR BRICK WALLS:
If the wall is made of brick, concrete, or similar
material, drill 0.2in-diameter (5mm-diameter)
holes in the wall and insert the sleeve anchors
provided. Secure the mounting plate to the
wall by tightening the screws directly into the
clip anchors.
Step 3: Drill wall hole for connective piping
You must drill a hole in the wall for refrigerant
piping, the drainage pipe, and the signal cable
that will connect the indoor and outdoor units.
1. Determine the location of the wall hole based
on the position of the mounting plate. Refer
to Mounting Plate Dimensions on the
next page to help you determine the optimal
position. The wall hole should have a 2.5in
(65mm) diameter at least, and at a slightly
lower angle to facilitate drainage.
2. Using a 2.5in (65-mm) core drill, drill a hole in
the wall. Make sure that the hole is drilled at
a slight downward angle, so that the outdoor
end of the hole is lower than the indoor end
by about 0.2 to 0.275in (5mm-7mm). This will
ensure proper water drainage. (See Fig. 3.2)
3. Place the protective wall cuff in the hole. This
protects the edges of the hole and will help
seal it when you finish the installation process.
CAUTION
When drilling the wall hole, make to
avoid wires, plumbing, and other sensitive
components.
Fig. 3.1
Indoor Unit Installation
Minimum Ceiling
Clearance is
15cm (5.9in)
(4.75in)
>12cm (4.75in) >12cm
For Ceilings Greater
Than 9Foot Suggested
Floor Clearance is
230cm(90.55in)
For Ceilings Less
Than 9 Foot Suggested
Floor Clearance is
200cm(78.55in)

Page 12
Wall
Indoor Outdoor
5-7mm)
0.2 - 0.3in
(
Fig.3.2
MOUNTING PLATE DIMENSIONS
Different models have different mounting
plates. In order to ensure that you have ample
room to mount the indoor unit, the diagrams to
the right show different types of mounting
plates along with the following dimensions:
• Width of mounting plate
• Height of mounting plate
• W etalpotevitalertinuroodnifohtdi
etalpotevitalertinuroodnifothgieH•
• Recommended position of wall hole (both
to the left and right of mounting plate)
• Relative distances between screw holes
Fig. 3.3
Correct orientation of Mounting Plate
4in (101mm)
7.05in (179mm)
5.35in (136mm)
1.45in (37mm)
11.4in (290mm)
1.95in (49mm)
Left rear wall
hole 2.5in (65mm)
Right rear wall
hole 2.5in (65mm)
Indoor unit outline
28.45in (722mm)
1.95in (49mm)
7.55in (192mm)
9.15in (232mm)
16.8in (426mm)
5.05in (128mm)
1.7in (43mm)
11.7in (297mm)
Left rear wall
hole 2.5in (65mm)
Right rear wall
hole 2.5in (65mm)
Indoor unit outline
31.6in (802mm)
1.7in (43mm)
1.7in (43mm)
5.65in (144mm)
2.3in (58mm)
12.55in (319mm)
2.25in (57mm)
1.55in (40mm)
Left rear wall
hole 2.5in (65mm)
Right rear wall
hole 2.5in (65mm)
38in (965mm)
5.45in (138mm)
1.35in (34mm)
Indoor unit outline
8.6in (219mm)
21.77in (553mm)
11.8in (300mm)
13.2in (335mm)
Left rear wall
hole 2.5in (65mm)
Right rear wall
hole 2.5in (65mm)
42.5in (1080mm)
2.1in
(53.5mm)
1.85in (47mm)
3in (76mm) 2.1in (53.5mm)
1.85in (47mm)
5.85in
(148.7mm)
5.95in (151mm)
6.85in (174.3mm)
Indoor unit outline
20.37in (517.4mm)
13.7in (348.4mm)
Indoor Unit Installation
Series 12K Models
Series 9K Models
Series 18K Models
Series 24K Models

Page 13
CAUTION
Be extremely careful not to dent or damage the piping while bending them away from the unit.
Any dents in the piping will affect the unit’s performance.
Step 4: Prepare refrigerant piping
The refrigerant piping is inside an insulating
sleeve attached to the back of the unit. You
must prepare the piping before passing it
through the hole in the wall. Refer to the
Refrigerant Piping Connection section of
this manual for detailed instructions on pipe
1. Based on the position of the wall hole
relative to the mounting plate, choose the
side from which the piping will exit the unit.
2. If the wall hole is behind the unit, keep the
knock-out panel in place. If the wall hole is
to the side of the indoor unit, remove the
plastic knock-out panel from that side of
the unit. (See Fig. 3.3 ). This will create a
slot through which your piping can exit the
unit. Use needle nose pliers if the plastic
panel is too difficult remove by hand.
Knock-out Panel
Use scissors to cut down the length of the
insulating sleeve to reveal about 6in (15cm) of
the refrigerant piping. This serves two
purposes:
• To facilitate the Refrigerant Piping
Connection process
• To facilitate Gas Leak Checks and enable
you to check for dents
If existing connective piping is already
embedded in the wall, proceed directly to the
Connect Drain Hose step. If there is no
embedded piping, connect the indoor unit’s
refrigerant piping to the connective piping that
will join the indoor and outdoor units. Refer to
the Refrigerant Piping Connection section
of this manual for detailed instructions.
Based on the position of the wall hole relative
to the mounting plate, determine the
necessary angle of your piping.
Grip the refrigerant piping at the base of the
bend.
Slowly, with even pressure, bend the piping
towards the hole. Do not dent or damage the
piping during the process.
NOTE ON PIPING ANGLE
Refrigerant piping can exit the indoor unit from
four different angles:
• Left-hand side
• Left rear
• Right-hand side
• Right rear
Refer to Fig. 3.4 for details.
Fig. 3.3
Fig. 3.4
Indoor Unit Installation

Page 14
Step 5:Connect drain hose
By default, the drain hose is attached to the
left-hand side of unit (when you’re facing
the back of the unit). However, it can also
be attached to the right-hand side.
1. To ensure proper drainage, attach the
drain hose on the same side that your
refrigerant piping exits the unit.
2. Attach drain hose extension (purchased
separately) to the end of drain hose.
3. Wrap the connection point firmly with
Teflon tape to ensure a good seal and
to prevent leaks.
4. For the portion of the drain hose that
will remain indoors, wrap it with foam
pipe insulation to prevent condensation.
5. Remove the air filter and pour a small
amount of water into the drain pan to
make sure that water flows from the unit
hsmoothly.
NOTE ON DRAIN HOSE
PLACEMENT
Make sure to arrange the drain
hose according to Fig. 3.5.
DO NOT kink the drain hose.
DO NOT create a water trap.
DO NOT put the end of drain hose in
water or a container that will collect
water.
PLUG THE UNUSED DRAIN HOLE
To prevent unwanted leaks you must plug
the unused drain hole with the rubber plug
provided.
Make there are no
kinks or dent in the
Kinks in the drain hose
hose to ensure
proper drainage.
will c eate water traps.r
NOT CORRECT
NOT CORRECT
Do not place the end
of the drain hose in
water or in containers
that collect water. This
will prevent proper
drainage.
NOT CORRECT
Dents in the drain hose
will create water traps.
Fig. 3.5
Fig. 3.6
Fig. 3.7
Fig. 3.8
Indoor Unit Installation

Page 15
BEFORE PERFORMING ELECTRICAL WORK, READ THESE REGULATIONS
1. All wiring must comply with local and national electrical codes, and must be installed by a
licensed electrician.
2. All electrical connections must be made according to the Electrical Connection Diagram
located on the panels of the indoor and outdoor units.
3. If there is a serious safety issue with the power supply, stop work immediately. Explain your
reasoning to the client, and refuse to install the unit until the safety issue is properly resolved.
4. Power voltage should be within 90-100% of rated voltage. Insufficient power supply can
cause malfunction, electrical sock, or fire.
5. If connecting power to fixed wiring install a surge protector and main power switch with a
capacity 1.5 times the maximum unit current.
6. If connecting power to fixed wiring, a switch or circuit breaker that disconnects all poles and
has a contact separation of at least 1/8in (3mm) must be incorporated in the fixed wiring, The
qualified technician must use an approved circuit breaker or switch.
7. Only connect the unit to an individual branch circuit outlet. Do not connect another appliance
to that outlet.
8. Make sure to properly ground the air conditioner.
9. Every wirre must be firmly connected. Loose wiring can cause the terminal to overheat,
resulting in malfunction and possible fire.
10. Do not let wires touch or rest against refrigerant tubing, the compressor, or any moving parts
within the unit.
11. If the unit has an auxiliary electric heater, it must be installed at least 40in (1 meter) away
from combustible materials.
WARNING
BEFORE PERFORMING ANY ELECTRICAL OR WIRING WORK, TURN OFF THE MAIN POWER
TO THE SYSTEM.
Indoor Unit Installation

Page 16
Step 6: Connect signal cable
The signal cable enables communication
between the indoor and outdoor units and
provides power to the indoor unit. A 16
gauge AWG signal cable (H07RN-F) is
provided for the unit. The tables below are
for reference.
NOTE: the rated amp (A) draw will be at the
condenser (outdoor unit) and a table is
provided in that section, showing the
required power cable gauge specific to each.
Minimum Cross-Sectional Area of
Power and Signal Cables
Other Regions
Rated Current of
Appliance (A)
Nominal Cross-Sectional
Area (mm²)
> 3 and 6 0.75
> 6 and 10 1
> 10 and 16 1.5
> 16 and 25 2.5
> 25 and 32 4
> 32 and 40 6
CHOOSE THE APPROPRIATE CABLE SIZE
The size of the power supply cable, signal
cable, fuse, and switch needed is determined
by the maximum unit current. The maximum
unit current is indicated on the nameplate
located on the side panel of the unit. Refer to
this nameplate to choose the right cable, fuse,
or switch.
TAKE NOTE OF FUSE SPECIFICATIONS
The air conditioner’s circuit board (PCB) is
designed with a fuse to provide overcurrent
protection. The specifications of the fuse are
printed on the circuit board, such as:
T3.15A/250VAC, T5A/250VAC, etc.
1. Prepare the cable for connection:
a. Usingwirestrippers,strip therubberjacket
from both ends of signal cable to reveal
about 1.57in (40mm) of the wires inside.
b. Strip the insulation from the ends of the
wires.
c. Using wire crimper, crimp u-type lugs on
the ends of the wires.
PAY ATTENTION TO LIVE WIRE
While crimping wires, make sure you clearly
distinguish the Live (“L”) Wire from other wires.
2. Open front panel of the indoor unit.
3. Using a screwdriver, open the wire box cover
on the right side of the unit. This will reveal
the terminal block.
Terminal block
Wire cover
Screw
Cable clamp
WARNING
4. Unscrew the cable clamp below the terminal
block and place it to the side.
5. Facing the back of the unit, remove the plastic
panel on the bottom left-hand side.
Fig. 3.9
The Wiring Diagram is located
on the inside of the indoor unit’s
wire cover.
North America
Appliance Amps (A) AWG
10 18
13 16
18 14
25 12
30 10
ALL WIRING MUST PERFORMED IN
ACCORDANCE WITH THE WIRING DIAGRAM
LOCATED ON THE INSIDE OF THE INDOOR
UNIT’S WIRE COVER.
Indoor Unit Installation

Indoor Unit
Page 17
6. Feed the signal wire through this slot, from
the back of the unit to the front.
7. Facing the front of the unit, match the wire
colors with the labels on the terminal block,
connect the u-lug and firmly screw each wire
to its corresponding terminal.
CAUTION
DO NOT MIX UP LIVE AND NULL WIRES
This is dangerous, and can cause the air
conditioning unit to malfunction.
8. After checking to make sure every connection
is secure, use the cable clamp to fasten the
signal cable to the unit. Screw the cable clamp
down tightly.
9. Replace the wire cover on the front of the
unit, and the plastic panel on the back.
NOTE ABOUT WIRING
Step 7: Wrap piping and cables
Before passing the piping, drain hose, and the
signal cable through the wall hole, you must
bundle them together to protect them, insulate
them, and save space.
1. Bundle the drain hose,refrigerant pipes, and
signal cable according to Fig. 3.12.
Space behind unit
Refrigerant piping
Drain hose
Signal wire
Insulation tape
DRAIN HOSE MUST BE ON BOTTOM
Make sure that the drain hose is at the bottom
of the bundle. Putting the drain hose at the
top of the bundle can cause the drain pan
to overflow, which may lead to fire or water
damage.
DO NOT INTERTWINE SIGNAL CABLE WITH
OTHER WIRES
While bundling these items together, do not
intertwine or cross the signal cable with any
other wiring.
2. Using adhesive vinyl tape, attach the drain
hose to the underside of the refrigerant pipes.
3. Using insulation tape, wrap the signal wire,
refrigerant pipes, and drain hose tightly
together. Double-check that all items are
bundled in accordance with Fig. 3.12
DO NOT WRAP ENDS OF PIPING
When wrapping the bundle, keep the ends
of the piping unwrapped.You need to access
them to test for leaks at the end of the
installation process (refer to Electrical Checks
and Leak Checks section of this manual).
Step 8: Mount indoor unit
If you installed new connective piping to the
outdoor unit, do the following:
1. If you have already passed the refrigerant
piping through the hole in the wall, proceed
to Step 4.
2. Otherwise, double-check that the ends of the
refrigerant pipes are sealed to prevent dirt or
foreign material from entering the pipes.
3. Slowly pass the wrapped bundle of refrigerant
pipes, drain hose, and signal wire through the
hole in the wall.
4. Hook the top of the indoor unit on the upper
hook of the mounting plate.
5. Check that unit is hooked firmly on mounting
plate by applying slight pressure to the left and
right-hand sides of the unit. The unit should
not jiggle or shift.
6. Using even pressure, push down on the
bottom half of the unit. Keep pushing down
until the unit snaps onto the hooks along the
bottom of the mounting plate.
7. Again, check that the unit is firmly mounted
by applying slight pressure to the left and the
right-hand sides of the unit.
Fig. 3.12
THE WIRING CONNECTION PROCESS MAY
DIFFER SLIGHTLY BETWEEN UNITS.
Indoor Unit Installation

Page 18
If refrigerant piping is already embedded in
the wall, do the following:
1. Hook the top of the indoor unit on the upper
hook of the mounting plate.
2. Use a bracket or wedge to prop up the unit,
giving you enough room to connect the
refrigerant piping, signal cable, and drain
hose. Refer to Fig. 3.13 for an example.
Fig. 3.13
Fig. 3.14
Move to left or right
1.2-1.95in
(30-50mm)
Connect drain hose and refrigerant piping
(refer to Refrigerant Piping Connection
section of this manual for instructions).
Keep pipe connection point exposed to
perform the leak test (refer to Electrical
Checks and Leak Checks section of this
manual).
After the leak test, wrap the connection point
with insulation tape.
Remove the bracket or wedge that is propping
up the unit.
Using even pressure, push down on the
bottom half of the unit. Keep pushing down
until the unit snaps onto the hooks along the
bottom of the mounting plate.
UNIT IS ADJUSTABLE
Keep in mind that the hooks on the mounting plate are smaller than the holes on the back of the
unit. If you find that you don’t have ample room to connect embedded pipes to the indoor unit,
the unit can be adjusted left or right by about 1.25-1.95in (30-50mm), depending on the model.
(See Fig. 3.14.)
Indoor Unit Installation
1.2-1.95in
(30-50mm)

Page 19
Outdoor Unit Installation 5
Installation Instructions – Outdoor
Unit
Step 1: Select installation location
Before installing the outdoor unit, you must
choose an appropriate location. The following
standards will help you choose an appropriate
location.
Proper installation locations meet the
following standards:
Meets all spatialrequirements shown in
Installation Space Requirements (Fig. 4.1)
Good air circulation and ventilation
Firm and solid location that can support the
unit and will cause vibration.
Noise from the unit will not disturb others
Protected from prolonged periods of direct
sunlight or rain
DO NOT install unit in the following locations:
Near an obstacle that will block air inlets
and outlets
Near a public street, crowded areas, or where
noise from the unit will disturb others
Near animals or plants that will be harmed
by hot air discharge
Near any source of combustible gas
In a location that is exposed to large
amounts of dust
In a location exposed to a excessive amounts
of salty air
Fig. 4.1
24in (60cm)
on right
12in (30cm)
on left
79in (200cm)
in front
12in (30cm)
from back wall
24in (60cm) above
