MSA OptimAir 3000 User manual

Operating Manual
OptimAir 3000, 3000A and 3000EX
Turbo Filter Device
Order N°. 10049643/05

MSA Europe GmbH
Schlüsselstrasse 12
8645 Rapperswil-Jona
Switzerland
© MSA All rights reserved
Operating Manual
Turbo filter device
GB
3 – 20
Gebrauchsanleitung
Gebläsefiltergerät
DE
21 – 38
Manual de funcionamiento
Equipo filtrante asistido
ES
39 – 56
Manuel d'utilisation
Appareil respiratoire à ventilation
assistée
FR
57 – 76
Manuale d'uso
Elettrorespiratore a filtri
IT
77 – 94
Manual de Utilização
Dispositivo de Filtro Turbo
PT
95 – 112
Gebruiksaanwijzing
Turbofiltertoestel
NL
113 – 130
Bruksanvisning
Turbofilterapparat
SE
131 – 148
Brugervejledning
Filterturboenhed
DK
149 – 166
Bruksanvisning
Turbofilterenhet
NO
167 – 184
Käyttöohje
Tehostettu suodatinsuojain
FI
185 – 202
Εγχειρίδιο λειτουργίας
Συσκευή φίλτρου Turbo
GR
203 – 220
Çalıştırma Kılavuzu
Turbo filtre cihazı
TR
221 – 238

GB
MSA CONTENTS
OptimAir 3000, 3000A and 3000EX 3
Contents
1. Safety Regulations .............................................................................................. 4
1.1. Correct Use ................................................................................................ 4
1.2. Liability Information .................................................................................... 5
2. Description........................................................................................................... 6
3. Use........................................................................................................................ 7
3.1. Safety Instructions...................................................................................... 7
3.2. Assembly.................................................................................................... 9
3.3. Calibration and getting started ................................................................. 10
3.4. Switching off............................................................................................. 11
3.5. Alarm function .......................................................................................... 11
4. Maintenance....................................................................................................... 12
4.1. Inspection................................................................................................. 12
4.2. Filter change ............................................................................................ 12
4.3. Breathing tube.......................................................................................... 12
4.4. Cleaning ................................................................................................... 13
4.5. Charging the battery pack ........................................................................ 13
4.6. Changing the battery pack ....................................................................... 13
5. Selection criteria for filters ............................................................................... 14
6. Technical Specifications/Certifications........................................................... 15
6.1. Technical Specifications........................................................................... 15
6.2. Certifications ............................................................................................ 15
6.3. Marking, Certificates and Approvals according to
the Directive 2014/34/EU (ATEX)............................................................. 16
7. Ordering Information......................................................................................... 17
8. Appendix ............................................................................................................19

GB
SAFETY REGULATIONS MSA
4OptimAir 3000, 3000A and 3000EX
1. Safety Regulations
1.1. Correct Use
The OptimAir 3000’s are a range of turbo filter devices for respiratory protection.
They filter known toxic substances (dangerous gases, vapours or particles) out of
the ambient air.
There is a range of different models:
OptimAir 3000 – for use in contaminated ambient air
OptimAir 3000A – for use when high flow is required (for example: use in
asbestos contaminated ambient air)
OptimAir 3000EX – for use in potentially explosive atmospheres.
The use of OptimAir 3000A devices is ONLY permitted with respiratory
protective full face masks OptimAir 3000 (art. no. 100 518 10) and
particle filters OptimAir 3000 (art. no. 100 496 32). All other choice of
breathing connections and/or filters is not allowed.
It is imperative that this operating manual must be read and observed when using
the OptimAir 3000 range. In particular, the safety instructions, as well as the
information for the use and operation of the apparatus, must be carefully read and
observed. The respective operating manuals of the breathing connections, filters
and battery chargers must be read and observed as well. Furthermore, the
national regulations* applicable in the user's country must be taken into account
for a safe use, including specific admission requirements for works in potentially
explosive atmospheres.
Alternative use, or use outside this specifications will be considered as non-
compliance. This also applies especially to unauthorised alterations to the
apparatus and to commissioning work that has not been carried out by MSA or
authorised persons.
Danger!
These products are supporting life and health. Inappropriate use,
maintenance or servicing may affect the function of the device and
thereby seriously compromise the user’s life.
Before use the product operability must be verified. The product must
not be used if the function test is unsuccessful, it is damaged, a
competent servicing/maintenance has not been made or if genuine
MSA spare parts have not been used.
Warning!
Any damaged unit must not be used and must be removed from a
potentially explosive atmosphere.
Any unit cannot be discarded or left unattended in these areas.
*in Germany BGR190

GB
MSA SAFETY REGULATIONS
OptimAir 3000, 3000A and 3000EX 5
1.2. Liability Information
MSA accepts no liability in cases where the product has been used
inappropriately or not as intended. The selection and use of the product are the
exclusive responsibility of the individual operator.
Product liability claims, warranties also as guarantees made by MSA with respect
to the product are voided, if it is not used, serviced or maintained in accordance
with the instructions in this manual.

GB
DESCRIPTION MSA
6OptimAir 3000, 3000A and 3000EX
2. Description

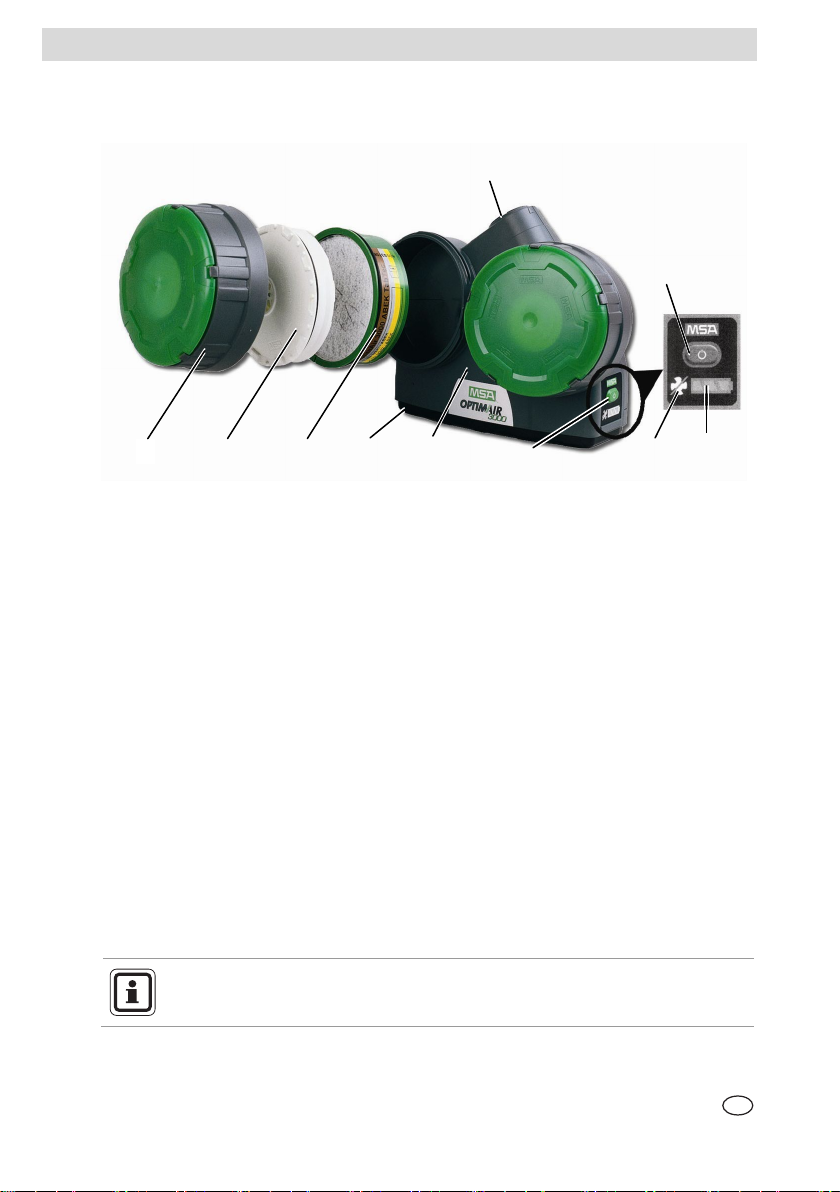

Fig. 1 Instrument Overview OptimAir 3000
OptimAir 3000, OptimAir 3000A and OptimAir 3000EX are identifiable by device
designation
1 Filter cap (deep) 6 Control pad
2 Particle filter 7 Indicator for insufficient volume flow
3 Gas filter 8 Battery charge indicator
4 Battery pack with PRESS button 9 ON/OFF button
5 Basic apparatus OptimAir 3000 10 Hose connection
The OptimAir 3000 range consists of
the basic apparatus OptimAir 3000, OptimAir 3000A or OptimAir 3000EX
with control pad: with ON/OFF button, volume flow and battery charge
indicators
a battery pack,
4 filter caps:
2 deep filter caps for combination filters and
2 shallow filter caps for particle or gas filters,
a body belt for carrying the apparatus and
an OptimAir 3000EX standard battery charger (OptiCharge EX).
The filters used in the OptimAir 3000 range are ordered separately and
depend upon the application of the apparatus.
1 2 3 5 7 8
10
4 6
9

GB
MSA USE
OptimAir 3000, 3000A and 3000EX 7
3. Use
3.1. Safety Instructions
Oxygen content and toxic material concentration
The type and concentration level of the toxic material in the ambient atmosphere
must be known.
The permitted minimum oxygen concentration of ambient air is governed by
national regulation. They have different values for minimum levels of oxygen and
this must be taken into account for safe use (typically in the range 17% to 19.5%).
Toxic gases without smell recognition
Filters used for toxic gases which do not have smell recognition on the clean air
side require special rules of use with reference to the time being used and the
use itself. If there is any doubt about the composition of the toxic gases, a
supplied air breathing apparatus must be used which is independent of the
ambient atmosphere (an isolating unit).
Filter selection
When using gas filters, ensure that no particle-type toxic substances are present,
and, when using particle filters, that there are no toxic gases present. If this is not
the case, combination filters must be used.
Working environment
A basic principle is that turbo filter devices must not be used in narrow or confined
spaces (containers, ducts, pits).
The OptimAir 3000 and 3000A must not be used if the surrounding atmosphere is
in danger of explosion.
The OptimAir 3000EX is designed for use in potentially explosive atmospheres.
When using turbo filter devices, naked flames and liquid metal droplets (e.g. at
welding works) must be kept away from the filter due to the hazard of ignition that
can lead to hazardous concentrations of toxic substances.

GB
USE MSA
8OptimAir 3000, 3000A and 3000EX
Duration and conditions of use
The exhaustion of gas filters is normally detected by odour on the clean side. The
exhaustion of particle filters or the particle filter section of combination filters is
normally signalled by an increase in flow resistance. The minimum volume flow of
the air is no longer maintained and the alarm signal sounds.
When using filters for radioactive substances, micro-organisms or biochemically-
active substances, the particle filter may only be used once!

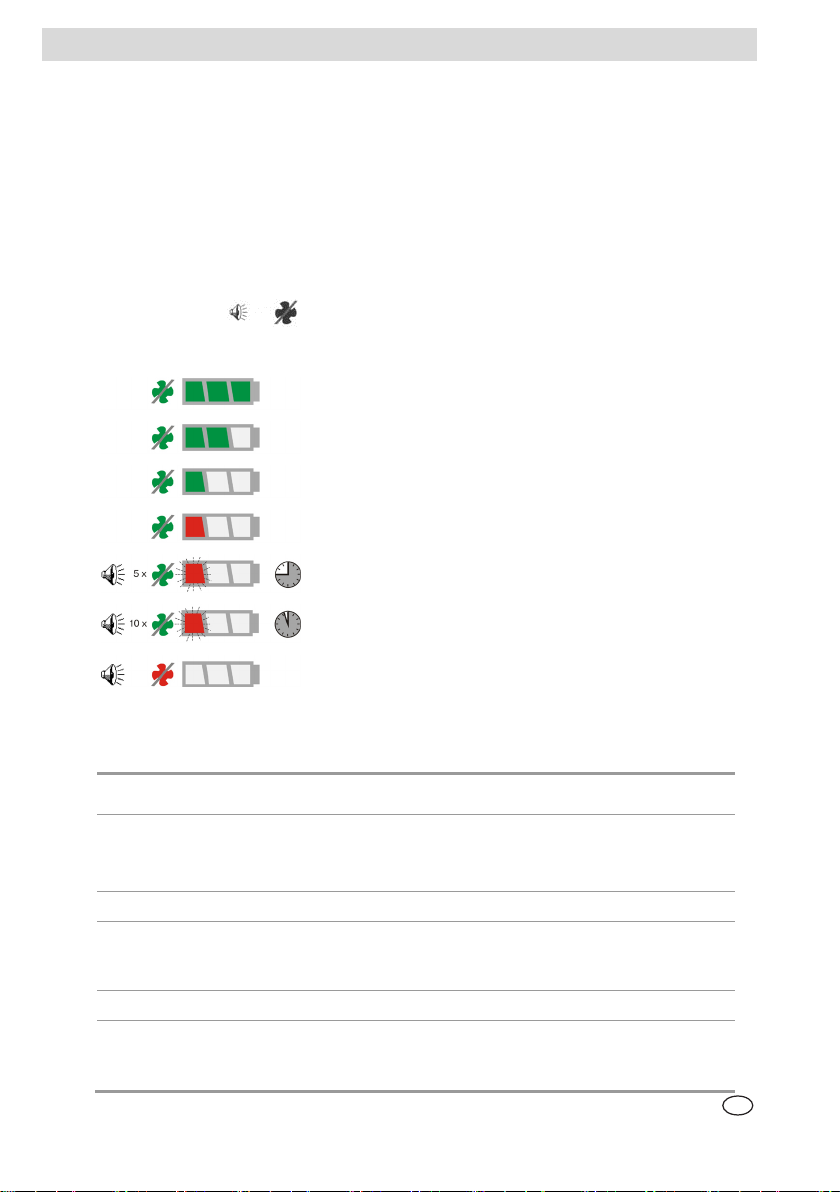

Volume flow indicator
= fault volume flow
Battery charge indicator
= battery is fully charged
= battery still has at least 66 % residual capacity
= battery still has at least 33 % residual capacity
= battery has less than 33 % residual capacity
= battery warning, battery has residual capacity
for approx. 15 min. more
= battery warning, battery has residual capacity
for approx. 1 min. more
= battery is flat, the apparatus turns off
Battery Minimum Service Time (h)
(Battery fully charged with MSA appropriate charger and new set of filters)
P3 ABEK A Combination
OptimAir 3000
OptiBat 8 8 8 4
OptiBat E 12 12 12 8
OptimAir 3000 A
OptiBat 4 X X X
OptiBat E 6 X X X
OptimAir 3000 EX
OptiBat EX 8 8 8 4

GB
MSA USE
OptimAir 3000, 3000A and 3000EX 9
3.2. Assembly
The OptimAir 3000 range must be assembled before use.
Attention!
Do not fit the breathing tube until calibration has taken place. The air
must be able to flow freely out of the apparatus during calibration.
Fitting the battery pack
(1) Align the battery so that the formed section (curved)
and the contacts are aligned to each other.
(2) Place the battery in the apparatus and push in until
it clicks in place.
The EX battery only fits the OptimAir 3000EX
whilst the standard and long life batteries only
fit the 3000 and 3000A units.
Fitting the filter and caps
(3) Select the appropriate filter cap for the filters
required:
deep filter caps for combination filters
shallow filter caps for particle or gas filters
(4) Insert the filters in the apparatus and screw the cap
down to clamp the filters in place tightening by hand
only.
EX filter caps are identifiable by the sign ex
and colour.
Fitting the body belt
(5) Feed the strap of the body belt into the apparatus.
When using the comfort body belt, also use the
middle strap on the body belt.

GB
USE MSA
10 OptimAir 3000, 3000A and 3000EX
3.3. Calibration and getting started
After exchanging/removing the filters
Calibration and initial Switch-on
(1) Push the ON/OFF button on the control pad for
about 2 seconds.
The unit performs a self-test. Filters must have been
installed and the calibration procedure will start
automatically (because the breathing tube is not
connected.)
The power of the blower is adjusted to suit to the
filter type. This process takes about 8 seconds. All
the LEDs light up and a warning signal sounds.
Calibration is complete as soon as the volume flow
indicator next to the battery charge indicator goes
out and the warning signal ceases.
The green LEDs indicate the charge condition of the
battery (normal display).
Calibration is only necessary if filters are
inserted or changed!
Connecting the breathing tube
(2) After calibration, connect the breathing tube with
mask or hood to the device within one minute,
otherwise the flow alarm will be activated.
(3) The OptimAir is now ready for operation.
Attention!
Only fit and remove the breathing mask or hood in toxic-free ambient
atmospheres with the apparatus running to ensure that air for
breathing is available.

GB
MSA USE
OptimAir 3000, 3000A and 3000EX 11
Starting after interruption of work
If the filters have not been removed a new calibration is not necessary.
The OptimAir automatically adjusts itself to the specific breathing
protection mask or hood.
Attention!
If the filters have not been removed, the user must verify before
starting the unit again, that both filters are still in place (no empty filter
slot).
(1) Push the ON/OFF button on the control pad for about 2 seconds.
Self-test is performed. This process takes about 3 seconds. All the LEDs
light up and a warning signal sounds. The breathing tube can remain
connected to the apparatus.
(2) The self-test is complete as soon as the red volume flow indicator goes out
and the warning signal ceases. The apparatus operates with the stored
operating data from the last calibration.
(3) The OptimAir is now ready for operation.
3.4. Switching off
Attention!
Only switch the OptimAir off when in a toxic free ambient atmosphere
and after the removal of the breathing protection mask or hood.
In order to switch the OptimAir off, hold the ON/OFF button down until the
apparatus switches off.
3.5. Alarm function
The OptimAir emits optical and acoustic alarms in order to warn the user of
dangerous situations. If the alarm is set off during action or if the blower fails,
leave the hazard area. Only remove the breathing connection of devices with full
face masks in toxic-free atmospheres. An alarm can have the following causes:
The filter is exhausted,
insert 2 new filters of the same type and perform a new calibration
(section 3.2)
Battery flat,
charge battery or insert fully charged battery
Tubing is twisted, kinked, squashed or has a leak,
check tubing and rectify the fault
Breathing protection mask or hood removed,
replace the mask or hood or switch the apparatus off
Filter not inserted for calibration,
insert filter and repeat calibration (section 3.3)

GB
MAINTENANCE MSA
12 OptimAir 3000, 3000A and 3000EX
4. Maintenance
4.1. Inspection
All parts of the OptimAir must be cleaned and checked for damage and wear
each time it is used. If necessary, the parts must be replaced. Parts checked are:
Breathing tube and connections
All filters
Charge condition of the battery
Basic apparatus OptimAir
Attention!
Further repair work must only be performed by MSA or by an
authorised customer service organisation.
4.2. Filter change
Attention!
Only change the filters in pairs and using filters of the same type.
(Filter operating manual)
Exhausted or damaged filters should be replaced as follows:
(1) Remove the filter caps and remove the filters
(2) Insert new filters (section 3.2)
(3) Re-calibrate the apparatus (section 3.3)
4.3. Breathing tube
Before each use check the tubing for damage such as tears or holes.
Damaged tubing must be replaced by new tubing.

GB
MSA MAINTENANCE
OptimAir 3000, 3000A and 3000EX 13
4.4. Cleaning
Clean the OptimAir using a dry or damp cloth. Cleaning must not be carried out in
potentially explosive atmospheres.
4.5. Charging the battery pack
Attention!
Never charge the battery in an Ex area.
Attention!
The batteries may only be charged with the MSA charger OptimAir
3000EX standard battery charger (OptiCharge EX). The use of other
chargers can lead to damage to the battery or to the instrument itself.
Charge the batteries with the OptimAir 3000EX standard battery charger
(OptiCharge EX). Observe the operating manual of the battery charger.
Avoid completely discharging the battery pack since this can cause
capacity losses in the battery.
4.6. Changing the battery pack
Attention!
Never remove the battery from the blower in a potentially explosive
atmosphere.
Never charge the battery or use the charger in a potentially explosive
atmosphere.
(1) Push the "Press" button and remove the battery
(2) Insert a new battery (section 3.2)

GB
SELECTION CRITERIA FOR FILTERS MSA
14 OptimAir 3000, 3000A and 3000EX
5. Selection criteria for filters
OptimAir 3000 range gas filters are classified according to filter type (A, B, E
and K) and filter class (1, 2 and 3). A letter and a colour designate the types of
gas filter as follows:
Type Colour Area of Application
A brown
Vapours from organic compounds with a boiling point higher than
65°C.
B grey Inorganic gases and vapours, e.g. Chlorine, hydrogen sulphide,
hydrogen cyanide (not carbon monoxide).
E yellow Sulphur dioxide, hydrogen chloride, acid gases.
K green Ammonia and organic ammonia derivatives.
P white Particle
For gas filters A, B, E and K the filter class to be used depends on the possible
maximum concentration of the hazardous gas and the required service time.
Turbo filter devices are only to be used up to certain concentrations of hazardous
substances:
Class TM3 up to 500 times the threshold value
Class TH3 up to 100 times the threshold value
Class TH2 up to 20 times the threshold value
Filter class 1
with gases
up to max. 0.05% by volume (500 ml/m³)
Filter class 2
with gases
up to max. 0.1% by volume (1000 ml/m³)
In each case, the minor value applies for the permitted maximum concentration.

GB
MSA TECHNICAL SPECIFICATIONS/CERTIFICATIONS
OptimAir 3000, 3000A and 3000EX 15
6. Technical Specifications/Certifications
6.1. Technical Specifications
Weight (standard blower) approx. 1.28 kg
(with battery, without filters, without belt)
Working life of the battery at least 4 hours (at maximum loading)
Operating temperature range +5°C to +40°C
Storage temperature range -5 °C to +50 °C,
max. 95% air humidity
Air volume flow for OptimAir 3000
and OptimAir 3000EX
Use of hoods
Use of full face mask
approx. 130 l/min to 150 l/min
approx. 110 l/min
Air volume flow for OptimAir 3000A
Use of full face mask
OptimAir 3000
approx. 160 l/min to 185 l/min
International protection class
according to DIN EN 60529
IP 54
6.2. Certifications
The product complies with the following directives, standards or standardisation
documents:
OptimAir 3000EX Directive 2014/34/EU (ATEX) :
Complete turbo filter device
(in combination with MSA
breathing connection and
filter)
BVS 07 ATEX E 038
II 2G Ex ib IIA T4
II 2D Ex ibD 21 T130°C
Directive 2014/30/EU (EMC)
EN 61000-6-2
EN 61000-6-4
OptimAir 3000
OptimAir 3000A
OptimAir 3000EX
Directive 89/686/EC or
Regulation (EU) 2016/425,
respectively
EN 12941, EN 12942
: IFA, Alte
Heerstraße 111,
D-53757 St. Augustin,
Notified Body 0121
The Declaration of Conformity can be found under the following link:
https://MSAsafety.com/DoC

GB
TECHNICAL SPECIFICATIONS/CERTIFICATIONS MSA
16 OptimAir 3000, 3000A and 3000EX
The CE type examination and the control of the quality assurance system
according to the directive 89/686/EC or Regulation (EU) 2016/425, respectively,
are effected by:
Institut für Arbeitsschutz der Deutschen Gesetzlichen Unfallversicherung (IFA)
Alte Heerstr. 111
D-53757 St. Augustin
Germany
6.3. Marking, Certificates and Approvals according to
the Directive 2014/34/EU (ATEX).
Manufacturer: MSA Europe GmbH
Schlüsselstrasse 12
8645 Rapperswil-Jona
Switzerland
Product : OptimAir 3000EX
Type of protection: EN 60079-0; 2006 EN 60079-11;2007
EN 60079-11
Marking: II 2G Ex ib IIA T4
II 2D ib IIIB T135 Db
Power Supply: Akku OptiBat EX 2,1 Ah NiMH Um = 28 V
EC-Type Examination Certificate: BVS 07 ATEX E 038
Quality Assurance Notification: CE 0158
Year of Manufacture: see type label (sign “factory” with the
designation year four-digit – quarter)
Serial No.: see type label
EMC Conformity according to the Directive 2014/30/EU
EN 61 000 - 6 - 2 EN 61 000 - 6 - 4

GB
MSA ORDERING INFORMATION
OptimAir 3000, 3000A and 3000EX 17
7. Ordering Information
Description Article Number
Turbo filter devices
OptimAir 3000 100 495 57
OptimAir 3000A 100 495 58
OptimAir 3000EX 100 495 59
Spare Parts
OptimAir 3000 Standard Battery (OptiBat) 100 495 60
OptimAir 3000EX Battery Charger (OptiCharge EX) 100 496 29
OptimAir 3000 EX Battery (OptiBat EX) 100 496 22
OptiBelt Comfort belt (woven) 100 496 23
Masks Hose 100 496 30
OptiHoods / OptiVizor Hose 100 496 31
OptiHoods / OptiVizor Hose XL 100 822 81
OptiTop Hose 100 533 77
Carrying bag (OptiCarrier) 100 496 26
OptimAir 3000 Filter caps deep (pair) 100 496 55
OptimAir 3000 Filter caps shallow (pair) 100 496 53
OptimAir 3000EX Filter caps deep (pair) 100 780 19
OptimAir 3000EX Filter caps shallow (pair) 100 780 20
Filter
OptimAir 3000 Particle filters (10 pack): 100 496 32
OptimAir 3000 A1B1E1K1 filters (10 pack.): 100 496 35
OptimAir 3000 A2 filters (10 pack): 100 496 37

GB
ORDERING INFORMATION MSA
18 OptimAir 3000, 3000A and 3000EX
Description Article Number
Accessories
OptimAir 3000 Mask with breathing hose 100 518 10
3S Full face mask standard D 2055 000
3S Basis Plus full face mask D 2055 790
OptiHood Demi (TH2) without hose 100 518 05
OptiHood Full (TH2) without hose 100 518 06
OptiTop (TH3) with hose 100 518 07
OptiVizor (TH2) without hose 100 496 38
OptiVizor W (without hose) 100 496 39
OptimAir 3000 High Capacity Battery (OptiBat E) 100 496 21
Belt, decontaminable (OptiBelt Decon) D 6181 976
OptiStrap (shoulder strap) 100 591 12
OptimAir 3000 DVD, Instructions of use 100 852 24
In addition to this manual a video about user instructions is available on
DVD. Please contact the MSA company closest to you.
Some sequences can be downloaded from our web site as low
resolution video clips.

GB
MSA APPENDIX
OptimAir 3000, 3000A and 3000EX 19
8. Appendix
Apparatus classification
Device Breathing
connection
Filter Filter Combinations
Particle ABEK A ABEK+Particle A+Particle
OptimAir
3000 and
OptimAir
3000 EX
Mask: 3S,
3S Basis Plus,
OptimAir Mask
TM3 P-SL TM3 A1B1
E1K1
TM3 A2 TM3 A1B1E1K1 P R SL TM3 A2 P R SL
OptiHood
Demi
TH2 P R SL TH2 A1B1
E1K1
TH2 A2 TH2 A1B1E1K1 P R SL TH2 A2 P R SL
OptiHood Full TH2 P R SL TH2 A1B1
E1K1
TH2 A2 TH2 A1B1E1K1 P R SL TH2 A2 P R SL
OptiTop TH3 P R SL TH3 A1B1
E1K1
TH3 A2 TH3 A1B1E1K1 P R SL TH3 A2 P R SL
OptiVizor
OptiVizor W
TH2 P R SL TH2 A1B1
E1K1
TH2 A TH2 A1B1E1K1 P R SL TH2 A2 P R SL
OptimAir
3000A
Mask:
OptimAir Mask
TM3 P R SL
TM
TH
= Mask (protection level 1 to 3)
= Hood (protection level 1 to 3)
E.g. 1: TM3 P R SL
Device with full face mask of protection level 3 with
reusable particle filter against solid or liquid aerosols
P R SL
ABEK
ABEKP
= Particle filters, reusable against
solid and liquid aerosols:
= Gas filters
= Combined filters
E.g. 2: TH2 A1B1E1K1 P R SL
Device with hood protection class 2 with combined filter,
consisting of gas filter types A, B, E and K of class 1 as
well as reusable particle filters against solid and liquid
aerosols
1 to 3 = Filter classes per filter type

GB
APPENDIX MSA
20 OptimAir 3000, 3000A and 3000EX
