emaux SSCnano User manual

USER MANUAL
SSCnano
INSTALLATION AND OPERATION
MANUAL
Model: SSCnano
SAA
EMSW23101 285
DIRECTIVE
2011/65/Eu

SSCnano
FOR ABOVE AND INGROUND POOL
TABLE OF
CONTENT
PAGE
2
....
2
....
P1 CONTENT
4. TROUBLESHOOTING
5. SPARE PARTS LIST
8
....
9
....
6. TERMS OF THE WARRANTY
10
....
1. PRODUCT INTRODUCTION
2
.... WARNING
4
....
2. SPECIFICATIONS
2.2 ACCESSORIES
2.1 DIMENSION
3. INSTALLATION & OPERATION
3.1 INSTALLATION
3.2 OPERATION
3.1 .1 CONNECT WITH 50MM (1½”) UNION
3.1
38MM(1½”) FLEXI HOSE CONNECTOR
.2 CONNECT WITH THE 32MM(1¼”) &
3.2 .1 ON / OFF
3.2 .2 CHLORINE PERCENTAGE
3.2 .3 TIMER
5
........
3.2 .4 MEMORY MODE

WARNINGS P2
1. PRODUCT INTRODUCTION
SSCnano is an innovative inline salt chlorinator that seamlessly synchronizes with the pump. With its
preset timer offering flexible options and 4 chlorine production modes, SSCnano provides complete
control over the chlorination process. Enjoy the benefits of long cell life and reduced chemical usage,
thanks to its efficient and environmentally friendly design. Compact and user-friendly, SSCnano
revolutionizes the experience of chlorine production.
Salt chlorination is a method of sanitizing swimming pools with chlorine generated by electrolysis.
The electrolysis is achieved by passing the salt water solution through a weak electric charge in an
electrolytic cell, which converts sodium chloride (salt) in the water into chlorine gas. The gas is
dissolved in the water and becomes sodium hypochlorite (liquid chlorine).
This product should be installed and repaired by a technician who is
qualified in the installation and maintenance of pool/spa products.
Please read this manual before installing the product. The instructions in
this manual can be followed exactly. Disconnect electrical power before
removing the cover for servicing unit. Replace all screws and covers
before reconnecting the unit to electric power. Incorrect installation
and/or operation can cause serious injury, property damage, or death. To
reduce the risk of injury, do not permit children to use this product.
Improper installation and/or operation will void the warranty.
WARNINGS
2. SPECIFICATIONS
9130045 SSCnano4
110 -240V
/50-60 Hz
3500
ppm
4g/hr
2.5 bar
1.5”/ 50mm
and
32mm& 38mm
union
10-45°C3
m³/hr
20m³
9130046 SSCnano6 6g/hr 30m³
9130047 SSCnano8 8g/hr 40m³
9130048 SSCnano10 10g/hr 50m³
Code Model
Input
Voltage/
Frequency
Salt
Level
Cell
Production
Rate
Maximum
Working
Pressure
Cell
Connections
Working
Temperature
Min.
Flow
Max
Pool
Volume

200
310
214 249
134
138 138
134
173
105
P3 SPECIFICATIONS
2. 1 DIMENSION(mm)
2. 2 ACCESSORIES
32mm(1¼”) &
38mm(1½”) Flexi hose
connector
50mm (1½”) union Mounting Stand
[Fig.1] Stand and Wall Mount
105
70
32mm(1¼”) & 38mm(1½”) Flexi hose connector and 50mm (1½”) union installation,
please refer to Part 3, Installation & Operation.
The mounting stand is allowed the SSCnano place stand on the floor or wall mount.

INSTALLATION & OPERATION P4
3. INSTALLATION & OPERATION
Check the pool system regularly and make sure the parameters are within the range:
Salinity
3,000 to 4,000 ppm
pH level 7.2 to 7.4
Water temperature
10 - 45°
C
Flow rate 3 to 10 mᶾ/h
Target range
Parameter
3. INSTALLATION1
The SSCnano has an arrow mark on its body [Fig.2]
showing the water flow direction. It is designed to
operate with water flow rates between 3-10 mᶾ/h.
Please refer to the pipe manufacturer specifications for
recommended maximum flow rate. It is a must to use a
bypass loop with flow control valve if the flow rate is
over 8 mᶾ/h. [Fig.3] showing the general installation.
Adding a valve before and after SSCnano to make sure
the isolation between SSCnano and the facilitate when
maintenance. [Fig.2]
[Fig.3]

P5 INSTALLATION & OPERATION
3.1.1 CONNECT WITH 50MM (1½”) UNION
3.1.2 CONNECT WITH THE 32MM(1¼”) & 38MM(1½”)
FLEXI HOSE CONNECTOR
SSCnano can be installed either horizontal or vertical. The
union is designed for imperial 1½” pipe and metric 50mm pipe.
Pipes are required gluing to fix.
[Fig.4]
[Fig.5]
The 32mm(1¼”) & 38mm(1½”) Flexi hose
connector can let the SSCnano use with
flexible pipes, shown as [Fig.6].
3. OPERATION2
3.2.1 ON / OFF
OFF
ON
Press once
Default
Press twice
[Fig.6]

3.2.2 CHLORINE PERCENTAGE
Optimize the chlorine percentage, to suit pool size/ temperature.
If the pool size is smaller than the max pool size of the SSCnano, lower the chlorine percentage
proportionally. (e.g. Using SSCnano4 for a 10m³ pool, press twice to 50% of the max chlorine
percentage rate.)
100%, the light is off
75%, the light flashes once
Press
four times
50%, the light flashes twice
25%, the light flashes three times
Press once
Press twice
Press three times
Default
The light will turn on after
the flash,
chlorine percentage.
running with
0 hour, the light is off
4 hours, the light flashes once
Press
four times
8 hours, the light flashes twice
12 hours, the light flashes three times
Press once
Press twice
Press three times
Default
The light will turn on after
the flash, running with timer.
Operating during winter:
The lower the water's temperature, the lower the salt water's conductivity will be. This in turn will
cause the SSCnano to work much harder than normal to produce chlorine. Algae and bacteria don't
grow well in cold environments. Thus, very little chlorine is needed, simply adjust the chlorine
percentage to an ideal rate.
During winter (e.g. temperature drops below 16℃), you can reduce to 25 % of the max chlorine
percentage to minimize chlorination for your pool.
Low-temperature protection:
When the water temperature is below 10℃, SSCnano will stop functioning. ( , NaCl light will flash,
refer to Part 4, Troubleshooting). This feature prolongs the service life of the cell.
3.2.3 TIMER
The timer setting can synchronize with the expected operation time for energy saving. (e.g. To set
the timer ON at 9:00 and off at 17:00. When it is 9:00 a.m., press  twice to set the timer of SSCnano
to 8 hours. It will stop running at 5:00 p.m. and function again at 9:00 a.m. the next morning.)
Note:
1) All setting will be saved when press ON/OFF to power off the SSCnano.
2) Power cut SSCnano will reset all settings to factory default.
INSTALLATION & OPERATION P6

3.2.4 MEMORY MODE
This function is for connecting the SSCnano to an automation system device. The SSCnano will start
chlorine generation once powered up. The chlorine percentage setting will be saved after power
down. (e.g. The chlorine percentage of the SSCnano was set to 50%. The setting will be kept if the
power is cut and turned back on.)
Note: The set time will not be saved and reset to default when power down.
To enter memory mode:
During OFF stage, press and hold for 5 seconds to enter the memory mode. (The light will flash three
times. It will flash once every 30 seconds if the SSCnano is running in memory mode.)
To cancel memory mode:
During ON stage, press and hold for 5 seconds to cancel the memory mode. (The light will flash three
times after canceling the mode and then stop.)
P7 INSTALLATION & OPERATION

4. TROUBLESHOOTING
LIGHT FLASH
CONTINUOUSLY POSSIBLE CAUSE SOLUTION
The normal operating range is
3,000 to 4,000 ppm. Add salt to
pool to achieve 3500 ppm to
ensure. Once the correct level has
been reached. The chlorinator
should operate normally.
The normal operating flow rate
range is between 3 to 10 mᶾ/h.
Make sure the flow rate is
sufficient. The bypass is proving
enough water to the cell and the
valves are correctly set.
If all the above were confirmed,
the flow sensor might have fatal
error, contact customer support
for a replacement.
Make sure the temperature is
between 10 to 45℃.
If the above were confirmed, the
temperature sensor might have a
fatal error, contact customer
support for a replacement.
Check the wiring connection, and
restart SSCnano.
If all the lights still flash, please
contact customer support for a
replacement.
Make sure the power supply is
connected and input the correct
voltage [110-240V, 50-60Hz].
If it still having no function,
please contact customer support
for a replacement.
Low salinity level. Salinity
below 2500ppm, causing the
production rate of chlorine is
being reduced.
No flow/ Flow rate too small/
error in flow sensor
Water temperature is not
within the operating range or
error in temperature sensor
Cell lifetime ran out
Wiring issues
NaCl
NaCl
All lights are flashing
No function
Make sure the unit is connected
to the SSCnano paired adaptor.
Incorrect input voltage
NaCl , ,
,
P8TROUBLESHOOTING
, ,

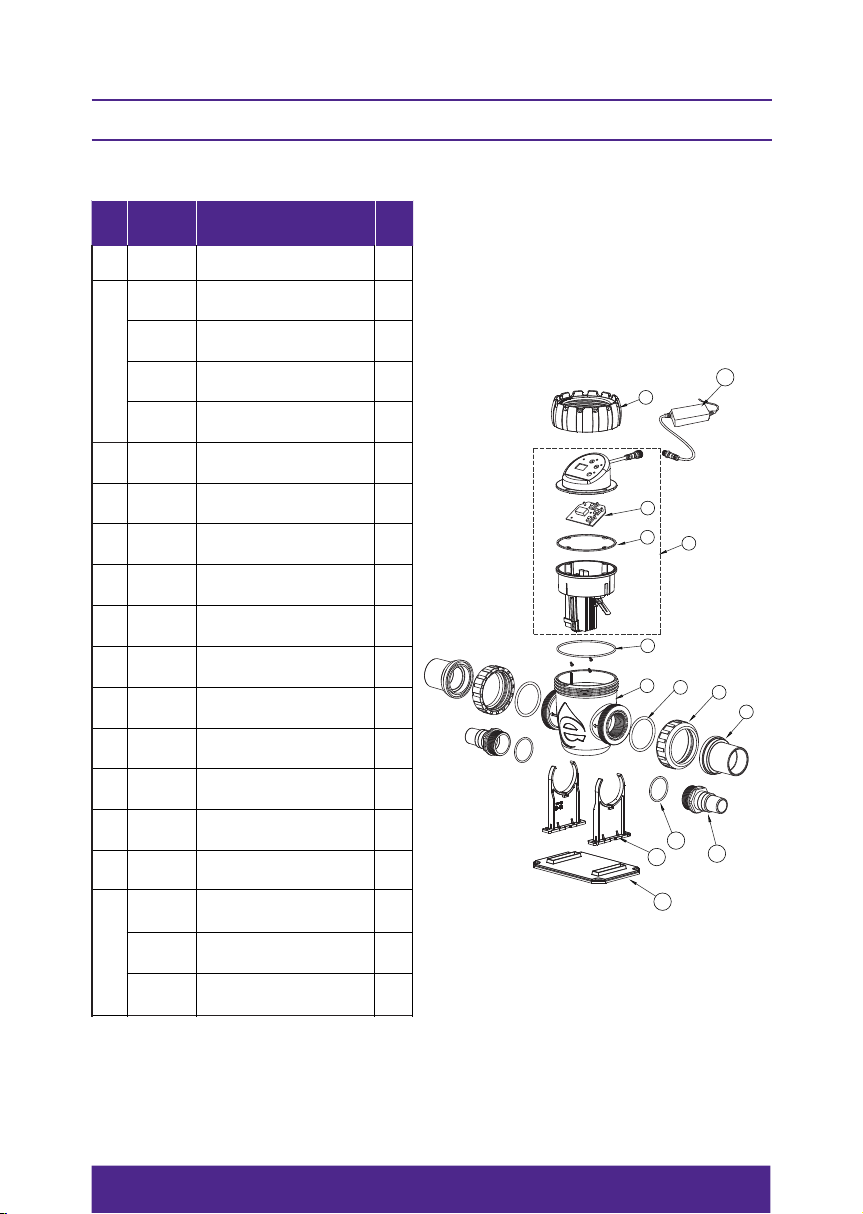

5. SPARE PARTS LIST
Key
No.
Part
No. Description QTY
1 530135108
Electrolytic cell nut
1
2
E1330069 SSCnano4 Electrolytic cell （4 grams)
1
SSCnano6 Electrolytic cell（6 grams)
1
SSCnano8 Electrolytic cell（8 grams) 1
SSCnano10 Electrolytic cell（10 grams) 1
3 SSCnano PCB
1
4 111010013 SSCnano O-Ring
1
5 111040010 D116.6X1.5 O-Ring
1
6
5300410081
Electrolyser housing 1
7 111202472
O-Ring D70 x d60 x 6 2
8 430170991 2.0" Union Nut (black) 2
9
430300943
1.5" Union
2
10
111142481 O-Ring d42x3
2
11
430091071 32x38 Union
2
12
5203410081
Stand 2
13
5203410083 Mounting Stand Base
1
14
DC power supply（4 & 6 grams) 1
DC power supply（8 grams)
1
DC power supply（10 grams) 1
1
2
3
4
5
678
9
10
power supply
E1330070
E1330071
E1330072
106090062
106090063
106090064
1062510186
P9 SPARE PARTS LIST
11
12
13
14

6. TERMS OF THE WARRANTY
As original purchaser of this equipment have purchased from Emaux Water
Technology Co Ltd, through Authorized International Distributor or Dealer,
warrants its products free from defects in materials and workmanship under
normal use during warranty period. The warranty period begins on the day of
purchase and extends only to the original purchaser. It is not transferable to
anyone who subsequently purchases the product from you. It excludes all
expendable parts. During the warranty period, Emaux authorized reseller will
repair or replace defective parts with new parts or, at the option of Emaux,
serviceable used parts that are equivalent or superior to new parts in
performance. This Limited Warranty extends only to products purchased from
Emaux authorized reseller. This Limited Warranty does not extend to any
product that has been damaged or rendered defective
(a) as a result of accident, misuse or abuse;
(b) as a result of an act of God;
(c) by operation outside the usage parameters stated herein;
(d) by the use of parts not manufactured or sold by Emaux;
(e) by modification of the product;
(f) as a result of war or terrorist attack; or
(g) as a result of service by anyone other than Emaux authorized reseller or
authorized agent.
EXCEPT AS EXPRESSLY SET FORTH IN THIS WARRANTY, EMAUX MAKES NO
OTHER WARRANTIES EXPRESSED OR IMPLIED, INCLUDING ANY IMPLIED
WARRANTIES OR MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE. EMAUX EXPRESSLY DISCLAIMS ALL WARRANTIES NOT STATED IN
THIS LIMITED WARRANTY. ANY IMPLIED WARRANTIES THAT MAY BE IMPOSED
BY LAW ARE LIMITED TO THE TERMS OF THIS EXPRESS LIMITED WARRANTY.
TERMS OF THE WARRANTY P10
