Thank you for purchasing the MSI® mother-
board. This User Guide gives information about board layout,
component overview, BIOS setup and software installation.

2

The components included in this package are prone to damage from electrostatic
discharge (ESD). Please adhere to the following instructions to ensure successful
computer assembly.
Ensure that all components are securely connected. Loose connections may cause
the computer to not recognize a component or fail to start.
Hold the motherboard by the edges to avoid touching sensitive components.
It is recommended to wear an electrostatic discharge (ESD) wrist strap when
handling the motherboard to prevent electrostatic damage. If an ESD wrist strap is
not available, discharge yourself of static electricity by touching another metal object
before handling the motherboard.
Store the motherboard in an electrostatic shielding container or on an anti-static
pad whenever the motherboard is not installed.
Before turning on the computer, ensure that there are no loose screws or metal
components on the motherboard or anywhere within the computer case.
Do not boot the computer before installation is completed. This could cause
permanent damage to the components as well as injury to the user.
If you need help during any installation step, please consult a certified computer
technician.
Always turn off the power supply and unplug the power cord from the power outlet
before installing or removing any computer component.
Keep this user guide for future reference.
Keep this motherboard away from humidity.
Make sure that your electrical outlet provides the same voltage as is indicated on
the PSU, before connecting the PSU to the electrical outlet.
Place the power cord such a way that people can not step on it. Do not place
anything over the power cord.
All cautions and warnings on the motherboard should be noted.
If any of the following situations arises, get the motherboard checked by service
personnel:
Liquid has penetrated into the computer.
The motherboard has been exposed to moisture.
The motherboard does not work well or you can not get it work according to
user guide.
The motherboard has been dropped and damaged.
The motherboard has obvious sign of breakage.
Do not leave this motherboard in an environment above 60°C (140°F), it may
damage the motherboard.

3
 


Supports 10th Gen Intel® Core™ and Pentium® Gold / Celeron®
processors for LGA 1200 socket*
* Please go to www.intel.com for more compatibility
information.
* Onboard graphics output are disabled when using F SKU
processors.
 Intel® H410 chipset

2x DDR4 memory slots, support up to 64GB*
Intel® Core™ i7/ i9
Supports up to DDR4 2933 MHz
Intel® Core™ i5 and below
Supports up to DDR4 2666 MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
* Please refer to www.msi.com for more information on
compatible memory.

1x PCIe 3.0 x16 slot (From CPU)
2x PCIe 3.0 x1 slots (From PCH)
1x PCI slot(From PCH)*
* When installing devices in PCI_E2 and PCI1 slots at the
same time, PCI_E2 slot will be unavailable.


1x HDMI™ 1.4 port, supports a maximum resolution of
4096x2160 @30Hz
1x DisplayPort port, supports a maximum resolution of
4096x2304 @60Hz
1x VGA port, supports a maximum resolution of 2048x1536
@50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz
1x DVI-D port, supports a maximum resolution of 1920x1200
@60Hz
 Realtek® ALC892-VD/ Realtek® ALC897 Codec
7.1-Channel High Definition Audio
LAN 1x Intel® I219V Gigabit LAN controller
Continued on next page

4
Continued from previous page

Intel® H410 Chipset
4x SATA 6Gb/s ports*
1x M.2 slot (Key M)
Supports up to PCIe 3.0 x4 and SATA 6Gb/s
M2_1 slot supports 2242/ 2260 /2280 storage devices*
* SATA1 will be unavailable when installing M.2 SATA SSD in
the M.2_1 slot.

Intel® H410 Chipset
4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back
panel, 2 ports through the internal USB connector)
6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports
through the internal USB 2.0 connectors)


1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
4x SATA 6Gb/s connectors
1x USB 3.2 Gen 1 5Gbps connector (support additional 2
USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (support additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin system fan connector
1x front panel audio connector
2x system panel connectors
1x parallel port connector
1x serial port connector
1x Chassis Intrusion connector
1x Clear CMOS jumper
1x TPM module connector
Continued on next page

5
 
Continued from previous page


1x PS/2 mouse/ keyboard port
1x VGA port
1x DVI-D port
1x Serial port
1x DisplayPort port
1x HDMI port
2x USB 2.0 ports
2x USB 3.2 Gen 1 5Gbps Type-A ports
1x LAN(RJ45) port
3x audio jacks
 4x EZ Debug LED
 NUVOTON NCT6687 Controller Chip


CPU/System temperature detection
CPU/System fan speed detection
CPU/System fan speed control
 mATX Form Factor
9.6 in. x 7.6 in. (24.4 cm x 19.3 cm)

1x 128 Mb flash
UEFI AMI BIOS
Multi-language

Drivers
DRAGON CENTER
Intel Extreme Tuning Utility
CPU-Z MSI GAMING
Google Chrome™, Google Toolbar, Google Drive
Norton™ Internet Security Solution
Continued on next page

6
Continued from previous page


LAN Manager
User Scenario
Hardware Monitor
True Color
Live Update
DPC Latency tuner
Speed Up
Smart Tool
Super Charger
Please refer to http://download.msi.
com/manual/mb/DRAGONCENTER2.
pdf for more details.

7
 

Mouse
Keyboard
LAN
Audio Ports
USB 2.0 Type-A
USB 3.2 Gen 1
5Gbps Type-A
DVI-D Port DisplayPort
Serial Port
VGA Port

Status 
Off No link
Yellow Linked
Blinking Data activity

Status 
Off 10 Mbps connection
Green 100 Mbps connection
Orange 1 Gbps connection


To configure 7.1-channel audio, you have to connect front audio I/O module to JAUD1
connector and follow the below steps.
 Click on the  to open the dialog
below.
 Select .
 Plug your speakers to audio jacks on rear and front I/O panel. When you plug into
a device at an audio jack, a dialogue window will pop up asking you which device
is current connected.

8

JCOM1
* Distance from the center of the CPU to the nearest DIMM slot.
BAT1
SYS_FAN1
CPU_FAN1
CPU Socket
M2_1
PCI_E2
PCI_E3
PCI1
PCI_E1
DIMMA1
DIMMB1
JTPM1
SATA3
SATA4
SATA2
SATA1
JAUD1
JBAT1
ATX_PWR1
CPU_PWR1
JUSB3
JUSB2 JUSB1
JFP2
JFP1
JCI1
JLPT1
50.89mm*

9
 


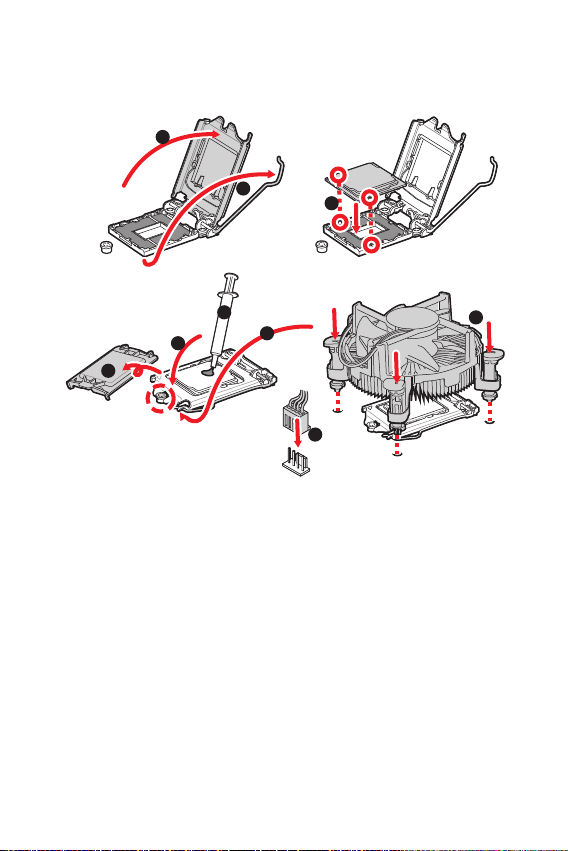

Please install the CPU into the CPU socket as shown below.


 Always unplug the power cord from the power outlet before installing or removing
the CPU.
 Please retain the CPU protective cap after installing the processor. MSI will deal
with Return Merchandise Authorization (RMA) requests if only the motherboard
comes with the protective cap on the CPU socket.
 When installing a CPU, always remember to install a CPU heatsink. A CPU heatsink
is necessary to prevent overheating and maintain system stability.
 
your system.
 Overheating can seriously damage the CPU and motherboard. Always make sure
the cooling fans work properly to protect the CPU from overheating. Be sure to apply
an even layer of thermal paste (or thermal tape) between the CPU and the heatsink to
enhance heat dissipation.
 Whenever the CPU is not installed, always protect the CPU socket pins by covering
the socket with the plastic cap.
 If you purchased a separate CPU and heatsink/ cooler, Please refer to the docu-
mentation in the heatsink/ cooler package for more details about installation.
1
4
6
5
78
9
3
2

10 


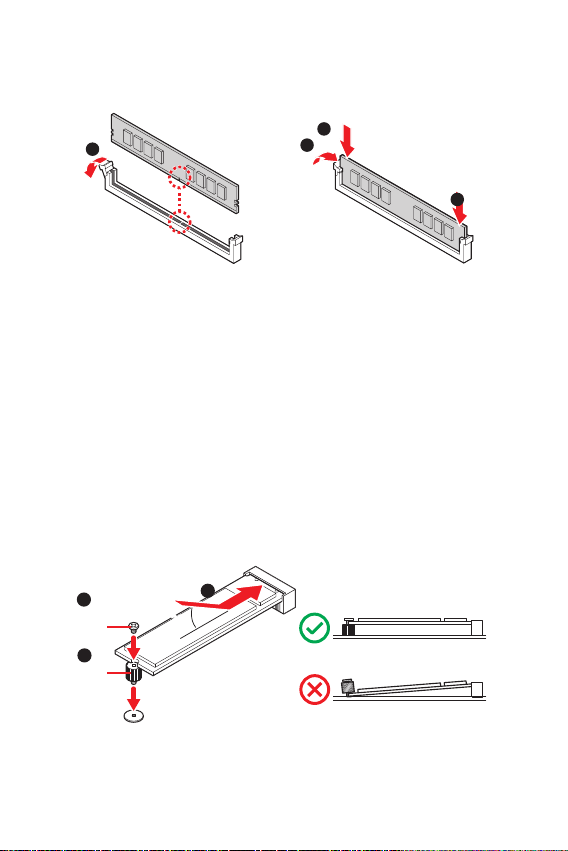

Please install the memory module into the DIMM slot as shown below.


 To ensure system stability for Dual channel mode, memory modules must be of the
same type, number and density.
 Some memory modules may operate at a lower frequency than the marked value
when overclocking due to the memory frequency operates dependent on its Serial

frequency if you want to operate the memory at the marked or at a higher frequency.
 󽙎
installation or overclocking.
 The stability and compatibility of installed memory module depend on installed
CPU and devices when overclocking.
 Please refer to www.msi.com for more information on compatible memory.

Please install the M.2 device into the M.2 slot as shown below.
1
3
Standoff
Supplied
M.2 screw 30º30º
2
1
2
3
2
