MSI MEG Ai1300P PCIE5 User manual

MEG Ai1300P PCIE5
MEG Ai1000P PCIE5
Power Supply Unit
User Guide
Benutzerhandbuch
Manuel d’utilisation

󲀮󾉣󸔆󴃬󴉩
󻺞󼒛󻡷󻼎
󱣎󵭡󳩿󱱥
󱣎󵭡󳩿󱱧

English
Deutsch
Français

󴂬󴋈󸓦
󽍎󺭟󼎦
󶱻󺄷󱛉󳿶
󶚱󱢈󱛉󳿶

1
English
Contents
Specifications................................................................................................................ 2
Dimensions ................................................................................................................... 3
Number of Power Connectors .................................................................................... 4
Detachable Connectors ............................................................................................... 5
Connectivity and Cable Lengths.................................................................................. 6
12VHPWR (PCIe 5.0 16 Pin) Cable Installation........................................................... 8
G.I. Port ......................................................................................................................... 9
G.I. Port Connection................................................................................................ 9
Software Control and Monitoring.............................................................................. 10

2
Specifications
1300W
AC Input 100-240V~, 15A Max, 50-60Hz
For use in China only: 200-240V~, 8A, 50-60Hz
DC Output
(Single-rail,
default)
+5V +3.3V +12V -12V +5Vsb
25A 25A 108.33A 0.3A 3A
DC Output
(Multi-rail*)
+5V +3.3V +12V1 +12V2 +12V3 +12V4 +12V5 -12V +5Vsb
25A 25A 40A 50A 50A 50A 50A 0.3A 3A
Total Power 130W 1300W 3.6W 15W
1300W
1000W
AC Input 100-240V~, 15A Max, 50-60Hz
For use in China only: 200-240V~, 8A, 50-60Hz
DC Output
(Single-rail,
default)
+5V +3.3V +12V -12V +5Vsb
22A 22A 83.33A 0.3A 3A
DC Output
(Multi-rail*)
+5V +3.3V +12V1 +12V2 +12V3 +12V4 +12V5 -12V +5Vsb
22A 22A 40A 50A 50A 50A 50A 0.3A 3A
Total Power 130W 1000W 3.6W 15W
1000W
* Please refer to “Software Control and Monitoring” section to download and install
MSI Center to activate 12V multi-rail output.

3

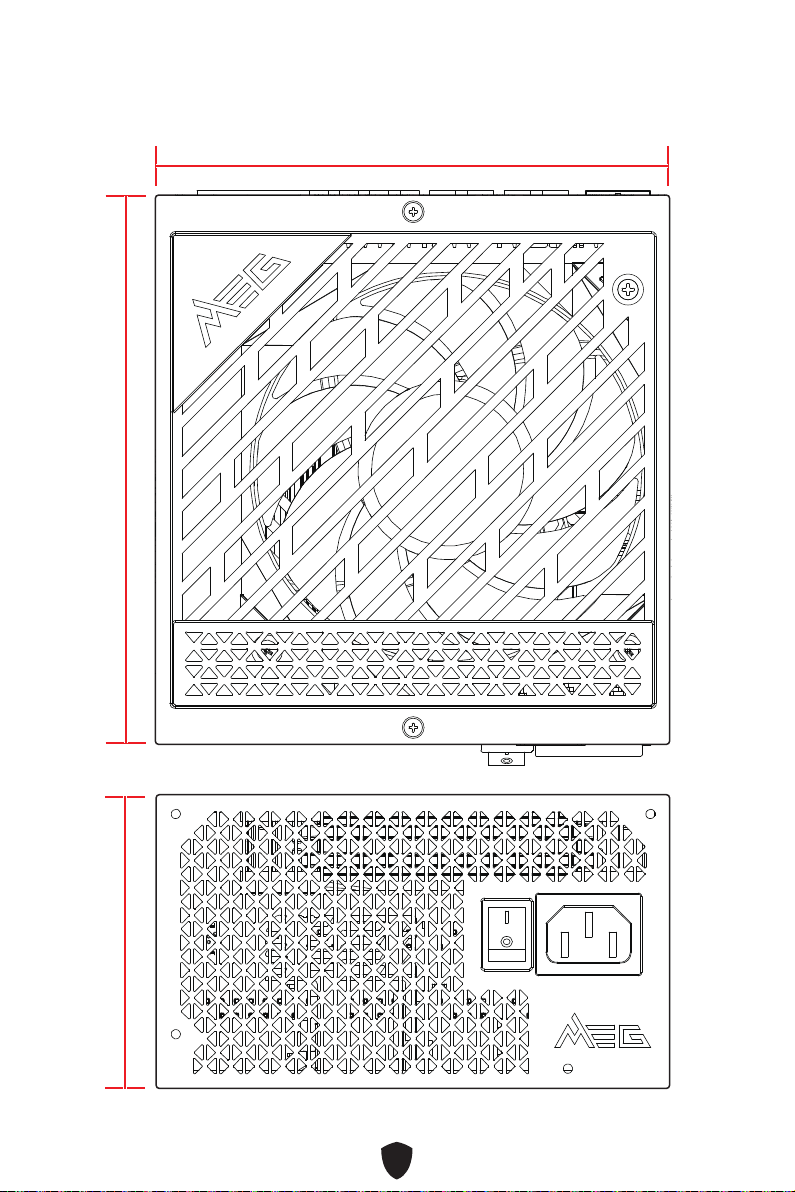

Dimensions
150 mm
160mm
86mm

4
Number of Power Connectors
Power Connectors Ai1300P PCIE5 Ai1000P PCIE5
ATX12V (Motherboard) 20+4 pin 1 1
12VHPWR 16pin 1 1
EPS12V (CPU) 4+4 pin 1 1
EPS12V (CPU) 8 pin 1 1
PCIe (VGA) 6+2 pin 8 8
SATA 15 pin 16 12
Peripheral (PATA) 4 pin 4 4
FDD 4 pin 1 1
JUSB 9 pin 1 1
USB Type A 1 1

5
Detachable Connectors
PCI-E CPU ATX 24P
SATA & MOLEXPCI-E+12VHPWR *G.I.
*G.I. : Please refer to “G.I. Port ” section for more information.

6

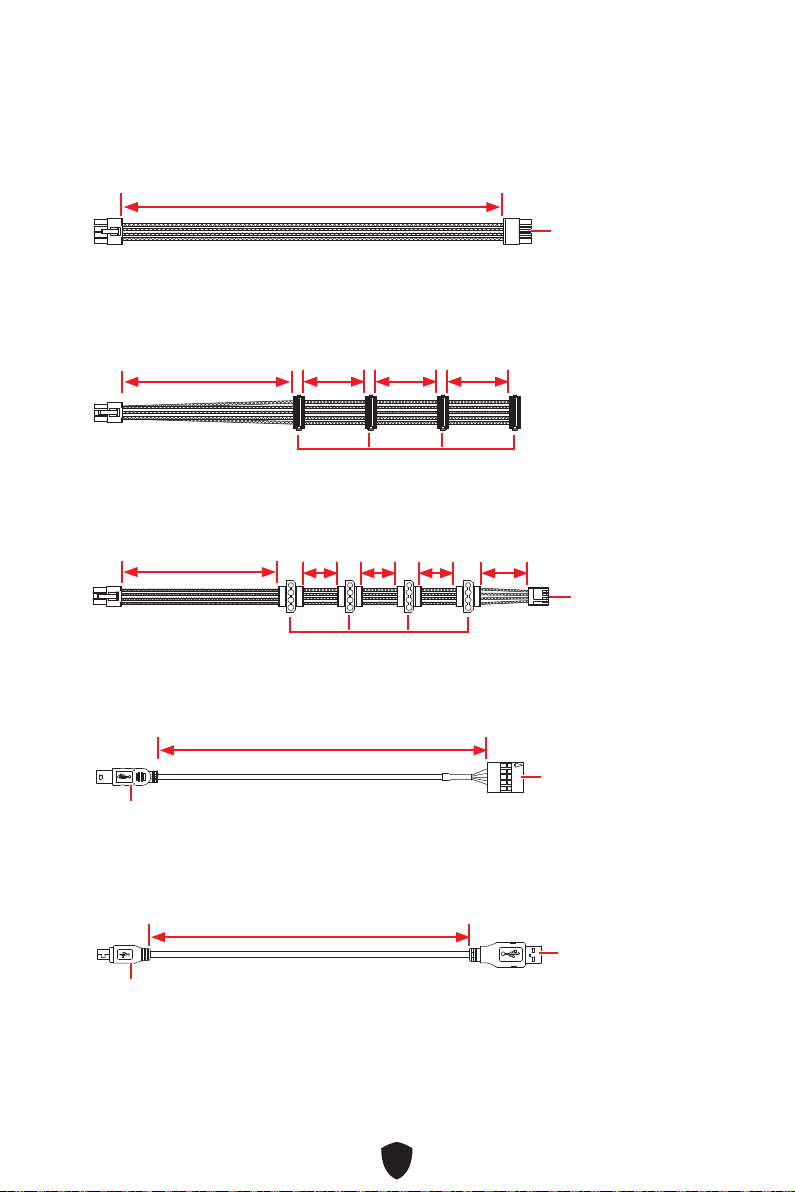

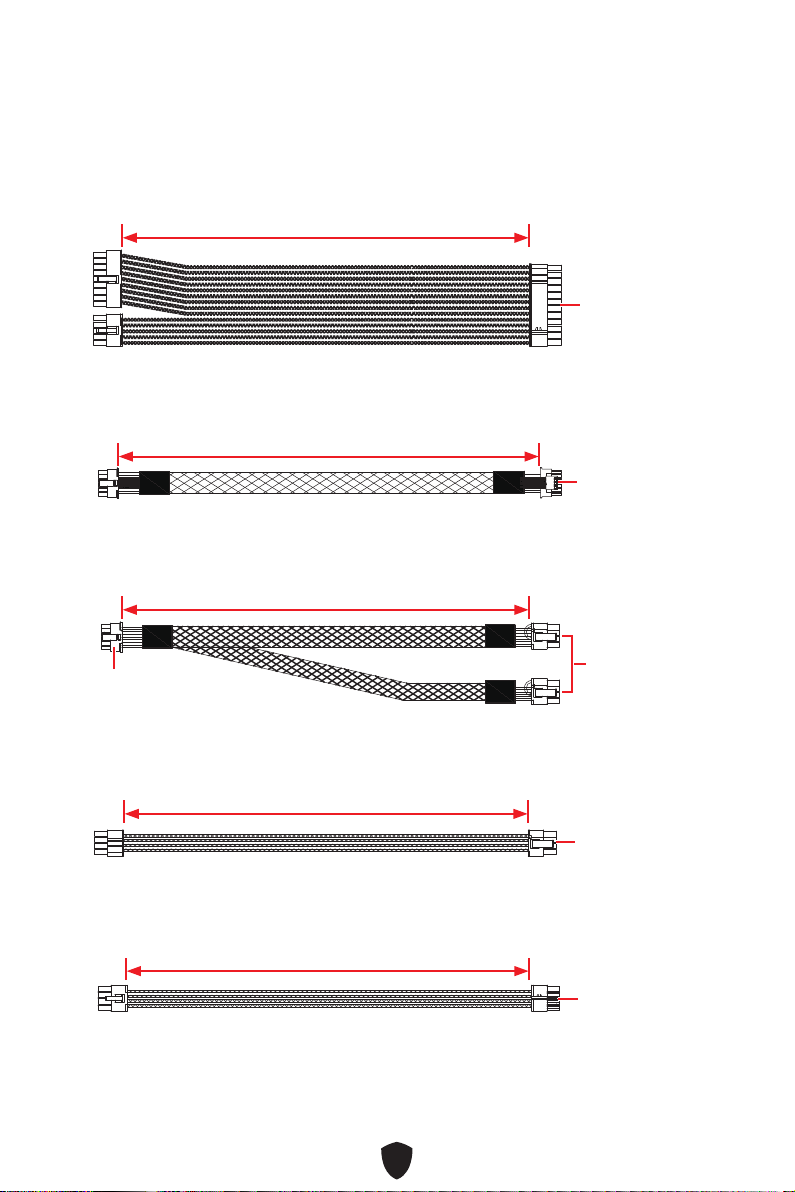

Connectivity and Cable Lengths
600mm
600mm
600mm
600mm
700mm
X 1
X 1
X 1
X 6
X 1
ATX12V
20+4 pin
12VHPWR
16pin
PCIe
6+2 pin
PCIe
6+2 pin
EPS12V
4+4 pin
12VHPWR
16pin
+12VHPWR 16 pin to PCIe 6+2 pin

7
700mm
500mm 150mm150mm150mm
500mm 150mm 150mm 150mm 150mm
600mm
600mm
X 1
X 1
X 1
X 1
X 4 (Ai1300P PCIE5)
X 3 (Ai1000P PCIE5)
SATA 15 pin
PATA 4 pin
Mini USB
Mini USB
USB
Type-A
FDD
4 pin
JUSB
9 pin
EPS12V
8 pin

8

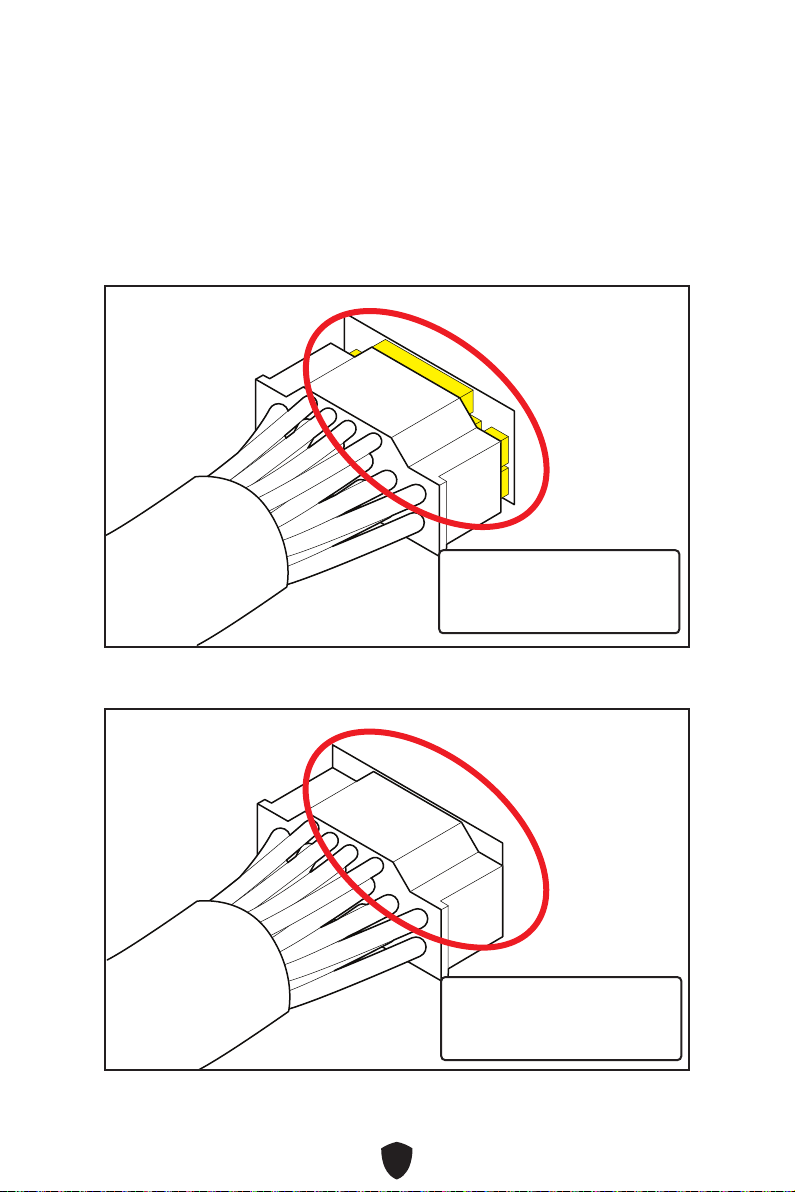

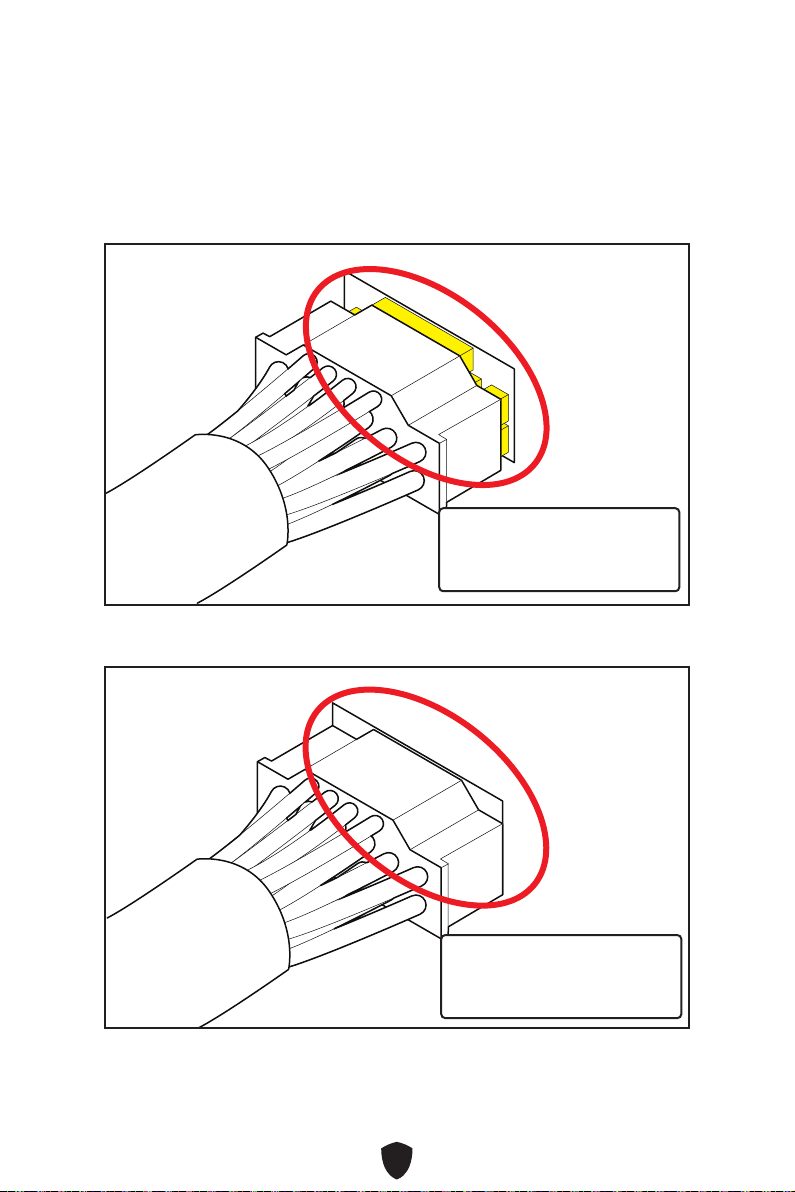

12VHPWR (PCIe 5.0 16 Pin) Cable Installation

CAUTION
Please fully insert the cable before use.
Not Fully Inserted
Fully Inserted

9
G.I. Port
The G.I. port allows you to connect your system with Mini USB to 9-Pin Cable or Mini
USB to Type-A Cable. Once connected properly, you can monitor PSU performance
through MSI center.
G.I. Port Connection
G.I. Port
Mini USB to 9-Pin Cable
Mini USB to Type-A Cable
G.I. Port
9-Pin JUSB
connector on
motherboard
USB Type-A
on rear IO
or

10
Software Control and Monitoring
Once connected properly, you can monitor power supply unit's
performance and control it through the MSI Center.
If you would like to know more information about MSI Center, please
refer to MSI Center User Guide: http://download.msi.com/manual/mb/
MSICENTER.pdf or scan the QR code to access.

1
Deutsch
Inhalt
Spezifikationen ..................................................................................................2
Abmessungen ....................................................................................................3
Zahl der Stromanschlüsse ................................................................................4
Lösbare Steckverbinder ....................................................................................5
Konnektivität und Kabellängen .........................................................................6
12VHPWR (PCIe 5.0 16 Pin) Kabelinstallation...................................................8
G.I. Anschluss ...................................................................................................9
G.I. Anschlussverbindung....................................................................................... 9
Software-Steuerung und -Überwachung........................................................10

2
Spezifikationen
1300W
AC-Eingang 100-240V~, max. 15A, 50-60Hz
Nur zur Verwendung in China: 200-240V~, 8A, 50-60Hz
DC-Ausgang
(Single-Rail,
Standard)
+5V +3,3V +12V -12V +5Vsb
25A 25A 108,33A 0,3A 3A
DC-Ausgang
(Multi-Rail*)
+5V +3,3V +12V1 +12V2 +12V3 +12V4 +12V5 -12V +5Vsb
25A 25A 40A 50A 50A 50A 50A 0,3A 3A
Gesamtleistung 130W 1300W 3,6W 15W
1300W
1000W
AC-Eingang 100-240V~, max. 15A, 50-60Hz
Nur zur Verwendung in China: 200-240V~, 8A, 50-60Hz
DC-Ausgang
(Single-Rail,
Standard)
+5V +3,3V +12V -12V +5Vsb
22A 22A 83,33A 0,3A 3A
DC-Ausgang
(Multi-Rail*)
+5V +3,3V +12V1 +12V2 +12V3 +12V4 +12V5 -12V +5Vsb
22A 22A 40A 50A 50A 50A 50A 0,3A 3A
Gesamtleistung 130W 1000W 3,6W 15W
1000W
* Bitte lesen Sie den Abschnitt „Software Control and Monitoring (Software-
Steuerung und -Überwachung)“, um das MSI Center herunterzuladen und zu
installieren, um den 12V-Multi-Rail-Ausgang zu aktivieren.

3
Abmessungen
150 mm
160 mm
86 mm

4
Zahl der Stromanschlüsse
Stromanschlüsse Ai1300P PCIE5 Ai1000P PCIE5
ATX12V (Motherboard) 20+4 Pin 1 1
12VHPWR 16Pin 1 1
EPS12V (CPU) 4+4 Pin 1 1
EPS12V (CPU) 8 Pin 1 1
PCIe (VGA) 6+2 Pin 8 8
SATA 15 Pin 16 12
Peripheriegerät (PATA) 4 Pin 4 4
FDD 4 Pin 1 1
JUSB 9 Pin 1 1
USB Typ A 1 1

5
Lösbare Steckverbinder
PCI-E CPU ATX 24P
SATA & MOLEXPCI-E+12VHPWR *G.I.
*G.I. : Bitte lesen Sie den Abschnitt „G.I. Anschluss“ für weitere Informationen.

6
Konnektivität und Kabellängen
600mm
600mm
600mm
600mm
700mm
X 1
X 1
X 1
X 6
X 1
ATX12V
20+4 Pin
12VHPWR
16Pin
PCIe
6+2 Pin
PCIe
6+2 Pin
EPS12V
4+4 Pin
12VHPWR
16Pin
+12VHPWR 16 Pin zu PCIe 6+2 Pin

7
700mm
500mm 150mm150mm150mm
500mm 150mm 150mm 150mm 150mm
600mm
600mm
X 1
X 1
X 1
X 1
X 4 (Ai1300P PCIE5)
X 3 (Ai1000P PCIE5)
SATA 15 Pin
PATA 4 Pin
Mini USB
Mini USB
USB
Typ-A
FDD
4 Pin
JUSB
9 Pin
EPS12V
8 Pin

8
12VHPWR (PCIe 5.0 16 Pin) Kabelinstallation

ACHTUNG
Vor der ersten Verwendung führen Sie bitte das Kabel
vollständig in eine der Buchsen ein.
Nicht vollständig
eingeführt
Vollständig
eingeführt
