MSI MAG Series User manual

MAG Series
Power Supply Unit
MAG A850GL PCIE5
MAG A850GL PCIE5 WHITE
MAG A750GL PCIE5
MAG A650GL
User Guide

English
Deutsch
Français

󴂬󴋈󸓦
󽍎󺭟󼎦
󶱻󺄷󱛉󳿶
󶚱󱢈󱛉󳿶
Italiano

Português
Español


1
English
Contents
Specifications................................................................................................................ 2
Dimensions ................................................................................................................... 3
Number of Power Connectors .................................................................................... 4
Detachable Connectors ............................................................................................... 5
Connectivity and Cable Lengths.................................................................................. 6
PCIe 16 Pin Cable Installation ..................................................................................... 7

2
Specifications
850W
Voltage +5V +3.3V +12V -12V +5Vsb
Max load 20.0A 20.0A 70.5A 0.3A 2.5A
Combined power 110W 846W 3.6W 12.5W
Total Power 850W
Regulation ±3% ±3% ±3% ±10% ±3%
Ripple & Noise 󽛠 󽛠 󽛠 󽛠 󽛠
750W
Voltage +5V +3.3V +12V -12V +5Vsb
Max load 20.0A 20.0A 62.0A 0.3A 2.5A
Combined power 110W 744W 3.6W 12.5W
Total Power 750W
Regulation ±3% ±3% ±3% ±10% ±3%
Ripple & Noise 󽛠 󽛠 󽛠 󽛠 󽛠
650W
Voltage +5V +3.3V +12V -12V +5Vsb
Max load 20.0A 20.0A 54.0A 0.3A 2.5A
Combined power 100W 648W 3.6W 12.5W
Total Power 650W
Regulation ±3% ±3% ±3% ±10% ±3%
Ripple & Noise 󽛠 󽛠 󽛠 󽛠 󽛠

3
Dimensions
150mm
140mm 86mm

4
Number of Power Connectors
Power Connectors A850GL PCIE5 A750GL PCIE5 A650GL
ATX12V (Motherboard) 20+4 pin 1 1 1
PCIe 16 pin 1 1 0
EPS12V (CPU) 4+4 pin 2 2 2
PCIe (VGA) 6+2 pin 4 3 4
SATA 15 pin 8 8 6
Peripheral (PATA) 4 pin 4 4 3
FDD 4 pin 1 1 1

5
Detachable Connectors
MAG A850GL PCIE5 & MAG A750GL PCIE5
CPU & PCI-E
CPU & PCI-E PCIe 16 Pin
ATX 24P SATA & MOLEX
MAG A650GL
CPU & PCI-EATX 24P SATA & MOLEX

6

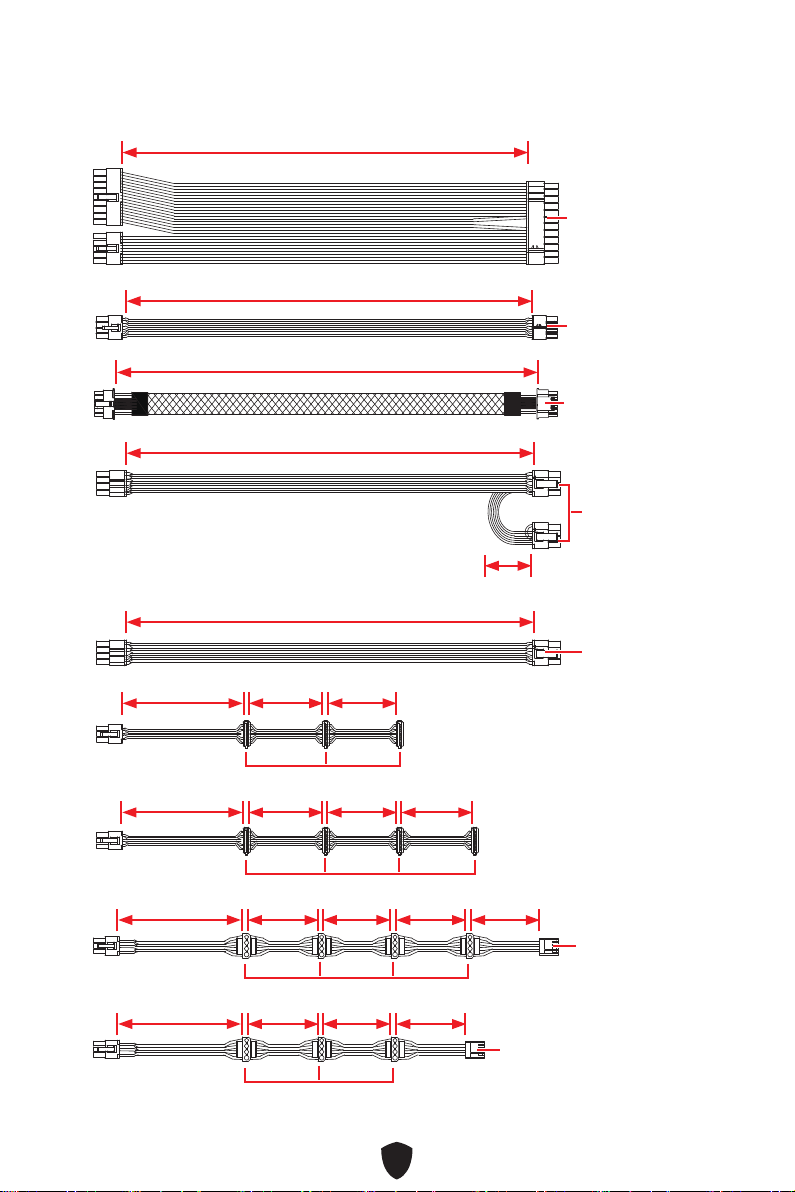

Connectivity and Cable Lengths
600mm
750mm
600mm
600mm
600mm
150mm
X 1
X 2
X 1
ATX12V
20+4 pin
CPU
4+4 pin
PCIe
16 pin
PCIe
6+2 pin
PCIe
6+2 pin
(A850GL PCIE5)
(A750GL PCIE5)
X 2 (A850GL PCIE5)
X 1 (A750GL PCIE5)
X 2 (A650GL)
X 1 (A750GL PCIE5)
500mm 150mm 150mm
SATA 15 pin
X 2 (A650GL)
X 1 (A650GL)
500mm 150mm 150mm 150mm
SATA 15 pin
X 2 (A850GL PCIE5)
(A750GL PCIE5)
(A850GL PCIE5)
(A750GL PCIE5)
500mm
500mm
150mm
150mm
150mm
150mm
150mm
150mm
150mm
PATA 4 pin
PATA 4 pin
X 1
FDD
4 pin
FDD
4 pin

7
PCIe 16 Pin Cable Installation

CAUTION
Please fully insert the cable before use.
Not Fully Inserted
Fully Inserted

1
Deutsch
Inhalt
Spezifikationen ..................................................................................................2
Abmessungen ....................................................................................................3
Zahl der Stromanschlüsse ................................................................................4
Lösbare Steckverbinder ....................................................................................5
Konnektivität und Kabellängen .........................................................................6
Installation des PCIe 16 Pin Kabels ..................................................................7

2

850W
Spannung +5V +3,3V +12V -12V +5Vsb
Max. Belastung 20,0A 20,0A 70,5A 0,3A 2,5A
Kombinierte
Leistung 110W 846W 3,6W 12,5W
Gesamtleistung 850W
Lastregelung ±3% ±3% ±3% ±10% ±3%
Restwelligkeit 󽛠 󽛠 󽛠 󽛠 󽛠
750W
Spannung +5V +3,3V +12V -12V +5Vsb
Max. Belastung 20,0A 20,0A 62,0A 0,3A 2,5A
Kombinierte
Leistung 110W 744W 3,6W 12,5W
Gesamtleistung 750W
Lastregelung ±3% ±3% ±3% ±10% ±3%
Restwelligkeit 󽛠 󽛠 󽛠 󽛠 󽛠
650W
Spannung +5V +3,3V +12V -12V +5Vsb
Max. Belastung 20,0A 20,0A 54,0A 0,3A 2,5A
Kombinierte
Leistung 100W 648W 3,6W 12,5W
Gesamtleistung 650W
Lastregelung ±3% ±3% ±3% ±10% ±3%
Restwelligkeit 󽛠 󽛠 󽛠 󽛠 󽛠

3
Abmessungen
150mm
140mm 86mm

4
Zahl der Stromanschlüsse
Stromanschlüsse A850GL PCIE5 A750GL PCIE5 A650GL
ATX12V (Motherboard) 20+4 Pin 1 1 1
PCIe 16 Pin 1 1 0
EPS12V (CPU) 4+4 Pin 2 2 2
PCIe (VGA) 6+2 Pin 4 3 4
SATA 15 Pin 8 8 6
Peripheriegerät (PATA) 4 Pin 4 4 3
Diskettenlaufwerk (FDD) 4 Pin 1 1 1

5

MAG A850GL PCIE5 & MAG A750GL PCIE5
CPU & PCI-E
CPU & PCI-E PCIe 16 Pin
ATX 24P SATA & MOLEX
MAG A650GL
CPU & PCI-EATX 24P SATA & MOLEX

6

600mm
750mm
600mm
600mm
600mm
150mm
X 1
X 2
X 1
ATX12V
20+4 Pin
CPU
4+4 Pin
PCIe
16 Pin
PCIe
6+2 Pin
PCIe
6+2 Pin
(A850GL PCIE5)
(A750GL PCIE5)
X 2 (A850GL PCIE5)
X 1 (A750GL PCIE5)
X 2 (A650GL)
X 1 (A750GL PCIE5)
500mm 150mm 150mm
SATA 15 Pin
X 2 (A650GL)
X 1 (A650GL)
500mm 150mm 150mm 150mm
SATA 15 Pin
X 2 (A850GL PCIE5)
(A750GL PCIE5)
(A850GL PCIE5)
(A750GL PCIE5)
500mm
500mm
150mm
150mm
150mm
150mm
150mm
150mm
150mm
PATA 4 Pin
PATA 4 Pin
X 1
FDD
4 Pin
FDD
4 Pin

7
Installation des PCIe 16 Pin Kabels

ACHTUNG
Vor der ersten Verwendung führen Sie bitte das Kabel
vollständig in eine der Buchsen ein.

eingeführt

eingeführt

1
Français
Contents
Caractéristiques .......................................................................................................... 2
Dimensions ................................................................................................................... 3
Nombre de connecteurs d’alimentation .................................................................... 4
Connecteurs détachables............................................................................................ 5
Connectique et longueur des câbles ......................................................................... 6
Installation du câble PCIe 16 broches ........................................................................ 7

2
Caractéristiques
850 W
Tension +5 V +3,3 V +12 V -12 V +5 Vsb
Charge maximale 20,0 A 20,0 A 70,5 A 0,3 A 2,5 A
Puissance combinée 110 W 846 W 3,6 W 12,5 W
Puissance totale 850 W
Régulation ±3 % ±3 % ±3 % ±10 % ±3 %
Ondulation et bruit 󽛠 󽛠 󽛠 󽛠 󽛠
750 W
Tension +5 V +3,3 V +12 V -12 V +5 Vsb
Charge maximale 20,0 A 20,0 A 62,0 A 0,3 A 2,5 A
Puissance combinée 110 W 744 W 3,6 W 12,5 W
Puissance totale 750 W
Régulation ±3 % ±3 % ±3 % ±10 % ±3 %
Ondulation et bruit 󽛠 󽛠 󽛠 󽛠 󽛠
650 W
Tension +5 V +3,3 V +12 V -12 V +5 Vsb
Charge maximale 20,0 A 20,0 A 54,0 A 0,3 A 2,5 A
Puissance combinée 100 W 648 W 3,6 W 12,5 W
Puissance totale 650 W
Régulation ±3 % ±3 % ±3 % ±10 % ±3 %
Ondulation et bruit 󽛠 󽛠 󽛠 󽛠 󽛠

3
Dimensions
150 mm
140 mm 86 mm

4
Nombre de connecteurs d’alimentation
Connecteurs d’alimentation A850GL PCIE5 A750GL PCIE5 A650GL
ATX12V (Carte mère) 20+4 broches 1 1 1
PCIe 16 broches 1 1 0
EPS12V (CPU) 4+4 broches 2 2 2
PCIe (VGA) 6+2 broches 4 3 4
SATA 15 broches 8 8 6
Périphérique (PATA) 4 broches 4 4 3
FDD 4 broches 1 1 1
