MTD 587 User manual

IMPORTANT: READ SAFETY RULES AND INSTRUCTIONS CAREFULLY
MTD PRODUCTS INC. P.O. BOX 368022 CLEVELAND, OHIO 44136-9722
Model
Series
587 and 588
PRINTED IN U.S.A. FORM NO. 770-8831A
OPERATOR’S MANUAL
Warning: This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest-
covered, brush-covered or grass-covered land unless the engine’s exhaust system is equipped with a spark arrester meeting
applicable local or state laws (if any). If a spark arrester is used, it should be maintained in effective working order by the operator.
In the State of California the above is required by law (Section 4442 of the California Public Resources Code). Other states may have
similar laws. Federal laws apply on federal lands. A spark arrester for the muffler is available through your nearest engine authorized
service dealer or contact the service department, P.O. Box 368022 Cleveland, Ohio 44136-9722.
1/98

2
SECTION 1: IMPORTANT SAFE OPERATION PRACTICES
WARNING: THIS SYMBOL POINTS OUT IMPORTANT SAFETY INSTRUCTIONS WHICH, IF
NOT FOLLOWED, COULD ENDANGER THE PERSONAL SAFETY AND/OR PROPERTY OF
YOURSELF AND OTHERS. READ AND FOLLOW ALL INSTRUCTIONS IN THIS MANUAL
BEFORE ATTEMPTING TO OPERATE YOUR EDGER. FAILURE TO COMPLY WITH THESE
INSTRUCTIONS MAY RESULT IN PERSONAL INJURY. WHEN YOU SEE THIS SYMBOL HEED
ITS WARNING.
WARNING: The Engine Exhaust from this product contains chemicals known to
the State of California to cause cancer, birth defects or other reproductive harm.
DANGER: Your edger was built to be operated according to the rules for safe operation in this
manual. As with any type of power equipment, carelessness or error on the part of the operator can
result in serious injury. If you violate any of these rules, you may cause serious injury to yourself or
others.
1. TRAINING AND PREPARATION
•Read the operator’s manual carefully. Be
thoroughly familiar with the controls and proper
use of the equipment. Know how to disengage the
blade control and stop the unit quickly.
•Never allow children to operate equipment. Never
allow adults to operate equipment without proper
instruction.
•Keep the area of operation clear (at least 50 feet)
of all persons, especially small children and pets.
•Use the edger only as manufacture intended and
as described in the operator’s manual.
•Do not operate edger after it has been dropped or
damaged.
•Return product to nearest authorized service
facility for examination and repair. Do not operate
product with damaged or excessively worn cutting
blade.
•Dress properly-always wear safety glasses or
goggles. Always wear safety footwear, and pants
or slacks that cover your legs to reduce the risk of
injury that may be caused by flying debris. Do not
wear loose clothing or jewelry that can be caught
in moving parts. Use of gloves and substantial
footwear is recommended when working outdoors.
Do not operate edger when barefoot or wearing
sandals or open-toed shoes. Wear boots,
preferably with steel-toe caps.
•Objects struck by the blade can cause severe
injuries to persons. The work area should always
be carefully examined and cleared of all stones,
sticks, wires, bones and other foreign
•objects, prior to edging.
•Never attempt to make any adjustments, other
than depth of cut, while engine is running.
•The use of accessory attachments not
recommended by the manufacturer may cause
hazard and will void warranty.
•Never operate the edger without proper guards,
plates or other safety protective devices in place.
•Turn engine off and disconnect spark plug wire:
•When not in use.
•Before servicing, cleaning and the like.
•Before changing accessories.
•Handle fuel with care; it is highly flammable
•Extinguish all smoking materials and other
possible sources of ignition.
•Use a fuel container acceptable for the purpose.
•Never add fuel to a running or hot engine.
•Fill fuel tank outdoors with extreme care. Never fill
fuel tank indoors.
•Replace gasoline cap securely.
•If fuel is spilled, move product and fuel container
from area and do not create a source of ignition.
Wipe up spilled fuel.
2. OPERATION
•Make sure all nuts, bolts, and screws are kept
tightly in place, especially the blade and all guards.
•Start the engine carefully. Make certain the blade
is disengaged before attempting to start. Keep
hands, feet, clothing, and the like well away from
cutting blade and moving parts.
DANGER: ROTATING CUTTING BLADE
•Keep both hands on handles when blade is
rotating.
•Keep feet away from cutting area.

3
•Make sure engine is off and spark plug wire is
disconnected when clearing jammed material from
blade.
•Do not attempt to remove cut material nor hold
material to be cut when engine is running or when
cutting blade is moving.
CAUTION: CUTTING BLADE COASTS AFTER
ENGINE IS TURNED OFF.
•Stay alert. Watch what you are doing. Use
common sense.
•Do not operate edger when fatigued or under the
influence of alcohol, drugs or heavy medication.
•Never operate the product without good visibility or
light.
•Keep good footing and balance at all times. Do not
overreach or stand on unstable support.
•Do not force or abuse product. It will do the job
better and safer at the rate for which it was
designed.
•Do not operate engine above speed necessary to
do the job.
•Do not run the engine indoors; exhaust fumes are
dangerous.
•Never direct discharge of material towards
bystanders nor allow anyone near the area of
operation. Use care in directing discharge to avoid
glass enclosures, automobiles, and the like.
•Stay alert for uneven sidewalks, holes in terrain or
other similar conditions when using product.
Always push slowly over rough ground. Do not use
the product on graveled surfaces.
•Do not operate edger in rain or wet locations.
•Always operate edger from behind the upper
handle and position yourself where line of sight to
cutting blade is blocked by guards.
•After striking a foreign object, shut off the engine,
make absolutely sure the blade and all moving
parts have completely stopped, disconnect the
spark plug wire to prevent accidental starting, then
thoroughly inspect the unit for any damage. Such
damage must be repaired before restarting and
operating the edger. Remember, heavy vibration is
generally a sign of trouble.
•Always stop engine when edging or trimming is
delayed or when walking from one location to
another.
•Stop the engine, wait for blade and all moving
parts to stop before cleaning, adjusting, repairing
or inspecting the product.
•Always disconnect spark plug wire to prevent
accidental starting.
•Muffler and engine become hot during operation
and can cause a burn. Allow to cool down before
touching.
•Take all possible precautions when leaving the
product unattended. Disengage the blade, stop the
engine and disconnect spark plug wire.
3. MAINTENANCE AND STORAGE
STORE PRODUCT INDOORS
•When not in use, store product indoors in a dry
place, locked or otherwise inaccessible to children.
•Maintain product with care.
•Follow maintenance instructions given in this
manual for your product.
•To reduce the risk of injury and engine failure, do
not allow excessive grass, leaves or other debris
to accumulate on or in the edger. Wipe engine
housing clean after each use.
•Keep air filter clean.
•Follow instructions for changing accessories.
•Replace any missing or damaged labels
immediately.
•Do not operate unit if blade is excessively worn or
damaged.
•Replace with blade which meets original
equipment specifications.
•Do not attempt to repair edger. Have mechanical
repairs made by qualified dealer or repairman. See
that only identical replacement parts are used.
WARNING - YOUR RESPONSIBILITY: Restrict the use of this power machine to persons who
read, understand and follow the warnings and instructions in this manual and on the machine.

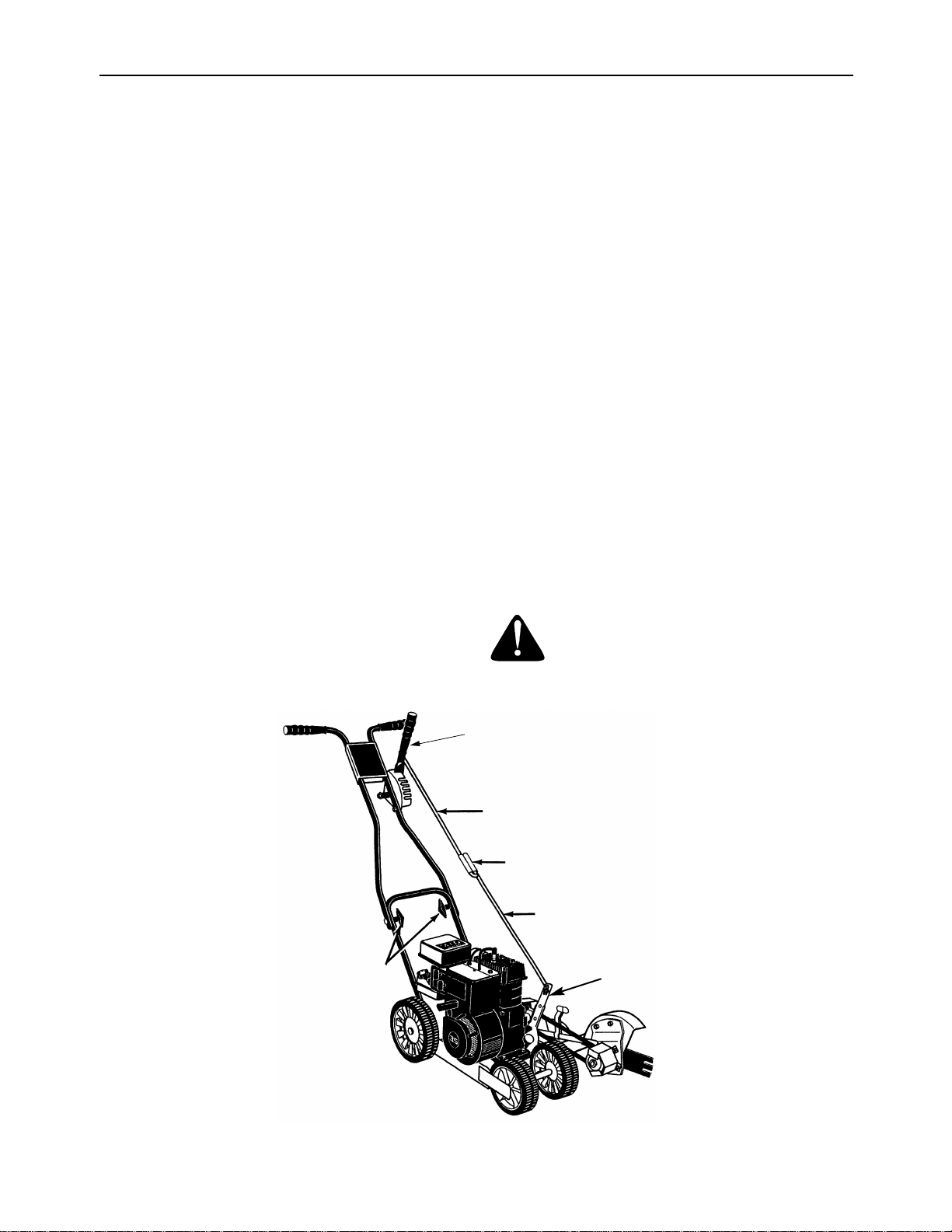

Figure 1 Safety labels found on your unit
CAUTION
KEEP HANDS
AND FEET
CLEAR
S
3
0
1
3
2

4
SECTION 2: FINDING YOUR MODEL NUMBER
This Operator’s Manual is an important part of your new edger. It will help you assemble, prepare and
maintain your edger. Please read and understand what it says.
Before you start to prepare your edger for its first use, please locate the model plate and copy the information
from it in this Operators Manual. The information on the model plate is very important if you need help from
your dealer or the MTD customer support department.
•Every edger has a model plate. You can locate it by standing in the operating position behind the unit
and looking down at the rear of the frame.
•The model plate will look like Figure 2
Figure 2
SECTION 3: CALLING CUSTOMER SUPPORT
If you are having difficulty assembling this product or if you have any question regarding the controls,
operation or maintenance of this unit, please call the Customer Support Department. You can reach them by
calling:
1-800-800-7310
Before you call, make sure that you have your model and serial numbers ready. By having the model and
serial numbers ready, you help the Customer Support Representative give you faster service. To find your
units model and serial number, see SECTION 2: FINDING YOUR MODEL NUMBER.
XXX-X-XXX-X-XXX XXXXXXXXXXX
This is where your model number will be.
This is where your serial number will be.
Copy the model number here:
Copy the serial number here:
MTD PRODUCTS INC
CLEVELAND, OHIO 44136

5
SECTION 4: SET-UP INSTRUCTIONS
IMPORTANT: This unit is shipped WITHOUT
GASOLINE or OIL. After setting up the unit,
service engine with gasoline and oil as
instructed in the separate engine manual
packed with your unit.
NOTE: Reference to right or left hand side of the
edger is observed from the operating position.
TO REMOVE UNIT FROM CARTON
1.Remove staples, break glue on top flaps, or cut
tape at carton end and peel along top flap to
open carton.
2.Remove loose parts if included with unit (i.e.,
owner's manual, etc.).
3.Cut along dotted lines and lay carton down flat.
4.Remove packing material (if any).
5.Roll or slide unit out of carton. Check carton
thoroughly for loose parts.
HOW TO SET-UP YOUR EDGER
1.Unfold the edger handle and tighten the two
hand knobs. See Figure 3.
2.Slide the clutch rod connector down over the
end of the lower clutch rod to secure the clutch
rod (tap the connector until it locks on the lower
clutch rod).
CHECKING THE CLUTCH ROD ADJUSTMENT
The clutch rod on your edger has been pre-adjusted
at the factory. Before operating the edger, check the
adjustment of the clutch rod as follows.
1.Disconnect the spark plug wire and move it
away from the spark plug.
2.With the blade clutch/depth control lever in the
disengaged position (notch nearest the
operator's position), carefully pull the recoil
starter rope. The belt on the edger should not
turn. If the belt (and blade) turns, remove the
hairpin clip and flat washer, and remove the
lower clutch rod from the pivot arm extension.
See Figure 3. Turn the clutch rod one or two
turns clockwise to shorten the rod. Insert lower
clutch rod into pivot arm extension, and recheck
the adjustment.
3.Check to be certain the blade clutch/depth
control lever can be moved to the furthest notch
forward without bowing the clutch rod. If not,
remove the hairpin clip and flat washer.
Remove lower clutch rod from pivot arm
extension, and turn the clutch rod one or two
turns clockwise to shorten the rod. Insert lower
clutch rod into pivot arm extension, and recheck
the adjustment.
Be certain to recheck the operation in both positions
after making any adjustment to the rod. Secure
lower clutch rod with flat washer and hairpin clip
when adjustment is correct.
WARNING: When operating the
edger, stop engine immediately and
readjust the clutch rod if blade turns
with blade clutch/depth lever in the
disengaged position.
Figure 3
Upper
Clutch
Rod
Clutch
Rod
Connector
Lower Clutch
Rod
Hand
Knobs Pivot Arm
Extension
Blade Clutch/
Depth Control
Lever

6
SECTION 5: CONTROLS
THROTTLE CONTROL
The throttle control lever is located on the engine
(Model 588) or on the handle panel (Model 587). It
regulates the engine speed and stops the engine.
BLADE CLUTCH/DEPTH CONTROL
WARNING: The blade clutch/depth
control is designed to minimize the risk
of blade contact injury. Do not under
any circumstances attempt to defeat
the function of the blade clutch/depth
control, or use the edger if the control
is not adjusted properly.
Keep hands and feet away from edger
blade whenever the engine is running,
whether blade is engaged or
disengaged.
The blade clutch/depth control has two main
functions:
1. To engage and disengage the blade.
2. To control the depth of cut.
To disengage the blade, move the control lever to
the left and pull it back to the notch in the depth
adjustment bracket closest to the operator. See
Figure 4. This position takes tension off the drive
belt and keeps the blade from turning. To engage
the blade, move the control lever forward into any of
the other notches to engage the drive belt and start
the blade turning. The further forward the control
lever is moved, the deeper or lower the cut.

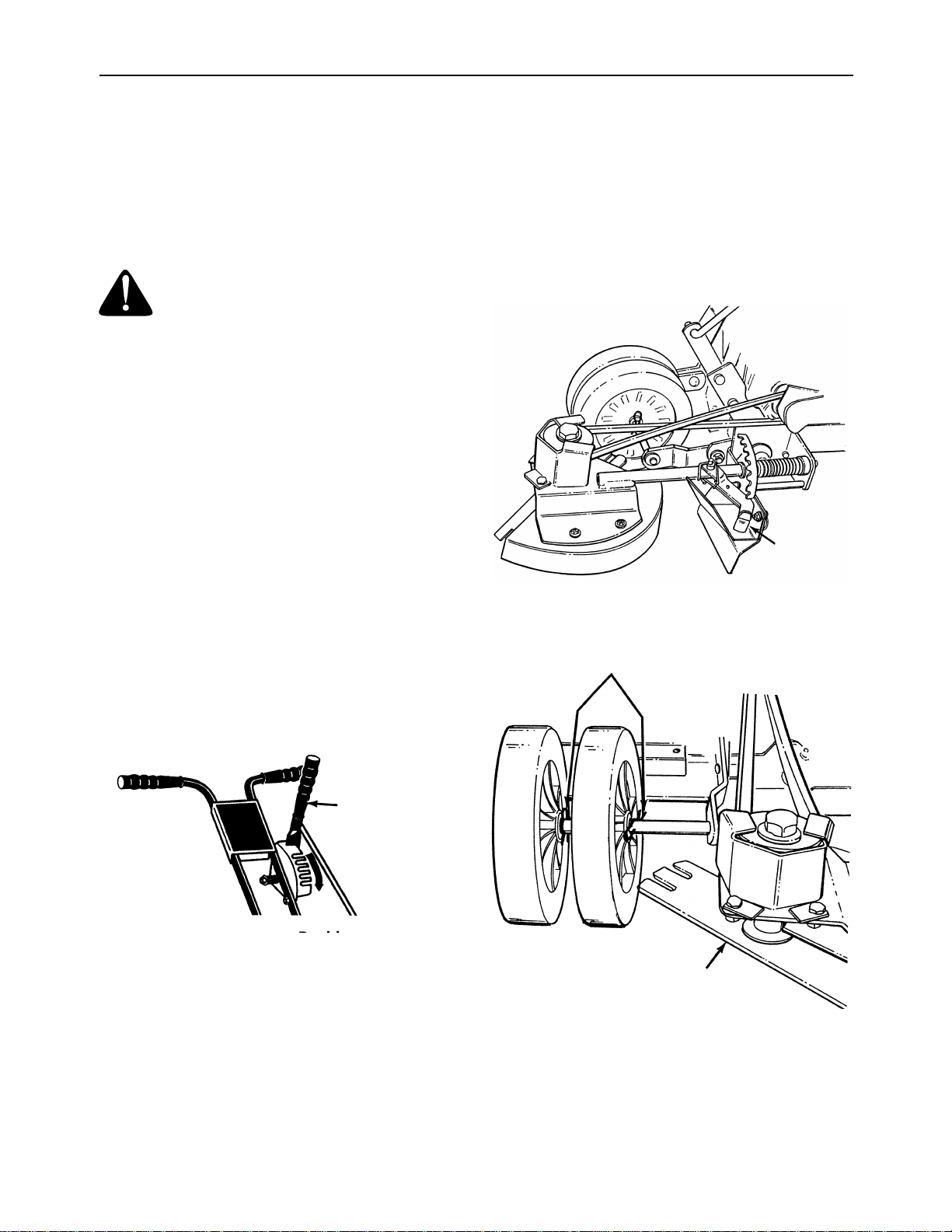

Figure 4
BLADE PLANE ADJUSTMENT
The cutting blade can be adjusted to eight positions
from vertical to horizontal. To adjust, make certain
the blade is disengaged, release the adjustment
lever on the pivot bracket and rotate the spindle
housing. Place adjustment lever in notch desired.
See Figure 5.
When the blade is adjusted toward the horizontal
position, the front wheels must also be adjusted.
Remove the hairpin clip on the left side and slide
the wheel to the right as shown in Figure 6. Reinsert
the hairpin clip.
NOTE: If the wheels are not adjusted, the blade
will hit the left front wheel, causing the belt to slip
and possibly damaging the wheel.
Figure 5
Figure 6
Become familiar with all the controls and
adjustments before operating the edger so you can
adjust it easily to a variety of cutting and trimming
conditions. DO NOT ATTEMPT TO MAKE ANY
ADJUSTMENTS while the engine is running.
Blade Clutch/
Depth Control
In Disengaged
Position
Engaged
Pii
Adjustment
Lever
Blade
Hairpin Clips

7
SECTION 6: OPERATION
The operation of any edger can
result in foreign objects being
thrown into the eyes, which can
result in severe eye damage.
Always wear safety glasses or
eye shields. We recommend wide
vision safety mask for over spectacles or
standard safety glasses.
WARNING: Do not engage and lower
blade if blade is over concrete, asphalt,
rocks or the like. The blade can strike
the supporting surface, which could
result in personal injury or property
damage.
STARTING THE ENGINE
1. Service the engine with gasoline and oil as
instructed in the separate engine manual
packed with your edger. Read instructions
carefully.
WARNING: Never fill fuel tank
indoors, with engine running or until
the engine has been allowed to cool for
at least two minutes after running.
2. Move the blade clutch/depth control handle
back as far as it will go, and place it in the last
notch. See Figure 4.
3. Set the throttle in the FAST (Rabbit) position.
NOTE: Awarm engine may not require choking.
4. On Models 588, move choke to CHOKE
position. Refer to Figure 7A.
On Model 587, push the primer bulb in two or
three times. Wait two to three seconds between
each push. In cold weather (below 50 degrees F/
19 degrees C) push five (5) times. Refer to
Figure 7B.
NOTE: DO NOT USE PRIMER TO RESTART A
WARM ENGINE AFTER A SHORT SHUTDOWN.
5. Grasp starter handle and pull rope out slowly
until engine reaches start of compression cycle
(rope will pull slightly harder at this point). Let
the rope rewind slowly.
6. Pull rope with a rapid, continuous, full arm
stroke. Keep a firm grip on starter handle.
Return it slowly to the rope guide.
7. On Models 588, after the engine starts, move
the choke lever gradually to the RUN position.
NOTE: If Model 587 engine fails to start after three
(3) pulls, push the primer two (2) times and pull
starter rope again.
Figure 7
STOPPING THE ENGINE
To stop the engine, move throttle control to STOP
position. Disconnect spark plug wire and ground to
prevent accidental starting while equipment is
unattended.
OPERATING THE EDGER
WARNING: Rotating cutting blade
may throw objects causing personal
injury. Keep area clear of bystanders
and do not operate without guards in
place.
1. Set the adjustment lever (refer to Figure 5) in
the second notch at the top to edge vertically.
See Figure 8.
Figure 8
2. Set the adjustment lever (refer to Figure 5) in
the first notch at the top for trenching. See
Figure 9.
Figure 9
WEAR YOUR
FORESIGHT IS BETTER
THAN NO SIGHT
SAFETY GLASSES
Model 588 Model 587
Flat Drive
Trenching

8
3. To operate the unit as a trimmer, move the
adjustment lever and rotate the cutting blade 90
degrees See Figure 10. Move the front wheels
all the way to the right, as described in the
SECTION 5: CONTROLS on page 6.
WARNING: Do not adjust the blade
guard with the engine running.
Figure 10
4. Units equipped with curb wheel only: To
edge along a curb, remove the hairpin clip from
the right side of the front axle, slide the right
wheel toward the left side of the unit and
replace the hairpin clip. See Figure 11. Lower
the right rear wheel by moving the height
adjustment lever toward the engine, pivoting the
wheel to the desired depth and releasing the
lever. See Figure 12.
Figure 11 Curb Wheel
Figure 12 Curb Wheel
SECTION 7: LUBRICATION
Wheels—The wheels are plastic and require no
lubrication.
Cutting Head Bearings—The two ball bearings in
the cutting head are lubricated and sealed at the
factory and require no lubrication. Lubricate all other
moving parts with engine oil.
Shaft—Lubricate the two bearings and under the
compression spring on the shaft with light oil
frequently during the season. See Figure 13.
Engine—Refer to engine manual for lubrication
instructions.
SECTION 8: MAINTENANCE
WARNING: Disconnect the spark
plug wire and ground against the
engine before performing any
adjustment, repairs or maintenance.
ENGINE
Refer to engine manual for complete instructions for
care and maintenance of engine.
BLADE REMOVAL
Use a wrench on both sides of the blade to remove
it for replacement.
BELT REMOVAL
1. To remove the V-belt, remove the belt guard
assembly at the engine pulley. Remove the hex
nuts and lock washers. See Figure 13.
Figure 13
Up to Fence, Foundations, etc.
Height Adjustment Lever
Hex Nuts
and
Lock Washers
Bearings
Spring
Belt Guard
Assembly

9
2. Remove the belt guard at the spindle assembly
by removing two hex bolts, lock washers and
hex nuts. See Figure 14.
3. Remove the old belt, and reassemble with a
new belt, part number 754-0142.
Figure 14
SECTION 9: OFF-SEASON
STORAGE
The following steps should be taken to prepare unit
for storage.
1. Clean and lubricate unit thoroughly.
2. Refer to engine manual for correct engine
storage instructions.
3. Coat cutting blade with chassis grease to
prevent rusting.
4. Store unit in a dry, clean area. Do not store next
to corrosive materials, such as fertilizer.
NOTE: When storing any type of power equipment
in a poorly ventilated or metal storage shed, care
should be taken to rustproof the equipment. Using a
light oil or silicone, coat the equipment, especially
springs and bearings.
Belt Guard
Hex Bolts,
Hex Nuts &
Lock Washers

10
SECTION 10: TROUBLE SHOOTING GUIDE
Note: For repairs beyond the minor adjustments above, contact your local authorized service dealer.
Trouble Possible Cause(s) Corrective Action
Engine fails to start Dirty aircleaner.
Choke not in ON position.
Fuel tank empty, or stale fuel.
Throttle control lever not in
starting position.
Spark plug wire disconnected.
Faulty spark plug.
Engine flooded.
Refer to the engine manual packed with your unit.
Move switch to ON position.
Fill tank with clean, fresh gasoline. Fuel will not last over
thirty days unless a fuel stabilizer is used.
Move throttle lever to FAST position.
Connect wire to spark plug.
Clean, adjust gap or replace.
Refer to the engine manual packed with your unit.
Engine runs erratic Unit running on CHOKE.
Spark plug wire loose.
Stale fuel.
Vent in gas cap plugged.
Water or dirt in fuel system.
Dirty air cleaner.
Carburetor out of adjustment.
Move choke to OFF position.
Connect and tighten spark plug wire.
Fill tank with clean, fresh gasoline. Fuel will not last over
thirty days unless a fuel stabilizer is used.
Clear vent.
Drain fuel tank. Refill with fresh fuel.
Refer to the engine manual packed with your unit.
Refer to the engine manual packed with your unit.
Engine overheats Engine oil level low.
Air flow restricted.
Dirty aircleaner.
Carburetor not adjusted
properly.
Fill crankcase with proper oil.
Stop engine and disconnect spark plug wire. Refer to the
engine manual packed with your unit.
Refer to the engine manual packed with your unit.
Refer to the engine manual packed with your unit.
Excessive vibration at
blade Spindle bent. Ball bearings worn out. Replace spindle. Replace ball bearings.
Belt slips Belt worn or stretched.
Blade clutch control will not
remain in adjustment bracket.
Adjust clutch rod or replace belt.
Readjust spring tension at blade-clutch control.
Theedgerheadwillnot
go down to the last
position
Lack of lubrication.
Rod not adjusted properly.
Pivot bolt not properly
tightened.
Lubricate compression spring on spindle plate assembly
with oil.
Disconnect rod from bracket, push head all the way down
until stop bracket is against frame (handle should be in
lowest position) and adjust rod accordingly.
Check pivot bolt for tightness.
Blade guard pivots
forward, throwing dirt
on operator
Cam lever and carriage bolt on
guard are loose. Readjust guard, tighten cam lever and carriage bolt.

11
Notes

12
Notes

13
Models 587 and 588
7
IMPORTANT: For a
proper working machine,
use Factory Approved
Parts.
V-BELTS are specially
designed to engage and
disengage safely. A substi-
tute (non OEM) V-Belt can
be dangerous by not disen-
gaging comletely.
24
† Wheel Assembly Chart
Size Description Part No.
8 x 1.75 Bar Trd Green 734-1781
8 x 1.7 Bar Trd Grey 734-1844
7 x 1.7 Bar Trd Green 734-1843
7 x 1.7 Bar Trd Grey 734-1797
8 x 1.75 Steel Ball Bearing * 734-1268
7 x 1.75 Steel Ball Bearing * 734-1264
* Ball Bearing (2 per wheel) 741-0484

14

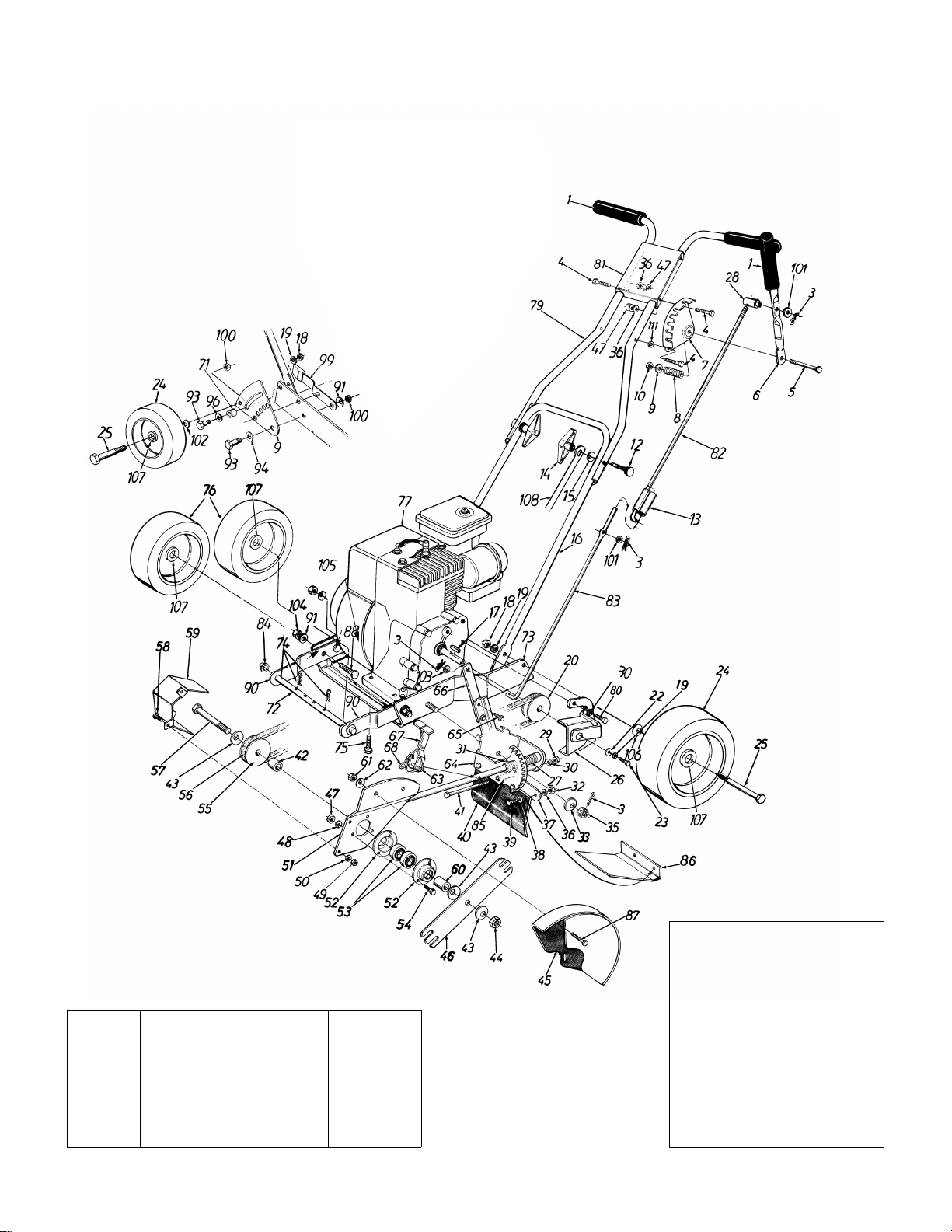

Models 587 and 588
Ref.
No. PART NO DESCRIPTION
1720-0283 Foam Grip
2712-0107 Hex L-Nut 1/4-20 Thd.
3714-0104 Cotter Pin 5/16" Dia.
4710-0106 Hex Bolt 1/4-20 x 1.25" Lg.
5710-0116 Hex Bolt 5/16-18 x 2" Lg.
6749-0666 Engagement Handle
7781-0081 Adjustment Bracket
8732-0369 Compression Spring 1.38" Lg.
9736-0264 Flat Wash. .344" I.D.
10 712-0158 Hex L-Nut 5/16-18 Thd.
12 710-1174 Curv. Hd. Bolt 5/16-18 x 2" Lg.
13 750-0963 Clutch Rod Lock
14 720-0241 Wing Nut Ass’y.
15 736-0451 Saddle Wash. .32" I.D. x .937"
16 749-0937 Lower Handle
17 714-0122 Sq. Key 3/16" x .75" Lg.
18 712-0798 Hex Nut 3/8-16 Thd.
19 736-0169 L-Wash. 3/8" I.D.
20 756-0327B Engine Pulley
22 736-0258 Flat Wash. .385" I.D.
23 710-0152 Hex Bolt 3/8-24 x 1" Lg.
24 †Rear Wheel Ass’y Comp.
25 738-0108 Shoulder Bolt .498" Dia.
26 687-0100 Belt Guard Ass’y.
27 732-0187 Compression Spring
28 711-0677 Ferrule
29 712-0267 Hex Nut 5/16-18 Thd.
30 736-0119 L-Wash. 5/16" I.D.
31 715-0143 Spring Pin Spir. 1/4" Dia.
32 712-0287 Hex Nut 1/4-20 Thd.
33 736-0112 Bell Wash. .535" I.D.
35 712-0114 Hex Slotted Nut 1/2-20 Thd.
36 736-0329 L-Wash. 1/4" I.D.
37 781-0087 Flap Bracket
38 736-0342 Flat Wash. .25" I.D.
39 710-0258 Hex Bolt 1/4-20 x .62" Lg.
40 731-0725 Flap
41 710-0402 Hex Bolt 5/16-18 x 4.5" Lg.
42 750-0229 Spacer 1.030" Lg.
43 736-0317 Bell Washer .63" I.D.
44 712-0413 Hex Jam L-Nut 5/8-18 Thd.
45 781-0076 Guard Ass’y.
46 781-0080 Edger Blade
781-0713 Star Blade
47 712-0287 Hex Nut 1/4-20 Thd.
48 736-0329 L-Wash. 1/4" I.D.
49 712-0287 Hex Nut 1/4-20 Thd.
50 736-0329 L-Wash. 1/4" I.D.
51 781-0078 Spindle Plate Ass’y.
52 05034A Bearing Housing
53 741-0155 Ball Bearing .62" I.D.
54 710-0258 Hex Bolt 1/4-20 x .62" Lg.
55 756-0449 3/8" "V"-Pulley
56 754-0142 "V"-Belt
57 710-0929 Hex Bolt 5/8-18 x 4.5" Lg.
58 710-0258 Hex Bolt 1/4-20 x .625" Lg.
59 781-0086 Belt Guard
60 750-0118 Sleeve .90" Lg.
61 712-0267 Hex Nut 5/16-18 Thd.
62 736-0242 Bell Wash. .345" I.D.
63 715-0121 Spring Pin Spir. 1/4" Dia.
64 781-0090 Pivot Bracket Ass’y.
65 710-0600 Hex Self-Tap Scr. 5/16-24 x .5"
66 781-0075 Arm Extension
67 781-0093 Adjustment Lever Ass’y.
68 732-0188A Torsion Spring
69 712-0267 Hex Nut 5/16-18 Thd.
70 736-0119 L-Wash. 5/16" I.D.
71 750-0535 Spacer ††
72 738-0898 Axle 8.20" Lg.(Front)
73 681-0044 Base Ass’y
74 714-0101 Hairpin Cotter 1/2" Dia.
75 710-0654A Hex TT-Tap Scr. 3/8-16 x 1" Lg.
76 †Front Wheel Ass’y Comp
77 ------------ See Engine Manual
79 749-0938 Upper Handle
80 710-0237 Hex Bolt 5/16-24 x .62" Lg.
81 781-0091A Handle Support Plate
82 747-0907 Upper Clutch Rod
83 747-0908 Lower Clutch Rod
84 726-0221 Push Cap 1/2" Dia.
85 711-0386 Spacer 3.765" Lg.
86 781-0095 Debris Deflector
87 710-0118 Hex Bolt 5/16-18 x .75" Lg.
88 710-0793 Ribbed Neck Bolt 3/8-24 x .8" Lg.
90 781-0580 Axle Arm
91 736-0105 Bell Washer .40" I.D.
92 736-0280 Flat Wash. .39" I.D.
93 738-0258 Shld. Bolt .5" Dia. ††
94 736-0255 Bell Wash .515" I.D. ††
96 736-0272 Flat Wash .51" I.D. x 1.0" O.D. ††
97 781-0100 Curb Height Adjuster ††
99 732-0552 Spring Adj. Lever ††
100 712-0266 Hex Jam Nut 3/8-16 Thd. ††
101 736-0264 Flat Wash .344" I.D. x .62" O.D.
102 736-0504 Wave Wash. .51" I.D.††
103 736-3050 Flat Washer .406" I.D. x .81" O.D.
104 712-0241 Hex Nut 3/8-24 Thd.
105 736-0452 Bell Washer .396" I.D. x 1.14" O.D.
106 736-0105 Bell Washer .38" I.D. x .88" O.D.
736-0504 Wave Washer .51" I.D.
107 741-0484 Ball Bearing
108 749-0941 Strut 15.91"
111 736-0463 Flat Washer .25" I.D. x .62" O.D.
Ref.
No. PART NO DESCRIPTION
†† Units w/Curb Wheel Kit
† See Wheel Chart (pg.13)

15

MANUFACTURER’S LIMITED WARRANTY FOR:
For TWO YEARS from the date of retail purchase
within the United States of America, its possessions
and territories, MTD PRODUCTS INC will, at its
option, repair or replace, for the original purchaser,
free of charge, any part or parts found to be
defective in material or workmanship. This warranty
covers units which have been operated and
maintained in accordance with the operating
instructions furnished with the unit, and which have
not been subject to misuse, abuse, commercial use,
neglect, accident, improper maintenance or
alteration.
Normal wear parts or components thereof are
subject to separate terms as noted below in the “No
Fault Ninety Day Consumer Warranty” clause.
All normal wear part failures will be covered on this
product for a period of 90 days regardless of cause.
After 90 days, but within the two year period, normal
wear parts failures will be covered ONLY IF caused
by defects in material or workmanship of OTHER
component parts. Normal wear parts are defined as
batteries*, belts, blades, blade adapters, grass
bags, rider deck wheels, seats, snow thrower skid
shoes, shave plates and tires.
How to obtain service: Warranty service is
available, with proof of purchase, through your local
authorized service dealer. To locate the dealer in
your area, please check the yellow pages or contact
the Customer Service Department of MTD
PRODUCTS INC, P. O. Box 368022, Cleveland,
Ohio 44136-9722. Phone [phone]. The
return of a complete unit will not be accepted by the
factory unless prior written permission has been
extended by the Customer Service Department of
MTD PRODUCTS INC.
Transportation charges: Transportation charges
for the movement of any power equipment unit or
attachment are the responsibility of the purchaser.
Units exported out of the United States: MTD
PRODUCTS INC does not extend any warranty for
products sold or exported outside of the United
States of America, its possessions and territories,
except those sold through MTD PRODUCTS INC’s
authorized channels of export distribution.
Other Warranties:
1. The engine or component parts thereof carry
separate warranties from their manufacturers.
Please refer to the applicable manufacturer’s
warranty on these items.
2. *Batteries are covered by a 90-day replacement
warranty.
3. Log splitter pumps, valves and cylinders or
component parts thereof are covered by a one
year warranty.
4. All other warranties, express or implied,
including any implied warranty of
merchantability or fitness for a particular
purpose, are hereby expressly disclaimed in
their entirety.
5. The provisions as set forth in this warranty
provide the sole and exclusive remedy of MTD
PRODUCTS INC’s obligations arising from the
sales of its products. MTD PRODUCTS INC will
not be liable for incidental or consequential loss
or damage.
How state law relates to this warranty: This
limited warranty gives you specific legal rights, and
you may also have other rights which vary from
state to state. Certain disclaimers are not allowed in
some states and therefore they may not apply to
you under all circumstances.
NOTE: This warranty does not cover routine
maintenance items such as lubricants, filters, blade
sharpening and tune-ups, or adjustments such as
brake adjustments, clutch adjustments or deck
adjustments. Nor does this warranty cover normal
deterioration of the exterior finish due to use or
exposure.
