MTD 19A30003000 User manual

MTD LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019
Printed In USA
WARNING
READ AND FOLLOW ALL SAFETY RULES AND INSTRUCTIONS IN THIS MANUAL
BEFORE ATTEMPTING TO OPERATE THIS MACHINE.
FAILURE TO COMPLY WITH THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY.
Op e r a t O r ’sMa n u a l
Twin Rear Bagger — Model 19A30003OEM & 19A30003000
Form No. 769-05268D
(December 17, 2010)

To The Owner 1
2
Thank you for purchasing a bagging attachment manufactured
by MTD LLC. It was carefully engineered to provide excellent
performance when properly operated and maintained.
Please read this entire manual prior to operating the equipment.
It instructs you how to safely and easily set up, operate and
maintain this attachment. Please be sure that you, and any
other persons who will operate the machine, carefully follow the
recommended safety practices at all times. Failure to do so could
result in personal injury or property damage.
All information in this manual is relative to the most recent
product information available at the time of printing. Review this
manual frequently to familiarize yourself with the attachment,
its features and operation. Please be aware that this Operator’s
Manual may cover a range of product specifications for various
models. Characteristics and features discussed and/or illustrated
in this manual may not be applicable to all models. MTD LLC
reserves the right to change product specifications, designs and
equipment without notice and without incurring obligation.
If you have any problems or questions concerning this
attachment, phone your local authorized MTD service dealer
or contact us directly. MTD’s Customer Support telephone
numbers, website address and mailing address can be found on
this page. We want to ensure your complete satisfaction at all
times.
Throughout this manual, all references to right and left side of the
machine are observed from the operating position
Thank You
Customer Support
Please do NOT return the machine to the retailer or dealer without first contacting our Customer Support Department.
If you have difficulty assembling this product or have any questions regarding the controls, operation, or maintenance of
this machine, you can seek help from the experts. Choose from the options below:
Visit us on the web at www.mtdproducts.com◊
Call a Customer Support Representative at [phone] or [phone]◊
Write us at MTD LLC • P.O. Box 361131 • Cleveland, OH • 44136-0019◊
Record Product Information
Before setting up and operating your new equipment, please
locate the model plate on the equipment and record the
information in the provided area to the right. You can locate the
model plate by looking at the topside of the bagger cover. This
information will be necessary, should you seek technical support
via our web site, Customer Support Department, or with a local
authorized service dealer.
MO d e l nu M b e r
se r i a l nu M b e r
Safe Operation Practices ........................................ 3
Carton Contents & Hardware Packs...................... 6
Assembly & Installation.......................................... 8
Operation................................................................15
Parts List..................................................................16
Warranty ................................................................ 20
Espanol....................................................................21
French..................................................................... 37
Table of Contents

Important Safe Operation Practices 2
3
General Operation
Read, understand, and follow all instructions on your1.
equipment and in their manuals before attempting to
assemble and operate. Keep this manual in a safe place for
future and regular reference and for ordering replacement
parts.
To help avoid blade contact or a thrown object injury, keep2.
bystanders, helpers, children and pets at least 75 feet from
the mower while it is in operation. Stop machine if anyone
enters the area.
Thoroughly inspect the area where the equipment is to be3.
used. Remove all stones, sticks, wire, bones, toys, and other
foreign objects which could be picked up and thrown by
the blade(s). Thrown objects can cause serious personal
injury.
Always wear safety glasses or safety goggles during4.
operation and while performing an adjustment or repair
to protect your eyes. Thrown objects which ricochet can
cause serious injury to the eyes.
Do not operate the mower without the discharge cover5.
or entire grass catcher in its proper place. A missing
or damaged discharge cover or grass bag attachment
component may result in thrown objects or blade contact
injuries.
Do not put hands or feet near rotating parts or under the6.
cutting deck. Contact with the blade(s) can amputate
hands and feet.
Shut off mower’s engine and wait for blades to come to7.
a complete stop before unclogging mower’s discharge
opening or bagger parts.
Slow down before turning. Operate the machine smoothly.8.
Avoid erratic operation and excessive speed. Be aware
that a grass catcher attachment can affect the handling
characteristics of your mower.
Disengage blade(s), set parking brake, stop engine and wait9.
until the blade(s) come to a complete stop before opening
bagger attachment’s top cover, removing grass catcher,
emptying grass, unclogging chute, removing any grass or
debris, or making any adjustments.
Never leave a running machine unattended. Always turn10.
off blade(s), place transmission in neutral, set parking
brake, stop engine and remove key before dismounting.
Your machine is designed to cut normal residential grass of11.
a height no more than 10”. Do not attempt to mow through
unusually tall, dry grass (e.g., pasture) or piles of dry leaves.
Dry grass or leaves may contact the engine exhaust and/
or build up on the mower deck presenting a potential fire
hazard.
If situations occur which are not covered in this manual, use12.
care and good judgment. Contact your customer service
representative for assistance.
Slope Operation
Slopes are a major factor related to loss of control and tip-over
accidents which can result in severe injury or death. Attachments
can also affect the stability of the machine. All slopes require
extra caution.
For your safety, use the slope gauge included as part of this
manual to estimate the angle of slopes before operating this
machine on a sloped or hilly area. If the slope is greater than 10
degrees as shown on the slope gauge, do not operate the mower
with the grass bag attachment installed on that area or serious
injury could result.
Do:
Mow up and down slopes, not across. Exercise extreme1.
caution when changing direction on slopes.
Watch for holes, ruts, bumps, rocks, or other hidden2.
objects. Uneven terrain could overturn the machine. Tall
grass can hide obstacles.
WARNING! This symbol points out important safety instructions which, if not followed,
could endanger the personal safety and/or property of yourself and others. Read and follow
all instructions in this manual before attempting to operate this machine. Failure to comply
with these instructions may result in personal injury.
When you see this symbol. HEED ITS WARNING!
DANGER! This attachment was built to be used according to the safe operation practices in
this manual. Carelessness or error on the part of the operator can result in serious injury.
Mowers are capable of amputating hands and feet and throwing objects. Failure to observe
the following safety instructions as well as the instructions provided with your mower, could
result in serious injury or death.

4se c t i O n 2 — iM p O r t a n t sa f e Op e r a t i O n pr a c t i c e s
Safety Symbols
This table depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the
machine before attempting to assemble and operate.
Symbol Description
READ THE OPERATOR’S MANUAL(S)
Read, understand, and follow all instructions in the manual(s) before attempting to
assemble and operate
STOP
Turn off the engine before opening the bagger cover.
Use slow speed. Choose a low enough speed setting so3.
that you will not have to stop or shift while on the slope.
Tires may lose traction on slopes even though the brakes
are functioning properly. Always keep machine in gear
when going down slopes to take advantage of engine
braking action.
Follow the manufacturer’s recommendations for wheel4.
weights or counterweights to improve stability.
Keep all movement on the slopes slow and gradual. Do5.
not make sudden changes in speed or direction. Rapid
engagement or braking could cause the front of the
machine to lift and rapidly flip over backwards which could
cause serious injury.
Avoid starting or stopping on a slope. If tires lose traction,6.
disengage the blade(s) and proceed slowly straight down
the slope.
Do Not:
Do not turn on slopes unless necessary; then, turn slowly1.
and gradually downhill, if possible.
Do not mow near drop-offs, ditches or embankments. The2.
mower could suddenly turn over if a wheel is over the edge
of a cliff, ditch, or if an edge caves in.
Do not try to stabilize the machine by putting your foot on3.
the ground.
Do not use a grass catcher on steep slopes.4.
Do not mow on wet grass. Reduced traction could cause5.
sliding.
General Service
Before cleaning, repairing, or inspecting, make certain the 1.
blade(s) and all moving parts have stopped. Disconnect the
spark plug wire and ground against the engine to prevent
unintended starting.
Keep all nuts, bolts, and screws tight to be sure the2.
equipment is in safe working condition.
Never tamper with your mower’s safety interlock system3.
or other safety devices. Check their proper operation
regularly.
Never attempt to make adjustments or repairs while the4.
mower’s engine is running.
Grass catcher components and the discharge cover are5.
subject to wear and damage which could expose moving
parts or allow objects to be thrown. For safety protection,
frequently check components and replace immediately
with original equipment manufacturer’s (O.E.M.) parts only,
listed in this manual. Use of parts which do not meet the
original equipment specifications may lead to improper
performance and compromise safety!
Maintain or replace safety and instruction labels, as6.
necessary.
WARNING! Your Responsibility—Restrict the use of this power machine to persons who read, understand and
follow the warnings and instructions in this manual and on the machine.
SAVE THESE INSTRUCTIONS!

5se c t i O n 2 — iM p O r t a n t sa f e Op e r a t i O n pr a c t i c e s

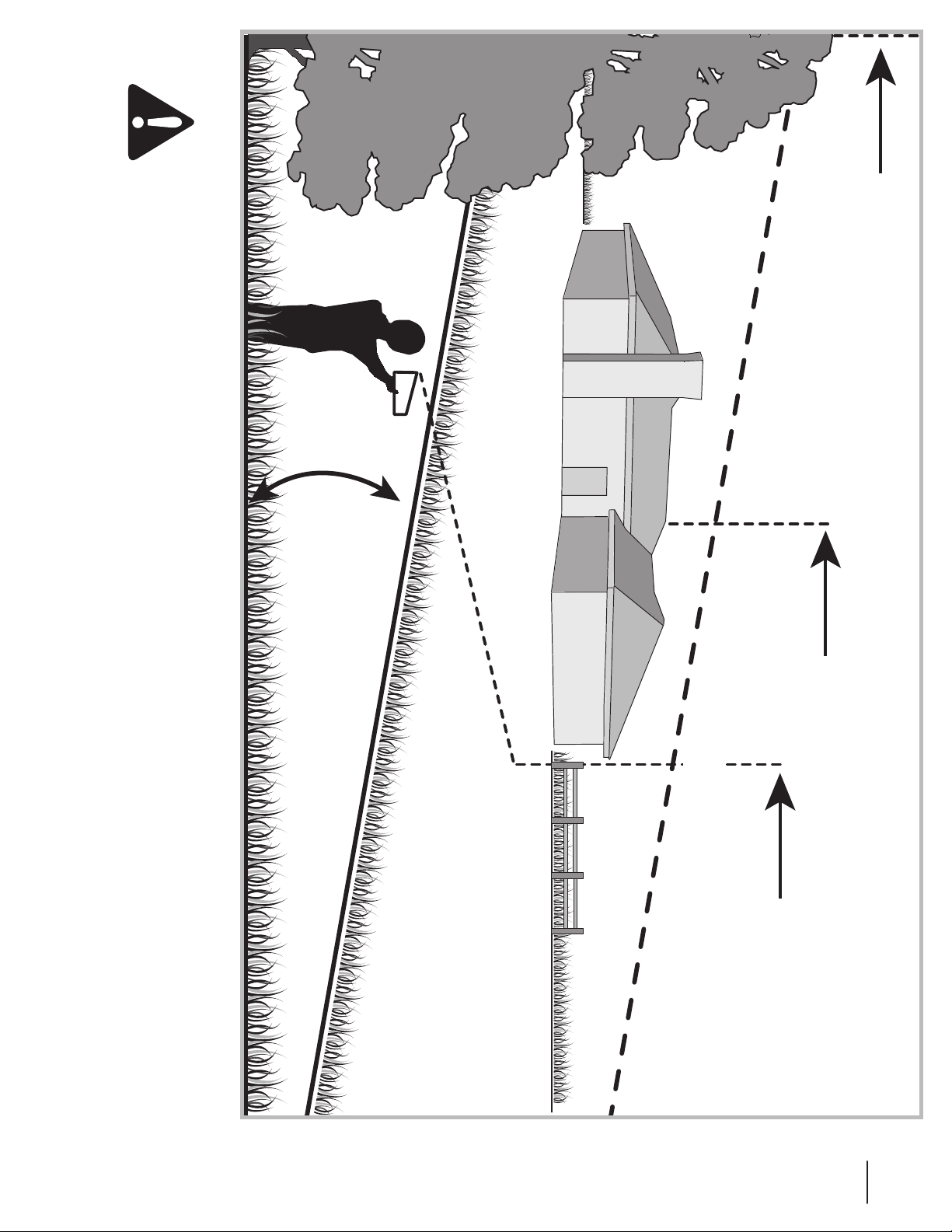

Sight and hold this level with a vertical tree...
or a corner of a building...
or a fence post
Fold along dotted line (represents a 10° slope)
10°
Use this page as a guide to determine slopes where you may safely operate your mower with a grass bag attachment installed.
WARNING! Do not operate your lawn mower with a bagger attachment on inclines with a slope in excess of 10 degrees (a rise of approximately 1-⁄ feet every 10 feet). A riding mower with a bagger attachment could overturn and cause serious injury. Operate riding mowers up and down slopes, never across the face of slopes.

Contents of Carton 3
6
Before beginning installation, remove all parts from the carton to make sure everything is present. Carton contents are listed below
and shown in Fig. 3-1. Hardware part numbers are shown in parentheses.

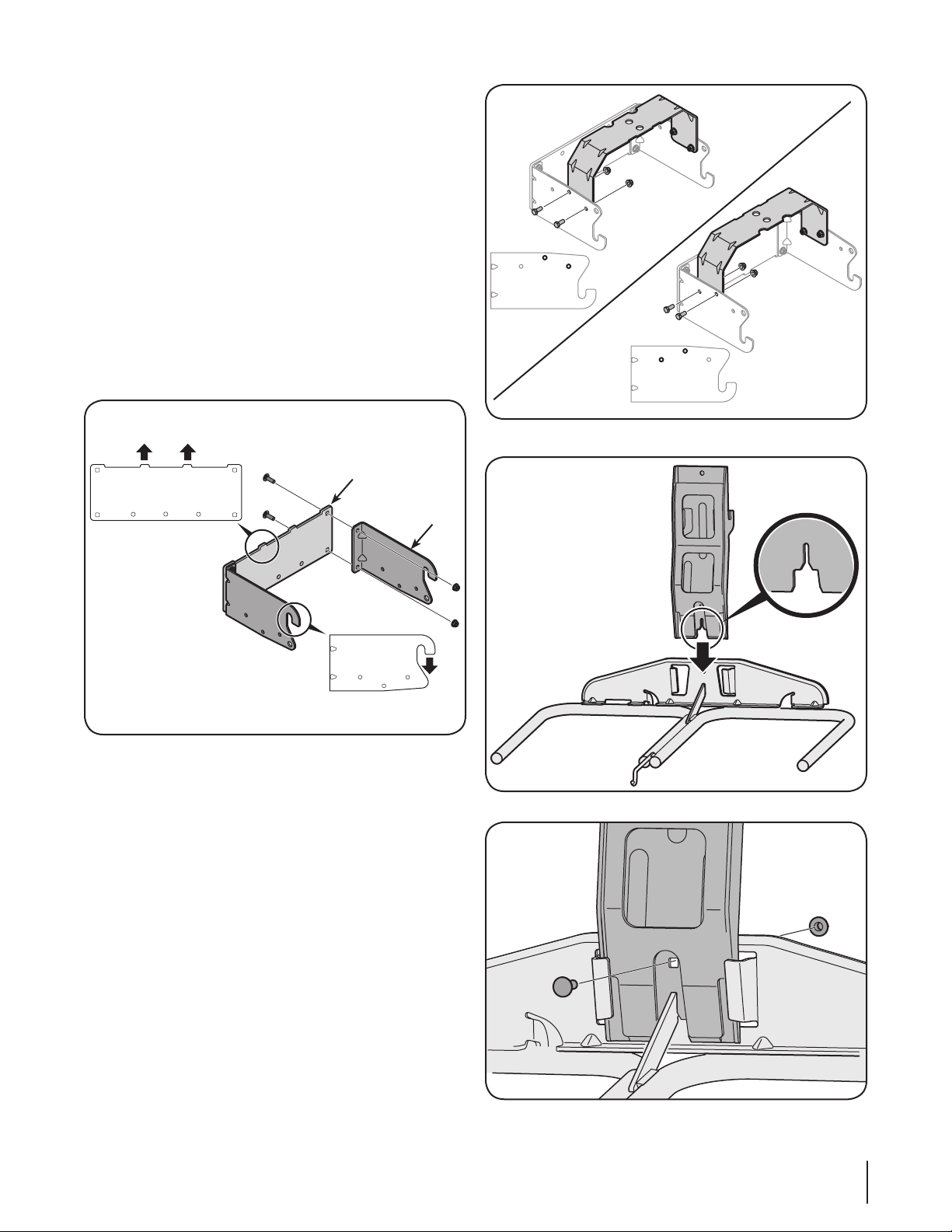

Hitch Bracket Kit • (3 brackets & Hardware Pack)
700 Series Mount Kit• (2 brackets & hardware)
Chute Tube Extension•
Hitch Support•
Discharge Chute Elbow•
Grass Catcher Cover Screen•
Grass Catcher Cover•
Two Grass Bag Assemblies•
Upper Chute Tube•
Self-Adhesive Foam Strip•
Upper Chute Support•
Hinge Cover Pin•
Upright Support•
Bag Support Assembly•
Three Hardware Packs • (Detailed & Pictured on next page)
Figure 3-1
RH Bracket. (783-05889-0637)
LH Bracket. (783-05890-0637)
(4) Hex Bolts (710-04484)
(2) Flange Lock Nuts (712-04065)
(2) Shoulder Bolts (738-04267)
(2) Clevis Pins (711-0332)
(2) Click Pins (914-0145)
Hitch Bracket Kit
(3 Pcs. & Hardware Pack)
700 Series
Mounting Kit
Includes the
following parts:
Chute Tube
Extension
(731-06610)
Hitch Support
(783-05887-0637)
Discharge Chute
Elbow
(731-06099B)
Grass Bag
Assemblies
(664-04096A)
Hinge Cover Pin
(711- 04 988 )
Upright Support
(683-04519-0637)
Bag Support
Assembly
(683-04461A-0637)
Upper Chute Tube
(931- 04291)
Upper Chute
Support
(731-06497)
Grass Catcher
Cover
(931-04292)
Grass Catcher
Cover Screen
(731-06504)
RH Mount (789-00052)
LH Mount (789-00054)
Rear Attachment Bracket
(789-00053)
Carriage Bolts (4)
(710-0276)
Flange Lock Nuts
(4) (712-04063)
Self-Adhesive
Foam Strip
(721-04388)

7se c t i O n 3 — cO n t e n t s O f ca r t O n
CONTENTS OF HARDWARE PACK
This grass collector kit is shipped with three loose hardware packs enclosed and one set of hardware included in the mounting bracket kit.
Please check your hardware packs against the illustrations below. The quantities for each item is listed in parenthesis.
Hardware Pack 689-00092B
Hardware Pack for 689-00087
Hardware Pack for 689-00081
(4)
(4)
(1)
(1)
(1)
(2)
(1)
(1)
(2)
(2)
(2)
(2)
(2)
(1)
(1) (1)
(2)
(1)
710-3008
723-04008A
711-05063
736-0204
714-04040
911-04069
712-3027
736-0176
738-0754
711-05049
732-04510A
712-04063
712-04063
712-04063
710-3008
711-0309A
714-0117
710-0276

Assembly & Installation 4
8
Identify The Model of Tractor
This bagging system is designed for use on several different
tractor models. Prior to attempting to mount the bagger, it is
important to determine which model of tractor that you have.
To identify your tractor’s model, simply pivot the seat upward
and locate the model plate on its underside. The model number
will consist of a combination of eleven number and letters.
The 5th, 6th & 7th digits in your model number determine the
model series. For example, 13WC762F065, 13AN795S001 and
13WN77KS011 are all 700-series tractors.
700-Series Tractors Only
If you are assembling this bagger for use on any 700-series model
tractor you will need to install the two tractor mounting brackets
packed in your bagger kit. If you are installing this bagger unit on
any other tractor, disregard these steps and move to Assemble
Mounting Brackets on the next page.
To install these brackets on a model 700-series tractor, follow
these steps:
Install a shoulder bolt from your hardware pack on each1.
bracket, securing them with flange lock nuts also included
in the hardware pack. Refer to Fig. 4-1.
Insert the clevis pins from your hardware pack on each2.
bracket, securing them with clip pins also included in the
hardware pack. Refer to Fig. 4-1
Mount the 700 series tractor mounting brackets to your3.
tractor using four self-tapping hex screws included with
your kit . See Fig. 4-2.

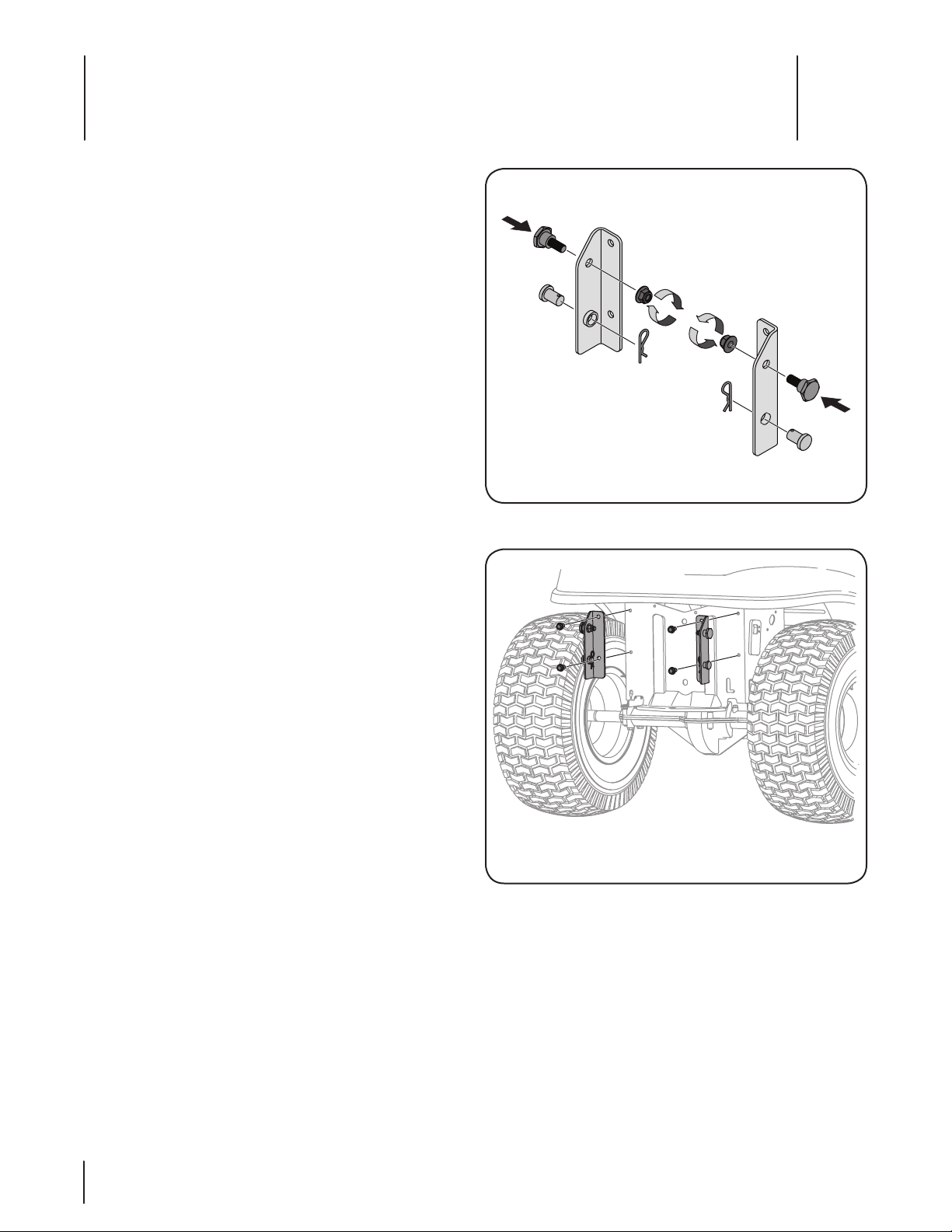

Figure 4-1
Figure 4-2

9se c t i O n 4 — as s e M b l y & in s t a l l a t i O n
Hitch Side
Bracket
Universal
Rear Bracket
Figure 4-3
Assemble Mounting Brackets
To assemble the bagger mounting assembly, locate the hitch
bracket kit and follow these steps:
Attach the right-hand and left hand rider hitch bracket1.
to the universal rear attachment bracket using the four
carriage bolts (710-0276) and flange lock nuts (712-04063)
packed with the mounting brackets. Position the brackets
with the hooks on the right-hand and left hand rider hitch
bracket pointing downward, and the tabs on the universal
rear attachment bracket pointing upwards. See Fig. 4-3.
Note: This universal mounting bracket assembly is
designed to work with other available attachments, such
as a weight kit used in conjunction with the snow blade or
snow thrower attachment. Utilize the contact information
on page 2, or contact the retailer in which you purchased
this equipment, to find out more about available
attachments for your specific tractor.
Flip over assembly and mount the hitch support bracket2.
to the mounting assembly using four 710-3008 hex bolts
and 712-04063 flange lock nuts from hardware pack
689-00087. See Fig. 4-4 for proper orientation of the
bracket.
Note: When attaching the hitch support, it is best to not
fully tighten the bracket at this time. This will facilitate the
mounting process in later steps, which will then require
fully tightening this hitch support bracket.
Assembling The Bag Support Assembly
Locate the upright support bracket and the bag support
assembly. Assemble it by following these steps:
Lay the bag support assembly topside down with the1.
mounting bracket portion facing upwards.
Insert the notched end of the vertical support bracket into2.
the bag support assembly, as in Fig. 4-5, and secure with
a carriage bolt (710-0276) and flange lock nut (712-04063)
from hardware pack 689-00080. See Fig. 4-6.
Figure 4-5
Figure 4-6
For 700 Model Series
Side View
Side View All Other Models
Figure 4-4

10 se c t i O n 4 — as s e M b l y & in s t a l l a t i O n
Tighten all of the hardware securing the hitch support at4.
this time.
Install the bag support assembly onto the mounting5.
assembly on the tractor by hooking it over the cross
mounting bracket outside of the two tabs. See Fig. 4-9.
Secure the bag support assembly to the mounting6.
assembly using a hex bolt (710-3008) and flange lock nut
(712-04063) provided in hardware pack 689-00087.
See Fig. 4-10.
Note: On tractors with 42” decks the support assembly
mounts in the center hole as seen above in Fig. 4-10. On
tractors with 46” decks, the support assembly mounts in
the right hand hole as seen in Fig. 4-11.

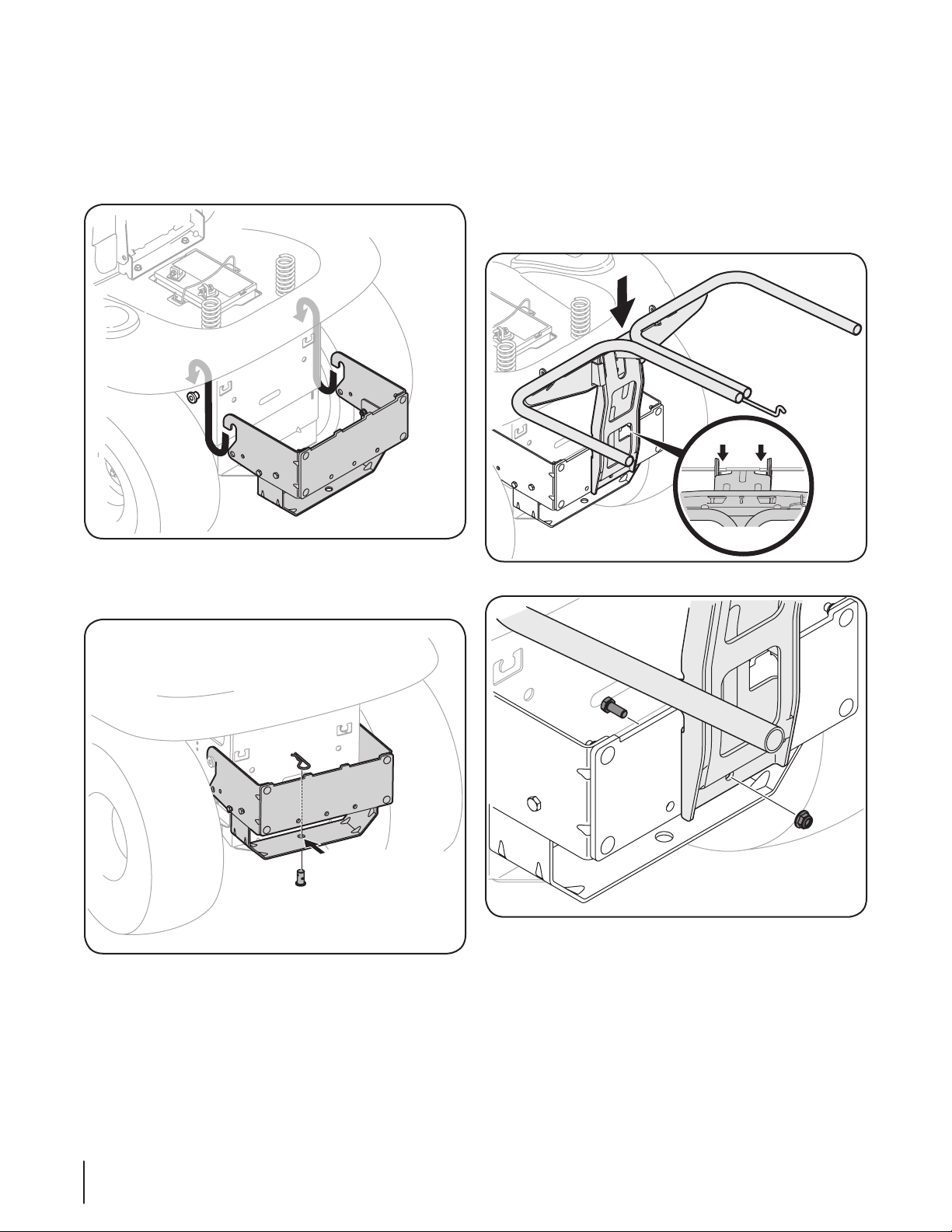

Mount Assembly on Tractor
Install the mounting assembly on the tractor as follows:
Place the hooked ends of the bagger mounting assembly1.
over the shoulder bolts, as in Fig. 4-7, on the tractor and
line up the hitch support hole on the mounting assembly
with the hole on the tractor’s hitch.
Install the clevis pin (711-0309A) from hardware pack 689-2.
00087 into the tractor’s hitch and the assembly’s hitch support
and secure with a hairpin clip (714-0117). See Fig. 4-8.
Note: The clevis pin can be fed down through the hitch
support and secured, using the hole closest to the head,
underneath with the hairpin clip, or it may be easier to feed
the clevis pin up through the hitch plate hole and secure
with the hairpin clip on the topside. The latter method
may be preferred since it can be easier to insert the hairpin
clip. Either way will work, the decision should be based on
operator preference.
3.
Tabs
Top View
42” Decks
Figure 4-9
Figure 4-10
Align hole on bracket
with hole on tractor
Figure 4-7
Figure 4-8

11se c t i O n 4 — as s e M b l y & in s t a l l a t i O n

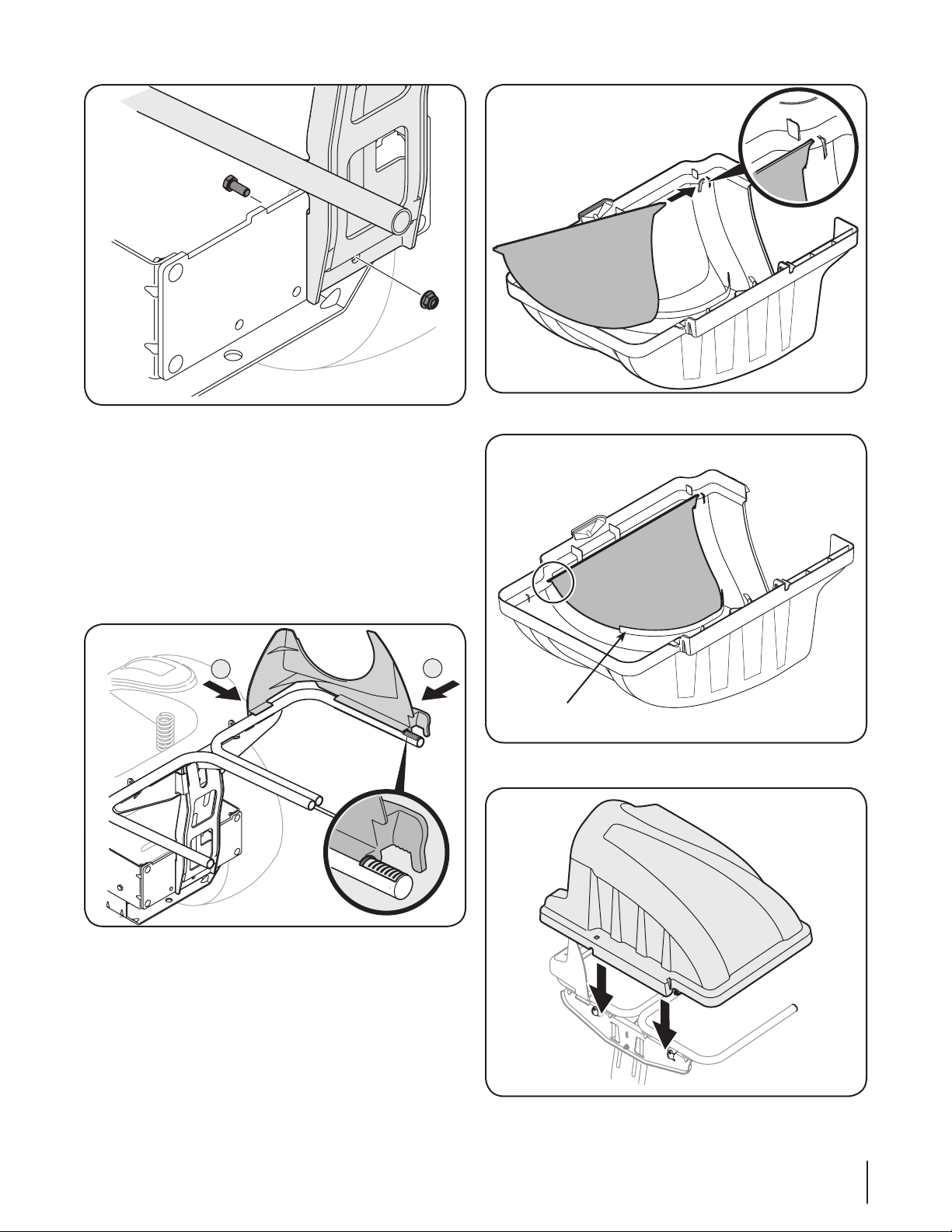

Assembling Remaining Bagger Components
Now that the mounting brackets are assembled and are in place
on the tractor, follow these steps to assemble the remaining
bagger components.
Snap the plastic upper chute support in place by first1.
clipping the side portion onto the bag support rail with
the edge of the snap feature aligned with the red line (1), as
shown in the inset of Fig. 4-12.
Snap the front portion of the upper chute support to the2.
bag support rail as seen in 2 of Fig. 4-12.
Install the bagger screen into the bagger cover by first3.
inserting the end closest to the side with the cutout into
the mounting hole, as in Fig. 4-13. Make sure to feed the
screen under the lip, as in Fig. 4-14.
Clip in the other side by pushing the screen into the4.
provided cutout. See Fig. 4-14.
Install the grass catcher cover onto the bag support5.
assembly, as seen in Fig. 4-15. The grass catcher cover goes
inside of the two mounting tabs on the bag support assembly.
1
2
46” Decks
Figure 4-12
Figure 4-11 Figure 4-13
Figure 4-14
Make sure screen sits
under the cover’s lip
Figure 4-15

12 se c t i O n 4 — as s e M b l y & in s t a l l a t i O n
Install both grass bags onto the bag support assembly8.
by inserting the front edge in first (1), as seen in Fig. 4-19,
and setting the back edge down (2) until it fits into the
assembly.
Install one of the rubber chute straps onto the chute elbow9.
using one of the supplied clevis pins (711-05063), washer (736-
0204) and Bow-tie cotter pins (714-04040) from hardware
pack 689-00092B. See Fig. 4-20. Secure the end of the strap
utilizing the hole furthest from the end, insert the torsion
spring hook (732-04510A) into the other end.
Install the deck mounting pin (711-05049), along with two flat 10.
washers (736-0176), up into the chute elbow using hardware
pack 689-00092B and secure with a flange lock nut (712-3027),
as seen in Fig. 4-20.
Install the shoulder bolt (738-0754) into the chute elbow from11.
the top side and secure inside the chute elbow using a flange
lock nut (712-04063) from the same hardware pack (689-
00092B). See Fig. 4-20.

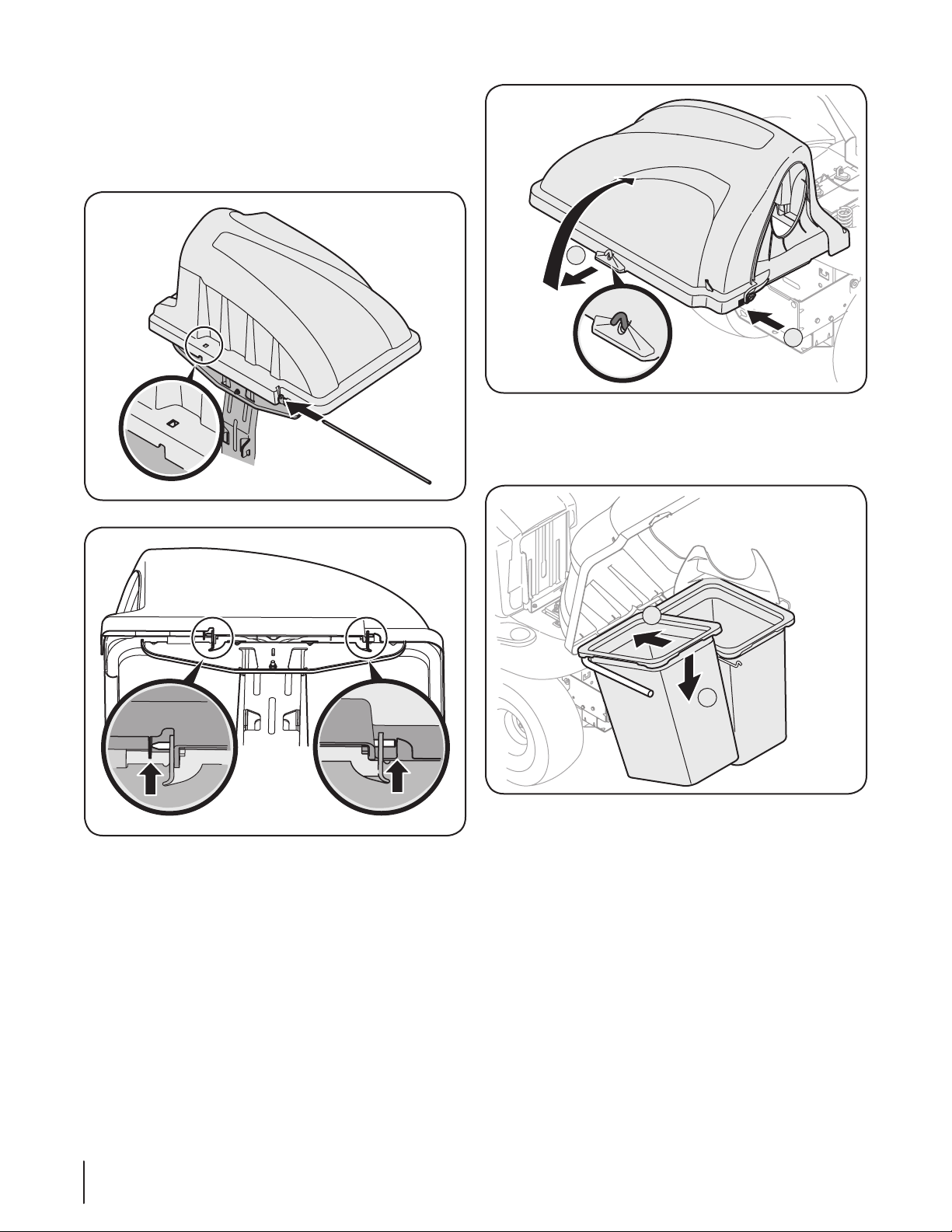

Slide the hinge pin into the hole located on the mounting6.
tab, as in Fig. 4-16. Use the cut-out window (See inset in
Fig. 4-16) to line up the hinge pin on the other side and
push pin all the way in until it reaches the end-stop. At this
point the pin clips into place and is secured by a tab in the
bagger cover. See Fig. 4-17.
Open Hood by pushing in on the rear, right-side tab with 7.
your right hand, as seen in 1 of Fig. 4-18, and lifting the cover
with your left hand in the center rear of the bagger cover, 2.
1
2
1
2
Figure 4-18
Figure 4-19
Figure 4-17
Figure 4-16

13se c t i O n 4 — as s e M b l y & in s t a l l a t i O n
Install a grass-catcher pin (911-04069) from hardware pack 12.
689-00092B into the hole provided in the upper portion of the
chute elbow and secure with a flange lock nut (712-3027). See
Fig. 4-21.
Install the other rubber strap onto the chute tube extension13.
using the remaining clevis pin, flat washer and bow-tie cotter
pin from hardware pack 689-00092B. Attach the end with the
hole closest to the end of the strap, as seen in Fig. 4-22. This
will make it easier to grab onto the strap to pull, stretch and
hook onto the grass-catcher pin previously installed on the
chute elbow in the previous step.
With the tractor’s discharge chute raised up and held open,14.
install the chute elbow over the chute opening by placing
the deck mounting pin in the hole provided, as seen in
Fig. 4-23, then secure the elbow to the deck by hooking
the retainer strap torsion spring hook over the deck wheel
mounting bracket a seen in Fig. 4-24.
Note: On decks without deck wheels, hook the retainer
strap into the hole provided in the flange on the front-side
of the cutting deck.
Figure 4-20
Figure 4-21
Figure 4-23
Figure 4-22
Figure 4-24

14 se c t i O n 4 — as s e M b l y & in s t a l l a t i O n

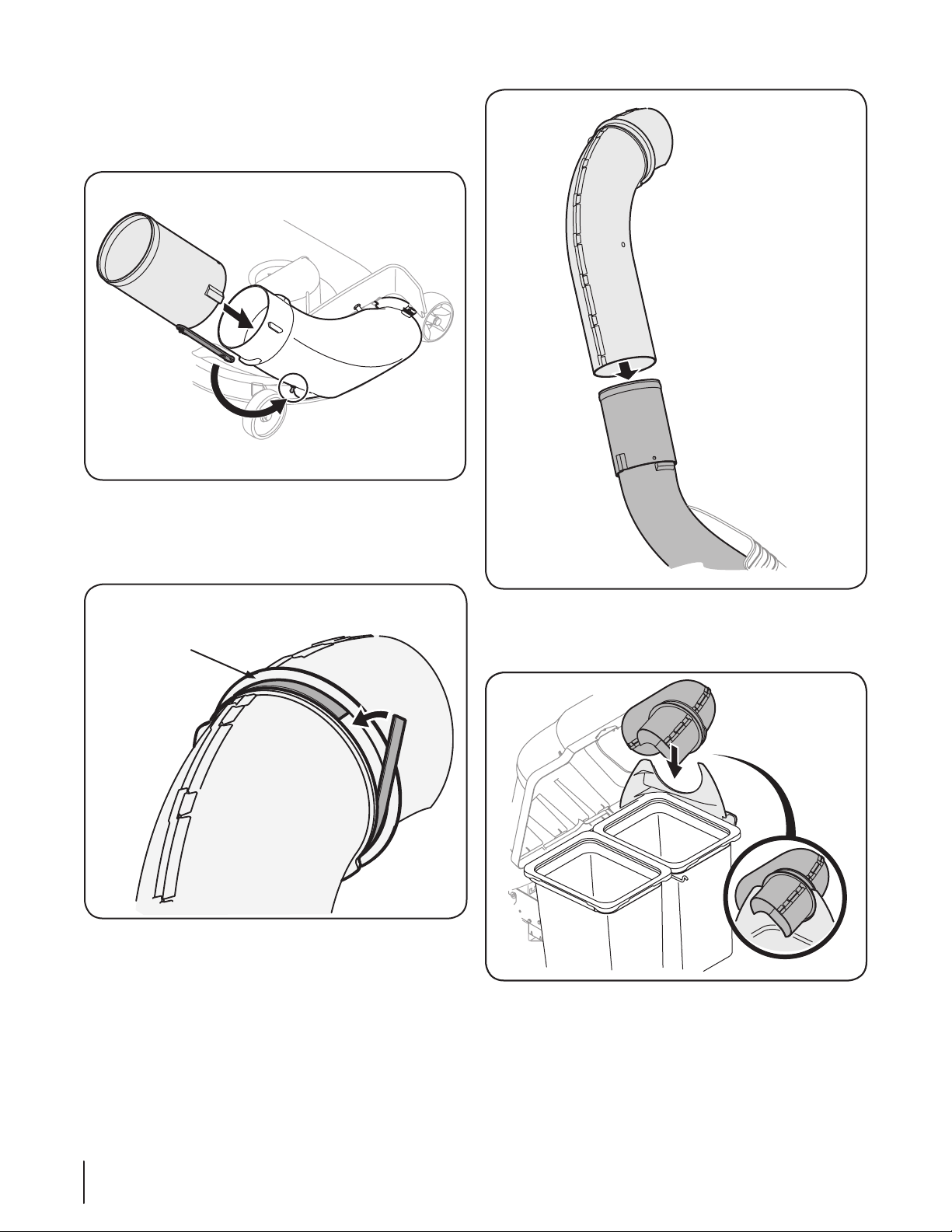

Install the chute tube extension onto the chute elbow15.
by lining up the tabs and sliding the adapter over the
chute elbow, as in Fig. 4-25. Secure the chute adapter by
stretching the chute strap and hooking it onto the grass-
catcher pin previously installed.
Peel the backing off of the self-adhesive foam strip (721-16.
04388) that has been included with your grass collector. Apply
it to the upper chute, flush against the flange as shown in Fig.
26.
With the grass catcher cover open, install the discharge17.
chute over the chute extension tube, as seen in Fig. 4-27,
and rest the top end into the upper chute support installed
on the right-hand side of the bag support assembly. See
Fig. 4-28.
Note: The groove on the upper chute should be aligned
with the upper chute support, as seen in the inset of Fig.
4-28.
Figure 4-25
Figure 4-28
Figure 4-27
Flange
Figure 26

Operation 5
15
Bagger Usage
NOTE: When both grass bags are full, place the tractor on a firm,
level surface, disengage the PTO, turn the tractor engine off and
set the parking brake.
Flip Seat up.1.
Open the grass bag cover by pushing in on the rear, right-2.
side tab with your right hand, as seen in 1 of Fig. 5-1, and
lifting the cover with your left hand in the center rear of the
bagger cover, 2. Do not remove the chute tube assembly
from the tractor.
Remove the grass bags by lifting these up (1 in Fig. 5-2) and3.
moving the bags away from the bag support assembly (2).
1
2
2
1
Figure 5-1
Figure 5-2
Empty the grass clippings at a proper disposal sight, use4.
the handle at the bottom of each grass bag. Holding the
bag firmly, empty the contents
Replace grass bags, close lid, flip down seat, restart your5.
tractor and resume cutting your grass.

Twin Rear Bagger 19A30003OEM/19A30003000 Parts List 5
26
27
11
20
914
21
18
17
16
12
10
30
26
1
6
8
12
11
5
28
3
15
14
10
19
15 19
29
2
11
4
6
11
31
7
13 24
22
23
31
25
11
5
39
700 Series Mount Kit
37
38
32
28
33
34
36
16

se c t i O n 5 — tw i n re a r ba g g e r pa r t s li s t
Ref. Part Number Description
1. 931-04291 Upper Chute Assembly
2. 931-04292 Double Bagger Cover Assembly
3. 731-06497 Upper Chute Support
4. 731-06504 Bagger Cover Screen
5. 710-0276 Carriage Screw, 5/16-18 x 1.00”
6. 710-3008 Hex Head Screw, 5/16-18 x .75”
7. 711- 03 09A Clevis Pin, .62” Dia.
8. 911- 0 40 69 Grass-catcher Pin, 1/4-20
9. 711- 0 50 49 Attachment Pin, 1/4 x 0.66 Lg.
10. 711- 0 50 63 Clevis Pin, 5/16 x .75 Lg.
11. 712-04063 Flange Lock Nut, 5/16-18
12. 712-3027 Flange Lock Nut, 1/4-20
13. 714 - 0117 Internal Cotter Pin, .148 x 3.00
14. 714-04040 Bow-Tie Cotter Pin, 72
15. 723-04008A Chute Strap, 6.00 Lg.
16. 731-06099B Bagger Discharge Chute, Elbow
17. 731-06610 Bagger Chute Adapter, 7 In.
18. 732-04510A Torsion Spring Hook
19. 736-0204 Flat Washer, .344 x .62 x .033
20. 736 -0176 Flat Washer, .265 x .938 x .120
21. 738-0754 Shoulder Screw, .437 x .54
22. N/A* Mounting Bracket, RH
23. N/A* Universal Mounting Bracket
24. 783-05887-0637 Universal Bracket Support
25. N/A* Mounting Bracket, LH
26. 964-04096A Grass-bag Assembly
27. 683-04461A-0637 Double Bag Support Assembly
28. 683-04519-0637 Vertical Support Bracket
29. 711- 0 49 88 Cover Hinge Pin
30. 735-0246A End Plug
31. 689-00101 Mounting Bracket Kit (Incl. ref. 22, 23, 25)
32. 710-04484 Tap Screw, 5/16-18 x .750
33. 710-0216 SCREW 3/8-16 x .75
34. 712-04065 Flange Lock Nut, 3/8-16
35 914-0145 Click Pin, .092 x 1.64 Lg.
36. 738-04267 Shoulder Screw, .625 x .412
37. 783-05889A-0637 Mounting Bracket, RH
38. 783-05890A-0637 Mounting Bracket, LH
39. 721-04388 Self-Adhesive Foam Strip
*Order Reference 31
17

Notes
18

19

MANUFACTURER’S LIMITED WARRANTY FOR
GDOC-100167 REV. A
The limited warranty set forth below is given by MTD LLC with
respect to new merchandise purchased and used in the United States
and/or its territories and possessions, and by MTD Products Limited
with respect to new merchandise purchased and used in Canada and/
or its territories and possessions (either entity respectively, “MTD”).
“MTD” warrants this product (excluding its Normal Wear Parts and
Attachments as described below) against defects in material and
workmanship for a period of one (1) year commencing on the date
of original purchase and will, at its option, repair or replace, free of
charge, any part found to be defective in materials or workmanship.
This limited warranty shall only apply if this product has been
operated and maintained in accordance with the Operator’s Manual
furnished with the product, and has not been subject to misuse,
abuse, commercial use, neglect, accident, improper maintenance,
alteration, vandalism, theft, fire, water, or damage because of other
peril or natural disaster. Damage resulting from the installation or use
of any part, accessory or attachment not approved by MTD for use
with the product(s) covered by this manual will void your warranty as
to any resulting damage.
Normal Wear Parts are warranted to be free from defects in material
and workmanship for a period of thirty (30) days from the date of
purchase. Normal wear parts include, but are not limited to items
such as: batteries, belts, blades, blade adapters, tines, grass bags,
wheels, rider deck wheels, seats, snow thrower skid shoes, friction
wheels, shave plates, auger spiral rubber and tires.
Attachments — MTD warrants attachments for this product against
defects in material and workmanship for a period of one (1) year,
commencing on the date of the attachment’s original purchase or
lease. Attachments include, but are not limited to items such as:
grass collectors and mulch kits.
HOW TO OBTAIN SERVICE: Warranty service is available, WITH
PROOF OF PURCHASE, through your local authorized service dealer.
To locate the dealer in your area:
In the U.S.A.
Check your Yellow Pages, or contact
MTD LLC at P.O. Box 361131,
Cleveland, Ohio 44136-0019, or call 1-800-800-7310, 1-330-220-
4683 or log on to our Web site at www.mtdproducts.com
.
In Canada
Contact MTD Products Limited, Kitchener, ON N2G 4J1, or call 1-800-
668-1238 or log on to our Web site at www.mtdcanada.com.
This limited warranty does not provide coverage in the following
cases:
a. Log splitter pumps, valves, and cylinders have a separate one-
year warranty.
b. Routine maintenance items such as lubricants, filters, blade
sharpening, tune-ups, brake adjustments, clutch adjustments,
deck adjustments, and normal deterioration of the exterior finish
due to use or exposure.
c. Service completed by someone other than an authorized service
dealer.
d. MTD does not extend any warranty for products sold or exported
outside of the United States and/or Canada, and their respective
possessions and territories, except those sold through MTD’s
authorized channels of export distribution.
e. Replacement parts that are not genuine MTD parts.
f. Transportation charges and service calls.
g. MTD does not warrant this product for commercial use.
No implied warranty, including any implied warranty of
merchantability or fitness for a particular purpose, applies after
the applicable period of express written warranty above as to the
parts as identified. No other express warranty, whether written or
oral, except as mentioned above, given by any person or entity,
including a dealer or retailer, with respect to any product, shall
bind MTD. During the period of the warranty, the exclusive remedy
is repair or replacement of the product as set forth above.
The provisions as set forth in this warranty provide the sole and
exclusive remedy arising from the sale. MTD shall not be liable
for incidental or consequential loss or damage including, without
limitation, expenses incurred for substitute or replacement lawn
care services or for rental expenses to temporarily replace a
warranted product.
Some states do not allow the exclusion or limitation of incidental
or consequential damages, or limitations on how long an implied
warranty lasts, so the above exclusions or limitations may not apply
to you.
In no event shall recovery of any kind be greater than the amount of
the purchase price of the product sold. Alteration of safety features of
the product shall void this warranty. You assume the risk and liability
for loss, damage, or injury to you and your property and/or to others
and their property arising out of the misuse or inability to use the
product.
This limited warranty shall not extend to anyone other than the
original purchaser or to the person for whom it was purchased as a
gift.
HOW STATE LAW RELATES TO THIS WARRANTY: This limited
warranty gives you specific legal rights, and you may also have other
rights which vary from state to state.
IMPORTANT: Owner may be required to present proof of purchase to
obtain warranty coverage.
MTD LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019; Phone: [phone]
MTD Canada Limited - KITCHENER, ON N2G 4J1; Phone [phone]
