MTD 11A-413A800 User manual

Safety • Assembly • Operation • Maintenance •Troubleshooting •Parts Lists •Warranty
OF AOAL.
21" Rotary Mower- Model Series 410
iMPORTANT
READ SAFETY RULES AND iNSTRUCTiONS CAREFULLY BEFORE OPERATION
Warning: Thisunitisequippedwithaninternalcombustionengineandshouldnotbeusedon or nearanyunimprovedforest-covered,brush-
coveredor grass-coveredlandunlesstheengine'sexhaustsystemisequippedwitha sparkarrestermeetingapplicablelocalor statelaws(if any).
If a sparkarresterisused,itshouldbemaintainedineffectiveworkingorderbytheoperator.IntheStateofCaliforniatheaboveisrequiredbylaw
(Section4442oftheCaliforniaPublicResourcesCode).Otherstatesmayhavesimilarlaws.Federallawsapplyonfederallands.A sparkarrester
forthemufflerisavailablethroughyournearestengineauthorizedservicedealeror contacttheservicedepartment,RO.Box361131Cleveland,
Ohio44136-0019.
ForUSCustomers: MTDLLC,P.O.BOX361131CLEVELAND,OHIO44136-0019 772C0795
PRINTEDIN U.S.A. ForCanadianCustomers:MTDProductsLtd.,P.O.Box 1386,KITCHENER,ONTARION2G4J1 10/21/2005

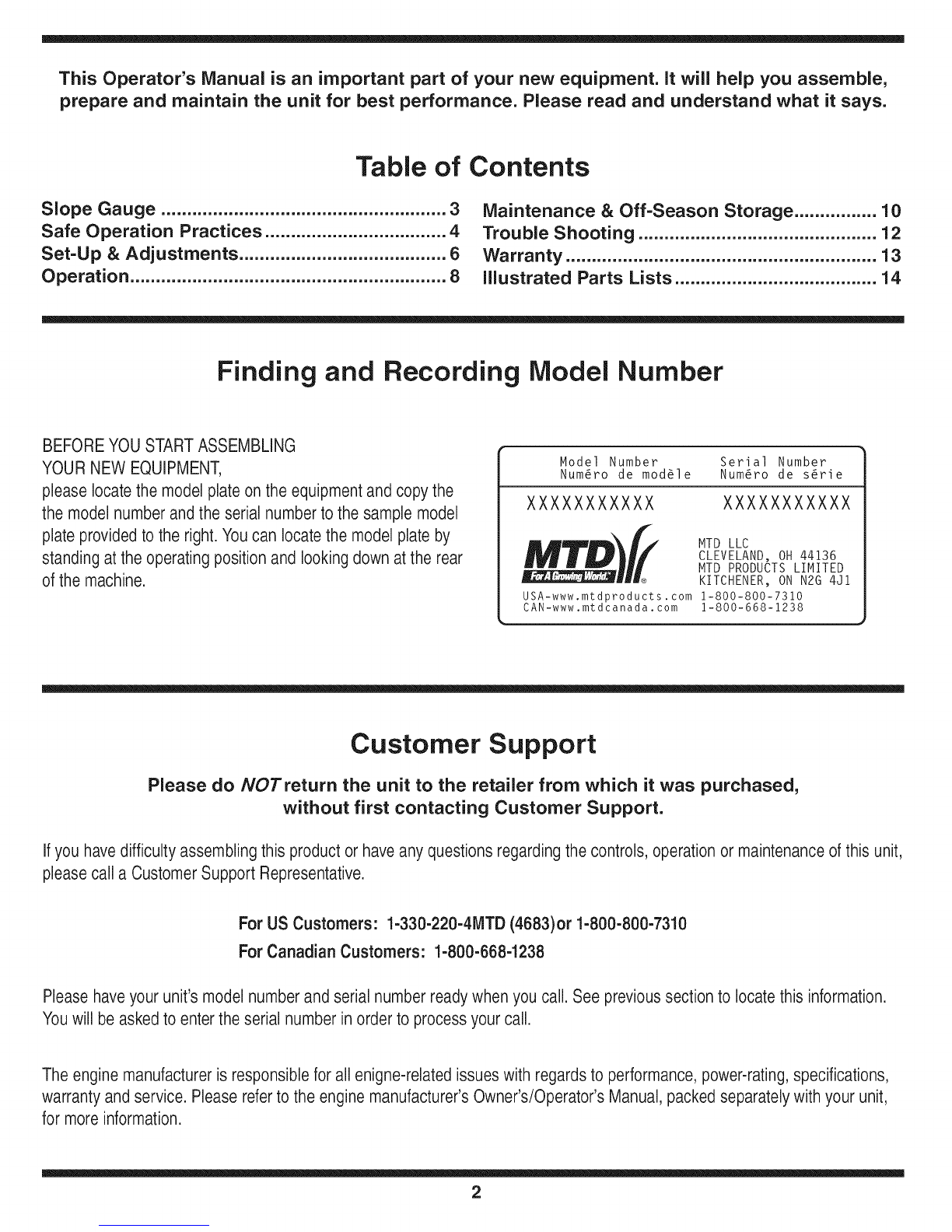

This Operator's Manual is an important part of your new equipment, it will help you assemble,
prepare and maintain the unit for best performance. Please read and understand what it says.
Table of
Slope Gauge ....................................................... 3
Safe Operation Practices ................................... 4
Set-Up & Adjustments ........................................ 6
Operation ............................................................. 8
Contents
Maintenance & Off-Season Storage ................ 10
Trouble Shooting .............................................. 12
Warranty ............................................................ 13

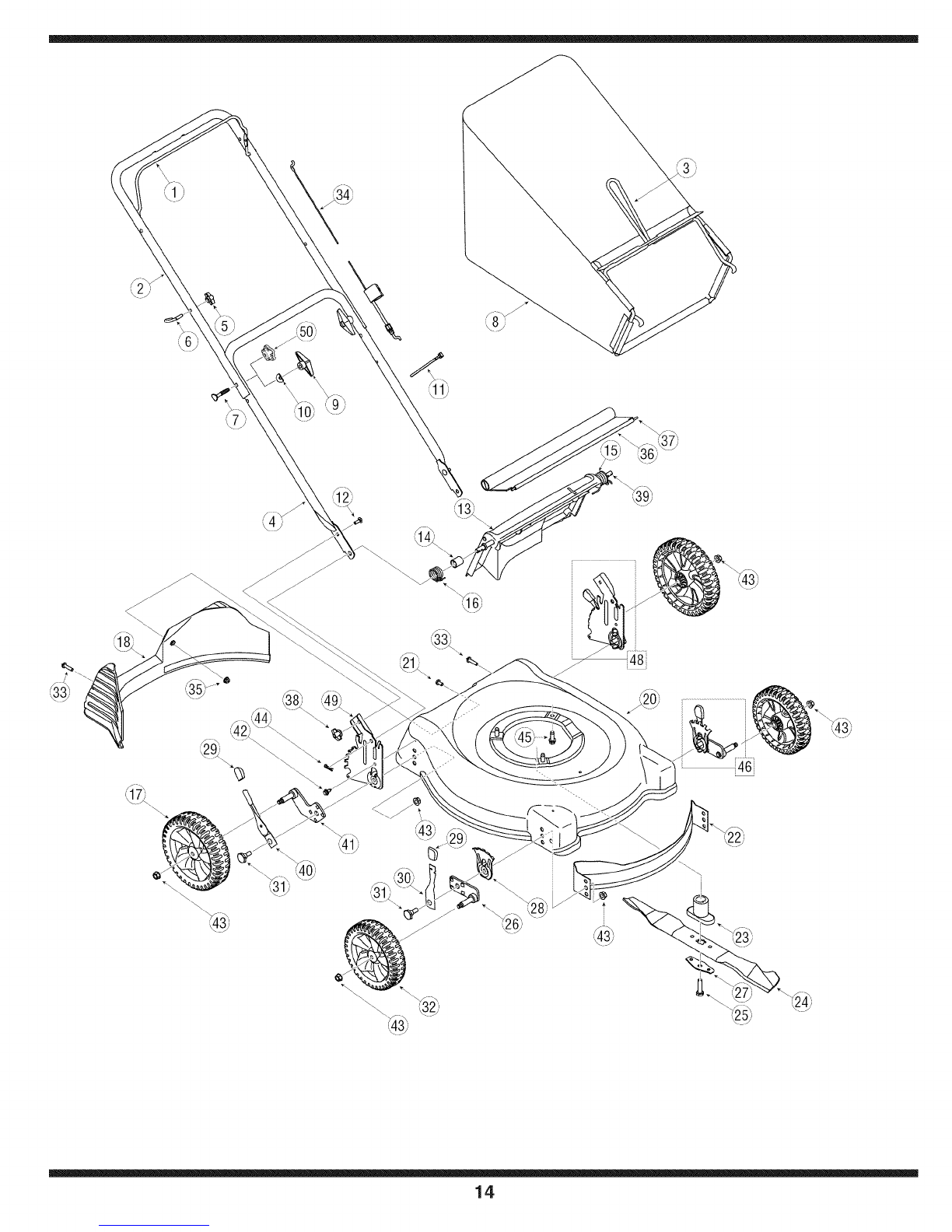

illustrated Parts Lists ....................................... 14
Finding and Recording IVlodel Number
BEFOREYOU STARTASSEMBLING
YOURNEW EQUIPMENT,
please locatethe modelplate onthe equipmentand copy the
themodel number andthe serial number tothe sample model
plate providedto the right.You can locatethe modelplate by
standing atthe operatingposition and looking down atthe rear
of themachine.
Model Number Serial Number
Num6ro de module Num6ro de s_rie
XXXXXXXXXXX XXXXXXXXXXX
__ MTD LLC
CLEVELAND, OH 44136
MTD PRODUCTS LIMITED
KITCHENER, ON N2G 4J1
USA-www.mtdproducts.com 1-800-800-7310
CAN-www.mtdcanada.com 1-800-668-1238
Customer Support
Please do NOTretum the unit to the retailer from which it was purchased,
without first contacting Customer Support.
Ifyou havedifficultyassembling this productor haveany questionsregardingthe controls, operationor maintenanceof this unit,
pleasecall a CustomerSupport Representative.
For USCustomers: 1-330-220-4MTD (4683)or 1-800-800-7310
For Canadian Customers: 1-800-668-1238
Pleasehaveyour unit'smodelnumber and serialnumber readywhen you call. See previoussection to locate this information.
Youwill beasked to entertheserial number inorderto processyour call.
The enginemanufacturerisresponsiblefor all enigne-relatedissueswith regardsto performance,power-rating,specifications,
warrantyand service. Please referto the enginemanufacturer'sOwner's/Operator'sManual,packedseparatelywith your unit,
for more information.
2

O
o
o
C_
>:.
{33
O3
(13
(13
O...
O
C
>.,
C5
E
CD
O
(D
O3
G)
C1.
o
O9
G)
CC
-$
=9
_o9
_ 0
con
_ 0
Sight and holdthis levelwith a verticaltree...
,_------- or a corner of a building...
|
15 °

i il /i¸¸i :/ (:

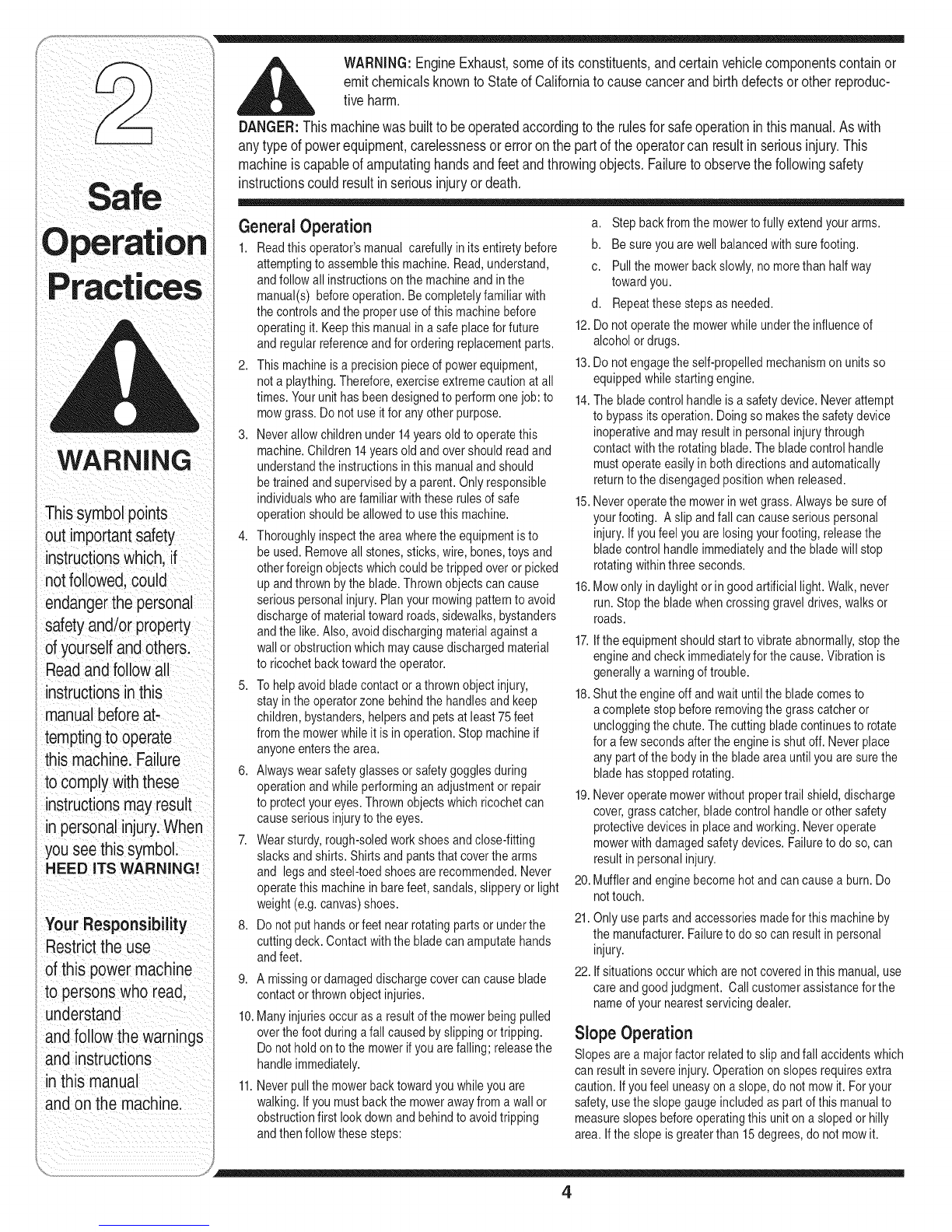

WARNING
Thissymbolpoints
out importantsafety
instructionswhich,if
notfollowed,could
endangerthe personal
i safetyand/or property
I ofyourselfand others.
Readandfollowall
instructionsin this
manualbeforeat-
temptingto operate
i this machine.Failure
I to complywith these
instructionsmay result
i in personalinjury.When
youseethis symbol.
HEED iTS WARNING!
i Your Responsibility
i Restrictthe use
i ofthis powermachine
to personswho read,
understand
and follow the warnings
and instructions
, in this manual
I and on the machine.
WARNING:EngineExhaust,someof itsconstituents,andcertainvehiclecomponentscontainor
emitchemicalsknowntoStateof Californiatocausecancerand birthdefectsor otherreproduc-
tiveharm.
DANGER:Thismachinewasbuilttobeoperatedaccordingtotherulesforsafeoperationinthismanual.Aswith
anytypeof powerequipment,carelessnessor erroron thepartoftheoperatorcanresultinseriousinjury.This
machineiscapableofamputatinghandsandfeetandthrowingobjects.Failuretoobservethefollowingsafety
instructionscouldresultin seriousinjuryor death.
General Operation
1. Readthis operator'smanual carefullyinits entiretybefore
attemptingtoassemblethismachine.Read,understand,
andfollowall instructionsonthe machineandin the
manual(s) beforeoperation.Becompletelyfamiliarwith
thecontrolsandthe properuseofthis machinebefore
operatingit. Keepthis manualin asafeplaceforfuture
andregularreferenceandfor orderingreplacementparts.
2. Thismachineisa precisionpieceof powerequipment,
nota plaything.Therefore,exerciseextremecautionat all
times.Yourunithas beendesignedto performonejob: to
mowgrass.Do notuseit for anyotherpurpose.
3. Neverallow childrenunder 14yearsoldto operatethis
machine.Children14yearsoldandovershouldreadand
understandthe instructionsinthismanualandshould
betrainedand supervisedbya parent.Onlyresponsible
individualswhoarefamiliarwiththeserulesofsafe
operationshouldbeallowedto usethismachine.
4. Thoroughlyinspectthe areawherethe equipmentisto
beused.Removeall stones,sticks,wire,bones,toysand
otherforeignobjectswhichcouldbetrippedoveror picked
upandthrownbythe blade.Thrownobjectscancause
seriouspersonalinjury.Planyourmowingpatternto avoid
dischargeof materialtowardroads,sidewalks,bystanders
andthe like.Also,avoiddischargingmaterialagainsta
wallorobstructionwhichmaycausedischargedmaterial
toricochetbacktowardtheoperator.
5. Tohelpavoidbladecontactorathrownobjectinjury,
stayinthe operatorzonebehindthe handlesandkeep
children,bystanders,helpersand petsatleast75feet
fromthe mowerwhileit isin operation.Stopmachineif
anyoneentersthe area.
6. Alwayswearsafetyglassesor safetygogglesduring
operationandwhileperforminganadjustmentor repair
toprotectyoureyes.Thrownobjectswhichricochetcan
causeseriousinjurytothe eyes.
7. Wearsturdy,rough-soledworkshoesand close-fitting
slacksandshirts.Shirtsand pantsthatcoverthe arms
and legsandsteel-toedshoesarerecommended.Never
operatethismachinein barefeet, sandals,slipperyor light
weight(e.g.canvas)shoes.
8. Do notputhandsorfeet nearrotatingpartsor underthe
cuttingdeck.Contactwiththe bladecanamputatehands
andfeet.
9. Amissingor damageddischargecovercancause blade
contactor thrownobject injuries.
10.Manyinjuriesoccurasa resultofthe mowerbeingpulled
overthefootduringafall causedby slippingor tripping.
Do notholdontothe mowerifyouarefalling;releasethe
handleimmediately.
11.Neverpullthe mowerbacktowardyouwhileyouare
walking.If youmustbackthe mowerawayfromawallor
obstructionfirstlookdownand behindtoavoidtripping
andthenfollowthesesteps:
a. Stepbackfromthe mowertofullyextendyourarms.
b. Besureyouarewellbalancedwithsurefooting.
c. Pullthe mowerbackslowly,no morethanhalfway
towardyou.
d. Repeatthesestepsasneeded.
12.Do notoperatethe mowerwhileunderthe influenceof
alcoholordrugs.
13.Do notengagetheself-propelledmechanismon unitsso
equippedwhilestartingengine.
14.Thebladecontrolhandleisa safetydevice.Neverattempt
tobypassitsoperation.Doingso makesthe safetydevice
inoperativeandmayresultin personalinjurythrough
contactwiththe rotatingblade.Thebladecontrolhandle
mustoperateeasily in bothdirectionsandautomatically
returntothe disengagedpositionwhenreleased.
15.Neveroperatethe mowerinwetgrass.Alwaysbesureof
yourfooting. A slipand fall cancauseseriouspersonal
injury.If youfeelyouarelosingyourfooting,releasethe
bladecontrolhandleimmediatelyand the bladewillstop
rotatingwithinthreeseconds.
16.Mowonlyin daylightor in goodartificial light.Walk,never
run.Stopthe bladewhencrossinggraveldrives,walksor
roads.
17.Iftheequipmentshouldstartto vibrateabnormally,stopthe
engineand checkimmediatelyforthe cause.Vibrationis
generallya warningoftrouble.
18.Shutthe engineoff andwaituntilthe bladecomesto
acompletestopbeforeremovingthe grasscatcheror
uncloggingthe chute.Thecuttingbladecontinuesto rotate
fora fewsecondsafterthe engineisshutoff. Neverplace
anypartofthe bodyinthe bladeareauntilyou aresurethe
bladehasstoppedrotating.
19.Neveroperatemowerwithoutpropertrailshield,discharge
cover,grasscatcher,bladecontrolhandleor othersafety
protectivedevicesin placeandworking.Neveroperate
mowerwithdamagedsafetydevices.Failureto doso,can
resultinpersonalinjury.
20.Mufflerandenginebecomehotandcancauseaburn.Do
nottouch.
21.Onlyusepartsandaccessoriesmadeforthismachineby
the manufacturer.Failuretodo socan resultinpersonal
injury.
22.If situationsoccurwhich arenotcoveredin this manual,use
careandgoodjudgment. Callcustomerassistancefor the
nameofyournearestservicingdealer.
Slope Operation
Slopesarea majorfactor relatedtoslip andfall accidentswhich
canresultinsevereinjury.Operationon slopesrequiresextra
caution.Ifyoufeel uneasyona slope,do notmowit.Foryour
safety,usethe slopegaugeincludedaspartofthis manualto
measureslopesbeforeoperatingthis uniton a slopedor hilly
area.Ifthe slopeisgreaterthan15degrees,donot mowit.
4

Do:
1. Mowacrossthe faceofslopes;neverup anddown.
Exerciseextremecautionwhenchangingdirectionon
slopes.
2. Watchfor holes,ruts,rocks, hiddenobjects,or bumpswhich
can causeyouto slipor trip. Tallgrasscanhideobstacles.
3. Alwaysbesure ofyourfooting.A slip andfall cancause
seriouspersonalinjury.If youfeelyouarelosingyour
balance,releasethe bladecontrolhandleimmediately,and
the bladewill stoprotatingwithin3seconds.
Do Not:
I. Donot mowneardrop-offs,ditchesorembankments,you
could loseyourfootingorbalance.
2. Donot mowslopesgreaterthan 15degreesasshownon
the slopegauge.
3. Donot mowon wetgrass.Unstablefootingcouldcause
slipping.
Children
Tragicaccidentscanoccurifthe operatorisnot alertto the
presenceofchildren.Childrenare oftenattractedtothe mower
and the mowingactivity.Theydo notunderstandthe dangers.
Neverassumethatchildrenwillremainwhereyou lastsaw
them.
1. Keepchildrenout ofthe mowingareaand underthewatch-
ful careofa responsibleadultotherthantheoperator.
2. Bealertandturnmoweroff if a childentersthe area.
3. Beforeand while movingbackwards,lookbehindand down
forsmallchildren.
4. Useextremecarewhenapproachingblindcorners,
doorways,shrubs,trees,or otherobjectsthat mayobscure
yourvisionof a childwhomayrunintothe mower.
5. Keepchildrenawayfrom hotor runningengines.Theycan
suffer burnsfroma hotmuffler.
6. Neverallowchildrenunder14yearsoldto operateapower
mower.Children14yearsoldandovershouldreadand
understandthe operationinstructionsand safetyrules in
this manualandshouldbetrainedandsupervisedby a
parent.
Service
Safe Handling Of Gasoline:
1. Toavoidpersonalinjury orpropertydamageuseextreme
care inhandlinggasoline.Gasolineisextremelyflammable
andthevaporsareexplosive.Seriouspersonalinjurycan
occurwhengasolineisspilledonyourselforyourclothes
whichcanignite.
2. Washyourskin andchangeclothesimmediately.
3. Useonlyanapprovedgasolinecontainer.
4. Neverfillcontainersinsideavehicleoron a truckor trailer
bedwitha plasticliner.Alwaysplacecontainersonthe
groundawayfromyourvehiclebeforefilling.
5. Removegas-poweredequipmentfromthe truckortrailer
and refuelit onthe ground.If thisis notpossible,then refuel
suchequipmentonatrailerwitha portablecontainer,rather
thanfroma gasolinedispensernozzle.
6. Keepthe nozzlein contactwiththe rimofthefueltank or
containeropeningat alltimesuntilfuelingis complete.Do
notusea nozzlelock-opendevice.
7. Extinguishallcigarettes,cigars,pipesandothersourcesof
ignition.
8. Neverfuel machineindoorsbecauseflammablevapors
willaccumulateinthe area.
9. Neverremovegascap oradd fuelwhilethe engineis
hotor running. Allowengineto coolatleasttwo minutes
beforerefueling.
10.Neveroverfillfueltank. Filltankto nomorethanY2inch
belowbottomoffiller neckto provideforfuelexpansion.
11.Replacegasolinecapandtightensecurely.
12.Ifgasolineis spilled,wipeitoff theengineand equipment.
Moveunittoanotherarea.Wait5minutesbeforestarting
theengine.
13.Neverstorethe machineorfuel containernearanopen
flame,sparkor pilotlightasonawaterheater,space
heater,furnace,clothesdryeror othergasappliances.
14.Toreducefire hazard,keepmowerfreeofgrass,leaves,
orother debrisbuild-up.Cleanupoil orfuelspillageand
removeanyfuel soakeddebris.
15.Allowamowertocoolat least5 minutesbeforestoring.
General Service:
1. Neverrunan engineindoorsor in a poorlyventilatedarea.
Engineexhaustcontainscarbonmonoxide,anodorless
anddeadlygas.
2. Beforecleaning,repairing,or inspecting,makecertainthe
bladeandallmovingpartshavestopped.Disconnectthe
sparkplugwireandgroundagainstthe engineto prevent
unintendedstarting.
3. Checkthe bladeand enginemountingboltsatfrequent
intervalsfor propertightness.Also,visuallyinspectblade
fordamage(e.g.,bent,cracked,worn)Replacebladewith
theoriginalequipmentmanufacture's(O.E.M.)bladeonly,
listedinthismanual."Useofpartswhichdo notmeetthe
originalequipmentspecificationsmayleadtoimproper
performanceand compromisesafety!"
4. Mowerbladesaresharpandcan cut.Wrapthe bladeor
weargloves,anduseextracautionwhenservicingthem.
5. Keepall nuts,bolts,and screwstightto besurethe
equipmentis insafeworkingcondition.
6. Nevertamperwithsafetydevices.Checktheirproper
operationregularly.
7. Afterstrikinga foreignobject,stopthe engine,discon-
nectthe sparkplugwireand groundagainstthe engine.
Thoroughlyinspectthe mowerforanydamage.Repairthe
damagebeforestartingand operatingthe mower.
8. Neverattemptto makeawheelor cuttingheightadjust-
mentwhilethe engineisrunning.
9. Grasscatchercomponents,dischargecover,andtrail
shieldaresubjecttowear anddamagewhichcould
exposemovingpartsor allowobjectstobethrown.For
safetyprotection,frequentlycheckcomponentsand re-
placeimmediatelywithoriginalequipmentmanufacturer's
(O.E.M.)partsonly,listedin this manual."Useof parts
whichdo notmeetthe originalequipmentspecifications
mayleadtoimproperperformanceandcompromise
safety!"
10.Do notchangethe enginegovernorsettingor overspeed
theengine.Thegovernorcontrolsthemaximumsafe
operatingspeedoftheengine.
11.Maintainor replacesafetylabels,as necessary.
12.Observeproperdisposallawsandregulations.Improper
disposaloffluidsandmaterialscan harmthe environment.
5
Practices
WARNING
Thissymbolpoints
outimportantsafety
instructionswhich, if
notfollowed,could
endangerthe personal
safetyand/orproperty
ofyourselfandothers.
Readandfollowall
instructionsinthis
manualbeforeat-
temptingtooperate
this machine.Failure
to complywith these
instructionsmayresult
in personalinjury.When
youseethis symbol.
HEED ITS WARNING!
Your Responsibility
Restrictthe use
ofthis powermachine
to personswho read,
understand
andfollow thewarnings
and instructions
in this manual
andon the machine.

Yourmowerisshipped
withthehandleinthe
higherheightposition.
NOTE:Eachendof
thelowerhandlemust
beplacedinthesame
relativeposition.
IMPORTANT
I
iThis unit is shipped
WITHOUT GASOLINE
or OiL. After assem-
bly, service engine
with gasolineand
oil as instructed in
I the separateengine
manual packedwith
your unit.
==,
_ARNING"Disconnectand
ground the spark plugwire as
instructedinthe separateengine
manual.
1. Removeanypackingmaterialwhichmaybebetween
upperandlowerhandles.
a. Pullupand backontheupperhandletoraisethe
handlefrompositionA intotheoperatingposition
B.SeeFigure2.
b. Tightenhandknobs(starknobs)securingupper
handletolowerhandle.Makesurethateach
carriageboltisseatedproperlyin thehandle.
NOTE:Onsomemodelswingnutshavebeenreplaced
withstarknobs.Figuresshowwingnutsonly.
2. Locatehairpinclipinone holeon theweldpinon each
sideof lowerhandle.
Figure 2
.
.
a. Removehairpinclipfromthis hole.Usinga pairof
pliers,inserthairpinclipintotheotherholeon the
weldpin.Repeaton otherside.
b. Placeonecarriagebolt(foundinthehardware
packincludedwithyourunit)intheupperholeof
therighthandlemountingbracketfromthe inside
outward.SeeFigure2. Securewithonewingnut
(starknobs).Repeatprocessontheleft side.
RopeguideSetupasfollows,seeFigure3:
a. Holdthebladecontrolagainstthe upperhandle.
PositionA.
b. Slowlypullstarterropeoutof engine.PositionB.
c. Slipstarterropeintotheropeguide.PositionC.
d. Tightenropeguidewingnut(starknobs).Position
D.
Insertpostoncabletiesintoholesprovidedon the
lowerhandle.Pullcabletietightandtrimexcess.See
Figure4.
Figure 3 Figure 4
6

Eachwheelhasa heightadjustmentlevertochange
thecuttingheightofthemower.Tochangetheheight
ofcut,squeezeadjusterlevertowardthewheel,
movingup ordownto selectedheight.SeeFigure5.
.
6. Toassemblethegrasscatcher:
a. Placebagoverframe(blackplasticsideisthe
bottomofbag.)Insertthehookson theframe
throughtheholesinthesideplasticchannelsof
thebag.SeeFigure6.
b. Securebagtoframebyworkingtheplastic
channelsonbagoverframeasshownin Figure6.
All oftheplasticchannelsexceptcentertopof bag
attachfromtheoutsideofbag.Centertopofbag
attachesfromtheinsideofbag.
7. AttachingGrassCatchertoMower
a. Liftthereardischargedooronthemower,and
placethegrasscatcheron thepivotrod. Letgo
ofdischargedoorsothat itrestson thegrass
catcher. SeeFigure7.
__k ARNING: Never operate mower
unless the hooks on the grass
catcher are firmly seated on the
pivot rod, and the rear discharge
door rests firmly against top of
the grass catcher.
8. Toremovegrasscatcherandutilizethemulching
feature:
Liftreardischargedooronthemowerasshownin
Figure7.Liftgrasscatcherupandout,off ofthe
pivotrod. Releasereardischargedoortoallowit
toclose rearopeningofmower.
a.
Figure 6
k,_ j
Figure 7
" t
Adjus merits
NOTE: Make certain
bag isturnediight
sideout be!ore
assembling (wamir
labelwill beonthe
outside):
NOTE:Make certain
cablesarerouted
tothe outsideofthe
handles0 theYare
not in the wayWhen
attachingthe grass
catcherl
WARNING
Never operate mower
unless the hooks on
the grass catcher are
firmly seated on the
pivot to& and the
rear discharge door
rests firmly against
top of the grass
catcherl
7

WARNING
Read, understand,
and follow aii instruc-
tions and warnings
on the machine and
in this manual before
i operating.
Thisbladecontrol
mechanismisa
isafetydevice. Never
Iattemptto bypassits
operations.
Use extreme care
when handling
gasoline. Gasoline is
extremely flammable
and the vapors are
, explosive. Neverfuel
i the machine indoors
or while the engine
is hot or running.
Extinguis h cigarettes,
cigars, pipesand
other sourcesof
ignition.
Know Your Lawn Mower
Blade Control
-- Upper Handle
Recoil
Starter Lower Handle
Starter
Rope
Grass
Catcher Cutting Height
Adjustment Lever
(for each wheel)
Spark Plug
Figure 8
Blade Control Handle
Thebladecontrolhandleis locatedon theupperhandle
ofthemower.See Figure8.Thebladecontrolhandle
mustbedepressedinordertooperatetheunit.Release
thebladecontrolhandleto stoptheengineand blade.
Recoil Starter
Therecoilstarteris attachedtotherightupperhandle.
Standbehindtheunitand pullthe recoilstarterropeto
startthe unit.
Cutting Height Adjustment Levers
(if so equipped)
Oneadjustmentleveris locatedon eachwheelandis
usedtoadjustthecuttingheight.All fourlevershaveto
beatthesamerelativepositiontoensureuniformcut.
Before Starting
1. Servicetheenginewithgasolineandoil asinstructed
in theseparateenginemanual.
2. Attachsparkplugwireto sparkplug. If unitis
equippedwitha rubberbootovertheend ofthespark
plugwire,makecertainthemetalloopon theend of
thesparkplugwire(insidetherubberboot)isfastened
securelyoverthemetaltipon thesparkplug.
To Start Engine
1. If yourunitisequippedwitha primer,primeengineas
instructedin theseparateenginemanualpackedwith
yourunit.
2. Standingbehindtheunit,depressthe bladecontrol
handleandholditagainsttheupperhandleasshown
in Figure9.
3. Graspthestarterhandleas shownandpullslowly
untilresistanceis felt,thenpullrapidlyto startengine
andavoidkickback.Returnit slowlytothe ropeguide.
8

ToStopEngine
1. Releasethebladecontrolhandletostoptheengine
and blade.
_ WARNING: The blade continues
to rotate for a few seconds after
the engine isshut off.
2. Disconnectandgroundthesparkplugwireas
instructedintheseparateenginemanualtoprevent
accidentalstartingwhileequipmentisunattended.
UsingYour Lawn Mower
,_ WARNING: Never operate your
mower without either the rear
door or the entire grass catcher
assembly firmly secured.
Besurethelawnis clearof stones,sticks,wire,or other
objectswhichcoulddamagethelawnmowerorthe
engine.Suchobjectscouldbeaccidentlythrownbythe
mowerin anydirectionandcauseseriouspersonalinjury
totheoperatorandothers.
WARNING: if you strike a foreign
object, stop the engine. Remove
wire from the spark plug, thor-
oughly inspectthe mower for any
damage, and repair the damage
before restarting and operating
the mower. Extensive vibration
of the mower during operation is
an indicationof damage. The unit
should be promptly inspected
and repaired.
Operating Tips
1. Forbestresultsandeffectivemulching,do notcutwet
grass.
2. Newgrass,thickgrass,or wetgrassmayrequirea
narrowercut.
3. Fora healthierlawn,nevercutoff morethanone-third
ofthetotallengthofthegrass.
4. Yourlawnshouldbe cutin thefallas longasthere
is growth.
5. Adjustgroundspeedaccordingtoconditionof lawn.
6. Ifthegrasshasbeenallowedtogrowin excessof4
inches,mulchingisnotrecommended.Mowusing
thegrasscatcherto reducethegrassheightto3-1/4
inchesorlessbeforemulching.
Figure 9
,_ WARNING: Waitfor the blade to
stop completely before doing
any work on the mower or to
remove the grass catcher.
Using Grass Catcher
Youcanusethegrasscatchertocollectclippingswhile
youareoperatingthemower.
1. Attachgrasscatcherfollowinginstructionson page
7. Grassclippingswillautomaticallycollectinthe
bagasyourunthe mower.Operatethemowertillthe
grassbagisfull.
2. Stopenginecompletelybyreleasingtheblade
controlhandle.Makesurethattheunithascometo
a completestop.
3. Liftdischargedoorandpullgrassbagup andaway
fromthe mowertodisposeofthegrassclippings.
Mower
WARNING
The operation of any
lawn mower can result
inforeign objects
being thrown into
the eyes, whichcan
damage your eyes
severely. Always wear
safety glasseswhile
operating the mower,
or while performing
any adjustments or
repairs on it.
Be sureno one other
than the operator is
standing near the lawn
mower while starting
engine or operating
mower. Never run
engine indoorsor
n enclosed, poorly
ventilated areas. En-
gineexhaust contains
carbon monoxide, an
odorless and deadly
gas. Keep hands,feet,
hair and loose clothing
away from any moving
partson engine and
lawn mower.
9

Maintenance
i_i ii i ii _i i i i i _i
We donot recommend
the useof pressure
hoseto clean your
UniL These mayCause
damagetoelectrical
components,spindles,
pulleys, bearings,or
the engine: Theuse
of water will resuItin
shortened life and
reduce serviceabilityl
Lubricate these
before
Figure 10
General Recommendations
.
2.
Alwaysobservesafetyruleswhenperforming
anymaintenance.
Thewarrantyon thislawnmowerdoesnotcover
itemsthathavebeensubjectedtooperatorabuse
or negligence.Toreceivefullvaluefromwarranty,
operatormustmaintainthe lawnmoweras
instructedhere.
3. Changingof engine-governedspeedwillvoid
enginewarranty.
4. Alladjustmentsshouldbecheckedat leastonce
eachseason.
5. Periodicallycheckall fastenersand makesurethese
aretight.
Lubrication
1. Lubricatethepivotpointsonthebladecontrolhandle
atleastoncea seasonwithlightoil.Theblade
controlmustoperatefreelyin bothdirections.See
Figure10.
2. If yourmowerisequippedwith ballbearingwheels,
lubricateat leastoncea seasonwitha lightoil,all
othertypesrequireno lubrication.However,ifthe
wheelsareremovedforanyreason,lubricatethe
surfaceoftheaxleboltandtheinnersurfaceofthe
wheelwithlightautomotiveoil.
3. Lubricatethetorsionspringandpivotpointonthe
reardoorperiodicallywith lightoil topreventrust.
SeeFigure10.
4. Followtheaccompanyingenginemanualforlubrica-
tionscheduleandinstruction.
.
2.
Engine
Refertotheseparateenginemanualforengine
maintenanceinstructions.
.
.
Maintainengineoil asinstructedintheseparate
enginemanualpackedwithyourunit. Readandfollow
instructionscarefully.
Undernormalconditionsserviceaircleaneras
instructedin theseparateengine manualpackedwith
yourunit. Cleaneveryfewhoursunderextremely
dustyconditions. Poorengineperformanceand
floodingusuallyindicatesthattheair cleanershouldbe
serviced.
Thesparkplugshouldbecleanedandthegapreset
oncea season. Sparkplug replacementis recom-
mendedatthestartofeachmowingseason;check
enginemanualforcorrectplugtypeandgapspecifica-
tions.
NOTE:Thissparkignitionsystemmeetsall require-
mentsof theCanadianInterference-CausingEquipment
Regulations.
5. Cleantheengineregularlywithaclothor brush.
Keepthecoolingsystem(blowerhousingarea)clean
topermitproperair circulationwhichisessentialto
engineperformanceandlife.Becertaintoremoveall
grass,dirtandcombustibledebrisfrommufflerarea.
Deck
Theundersideofthemowerdeckshouldbecleanedafter
eachuseto preventa buildupofgrassclippings,leaves,
dirtorothermatter.If thisdebrisisallowedtoaccumulate,
itwillinviterustandcorrosion,and maypreventproper
mulching.
Thedeckmaybecleanedbytiltingthemowerandscrap-
ingcleanwitha suitabletool(makecertainthesparkplug
wireisdisconnected).
Blade Care
__1 ARNING: When removing the
cutting blade for sharpening or
replacement, protect your hands
with a pair of heavy glovesor use
a heavy rag to hold the blade.
Periodicallyinspectthebladeadapterforcracks,especial-
lyifyoustrikea foreignobject.Replacewhennecessary.
Followthestepsbelowforbladeservice:
1. Disconnectsparkplugwirefromsparkplug.
2. Tipmoweras specifiedinseparateenginemanual,if
itdoesnotspecifyturnmoweron itssidemakingsure
thattheairfilterandthecarburetorareup.
3. Removetheboltandthebladebellsupportwhich
holdthebladeandthebladeadaptertotheengine
crankshaft.SeeFigure11.
10
