OperatOr’sManual
Twin Bagger — 19A30011OEM
Form No. 769-07688
(January 2, 2012)

To The Owner 1
2
Thank you for purchasing a double bagging attachment
manufactured by MTD LLC. It was carefully engineered to
provide excellent performance when properly operated and
maintained.
Please read this entire manual prior to operating the equipment.
It instructs you how to safely and easily set up, operate and
maintain this attachment. Please be sure that you, and any
other persons who will operate the machine, carefully follow the
recommended safety practices at all times. Failure to do so could
result in personal injury or property damage.
All information in this manual is relative to the most recent
product information available at the time of printing. Review this
manual frequently to familiarize yourself with the attachment,
its features and operation. Please be aware that this Operator’s
Manual may cover a range of product specifications for various
models. Characteristics and features discussed and/or illustrated
in this manual may not be applicable to all models. MTD LLC
reserves the right to change product specifications, designs and
equipment without notice and without incurring obligation.
If you have any problems or questions concerning this
attachment, phone your local authorized MTD service dealer
or contact us directly. MTD’s Customer Support telephone
numbers, website address and mailing address can be found on
this page. We want to ensure your complete satisfaction at all
times.
Throughout this manual, all references to right and left side of the
machine are observed from the operating position
Thank You
Customer Support
Please do NOT return the machine to the retailer or dealer without first contacting our Customer Support Department.
If you have difficulty assembling this product or have any questions regarding the controls, operation, or maintenance of
this machine, you can seek help from the experts. Choose from the options below:
◊ Visit us on the web at www.mtdproducts.com
◊ Call a Customer Support Representative at [phone] or [phone]
◊ Write us at MTD LLC • P.O. Box 361131 • Cleveland, OH • 44136-0019
Record Product Information
Before setting up and operating your new equipment, please
locate the model plate on the equipment and record the
information in the provided area to the right. From the operator’s
position, locate the model plate on the front side of the grass
catcher cover. This information will be necessary, should you
seek technical support via our web site, Customer Support
Department, or with a local authorized service dealer.
Model NuMber
Serial NuMber
Identify The Model of Tractor................................. 2
Safe Operation Practices ........................................ 3
Carton Contents & Hardware Pack........................ 6
Assembly & Installation .......................................... 8
Operation................................................................10
Parts List..................................................................14
Warranty.................................................................16
Table of Contents

Important Safe Operation Practices 2
3
General Operation
1. Read, understand, and follow all instructions on your
equipment and in their manuals before attempting to
assemble and operate. Keep this manual in a safe place for
future and regular reference and for ordering replacement
parts.
2. To help avoid blade contact or a thrown object injury, keep
bystanders, helpers, children and pets at least 75 feet from
the mower while it is in operation. Stop machine if anyone
enters the area.
3. Thoroughly inspect the area where the equipment is to be
used. Remove all stones, sticks, wire, bones, toys, and other
foreign objects which could be picked up and thrown by
the blade(s). Thrown objects can cause serious personal
injury.
4. Always wear safety glasses or safety goggles during
operation and while performing an adjustment or repair
to protect your eyes. Thrown objects which ricochet can
cause serious injury to the eyes.
5. Do not operate the mower without the discharge cover
or entire grass catcher in its proper place. A missing
or damaged discharge cover or grass bag attachment
component may result in thrown objects or blade contact
injuries.
6. Do not put hands or feet near rotating parts or under the
cutting deck. Contact with the blade(s) can amputate
hands and feet.
7. Shut off mower’s engine and wait for blades to come to
a complete stop before unclogging mower’s discharge
opening or bagger parts.
8. Slow down before turning. Operate the machine smoothly.
Avoid erratic operation and excessive speed. Be aware
that a grass catcher attachment can affect the handling
characteristics of your mower.
9. Disengage blade(s), set parking brake, stop engine and
wait until the blade(s) come to a complete stop before
opening bagger attachment’s top cover, removing grass
catcher, emptying grass, unclogging chute, removing any
grass or debris, or making any adjustments.
10. Never leave a running machine unattended. Always turn
off blade(s), place transmission in neutral, set parking
brake, stop engine and remove key before dismounting.
11. Your machine is designed to cut normal residential grass of
a height no more than 10”. Do not attempt to mow through
unusually tall, dry grass (e.g., pasture) or piles of dry leaves.
Dry grass or leaves may contact the engine exhaust and/
or build up on the mower deck presenting a potential fire
hazard.
12. If situations occur which are not covered in this manual, use
care and good judgment. Contact your customer service
representative for assistance.
Slope Operation
Slopes are a major factor related to loss of control and tip-over
accidents which can result in severe injury or death. Attachments
can also affect the stability of the machine. All slopes require
extra caution.
For your safety, use the slope gauge included as part of this
manual to estimate the angle of slopes before operating this
machine on a sloped or hilly area. If the slope is greater than 10
degrees as shown on the slope gauge, do not operate the mower
with the grass bag attachment installed on that area or serious
injury could result.
Do:
1. Mow up and down slopes, not across. Exercise extreme
caution when changing direction on slopes.
2. Watch for holes, ruts, bumps, rocks, or other hidden
objects. Uneven terrain could overturn the machine. Tall
grass can hide obstacles.
WARNING! This symbol points out important safety instructions which, if not followed,
could endanger the personal safety and/or property of yourself and others. Read and follow
all instructions in this manual before attempting to operate this machine. Failure to comply
with these instructions may result in personal injury.
When you see this symbol. HEED ITS WARNING!
DANGER! This attachment was built to be used according to the safe operation practices in
this manual. Carelessness or error on the part of the operator can result in serious injury.
Mowers are capable of amputating hands and feet and throwing objects. Failure to observe
the following safety instructions as well as the instructions provided with your mower, could
result in serious injury or death.

4Section 2 — important Safe operation practiceS
Safety Symbols
This table depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the
machine before attempting to assemble and operate.
Symbol Description
READ THE OPERATOR’S MANUAL(S)
Read, understand, and follow all instructions in the manual(s) before attempting to
assemble and operate
STOP
Turn off the engine before opening the bagger cover.
3. Use slow speed. Choose a low enough speed setting so
that you will not have to stop or shift while on the slope.
Tires may lose traction on slopes even though the brakes
are functioning properly. Always keep machine in gear
when going down slopes to take advantage of engine
braking action.
4. Follow the manufacturer’s recommendations for wheel
weights or counterweights to improve stability.
5. Keep all movement on the slopes slow and gradual. Do
not make sudden changes in speed or direction. Rapid
engagement or braking could cause the front of the
machine to lift and rapidly flip over backwards which could
cause serious injury.
6. Avoid starting or stopping on a slope. If tires lose traction,
disengage the blade(s) and proceed slowly straight down
the slope.
Do Not:
1. Do not turn on slopes unless necessary; then, turn slowly
and gradually downhill, if possible.
2. Do not mow near drop-offs, ditches or embankments. The
mower could suddenly turn over if a wheel is over the edge
of a cliff, ditch, or if an edge caves in.
3. Do not try to stabilize the machine by putting your foot on
the ground.
4. Do not use a grass catcher on steep slopes.
5. Do not mow on wet grass. Reduced traction could cause
sliding.
General Service
1. Before cleaning, repairing, or inspecting, make certain the
blade(s) and all moving parts have stopped. Disconnect the
spark plug wire and ground against the engine to prevent
unintended starting.
2. Keep all nuts, bolts, and screws tight to be sure the
equipment is in safe working condition.
3. Never tamper with your mower’s safety interlock system
or other safety devices. Check their proper operation
regularly.
4. Never attempt to make adjustments or repairs while the
mower’s engine is running.
5. Grass catcher components and the discharge cover are
subject to wear and damage which could expose moving
parts or allow objects to be thrown. For safety protection,
frequently check components and replace immediately
with original equipment manufacturer’s (O.E.M.) parts only,
listed in this manual. Use of parts which do not meet the
original equipment specifications may lead to improper
performance and compromise safety!
6. Maintain or replace safety and instruction labels, as
necessary.
WARNING! Your Responsibility—Restrict the use of this power machine to persons who read, understand and
follow the warnings and instructions in this manual and on the machine.
SAVE THESE INSTRUCTIONS!

5Section 2 — important Safe operation practiceS
(OK) (TOO STEEP)
USE THIS SLOPE GAUGE TO DETERMINE
IF A SLOPE IS TOO STEEP FOR SAFE OPERATION!

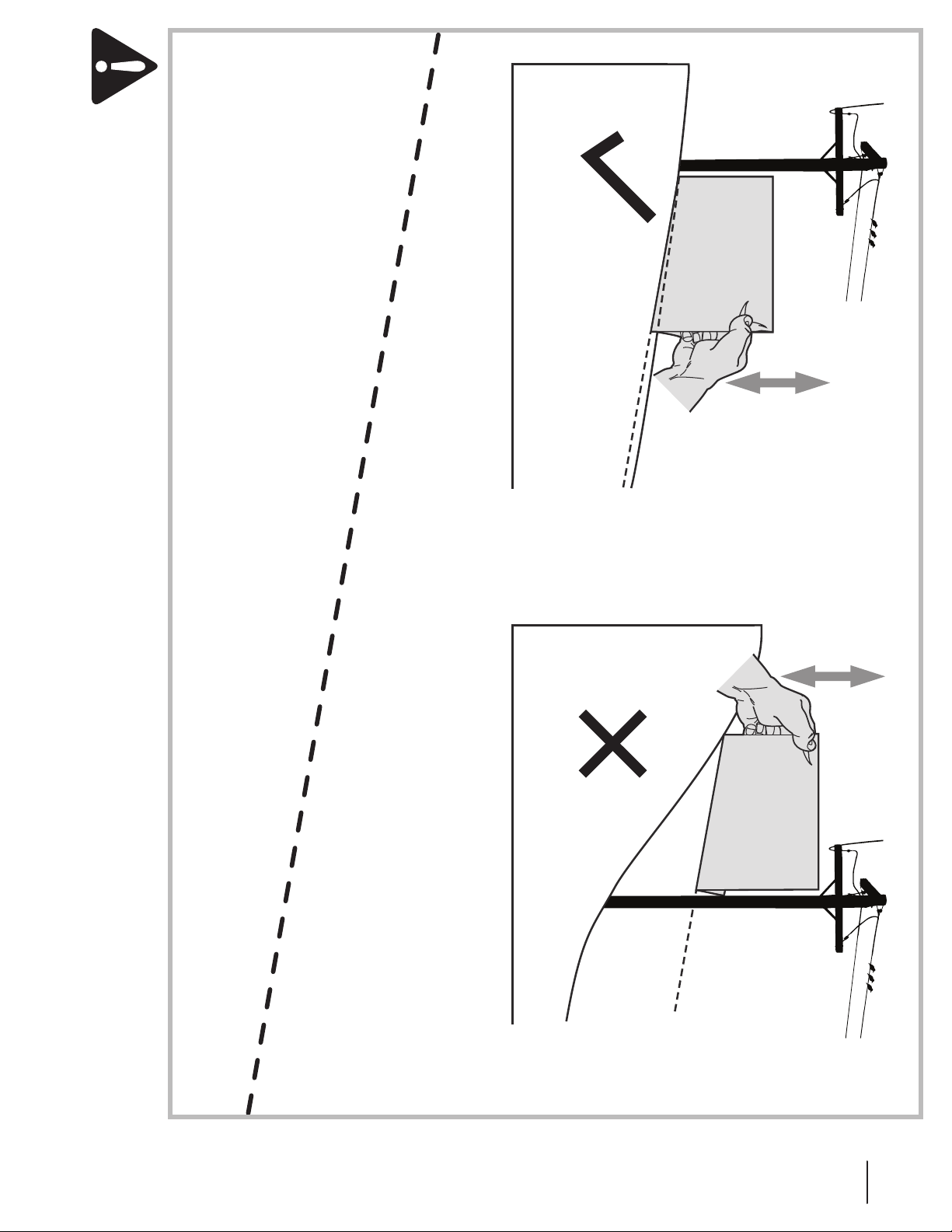

To check the slope, proceed as follows: 1. Remove this page and fold along the dashed line. 2. Locate a vertical object on or behind the slope (e.g. a pole, building, fence, tree, etc.) 3. Align either side of the slope gauge with the object (See Figure 1 and Figure 2 ). 4. Adjust gauge up or down until the left corner touches the slope (See Figure 1 and Figure 2). 5. If there is a gap below the gauge, the slope is too steep for safe operation (See Figure 2 above).
10° dashed line
Slope Gauge
Figure 2Figure 1
10° Slope
10° Slope
WARNING! Slopes are a major factor related to tip-over and roll-over accidents which can result in severe injury or death.
Do not operate machine on slopes in excess of 10 degrees. All slopes require extra caution. If you cannot back up the slope or if you feel uneasy on it, do not mow it. Always mow up and down slopes, never across the face of slopes.

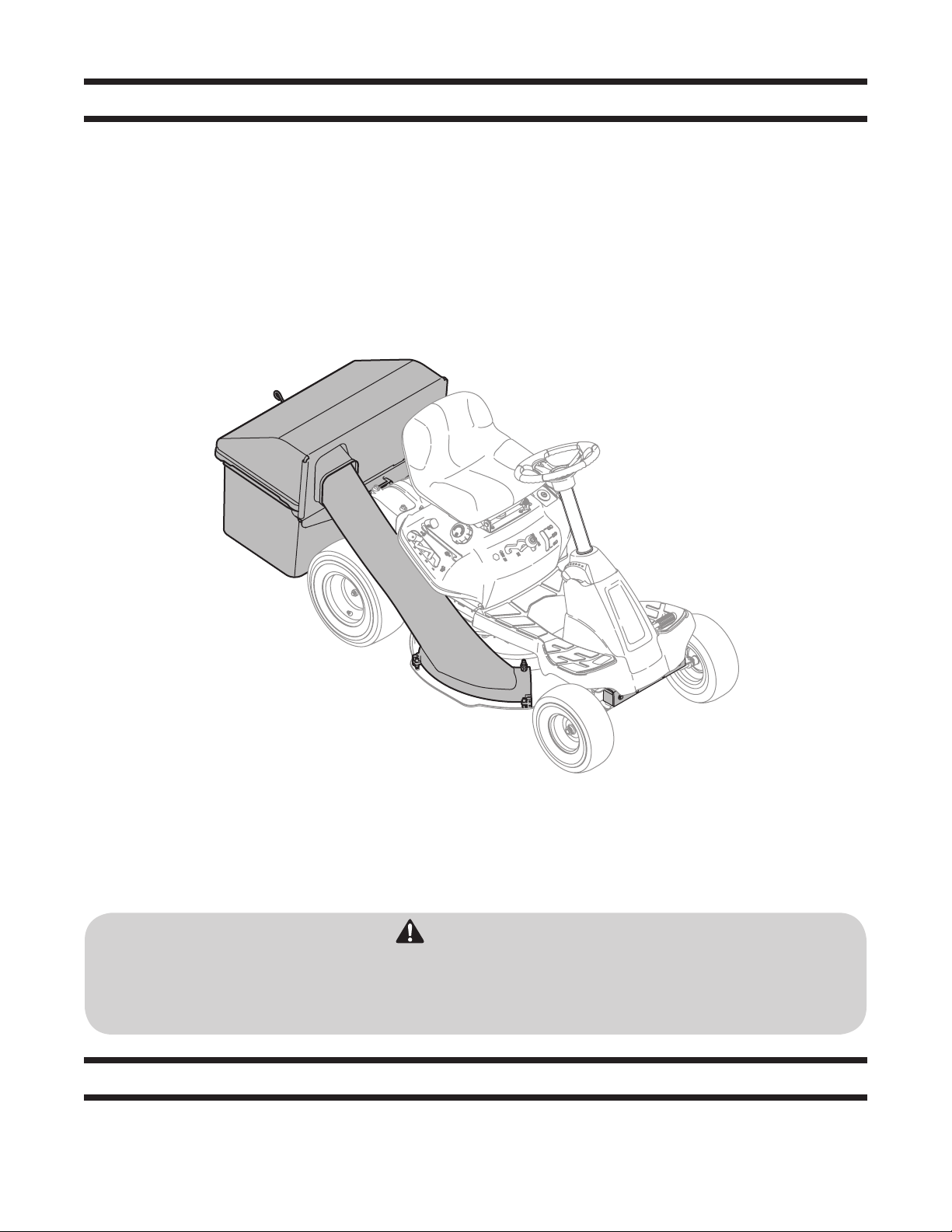

Contents of Carton 3
6
Before beginning installation, remove all parts from the carton to make sure everything is present. Carton contents are listed below
and shown in Fig. 3-1. Hardware part numbers are shown in parentheses.
• Two Grass Bag Assemblies
• Grass Catcher Hood
• Chute Tube
• Bag Support Assembly
Figure 3-1
• Mounting Bracket
• Counter Weight
• One Hardware Packs (Detailed & Pictured on the next page)

7Section 3 — contentS of carton

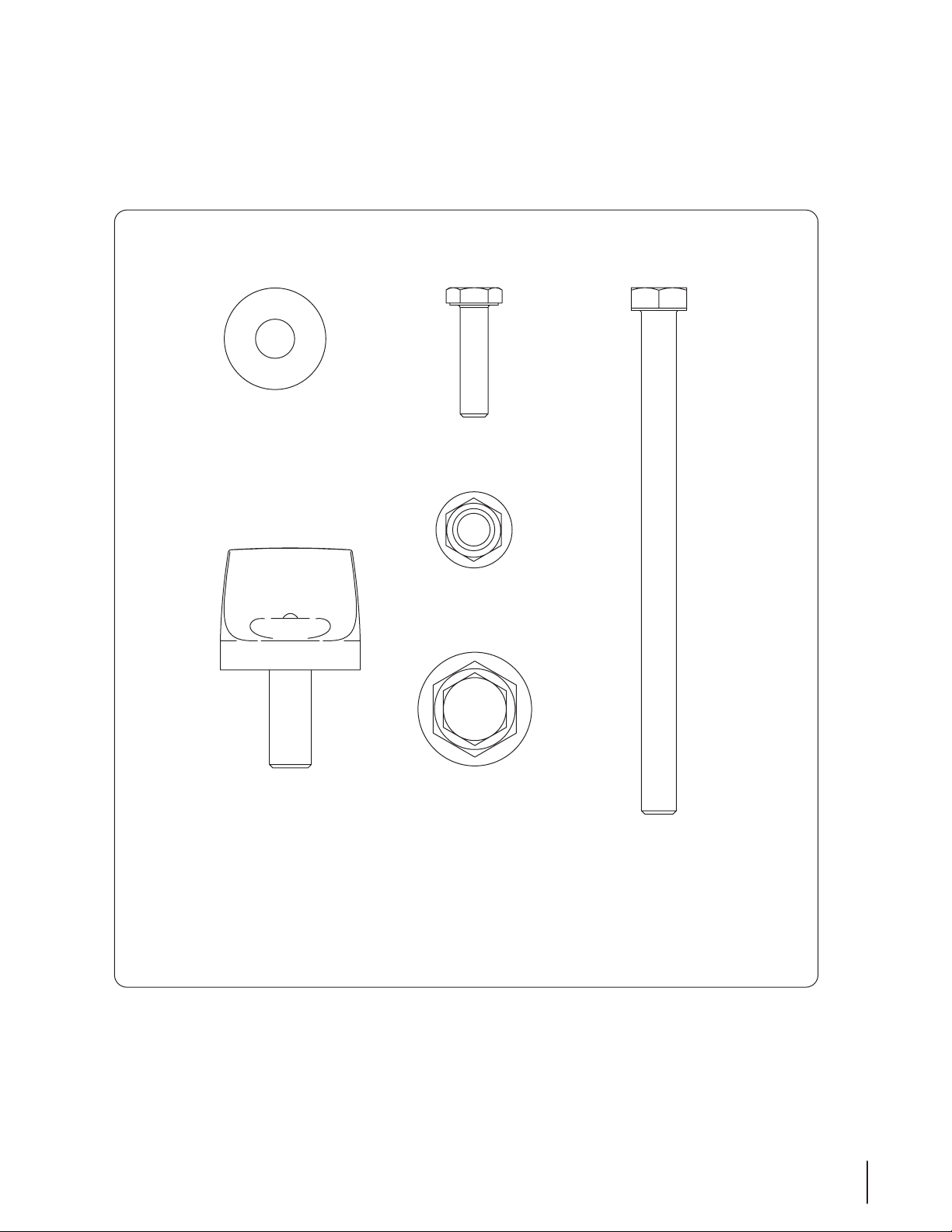

CONTENTS OF HARDWARE PACK
This grass collector kit is shipped with a hardware pack enclosed. Please check your hardware packs against the illustrations below. The
quantities for each item is listed in parenthesis.
710-3015
Hardware Pack 689-00210
(4)
(4)
(2)
(2)
(2)
(1)
710-3195
712-04063
712-04150
736-0159
720-04061

Assembly & Installation 4
8
Installing the Bagger Assembly
To Install the bagger mounting bracket, follow these steps:
1. Remove, and discard, the four self-tap bolts on the rear
frame of the tractor, as shown in Fig. 4-1.
Figure 4-1
2. Install the bagger mounting bracket on the tractor, using
four 710-3015 hex bolts from hardware pack 689-00210.
Feed each hex bolt through the tractor frame, the rear
hood mounting tube, and thread into the weld-nut on the
bagger mounting bracket, as shown in Fig. 4-2.
Figure 4-2
3. Install the grass-bag mounting assembly onto the bagger
mounting bracket by lowering it down (1) and fitting the
assembly into the slot provided in the mounting bracket.
See the Inset in Fig. 4-3.
4. Secure the grass-bag mounting assembly to the bagger
mounting bracket using the attachment knob (720-04061)
found in the hardware pack (689-00210). See (2) in Fig. 4-3.
1
2
Figure 4-3
5. Attach the bagger hood over the grass-bag mounting
assembly as shown in Fig. 4-4. Align the tabs on the hood
into the slots on the grass-bag mounting assembly. Secure
the bagger hood using two flange lock nuts (712-04150)
included in the same hardware pack.
Figure 4-4

9Section 4 — ASSembly & inStAllAtion
6. Install the bags onto the mounting frame as shown in Fig.
5-2 in the Operation section. Simply place the leading
edge of the bag onto the front frame rail, then rock the bag
backwards and down into place. Repeat for the second
bag.
7. Insert the chute tube through the grass-catcher hood, in
the opening provided. It is easiest to feed the end of the
tube into the opening with the chute tube flipped upside
down, then rotating right-side once inserted into the hood.
See Fig. 4-5.
Figure 4-5
8. Remove the deck chute, or mulch plug, and mount the
bagger chute tube to the deck of the tractor by feeding
the two pins on the chute tube elbow into the large end of
the keyhole-openings provided in the unit’s mowing deck.
Slide the deck chute assembly rearward to lock into place,
being sure to engage the safety interlock switch. See Fig.
4-6.
Figure 4-6
9. Once the chute tube is locked, the wing-knob hole will be
aligned. Secure the chute tube to the tractor by installing
the wing-knob, and hand-tightening it.
Installing the Weight Bar
1. Turn the wheels of the tractor all the way to the right hand
side, from the operator’s position, as shown in Fig. 4-7.
2
2
1
Figure 4-7
2. Slide the weight bar across the front of the unit’s frame
until the mounting holes align. Turn the wheels back
straight once you slide the weight bar on the unit and
towards the center.
3. Secure the weight bar to the tractor using two 710-3195
hex bolts, four 712-0159 flat washers and two 712-04063
flange lock nuts from hardware pack 689-00210.

Operation 5
10
Bagger Usage
NOTE: When both grass bags are full, place the tractor on a firm,
level surface, disengage the PTO, turn the tractor engine off and
set the parking brake.
1. Open the grass bag cover by lifting the lower rear of the
cover and pivoting it upwards. It is not necessary to remove
the discharge chute in order to empty the grass bags. See
Fig. 5-1.
Figure 5-1
2. Remove the grass bags by lifting up the rear side of the bag
and moving the bags away from the bag support assembly.
1
2
Figure 5-2
3. Empty the grass clippings at a proper disposal site. Holding
the bag firmly, turn upside down, and empty the contents.
4. To reinstall the grass bags, insert the leading edge onto the
bagger mount assembly (1 in Fig. 5-2), and pivot the grass
bag rearward and down as shown in 2 of Fig. 5-2.
5. Close the grass bag cover, restart your tractor and resume
cutting your grass.

Notes 6
11

12 Section 6— noteS

13Section 6 — noteS

19A30011OEM Parts List 7
9
17
21
6
14
20
5
4
8
1
1
3
2
13
8
22
18
15
7
6
18
15
10
12
11
16
19
17
14

Section 7 — PartS LiSt
Ref. Part Number Description
1. 964- 04167 Grass Bag
2. 683-04771 Front Hood Assembly Frame
3. 683-04772 Rear Hood Assembly Frame
4. 683-04775 Bagger Support Assembly
5. 683-04781 Mounting Bracket
6. 710-0895 Hex Lock Screw, 1/4-15, 0.75
7. 710-0599 Tap Screw, 1/4-20, 0.500
8. 710 -3015 Hex Head Screw, 1/4-20, .75
9. 710-3195 Hex Head Screw, 5/16-18, 4.50
10. 712- 04063 Flange Lock Nut, 5/16-18
11. 712-04150 Flange Lock Nut, 1/2-13
12. 720-04061 Knob, 3/8-16, .875
13. 926-0100 Push Cap, 3/8 Rod
14. 731-08548 Chute Tube
15. 731-08834 Chute Mount Bracket
16. 735-0246A Plug End
17. 936-0159 Flat Washer, .349 x .879 x .063
18. 738- 04519 Shoulder Screw, 1/4-15, .750
19. 764-04148 Grass Catcher Hood
20. 783-07380-0637 Weight Bar Mounting Bracket
21. 783-07286-0637 Boot Switch Safety Bracket
22. 783-07379-0637 Weight Bar
15

MANUFACTURER’S LIMITED WARRANTY FOR
GDOC-100167 REV. A
The limited warranty set forth below is given by MTD LLC with
respect to new merchandise purchased and used in the United States
and/or its territories and possessions, and by MTD Products Limited
with respect to new merchandise purchased and used in Canada and/
or its territories and possessions (either entity respectively, “MTD”).
“MTD” warrants this product (excluding its Normal Wear Parts and
Attachments as described below) against defects in material and
workmanship for a period of one (1) year commencing on the date
of original purchase and will, at its option, repair or replace, free of
charge, any part found to be defective in materials or workmanship.
This limited warranty shall only apply if this product has been
operated and maintained in accordance with the Operator’s Manual
furnished with the product, and has not been subject to misuse,
abuse, commercial use, neglect, accident, improper maintenance,
alteration, vandalism, theft, fire, water, or damage because of other
peril or natural disaster. Damage resulting from the installation or use
of any part, accessory or attachment not approved by MTD for use
with the product(s) covered by this manual will void your warranty as
to any resulting damage.
Normal Wear Parts are warranted to be free from defects in material
and workmanship for a period of thirty (30) days from the date of
purchase. Normal wear parts include, but are not limited to items
such as: batteries, belts, blades, blade adapters, tines, grass bags,
wheels, rider deck wheels, seats, snow thrower skid shoes, friction
wheels, shave plates, auger spiral rubber and tires.
Attachments — MTD warrants attachments for this product against
defects in material and workmanship for a period of one (1) year,
commencing on the date of the attachment’s original purchase or
lease. Attachments include, but are not limited to items such as:
grass collectors and mulch kits.
HOW TO OBTAIN SERVICE: Warranty service is available, WITH
PROOF OF PURCHASE, through your local authorized service dealer.
To locate the dealer in your area:
In the U.S.A.
Check your Yellow Pages, or contact MTD LLC at P.O. Box 361131,
Cleveland, Ohio 44136-0019, or call 1-800-800-7310, 1-330-220-
4683 or log on to our Web site at www.mtdproducts.com .
In Canada
Contact MTD Products Limited, Kitchener, ON N2G 4J1, or call 1-800-
668-1238 or log on to our Web site at www.mtdcanada.com.
This limited warranty does not provide coverage in the following
cases:
a. Log splitter pumps, valves, and cylinders have a separate one-
year warranty.
b. Routine maintenance items such as lubricants, filters, blade
sharpening, tune-ups, brake adjustments, clutch adjustments,
deck adjustments, and normal deterioration of the exterior finish
due to use or exposure.
c. Service completed by someone other than an authorized service
dealer.
d. MTD does not extend any warranty for products sold or exported
outside of the United States and/or Canada, and their respective
possessions and territories, except those sold through MTD’s
authorized channels of export distribution.
e. Replacement parts that are not genuine MTD parts.
f. Transportation charges and service calls.
g. MTD does not warrant this product for commercial use.
No implied warranty, including any implied warranty of
merchantability or fitness for a particular purpose, applies after
the applicable period of express written warranty above as to the
parts as identified. No other express warranty, whether written or
oral, except as mentioned above, given by any person or entity,
including a dealer or retailer, with respect to any product, shall
bind MTD. During the period of the warranty, the exclusive remedy
is repair or replacement of the product as set forth above.
The provisions as set forth in this warranty provide the sole and
exclusive remedy arising from the sale. MTD shall not be liable
for incidental or consequential loss or damage including, without
limitation, expenses incurred for substitute or replacement lawn
care services or for rental expenses to temporarily replace a
warranted product.
Some states do not allow the exclusion or limitation of incidental
or consequential damages, or limitations on how long an implied
warranty lasts, so the above exclusions or limitations may not apply
to you.
In no event shall recovery of any kind be greater than the amount of
the purchase price of the product sold. Alteration of safety features of
the product shall void this warranty. You assume the risk and liability
for loss, damage, or injury to you and your property and/or to others
and their property arising out of the misuse or inability to use the
product.
This limited warranty shall not extend to anyone other than the
original purchaser or to the person for whom it was purchased as a
gift.
HOW STATE LAW RELATES TO THIS WARRANTY: This limited
warranty gives you specific legal rights, and you may also have other
rights which vary from state to state.
IMPORTANT: Owner may be required to present proof of purchase to
obtain warranty coverage.
MTD LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019; Phone: [phone]
MTD Canada Limited - KITCHENER, ON N2G 4J1; Phone [phone]
