OPERATOR’S MANUAL
IMPORTANT: READ SAFETY RULES AND INSTRUCTIONS CAREFULLY
MTD PRODUCTS INC. P.O. BOX 368022 CLEVELAND, OHIO 44136-9722
Warning: This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest-
covered, brush-covered or grass-covered land unless the engine’s exhaust system is equipped with a spark arrester meeting
applicable local or state laws (if any). If a spark arrester is used, it should be maintained in effective working order by the operator.
In the State of California the above is required by law (Section 4442 of the California Public Resources Code). Other states may have
similar laws. Federal laws apply on federal lands. A spark arrester for the muffler is available through your nearest engine authorized
service dealer or contact the service department, P.O. Box 368022 Cleveland, Ohio 44136-9722.
PRINTED IN U.S.A.
SNOW THROWER
MODELS
E600E, E610E
E640F, E660G
FORM NO .
770-10002E.fm
(5/2001)

2
TABLE OF CONTENTS
Content Page
Important Safe Operation Practices ...................................................................3
Loose Parts & Hardware Pack ...........................................................................5
Assembling Your Snow Thrower ........................................................................7
Know Your Snow Thrower..................................................................................10
Operating Your Snow Thrower...........................................................................11
Making Adjustments...........................................................................................13
Maintaining Your Snow Thrower ........................................................................14
Service ...............................................................................................................15
Off-Season Storage ...........................................................................................17
Troubleshooting .................................................................................................18
Parts List ............................................................................................................19
FINDING MODEL NUMBER
This Operator’s Manual is an important part of your new snow thrower. It will help you assemble, prepare and
maintain the unit for best performance. Please read and understand what it says.
Before you start assembling your new equipment, please locate the model plate on the
equipment and copy the information from it in the space provided below. The information on the
model plate is very important if you need help from our Customer Support Department or an
authorized dealer.
• You can locate the model number by standing behind the unit in the operating position and looking down
at the rear frame below the engine. A sample model plate is explained below. For future reference, please
copy the model number and the serial number of the equipment in the space below.
CALLING CUSTOMER SUPPORT
If you have difficulty assembling this product or have any questions regarding the controls, operation or
maintenance of this unit, please call the Customer Support Department.
Call 1- (330) 220-4MTD (4683) or 1- (800)-800-7310 to reach a Customer Support
representative. Please have your unit’s model number and serial number ready when you call.
See previous section to locate this information. You will be asked to enter the serial number in
order to process your call .
MTD PRODUCTS INC
CLEVELAND, OHIO 44136
Copy the model number here:
Copy the serial number here:
(Model Number) (Serial Number)
For more details about your unit, visit our website at www.mtdproducts.com

3
SECTION 1: IMPORTANT SAFE OPERATION PRACTICES
This symbol points out important safety instructions which, if not followed, could endanger the personal
safety and/or property of yourself and others. Read and follow all instructions in this manual before
attempting to operate this machine. Failure to comply with these instructions may result in personal
injury. When you see this symbol—heed its warning.
WARNING: Engine Exhaust, some of its constituents, and certain vehicle components contain or emit
chemicals known to State of California to cause cancer and birth defects or other reproductive harm.
DANGER: This machine was built to be operated according to the rules for safe operation in this
manual. As with any type of power equipment, carelessness or error on the part of the operator can
result in serious injury. This machine is capable of amputating hands and feet and throwing objects.
Failure to observe the following safety instructions could result in serious injury or death.
Training
1. Read, understand, and follow all instructions on the
machine and in the manual(s) before attempting to
assemble and operate. Keep this manual in a safe place
for future and regular reference and for ordering
replacement parts.
2. Be familiar with all controls and their proper operation.
Know how to stop the machine and disengage them
quickly.
3. Never allow children under 14 years old to operate this
machine. Children 14 years old and over should read and
understand the operation instructions and safety rules in
this manual and should be trained and supervised by a
parent.
4. Never allow adults to operate this machine without
proper instruction.
5. Thrown objects can cause serious personal injury. Plan
your snow throwing pattern to avoid discharge of material
toward roads, bystanders and the like.
6. Keep bystanders, helpers, pets and children at least 75
feet from the machine while it is in operation. Stop
machine if anyone enters the area.
7. Exercise caution to avoid slipping or falling, especially
when operating in reverse.
Preparation
1. Thoroughly inspect the area where the equipment is to
be used. Remove all door mats, newspapers, sleds,
boards, wires and other foreign objects which could be
tripped over or thrown by the auger/impeller.
2. Always wear safety glasses or eye shields during
operation and while performing an adjustment or repair to
protect your eyes. Thrown objects which ricochet can
cause serious injury to the eyes.
3. Do not operate without wearing adequate winter outer
garments. Do not wear jewelry, long scarves or other
loose clothing which could become entangled in moving
parts. Wear footwear which will improve footing on
slippery surfaces.
4. Use a grounded three wire extension cord and receptacle
for all units with electric start engines.
5. Adjust collector housing height to clear gravel or crushed
rock surfaces.
6. Disengage all clutch levers before starting the engine.
7. Never attempt to make any adjustments while engine is
running, except where specifically recommended in the
operator’s manual.
8. Let engine and machine adjust to outdoor temperature
before starting to clear snow.
9. To avoid personal injury or property damage use extreme
care in handling gasoline. Gasoline is extremely
flammable and the vapors are explosive. Serious
personal injury can occur when gasoline is spilled on
yourself or your clothes which can ignite. Wash your skin
and change clothes immediately.
a. Use only an approved gasoline container.
b. Extinguish all cigarettes, cigars, pipes and other
sources of ignition.
c. Never fuel machine indoors.
d. Never remove gas cap or add fuel while the
engine is hot or running.
e. Allow engine to cool at least two minutes before
refueling.
f. Never over fill fuel tank. Fill tank to no more than
½ inch below bottom of filler neck to provide space
for fuel expansion.
g. Replace gasoline cap and tighten securely.
h. If gasoline is spilled, wipe it off the engine and
equipment. Move machine to another area. Wait 5
minutes before starting the engine.
i. Never store the machine or fuel container inside
where there is an open flame, spark or pilot light
(e.g. furnace, water heater, space heater, clothes
dryer etc.).
j. Allow machine to cool at least 5 minutes before
storing.
Operation
1. Do not put hands or feet near rotating parts, in the auger/
impeller housing or discharge chute. Contact with the
rotating parts can amputate hands and feet.
2. The auger/impeller clutch lever is a safety device. Never
bypass its operation. Doing so, makes the machine
unsafe and may cause personal injury.
3. The clutch levers must operate easily in both directions
and automatically return to the disengaged position when
released.

4
4. Never operate with a missing or damaged discharge
chute. Keep all safety devices in place and working.
5. Never run an engine indoors or in a poorly ventilated
area. Engine exhaust contains carbon monoxide, an
odorless and deadly gas.
6. Do not operate machine while under the influence of
alcohol or drugs.
7. Muffler and engine become hot and can cause a burn. Do
not touch.
8. Exercise extreme caution when operating on or crossing
gravel surfaces. Stay alert for hidden hazards or traffic.
9. Exercise caution when changing direction and while
operating on slopes.
10. Plan your snow throwing pattern to avoid discharge
towards windows, walls, cars etc. To avoid property
damage or personal injury caused by a ricochet.
11. Never direct discharge at children, bystanders and pets
or allow anyone in front of the machine.
12. Do not overload machine capacity by attempting to clear
snow at too fast of a rate.
13. Never operate this machine without good visibility or
light. Always be sure of your footing and keep a firm hold
on the handles. Walk, never run.
14. Disengage power to the auger/impeller when
transporting or not in use.
15. Never operate machine at high transport speeds on
slippery surfaces. Look down and behind and use care
when in reverse.
16. If the machine should start to vibrate abnormally, stop the
engine, disconnect the spark plug and ground it against
the engine. Inspect thoroughly for damage. Repair any
damage before starting and operating.
17. Disengage all clutch levers and stop engine before you
leave the operating position (behind the handles). Wait
until the auger/impeller comes to a complete stop before
unclogging the discharge chute, making any
adjustments, or inspections.
18. Never put your hand in the discharge or collector
openings. Always use a clearing tool to unclog the
discharge opening.
19. Use only attachments and accessories approved by the
manufacturer (e.g. wheel weights, tire chains, cabs etc.).
20. If situations occur which are not covered in this manual,
use care and good judgment. Contact your dealer or
telephone [phone] for assistance and the name
of your nearest servicing dealer.
Maintenance and Storage
1. Never tamper with safety devices. Check their proper
operation regularly.
2. Disengage all clutch levers and stop engine. Wait until
the auger/impeller come to a complete stop. Disconnect
the spark plug wire and ground against the engine to
prevent unintended starting before cleaning, repairing, or
inspecting.
3. Check bolts, and screws for proper tightness at frequent
intervals to keep the machine in safe working condition.
Also, visually inspect machine for any damage.
4. Do not change the engine governor setting or over-speed
the engine. The governor controls the maximum safe
operating speed of the engine.
5. Snow thrower shave plates and skid shoes are subject to
wear and damage. For your safety protection, frequently
check all components and replace with original
equipment manufacturer’s (O.E.M.) parts only. “Use of
parts which do not meet the original equipment
specifications may lead to improper performance and
compromise safety!”
6. Check clutch controls periodically to verify they engage
and disengage properly and adjust, if necessary. Refer to
the adjustment section in this operator’s manual for
instructions.
7. Maintain or replace safety and instruction labels, as
necessary.
8. Observe proper disposal laws and regulations for gas,
oil, etc. to protect the environment.
9. Prior to storing, run machine a few minutes to clear snow
from machine and prevent freeze up of auger/impeller.
10. Never store the machine or fuel container inside where
there is an open flame, spark or pilot light such as a water
heater, furnace ,clothes dryer etc.
11. Always refer to the operator’s manual for proper
instructions on off-season storage.
Your Responsibility:
Restrict the use of this power machine to persons who
read, understand and follow the warnings and
instructions in this manual and on the machine. The
safety labels are given below for your reference.

5
Contents Of Hardware Pack
Lay out the hardware according to the illustration for identification purposes. Part numbers are shown in
parentheses. (Hardware pack may contain extra items which are not used on your unit.)
AATTACHING THE HANDLES
Hex Bolts
(710-3259) Hex Bolts
(710-1880)
Lock Washers
(736-0119)
Carriage Bolts
(710-0262)
Cupped Washers
(736-0242)
B
ATTACHING THE CHUTE ASSEMBLY
Hex Bolts
(710-3015)
Chute Flange
(731-0851A)
Keepers Hex Lock Nuts
ATTACHING THE CHUTE DIRECTIONAL
C
Hair Pin Clip
(714-0104)
Hex Nut
(712-3010)
5/16-18 x 1-3/4”
5/16-18 x 3/4”
5/16”I.D.
5/16”I.D.
1/4-20 x 3/4”
1/4-20 Thread
(712-3027)
5/16”Thread
ATTACHING THE SHIFT ROD
AND CLUTCH CABLES
Ferrule
(711-0677) 3/8”I.D. x 5/8”O.D.
Flat Washers
(736-0275)
Hair Pin Clip
(714-0104)
AUGER SHEAR BOLTS*
Shear Bolts
(710-0890A) (712-0429)
Hex Lock Nuts
5/16”Thread
5/16-18 x 1-1/2”
Cupped Washers
(736-0242)
5/16”I.D.
5/16”Thread
Lock Nuts
(712-3068)
Handle Tabs
(784-5599)
Flat Washers
(736-0185)
3/8”I.D. x 5/8”O.D.
D
E
CONTROL
* The augers are secured to the spiral shaft with two shear bolts and hex lock nuts. If you hit a hard foreign
object or an ice jam, the snow thrower is designed so that the bolts may shear. These two spare shear bolts
and nuts are provided for your convenience.
IMPORTANT: NEVER replace the auger shear bolts with standard hex bolts. Any damage to the auger gearbox
or other components as a result of doing so will NOT be covered by your snow thrower’s warranty.

6
SECTION 2: ASSEMBLING YOUR SNOW THROWER
Unpacking
•Remove staples or break glue on the top flaps of
the carton. Remove any loose parts included with
unit (i.e., Operator’s Manual, etc).
•Cut along corners and lay end of carton down flat.
Remove packing material.
•Roll unit out of carton. Check carton thoroughly for
loose parts before discarding.
Loose Parts
Figure 1 shows parts of the snow thrower packed
loose in the carton. You will need these parts along
with hardware from the hardware pack, illustrated on
the next page, to assemble the equipment. Identify the
loose parts before proceeding to assemble.
Figure 1
1. Right and Left Handles
2. Handle Panel Assembly
3. Chute Assembly
4. Chute Directional Control Assembly
5. Shift Rod
6. Hardware Pack
Tools Required For Assembly
1. Pair of pliers
2. Two adjustable wrenches
WARNING: Disconnect spark plug wire
and ground it against the engine to prevent
unintended starting.
NOTE: All references to right or left side of the snow
thrower are determined from behind the unit in the
operating position.
Assembly Tips: For convenience in assembly,
remove the chute from the carton and lay it on top of
the engine. Do not unwrap the chute till you have
installed the handle panel and the clutch cables.
Attaching Handle
(Hardware A)
•Place right handle in position against the snow
thrower so the flat side of the handle is against the
snow thrower. Secure bottom hole in handle to
snow thrower using 3/4”hex bolt and lock washer.
Do not tighten at this time. See Figure 2.
Figure 2
•Place handle tab over the upper hole on the
handle so the curve in the handle tab matches the
curve of the handle. See Figure 2. Secure to the
snow thrower using1-3/4”hex bolt and lock
washer; do not tighten at this time. Repeat on the
other side. Do not tighten at this time.
•Place the handle panel in position between the
two handles. To hold the handle panel in place,
depress both controls against the handles. While
continuing to hold the right control, release the left
control (the auger control lock will keep left control
engaged). See Figure 3.
•Fasten right side of the handle panel by inserting
two carriage bolts through handle and handle
panel (bolts must go through both the plastic and
metal parts of the handle panel). See Figure 3.
Secure with cupped washers (cupped side against
handle panel) and lock nuts.
•Repeat on the other side.
•Tighten the four hex bolts used earlier to attach
bottom of the handles to the snow thrower frame.
See Figure 2.
Handle Panel
Handles
Chute Directional
Control
Shift
Discharge
Rod
Chute
Cable Roller
Guide
Handle
Tab
Lock
Washers
1 3/4”Hex
Bolt
3/4”Hex
Bolt

7
Figure 3
Attaching Control Cables
The “Z”end of the cables are hooked into the controls
on each handle. See Figure 4.
•Thread the hex lock nuts all the way up the
threaded portion of the “Z”ends of the cables. See
Figure 4.
Figure 4
•Make certain all cables are in the grooves of the
cable roller guides. The two roller guides are
located in the lower rear of the unit, one on each
side. See Figure 2.
•Thread the cable onto the threaded portion of the
“Z”end until there is no slack in the cable, but the
cable is NOT tight. Do not overtighten cable.
WARNING: If cable is tightened so there
is tension on the cable with the clutch grip
released, the safety features of the snow
thrower may be overridden.
•When correct adjustment is reached, tighten the
hex lock nut against the bottom portion of the cable
to lock it in position.
Attaching Chute Assembly
(Hardware Group C)
•Place the chute assembly over the chute opening
with the chute facing front of the unit.
NOTE: Make sure that the chute cables are
straightened while assembling the chute.
•Place the chute flange keeper (flat side down)
beneath lip of chute assembly as shown in Figure
5.You will find the chute flange keepers in group
C of the hardware pack.
•Insert 1/4-20 x .75”hex bolt and flange nut (group
C of the hardware pack) up through chute flange
keeper and chute assembly as shown in Figure 5.
Do not tighten at this time. Rotate chute to install
all the flange keepers.
Figure 5
•After assembling all three chute flange keepers,
tighten, then back off 1/4 turn to allow easier
movement of the chute. Use (2) 7/16" wrenches.
Attaching Chute Directional Control
(Hardware Group D)
•Thread one hex nut about halfway onto eye bolt on
the chute directional control.
•Insert eye bolt through the hole provided in the left
handle. See Figure 6.
•Secure with cupped washer (cupped side against
the handle) and other hex nut. Do not tighten until
after attaching the other end of the chute
directional control.
Carriage
Bolts
Cupped
Washers
Lock Nuts
Make Sure
Cable Is Straight
Hex Lock
Nut
“Z”End
Chute
Hex
Nut
Chute
Flange
Keeper
Flange
Hex
Bolt

8
Figure 6
•To align the spiral on the chute directional control,
you may have to loosen the carriage bolts and hex
lock nuts securing lower chute bracket to the
extension on the left side of the chute assembly.
See Figure 7.
Figure 7
•Place one flat washer on the end of the chute
directional control, then insert the end of the
control into the hole in the plastic bushing in the
lower chute bracket.
•Place another flat washer on the end of the chute
directional control, and insert hairpin clip into hole
in the end of control. See Figure 8.
Figure 8
•Adjust the chute bracket so that the spiral on the
chute directional control fully engages the teeth on
the chute assembly.
•Tighten nuts on the lower chute bracket securely.
•Tighten hex nut on the eye bolt on chute
directional control.
Attaching Shift Rod
(Hardware B)
IMPORTANT: Attach the shift rod and clutch cables as
follows. Then check the adjustments and make any
final adjustments necessary before operating your
snow thrower. Failure to properly follow the
instructions may cause damage to the snow thrower.
•Place the shift lever (on the handle panel) in the
sixth (6) speed position (all the way forward).
•Place the bent end of the shift rod into the hole in
the shift arm assembly. Secure with flat washer
and hairpin clip. See Figure 9.
•Start threading the ferrule onto the other end of the
shift rod. Push down on the shift rod (and shift arm
assembly) as far as it will go.
•Thread the ferrule onto the shift rod until the
ferrule lines up with the upper hole in the shift lever
(beneath the handle panel). Insert the ferrule into
the upper hole in the shift lever from the left side
when adjustment is correct. Secure with flat
washer and hairpin clip.
•Check for correct adjustment of the shift rod as
instructed in the Final Adjustment section before
operating the snow thrower.
Figure 9
Lamp Wiring (If equipped)
•Wrap the wire from the lamp down the right handle
until the wire can be plugged into the alternator
lead wire under the fuel tank. See Figure 10. Lamp
wire must not interfere with any controls or cables.
Eye Bolt
Hex Nut
Cupped
Washer
Lower Chute
Bracket
Hex Lock
Nuts
Carriage
Bolts
Chute
Hairpin
Lower Chute
Bracket
Flat
Washers
Clip
Directional
Control
Washer
Flat
Hairpin
Clip
Ferrule
Shift Arm
Assembly
Shift Rod
Washer
Flat
Hairpin
Clip

9
Figure 10
After assembly, service engine with gasoline, and
check oil level as instructed in the engine manual.
Final Adjustments
Skid Shoes
The space between the shave plate and the ground can
be adjusted. For close snow removal, place skid shoes
in the low position. Use middle or high position when
area to be cleared is uneven.
•Adjust skid shoes by loosening the four hex nuts
and carriage bolts and moving skid shoes to
desired position. Make certain the entire bottom
surface of skid shoe is against the ground to avoid
uneven wear on the skid shoes. Retighten nuts and
bolts securely.
Figure 11
WARNING: Do not operate this snow
thrower on gravel as loose gravel can be
easily picked up and thrown by the auger
causing injury to the operator and/or damage
to the snow thrower.
Tire Pressure (Pneumatic Tires)
•The tires are over-inflated for shipping purposes.
Check tire pressure and reduce to 15 to 20 psi.
NOTE: If the tire pressure is not equal in both tires, the
unit may pull to one side or the other.
Auger Control
•To check the adjustment of the auger control, push
forward on the left hand control, depressing the
rubber bumper on end of control. There should be
slack in the cable. Release the control. The cable
should be straight. Make certain you can depress
the auger control against the left handle completely.
•If necessary, loosen the hex jam nut and thread the
cable in (for less slack) or out (for more slack) as
necessary. Recheck adjustment. Tighten jam nut
when correct adjustment is reached. See Figure 12.
Figure 12
Traction Control and Shift Lever
•To check the adjustment of the traction control and
shift lever, move the shift lever all the way forward
to sixth (6) position. With the traction control
released, push the snow thrower forward. The unit
should move forward freely. Then engage the
traction control grip. Wheels should stop turning.
•Now release the traction control grip, and push the
unit again.
•Move the shift lever back to the fast reverse
position, then all the way forward again. There
should be no resistance in the shift lever, and
wheels should keep turning.
•If you feel resistance when moving the shift lever or
the wheels stop when they should not, loosen the
jam nut on the traction control cable and unthread
the cable one turn. If the wheels do not stop when
you engage the traction control grip, loosen the jam
nut on the traction control cable and thread the
cable in one turn. Recheck the adjustment and
repeat as necessary. Tighten the jam nut to secure
the cable when correct adjustment is reached.
Lamp Wire Alternator
Lead
Right Handle
Skid
Shoes
Carriage
Bolts Hex Nuts
Hex Lock
Nut
Make sure
cable is straight

10
SECTION 3: KNOW YOUR SNOW THROWER
WARNING: Be familiar with all controls and
their proper operation. Know how to stop the
machine and disengage them quickly.
Operating Controls
Figure 13
Shift Lever
The shift lever is located in the center of the handle
panel. The shift lever may be moved into one of eight
positions. Run engine with throttle in the fast position.
Use the shift lever to determine ground speed.
Forward: There are six speeds. Position one (1) is the
slowest. Position six (6) is the fastest.
Reverse: There are two reverse (R) speeds R1 and
R2. The “R2”closest to the operator (all the way back)
is the faster of the two.
Auger Control
The auger control is located on the left handle.
Squeeze the control to engage the augers; release to
stop the augers. Remember that traction control must
also be released.
Traction / Auger Control Lock
The traction control is located on the right handle.
Squeeze the control to engage the wheel drive.
Release to stop.
This same control also locks the auger control so you
can turn the chute directional control without
interrupting the snow throwing process. If the auger
control is engaged with the traction control engaged,
the operator can release the auger control (on the left
handle) and the augers will remain engaged. Release
the traction control to stop both the augers and wheel
drive (auger control must also be released).
Chute Directional Control
The chute directional control is located on left hand
side of the snow thrower.To change the direction in
which snow is thrown, turn chute directional control as
follows:
•Crank clockwise to discharge to the left.
•Crank counterclockwise to discharge to the right.
Throttle Control
The throttle control is located on the engine. It
regulates the speed of the engine. See Figure 14.
Chute Tilt Control (if equipped)
The distance that snow is thrown can be adjusted by
adjusting the tilt angle of the chute assembly. Push the
chute tilt control lever (if so equipped) forward to move
the upper chute down and decrease the distance. Pull
the lever back toward the rear to move the upper chute
up and increase the distance
Ignition Key
The ignition key must be inserted in the switch before
the unit will start. Remove the ignition key when snow
thrower is not in use.
Fuel Shut-off Valve (If equipped)
The fuel shut-off valve, located under fuel tank,
controls fuel flow from tank. See Figure 14.
Figure 14
Shift
Lever
Discharge
Chute
Chute
Directional
Auger
Control
Traction/Auger
Control Lock
Auger
Control
Chute
Lever*
Tilt
* If equipped
Choke Primer
Ignition
Key
Throttle
Control
Closed
Open
Spark Plug
Recoil Starter
Handle
Fuel Shut-Off Valve

11
SECTION 4: OPERATING YOUR SNOW THROWER
Before Starting
WARNING: Read, understand, and follow
all instructions and warnings on the machine
and in this manual before operating.
•The spark plug wire was disconnected for safety.
Attach spark plug wire to spark plug before starting.
Gas And Oil Fill-up
WARNING: Use extreme care when
handling gasoline. Gasoline is extremely
flammable and the vapors are explosive.
Never fuel machine indoor or while the
engine is hot or running. Extinguish
cigarettes, cigars, pipes and other sources
of ignition.
•A plastic cup was provided inside the fuel fill
opening on the fuel tank. Remove and discard this
cup before filling up the tank. Use the separate
fuel tank cap to close after fill-up.
Starting Engine
•Attach spark plug wire to spark plug. Make certain
the metal loop on end of the spark plug wire
(inside the boot) is fastened securely over the
metal tip on the spark plug. See Figure 15.
Figure 15
•Make certain the fuel shut-off valve, if so
equipped, is in the OPEN (vertical) position.
•Make certain the auger and traction controls are in
the disengaged (released) position.
•Move throttle control up to FAST position. Insert
ignition key into slot. Be certain it snaps into place.
Do not turn key. See Figure 14.
NOTE: Engine will not start unless ignition key is
inserted into ignition slot in carburetor cover. Do not
turn ignition key.
Recoil Starter:
•Rotate choke knob to FULL choke position (cold
engine start).
•If engine is warm, place choke in OFF position
instead of FULL.
•Push primer button three or four times for cold
engine start.
•If engine is warm, push primer button once only.
NOTE: Always cover vent hole in primer button when
pushing. Additional priming may be necessary for first
start if temperature is below 15 degrees Fahrenheit.
•Grasp starter handle and pull rope out slowly, until
it pulls slightly harder. Let rope rewind slowly.
•Pull starter handle rapidly. Do not allow handle to
snap back. Allow it to rewind slowly while keeping
a firm hold on the starter handle.
•Repeat step above until engine starts.
•As engine warms up and begins to operate
evenly, rotate choke knob slowly to OFF position.
If engine falters, return to FULL choke, then slowly
move to OFF position.
Electric Starter
The electric starter is equipped with a grounded three-
wire power cord and plug, and is designed to operate
on 120 volt AC household current.
WARNING: The electric starter must be
used with a properly grounded three-prong
receptacle at all times to avoid possibility of
electric shock. Follow all instructions
carefully to operate the electric starter.
•Determine that your house wiring is a three-wire
grounded system. Ask a licensed electrician if you
are not certain.
•If your home wiring system is not a three-wire
grounded system, do not use this electric starter
under any conditions.
•If your home electrical system is grounded, but
a three-hole receptacle is not available, one
should be installed by a licensed electrician before
using the electric starter.
•If you have a grounded three-prong
receptacle, proceed as follows.
•Rotate choke knob to OFF position.
•Connect power cord to switch box on engine. Plug
the other end of power cord into a three-prong
120-volt, grounded, AC receptacle.
•Push starter button to crank engine. As you crank
the engine, move choke knob to FULL choke
position.
•When engine starts, release starter button, and
move choke gradually to OFF. If engine falters,
move choke immediately to FULL and then
gradually to OFF.
•When disconnecting the power cord, always
unplug from the three-prong receptacle first, and
then from the snow thrower.
Metal Loop
Rubber Boot

12
To Stop Engine
•To stop engine, remove the ignition key. Do not
turn key. Disconnect the spark plug wire from the
spark plug to prevent accidental starting while
equipment is unattended.
To prevent starter freeze-up:
•Run engine for a few minutes before stopping to
help dry off any moisture on the engine.
•Electric Starter: Connect power cord to switch
box on engine, then to 120 volt AC receptacle.
With the engine running, push starter button and
spin the starter for several seconds. The unusual
sound made by spinning the starter will not harm
engine or starter. Disconnect the power cord from
receptacle first, and then from switch box.
•Recoil Starter: With engine running, pull starter
rope with a rapid, continuous full arm stroke three
or four times. Pulling the starter rope will produce
a loud clattering sound, which is not harmful to
the engine or starter.
•Wipe all snow and moisture from the carburetor
cover in the area of the control levers. Also, move
control levers back and forth several times. Leave
throttle control lever in the STOP or OFF position.
Leave choke control in the FULL choke position.
•Remove ignition key and disconnect spark plug
wire. Do not turn key.
IMPORTANT: Do not lose ignition key. Keep it in a safe
place. Engine will not start without the ignition key.
To Engage Drive
•With the engine running near top speed, move
shift lever into one of the five FORWARD
positions or two REVERSE positions. Select a
speed appropriate for the snow conditions that
exist. Use the slower speeds until you are familiar
with the operation of the snow thrower.
•Squeeze the auger control and the augers will
turn. Release it and the augers will stop.
•Squeeze traction control and the snow thrower
will move. Release it and unit will stop. Never
move shift lever without releasing traction control.
To Engage Augers
•To engage augers and start throwing snow,
squeeze the auger control against the left handle.
Release to stop the augers.
Tire Chains (Optional Equipment)
•Tire chains should be used whenever extra
traction is needed. If your unit is not equipped
with tire chains, you may purchase them.
Operating Tips
NOTE: Allow the engine to warm up for a few minutes
as the engine will not develop full power until it
reaches operating temperature.
WARNING: The muffler, engine and their
surrounding areas become hot and can
cause a burn. Do not touch.
•Discharge snow downwind whenever possible.
Slightly overlap each previous path.
•Set the skid shoes 1/4" below the scraper bar for
normal usage. The skid shoes may be adjusted
upward for hard-packed snow. Adjust downward
when using on gravel or crushed rock.
•Avoid possible starter freeze-up. Clean the snow
thrower thoroughly after each use.
SECTION 5: MAKING ADJUSTMENTS
WARNING: NEVER attempt to make
any adjustments while the engine is
running, except where specified in the
operator’s manual.
Chute Assembly
The distance snow is thrown can be adjusted by
changing the angle of the chute assembly. Refer to
Chute Tilt Control on page 10.
Skid Shoe
The space between shave plate and ground can be
adjusted by raising or lowering the skid shoes. Refer
to Skid Shoe Adjustment on page 15.
Traction Control
Refer to Final Adjustments on page 9 to adjust
traction control. If you are want to check further for
correct adjustment, proceed as follows:
WARNING: Drain the gasoline out of
snow thrower engine, place a piece of
plastic film under the gas cap to avoid
spillage before beginning the job.
•Tip the snow thrower forward, allowing it to rest
on the auger housing.
•Remove the frame cover underneath the snow
thrower by removing six self-tapping screws.

13

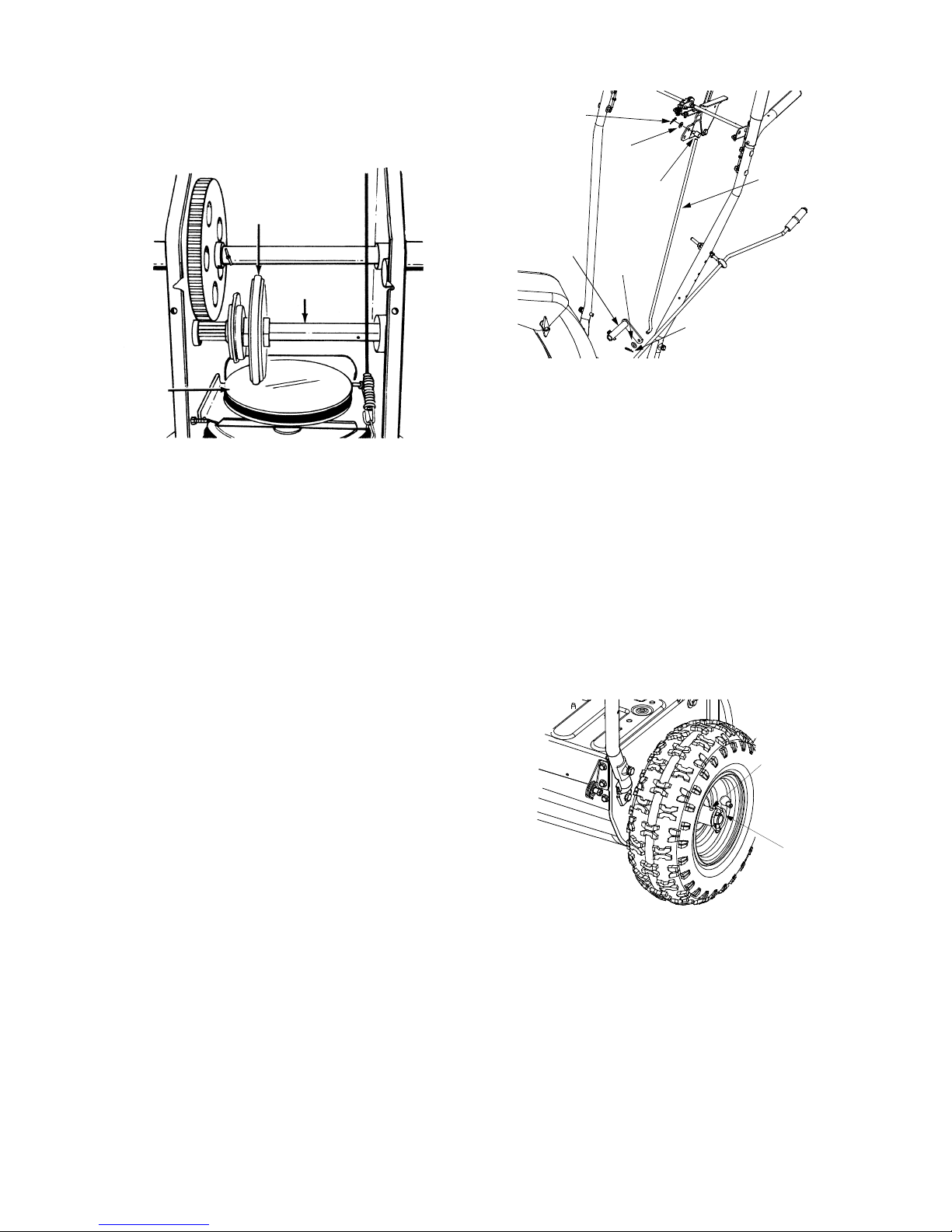

•With the traction control released, there must be
clearance between the friction wheel and the
drive plate in all positions of the shift lever.
•With traction control engaged, the friction wheel
must contact the drive plate. See Figure 16.
Figure 16
If adjustment is necessary:
•Loosen the jam nut on the traction drive cable
and thread the cable in or out as necessary.
•Retighten the jam nut to secure the cable when
correct adjustment is reached.
•Reassemble the frame cover.
NOTE: If you placed plastic film under the gas cap, be
certain to remove it before operating the snow
thrower.
Auger Control
Refer to details on page 9 to adjust the auger
control.
Shift Rod
To adjust the shift rod, proceed as follows.
•Remove the hairpin clip and flat washer from the
shift handle under the handle panel.
•Place shift lever in sixth (6) position or the fastest
forward speed.
•Push shift arm assembly down as far as it will go.
•Rotate the ferrule up or down on the shift rod as
necessary until the ferrule lines up with the upper
hole in the shift lever. See Figure 17.
•Insert ferrule into the upper hole in shift lever.
•Reinstall the hairpin clip and the washer.
IMPORTANT: Check for correct adjustment of the shift
lever rod as instructed on page 9, before operating
the snow thrower.
Figure 17
Drive Wheels
The wheels may be adjusted for two different
methods of operation. The adjustment is made by
placing the click pins in one of two different holes on
the right side of the unit. See Figure 18.
One Wheel Driving: Insert the click pin only
through the outside hole of the axle (not the rim)
on the right side of the snow thrower. This posi-
tion gives power drive to the left wheel only, mak-
ing the unit easier to maneuver.
Both Wheels Driving: Insert the click pin
through the hole in the hub of the rim and the
inside hole on the snow thrower’s right axle. This
position is good for heavy snow as there is power
drive in both wheels.
Figure 18
IMPORTANT: Never operate the snow thrower with the
click pin inserted through both the rim and the outside
hole in the axle. Doing so can result in serious
damage to the drive system.
Friction
Wheel
Gear Shaft
Drive
Plate
Washer
Flat
Hairpin
Clip
Ferrule
Shift Arm
Assembly
Shift Rod
Washer
Flat
Hairpin
Clip
Inside Hole
in Axle
Click Pin
in Outside Hole

14
SECTION 6: MAINTAINING YOUR SNOW THROWER
WARNING: Before servicing, repairing,
or inspecting, disengage all clutch levers
and stop engine. Wait until all moving parts
have come to a complete stop. Disconnect
spark plug wire and ground it against the
engine to prevent unintended starting.
Lubrication
Chute Directional Control
•The worm gear on the chute directional control
should be greased with multipurpose automotive
grease.
Wheels
•Oil or spray lubricant into bearings at least once a
season. Pull the klick pins and remove wheels,
clean and coat axles with a multipurpose
automotive grease. See Figure 19.
Figure 19
Gear Shaft
•Lubricate the gear shaft with a good all-weather
multi-purpose light grease at least once a season
or after every 25 hours of operation.
IMPORTANT: Keep all grease and oil off friction wheel
and drive plate.
Drive and Shifting Mechanism
•Remove rear cover. Oil any chains, sprockets,
gears, bearings, shafts, and shifting mechanism
at least once a season. Use engine oil or a spray
lubricant. Avoid getting oil on rubber friction
wheel and aluminum drive plate.
Gear Case
•The worm gear case has been filled with grease
at the factory. If disassembled for repairs,
lubricate with 2 ounces of shell grease, part no.
737-0168.
IMPORTANT: Do not overfill the gear case. Damage to
the seals could result. Be sure the vent plug is free of
grease in order to relieve pressure.
Engine
•Refer to the engine manual for maintenance
procedures and instructions.
WARNING: When following instructions
in the engine manual for draining oil, be
sure to protect frame to avoid oil dripping
onto transmission parts.
Follow the precautions listed under “Stopping Engine“
to prevent possible freeze-up.
Auger Shaft
•At least once a season, remove shear bolts on
auger shaft. Oil or spray lubricant inside shaft.
Also lubricate the auger bearings at least once a
season. See Figure 20.
Figure 20
Klick Pin
Axle
Shear Bolts
Bearings Bearings

15
SECTION 7: SERVICE
WARNING: Before servicing, repairing,
or inspecting, disengage all clutch levers
and stop engine. Wait until all moving parts
have come to a complete stop. Disconnect
spark plug wire and ground it against the
engine to prevent unintended starting.
Augers
The augers are secured to the spiral shaft with two
shear bolts and hex lock nuts. If the snow thrower hits
a foreign object or ice jam, hex bolts will shear.
•If the augers will not turn, check to see if the bolts
have sheared. Two replacement shear bolts and
hex lock nuts have been provided with the snow
thrower. For future use, order part number 710-
0890A (shear bolt 5/16-18 x 1.5") and 712-0429
(hex lock nut 5/16-18).
Shave Plate and Skid Shoes
The shave plate and skid shoes on the bottom of the
snow thrower are subject to wear. They should be
checked periodically and replaced when necessary.
•To remove skid shoes, remove the four carriage
bolts, bell washers and hex nuts which attach
them to the snow thrower. Reassemble new skid
shoes with the four carriage bolts, bell washers
(cupped side goes against skid shoes) and hex
nuts. Make certain the skid shoes are adjusted to
be level.
•To remove shave plate, remove carriage bolts,
bell washers and hex nuts which attach it to the
snow thrower housing.
•Reassemble new shave plate, making sure
heads of the carriage bolts are to the inside of the
housing. Tighten securely.
Belt Replacement
WARNING: Disconnect the spark plug
wire from the spark plug and ground.
Auger Belts
NOTE: It is necessary to remove both belts in order to
change either one. If changing just one belt, be
certain to check the condition of the other belt (model
600/610E has only one auger belt).
•Remove the plastic belt cover on the front of the
engine by removing the two self-tapping screws.
See Figure 21.
•Drain the gasoline from the snow thrower, or
place a piece of plastic under the gas cap.
•Tip the snow thrower up and forward so that it
rests on the housing.
•Remove six self-tapping screws from the frame
cover underneath the snow thrower. See Figure
21 for the location of the hardware.
Figure 21
•Roll the front and rear auger belts off the engine
pulley. See Figure 22.
Figure 22
•Unhook the idler spring from the hex bolt on the
auger housing. See Figure 23.
•Back out the stop bolt to allow the belts to slip
between the bolt and auger pulley. See Figure
24.
NOTE: It may be necessary to loosen the six hex nuts
that fasten the frame to the auger housing.
•Lift the rear auger belt from the auger pulley, and
slip belt between the support bracket and the
auger pulley. See Figure 23. Repeat this step for
front auger belt (except models 600/610E).
Self-Tapping
Screws
Belt
Cover
Rear Auger Drive
Belt Engine
Pulley
Front Auger
Idler
Pulley
Idler
Pulley
Engine
Pulley
Belt
Belt

16
•Replace both auger drive belts by following
instructions in reverse order.
Figure 23
Drive Belt
•Follow steps 1 through 4 of previous instructions.
•Pull idler pulley up, and lift belt off engine pulley
and friction wheel disc. See Figure 22.
•Back out the stop bolt until the support bracket
rests on the auger pulley. See Figure 24.
•Slip belt between friction wheel and friction wheel
disc. Remove and replace belt. Reassemble
following the instructions in reverse order.
NOTE: The support bracket must rest on the stop bolt
after the new belt has been assembled. See Figure 25.
Figure 24
Changing Friction Wheel Rubber
The rubber on the friction wheel is subject to wear and
should be checked after 25 hours of operation, and
periodically thereafter. Replace the friction wheel
rubber if any signs of wear or cracking are found.
•Drain the gasoline from the snow thrower, or place
a piece of plastic under the gas cap.
•Tip the snow thrower up and forward, so that it
rests on the housing. See Figure 25.
Figure 25
•Remove six self-tapping screws from the frame
cover underneath the snow thrower.
•Remove the klick pins which secure the wheels,
and remove the wheels from the axle.
•Using a wrench to hold the shaft, loosen, but do not
completely remove, the hex nut and bell washer on
left end of gear shaft. See Figure 25.
•Lightly tap the hex nut to dislodge the ball bearing
from the right side of frame. Remove the hex nut
and bell washer from left end of shaft.
•Slide the gear shaft to the right and slide the friction
wheel assembly from the shaft.
•Remove the six screws from the friction wheel
assembly (three from each side). Remove the
friction wheel rubber from between the friction
wheel plate. See Figure 26.
Figure 26
•Reassemble new friction wheel rubber to the
friction wheel assembly, tightening the six screws
in rotation and with equal force.
•Position the friction wheel assembly up onto the pin
of the shift rod assembly, and slide the shaft
through the assembly. Reassemble the wheels and
the frame cover.
Friction
Wheel
Support
Bracket
Auger
Pulley Idler
Spring
Auger
Housing
Support
Bracket
Spring
Frame
Rear Auger
Belt
Front Auger
Pulley
Friction
Wheel
Disc
Stop
Bolt
Drive Belt
Friction Wheel
Support Bracket
Hex Nut and
Bell Washer
Chute
Auger
shown standing on
auger housing
Note: The unit is
Friction Wheel
Plates
Screws
Friction Wheel
Rubber Hub
Bearing

17
SECTION 8: OFF-SEASON STORAGE
WARNING: Never store engine with fuel in
tank indoors or in enclosed, poorly ventilated
areas where fuel fumes may reach an open
flame, spark or pilot light as on a furnace,
water heater, clothes dryer, or other gas
appliance.
•If unit is to be stored over 30 days, prepare the
engine for storage following instructions in the
engine manual.
•Remove all dirt from exterior of engine and
equipment.
•Follow lubrication recommendations on page 14.
NOTE: When storing any type of power equipment in
an poorly ventilated or metal storage shed, care should
be taken to rustproof the equipment, especially springs,
cables and all moving parts.
SECTION 9: TROUBLE SHOOTING GUIDE
Trouble Possible Cause(s) Corrective Action
Engine fails to start Fuel tank empty, or stale fuel.
Blocked fuel line.
Choke not in ON position
Faulty spark plug.
Key not in switch on engine.
Spark plug wire
disconnected.
Primer button not depressed.
Fuel shut-off valve closed
(if so equipped).
Fill tank with clean, fresh gasoline. Fuel may not last over thirty days
unless a fuel stabilizer is used.
Clean fuel line.
Move switch to ON position
Clean, adjust gap or replace.
Insert key.
Connect spark plug wire.
Refer to the engine manual packed with your unit.
Open fuel shut-off valve.
Engine runs erratic Unit running on CHOKE.
Blocked fuel line or stale fuel.
Water or dirt in fuel system.
Carburetor out of adjustment.
Move choke lever to OFF position.
Clean fuel line; fill tank with clean fresh gasoline. Fuel may not last
over thirty days unless a fuel stabilizer is used.
Drain fuel tank. Refill with fresh fuel.
Refer to the engine manual packed with your unit or have carburetor
adjusted by an authorized service dealer.
Loss of power Spark plug wire loose.
Gas cap vent hole plugged.
Exhaust port plugged.
Connect and tighten spark plug wire.
Remove ice and snow from cap. Be certain vent hole is clear.
Clean-see Maintenance section of engine manual.
Engine overheats Carburetor not adjusted
properly.
Incorrect fuel mixture.
Refer to the engine manual packed with your unit or have carburetor
adjusted by an authorized service dealer.
Drain fuel tank. Refill with proper fuel mixture.
Excessive vibration Loose parts or damaged auger. Stop engine immediately and disconnect spark plug wire. Tighten all
bolts and nuts. Make all necessary repairs. If vibration continues, have
unit serviced by an authorized service dealer.
Unit fails to propel
itself
Incorrect adjustment of drive
cable.
Drive belt loose or damaged.
Adjust drive cable. Refer to Adjustment section of this manual.
Replace drive belt. Refer to Belt Replacement on page 15.
Unit fails to
discharge snow
Discharge chute clogged.
Foreign object lodged in auger.
Incorrect adjustment of drive
cable.
Drive belt loose or damaged.
Shear bolt(s) sheared
Stop engine immediately and disconnect spark plug wire. Clean dis-
charge chute and inside of auger housing.
Stop engine immediately and disconnect spark plug wire. Remove
object from auger.
Adjust drive cable. Refer to Adjustment section of this manual.
Replace drive belt. Refer to Belt Replacement on page 15.
Replace shear bolt(s)
NOTE: For repairs beyond the minor adjustments listed above, contact your nearest authorized service dealer or
call 1-800-800-7310 for the Customer Support Center. Refer to separate engine manual packed with your snow
thrower for more engine related information.

18
Models E600E, E610E, E640F & E660G
REF.
NO.
PART
NO. DESCRIPTION
1 618-0123 RH Reducer Housing
2 618-0124 LH Reducer Housing
3 710-0642 Hex Screw 1/4-20 x .75
4 711-0908 Spiral Axle 24"
711-0909 Spiral Axle 26"
711-0910 Spiral Axle 28"
5 714-0161 Key
6 715-0143 Pin-Spiral
7 717-0528 Worm Gear, 20T
8 717-0526 Worm Shaft
9 718-0186 Thrust Collar
10 721-0325 Grease Plug
11 721-0327 Grease Seal
12 736-0351 Flat Washer .76 x 1.5 x .030
13 736-0369 Flat Washer .508 x 1.0 x .020
14 736-0445 Flat Washer .76 x 1.5 x .060
15 741-0662 Flange Bearing .75 x 1.0 x .59
16 741-0663 Flange Bearing .75 x 1.0 x .925
17 618-0120A Ass’y. Complete 24"
618-0121A Ass’y. Complete 26"
618-0122A Ass’y. Complete 28"
REF.
NO.
PART
NO. DESCRIPTION
1
12
4
6
7
10
9
14
11
8
16
2
3
15
5
13
3
17

19
Models E600E, E610E, E640F & E660G
1
2
3
45
6
78
9
10
11
12
14
15
13
16
10
918 19
20
21
22
23
13
25 23
22
26
18
27
28
13
30
30
31
32
31
32
33
16
18
35
36
37
38
39
41
40
42
43
40
39
44 45
34
REF.
NO.
PART
NO. DESCRIPTION
1 712-0116 Lock Jam Nut 3/8-24
2 756-0178 Flat Idler
3 784-5632A Auger Idler Arm
4 710-0459A Hex Cap Screw 3/8-24 x 1.50
5 738-0281 Shoulder Screw
6 736-0174 Wave Washer
7 732-0611 Extension Spring
8 712-3068 Hex Nut 5/16-18
9 712-3010 Hex Nut 5/16-18
10 736-0119 Lock Washer 5/16
11 05931 Housing
12 741-0309 Ball Bearing
13 710-0451 Carriage Bolt 5/16-18 x .75
14 705-5226 Reinforcement Chute
15 684-0039C 24”Housing Assembly
684-0040C 26”Housing Assembly
684-0041C 28”Housing Assembly
16 712-3010 Hex Nut 5/16-18
18 736-0242 Bell Washer
19 741-0475 Bushing
20 784-5647 Chute Crank Bracket
21 731-1379C Chute Adapter
22 712-0324 Hex Lock Nut 1/4-20
23 736-0463 Flat Washer
25 710-0703 Carriage Screw 1/4-20 x .75
26 710-0604A Hex Washer TT Screw 5/16-18
27 736-0169 Lock Washer 3/8
28 712-0798 Hex Nut 3/8-16
30 784-5580 Snow Shoe
31 736-0242 Bell Washer
32 712-3010 Hex Nut 5/16-18
33 784-5581A 24”Shave Plate
784-5579A 26”Shave Plate
784-5582A 28”Shave Plate
34 710-0260 Carriage Bolt 5/16-18 x .62
35 684-0065 Impeller Assembly
36 715-0114 Pin
37 618-0120A 24”Gear Assembly
618-0121A 26”Gear Assembly
618-0122A 28”Gear Assembly
38 605-5188A Spiral 24”RH
605-5192A Spiral 26”RH
605-5196A Spiral 28”RH
39 736-0188 Flat Washer
40 741-0493A Flange Bushing
41 605-5189A Spiral 24”LH
605-5193A Spiral 26”LH
605-5197A Spiral 28”LH
42 710-0890A Shear Bolt 5/16-18 x 1.5
43 712-0429 Lock Nut 5/16-18
44 741-0245 Hex Flange Bearing
45 784-5618 Bearing Housing
REF.
NO.
PART
NO. DESCRIPTION

20
Models E600E, E610E, E640F & E660G
1
1
2
2
3
3
4
5
67
1
8
9
10
3
11
13
12
14
3
15
16
17
18
19
20
18
19
20
21
21
22
23
24 25
26 27 28 29
30
31
32
33
34
35
53
36
37
38
40
39
41
35
20
43
44
45
27
26
46
47
47
48
49
50
26
51
52
53
54
54
55
56
57
58
59
60
17
42
61
62
63
64
65
67
66
22
68
69
69
70
71
72
73
70
74
75
