WARNING

2

MTZ-KIROVETS K744 OPERATOR MANUAL
3
IMPORTANT
If this tractor is used by the owner OR an employee OR is loaned OR rented, make certain that prior to
operating, the Operator(s);
1. Reviews and understands this manual pertaining to the tractor
And
2. Is instructed in safe and proper use.
NOTICE
Because of design changes that may have occurred in the tractor since this manual
was printed, it is possible that some of the pictures and/or the illustrations found within
the manual may be different from those found on the product; however, the technical
information found within this manual was correct at the time this manual was approved for
publication.
MTZ Equipment Ltd. reserves the right to modify design and specications at any time
without notice and without incurring any obligation to install them on tractors previously
purchased.
If any information contained in this publication is not understood, the user should contact
the MTZ Equipment Ltd. Dealer for assistance.
ABBREVIATIONS
Foreword
®Registered trademark of MTZ Equipment Ltd. © Copyright by MTZ Equipment Ltd.
All rights reserved. No part of this manual may be reproduced by any means without prior written
permission.
GB Gearbox DM Daily maintenance
PTO Power take off M-1 First maintenance
FD Floating drawbar M-2 Second maintenance
ET Electric torch M-3 Third maintenance
PDR Pump drive reducer M-SS Spring-summer maintenance
SPTA Spare parts, tools and accessories tool kit M-AW Autumn-winter maintenance
ShM Shift maintenance DTC Diagnostic trouble code
St Standard CEL Check engine light
Pr Premium SEL Stop engine light
SPN Suspect parameter number MIL Malfunction indicator light
FMI Failure mode indicator P/N Part number

MTZ-KIROVETS K744 OPERATOR MANUAL
4
1 INTRODUCTION ------------------------------------------------------------------------------------------------------- 6
1.1 To the Owner of this MTZ Equipment Ltd. Tractor--------------------------------------------------------------------- 6
1.2 Imperial / US / Metric Measurements - Conversion ------------------------------------------------------------------- 9
1.3 Symbols For Controls and Indicators ----------------------------------------------------------------------------------- 10
1.4 Serial Numbers of Tractor Components ------------------------------------------------------------------------------- 13
2 SAFETY REQUIREMENTS --------------------------------------------------------------------------------------- 16
2.1 Safety Information Alert----------------------------------------------------------------------------------------------------- 16
2.2 General Safety Requirements -------------------------------------------------------------------------------------------- 32
2 .3 Safety Measures During Depreservation, Installation, Test Operation and Running-In -------------------------------- 33
2.4 Safety Measures During Tractor Operation --------------------------------------------------------------------------- 34
2.5 Safety Measures During Maintenance, Trouble-shooting and Placement for Storage --------------------- 38
2.6 Fire Safety Requirements-------------------------------------------------------------------------------------------------- 39
3 GENERAL DESCRIPTION AND TECHNICAL FEATURES ---------------------------------------------- 41
3.1 Purpose and Scope of Application of the Tractor -------------------------------------------------------------------- 41
3.3 Location of Instruction Plates --------------------------------------------------------------------------------------------- 48
3.4 Brief Design Data ------------------------------------------------------------------------------------------------------------ 60
3.5 Pressure Controller with Absorber --------------------------------------------------------------------------------------- 66
3.6 Electrical Equipment System---------------------------------------------------------------------------------------------- 67
3.7 Plastic Hood Opening Mechanism--------------------------------------------------------------------------------------- 69
3.8 Rear Linkage Control (EHR) ---------------------------------------------------------------------------------------------- 72
3.9 Design And Operation ------------------------------------------------------------------------------------------------------ 72
4 Controls---------------------------------------------------------------------------------------------------------------- 74
4.1 Fingertip Controls ------------------------------------------------------------------------------------------------------------ 74
4.2 System Diagnostics And Troubleshooting ----------------------------------------------------------------------------- 76
4.3 Maintenance of Platform --------------------------------------------------------------------------------------------------- 78
4.4 Method of Cam and Position Sensor Installation -------------------------------------------------------------------- 78
4.5 Electronic System for Hydraulic Distributor Section Control (EHS) --------------------------------------------- 79
4.6 Hydraulic Distributor Section Control EHS ---------------------------------------------------------------------------- 80
5 GEARBOX PNEUMATIC CHANGEOVER -------------------------------------------------------------------- 84
5.1 GB Pneumatic Changeover ----------------------------------------------------------------------------------------------- 84
5.2 Operating Principle ---------------------------------------------------------------------------------------------------------- 84
5.3 Interlocks ----------------------------------------------------------------------------------------------------------------------- 85
5.4 Indication Panel -------------------------------------------------------------------------------------------------------------- 86
5.5 Engine Start-up --------------------------------------------------------------------------------------------------------------- 88
5.6 Engine Start-up in Abnormal Situation---------------------------------------------------------------------------------- 90
5.7 List of Components ---------------------------------------------------------------------------------------------------------- 90
5.8 Electric Diagram of GB Pneumatic Changeover System ---------------------------------------------------------- 92
5.9 Possible Faults of GB Pneumatic Changeover System ----------------------------------------------------------- 94
5.10 EHR System Wiring Diagram ------------------------------------------------------------------------------------------- 99
6 INSTRUMENT PANELS AND CONTROLS------------------------------------------------------------------100
6.1 Instrument Panel ----------------------------------------------------------------------------------------------------------100
6.2 Steering Column and Control Panel -----------------------------------------------------------------------------------107
6.3 Turn Signal/Multifunction Lever on Steering Column --------------------------------------------------------------108
6.4 Switches and Accessories at the Overhead Panel in the Cab---------------------------------------------------108
6.5 Driver’s Seat and Additional Seat and Fuse Panel Box -----------------------------------------------------------109
6.6 Fuse and Relay Panel ----------------------------------------------------------------------------------------------------- 110
6.7 Lighting and Alarms --------------------------------------------------------------------------------------------------------112
6.8 Engine Preparation and Start-up --------------------------------------------------------------------------------------- 112
INDEX

MTZ-KIROVETS K744 OPERATOR MANUAL
5
6.9 Engine Start-up at Negative Temperatures--------------------------------------------------------------------------- 113
6.10 Engine Start-up from External Power Supply ---------------------------------------------------------------------- 116
6.11 HVAC System Operation ------------------------------------------------------------------------------------------------ 117
7 FINAL ASSEMBLY, ADJUSTING AND RUNNING-IN ----------------------------------------------------119
7.1 General - PDI ---------------------------------------------------------------------------------------------------------------- 119
7.2 Tractor Running-in ----------------------------------------------------------------------------------------------------------125
8 OPERATION AND ADJUSTMENT REGULATIONS ------------------------------------------------------126
8.1 Procedure for Tractor Work Preparation ------------------------------------------------------------------------------126
8.2 Operation procedures and control over tractor during operation------------------------------------------------130
8.3 Installation and Dismantling of Wheels with Tires ------------------------------------------------------------------131
8.4 Connecting Agricultural Machines, Implements and Vehicles to the Hydraulic System-------------------137
8.5 Connecting Agricultural Machines, Implements, and Vehicles to Tractor with Drawbars. ----------------137
8.6 Procedure of Operation with Agricultural Machines (Implements) and Vehicles----------------------------141
9 ACCESSORIES -----------------------------------------------------------------------------------------------------147
9.1 Sun Blind ----------------------------------------------------------------------------------------------------------------------147
9.2 Transportation and Storage of Tools -----------------------------------------------------------------------------------147
9.3 Air Compressor/Gun--------------------------------------------------------------------------------------------------------148
10 MAINTENANCE ---------------------------------------------------------------------------------------------------149
10.1 Types and Frequency of Maintenance -------------------------------------------------------------------------------149
10.2 List and Contents of Work by Types of Maintenance to be Performed by Operator In the Process Se-
quence -----------------------------------------------------------------------------------------------------------------------------150
10.3 Types and Lists of Maintenance Operations During Storage --------------------------------------------------157
10.4 Lubrication Table ----------------------------------------------------------------------------------------------------------161
10.5 Contents and Procedure of Maintenance Operations------------------------------------------------------------166
10.6 Gearbox Maintenance----------------------------------------------------------------------------------------------------172
10.7 Maintenance of Driving Axles, Service Brakes---------------------------------------------------------------------173
10.8 Cardan Shaft Maintenance ---------------------------------------------------------------------------------------------175
10.9 Maintenance of Tractor Pneumatic System-------------------------------------------------------------------------175
10.10 Maintenance of Hydraulic Systems of the Linkage and For Steering Control----------------------------176
10.11 Maintenance of Tractor Wheels --------------------------------------------------------------------------------------180
11 STORAGE REGULATIONS ------------------------------------------------------------------------------------183
11.1 General Storage -----------------------------------------------------------------------------------------------------------183
11.2 Tractor Preparation for Short-Term and Long-Term Storage ---------------------------------------------------183
12 TROUBLESHOOTING-------------------------------------------------------------------------------------------185
12.1 General Troubleshooting ------------------------------------------------------------------------------------------------185
12.2 Engine Electronic Control System Error Codes -------------------------------------------------------------------191
13 APPENDIX ----------------------------------------------------------------------------------------------------------216
13.1 Hydraulic Schematic Diagram of the Systems for Steering Control and Operating Equipment ------216
13.2 Kinematic Diagram of Transmission ----------------------------------------------------------------------------------217
13.3 Tighten Torque Values for Fasteners of Main Assemblies ------------------------------------------------------218
13.4 List of Permissible Changes for Oils and Lubricants -------------------------------------------------------------219
13.5 Rell Reservoirs -----------------------------------------------------------------------------------------------------------219
13.6 Logbook of Measurements of the Internal Air Pressure in Tires-----------------------------------------------220
13.7 Tire Operation Record Log----------------------------------------------------------------------------------------------221
13.8 List of Electrical Equipment Elements for the Electrical Diagram ---------------------------------------------222
13.9 Additions, Modications and Changes -------------------------------------------------------------------------------230

MTZ-KIROVETS K744 OPERATOR MANUAL
6Return to Index
1 INTRODUCTION
Introduction
1.1 To the Owner of this MTZ Equipment Ltd. Tractor
Practical experience is the key to the successful design and manufacture of MTZ tractors. For over 70
years MTZ tractors have been operating in all types of conditions in many parts of the world. However,
any product will only be as good as the care and service that is provided by the end user.
Use this manual as your guide. If you follow the instructions given in this manual, your MTZ tractor will
work well for many years.
Because of design changes that may occur in the tractor since this manual was printed, it is possible
that some pictures and/or illustrations found within this manual may be different from those found on the
product; however, the technical information found within this manual was correct at the time this manual
was approved for publication.
Because your tractor could have variations or modications, it is extremely important to know and record
your tractor model, tractor serial number and engine number when requesting information or assistance
when referring to the tractor or when it is necessary to order replacement parts.
Use only genuine replacement parts for your tractor. Write the model and serial numbers of your tractor
on the lines provided below.
Your local MTZ dealer can supply you with genuine MTZ and older Belarus tractor parts, and have
personnel with specialized training and have the equipment and know the best methods of repair and
maintain for your tractor.
Call your dealer if you need any assistance or require additional information.

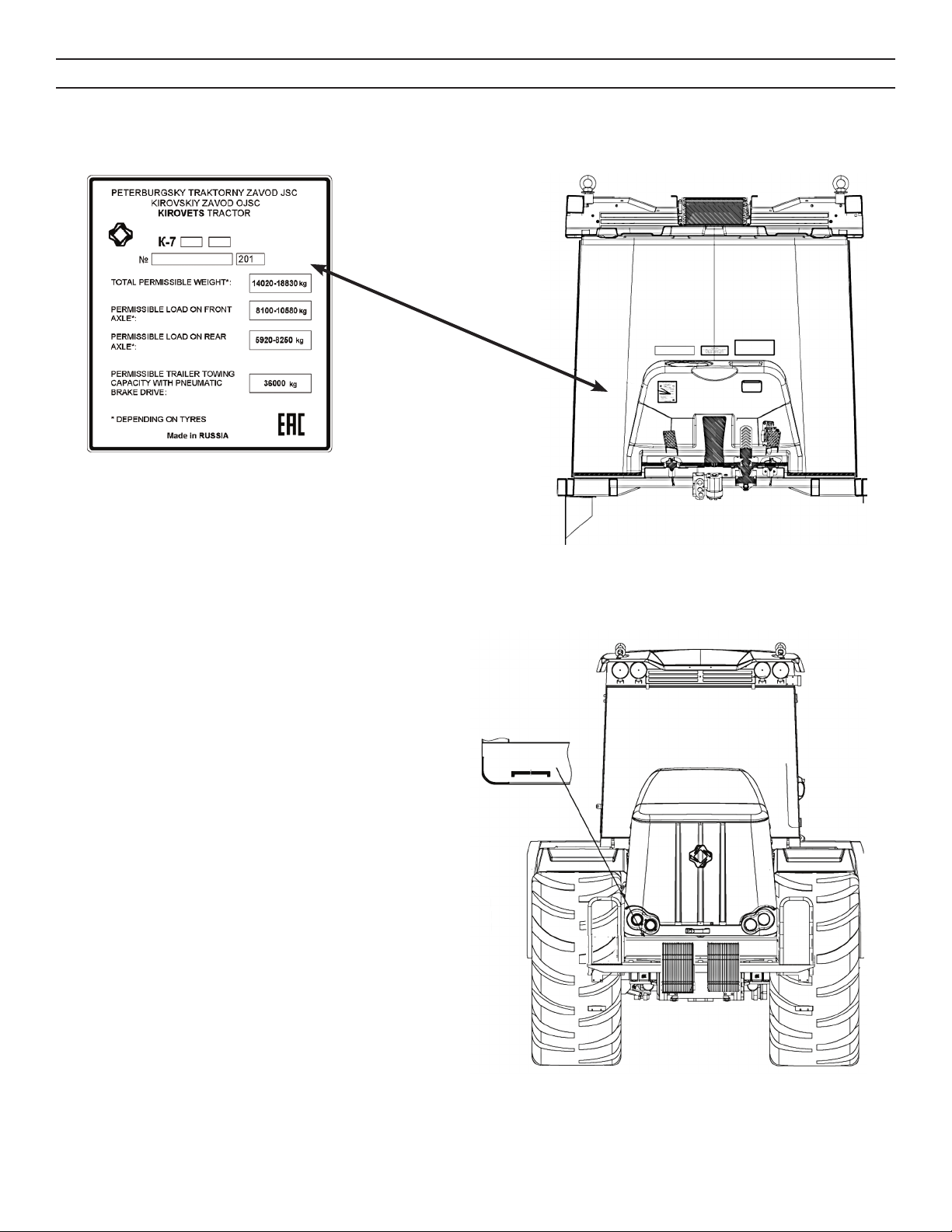

Tractor Model Identication (Fig. 5)
Tractor Serial Number - P.I.N. (Fig. 6)
Engine Serial Number (Fig. 6)
Gearbox serial number (Fig. 7)
Pump Drive Reducer Serial Number (Fig. 8)
Axle Serial Number (Fig. 9)
Date Purchased / /
Location of serial numbers can be found on pages 12 to 14

MTZ-KIROVETS K744 OPERATOR MANUAL
7
Return to Index
The Operation Manual for Kirovets K-744 tractor is intended for drivers, mechanics and other persons
related to the operation of such tractors. The manual contains a brief description of the design of tractors
and their specications, main procedures of operation and maintenance. The data on Mercedes-Benz
engine is for model MTU Series / MB OM470,
Before proceeding to tractor operation, it is necessary to study its design and operation procedures.
Long-term and reliable operation of MTZ-Kirovets tractors is ensured in case of proper operation and
timely execution of maintenance.
Read this manual carefully to learn how to operate and service the tractor correctly. Personal injury and
tractor damage can result from failure to understand proper tractor use, adjustment, and maintenance.
If this manual is lost or damaged, contact your MTZ to obtain a replacement for your tractor. Contact
your MTZ dealer for clarication of instructions for this tractor that are not understood by the reader.
Manuals are available in multiple languages. If you need a manual in a different language contact your
MTZ dealer for assistance. Your tractor has safety signs afxed at specic hazard locations to provide
hazard identication and avoidance. These signs, are illustrated with explanations in the SAFETY section
of this manual. Replace damaged or illegible safety signs before continued use. These safety signs are
available from your MTZ dealer.
This manual, when not in use, should be in Cab. This manual is a permanent part of your tractor and must
stay with the tractor during ownership. The manual is to remain with the tractor if sold to a second owner.
Measurements and dimensions in this manual are provided in Imperial/US and Metric unit equivalents.
Use only correct tools, parts, and fasteners for replacement parts and repairs. Metric and inch fasteners
are not interchangeable and must not be used interchangeably on this tractor.
Record the Product Identication Numbers (PIN)s - Fig. 6, page 13 - in the section provided on page 6.
Accurate PIN information is useful in tracking and verifying a stolen tractor and signicant components.
Always give the tractor PIN to your dealer when requesting assistance. Keep a separate PIN set in a
secure le not located on the tractor.
MTZ warrants this tractor will operate for a warranty period when operated as intended to address a
premature malfunction of the tractor not attributable to the intended use. The dealer will provide a certicate
at reception providing conditions of compliance to the warranty agreement. If this tractor is judged to
be abused or modied for use other than that intended in the manual instructions and specications,
the warranty will be voided, and warranty denied. Any modication not approved by MTZ will void the
warranty on the tractor. Increasing the engine fuel rate or increasing the power output above the level
specied in this manual by any means will void the warranty.
The tire warranty is provided separately by the tire manufacturer. MTZ will provide the tire warranty
certicate at reception to the owner. Any tire defects should be directed to the tire manufacturer through
their dealer organization.
MTZ reserves the right to provide tractor improvement programs for tractors beyond the warranty period,
often without charge to the owner. It is essential that a second owner contact the local MTZ dealer to register
the tractor Product Identication Information under the new owner. Should an improvement program be
made available for the tractor, MTZ and the dealer will have the correct owner contact information.
Introduction

MTZ-KIROVETS K744 OPERATOR MANUAL
8Return to Index
Warranty service, maintenance and repair of your tractor are to be carried out by representatives of MTZ
Equipment Ltd. dealer service centers;
Types of maintenance Frequency
In Engine hours of Operation
Maintenance at the preparation of a new or overhauled
tractor for operation running-in
Maintenance of tractor at the execution of running-in 10
Maintenance upon completion of running-in: 50
First maintenance (M-1) 125
Second maintenance (M-2) 500
Third maintenance (M-3) 1,000
Seasonal maintenance (M-SS), (M-AW) At the transition to spring-summer or
autumn-winter operation conditions
Maintenance in special operation conditions (sandy,
stony or boggy soils, desert, low-temperature and high-
mountain conditions)
It will be performed in the conditions drasti-
cally differing from typical ones
Maintenance during long-term storage
It will be performed in closed premises not
less than once every 2 months, and under
a canopy and at outdoor sites - once a
month
Following the warranty period, it is also recommended to contact your dealer.
If maintenance and repairs are not carried out in specialized service centers of MTZ Equipment Ltd., the
manufacturer will not bear responsibility within the warranty and post-warranty period for the quality of
released products.
Before proceeding to work on your tractor, please thoroughly read this instruction and operation
manual. Strictly follow the operation and maintenance guidelines.
The tractor articulation joint is prevented from moving during shipping, by an articulation “locking
device” shown in Fig. 1. Before attempting to move the tractor from the operator station, it is
necessary to remove the two retaining bolts fastening the device to the front and rear frame and
remove the “locking device.” The removed device must be stored on top of the rear frame, as
shown in Fig. 2, to be available for transporting the next time.
Fig. 2Fig, 1
Introduction

MTZ-KIROVETS K744 OPERATOR MANUAL
9
Return to Index
INCHES MILLIMETERS IMPERIAL / US UNIT METRIC EQUIVALENT (SI)
AreA
1 square inch 6.45 cm2- square centimeter
1 acre 0.405 ha - hectare
Force
1 pound (force) 4.45 newton
Length
1 foot 304.8 mm - millimeter, 30.5 cm - centime-
ter,
0.305 m - meter
1 inch 25.4 mm - millimeter, 2.45 cm - centimeter
1 mile 1609 m - meter, 1.61 km - kilometer
Weight
1 pound 0.4540 kg - kilogram
Power
1 horsepower 0.746 kW - Kilowatt
Pressure
1 psi 6.89 kPa - kilopascal, 0.00689 Mpa
- Megapascal,
14.696 psi = 1 bar
temPerAture
1 degree Fahrenheit (F° -32) = C degree Celsius
1.8
torque
1 lbs. (force) - ft. 1,356 N·m
VeLocity
1 mile per hour 1.61 km/h - kilometer per hour
VoLume
1 bushel 0.35 m3- cubic meter
1 gallon (imp) = 1.2 US gal 4.55 L - liter
1 quart (imp) = 1.2 US qt 1.14 L - liter
1
2
3
4
5
6
10
20
30
40
50
60
70
80
90
100
110
120
130
140
150
1.2 Imperial / US / Metric Measurements - Conversion
Introduction

MTZ-KIROVETS K744 OPERATOR MANUAL
10 Return to Index
Symbols being used on the tractor (instrument panel, fuse block, throw-in lever for lighting and signal
units) are given below.
Introduction
1.3 Symbols For Controls and Indicators

MTZ-KIROVETS K744 OPERATOR MANUAL
11
Return to Index
Introduction

MTZ-KIROVETS K744 OPERATOR MANUAL
12 Return to Index
Kirovets K-744 tractor is classied as an articulated-steering
machine with four drive wheels.
Tractor consists of front and rear half-frames, which rotate
by rotation at the central articulation, pivot (1) see gure 4.
The engine, pump drive reducer (PDR), front axle,
transmission, and Cab are on the front half-frame of the
tractor (2) see gure 4.
Rear axle, fuel tank, linkage are on the rear half-frame of
the tractor (3) see gure 4.
Throughout the manual references are made to the left
side and right side. These terms are as viewed from the
operator seat looking forward. The right and left-hand side
of the tractor are the same as your right hand and left hand.
Introduction
1
2
3
Fig. 3
Fig. 4

MTZ-KIROVETS K744 OPERATOR MANUAL
13
Return to Index
1.4 Serial Numbers of Tractor Components
The tractor identication plate with indication of the
tractor make and model, name of manufacturer, country,
manufacturer’s trademark as well as year of manufacture
is fastened to the left pocket located at the front console of the Cab.
The tractor Product Identication Number
- P.I.N. (serial number) is stamped on the
front plane of the bumper in RH corner (in the
direction of tractor travel). The number includes
the tractor model, i.e. K-744, a letter denoting
the year of manufacture, and subsequent four
digits corresponding to the ordinal number of
manufacture within the year.
Introduction
Fig. 6
Fig. 5

MTZ-KIROVETS K744 OPERATOR MANUAL
14 Return to Index
Gearbox serial number is stamped on the upper part of the
gearbox, in the area of compressor drive pulley, vertically
under the lifting eye nut.
The serial number of the pump drive reducer is stamped on
the casing at the side, on the lateral lid.
The serial number of the axle is stamped on the bevel gear
housing in the area of inlet ange on the left.
Fig. 7
Fig. 8
Fig. 9
Introduction

MTZ-KIROVETS K744 OPERATOR MANUAL
15
Return to Index

MTZ-KIROVETS K744 OPERATOR MANUAL
16 Return to Index
2.1 Safety Information Alert
This Safety Alert Symbol is used on the tractor and in this operator manual to
identify potential safety hazards that can cause personal injury. To avoid the hazard
and personal injury risk recommended and safe operating practices associated
with the Safety Alert Symbol.
Understanding Signal Words
DANGER indicates a hazardous situation, which, if not avoided,
will result in death or serious injury.
WARNING indicates a hazardous situation. Which, if not avoided,
could result in death or serious injury.
CAUTION indicates a hazardous situation, which, if not avoided,
could result in minor or moderate injury.
DANGER or WARNING safety signs are located at the specic hazard on the machine and these signal
words are used throughout the manual text in identifying a potential hazard and recommended safe
operating action. CAUTION describes general precautionary measures on safety signs on the machine
and call attention to safety messages in this manual.
IMPORTANT indicates that equipment or property damage could result if instructions are not followed
NOTE gives helpful information
Observe and Follow Safety Instructions
Read this operator manual before operating this tractor. Understand
and observe all safety messages in this manual on the tractor. Repair
missing or illegible safety messages on the tractor before operating the
tractor.
Replace a damaged or missing operator manual before operating the
tractor. Contact your MTZ dealer for replacement safety messages
decals and operator manual. Learn how to use the tractor properly and
train others in proper use before permitting them to operate the tractor,
ensure that the person operating the tractor is emotionally and physically capable of understanding the
operation and can use the controls. Maintain the tractor in serviceable condition as described in this
manual. Repair and correct any malfunction before operating this tractor or permitting others to operate
it. Unauthorized modication and/or repair of this tractor may alter the original functional design of this
tractor compromising intended use and safe operation.
2 SAFETY REQUIREMENTS
Safety

MTZ-KIROVETS K744 OPERATOR MANUAL
17
Return to Index
Safety
Emergency Preparedness
Keep a serviceable re extinguisher on the tractor at the
designated place shown in Section 2.5, Fig. 13, page 39,
for use in the event of a re. Avoid res by removing and
keeping ammable materials from accumulating on the
tractor. Repair oil and fuel leaks before using the tractor.
Keep a complete rst aid kit in the Cab for emergency
use. Inspect frequently to ensure the kit is complete and
materials are within effective date codes. Keep a list of
doctor, EMS, Fire Department and hospital in a visible
place in the tractor. Keep a duplicate list on your mobile
phone.
Clothing
Wear close tting comfortable close and shoes during tractor
operation. Additional protective clothing may be required based on
the task the operator is performing. The operator needs to devote
complete attention to tractor operation and avoid distractions such as
music earphones, mobile phone use and unnecessary passengers in
the tractor Cab.
Fuel handling and Tractor Fueling
Fuel is highly ammable. Do not smoke around fuel, containers
of fuel and during tractor refueling. Avoid exposing fuel and
fueling operations to open ames and sparks. Always stop
the tractor engine before refueling. Store bulk fuel outside in
approved storage tanks. Transport fuel in approved containers.
Do not transport fuel in unapproved containers made from
glass, waxed cardboard, plastic household bottles. Old oil
containers or any other unapproved container. Do not store
fuel containers near open ames, sparks from any source
and pilot lights. Always place transportable fuel containers on
the ground before attempting to ll with fuel. Before removing
the cap touch the nozzle to the container to discharge any potential static electricity. While lling the
container keep the nozzle in contact with the container to avoid a static electricity discharge. This is
particularly important when transferring ULTRA LOW SULPHUR FUEL.
Hearing Protection
The tractor Cab environment provides a low noise level during operation with the
door and window closed and does not require ear protection. Repair or replace any
damaged door and window components to ensure the integrity of the Cab when
new. Consult your MTZ for repair and replacement. Operating machinery in excess
of 90dBA noise levels for extended periods of time will cause hearing loss and
requires hearing protection. Ear protection requires heightened awareness on the
part of the user to offset the loss of auditory input. Remove the ear protection when
no longer in the noisy area.

MTZ-KIROVETS K744 OPERATOR MANUAL
18 Return to Index
Starting Fluid Safety
Starting uid is highly ammable. Do not smoke while using starting uid.
Remove all ame sources and potential spark generating devices from
the area where the starting uid will be used. It is particularly important
to ensure jumper Cable connections are secure and will not spark if the
tractor battery is being boosted during starting. When not in use replace
the cap rmly and store the container in a cool dry place. Do not leave
exposed to sunlight. Do not store in the tractor Cab. Starting uid must
not be used on diesel engines equipped with glow plugs or electric inlet
heaters to avoid an explosion. Do not incinerate or puncture the container
to avoid possible explosion and injury. Dispose of the container according
to the manufacturer instructions on the container.
Fire Prevention
Inspect the tractor prior to use each day and remove ammable materials
such as crop debris, bird nest, mice nests, oil, grease, fuel and any other
types of ammable materials touching or near components that become hot
during operation. In some agricultural tractor usage ammable material can
be a constant hazard. Under these circumstances be vigilant and clear the
material as frequently as necessary to avoid a re hazard, Clean the tractor
regularly to avoid the risk of re. Before each use inspect the tractor and
equipment used with the tractor for hydraulic and fuel leaks. If leaks are
present repair the leak and clean the area of leaked oil from the tractor and equipment before operating
the tractor. Inspect electrical components, batteries and Cables. Repair or replace any frayed Cables,
damaged batteries or malfunctioning electrical components before using the tractor. Be particularly vigilant
of leakage around hose connections and lters. Before cleaning the tractor refer to Section 2.5, Page
36 in this manual for the recommended equipment and method of cleaning the tractor. In general, stop
the engine, place the transmission in neutral, engage the park brake, lower implements if applicable and
close the Cab doors and windows. Wait until the hot components have cooled to a touchable temperature
before proceeding with the inspection and cleaning.
If a re occurs;
• At the rst sign of smoke or ames stop the tractor and the engine and leave the tractor,
• Call the re department,
• Assess whether or not the re is manageable with the re extinguisher,
• When using the extinguisher keep your back to the wind to avoid smoke and ames,
• Before using the extinguisher ensure it is correct for the type of re in progress,
• Local re departments can assist with proper classication of the extinguisher and its use,
• Follow the extinguisher instructions,
• Pull the retainer pin holding the nozzle away from you and release the lever,
• Aim the nozzle low toward the base of the re,
• Squeeze the extinguisher lever slowly and evenly,
• Sweep the nozzle from side to side
•
Safety

MTZ-KIROVETS K744 OPERATOR MANUAL
19
Return to Index
Safety
Ultra Low Sulphur Fuel Hazard
Ultra low Sulphur fuel is a poor conductor of electricity. Static electricity can
build up as the fuel is transferred from storage to a fuel tank building an electro
static charge. Reneries incorporate an additive at the renery to reduce the
characteristic. The additive can degrade over a few months reducing the fuels
ability to resist static charge build up when transferred. Ultra low Sulphur fuel
storage requires a compliant grounded and bonded system to avoid the danger
from a static charge igniting the fuel. A compliant system insures that every
component of the fuel system from the storage tank to the discharge nozzle is
grounded.
Roll Over Protective Structure
This tractor has a Roll Over Protective Structure (ROPS) incorporated
in the Cab enclosure. If your Cab is damaged ask your MTZ dealer
to inspect the damage before using the tractor. Any permanent
deection of the Cab components or deformation of corner areas
indicates that the ROPS is no longer capable of protecting the
operator space in the event of a roll over incident. The Cab must
be replaced before the tractor is used. Any permanent deection of
the frame mounting structure for the Cab must also be examined
and repairs made before using the tractor. Do not drill holes in the
Cab ROPS structure. Do not weld on the ROPS structure. Contact
your MTZ dealer to determine where attachments can be made to
the Cab without causing damage to the ROPS. Any modication to
the Cab ROPS will invalidate the performance certication. A Cab that has been involved in a re is no
longer a certied ROPS and must not be used on the tractor. The seat belt is an integral part of the safety
system in a roll over incident for the operator and trainer.
Seat Belts
Aseat belt is provided for the operator and trainer seat. During operation the operator and trainer if
present must wear the seat belts provided. In the event of a roll over incident the seat belt will keep
occupants within the protected zone of the ROPS reducing the potential injury severity. Proper seat belt
use is explained in detail in below. The general procedure for seat belt use is;
1. Sit in the seat and adjust it to the comfortable operating position,
2. Hold the latch and bull the seat belt across the lower torso area of the body ,
3. Firmly insert the latch into buckle until a distinct click is heard,
4. Tug on the seat belt latch to ensure the belt is securely fastened,
5. Adjust the seat belt until it is snug across the torso.
Inspect the seat belt each time it is used. If the latch malfunctions or webbing
damage is visible repair the malfunction and frayed webbing before using the
tractor. Use the MTZ specied hardware to fasten the seat belt components to
the seat structure to ensure correct performance to the certied standard. Seat
belt webbing exposure to sunlight will cause the webbing material color to fade.
Faded material is an indication that exposure has weakened the material strength. Replace faded seat
belt webbing material to ensure proper performance.

MTZ-KIROVETS K744 OPERATOR MANUAL
20 Return to Index
Avoid rotating Drivelines
Entanglement in rotating shafts and drivelines can cause
serious injury or death.
Wear close tting close and avoid the rotating shaft. Before
approaching the shaft stop the driveline, engine and
wait until the drive shaft has stopped before connecting/
disconnecting, adjusting or cleaning PTO driven equipment.
Ensure that the undamaged tractor master shield is in place
at all times with the proper safety message. If the master
shield is damaged or the safety decal illegible replace to
ensure original equipment performance before using the
tractor. A rotating shield must turn freely. If not repair the
malfunction before using the PTO driven equipment. Ensure
that all guards and shields are in place on the PTO driven
equipment before use. Do not install an adapter shaft that
will permit connection of a 540 RPM
PTO machine to a 1000 PTO tractor output shaft. Do not install an adapter shaft that extends the end
of the tractor driven shaft beyond the master shield. See accompanying shield illustration for the proper
shield extension dimension by PTO type.
PTO Type Diameter Splines n ± 0.20 in. - 5 mm
1 1.378 in. - 35 mm 6 3.35 in - 85 mm
2 1.378 in - 35 mm 21 3.35 in. - 85 mm
3 1.772 in - 45 mm 20 4.00 in - 100 mm
4 2.264 in - 57.5 mm 22 4.00 in. 100 mm
Make a trial connection for 3-point hitch implements driven by the tractor PTO. Slowly raise the implement
to determine if the master shield will clear the PTO shaft in the fully raised position. If necessary restrict
lift height to prevent damage to the master shield and other PTO shaft guarding components.
Steps and Handhold Use
Always face the tractor when using the steps and handholds for access to the
tractor Cab maintaining three-point contact with steps, handholds and handrails.
Keep the steps clear of debris, mud and other slippery materials. Keep handhold
sand handrails clean and free of slippery material such as grease, oil, ice and
snow to prevent loss of grip during use. Do not attempt to use the access system if
the tractor is moving. Do not jump from the tractor Cab when exiting the machine.
Safety
