Muddy the Liberty MTP3000 User manual
INSTRUCTION MANUAL
ATTENTION!!
WHEN YOU SEE A “ WARNING!” BE SURE TO HEED THE MESSAGE!
THE INFORMATION CONTAINED IN THESE MESSAGES
CAN SAVE YOUR LIFE!!
PLEASE NOTE THAT WARNING! statements have been placed throughout this Instruction Manual. These
statements point out important safety information and instructions, which, if not followed could endanger the
personal safety and/or property of the operator. It is imperative that the operator of this product, or any other
product(s) read and follow all the instructions and warnings contained in this Manual prior to attempting to use
this product(s), or any other product(s). Failure to comply with these instructions and/or warnings may result in
serious personal injury or death!
This instruction manual complies with the ASTM standard F2123 - Standard Practice for Treestand Instructions.
PO Box 454 • Windom, MN 56101 • (844) 745-7723
www.GoMuddy.com
January 2018. Published by Premier Outdoor Equipment, LLC., Windom, Minnesota
© 2018 Premier Outdoor Equipment, LLC. All rights reserved.
The Liberty
Model MTP3000
ATTENTION!! WHEN YOU SEE A “ WARNING!” BE SURE TO HEED THE MESSAGE!
THE INFORMATION CONTAINED IN THESE MESSAGES CAN SAVE YOUR LIFE!!
READ THIS MANUAL IN ITS ENTIRETY PRIOR TO USING THIS PRODUCT.
This instruction manual complies with the ASTM standard F2123 - Standard Practice for Treestand Instructions.
2
TRIPOD USAGE INSTRUCTIONS & WARNINGS
WARNING! This Muddy® product carries strict weight restrictions.
DO NOT use this product if you exceed these total weight limitations.
Please note that these weight limitations include the user(s) and their
equipment. Failure to follow these instructions may result in serious
injury or death!
Thank you for your purchase of this quality Muddy® product. To ensure your
personal safety, please take a moment to carefully read this Instruction Manual
in its entirety before attempting to set-up, install, remove and/or otherwise
use this Muddy® product(s). Failure to follow these instructions may result in
serious injury or death!
Shall you have any questions about the installation, removal, and/or use of
this product, or any other Muddy® product(s) do not hesitate to call one of
our customer service representatives toll free at (844) 745-7723 or visit us
online at www.GoMuddy.com. Our customer service representatives will
answer any questions you may have about any of the complete line of
Muddy® products.
If you nd damaged or missing parts in a newly purchased product, please
return this product to the retailer for replacement.
PLEASE NOTE THAT WARNING! Statements have been placed throughout
this Instruction Manual. These statements point out important safety
information and instructions, which, if not followed could endanger the
personal safety and/or property of the operator(s). It is imperative that
the operator(s) of this product, or any other Muddy® product(s) read and
follow all the instructions and warnings contained in this Instruction Manual
prior to attempting to use this Muddy® product(s), or any other Muddy®
product(s). Failure to comply with these instructions and/or warnings may
result in serious personal injury or death!
WARNING! Failure to read and strictly comply with the instructions
contained in this Instruction Manual may result in serious injury or death!
WARNING! Falls from a freestanding platform can occur anytime after
leaving the ground. These falls may result in serious injury or death! For
your personal safety, please take a moment to carefully read this product(s)
instruction manual in its entirety before attempting to assemble, set-up,
install, remove, and/or otherwise use this Muddy® product(s). At least
annually, review the contents of this instruction manual. Additionally, keep
these instructions for the entire duration that you own this product(s).
Failure to follow these instructions may result in serious injury or death!
WARNING! The safe use and operation of this product(s) is the sole
responsibility of the user. It is also the sole responsibility of the owner
to provide any person(s) who borrow or purchase this product(s) with
this instruction manual. Failure to follow these instructions may result
in serious injury or death! Additionally, failure to follow this warning
may subject you to personal liability penalties as determined by the U.S.
Judicial system.
WARNING! DO NOT use this or any other Muddy® product(s) if you
have a history of heart problems, back problems, impaired vision, joints
that lock-up, spinal fusions, equilibrium problems, high blood pressure, are
not well-rested and/or any other physical impairment that may limit your
ability to use and/or operate this product(s) in the safe manner outlined in
this Instruction Manual. Additionally, do not use this or any other Muddy®
product(s) if you are currently taking medication (including prescription)
and/or using and/or consuming any substance, including alcohol, that may
limit your ability to use this Muddy® product(s) as outlined and described in
the Instruction Manual. Never use a freestanding platform treestand when
feeling ill, nauseous or dizzy. Failure to follow these instructions may result
in serious injury or death!
WARNING! Do not remove, modify and/or omit any portion or otherwise
mechanically modify this product(s) or its assemblies in any manner.
Modication, misuse and/or part substitution may result in serious injury
or death!
WARNING! Several Muddy® freestanding platform treestands are equipped
with a footrest, armrests, backrest, and/or shooting rail. Neither the footrest,
armrests, backrest nor the shooting rail have been designed to support the
users weight. Under no circumstances shall you place any more than fteen
(15) pounds (7 kg) of weight on these structures. Doing so will put the user in
serious risk of injury or death. Failure to follow these instructions may result
in serious or death!
WARNING! Prior to each hunt, you must inform someone of your
hunting location and the expected duration of your hunt. Failure to follow
these instructions may result in serious injury or death!
WARNING! Prior to each hunt, make sure that you have a signaling device
(e.g., mobile phone, radio, whistle, signal are or Personal Locator Device [PLD])
in your possession and in an operable condition. This device must be within
easy access shall you experience the need to contact emergency assistance.
Failure to follow these instructions may result in serious injury or death!
WARNING! This product(s) is designed for adult use only. No one under
the age of 16 shall attempt to use this or any other product(s) without direct
adult supervision. Failure to follow these instructions may result in serious
injury or death!
WARNING! Prior to attempting to use this or any other Muddy®
product(s) you must take a moment and become familiar with its assembly,
setup, installation, use, and removal. You must practice installing, setting up,
using and removal of this product(s) at ground-level prior to attempting to
use it at heights above ground-level. Once you have become thoroughly
knowledgeable and comfortable with this Muddy® product(s) setup,
installation, use, and removal at ground-level, you are now ready to use it at
heights above ground-level. Failure to follow these instructions may result in
serious injury or death!
WARNING! NEVER hunt out of a freestanding platform treestand at
heights at which you are not completely comfortable. Depending on the
hunting conditions, choose the minimum hunting height that allows for
safe, eective hunting. Failure to follow these instructions may result in
serious injury or death!
MTP3000 • THE LIBERTY MAX. OCCUPANCY One (1)
CARRYING CAPACITY USERS AND EQUIPMENT 300 lbs/136 kg
READ THIS MANUAL IN ITS ENTIRETY PRIOR TO USING THIS PRODUCT.
This instruction manual complies with the ASTM standard F2123 - Standard Practice for Treestand Instructions.
ATTENTION!! WHEN YOU SEE A “ WARNING!” BE SURE TO HEED THE MESSAGE!
THE INFORMATION CONTAINED IN THESE MESSAGES CAN SAVE YOUR LIFE!!
3
WARNING! Strict weight limitations have been set for each product(s)
to ensure your personal safety. Note the weight limitations and maximum
occupancy for your Muddy® product(s). This weight limit includes the user(s)
and equipment. NEVER EXCEED THESE WEIGHT LIMITATIONS! Failure to
follow these instructions may result in serious injury or death!
WARNING! DO NOT attempt to use this or any other Muddy® product(s)
when ice, snow, and/or freezing rain has deposited or formed on any portion
of the stand you intend to climb. Do not attempt to use this or any other
Muddy® product(s) when thunderstorms are threatening and/or present
within ve (5) miles (8 km). Do not attempt to use this or any other product(s)
when any other adverse weather condition(s) presents itself. These include,
but are not limited to, weather condition(s) which have the potential for
producing winds, lightning, rain, snow, sleet and/or any other atmospheric
condition which may limit the user’s ability to operate this Muddy® product(s)
in a safe manner as described in this Instruction Manual. Shall inclement
weather conditions arise during your use of this Muddy® product(s), return
to the ground immediately and seek proper man-made shelter. Failure to
follow these instructions may result in serious injury or death!
WARNING! Never attempt to climb up or climb down with a weapon
and/or gear in your possession. ALWAYS unload your weapon and pull it
up to hunting height using a tether or pull up rope. ALWAYS lower your
unloaded weapon down to the ground prior (when raising or lowering
rearms, the chamber must be open and the barrel pointing downward
toward the ground) to attempting to climb down. Use this same method
when raising or lowering all other gear. Failure to follow these instructions
may result in serious injury or death!
WARNING! Thoroughly inspect this product or any other Muddy®
product(s) (and its components) prior to each use for signs of wear, rot,
corrosion, cracks, deterioration and/or any other type of damage(s). DO
NOT expose your freestanding platform treestand to extended exposure
to direct sunlight, excessive heat or freezing temperature. Do not use
your freestanding platform treestand or any other product(s) if they show
evidence of wear, rot, corrosion, cracks, deterioration and/or any other type
of damage(s). Failure to follow these instructions may result in serious injury
or death!
WARNING! Never jump or bounce on a freestanding platform treestand
seat. Failure to follow these instructions may result in serious injury or death!
WARNING! Always wear the appropriate foot wear when using a
freestanding platform treestand. A good non-slip safety boot is important to
your personal safety. Be especially careful that boot laces do not get hooked
on the freestanding platform treestand or any of its components (tuck
shoelaces into boot before climbing). Failure to follow these instructions
may result in serious injury or death!
WARNING! DO NOT modify, x/repair, alter, bend, cut, weld, or heat
the freestanding platform treestand in any way. Additionally, do not
attach anything to your freestanding platform treestand without explicit
authorized and written instructions from the manufacturer. Failure to follow
these instructions may result in serious injury or death!
WARNING! DO NOT erect this Muddy® product(s) around power
generation (transformers, generators, substations, etc.) and/or power
transmission equipment (power lines). Failure to follow these instructions
may result in serious injury or death!
WARNING! Do not attempt to make adjustments to this product(s) while in
the stand. All adjustments must be made with the entire stand on the ground.
Failure to follow these instructions may result in serious injury or death!
WARNING! Check the ground under your freestanding platform
treestand to make sure it is rm and level. Sloping ground or uneven surfaces
can cause your stand to tilt or shift as you climb. Do not use this stand when
high winds are present or forecast. Failure to follow these instructions may
result in serious injury or death!
WARNING! Never attempt to hunt from an unlevel platform. Additionally,
never attempt to level your freestanding platform treestand at heights
above the ground. If you nd that your platform is unlevel, canted, angled
awkwardly upward or downward, or in any conguration other than level,
readjust your freestanding platform treestand as necessary to alleviate this
awkward angle. Failure to follow these instructions may result in serious
injury or death!
WARNING! BEFORE each use, make sure all nuts and bolts are secure.
CHECK all hardware and webbing prior to every use to make sure that no
damage has occurred to hardware and that webbing is not cut or frayed.
Keep webbing from coming into contact with any sharp objects. DO NOT
USE THIS PRODUCT(S) IF ANY DAMAGE IS SUSPECTED. Failure to follow
these instructions may result in serious injury or death!

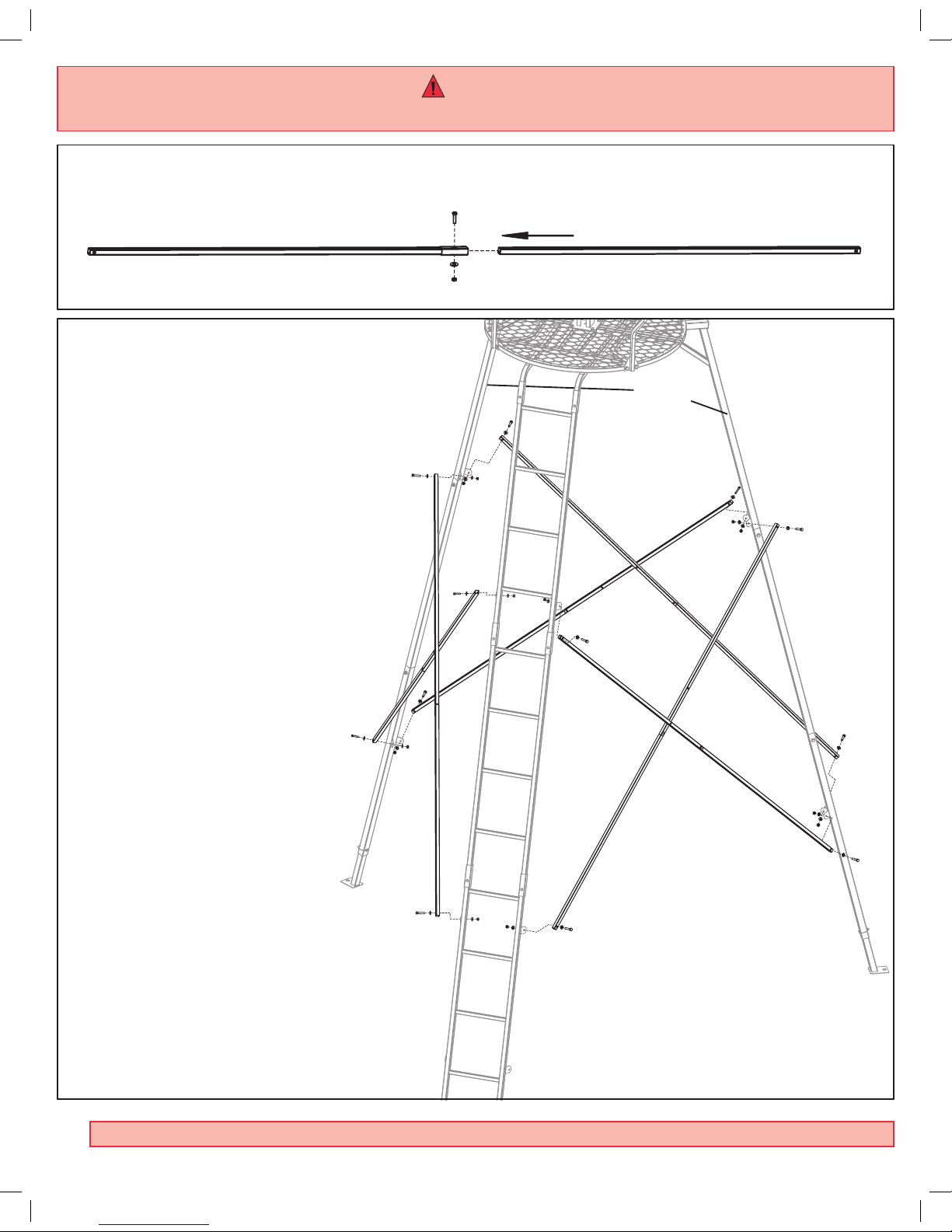

WARNING! Prior to climbing, make sure all legs, ladder or supporting
sections are rmly connected and locked. Make certain that none of the
sections have come loose or separated. If they are, DO NOT USE THIS
PRODUCT(S). With the help of two (2) other adults (three (3) total) lower the
stand back down to the ground and reconnect the sections as appropriate.
Failure to follow these instructions may result in serious injury or death!
WARNING! ALWAYS maintain three-point contact when climbing up or
down. Proper three-point contact means having either two feet with one
hand or one foot with two hands on the step portion of the climbing aids at
all times when climbing up or down. Failure to follow these instructions may
result in serious injury or death!

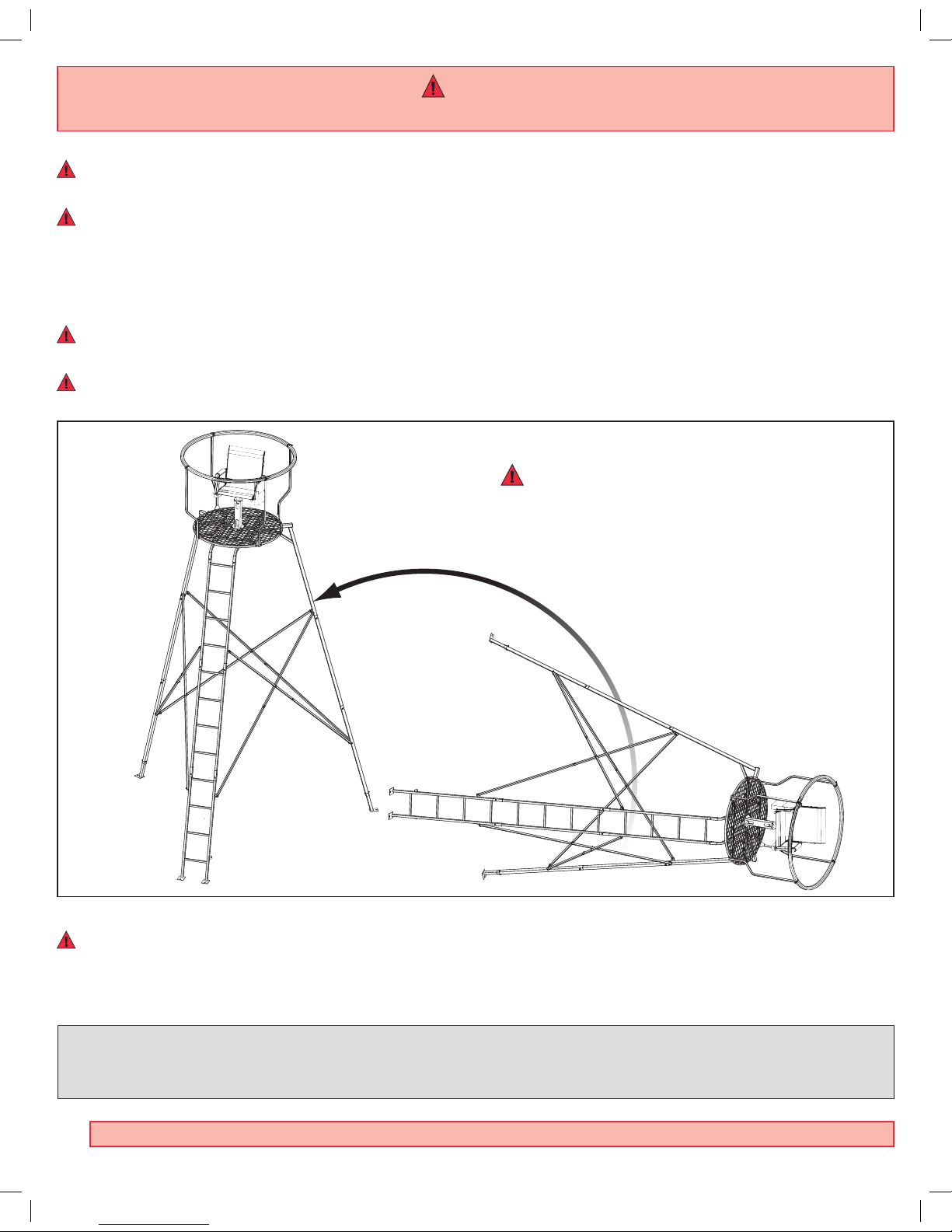

WARNING! ALWAYS lean forward as you climb the freestanding
platform treestand. Failure to follow these instructions may result in
serious injury or death!
Shall you have any questions about the assembly, installation or use of
this product, or any other product, please do not hesitate to call one of
our customer service representatives at (844) 745-7723 or visit www.
GoMuddy.com for more details, and they will answer all questions you
may have about any of the complete line of products. Please have the
batch/serial number ready (nd your batch number on a riveted metal
tag axed to your product) before calling to better assist you.
ATTENTION!! WHEN YOU SEE A “ WARNING!” BE SURE TO HEED THE MESSAGE!
THE INFORMATION CONTAINED IN THESE MESSAGES CAN SAVE YOUR LIFE!!
READ THIS MANUAL IN ITS ENTIRETY PRIOR TO USING THIS PRODUCT.
This instruction manual complies with the ASTM standard F2123 - Standard Practice for Treestand Instructions.
4
Part # Description Qty
UP15-0246 Bottom Ladder Section 1
UP15-0247 Middle Ladder Section 1
UP15-0248 Top Ladder Section 1
UP15-0249 Top Ladder Brace 2
UP15-0250 Adjuster Leg 2
UP15-0251 Bottom Leg 2
UP15-0252 Middle Leg 2
UP15-0253 Top Leg 2
UP15-0254 Female X-Support 6
UP15-0255 Male X-Support 6
UP15-0256 Standing Platform 2
UP15-0257 Seat Support 1
UP18-0023 Seat 1
UP18-0024
Seat Frame 1
UP18-0025
Armrest 2
UP18-0026
Seat Bar 1
UP15-0259 Shooting Rail Support 4
UP15-0260 Seat Support Plate 1
UP15-0261 Shooting Rail Piece 4
UP15-0262 Armrest Cover/Gear Pouch 2
UP15-0128 Shooting Rail Cover 1
UP15-0129 Shooting Rail Foam 4
Instruction Manual 1
PARTS LIST SPECS
TOOLS REQUIRED:
Adjustable Wrench - Qty 2 (Not Included)
Maximum Occupancy
ONE (1)
Max. Weight Capacity (User and Equipment)
300 lbs/136 kg
STORAGE AND CARE OF YOUR STAND
Your new freestanding platform treestand is factory nished
with a state-of-the-art powder coating that guarantees years
of trouble-free service. It is recommended that you store
your treestand out of direct sunlight and out of any other
harsh environmental condition(s) that may adversely aect
its performance.
OPTIONAL ACCESSORIES
Any number of innovative accessories are available and sold
separately to compliment your new Muddy® product(s).
Only genuine authorized accessories shall be used with
Muddy® product(s).
Check to make sure you have all the required parts and hardware. If you nd
damaged or missing parts in a newly purchased product, please return this
product to the retailer for replacement.
READ THIS MANUAL IN ITS ENTIRETY PRIOR TO USING THIS PRODUCT.
This instruction manual complies with the ASTM standard F2123 - Standard Practice for Treestand Instructions.
ATTENTION!! WHEN YOU SEE A “ WARNING!” BE SURE TO HEED THE MESSAGE!
THE INFORMATION CONTAINED IN THESE MESSAGES CAN SAVE YOUR LIFE!!
5
Part # Description Qty
UP77-0009 3/8” Nylon Spacer 4
UP77-0029 5/16" Nylock Nut 42
UP77-0030 Nylon Washer 134
UP77-0055 1/2" Nylock Nut 1
UP77-0064 4" Nylon Washer 1
HARDWARE LIST
Part # Description Qty
UP77-0018 [A] 1/4" x 1 1/4" Hex Bolt 6
UP77-0019 [B] 1/4" x 1 1/2" Hex Bolt 14
UP77-0023 [C] 1/4" x 2 1/4" Hex Bolt 7
UP77-0038 [D] 5/16" x 1 1/2" Hex Bolt 12
UP77-0039 [E] 5/16" x 1 3/4" Hex Bolt 8
UP77-0044 [F] 5/16" x 2 1/4" Hex Bolt 8
UP77-0047 [G] 5/16" x 2 3/4" Hex Bolt 10
UP77-0110 [H] 5/16" x 3 1/4" Hex bolt 4
UP77-0025 [J] 1/4" X 2 1/2” Hex Bolt 4
UP77-0001 1/4" Nylock Nut 31
UP77-0059 [I] 1/2" x 5" Hex Bolt 1
UP77-0065 Snap Pin 2
ATTENTION!! WHEN YOU SEE A “ WARNING!” BE SURE TO HEED THE MESSAGE!
THE INFORMATION CONTAINED IN THESE MESSAGES CAN SAVE YOUR LIFE!!
READ THIS MANUAL IN ITS ENTIRETY PRIOR TO USING THIS PRODUCT.
This instruction manual complies with the ASTM standard F2123 - Standard Practice for Treestand Instructions.
6
WARNING! Read the WEIGHT RESTRICTION WARNING, USAGE INSTRUCTIONS & WARNINGS on pages 2-3 prior to assembly of this product! Failure to follow
the instructions on this page and pages 2-3 may result in serious injury or death!
WARNING! DO NOT over tighten the hardware. Over tightening can lead to structural damage and may negatively aect the performance of your stand. Failure to
follow these instructions may result in serious injury or death!
Refer to page 14, for installation instructions. NOTE: All STEPS require that you temporarily nger tighten all nuts and bolts until instructed to tighten. This
will insure proper alignment during assembly.
FIG. 2

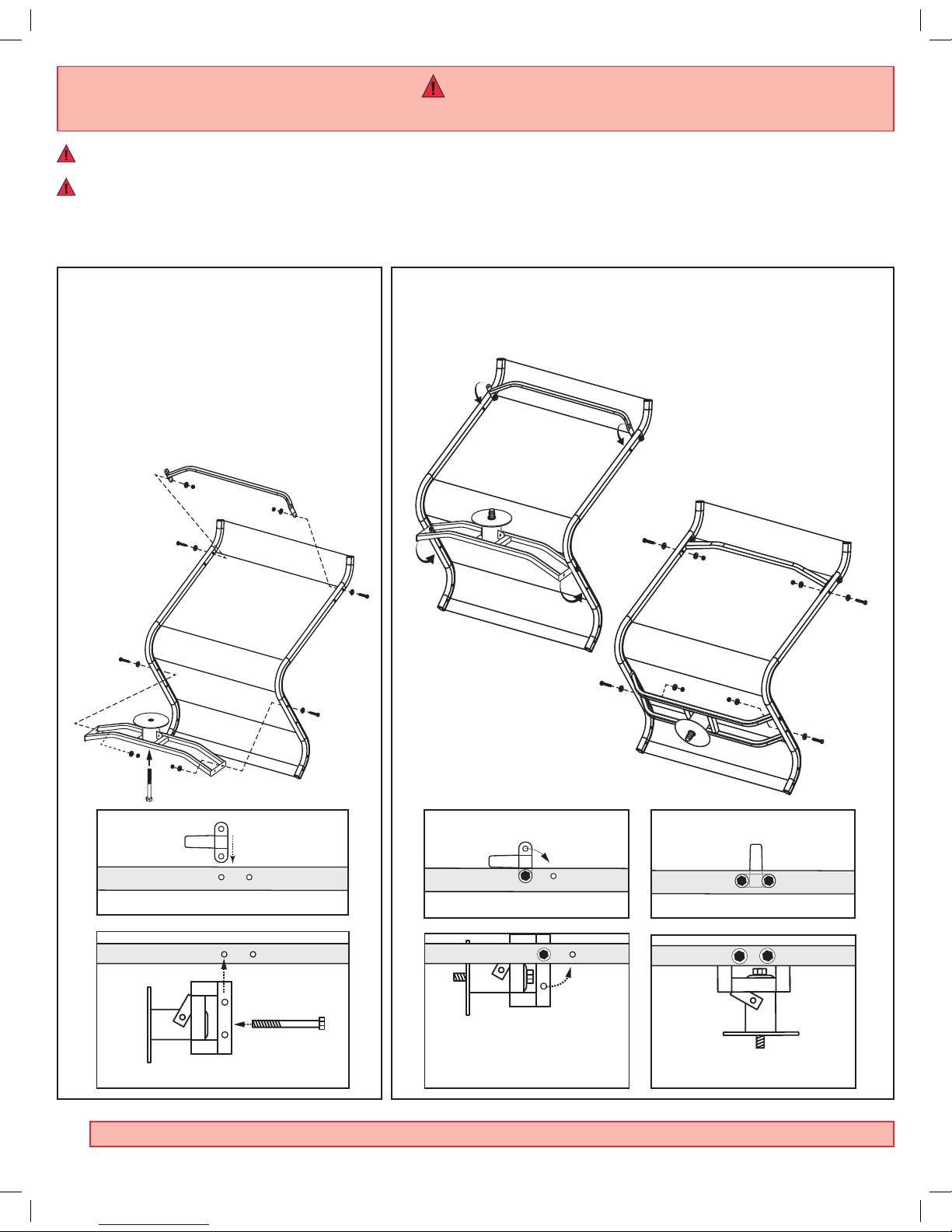

STEP 1. Insert the seat bar into the back of the seat
aligning the top holes of seat with seat bar. Secure
using (2) 1/4’’ x 1 1/2’’ hex bolts [B], (4) nylon washers and
(2) 1/4’’ nylock nuts. It is easier to insert the seat bar if
the tabs are perpendicular to the seat.
STEP 2. Insert the 1/2’’ x 5’’ hex bolt [I] into the top of the
seat frame. Insert the rear of the seat frame into the
bottom of the seat and secure using (2) 1/4’’ x 1 1/2’’ hex
bolts [B], (4) nylon washers and (2) 1/4’’ nylock nuts. It is
easier to insert the seat frame if it is perpendicular to the
seat. NOTE: The rear of the seat frame is labeled REAR.
STEP 3. Rotate the seat bar down aligning lower holes and secure using
(2) 1/4’’ x 1 1/2’’ hex bolts [B], (4) nylon washers and (2) 1/4’’ nylock nuts.
STEP 4. Rotate the seat frame forward aligning holes and secure using
(2) 1/4’’ x 1 1/2’’ hex bolts [B], (4) nylon washers and (2) 1/4’’ nylock nuts.
Seat Frame
Seat Rest
Seat Assembly
Seat Assembly Seat Assembly
Seat Frame
Seat Rest
Seat Frame
Seat Frame
Seat Frame
Seat Bar
Seat Bar
Seat Bar
I
B
B
B
B
B
B
B
B
(Back)
(Bottom)
Seat Frame
Seat Rest
Seat Frame
Seat Rest
Seat Assembly
Seat Assembly
Seat Assembly
Seat Frame
Seat Rest
Seat Frame
Seat Frame
Seat Frame
Seat Bar
Seat Bar
Seat Bar
I
B
B
B
B
B
B
B
B
(Back)
(Bottom)
Seat Frame
Seat Rest
Seat Frame
Seat Rest
Seat Assembly Seat Assembly
Seat Assembly
Seat Frame
Seat Rest
Seat Frame
Seat Frame
Seat Frame
Seat Bar
Seat Bar
Seat Bar
I
B
B
B
B
B
B
B
B
(Back)
(Bottom)
Seat Frame
Seat Rest
Seat Frame
Seat Rest
Seat Assembly Seat Assembly Seat Assembly
Seat Frame
Seat Rest
Seat Frame
Seat Frame
Seat Frame
Seat Bar
Seat Bar
Seat Bar
I
B
B
B
B
B
B
B
B
(Back)
(Bottom)
Seat Frame
Seat Rest
Seat Frame
Seat Rest
Seat Assembly Seat Assembly Seat Assembly
Seat Frame
Seat Rest
Seat Frame
Seat Frame
Seat Frame
Seat Bar
Seat Bar
Seat Bar
I
B
B
B
B
B
B
B
B
(Back)
(Bottom)
Seat Frame
Seat Rest
Seat Frame
Seat Rest
Seat Assembly Seat Assembly Seat Assembly
Seat Frame
Seat Rest
Seat Frame
Seat Frame
Seat Frame
Seat Bar
Seat Bar
Seat Bar
I
B
B
B
B
B
B
B
B
(Back)
(Bottom)
Seat Frame
Seat Rest
Seat Rest
Seat Rest
Seat Rest
Seat Bar
Seat Bar
Seat Bar
Seat Rest
Seat Rest
Seat Rest
Seat Bar
Seat Bar
Seat Bar
Seat Rest
Seat Rest
Seat Rest
Seat Bar
Seat Bar
Seat Bar
FIG. 1
READ THIS MANUAL IN ITS ENTIRETY PRIOR TO USING THIS PRODUCT.
This instruction manual complies with the ASTM standard F2123 - Standard Practice for Treestand Instructions.
ATTENTION!! WHEN YOU SEE A “ WARNING!” BE SURE TO HEED THE MESSAGE!
THE INFORMATION CONTAINED IN THESE MESSAGES CAN SAVE YOUR LIFE!!
7
Armrest
J
J
J
Nylon Spacer
Nylon Spacer
Nylon Spacer
Nylon Spacer
Seat
J
Armrest
Standing Platform
Standing Platform
G
G
FIG. 4
FIG. 3
STEP 6. Connect the standing platforms together
using (2) 5/16’’ x 2 3/4’’ hex bolts [G], (4) nylon washers
and (2) 5/16’’ nylock nuts to secure.
STEP 5. Next, attach the armrests to the seat using
(4) 1/4’’ x 2 1/2’’ hex bolts [J], (4) nylon spacers, (8)
nylon washers and (4) 1/4’’ nylock nuts to secure.
WARNING! Armrests, backrest and shooting rail have
been provided for support/and or comfort and is not designed
to carry the full weight of the user. Never place more than
15 lbs (7 kg) on these structures. Failure to follow these
instructions may result in serious injury or death!
ATTENTION!! WHEN YOU SEE A “ WARNING!” BE SURE TO HEED THE MESSAGE!
THE INFORMATION CONTAINED IN THESE MESSAGES CAN SAVE YOUR LIFE!!
READ THIS MANUAL IN ITS ENTIRETY PRIOR TO USING THIS PRODUCT.
This instruction manual complies with the ASTM standard F2123 - Standard Practice for Treestand Instructions.
8
Shooting
Rail Support
Shooting
Rail Support
Shooting
Rail Support
Shooting
Rail Support
E
E
E
E
E
E
E
E
Armrest Cover/
Gear Pouch Armrest Cover/
Gear Pouch
Standing
Platform
4” Nylon Washer
Seat Assembly
Seat Support
Seat Support Plate
F
F
F
F
I
FIG. 5

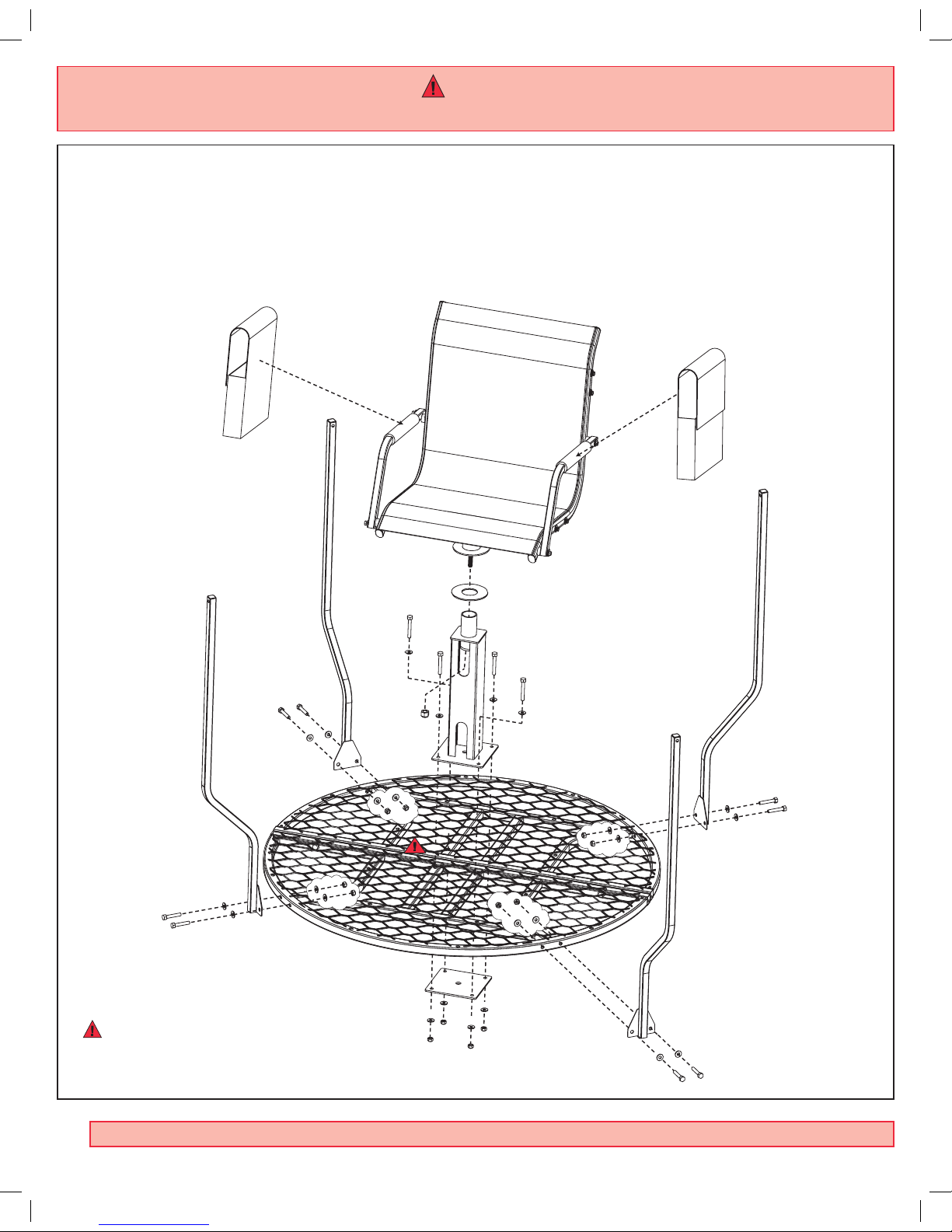

STEP 7. Attach the seat support and seat support plate to the standing platforms using (4) 5/16’’ x 2 1/4’’
hex bolts [F], (8) nylon washers and (4) 5/16’’ nylock nuts. Then, connect the seat assembly to the seat support
using (1) 1/2’’ x 5’’ hex bolt [I], (1) 4’’ nylon washer and (1) 1/2’’ nylock nut to secure.
STEP 8. Next, attach the (4) shooting rail supports to the standing platforms using (8) 5/16’’ x 1 3/4’’ hex
bolts [E], (16) nylon washers and (8) 5/16’’ nylock nuts.

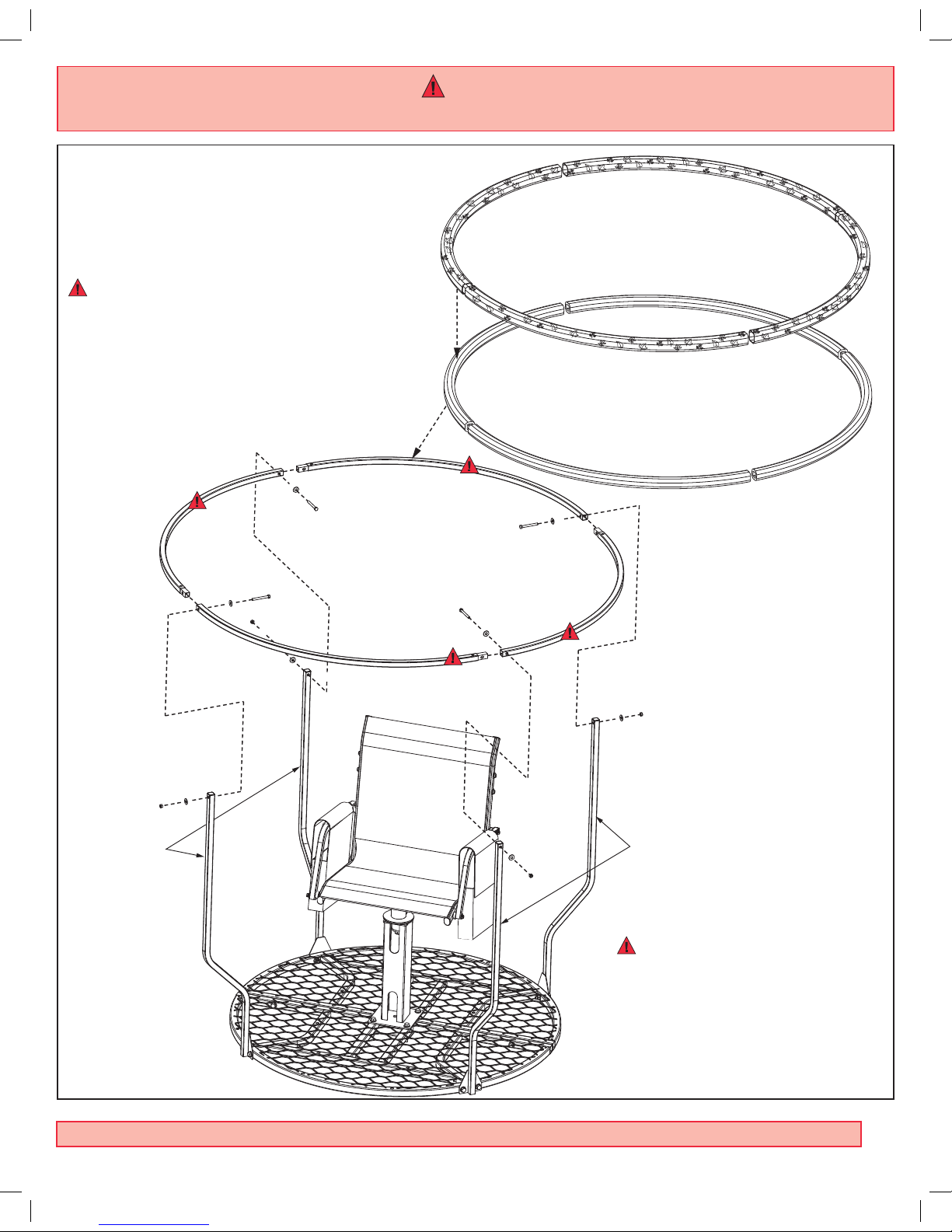

STEP 9. Attach the armrest cover/gear pouches and shooting rail foam & shooting rail cover.
WARNING!The seatsupport andseat supportplate mustbe securely
installed to the standing platform in the predrilled holes shown. Failure
to follow these instructions may result in serious injury or death!
READ THIS MANUAL IN ITS ENTIRETY PRIOR TO USING THIS PRODUCT.
This instruction manual complies with the ASTM standard F2123 - Standard Practice for Treestand Instructions.
ATTENTION!! WHEN YOU SEE A “ WARNING!” BE SURE TO HEED THE MESSAGE!
THE INFORMATION CONTAINED IN THESE MESSAGES CAN SAVE YOUR LIFE!!
9
Sh
ooting
R
ai
l
Foa
m
Shooting
Rail Piece
Shooting
Rail Piece
Shooting
Rail Piece
Shooting
R
ail Piece
C
C
C
C
Shooting
Rail Supports
Shooting
R
ail Supports
Shooting Rail
Cover
STEP 10. Connect the (4) shooting rail pieces together to form
the shooting rail. Attach the shooting rail to the “inside”of the
shooting rail supports using (4) 1/4’’ x 2 1/4’’ hex bolts [C], (8)
nylon washers and (4) 1/4’’ nylock nuts to secure.
SECURELY TIGHTEN EVERY NUT AND BOLT AT THIS TIME USING
TWO ADJUSTABLE WRENCHES (NOT INCLUDED).
WARNING! DO NOT over tighten the hardware. Over tightening
can lead to structural damage and may negatively aect the
performance of your stand. Failure to follow these instructions
may result in serious injury or death!
FIG. 6
WARNING! Armrests, backrest and shooting rail have
been provided for support/and or comfort and is not designed
to carry the full weight of the user. Never place more than
15 lbs (7 kg) on these structures. Failure to follow these
instructions may result in serious injury or death!
ATTENTION!! WHEN YOU SEE A “ WARNING!” BE SURE TO HEED THE MESSAGE!
THE INFORMATION CONTAINED IN THESE MESSAGES CAN SAVE YOUR LIFE!!
READ THIS MANUAL IN ITS ENTIRETY PRIOR TO USING THIS PRODUCT.
This instruction manual complies with the ASTM standard F2123 - Standard Practice for Treestand Instructions.
10
STEP 11. Lay the assembled top section down with the
front up (“the front” is the side where the ladder sections
will be attached—see Fig. 6/pg. 8). Attach the top legs to
the standing platform using (4) 5/16’’ x 3 1/4’’ hex bolts
[H], (8) nylon washers and (4) 5/16’’ nylock nuts. Then
connect the middle legs to the top legs and the bottom
legs to the middle legs using (4) 5/16’’ x 2 1/4’’ hex bolts
[F], (8) nylon washers and (4) 5/16’’ nylock nuts to secure.
Insert the adjuster legs into the bottom legs and secure
at desired height using (2) snap pins (Fig. 5). NOTE: Make
certain the snap pins are engaged and the “wire keeper” is
secured, see snap pin illustration below.
Top LegTop Leg
Standing
Platform
H
H
H
F
F
Middle Leg
Middle Leg
Bottom Leg
Bottom Leg
F
Adjuster Leg
Adjuster Leg
Snap Pin
Snap Pin
F
H
FIG. 7
SNAP PIN ILLUSTRATION
Wrap snap pin closure around
front of tubing and secure
over end of pin.
READ THIS MANUAL IN ITS ENTIRETY PRIOR TO USING THIS PRODUCT.
This instruction manual complies with the ASTM standard F2123 - Standard Practice for Treestand Instructions.
ATTENTION!! WHEN YOU SEE A “ WARNING!” BE SURE TO HEED THE MESSAGE!
THE INFORMATION CONTAINED IN THESE MESSAGES CAN SAVE YOUR LIFE!!
11
Middle Ladder
Section
Bottle Ladder
Section
B
B
Top Ladder
Section
Top Ladder
Brace
BB
B
B
GG
G
G
GG
G
Standing
Platform
STEP 12. With the stand laying down, attach the top ladder braces to the standing platform using (8) 5/16’’ x 2 3/4’’ hex
bolts [G], (16) nylon washers and (8) 5/16’’ nylock nuts. Insert the top ladder section into the top ladder braces, connect
using (2) 1/4’’ x 1 1/2’’ hex bolts [B], (2) nylon washers and (2) 1/4’’ nylock nuts. Then connect the middle ladder section
and bottom ladder section using (4) 1/4’’ x 1 1/2’’ hex bolts [B], (4) nylon washers and (4) 1/4’’ nylock nuts.
FIG. 8
WARNING! Never attempt to hunt from an
unlevel platform. Additionally, never attempt
to level your freestanding platform treestand at
heights above the ground. If you nd your platform
is unlevel, canted or angled awkwardly upward or
downward, or in any conguration other than level,
readjust your freestanding platform treestand as
necessary to alleviate this awkward angle. Failure
to follow these instructions may result in serious
injury or death!
WARNING! Make certain
the snap pins are engaged and
the “wire keeper” is secured with
each use. Failure to follow these
instructions may result in serious
injury or death!
ATTENTION!! WHEN YOU SEE A “ WARNING!” BE SURE TO HEED THE MESSAGE!
THE INFORMATION CONTAINED IN THESE MESSAGES CAN SAVE YOUR LIFE!!
READ THIS MANUAL IN ITS ENTIRETY PRIOR TO USING THIS PRODUCT.
This instruction manual complies with the ASTM standard F2123 - Standard Practice for Treestand Instructions.
12
X-Support
X-Support
X-Support
X-Support
X-Support
Top Ladder
Section
Middle Ladder
Section
Bottom
Leg
Section
Bottom
Leg
Section
Top Leg
Section
Bottom Ladder
Section
D
D
D
D
D
D
D
D
D
D
D
D
X-Support
STEP 13. Assemble all (6) X-supports by inserting one male x-support into one female x-support and secure using (6) 1/4’’ x 1 1/4’’
hex bolts [A], (6) nylon washers and (6) 1/4’’ nylock nuts.
Female X-Support
Male X-Support
A
STEP 14. Attach the X-supports by securing two (2)
to each top leg section and top ladder section using
(6) 5/16’’ X 1 1/2’’ hex bolts [D], (12) nylon washers and
(6) 5/16’’ nylock nuts. Then, connect the X-supports
to the bottom leg sections and bottom ladder
section secure using (6) 5/16’’ X 1 1/2’’ hex bolts [D],
(12) nylon washers and (6) 5/16’’ nylock nuts.
FIG. 9
FIG. 10
NOTE: The female x-support has a sleeve
and the male x-support does not.
READ THIS MANUAL IN ITS ENTIRETY PRIOR TO USING THIS PRODUCT.
This instruction manual complies with the ASTM standard F2123 - Standard Practice for Treestand Instructions.
ATTENTION!! WHEN YOU SEE A “ WARNING!” BE SURE TO HEED THE MESSAGE!
THE INFORMATION CONTAINED IN THESE MESSAGES CAN SAVE YOUR LIFE!!
13
X-Supports
X-Supports
X-Supports
C
C
C
STEP 15. Secure the assembled X-supports by aligning
holes and using (3) 1/4’’ x 2 1/4’’ hex bolts [C], (6) nylon
washers and (3) 1/4’’ nylock nuts to secure.
SECURELY TIGHTEN EVERY NUT AND BOLT AT THIS TIME
USING TWO ADJUSTABLE WRENCHES (NOT INCLUDED).
FIG. 11
WARNING! You must never overtighten hardware.
Overtightening can result in an unsafe condition and product
failure. Failure to follow these instructions may result in
serious injury or death!
ATTENTION!! WHEN YOU SEE A “ WARNING!” BE SURE TO HEED THE MESSAGE!
THE INFORMATION CONTAINED IN THESE MESSAGES CAN SAVE YOUR LIFE!!
READ THIS MANUAL IN ITS ENTIRETY PRIOR TO USING THIS PRODUCT.
This instruction manual complies with the ASTM standard F2123 - Standard Practice for Treestand Instructions.
14
INSTALLING YOUR FREESTANDING PLATFORM TREESTAND IN THE FIELD
WARNING! Never attempt to hunt from an unlevel platform. Additionally, never attempt to level your freestanding platform treestand at heights above
the ground. If you nd your platform is unlevel, canted or angled awkwardly upward or downward, or in any conguration other than level, readjust your
freestanding platform treestand as necessary to alleviate this awkward angle. Failure to follow these instructions may result in serious injury or death!
WARNING! You must have three (3) (total) adults to install or remove your freestanding platform treestand. Failure to follow these instructions may result in
serious injury or death!
STEP 1. With the help of two (2) other adults, gently lift the platform of the freestanding platform treestand and walk it up until erect (Fig. 1).
STEP 2. Check to make sure the platform is on secure and level ground and the standing and seating platforms are level. If the platform is unlevel, adjust the
bottom legs until the platform is level (as directed in these Instructions). NOTE: Holes are provided in the feet to allow for staking (i.e., anchoring) to the ground
for additional safety. Extreme precaution shall be used to ensure that the stand is stable prior to climbing. We suggest the use of (3-5) hammer in stakes as well
as (2-4) auger style stakes, all sold separately.
WARNING! Never attempt to level a standing platform by inserting, or using scrap lumber, rocks, tree limbs or branches, cardboard, or any other material(s).
Under no circumstances shall you attempt to level your platform in a manner other than described in this Instruction Manual. Failure to follow these instructions
will result in serious injury or death!
WARNING! You must secure your freestanding platform treestand to preclude it from tipping or shifting during installation and/or use. Failure to follow these
instructions may result in serious injury or death!
REMOVING YOUR FREESTANDING PLATFORM TREESTAND FROM THE FIELD
WARNING! You must have three (3) adults to install or remove your freestanding platform treestand. Failure to follow these instructions may result in serious
injury or death!
STEP 1. With the help of two (2) other adults (three (3) total) slowly tip the freestanding platform treestand and walk it down to the ground.
STORAGE AND CARE OF YOUR STAND
Your new Muddy® freestanding platform treestand is factory nished with a state-of-the-art powder coating that guarantees years of trouble-free service.
It is recommended that you store your freestanding platform treestand out of direct sunlight and out of any other harsh environmental condition(s)
that may adversely aect its performance.
FIG. 1
WARNING! With three (3) (total) adults lifting, a minimum of
two (2) legs of the stand must remain in contact with the ground
throughout the install process. Failure to follow these instructions may
result in serious injury or death!
15
NOTES
PO Box 454 • Windom, MN 56101
(844) 745-7723
www.GoMuddy.com
