MULTIQUIP GA36HR User manual
OperatiOn and parts Manual
THIS MANUAL MUST ACCOMPANY THE EQUIPMENT AT ALL TIMES.
To find the latest revision of this
publication, visit our website at:
www.multiquip.com
MOdel ga3.6Hr
pOrtable generatOrs
(HOnda gX240rt2edn2 gasOline engine)
Revision #0 (09/17/14)
page 2 — ga3.6HR
PROPOSITION 65/START FIRES WARNINGS
Operation of this equipment may create
sparks that can start fires around dry
vegetation. A spark arrestor may be
required. The operator should contact
local fire agencies for laws or regulations
relating to fire prevention requirements.
ga3.6HR
TABLE OF CONTENTS
GA3.6HR 60 Hz Portable
Generator
Proposition 65/Start Fires Warnings........................ 2
Table Of Contents.................................................... 3
Nameplate/Safety Information ................................. 4
Parts Ordering Procedures...................................... 5
Safety Information .............................................. 6-11
Specifications (Generator)..................................... 12
Specifications (Engine).......................................... 13
Dimensions............................................................ 14
Installation ........................................................ 16-17
General Information............................................... 18
Components (Generator).................................. 19-21
Inspection/Setup............................................... 22-23
Operation.......................................................... 24-26
Shutdown............................................................... 27
Preparation For Long Term Storage ...................... 28
Maintenance..................................................... 29-33
Generator Wiring Diagram .................................... 34
Troubleshooting (Engine).................................. 35-36
Troubleshooting (Generator).................................. 37
Explanation of Code in Remarks Column.............. 38
Suggested Spare Parts ......................................... 39
Component Drawings
Nameplate And Decals Assembly .................... 40-41
Generator Assembly......................................... 42-43
Control Box Assembly ...................................... 44-45
Pipe Frame Assembly....................................... 46-47
Muffler Assembly .............................................. 48-49
Wheel Kit Assembly.......................................... 50-51
Honda GX240RT2EDN2 Gasoline
Engine
Air Cleaner Assembly....................................... 52-53
Camshaft Assembly.......................................... 54-55
Carburetor Assembly........................................ 56-57
Control Assembly ............................................. 58-59
Crankcase Cover Assembly .............................. 60-61
Crankshaft Assembly........................................ 62-63
Cylinder Barrel Assembly ................................. 64-65
Cylinder Head Assembly .................................. 66-67
Fan Cover Assembly......................................... 68-69
Flywheel Assembly........................................... 70-71
Ignition Coil Assembly ...................................... 72-73
Piston Assembly ............................................... 74-75
Recoil Starter Assembly ................................... 76-77
Solenoid Assembly ........................................... 78-79
Engine Decals Assembly.................................. 80-81
Terms and Conditions of Sale — Parts ................. 82
NOTICE
Specifications and part numbers are subject to change
without notice.
ga3.6HR
NAMEPLATE/SAFETY INFORMATION
Safety labels are attached to the generator as shown in
Figure 1. Keep these safety labels clean at all times. When
the safety labels become worn or damaged and need to
be replaced, contact your nearest dealer or the Multiquip
Parts Dept.
QUARTZ
IDLE
CONTROL
GA-3.6HR
MANUALRESET
P
O
W
E
R
F
A
U
L
T
120
V
120
AC VOLTMETER
120V
30A
120/240V
30A
120V
20A
AC CIRCUIT BREAKER
GFCI PROTECTED
120V
240/120V
FULLPOWER
SWITCH
To avoid injury,
you MUST read
and understand
operator’s manual
before using this
machine.
Ask for training
as needed.
This machine to
be operated by
qualified
personnel only.
WARNING
Only qualified personnel should
install, use or service this
equipment.
DANGEROUS
GAS
S-4984
WARNING
Only operate machine in well ventilated
areas.
DO NOT inhale exhaust gases.
Only qualified personnel should
install, use or service this
equipment.
S-4985
DANGER
Do not touch output terminals or
internal wiring while unit is operating.
Turn off power before servicing.
Only qualified personnel should
install, use or service this
equipment.
ELECTRICAL
SHOCK
HAZARD
CAUTION
OPERATE AT
3600 RPM ONLY
(FULL THROTTLE)
DAMAGE MAYRESULT IF
OPERATED AT LOWER SPEEDS
WARNING
Before connecting this
generator to any building’s
electrical system,a licensed
electrician must install an
isolation(transfer)switch.
Serious injury or death may
result without this transfer
switch.
A91110010
DANGER
Using a generator indoors CAN KIL L YOU IN MINUTES.
Utilser un générateur à l’ intérieur VOUS TUERA EN QUELQÙES MINUTES.
120
V
OFF
GAC-2.2H
POWEREDby
HondaEngines
11250AV
GRTPERRIS
REEDE
A
CC
IONU
C
TE
R
IRR
ACRNUUTIT
P
PTBRERIUNERCAIDP
KA
E
ELR
NEUTRALBONDEDTOFRAME
LNAEUCTARRECMAS
ISSA
ELDAUMMAOSTSEEUAR
211052
120
V
OFF
GAC-2.2H
POWEREDby
HondaEngines
11250AV
GRTPERRIS
REEDE
A
CC
IONU
C
TE
R
IRR
ACRNUUTIT
P
PTBRERIUNERCAIDP
KA
E
ELR
NEUTRALBONDEDTOFRAME
LNAEUCTARRECMAS
ISSA
ELDAUMMAOSTSEEUAR
211052
120
V
OFF
GAC-2.2H
POWEREDby
HondaEngines
11250AV
GRTPERRIS
REEDE
A
CC
IONU
C
TE
R
IRR
ACRNUUTIT
P
PTBRERIUNERCAIDP
KA
E
ELR
NEUTRALBONDEDTOFRAME
LNAEUCTARRECMAS
ISSA
ELDAUMMAOSTSEEUAR
211052
NEVER use in enclosed or partially
enclosed areas.
Utilisation INTERDITE dans un
espace clos ou partiellement clos.
ONLY use outdoors and away from
open windows, doors, and vents.
Utilisation UNIQUEMENT à l’ extér leur
portes et trous d’ aération
Exhaust contains carbon monoxide, a poison gas you cannot see or smell.
Les gaz d’ échappement contiennent du monoxyde de carbon, un gaz toxique
invisible et inodore.
A90400001
GROUND ROD
FOR EARTH
GROUNDCONNECTTO
BUILDING
GROUND
IF REQUIRED
8 FT.MINIMUM
REFERENCE
NEC 250-52(C)
ACCIRCUIT
BREAKER
120/240V
30A
120V
30A 20A
20A
0N
OFF
IDLE
CONTROL
OPERATION
SWITCH
ON
OFF
FULLPOWER
SWITCH
120V
120V/240V
120
V
OFF
21A
GA-6H
6000 GROUND
SCREW
GROUND
CABLE
#8 MINIMUM
DANGER
THE POSSIBILITY EXISTS OF ELECTROCUTION IF
GENERATOR/WELDER IS NOT PROPERLY GROUNDED.
ALWAYS CONNECT EARTH GROUND (GROUND
ROD) TO GENERATOR GROUND POINT.
FOR FURTHER GROUNDING
INSTRUCTIONS, READ MANUAL
D9531100104
Operation of this equipment may create
sparks that can start fires around dry
vegetation.
A spark arrestor may be required.
The operator should contact local fire
agencies for laws or regulations
relating to fire prevention requirements.
Ｍ ９０４２００００
20A
120V
20A
120V
MODEL
SERIAL NO.
0N
OFF
OPERATION
SWITCH
ON
OFF
0N
OFF
OPERATION
SWITCH
ON
OFF
Figure 1. Nameplate And Safety Decals
NOTICE
For safety label part numbers, reference the parts
section of this manual.
ga3.6HR
PARTS ORDERING PROCEDURES
www.multiquip.com
Ordering parts has never been easier!
Choose from three easy options:
When ordering parts, please supply:
❒
❒
❒
❒
❒
❒
❒
✓ UPS/Fed Ex ✓DHL
■Priority One ✓Tr u ck
■Ground
■Next Day
■Second/Third Day
If you have an MQ Account, to obtain a Username
and Password, E-mail us at:
To obtain an MQ Account, contact your
District Sales Manager for more information.
Order parts on-line using Multiquip’s SmartEquip website!
■View Parts Diagrams
■Order Parts
■Print Specification Information
Note: Discounts Are Subject To Change
Goto www.multiquip.com and click on
Order Parts to log in and save!
Use the internet and qualify for a
on Standard orders for all orders which include
complete part numbers.*
All customers are welcome to order parts via Fax.
1-800-6-PARTS-7 (800-672-7877)
Fax your order in and qualify for a
on Standard orders for all orders which include
complete part numbers.*
1-800-427-1244
International Customers should contact
their local Multiquip Representatives for
Parts Ordering information.
Contact your local Multiquip Dealer for
parts or call 800-427-1244 for help in
locating a dealer near you.
Note: Discounts Are Subject To Change
Effective:
January 1st
, 2006
NOTICE
All orders are treated as Standard Orders and will
ship the same day if received prior to 3PM PST.
page 6 — ga3.6HR
SAFETY INFORMATION
Do not operate or service the equipment before reading the
entire manual. Safety precautions should be followed at all
times when operating this equipment. Failure to read and
understand the safety messages and operating instructions
could result in injury to yourself and others.
The four safety messages shown below will inform you
about potential hazards that could injure you or others.The
safety messages specifically address the level of exposure
to the operator and are preceded by one of four words:
or
Indicates a hazardous situation which, if not avoided,
result in or
Indicates a hazardous situation which, if not avoided,
result in or
Indicates a hazardous situation which, if not avoided,
result in or
NOTICE
Addresses practices not related to personal injury.
Potential hazards associated with the operation of this
equipment will be referenced with hazard symbols which
may appear throughout this manual in conjunction with
safety messages.
ga3.6HR
SAFETY INFORMATION
operate this equipment without proper protective
clothing, shatterproof glasses, respiratory protection,
hearing protection, steel-toed boots and other protective
devices required by the job or city and state regulations.
operate this equipment when not
feeling well due to fatigue, illness or when
under medication.
operate this equipment under the influence of
drugs or alcohol.
check the equipment for loosened threads or
bolts before starting.
use the equipment for any purpose other than
its intended purposes or applications.
NOTICE
This equipment should only be operated by trained and
qualified personnel 18 years of age and older.
Whenever necessary, replace nameplate, operation and
safety decals when they become difficult read.
Manufacturer does not assume responsibility for any
accident due to equipment modifications. Unauthorized
equipment modification will void all warranties.
use accessories or attachments that are not
recommended by Multiquip for this equipment. Damage
to the equipment and/or injury to user may result.
know the location of the nearest
know the location of the nearest
know the location of the nearest phone or
Also, know the phone numbers
of the nearest and
This information will be invaluable in the case of an
emergency.
operate the equipment in an explosive
atmosphere or near combustible materials.An
explosion or fire could result causing severe
disconnect any
These devices are intended for operator safety.
Disconnection of these devices can cause severe injury,
bodily harm or even death. Disconnection of any of these
devices will void all warranties.
lubricate components or attempt service on a
running machine.
NOTICE
ensure generator is on level ground before use.
keep the machine in proper running condition.
Fix damage to machine and replace any broken parts
immediately.
store equipment properly when it is not being
used. Equipment should be stored in a clean, dry location
out of the reach of children and unauthorized personnel
page 8 — ga3.6HR
SAFETY INFORMATION
The engine fuel exhaust gases contain poisonous carbon
monoxide. This gas is colorless and odorless, and can
cause death if inhaled.
The engine of this equipment
requires an adequate free
flow of cooling air.
operate this equipment in
any enclosed or narrow area
where free flow of the air is
restricted. If the air flow is
restricted it will cause injury to people and property and
serious damage to the equipment or engine.
operate the engine with heat shields or
guards removed.
remove the engine oil drain plug while
the engine is hot. Hot oil will gush out of the engine
crankcase and severely scald any persons in the general
area of the generator.
touch the hot exhaust manifold,
muffler or cylinder. Allow these parts to cool
before servicing equipment.
NOTICE
run engine without an air filter or with a dirty air
filter. Severe engine damage may occur. Service air filter
frequently to prevent engine malfunction.
tamper with the factory settings
of the engine or engine governor. Damage
to the engine or equipment can result
if operating in speed ranges above the
maximum allowable.
State Health Safety Codes and Public Resources
Codes specify that in certain locations, spark arresters
must be used on internal combustion engines that use
hydrocarbon fuels. A spark arrester is a device designed
to prevent accidental discharge of sparks or flames
from the engine exhaust. Spark arresters are qualified
and rated by the United States Forest Service for this
purpose. In order to comply with local laws regarding
spark arresters, consult the engine distributor or the
local Health and Safety Administrator.
add fuel to equipment if it is placed inside truck
bed with plastic liner. Possibility exists of explosion or
fire due to static electricity.
start the engine near spilled fuel or combustible
fluids. Diesel fuel is extremely flammable and its vapors
can cause an explosion if ignited.
refuel in a well-ventilated area, away from
sparks and open flames.
use extreme caution when working with
liquids.
fill the fuel tank while the engine is running
or hot.
overfill tank, since spilled fuel could ignite if it
comes into contact with hot engine parts or sparks from
the ignition system.
Store fuel in appropriate containers, in well-ventilated
areas and away from sparks and flames.
IDLE
CONTROLOPERATION
SWITCH
240/120V
FULLPOWER
SWITCH
120V
ACVOLTMETER
ACCIRCUIT
BREAKER
OFF
15A
RUN
STOP
120V
240V
OIL
ALARM
GFCI
GND
PLASTIC
TRUCK-BED
LINER
HONDA
FUEL
FUEL
QUARTZ
IDLE
CONTROL
GA-3.6HR
MANUALRESET
P
O
W
E
R
F
A
U
L
T
120
V
120
ACVOLT METER
120V
30A
120/240V
30A
120V
20A
AC CIRCUIT BREAKER
GFCI PROTECTED
120V
240/120V
FULLPOWER
SWITCH
20A
120V
20A
120V
0N
OFF
OPERATION
SWITCH
ON
OFF
0N
OFF
OPERATION
SWITCH
ON
OFF
ga3.6HR
SAFETY INFORMATION
use fuel as a cleaning agent.
smoke around or near the
equipment. Fire or explosion could result
from fuel vapors or if fuel is spilled on a
hot engine.
Turn generator and all circuit breakers before
performing maintenance on the generator or making
contact with output receptacles.
insert any objects into the
output receptacles during operation.
This is extremely dangerous. The
possibility exists of
Backfeed to a utility system can cause
and/or property damage.
connect the generator to a
building’s electrical system without
a transfer switch or other approved
device. All installations should be
performed by a in accordance with
all applicable laws and electrical codes. Failure to do so
could result in electrical shock or burn, causing
let power cords or cables
while AC power from the
generator is being transferred to a load.
use or cables or cords when
connecting equipment to generator. Inspect for cuts in
the insulation.
grab or touch a live power
cord or cable with wet hands. The
possibility exists of
Make sure power cables are securely connected to the
generator’s output receptacles. Incorrect connections
may cause electrical shock and damage to the
generator.
NOTICE
make certain that proper power or extension
cord has been selected for the job. See Cable Selection
Chart in this manual.
make sure that electrical circuits are properly
grounded to a suitable earth ground (ground rod) per
the National Electrical Code (NEC) and local codes
before operating generator.
can result from operating an ungrounded
generator.
use gas piping as an electrical ground.
drop the battery. There is a possibility that the
battery will explode.
expose the battery to open flames,
sparks, cigarettes, etc.The battery contains
combustible gases and liquids. If these
gases and liquids come into contact with a
flame or spark, an explosion could occur.
charge battery if frozen. Battery can explode.
When frozen, warm the battery to at least 61°F (16°C).
wear safety glasses when
handling the battery to avoid eye irritation.
The battery contains acids that can cause
injury to the eyes and skin.
Use well-insulated gloves when picking up the battery.
keep the battery charged. If the battery is not
charged, combustible gas will build up.
recharge the battery in a well-ventilated
environment to avoid the risk of a dangerous concentration
of combustible gasses.
ga3.6HR
SAFETY INFORMATION
If the battery liquid (dilute sulfuric acid) comes into
contact with , rinse skin or clothing
immediately with plenty of water.
If the battery liquid (dilute sulfuric acid) comes into
contact with , rinse eyes immediately with plenty
of water and contact the nearest doctor or hospital to
seek medical attention.
disconnect the
before performing service on the generator.
keep battery cables in good working condition.
Repair or replace all worn cables.
allow any person or animal to stand underneath
the equipment while lifting.
NOTICE
Before lifting, make sure that the equipment parts (lifting
bail if equipped) are not damaged and screws are not
loose or missing.
Always make sure crane or lifitng device has been
properly secured to the lifting bail (hook) of the
equipment.
shutdown engine before transporting.
lift the equipment while the engine is running.
Tighten fuel tank cap securely and close fuel cock to
prevent fuel from spilling.
Use adequate lifting cable (wire or rope) of sufficient
strength.
Use one point suspension hook and lift straight
upwards.
lift machine to unnecessary heights.
tie down equipment during transport by
securing the equipment with rope.
NOTICE
Decommissioning is a controlled process used to safely
retire a piece of equipment that is no longer serviceable.
If the equipment poses an unacceptable and unrepairable
safety risk due to wear or damage or is no longer cost
effective to maintain (beyond life-cycle reliability) and is to
be decommissioned (demolition and dismantlement),be
sure to follow rules below.
pour waste or oil directly onto the ground, down
a drain or into any water source.
Contact your country's Department of
Public Works or recycling agency in your
area and arrange for proper disposal of
any electrical components, waste or oil
associated with this equipment.
When the life cycle of this equipment is over, remove
battery (if equipped) and bring to appropriate facility for
lead reclamation. Use safety precautions when handling
batteries that contain sulfuric acid.
When the life cycle of this equipment is over, it is
recommended that the unit frame and all other metal
parts be sent to a recycling center.
Metal recycling involves the collection of metal from
discarded products and its transformation into raw
materials to use in manufacturing a new product.
Recyclers and manufacturers alike promote the process
of recycling metal. Using a metal recycling center
promotes energy cost savings.
ga3.6HR
SAFETY INFORMATION
NOTICE
The gasoline engine used in this equipment has been
designed to reduce harmful levels of carbon monoxide
(CO), hydrocarbons (HC) and nitrogen oxides (NOx)
contained in gasoline exhaust emissions.
This engine has been certified to meet US EPA Evaporative
emissions requirements in the installed configuration.
Attempting to modify or make adjustments to the engine
emmission system by unauthorized personnel without
proper training could damage the equipment or create an
unsafe condition.
Additionally, modifying the fuel system may adversely affect
evaporative emissions, resulting in fines or other penalties.
The emission control label is an integral part of the emission
system and is strictly controlled by regulation(s).
The label must remain with the engine for its entire life.
If a replacement emission label is needed, please contact
your authorized Honda Engine Distributor.
ga3.6HR

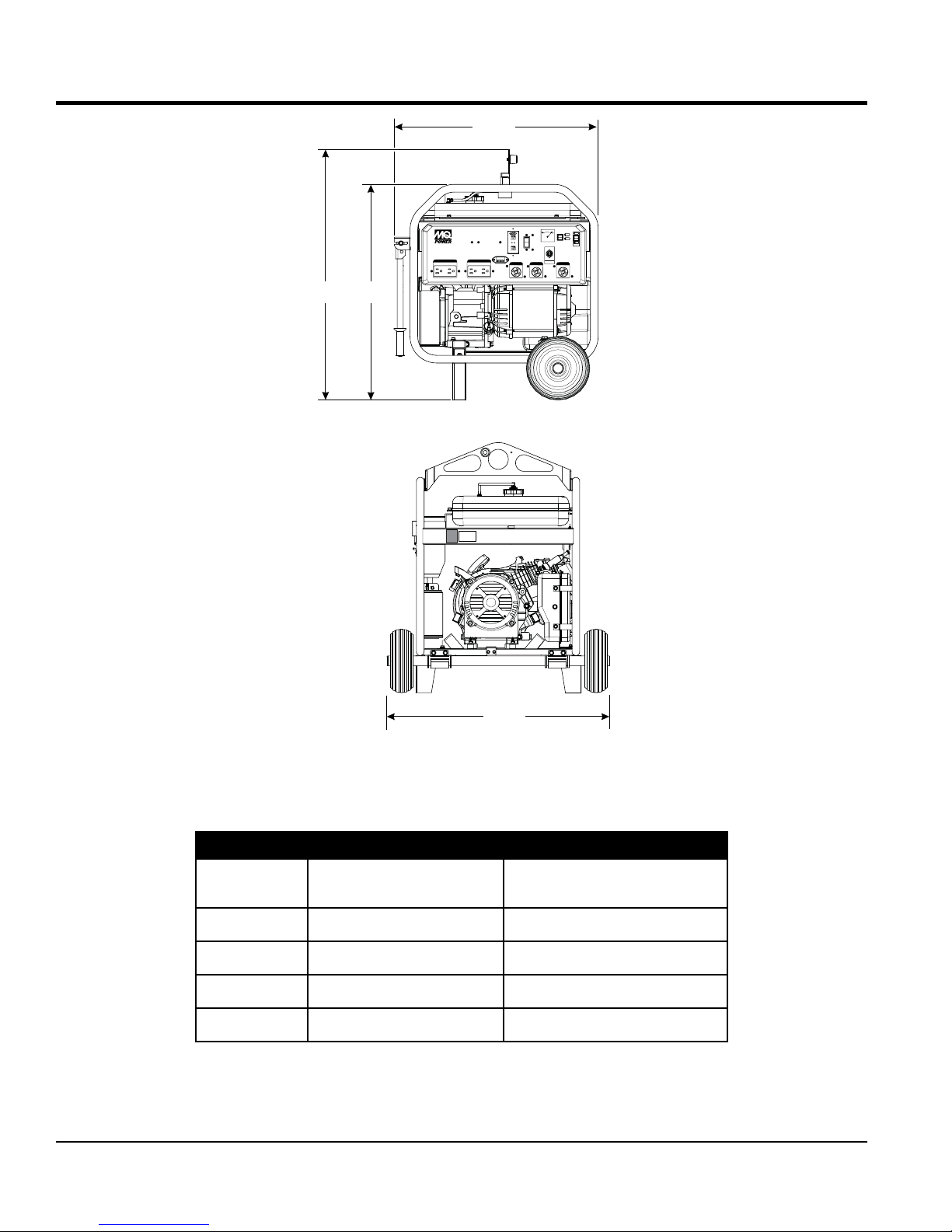

SPECIFICATIONS (GENERATOR)
Model GA3.6HR
Type Brushless Revolving Field Type
Excitation Solid State, Statically Excited System
Speed 3,600 RPM
Cooling System Self-Ventilation
Fuel Capacity 5 gallons (19 liters)
Continuous Power Output 3.2 kW
Max Power Output 3.6 kW
Rated Voltage 120/240V
Current Max/Continuous (120V) 30/26.7 amps
Current Max/Continuous (240V) 15/13.3 amps
Phase Single Phase (4 wire)
Frequency 60 Hz
Power Factor 1
28.0 x 30.9 X 29.7 in.
(710 X 785 X 755 mm)
196 lbs. (89 kg.)
NOTICE
In keeping with Multiquip's policy of constantly
improving its products, the specifications quoted herein
are subject to change without prior notice.
ga3.6HR
Type Air-cooled 4 stroke, Single Cylinder, OHV, Horizontal Shaft
Gasoline Engine
Bore X Stroke 3.03 in. X 2.28 in.
(77 mm x 58 mm.)
Displacement 16.5 cu-in (270 cm3)
Max Output 7.9 H.P./3600 R.P.M.
Fuel Unleaded Automobile Gasoline
Lube Oil Capacity 1.16 quarts (1.1 liters)
Oil Alert System Ye s
Speed Control Method Centrifugal Fly-weight Type
Starting Method Recoil Start
15.0 x 16.8 X 16.6in.
(381 X 428 X 422 mm)
56.8 lbs. (25.8 kg.)
SPECIFICATIONS (ENGINE)
The maximum output of the engines listed above are applicable to supplying electrical power for continuous service at
ambient conditions in accordance with SAE Test cord J607. The above ambient conditions are at standard sea level, with
a barometric reading of 29.92 inches and a temperature of 60° F (15.5° C).
Generally, the engine's output power will decrease 3-1/2% for each 1000 feet (305 meters) of altitude above sea level, and
1% for each 10° F (-12.2° C) above the standard temperature of 60° F (15.5° C).
ga3.6HR
DIMENSIONS
Figure 2. Dimensions
QUARTZ
IDLE
CONTROL
MANUALRESET
P
O
W
E
R
F
A
U
L
T
120
V
120
AC VOLTMETER
120V
30A
120/240V
30A
120V
20A
AC CIRCUIT BREAKER
GFCI PROTECTED
120V
240/120V
FULLPOWER
SWITCH
20A
120V
20A
120V
D
C
BA
GA-3.6HR
0N
OFF
OPERATION
SWITCH
ON
OFF
0N
OFF
OPERATION
SWITCH
ON
OFF
A HEIGHT (LIFTING BALE) 34.1 (865)
B HEIGHT (FRAME) 29.7 (755)
C LENGTH 29.9 (760)
D WIDTH 30.9 (785)
ga3.6HR
NOTE
ga3.6HR
INSTALLATION
The nut and ground terminal on the generator should always
be used to connect the generator to a suitable ground.The
ground cable should be #8 size wire (aluminum) minimum.If
copper wire is used, #10 size wire minimum should be used
At the generator, connect the terminal of the ground cable
between the lock washer and the nut (Figure 3) and tighten
the nut fully. Connect the other end of the ground cable to
a suitable earth ground (ground rod).
GA-36HR
GROUND CABLE
(#8 MINIMUM)
GROUND ROD
FOR EARTH GROUND
REFERENCE
NEC 250-52(C)
CONNECT TO
BUILDING GROUND
IF REQUIRED
GENERATOR
GROUND LUG
8 FT.
MINIMUM
Figure 3. Generator Grounding
ga3.6HR
INSTALLATION
If possible install the generator in a area that is free of
debris, bystanders, and overhead obstructions. Make sure
the generator is on secure level ground so that it cannot
slide or shift around.
The installation site must be relatively free from moisture
and dust. All electrical equipment should be protected from
excessive moisture. Failure to do will result in deterioration
of the insulation and will result in short circuits and
grounding.
Foreign materials such as dust, sand, lint and abrasive
materials have a tendency to cause excessive wear to
engine and alternator parts.
Exhaust gases from gas engines are extremely poisonous.
Whenever an engine is installed indoors the exhaust
fumes must be vented to the outside. The engine should
be installed at least two feet from any outside wall. Using
an exhaust pipe which is too long or too small can cause
excessive back pressure which will cause the engine to
heat excessively and possibly burn the valves.
The generator should always be placed on a flat level
surface when it is running. DO NOT place the generator
on slopes, the possibility exists that the generator could
slide.
Pay close attention to ventilation when
operating the generator inside tunnels
and caves. The engine exhaust contains
noxious elements. Engine exhaust must
be routed to a ventilated area
Electric shock can occur when vibrators
are used. Pay close attention to handling
when operating vibrators and always use
rubber boots and gloves to insulate the
body from a short circuit.
To guard against electrical shock and possible damage to
the equipment, it is important to provide a good eaRTH
ground.
Article 250 (Grounding) of the National Electrical Code
(NEC) provides guide lines for proper grounding and
specifies that the cable ground shall be connected to the
grounding system of the building as close to the point of
cable entry as practical.
NEC articles 250-64(b) and 250-66 set the following
grounding requirements:
1. Use one of the following wire types to connect the
generator to earth ground.
a. Copper - 10 AWG (5.3 mm2) or larger.
b. Aluminum - 8 AWG (8.4 mm2) or larger.
2. When grounding the generator (Figure 3) connect the
ground cable between the lock washer and the nut on
the generator and tighten the nut fully. Connect the
other end of the ground cable to earth ground.
3. NEC article 250-52(c) specifies that the earth ground rod
should be buried a minimum of 8 ft. into the ground.
NOTICE
When connecting the generator to any buildings
electrical system consult with a licensed
electrician.
ga3.6HR
GENERAL INFORMATION
The Multiquip GA3.6HR generator is designed as a portable
dual purpose power source for 60 Hz (single phase) lighting
facilities, power tools, submersible pumps and other
industrial and construction machinery.
The generator is mounted on rubber vibration isolators
that have a steel base backplate which is attached to the
protective steel pipe carrying frame.
The protective carrying frame is made of steel tubing and
fully wraps around the generator to protect against damage.
Reference Figure 4, Figure 5 and Figure 8 for the basic
controls and indicators for the GA3.6HR generator.
These portable generator are supplied with a electrical
control box (panel). To reduce vibration caused by the
engine, the control box is also placed on rubber isolators.
The control panel is provided with the following:
120V Twist-Lock Output Receptacle (L5-20R)
120V Twist-Lock Output Receptacle (L5-30R)
120/240V Twist-Lock Output Receptacle (L14-30R)
120 VAC GFCI Receptacle (2)
GFCI Sensing Module
15 Amp Main Circuit Breaker.
AC Voltmeter
Idle Control Switch
Full Power Switch
Operation Switch
Hour Meter
Before connecting this generator to any building’s
electrical system, a licensed electrician must install an
isolation (transfer) switch.
Serious injury or death may result without this transfer
switch.
ga3.6HR
COMPONENTS (GENERATOR)
QUARTZ
0N
OFF
OPERATION
SWITCH
ON
OFF
MANUALRESET
P
O
W
E
R
F
A
U
L
T
120
V
120
AC VOLTMETER
120V
30A
120/240V
30A
120V
20A
AC CIRCUIT BREAKER
GFCI PROTECTED
120V
240/120V
FULLPOWER
SWITCH
20A
120V
20A
120V
QUARTZ
0N
OFF
OPERATION
SWITCH
ON
OFF
MANUALRESET
P
O
W
E
R
F
A
U
L
T
120
V
120
AC VOLTMETER
120V
30A
120/240V
30A
120V
20A
AC CIRCUIT BREAKER
GFCI PROTECTED
120V
240/120V
FULLPOWER
SWITCH
20A
120V
20A
120V
IDLE
CONTROL
12 4
3
5 6
7
8
13
9
10
11
12
GA-3.6HR
Figure 4. Generator Components
1. NEMA 5-20R, GFCI
receptacle will provide 120V@ 20 amps.
2. Indicates the number hours the generator
has been in use.
3. Attach a rope or chain to this lifting
eye when lifting of the generator is required. Never
stand underneath the generator while it is being lifted.
Place lifting bail in down position when not in use.
4. Interrupts power when a
ground fault exist.
5. This 2-pole, 15 amp circuit breaker
protects the generator from short circuiting or
overloading. When starting the generator always have
the circuit breaker placed in the "" position.
6. This voltmeter indicates (with a
mark) the rated 60 Hz (single-phase) output voltage.
In addition the voltmeter can also be used as a
diagnostic tool. If the voltmeter indicator (needle) is
below the rated voltage, engine problems may exist
(low/high RPM's).To prevent damage to the generator
or power tools turn the generator and consult your
authorized Multiquip service dealer.
7. The generator is provided with
an automatic idle control device for noise suppression
and reduced fuel consumption.
The automatic idle control automatically engages under
a no-load condition. With the automatic idle control
switched “ON”, the engine revolutions will automatically
drop to about 2500 rpm (low-speed operation) within
3 seconds after the load stops. When the operation is
resumed, the engine speed is automatically increased
to about 3600 rpm (high-speed operation) as soon as
the load is connected.
8. Place switch in the "ON" position
(up) for normal operation. To turn-off the generator,
place the operation switch in the "OFF" position (down)
9. NEMA L14-30R twist-
lock receptacle will provide 240V, 60 Hz @ 13.3 amps,
or 120V@ 26.7 amps (X2) 60 Hz. Depending on the
position of the full power switch.
10. NEMA L5-30R twist-lock
receptacle will provide 120V, 30 amps, 60 Hz.
11. NEMA L5-20R twist-lock
receptacle will provide 120V, 20 amps, 60 Hz.
12. A container filled with activated
charcoal that traps gasoline vapors emitted by the
fuel system.
13. This ground connection point should be
connect to a good earth ground (ground rod).
page 20 — ga3.6HR
Figure 5. Full Power Switch
QUARTZ
0N
OFF
OPERATION
SWITCH
ON
OFF
MANUALRESET
P
O
W
E
R
F
A
U
L
T
120
V
120
AC VOLTMETER
120V
30A
120/240V
30A
120V
20A
AC CIRCUIT BREAKER
GFCI PROTECTED
120V
240/120V
FULL POWER
SWITCH
20A
120V
20A
120V
QUARTZ
0N
OFF
OPERATION
SWITCH
ON
OFF
MANUALRESET
P
O
W
E
R
F
A
U
L
T
120
V
120
AC VOLTMETER
120V
30A
120/240V
30A
120V
20A
AC CIRCUIT BREAKER
GFCI PROTECTED
120V
240/120V
FULL POWER
SWITCH
20A
120V
20A
120V
IDLE
CONTROL
14
GA-3.6HR
COMPONENTS (GENERATOR)
14. The generator is provided with a
full power switch. Figure 6 and Figure 7 show simplified
wiring diagrams of the dual voltage system.
When the full power switch is in the 120 volt (up)
position, you can access the full rated power of the
generator at 120 volts from the GFCI duplex receptacle
and the120V twist-lock receptacle, or a combination
of both receptacles as long as the total load does not
exceed the generating set capacity.
Figure 6. 120V Full Power Switch
Simplified Diagram (Up Position)
V
V1
V2
U1
U2
CB
SW 120V 22
CON1 CON3
CON5
CON4
CON2
H
123
4
789
56
W
NOTICE
When the full power switch is in the 120V position, the
240V twist-lock receptacle cannot be used..
When the switch is in the 240 volt (down) position, you can
access half of the rated power of the generating set at 120
volts from the GFCI duplex receptacle and up to half of the
rated power of the set at 120 volts from 120V twist-lock
receptacle; or full rated power of the set at 240 volts from
the 240V twist-lock receptacle.
Figure 7. 240/120V Full Power Switch
Simplified Diagram (Down Position)
V
V1
V2
U1
U2
CB
SW 120/240V 22
CON1 CON3
CON5
CON4
CON2
H
123
4
789
56
W
NOTICE
When using a combination of receptacles, total load
should not exceed the rated capacity of the generator.
Other manuals for GA36HR
1
Table of contents
Other MULTIQUIP Portable Generator manuals
MULTIQUIP
MULTIQUIP MQ POWER SG1400C3 User manual
MULTIQUIP
MULTIQUIP WhisperWatt DCA300SSC Guide
MULTIQUIP
MULTIQUIP Power Ultra-Silent DCA-85USJ Guide
MULTIQUIP
MULTIQUIP GA-Series User manual
MULTIQUIP
MULTIQUIP DCA125USI3CAN User manual
MULTIQUIP
MULTIQUIP DCA85USJ2 Guide
MULTIQUIP
MULTIQUIP WHISPERWATT DCA-400SSV Guide
MULTIQUIP
MULTIQUIP Whiteman KD1800/KD6 User manual
MULTIQUIP
MULTIQUIP Power WHISPERWATT DCA-220SSJ Guide
MULTIQUIP
MULTIQUIP GAC6HRS Guide
MULTIQUIP
MULTIQUIP GA-6H Guide
MULTIQUIP
MULTIQUIP Power WHISPERWATT DCA-100SSJU User manual
MULTIQUIP
MULTIQUIP Power Ultra-Silent DCA-70SSIU Guide
MULTIQUIP
MULTIQUIP WhisperWatt 125 DCA125USI Configuration guide
MULTIQUIP
MULTIQUIP GA6HZR User manual
MULTIQUIP
MULTIQUIP WHISPERWATT Series User manual
MULTIQUIP
MULTIQUIP GAC-9.7HZ Guide
MULTIQUIP
MULTIQUIP Power WHISPERWATT DCA70USI2 Guide
MULTIQUIP
MULTIQUIP GA6HB User manual
MULTIQUIP
MULTIQUIP WhisperWatt DCA45SSKU3 Guide
Popular Portable Generator manuals by other brands
Stanford Research Systems
Stanford Research Systems DC205 Operation and service manual
Titan
Titan TG 3800 owner's manual
Feider Machines
Feider Machines FGHi3500 Original instructions
LDR
LDR 20106020 PDU1 operating instructions
Könner & Söhnen
Könner & Söhnen KS 3300i owner's manual
Endress+Hauser
Endress+Hauser RN22 operating instructions
MOLEAER
MOLEAER CLEAR Installation and startup guide
Briggs & Stratton
Briggs & Stratton Elite 09801 owner's manual
Pulsar
Pulsar PGD95BiSCO Operator's manual
Kohler
Kohler 6.5RMY Operation manual
MIOX
MIOX RIO Zuni Series Installation, operation and maintenance manual
sewerin
sewerin COMBIPHON CG 150 operating instructions
Generac Power Systems
Generac Power Systems GP Series owner's manual
VICI DBS
VICI DBS NM PLUS Series user manual
Champion Power Equipment
Champion Power Equipment Power Sports 73538i Owner's manual & operating instructions
Sterling Power Products
Sterling Power Products PMP1 instructions
M2TECH
M2TECH Evo Clock user manual
Zendure
Zendure SuperBase 600M user manual
