Multitech RouteFinder RF802EW User manual

Model RF802EW
Wireless Router/Access Point
User Guide

User Guide
Wireless Router/Access Point
P/N S0000178 Revision A
This publication may not be reproduced, in whole or in part, without prior expressed written permission
from Multi-Tech Systems, Inc. All rights reserved.
Copyright © 2001 by Multi Tech Systems, Inc.
Multi-Tech Systems, Inc. makes no representations or warranties with respect to the content hereof and
specifically disclaims any implied warranties of merchantability or fitness for any particular purpose.
Furthermore, Multi-Tech Systems, Inc. reserves the right to revise this publication and to make changes
from time to time in the content hereof without obligation of Multi-Tech Systems, Inc. to notify any person
or organization of such revisions or changes.
Record of Revisions
Revision Description
A
(06/06/01) Manual released. (recreated .PDF on 10/4/01)
PATENTS
This device is covered by one or more of the following patents: 6,031,867; 6,012,113; 6,009,082;
5,905,794; 5,864,560; 5,815,567; 5,815,503; 5,812,534; 5,809,068; 5,790,532; 5,764,628; 5,764,627;
5,754,589; D394,250; 5,724,356; 5,673,268; 5,673,257; 5,644,594; 5,628,030; 5,619,508; 5,617,423;
5,600,649; 5,592,586; 5,577,041; 5,574,725; D374,222; 5,559,793; 5,546,448; 5,546,395; 5,535,204;
5,500,859; 5,471,470; 5,463,616; 5,453,986; 5,452,289; 5,450,425; D361,764; D355,658; D355,653;
D353,598; D353,144; 5,355,365; 5,309,562; 5,301,274. Other Patents Pending
TRADEMARKS
Trademark of Multi-Tech Systems, is the Multi-Tech logo. Windows, Windows 95, 98, NT and 2000 are
trademarks of Microsoft. All other trademarks are owned by their respective companies.
Multi-Tech Systems, Inc.
2205 Woodale Drive
Mounds View, Minnesota 55112 U.S.A.
[phone] or [phone]
U. S. FAX [phone]
Technical Support [phone]
Internet Address: http://www.multitech.com

iii
Contents
Chapter 1 - Introduction
Introduction ................................................................................................................................................ 7
Front Panel ................................................................................................................................................. 8
Front Panel Description ....................................................................................................................... 8
Back Panel ................................................................................................................................................. 8
Back Panel Description ........................................................................................................................ 8
Typical Applications .................................................................................................................................... 9
Connecting a Remote Site via Cable Modem ...................................................................................... 9
Connecting a Local Site to the Internet ................................................................................................ 9
Specifications ........................................................................................................................................... 10
Chapter 2 - Hardware Installation
Hardware Installation................................................................................................................................ 12
Safety................................................................................................................................................. 12
Unpacking the RF802EW .................................................................................................................. 12
Cabling ............................................................................................................................................... 13
Chapter 3 - Software Installation and Configuration
Software Installation and Configuration .................................................................................................... 15
Software Installation .......................................................................................................................... 15
Using RouteFinder Setup Wizard ............................................................................................................. 16
Testing your Connection .................................................................................................................... 24
Chapter 4 - Telnet ..................................................................................................................................... 25
Using Telnet to Configure your RouteFinder ............................................................................................ 26
Chapter 5 - RouteFinder Manager
RouteFinder Manager .............................................................................................................................. 33
General Settings ...................................................................................................................................... 34
WAN Ethernet Segment ..................................................................................................................... 35
Async Port ......................................................................................................................................... 35
Remote Access-Remote Access Settings .......................................................................................... 40
Enable IP Mapping - Virtual Server .................................................................................................... 41
Port Settings............................................................................................................................................. 42
Edit Login Script for Remote Access ................................................................................................. 43
Writing a login script for IP Routing .................................................................................................... 43
Modem String Settings ...................................................................................................................... 45
LAN DHCP Server ................................................................................................................................... 46
Routing Settings ....................................................................................................................................... 48
Routing Table ..................................................................................................................................... 49
Filter Settings ........................................................................................................................................... 50
Wireless Settings ..................................................................................................................................... 53
Refresh Device List .................................................................................................................................. 54
Device Name and Password .................................................................................................................... 54
Save Settings to File ................................................................................................................................ 55
Load Settings ........................................................................................................................................... 55
Upgrade Firmware ................................................................................................................................... 56
General Diagnostic ................................................................................................................................... 57
Chapter 6 - RouteFinder Monitor

RouteFinder Monitor................................................................................................................................. 59
Running RouteFinder Monitor ............................................................................................................ 59
Refresh Device List .................................................................................................................................. 59
Test Connection ....................................................................................................................................... 59
Terminate Connection .............................................................................................................................. 60
Save to File .............................................................................................................................................. 60
Save Now .......................................................................................................................................... 61
Autosave ............................................................................................................................................ 61
IP Address/Name ..................................................................................................................................... 61
Event Messages....................................................................................................................................... 62
TCP/IP Tab ............................................................................................................................................... 62
Time Tab ................................................................................................................................................... 63
Status Tab ................................................................................................................................................ 64
Statistics Tab ............................................................................................................................................ 65
Chapter 7 - LAN Client Settings ............................................................................................................... 66
LAN Client Settings .................................................................................................................................. 67
Setting up Remote Access Clients ........................................................................................................... 67
Accessing a Windows NT Server ...................................................................................................... 67
Accessing a Novell Server ................................................................................................................. 74
Accessing a Windows NT Server and a Novell NetWare Server ....................................................... 80
Accessing a Unix Server.................................................................................................................... 88
Make New Connection (Windows 2000 only) .................................................................................... 92
Chapter 8 LAN-to-LAN Settings
LAN-to-LAN Settings ................................................................................................................................ 94
Setting up LAN-to-LAN Routing ......................................................................................................... 94
Using the Find Computer command ......................................................................................................
94
Using LMHosts .................................................................................................................................. 95
Chapter 9 - Troubleshooting
Troubleshooting ........................................................................................................................................ 97
Common Problems ............................................................................................................................ 97
Chapter 10 - Service, Warranty
and Technical Support
Introduction ............................................................................................................................................ 101
Limited Warranty .............................................................................................................................. 101
Addendum for North American Products ......................................................................................... 101
Addendum for International Products .............................................................................................. 102
Out of Warranty Repair Costs .......................................................................................................... 102
Software User License Agreement ......................................................................................................... 103
Technical Support ................................................................................................................................... 105
Contacting Technical Support .......................................................................................................... 105
Recording RouteFinder Information ................................................................................................. 105
Online Warranty Registration ........................................................................................................... 105
About the Internet ................................................................................................................................... 106
Ordering Accessories ............................................................................................................................. 106
Appendixes
Appendix A - Regulatory Compliance Information .................................................................................. 108
Class B Statement
FCC Part 15 ..................................................................................................................................... 108

Appendix B - Tools for your RF802EW ................................................................................................... 109
RouteFinder Monitor ........................................................................................................................ 109
PING ................................................................................................................................................ 109
WINIPCFG and IPCONFIG ............................................................................................................. 109
TRACERT ......................................................................................................................................... 110
Appendix C - Cabling Diagrams .............................................................................................................. 111
Glossary .................................................................................................................................................. 112
Index .................................................................................................................................................. 117

Chapter 1 - Introduction

7
Chapter 1 - Introduction
Introduction
Congratulations on the purchase of the Multi-Tech System’s RouteFinder model RF802EW, one
of the finest broadband routers available today.
The RouteFinder RF802EW provides wireless users with seamless access to their existing wired
LAN, enabling them to share broadband access to the Internet as well as other resources. Using
the IEEE 802.11b wireless standard, the RouteFinder provides increased speed--up to 11 Mbps--
and mobility between the desktop,conference room, or campus. It supports a DSL or cable
modem connection to the Internet to provide shared Internet access for up to 253 users. The RF
802EW includes one asychronous port for backup Internet access or dial-in remote access.
Wireless Networking. The RouteFinder’s integrated IEEE 802.11b-compliant access point
provides mobility, enabling access to shared resources without requiring a physical connection.
The RouteFinder also communicates with other access points on the network to provide roaming
from one cell to another.
Connects up to 253 internal IP addresses to the Internet with broadband speed. The
RouteFinder can be configured as a DHCP server to handle requests for Internet services and
route to and from the ISP. Up to 253 internal IP addresses are connected to the Internet with
only one IP account. The WAN Ethernet port has a bandwidth of 10 Mbps which is 179 times
faster than a 56k modem and can support DSL or cable speeds of up to 5 Mbps.
Network Security. The RouteFinder uses 64-bit WEP encryption for wireless LAN security.
WEP prevents intruder access to the network and prevents the capture of wireless LAN traffic by
eavesdropping. The RouteFinder uses the NAT protocol to provide security from hackers
attempting to access the office LAN without the extra cost of a firewall. It implements firewall and
gateway security for LAN-based resources. Additionally, the RouteFinder supports Internet
access restriction by IP address, client protocols or a list of forbidden sites.
Dial Backup or Dial-in RAS Port. The RouteFinder also provides an additional asynchronous
port that, when connected to a dial-up modem or ISDN terminal adapter, serves as a backup
resource for Internet access if your cable or DSL service goes down. It can also serve as dial-in
remote access for your telecommuters or mobile users.
Virtual Server Support. In addition to providing shared Internet access, the RouteFinder can
support Web, FTP or other Internet servers. Once configured, the RouteFinder accepts only
unsolicited IP packets addressed to the Web or FTP server.
LAN Segmentation. For added LAN security, the RouteFinder can be used to segment the LAN
by connecting the corporate servers to one RouteFinder Ethernet port and the Internet Servers to
the other Ethernet port. This configuration puts the corporate servers behind a firewall and the
Internet servers outside the firewall. To continue to provide Internet access, connect a modem,
or ISDN terminal adapter to the RouteFinder’s asynchronous port.
The RouteFinder RF802EW

8
Chapter 1 - Introduction
Front Panel
RF802EW Front Panel
Front Panel Description
Link Lights when the LAN client is correctly connected to the 10/100 LAN.
ACT Blinks when transmitting or receiving packets.
LAN Lights when a successful connection to the 10/100 LAN is established.
WLS Lights when a wireless connection is established.
Serial Lights when the Serial async port is properly connected to a remote site.
WAN Lights when a successful connection to the 10Base-T WAN is established.
Status Blinks when updating flash ROM or rebooting.
Power Lights when power is being supplied to the router.
Back Panel
RF802EW Back Panel
Back Panel Description
Power 5VDC The 5V DC power socket is used to connect the device to the AC power
adapter.
10 BT WAN The WAN port is used to connect the router to a DSL or Cable modem.
SERIAL The Serial async port connects the router to a standard modem (optional).
10/100M Connects the Router to a 10/100 Base-T Ethernet LAN.
Reset Press and hold for three seconds to reset the router to factory defaults.
Uplink/Normal Slide the switch to the Uplink position to use the LAN port to expand your
network by connecting a network cable to another router, switch, or hub. To
connect the port to a LAN client workstation, slide the switch to the Normal
position.

9
Chapter 1 - Introduction
Typical Applications
The following examples provide information about typical applications using the RF802EW. They
describe using the RF802EW to connect a remote site via a cable modem, using the RF802EW
to segment a local area network, and using the RF802EW to connect a LAN to the Internet using
one shared IP address.
Connecting a Remote Site via Cable Modem
In the following example the RF802EW is used to connect a LAN to the Internet via DSL or a
cable modem.
Kernal: NAT (outgoing TCP/IP connection sharing a single Internet IP address or
using multiple IP mapping)
• Virtual Server (allowing incoming specific TCP/IP service request redirect
to an internal server)
• Static Routing (Routing table setting to Internal Local Gateways)
• Firewall
External: Fixed External Port IP or DHCP client (Dynamic IP assigned)
Internal: Device Fixed IP
DHCP Server
Connect Remote Site via Cable Modem
Connecting a Local Site to the Internet
In this application, the RF802EW is used to connect up to 253 Internal IP addresses to the
Internet using a single shared external IP address.
Kernal: NAT (outgoing TCP/IP connection sharing single External Port IP or using
multiple IP Mapping)
•Virtual Server (allow incoming specific TCP/IP service request redirect to internal
server)
•Firewall
External: Fixed External Port IP and mask DNS IP, Gateway IP or DHCP client
(Dynamic IP for the device, DNS and Gateway assigned.)
Internal: Device Fixed IP
DHCP Server
Connect Local Site (I External IP address = 253 Internal IP addresses)

10
Chapter 1 - Introduction
Specifications
Hardware ARM RISC CPU
32 bit, 40MHZ
4MB DRAM and 512k Flash ROM
UART Serial port controller
LAN Port Interface: 1 10Base-T/100BaseTX RJ-45 Connection
Standard: 802.3
WAN Ports 1 x 10Base-T
1 x RS232 (V.24)
DTE Speed: Up to 230K asynchronous
Wireless
Access Point IEEE 802.11b for wireless LAN
Date Rates: 11, 5.5, 2, 1 Mbps data rate per channel
RF Frequency: 2.4-.24835 Ghz
Emission Type: Direct Sequence Spread Spectrum
Operating Range: Up to 100 meters indoors and 300 meters outdoors
Antenna: Dual Dipole with Diversity
Antenna Gain: 2 dB MAX
Protocols Security: PAP/CHAP, NAT Firewall, RADIUS, Callback, WEP
Network: TCP/IP, IPX, DHCP, PPP, PPPoE
Routing: Static, RIP 1, VPN, IPSec & PPTP Pass-Through
Filtering: Protocol, port number, and IP address
Power Output 5V DC, 2000mA
Dimensions 7.1”x 4.9”h x 1.4”d
(18.1 cm x 12.5 cm x 2.5 cm)
Weight 380g
13 oz.
Memory RAM: 4MB
Flash ROM: 512k
Operating
Environment: Temperature Range: 32-120 degrees F (0-50 degrees C)
Humidity: 25-85% non-condensing
Approvals: FCC Part 15 Class B & ETS 300 328
Warranty 2-year warranty

Chapter 2 - Hardware Installation

12
Chapter 2 - Hardware Installation
Hardware Installation
Safety
1. Never install telephone wiring during a lightning storm.
2. Never install telephone jacks in a wet location unless the jack is specifically designed for wet
locations.
3. This product is to be used with UL and cUL listed computers.
4. Never touch uninsulated telephone wires or terminals unless the telephone line has been
disconnected at the network interface.
5. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a
remote risk of electrical shock from lightening.
7. Do not use the telephone to report a gas leak in the vicinity of the leak.
8. To reduce the risk of fire, use only No. 26 AWG or larger Telecommunications line Cord.
Unpacking the RF802EW
The RF802EW shipping box contains the following items:
•System CD
•Tucows CD
•Power Supply
•The RouteFinder RF802EW
•The RF802EW RouteFinder Quick Start Guide
If any of the items is missing or damaged, please contact Multi-Tech Systems.

13
Chapter 2 - Hardware Installation
Cabling
Cabling your RouteFinder requires making the appropriate connections to PCs, Cable, or DSL
modem, analog modem or ISDN TA (optional), AC power and the router. Because this device
also acts as a DHCP server, after your device is properly cabled, you will need to follow the
configuration instructions provided in the Software Installation and Configuration chapter.
Uplink/Normal
Reset
WAN
5VDC
Optional
Uplink
Serial Cable
To Cable Modem
or DSL Modem
Power Connection
To optional
Modem or
ISDN TA
Hub
LAN
Cabling the RouteFinder RF802EW
1. Before beginning, turn the power off on all network devices (PCs, Cable, DSL modems,
analog modems, ISDN TAs and the router).
2. Connect the Ethernet port of each PC or network device to the LAN port.
3. If you are using an analog modem, connect it to the Serial Async port.
4. If you are using the Uplink option to connect to another network segment, slide the Uplink/
Normal switch into the Uplink position. Connect the LAN cable to LAN port #1. Plug the
other end of the LAN cable into another hub, router, or switch.
Note: If you are not using the Uplink feature, place the switch in the Normal position.
5. Connect a network cable from the cable or DSL modem to the 10 BT WAN port.
6. Connect the provided power supply cable to the 5V DC power port on the back of the router.
Plug the power supply into an AC power outlet as shown above.
7. Power on your DSL or Cable modem.
8. If you are using an analog modem or ISDN TA, power on the device.
9. You are ready to configure software for your RouteFinder and network PCs.

Chapter 3 - Software Installation and Configuration

15
Chapter 3 - Software Installation and Configuration
Software Installation and Configuration
Before beginning the installation process, ensure that your system meets all hardware and
software requirements:
•Intel 486 or higher processor.
•10/100 Base-T cable to connect the RF802EW to the network.
•One DSL or Cable Modem.
•A networked computer with Windows 95/98/2000, Windows NT 3.5 or higher and TCP/IP
protocol installed (or, a non-Windows system with TCP/IP properly installed to enable Telnet
configuration).
•Any PPP supported communication application for Dial-In operation.
•TCP/IP installed and configured on each workstation accessing the Internet.
Software Installation
The software installation process involves installing the RouteFinder Utilities, including
RouteFinder Setup Wizard, RouteFinder Manager and RouteFinder Monitor. A description of
each component follows:
RouteFinder Setup Wizard
The RouteFinder Setup Wizard provides a step-by-step process to assist you in entering all the
basic settings needed to configure your RF802EW for general use. All settings that are entered
in the Setup Wizard can be found in their respective menus in the RouteFinder Manager.
RouteFinder Manager
RouteFinder Manager is the main program used to configure all settings for your RF802EW.
Complete information about options within the RouteFinder Manager can be found in the
RouteFinder Manager chapter in this User Guide.
RouteFinder Monitor
RouteFinder Monitor is a multi-purpose utility designed to let you know the status of your
RF802EW connection. The monitor offers the ability to point and click on an event to access
troubleshooting procedures. Refer to the RouteFinder Monitor chapter in this User Guide for
more information.

16
Chapter 3 - Software Installation and Configuration
Using RouteFinder Setup Wizard
Note: Before beginning this procedure, ensure that your RF802EW is properly connected to the
network and that the power is turned on.
After installing the software, you may return to the RouteFinder Setup Wizard at any time, by
clicking Start | Programs | RouteFinder Manager | RouteFinder Wizard.
Before running the Setup Wizard, it is strongly recommended that you exit all Windows
programs.
1. Insert the RF802EW System CD into your computer’s CD-ROM drive. The RF802EW
System CD window appears.
Note: If Autorun is disabled on your computer, use Windows Explorer to view the contents of
the CD. Double-click the CD icon to display the RF802EW System CD main window.
2. Click Install Software.
3. Follow the on-screen instructions to install the software.
4. When the software installation completes, the Setup Wizard dialog box displays.
Click OK.
5. The Setup Wizard: Device List dialog box displays. The Setup Wizard automatically checks
your network for available network devices and displays them.
Select the device you wish to configure from the Device Name list.

17
Chapter 3 - Software Installation and Configuration
Record the values presented in the Device Information panel for later reference.
Device IP Address ______________________
Device MAC Address ____________________
Device Firmware Version _________________
Click Next.
Note: If a message appears indicating the device is not found, or you do not see the device
you are attempting to configure listed, click Refresh Device List.

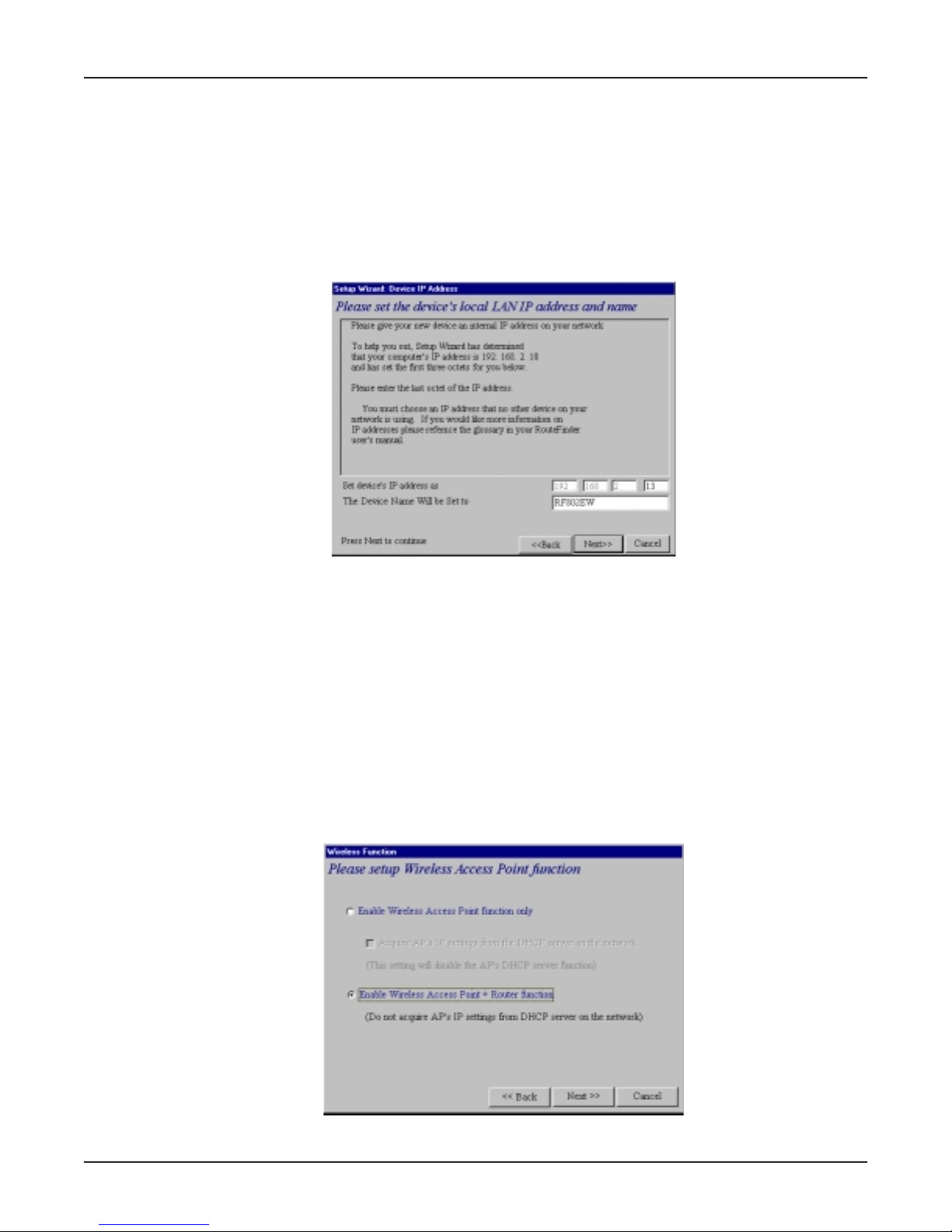

6. The Setup Wizard: Device IP Address dialog box displays.
•Enter your local internal network’s IP address for this device.
The Setup Wizard will automatically detect the first three octets of your local IP address. You
must enter the last octet only.
•If you wish, you can change the network name of your RouteFinder. If your ISP requires
your device to have a name, you may use the name entered here.
•Click Next to continue. The device will search the network to ensure that the IP address is
valid. This may take several seconds.
Note: If your ISP provided you with an IP address, do not enter that address. Enter the IP
address for this device on your local network. Refer to the Glossary for additional
information on IP addressing.
7. The Wireless Function dialog box displays.
Select the function for the wireless port function by selecting Enable Wireless Access Point

18
Chapter 3 - Software Installation and Configuration
function only, or Enable Wireless Access Point + Router function. If you are using NAT
Enabled, you may also select Enable PPPoE.
•Select Enable Wireless Access Point function only to set AP’s IP manually or acquire
an IP address from a DCHP server.
•Select IP Routing (NAT Disabled)
to allow the RF802EW to function as a router
between the IP segment of the server and another IP segment. This option is ideal for
organizations needing to segment workgroups.
•Select Enable PPPoE
to use the RF802EW with a time-base, rather than fixed-cost DSL
modem connection. Enter the User Name and Password provided by your ISP. This
option is most often used when connecting via DSL to the Internet.
Note: Enable PPPoE is valid only when IP Routing (NAT Enabled) is selected.
Click Next.accessing the Internet. This option is most often used when the RF802EW is
connected to a DSL or cable modem, or when the IP segment of the server needs
firewall protection.
8. The Wireless Settings dialog box displays.
In the ESSID box, enter the wireless ID. Wireless is the default ID. From the Channel list, select
a channel. 6is the default channel. All workstations must have the same ESSID Make sure that
the channel is correct for your network.
Click Next.
9. The Select Function dialog box displays.
Select IP Routing (NAT Disabled) to allow the RF802EW to function as a router between IP
segments. This option is ideal for organizations needing to segment workgroups.

19
Chapter 3 - Software Installation and Configuration
Select Enable PPPoE to use the RF802EW with a time-base, rather than fixed-cost DSL modem
connection. Enter the User Name and Password provided by your ISP. This option is most often
used when connecting via DSL to the Internet.
Note: Enable PPPoE is valid only when IP Routing (NAT Enabled) is selected.
Click Next.
10. The External IP Assignment dialog box displays.
Enter the WAN Ethernet IP address information provided by your ISP or other external network
administrator.
•In the External IP Address box, enter the WAN Ethernet IP Address.
•In the External IP Netmask box, enter the Netmask of the WAN Ethernet IP Segment. For Class
C networks, the Netmask is generally set to 255.255.255.0).
•In the External Gateway IP Address box, enter the IP address of the Gateway to the destination
network.
Note: If your ISP uses dynamic IP addressing (DHCP), leave the External IP address and the
External Gateway IP address at the default values of 0.0.0.0. Set the External IP Netmask to the
default value of 255.255.255.0.
Click Next.
11. The Asynchronous port function dialog box displays. Select 1) Remote Access, 2) IP
Routing (NAT Enabled) or 3) IP Routing (NAT Disabled).
•Select Remote Access to allow remote users to dial-in to the network to access resources as if
the remote user is connected to the network locally. See the Remote Access instructions for
more information.

20
Chapter 3 - Software Installation and Configuration
•Select IP Routing (NAT Enabled) to allow all users in the two IP segments (LAN and WAN
Ethernet) to share one IP address to the Internet. You may also select this option to use the
serial async port for dial backup in the event the DSL or cable modem becomes unavailable.
•Select IP Routing (NAT Disabled)
to connect other IP segments through the serial async port.
See the IP Routing instructions continue on page 26.
Note: The IP Routing (NAT Enabled) feature of the serial async port is valid only if the WAN port
is configured as NAT Disabled.
Click Next.

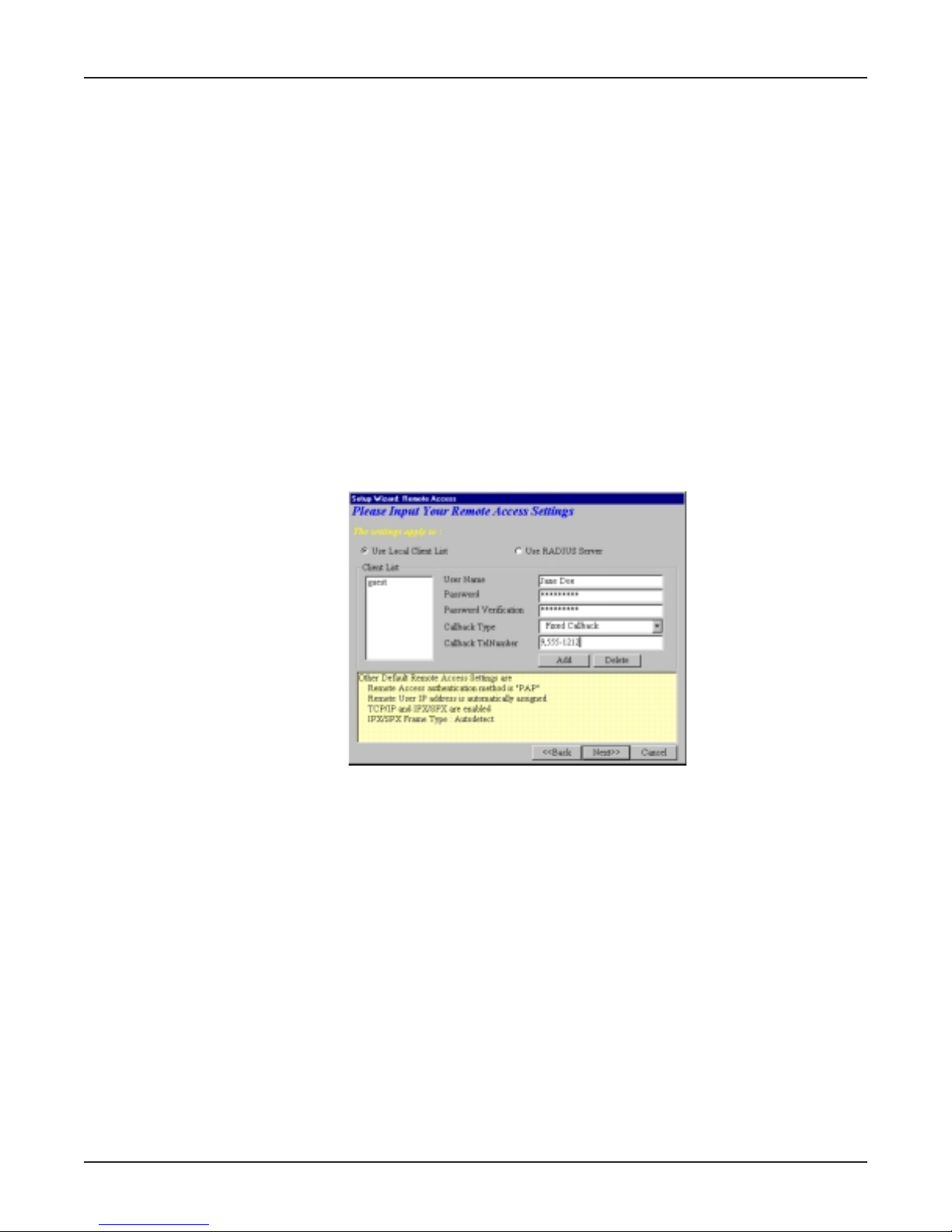

Remote Access
You must define the location of your remote user account database by selecting Use Local Client
List or Use RADIUS Server.
Note: The Local Client List allows you to add a maximum of 64 users.
Use Local Client List
Use Local Client List allows you to create an authentication database consisting of user names,
passwords and dial-in options for each remote user. You must provide the following information for
each client:
User Name
Enter the User Name to authenticate the remote dial-in user.
Password
Enter the Password to authenticate the remote dial-in user. Passwords are limited to 16 characters.
Password Verification
Re-enter the remote dial-in user’s password.
Callback Type
Select one of the following three callback options for each remote client:
• No Callback : Select this option to allow the remote user to immediately connect to the network after
being authenticated. This is the default setting.
• Fixed Callback : This option allows you to specify a fixed callback telephone number for the user.
After the PPP negotiation, the device will disconnect, then callback the telephone number you
entered. This option is best used for clients requiring callback security while dialing-in from the same
location each time.
