Murray EV3850x4B 3.8 User manual

F–041104L
Caution:
Read and follow all Safety Rules
and Operating Instructions before
first use of this product.
Model EV3850x4B
3.8 Horsepower
9 Inch Blade
Edge / Bevel Cut
EDGER

2
F–041104L
TABLE OF CONTENTS
WARRANTY STATEMENT 2. . . . . .
SAFETY RULES 3. . . . . . . . . . . . . . .
INTERNATIONAL SYMBOLS 5. . . .
ASSEMBLY 6. . . . . . . . . . . . . . . . . . .
OPERATION 9. . . . . . . . . . . . . . . . . .
MAINTENANCE 14. . . . . . . . . . . . . . .
TROUBLE SHOOTING CHART 18. .
REPAIR PARTS 19. . . . . . . . . . . . . . .
WARRANTY STATEMENT
LIMITED TWO–YEAR WARRANTY ON EDGER
For two years from the date of purchase, when this Edger is maintained, lubricated, and
tuned up according to the operating and maintenance instructions in the owner’s manual,
Murray will repair, free of charge, any defect in material or workmanship.
If this Edger is used for commercial or rental purposes, this warranty applies for only 90 days
from the date of purchase.
This warranty does not cover the following:
SExpendable items which become worn during normal use, such as spark plugs, etc.
SRepairs necessary because of operator abuse or negligence, including bent crank shafts
and the failure to maintain the equipment according to the instructions contained in the
owner’s manual.
WARRANTY SERVICE IS AVAILABLE BY RETURNING THE Edger TO THE NEAREST
AUTHORIZED SERVICE CENTER IN THE UNITED STATES. THIS WARRANTY AP-
PLIES ONLY WHILE THIS PRODUCT IS IN USE IN THE UNITED STATES.
This Murray, Inc. Limited Warranty gives you specific legal rights, and you may also have
other rights which vary from state to state. This Limited Warranty is given in lieu of all
other expressed and implied warranties including the implied warranty of merchant-
ability and warranty of fitness for a particular purpose. If you need additional informa-
tion on this written warranty or assistance in obtaining service, write or call: MURRAY, INC.
Customer Service Department, P.O. Box 268, Brentwood, Tennessee 37027,
1–800–251–8007
Engine Exhaust, some of its constituents, and
certain vehicle components contain or emit
chemicals known to the State of California to
cause cancer and birth defects or other repro-
ductive harm.
Battery posts, terminals and related accesso-
ries contain lead and lead compounds, chemi-
cals known to the State of California to cause
cancer and birth defects or other reproductive
harm. WASH HANDS AFTER HANDLING.

SAFETY RULES
3
F–041104L
Safe Operation Practices for Edger.
WARNING: Look for this symbol to point out important safety precautions.
It means: “Attention! Become Alert! Your Safety Is Involved.”
WARNING: To prevent acciden-
tal starting when setting–up,
transporting, adjusting or mak-
ing repairs, always disconnect spark
plug wire and put wire where it cannot
contact the spark plug .
Before Use
SRead the owner’s manual carefully. Be
thoroughly familiar with the controls and
the proper use of the Edger. Know how to
stop the Edger and disengage the controls
quickly.
SDo not operate the Edger without wearing
adequate outer garments. Wear footwear
that will improve footing on slippery sur-
faces.
SKeep the area of operation clear of all per-
sons, particularly small children and pets.
SThoroughly inspect the area where the
Edger is to be used and remove all foreign
objects.
Fuel Safety
SHandle fuel with care; it is highly flam-
mable.
SUse an approved container.
SCheck fuel supply before each use, allow-
ing space for expansion as the heat of the
engine and/or sun can cause fuel to ex-
pand.
SFill fuel tank outdoors with extreme care.
Never fill fuel tank indoors. Replace fuel
tank cap securely and wipe up spilled fuel.
SNever remove the fuel tank cap or add fuel
to a running or hot engine.
SNever store fuel or Edger with fuel in the
tank inside a building where fumes may
reach an open flame.
Operating Safety
SNever allow children or young teenagers to
operate the Edger. Keep them away while
it is operating. Never allow adults to oper-
ate the Edger without proper instruction.
SDo not operate this machine if you are tak-
ing drugs or other medication which can
cause drowsiness or affect your ability to
operate this machine.
SDo not use this machine if you are mentally
or physically unable to operate this ma-
chine safely.
SAlways wear safety glasses or eye shields
during operation or while performing an
adjustment or repair to protect your eyes
from foreign objects that may be thrown
from the Edger.
SDo not put hands or feet near or under ro-
tating parts.
SExercise extreme caution when operating
on or crossing gravel drives, walks, or
roads. Stay alert for hidden hazards or
traffic.
SExercise caution to avoid slipping or falling.
SNever operate the Edger without proper
guards, plates, or other safety protective
devices in place.
SNever operate the Edger at high transport
speeds on slippery surfaces. Look behind
and use care when backing.
SNever allow bystanders near the
Edger.
SKeep children and pets away while
operating.
SNever operate the Edger without good visi-
bility or light.
SDo not run the engine indoors. The ex-
haust fumes are dangerous, containing
CARBON MONOXIDE, an ODORLESS
and DEADLY GAS.
STake all possible precautions when leaving
the Edger unattended. Stop the engine.
SDo not overload the Edger capacity by at-
tempting to till too deep at too fast a rate.

SAFETY RULES
4
F–041104L
Safe Storage
SAlways refer to the owner’s manual instruc-
tions for important details if the Edger is to
be stored for an extended period.
SNever store the Edger with fuel in the fuel
tank inside a building where ignition
sources are present such as water and
space heaters, clothes dryers, and the like.
Allow the engine to cool before storing in
any enclosure.
SKeep the Edger in safe working condition.
Check all fasteners at frequent intervals for
proper tightness.
Repair / Adjustments Safety
SAfter striking a foreign object, stop the en-
gine. Remove the wire from the spark plug,
and keep the wire away from the plug to
prevent accidental starting. Thoroughly in-
spect the Edger for any damage, and re-
pair the damage before restarting and
operating it.
SIf Edger should start to vibrate abnormally,
stop engine and check immediately for the
cause. Vibration is generally a warning of
trouble.
SStop the engine whenever you leave the
operating position. Also, disconnect the
spark plug wire before unclogging the
blade and when making any repairs, ad-
justments, or inspections.
SWhen cleaning, repairing, or inspecting,
shut off the engine and make certain all
moving parts have stopped.
SNever attempt to make any adjustments
while the engine is running except when
specifically recommended by the manufac-
turer.

SAFETY RULES
5
F–041104L
INTERNATIONAL SYMBOLS
IMPORTANT: Many of the following symbols are located on your unit or on literature sup-
plied with the product. Before you operate the unit, learn and understand the purpose for
each symbol.
Control And Operating Symbols
Slow Fast
WARNING
Thrown Objects.
Keep Bystanders Away.
WARNING
Rotating Parts. Stop Engine.
Disconnect Spark Wire Before
Making Adjustments.
IMPORTANT
Read Owner’s Manual
Before Operating
This Machine.
WARNING
STOP
WARNING
Wear Eye Protection
Safety Warning Symbols
Fuel Oil

ASSEMBLY
6
F–041104L
ASSEMBLY
Parts Packed Separately In Carton
1 – Owner’s Manual (not shown)
1 – Container Of Oil
2 – Hair Pin
1 – Control Rod
1 – Container of Oil
1 – Hair Pin
1 – Control Rod
WARNING: Always wear safety
glasses or eye shields while as
-
sembling the Edger.

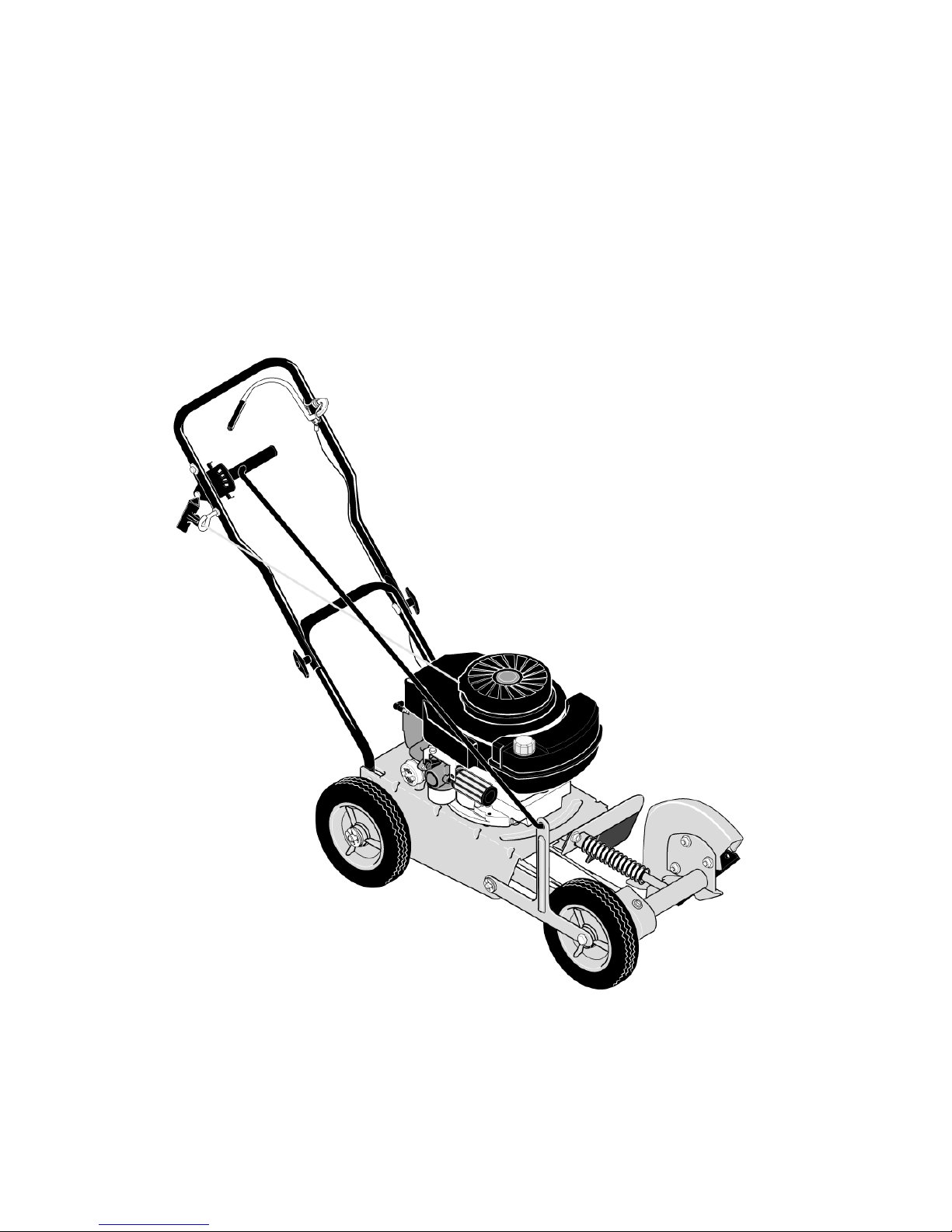

Figure 1 shows the Edger completely as-
sembled.
References to the right or left side of the
Edger are from the viewpoint of the opera-
tor’s position behind the unit.
REMOVE THE EDGER FROM THE
CARTON
1. Remove the bottle of oil and parts bag
from the carton.
2. Cut down all four corners of the carton.
3. Remove the packing material positioned
around the front and rear of the unit.
Leave the packing material on the bot-
tom of the unit until the control rod is as-
sembled. This will keep the front wheel
in a stable position.
4. Lift the Edger out of the carton and place
on a hard level surface.
Figure 1

ASSEMBLY
7
F–041104L

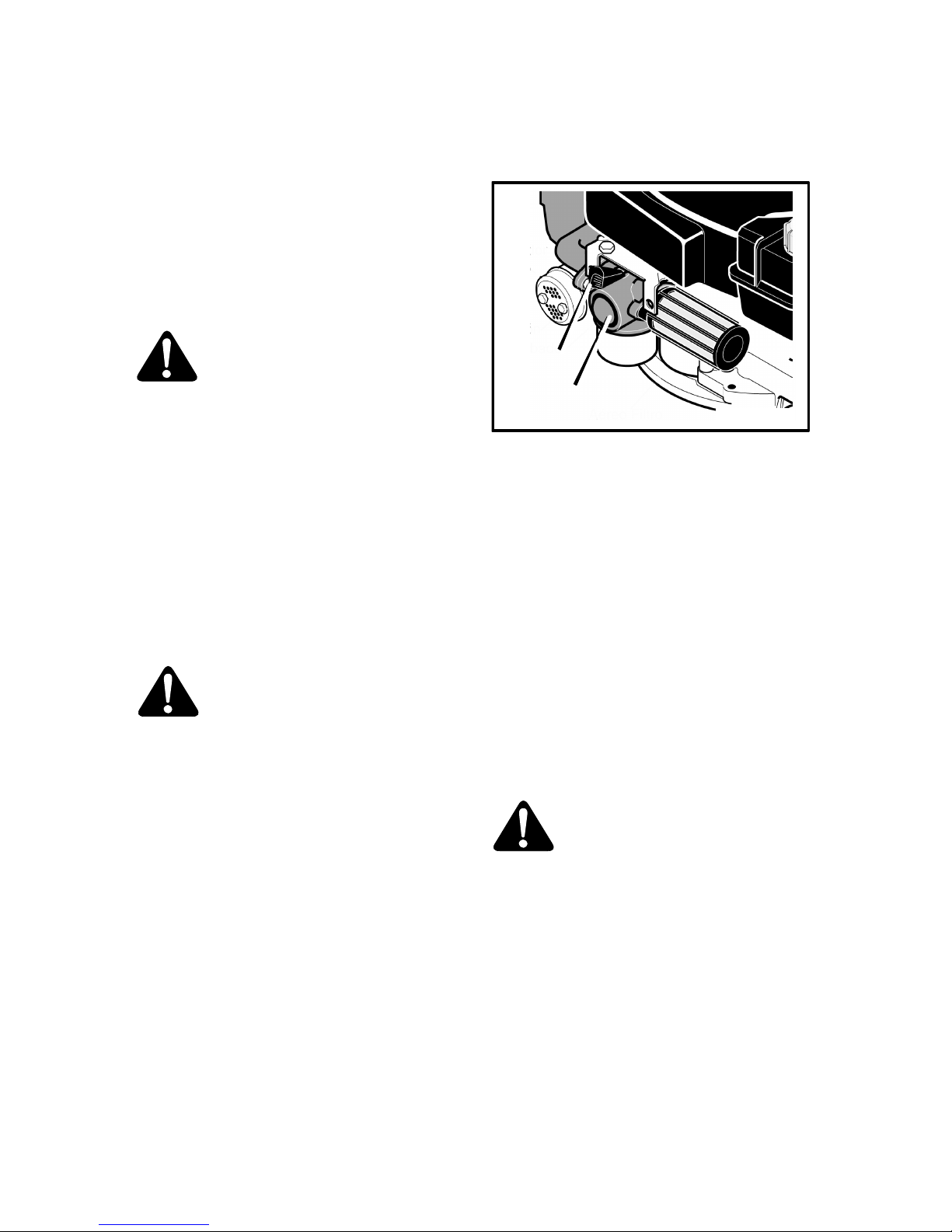

HOW TO RAISE THE HANDLE
1. Loosen the knobs and raise the upper
handle to the upright position. See
Figure 2.
2. Tighten the knobs. Make sure the
knobs are to the outside of the handles
as shown in Figure 2.
3. Insert the end of the control rod, from
RIGHT to LEFT, through the hole in the
front wheel arm. Attach with hair pin
found in parts bag. See Figure 3.
4. Push down on the handle to tilt the unit
back.
5. Insert the other end of the control rod,
from RIGHT to LEFT, through the hole in
the depth control lever and fasten with
hair pin. See Figure 4.
6. Move the depth control lever forward to
the STARTING and TRANSPORT posi-
tion.
7. Remove any packing material from the
bottom of the unit.

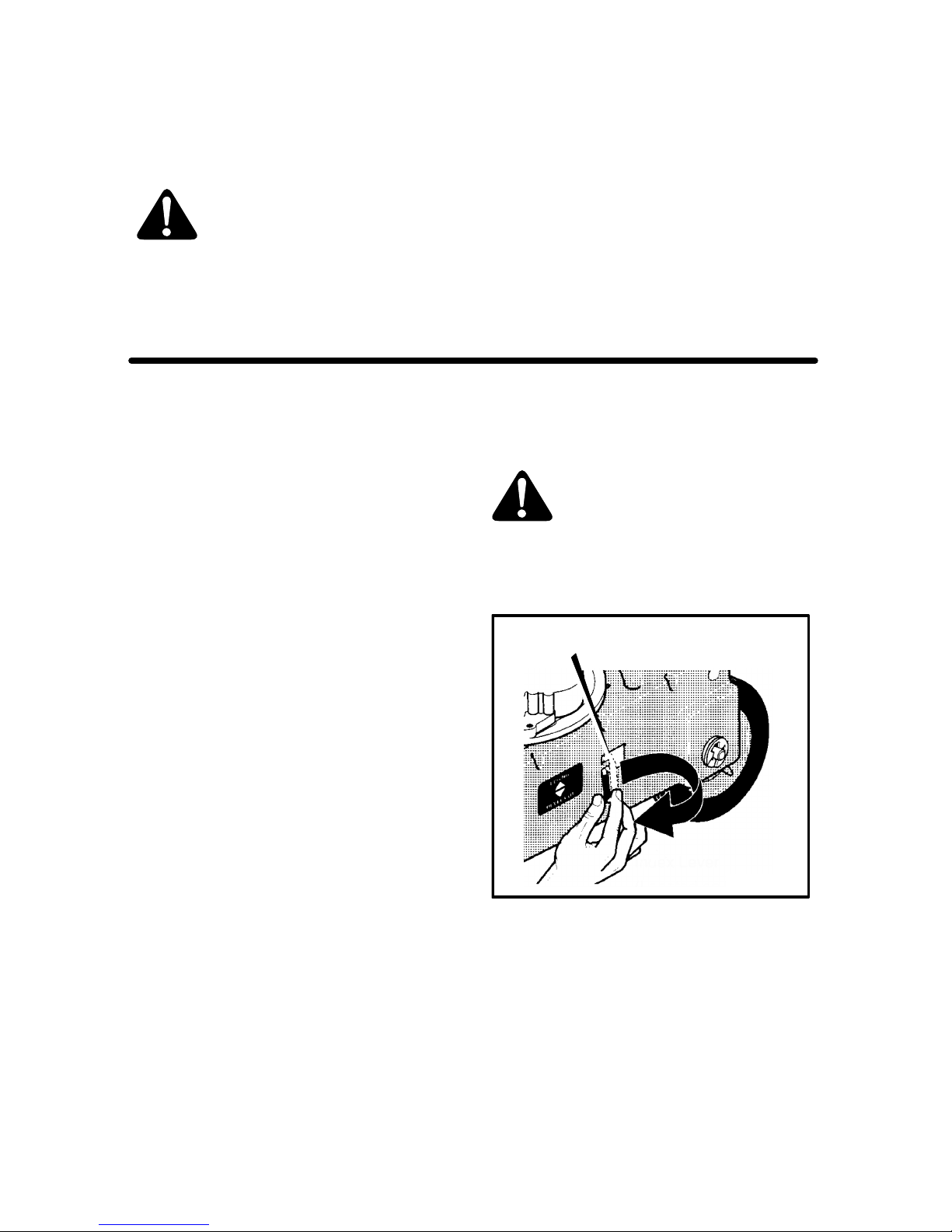

8. To attach the recoil starter rope to the
rope guide, twist the recoil starter rope
through the rope guide. See Figure 5.
Figure 2
Upper
Handle
Knobs
Control
Rod
Figure 3
Control
Rod
Hair Pin
Front
Wheel Arm
Figure 4
Depth Control
Lever
Hairpin
Control Rod
Figure 5
Rope Guide
Recoil Starter
Rope

ASSEMBLY
8
F–041104L
HOW TO PREPARE THE ENGINE
ENGINE DOES NOT CONTAIN
OIL OR GASOLINE
See the engine manufacturer’s instructions
for the type of gasoline and oil to use. Before
you use the unit, read the information on
safety, operation, maintenance, and storage.
This Edger was shipped with a 20 ounce
container of SAE30 motor oil. Add this oil to
the engine before operating. To fill the crank-
case, remove the oil fill cap/dipstick and add
the SAE30 motor oil. DO NOT OVERFILL.
NOTE: The engine may contain a small
amount of oil. When adding oil, frequently
insert the oil fill cap/dipstick and check
the amount of oil in the engine. DO NOT
OVERFILL.
WARNING: Follow the engine
manufacturer’s instructions for
the type of gasoline and oil to
use. Always use a safety gasoline con-
tainer. Do not smoke when adding gaso-
line to the engine. When inside an en-
closure, do not fill with gasoline. Before
you add gasoline, stop the engine. Let
the engine cool for several minutes.
IMPORTANT: This unit is equipped with an
internal combustion engine and must not
be used on or near any unimproved forest–
covered, brush–covered or grass–covered
land unless the engine’s exhaust system is
equipped with a spark arrester meeting ap-
plicable local or state laws (if any). If a
spark arrester is used, it must be main-
tained in effective working order by the op-
erator.
In the State of California the above is re-
quired by law (Section 4442 of the Califor-
nia Public Resources Code). Other states
may have similar laws. Federal laws apply
on federal lands. See an Authorized Ser-
vice Center for a spark arrester for the muf-
fler.
nCHECKLIST
For the best performance and satisfaction
from this quality product, please review the
following checklist before you operate the
Edger:
nAll assembly instructions have been
completed.
nCheck carton. Make sure no loose
parts remain in the carton.
nAll fasteners have been properly tight-
ened.
As you learn how to use the Edger, pay extra
attention to the following important items:
nn Engine oil is at proper level.
nn Fuel tank is filled with a fresh, clean,
regular Unleaded gasoline.
nn Become familiar and understand the
function of all controls. Before your
start the engine, operate all controls.

OPERATION
9
F–041104L

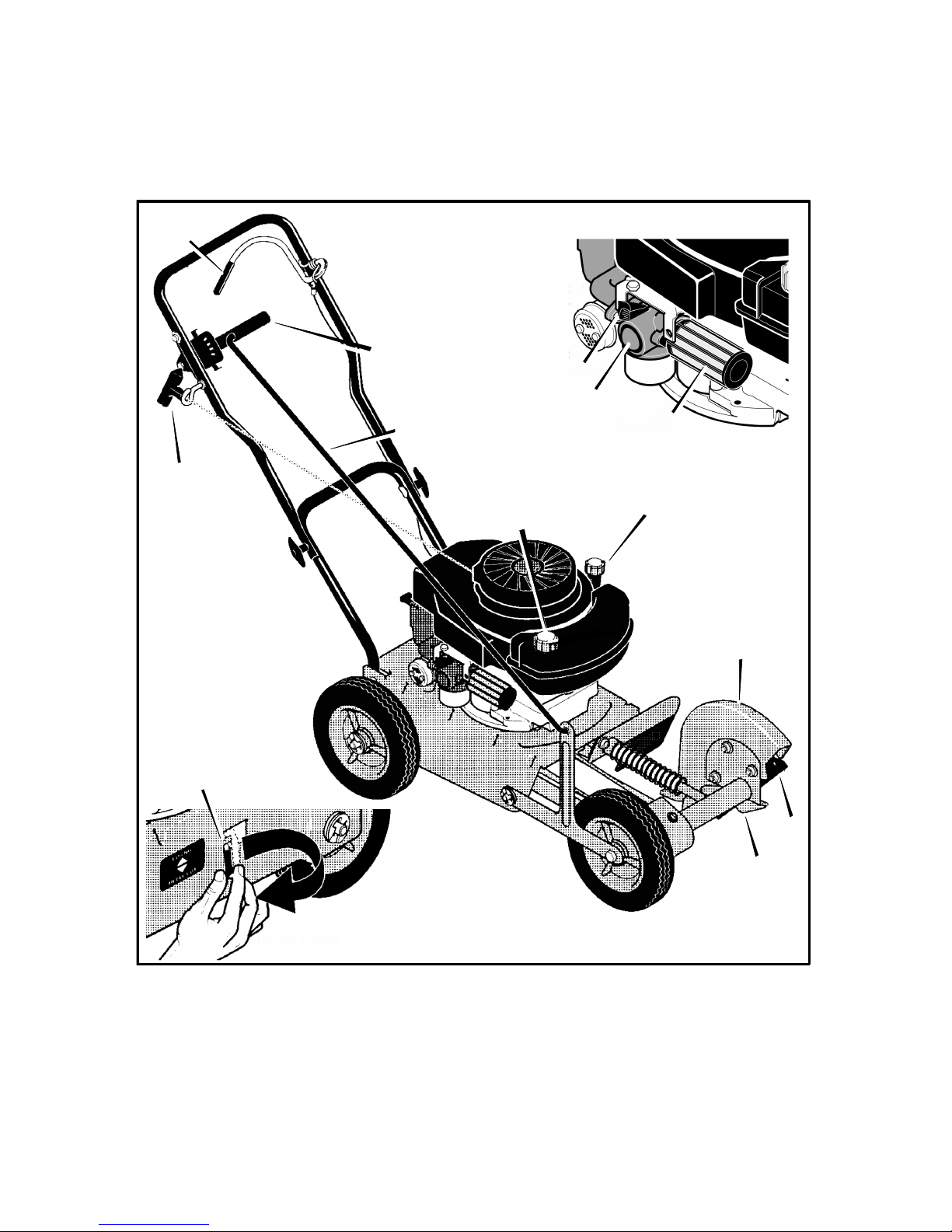

KNOW YOUR EDGER
READ THE OWNER’S MANUAL AND ALL SAFETY RULES BEFORE YOU OPERATE the
Edger. To familiarize yourself with the location of the controls, compare the illustrations with
your Edger. Save this manual for future reference.
Depth Control Lever
Engine Stop
Lever
Fuel Tank
Cap
Blade Guard
Recoil
Starter
Handle
Control Rod
Blade Guide
Blade
Figure 6
Primer Button
Oil Fill Cap
Throttle Control
Air Filter
Index Lever
(Located On Left
Side Of Edger)
Throttle Control – The engine is set to
run at full speed. The throttle control has
only two positions, RUN and STOP.
Primer Button – Injects fuel directly into
the carburetor for faster starts.
Recoil Starter Handle – The engine is
equipped with an easy pull recoil starter.
Index Lever – Set bevel cut.
Depth Control Lever – Controls depth of
cut.
Blade Guard – Use to prevent stones and
debris from being thrown at the operator.
Engine Stop Lever – Must be engaged
to allow the engine to start and run. Release
to stop the engine.

OPERATION
10
F–041104L
EYE PROTECTION
Always wear safety glasses. If you wear eye
glasses, put a Wide Vision Safety Mask over
your eye glasses.
WARNING: Debris thrown from
the Edger can result in foreign
objects being thrown into the
eyes, which can cause severe eye dam-
age. Always wear safety glasses or eye
shields when operating the Edger.
HOW TO USE THE INDEX LEVER
Bevel edging cuts a trench and reduces the
need to edge as often.
1. Stop the engine and disconnect the
spark plug wire from the spark plug.
2. Disengage the index lever from the
EDGING position and move to the
BEVEL position.
3. Reconnect the spark plug wire to the
spark plug.
4. Start the engine.
5. Move the depth control lever to the de-
sired height.
NOTE: For deep edging, first cut at shal-
low depths. Then, cut at greater depths
until the desired depth is obtained.
WARNING: While the engine is
running, never leave the Edger.
Before you adjust the wheels or
change the blade position, always dis-
engage the cutting blade and stop the
engine.
Figure 7
Index Lever

OPERATION
11
F–041104L
WARNING: When the engine
runs, the blade will rotate. To
prevent injury, keep hands and
feet away from blade.
HOW TO STOP THE EDGER
1. Move the depth control lever forward to
raise the blade. Then, release the engine
stop lever. See Figure 8.
WARNING: Never leave the
Edger unattended while the en-
gine is running. Always raise
the cutting blade and stop the engine.
HOW TO USE
THE ENGINE STOP LEVER
1. Release the engine stop lever and the
engine and the blade will automatically
stop. To run the engine, hold the engine
stop lever in the operating position. See
Figure 8.
2. If the engine continues to run, move the
throttle control to the STOP position (see
Figure 9).
IMPORTANT: Before you start the engine,
operate the engine stop lever several
times. Make sure the engine stop cable
moves freely. If the engine stop cable is
bent or damaged, replace the cable. If the
problem continues, take the Edger to an
Authorized Service Center to correct the
problem.
HOW TO USE
THE DEPTH CONTROL LEVER
1. Start the engine.
2. To lower the cutting blade, pull the depth
control lever back.
3. Select the edging depth that you need.
There are three selections with an
approximately depth of two inches.
NOTE: For deep edging, first cut at shal-
low depths. Then, cut at greater depths
until the desired depth is obtained.
Figure 8
Depth
Control
Lever
Engine Stop Lever
(Operating Position)
HOW TO USE
THE PRIMER BUTTON
When starting a cold engine, push the prim-
er button five times (see Figure 9). Wait
approximately two seconds between each
push.
IMPORTANT: When starting a warm en-
gine, do not use the primer button.
HOW TO USE
THE THROTTLE CONTROL
1. The engine is designed to operate at full
speed. The throttle control has only two
positions, RUN and STOP. When operat-
ing, the throttle control must be in the
RUN position. (see Figure 9).
Primer
Button Figure 9
Throttle
Control

OPERATION
12
F–041104L
HOW TO STOP THE ENGINE
To stop the engine, release the engine stop
lever. If the engine continues to run, move
the throttle control to the STOP position.
If the engine will not stop, hold a screwdriver
against the spark plug and against the en-
gine cooling fins. The spark will go to ground
and the engine will stop.
HOW TO START THE ENGINE
WARNING: When the engine
runs, the blade will rotate. To
prevent injury, keep hands and
feet away from blade.
IMPORTANT: Before you start the engine,
move the edger to the desired location. Op-
erate the controls several timer. Make sure
all controls move freely.
1. Check the oil.
2. Fill the fuel tank with regular unleaded
gasoline. Make sure the gasoline is
clean. Leaded gasoline will increase de-
posits and shorten the life of the valves.
NOTE: Do not use gasohol or methanol. Do
not use premium unleaded gasoline.
WARNING: Always use a safety
gasoline container. Do not
smoke when adding gasoline to
the fuel tank. When inside an enclo-
sure, do not add gasoline. Before you
add gasoline, stop the engine and let
the engine cool for several minutes.
3. Make sure the spark plug wire is con-
nected to the spark plug.
4. Pull the engine stop lever back to the EN-
GAGED position. Hold the engine stop
lever against the handle.
5. When starting a cold engine, push the
primer button five times. Wait approxi-
mately two seconds between each push.
See Figure 10.
Primer
Button
Throttle
Control
Figure 10
NOTE: Do not use the primer button to start
a warm engine.
6. To start engine, hold the recoil starter
handle firmly with your right hand.
7. Quickly pull the recoil starter handle. DO
NOT allow the starter rope to snap back.
Let the starter rope slowly rewind. If en-
gine fails to start after three pulls, push
primer button two times and again pull
the recoil starter handle.
8. If the engine does not start in 5 or 6 tries,
see the instructions in the “Trouble
Shooting Chart”.
WARNING: Never run the en-
gine indoors or in a poorly ven-
tilated area. Engine exhaust
contains carbon monoxide, an odorless
and deadly gas. Keep hands, feet, hair
and loose clothing away from any mov-
ing parts. Avoid the muffler and sur-
rounding areas. Temperatures can ex-
ceed 150 degrees.

OPERATION
13
F–041104L
EDGING TIPS
SEdging is best performed when conditions
are dry. If the soil is to wet, dirt becomes
packed around the blade causing prema-
ture belt wear and decreased perfor-
mance.
SIf dirt does become packed around the
blade, stop the engine and remove the
wire from the spark plug. Remove the
packed dirt and debris from the blade.
SFor deep edging, first cut at shallow
depths. Then, cut at greater depths until
the desired depth is obtained.
SFor uniform edging, make sure the blade
guide rides on the surface.
SEdging can be customized by varying the
number of passes and by the distance the
blade is from the surface.
WARNING: Read the Owner’s
manual. Know location and
functions of all controls. Keep
all safety devices and shields in place.
Never allow children or uninstructed
adults to operate Edger. Shut off engine
before unclogging blade or making re-
pairs. Keep bystanders away from ma-
chine. Keep away from the blade all ro-
tating parts, which cause injury.

MAINTENANCE
14
F–041104L
CUSTOMER RESPONSIBILITIES
SERVICE
RECORDS
Fill in dates as you
complete regular
service
After
First
2
Hours
Before
Each
Use Often
Every
10
Hours
Every
25
Hours
Before
Each
Season
Before
Storage
SERVICE
DATES
Lubricate All Pivot
Points √ √
Lubricate Wheel
Axles √ √
Check Engine Oil
Level √
Check Spark Plug √ √
Check Drive Belt √
Tighten All Fasteners √ √
Check Blade For
Wear Or Damage √
GENERAL RECOMMENDATIONS
The warranty on this Edger does not cover
items that have been subjected to operator
abuse or negligence. To receive full value
from the warranty, the operator must main-
tain the Edger as instructed in this manual.
Some adjustments must be made periodical-
ly to properly maintain your Edger.
All adjustments in the Service and Adjust-
ments section of this manual must be
checked at least once each season.
ENGINE MAINTENANCE
Use the following maintenance section to
keep your unit in good operating condition.
All the maintenance information for the en-
gine is in the “Engine Instruction Book”. Be-
fore you start the engine, read this book.
LUBRICATION
1. After each 25 hours, apply a small amount
of engine oil to all moving parts, particular-
ly the wheels.
2. To lubricate the engine, refer to the “En-
gine Instruction Book”.

SERVICE AND ADJUSTMENT
15
F–041104L
HOW TO REMOVE THE BELT
The belt made of a special compound. If the
belt becomes worn or breaks, replace the
belt with an original equipment belt.
1. Disconnect the spark plug wire from the
spark plug.
2. Drain the gasoline and oil from the en-
gine.
3. Tip the Edger backwards on the handle.
Block the top of the handle against a wall
or under a bench.
4. Remove the screws from the belt guard
(see Figure 11).
5. To compress the spring and release ten-
sion on the belt, push the blade bearing
housing back toward the engine (see
Figure 12).
6. Carefully note the twist of the belt around
the engine pulley. Remove the old belt.
Replace with an original equipment belt.
7. To install a new belt, reverse the above
steps. Make sure to twist the new belt as
shown in Figure 12.
NOTE: If the belt is not installed properly,
the blade will not turn in the proper direc-
tion and can damage the blade or belt.
Figure 11
Screw
Screw
Belt Guard
Belt
Figure 12
Note Direction
Of Twist
Engine Pulley
Spring
Blade Housing Bearing

SERVICE AND ADJUSTMENT
16
F–041104L
HOW TO REPLACE THE BLADE
The blade is subject to wear and damage,
such as nicks and dents. This will not gener-
ally affect its function.
The blade is designed to not require sharp-
ening. Do not attempt to sharpen the blade.
The blade is also reversible. If nicks or
dents are excessive, remove the blade and
turn it around. This will provide a fresh cut-
ting edge. Replace the blade if both sides
are worn or damaged.
WARNING: Do not sharpen the
blade. Sharpening can damage
the blade and cause it to break,
which can cause injury to yourself or to
others.
To replace the blade, follow the steps below.
1. Disconnect the spark plug wire from the
spark plug.
2. Remove the blade locknut that holds
the blade to the drive shaft.
WARNING: To remove or tigh-
ten the blade locknut, always
use the method shown in
Figure 13. Always position the holding
wrench on the nut behind the blade.
3. Remove the blade.
4. Install a new blade and blade locknut.
Tighten the blade locknut to a torque of
40–45 foot pounds.
Figure 13
Blade Locknut
Turn Wrench
To Tighten Locknut
Hold Nut,
Do Not Turn

SERVICE AND ADJUSTMENT
17
F–041104L
STORAGE
WARNING: Never store the
Edger indoors with fuel in the
fuel tank. Never store in an en-
closed, poorly ventilated area where
fumes could reach an open flame, a
spark or a pilot light as on a furnace, wa-
ter heater or clothes dryer.
WARNING: Do not remove gas
-
oline while inside a building,
near a fire, or while you smoke.
Gasoline fumes can cause an explosion
or a fire.
When the Edger is put in storage for thirty
days or more, follow the steps below to
make sure the Edger is in good condition the
following season.
1. Drain the fuel tank.
2. Let the engine run until it is out of gaso-
line.
3. Drain the oil from the warm engine. Fill
the engine crankcase with new oil.
4. Remove the spark plug from the cylin-
der. Pour one ounce of oil into the cylin-
der. Slowly pull the recoil–start grip so
that the oil will protect the cylinder. Install
a new spark plug in the cylinder.
5. Clean the dirt and debris from the cylin-
der cooling fins and the engine housing.
6. Completely clean the Edger.
7. Check the Edger for worn or damaged
parts. Tighten all loose hardware.
8. Apply a small amount of engine oil to all
moving parts, particularly the wheels.
9. Put the unit in a building that has good
ventilation.
10. Cover the Edger with a suitable protec-
tive cover that does not retain moisture.
Do not use plastic.
IMPORTANT: Never cover the Edger while
the engine and exhaust areas are still
warm.
NOTE: A yearly checkup or tune–up by
an Authorized Service Center is a good
way to make sure that your Edger will
provide maximum performance for the
next season.

TROUBLE SHOOTING CHART
18
F–041104L
TROUBLE CAUSE CORRECTION
Engine difficult to start Stale fuel Drain fuel tank. Fill with fresh
fuel.
or Clogged fuel filter Replace fuel filter
Engine runs erratically
Dirt in fuel tank or out of fuel Clean fuel tank.
Engine runs erratically
or
Carburetor out of adjustment See Carburetor Adjustment
section.
or
Engine will not run at full
Fouled spark plug Clean and set spark plug
gap.
E
ng
i
ne
w
ill
no
t
run
a
t f
u
ll
speed Dirty air filter Replace air filter.
Engine smokes
excessively
Plugged air filter Replace air filter.
Debris interfering with blade Clean debris from blade.
Cutting blade will not
rotate
Loose blade Tighten blade nut.
rotate
Defective V–belt Replace V–belt.
Blade will not cut properly
Defective quill bearings Replace the quill assembly.
Bl
a
d
e
w
ill
no
t
cu
t
proper
l
y
Damage or worn blade Reverse the blade or replace
the blade.
Excessive vibration Loose parts Stop engine immediately.
Tighten all fasteners. If
vibration continues, take the
unit to an Authorized Service
Center.

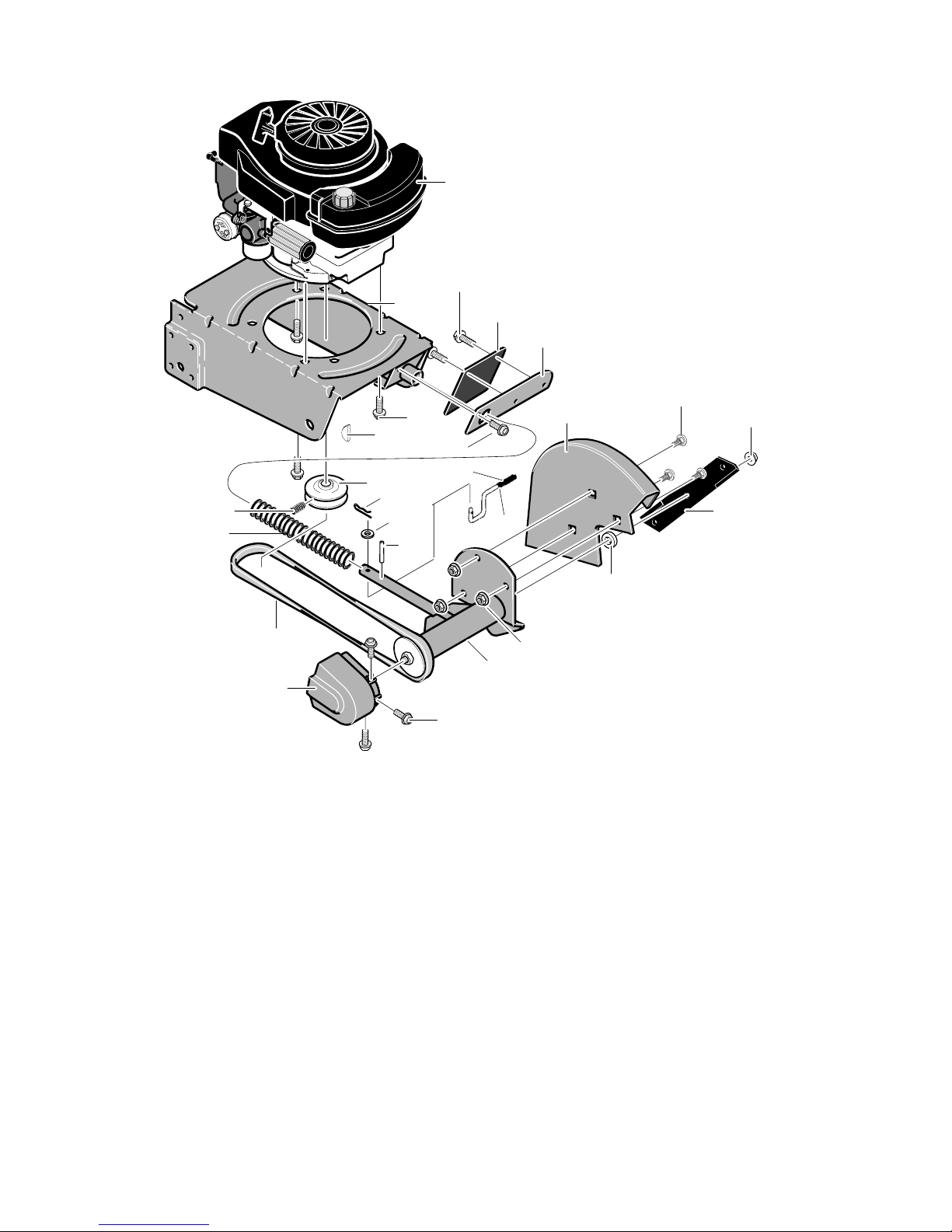

MODEL EV3850x4B
19
F–041104L
317
100
12
21
20
314
310 311 316
315
300
321
320
305
301
22
10
313
321
318
321
334
302
332
343714C
328
329
KEY
NO DESCRIPTION PART NO
KEY
NO DESCRIPTION PART NO
10 Engine –––––
12 Screw 0025x6
20 Pulley, V3L 52052
21 Key, Hi Pro #505 338490
22 Screw, Set 120580
100 Frame, Edger 740124E245
300 Quill Assembly 740096
301 Spring 51603
302 Spring Pin 412281
305 Belt, V4L 32668
310 Blade Guard 331076E245
311 Bolt, Carriage 002x53
313 Nut, 5/16–18 15x88
314 Flat washer 22265
315 Blade, Edger 740297
316 Nut, 1/2–20 46023
317 Deflector, Rubber 338582
318 Plate, Rubber Flap 337792E245
320 Belt Guard 336631
321 Screw, 10–16x.50 26x245
328 Lever, Blade 740004
329 Grip, Blade Lever 091079
332 Washer 783641
334 Pin, Hair 36368
–– Instruction Manual F–041104L

MODEL EV3850x4B
20
F–041104L
REF.
FRAME ASSY.
REF.
ENGINE WIRE
REF.
FRONT WHEEL ARM
403
423
402
427
424
401
415
423
423
416
417
420
411
406
412
409
421
418
422
419
407
408
410
427
405
426
425
343712C
428
428
