CONTENTS
HAZARD SYMBOLS AND THE MEANINGS 8. . . . . . . . . . .
OPERATING SYMBOLS AND THEIR MEANINGS 8. . . . .
RULES FOR SAFE OPERATION 9. . . . . . . . . . . . . . . . . . . .
ASSEMBLY 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
OPERATION 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
MAINTENANCE 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
MAINTENANCE CHART 13. . . . . . . . . . . . . . . . . . . . . . . . . . .
TROUBLE SHOOTING CHART 15. . . . . . . . . . . . . . . . . . . . .
LIMITED WARRANTY 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
General Information
This instruction book is written for a person with some mechanical ability.
Like most service books, not all the steps are described. Steps on how to
loosen or tighten fasteners are steps anyone can follow with some
mechanical ability. Read and follow these instructions before you use the
unit.
Know your product: If you understand the unit and how the unit
operates, you will get the best performance. As you read this manual,
compare the illustrations to the unit. Learn the location and the function of
the controls. To help prevent an accident, follow the operating instructions
and the safety rules. Keep this manual for future reference.
IMPORTANT: Many units are not assembled and are sold in cartons. It is
the responsibility of the owner to make sure the assembly instructions in
this manual are exactly followed. Other units are purchased in an
assembled condition. On assembled units, it is the responsibility of the
owner to make sure the unit is correctly assembled. The owner must
carefully check the unit according to the instructions in this manual before
it is first used.

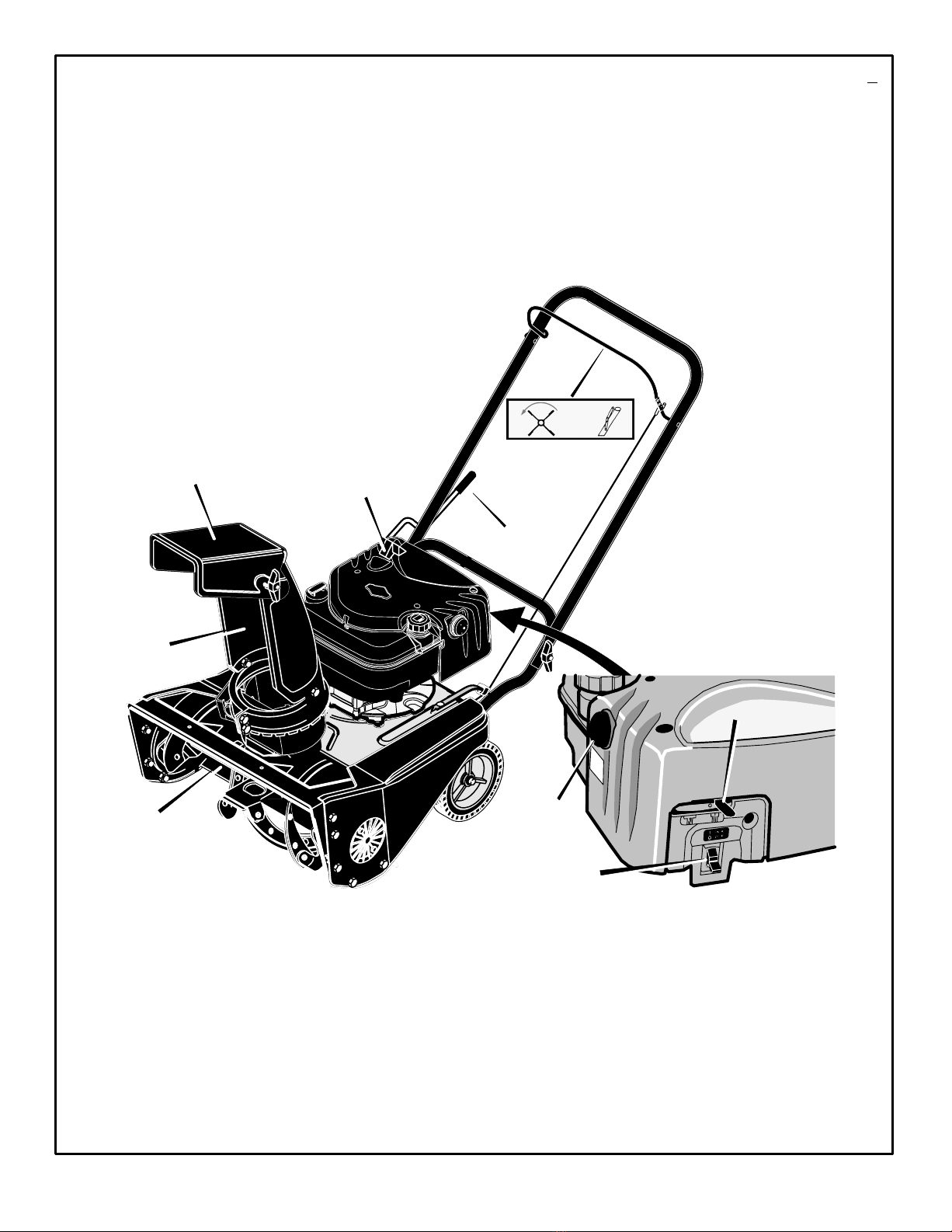

Controls & Equipment Features (see Figure 1)
Crank Assembly (2) −Changes the direction of the discharge chute.
Chute Deflector (3) −Changes the distance the snow is thrown.
Discharge Chute (4) −Changes the direction the snow is thrown.
Auger Drive Lever (5) −Starts and stops the auger (snow gathering and
throwing) which also propels the snowthrower..
Engine Features
Stop Switch (8) −If equipped, move to the ON position to start the
engine.
Primer Button (9) −Injects fuel directly into the carburetor for fast starts
in cold weather.
Recoil Starter Handle (12) −Use to manually start the engine.
Choke Control (14) −Use to start a cold engine.
MODEL NO.: 621401x117NA
SERIAL NO.:
3500 min-1 30 kg
SKU No.:
Assembled in Suzhou, China 215218
by Limac for The Partner Corporation
YYYY MM DD:
Declared vibration emission values in accordance with Directive 98/37/EC.
Vibration Emission according to EN 1033;1996: 7,1 m/s2.
Values determined at the handle when the machine was operated stationary on a
concrete surface at 3500 min−1.
Declared airborne noise emissions of LwA104 dB is in accordance with Directive
2000/14/EC, Annex V.
Sound Pressure Level at operator position 84 dB.
Values determined at ear according to the specifications of EN ISO 11201.
Declared airborne sound
power level of 104 dB(A) is in
accordance with Directive
2000/14/EC.

GB
8
1740212
This manual contains safety information to make you
aware of the hazards and risks associated with snow
throwers, and how to avoid them. The snow thrower is designed and
intended for removal of snow, and should not be used for any other
purpose. It is important that you read and understand these
instructions, and anyone operating the equipment read and understand
these instructions.
The engine exhaust from this product contains chemicals known to the
State of California to cause cancer, birth defects, or other reproductive
harm.
WARNING
A signal word (DANGER, WARNING, or CAUTION) is used with the alert
symbol to indicate the likelihood and the potential severity of injury. In
addition, a hazard symbol may be used to represent the type of hazard.
DANGER indicates a hazard which, if not avoided, will result in
death or serious injury.
WARNING indicates a hazard which, if not avoided, could result
in death or serious injury.
CAUTION indicates a hazard which, if not avoided, might result
in minor or moderate injury.
CAUTION, when used without the alert symbol, indicates a
situation that could result in damage to the equipment.
Hazard Symbols and the meanings
These symbols are used on your equipment and defined in your operating
manual. Review and understand the meanings. The use of one of these
symbols combined with a signal word will alert you to potential hazards
and how to avoid them.
Explosion
Toxic fumes Shock
Hot Surface
Fire
Operator’s Manual −Read and understand before
performing any activity or running equipment.
Safety Alert −Identifies safety information about
hazards that can result in personal injury.
Rotating auger
Rotating impeller
Rotating gears
Thrown objects
Keep a safe distance
from the equipment.
Shut off engine and remove spark plug connector
before performing maintenance or repair work.
Never reach into
rotating parts.
Recommended ear
protection for extended
use.
Operating Symbols and their meanings
These symbols are used on your equipment and defined in your operating
manual. It is important that you review and understand the meanings.
Failure to understand the symbols might result in harm to you.
Stop
Fuel
Choke off
Oil
Choke on
Slow
Fast
On Off
Ignition Key
Ignition Off
Ignition On
Primer bulb
Throttle
Drive Clutch
Auger Clutch
Engage
RIGHT
Auger Collector
Traction
Discharge Chute
LEFT UP DOWN
Foward
Neutral
Reverse
Push to engage
electric start
Electric
Start
Engine
Start
Engine Run
Engine Off
Chute Deflector
Engage
Disengage
Heated Grips
Engage

GB
9
1740212
WARNING: This machine is capable ofto amputating hands and feet and throwing objects. Read these safety rules
and follow them closely. Failure to obey these rules could result in loss of control of unit, severe personal injury or
death to you, or bystanders, or damage to property or equipment. The triangle in text signifies important cau-
tions or warnings which must be followed.
Safe Operation Practices for Snowthrowers
IMPORTANT: Safety standards require operator presence controls to
minimize the risk of injury. Your snowthrower is equipped with such con-
trols. Do not attempt to defeat the function of the operator presence con-
trol under any circumstances.
Training
1. Read, understand, and follow all instructions on the machine and in the
manuals before operating this unit. Be thoroughly familiar with the con-
trols and the proper use of the equipment. Know how to stop the unit
and disengage the controls quickly.
2. Never allow children to operate the equipment. Never allow adults to
operate the equipment without proper instruction.
3. Keep the area of operation clear of all persons, particularly small
children and pets.
4. Exercise caution to avoid slipping or falling especially when operating in
reverse.
Preparation
1. Thoroughly inspect the area where the equipment is to be used and
remove all doormats, sleds, boards, wires, and other foreign objects.
2. Disengage all clutches and shift into neutral before starting the engine
(motor).
3. Do not operate the equipment without wearing adequate winter outer
garments. Wear footwear that will improve footing on slippery surfaces.
Avoid loose fitting clothing that can get caught in moving parts.
4. Handle fuel with care; it is highly flammable.
a. Use an approved fuel container.
b. Never add fuel to a running engine or hot engine.
c. Fill fuel tank outdoors with extreme care. Never fill fuel tank indoors.
Replace fuel cap securely and wipe up spilled fuel.
d. Never fill containers inside a vehicle or on a truck or trailer bed with
a plastic liner. Always place containers on the ground, away from
your vehicle, before filling.
e. When practical, remove gas−powered equipment from the truck or
trailer and refuel it on the ground. If this is not possible, then refuel
such on a trailer with a portable container, rather than from a gaso-
line dispenser nozzle.
f. Keep nozzle in contact with the rim of the fuel tank or container
opening at all times, until refueling is complete. Do not use a nozzle
lock−open device.
g. Replace gasoline cap securely and wipe up spilled fuel.
h. If fuel is spilled on clothing, change clothing immediately.
5. Use extension cords and receptacles as specified by the manufactur-
er for all units with electric drive motors or electric starting motors.
6. Adjust the collector housing height to clear gravel or crushed rock
surfaces.
7. Never attempt to make any adjustments while the engine (motor) is
running (except when specifically recommended by manufacturer).
8. Let engine (motor) and snowthrower adjust to outdoor temperatures
before starting to clear snow.
9. Always wear safety glasses or eye shields during operation or while
performing an adjustment or repair to protect eyes from foreign objects
that may be thrown from the machine.
Operation
1. Do not put hands or feet near or under rotating parts. Keep clear of the
discharge opening at all times.
2. Exercise extreme caution when operating on or crossing gravel drives,
walks or roads. Stay alert for hidden hazards or traffic.
3. After striking a foreign object, stop the engine (motor), remove the wire
from the spark plug, disconnect the cord on electric motors, thoroughly
inspect snowthrower for any damage, and repair the damage before
restarting and operating the snowthrower.
4. If the unit should start to vibrate abnormally, stop the engine (motor)
and check immediately for the cause. Vibration is generally a warning
of trouble.
5. Stop the engine (motor) whenever you leave the operating position,
before unclogging the collector/impeller housing or discharge chute and
when making any repairs, adjustments, or inspections.
6. When cleaning, repairing, or inspecting, make certain the collector/im-
peller and all moving parts have stopped. Disconnect the spark plug
wire and keep the wire away from the spark plug to prevent accidental
starting.
7. Do not run the engine indoors, except when starting the engine and for
transporting the snowthrower in or out of the building. Open the outside
doors; exhaust fumes are dangerous (containing CARBON MONOX-
IDE, an ODORLESS and DEADLY GAS).
8. Exercise extreme caution when operating on slopes. Do not attempt to
clear steep slopes.
9. Never operate the snowthrower without proper guards, plates, or other
safety protective devices in place and working.
10. Never direct the discharge toward people or areas where property
damage can occur. Keep children and others away.
11. Do not overload the machine capacity by attempting to clear snow at
too fast a rate.
12. Never operate the machine at high transport speeds on slippery sur-
faces. Look behind and use care when operating in reverse.
13. Disengage power to the collector/impeller when snowthrower is trans-
ported or not in use.
14. Use only attachments and accessories approved by the manufacturer
of the snowthrower (such as cabs, tire chains, etc..).
15. Never operate the snowthrower without good visibility or light. Always
be sure of your footing and keep a firm hold on the handles. Walk,
never run.
16. Never touch a hot engine or muffler.
17. Never operate the snowthrower near glass enclosures, automobiles,
window wells, drop−offs, and the like without proper adjustment of the
snow discharge angle.
18. Never direct discharge at bystanders or allow anyone in front of the
unit.
19. Never leave a running unit unattended. Always disengage the auger
and traction controls, stop engine, and remove keys.
20. Do not operate the unit while under the influence of alcohol or drugs.
21. Keep in mind the operator is responsible for accidents occurring to
other people or property.
22. Data indicates that operators, age 60 years and above, are involved
in a large percentage of power equipment−related injuries. These
operators should evaluate their ability to operate the unit safely
enough to protect themselves and others from injury.
23. DO NOT wear long scarves or loose clothing that could become
entangled in moving parts.
24. Snow can hide obstacles. Make sure to remove all obstacles from
the area to be cleared.

GB
10
1740212
Children
Tragic accidents can occur if the operator is not alert to the presence of chil-
dren. Children are often attracted to the unit and the operating activity. Never
assume that children will remain where you last saw them.
1. Keep children out of the area and under the watchful care of another
responsible adult.
2. Be alert and turn off if children enter the area.
3. Never allow children to operate the unit.
4. Use extra care when approaching blind corners, shrubs, trees, or
other objects that may obscure vision.
Clearing A Clogged Discharge Chute
Hand contact with the rotating impeller inside the discharge chute is the
most common cause of injury associated with snowthrowers. Never use
your hand to clean out the discharge chute.
To clear the chute:
1. SHUT OFF THE ENGINE.
2. Wait 10 seconds to be sure the impeller blades have stopped rotating.
3. Always use a clean out tool, not your hands.
Service, Maintenance And Storage
1. Check shear bolts and other bolts at frequent intervals for proper tight-
ness to be sure the equipment is in safe working condition.
2. Never store the machine with fuel in the tank inside a building where
ignition sources are present such as hot water and space heaters, or
clothes dryers. Allow the engine to cool before storing in any enclosure.
3. Always refer to operator’s manual for important details if the snow-
thrower is to be stored for an extended period.
4. Maintain or replace safety and instruction labels as necessary.
5. Run the machine a few minutes after throwing snow to prevent freeze−
up of the collector/impeller.
6. If fuel is spilled, do not attempt to start the engine but move the ma-
chine away from the area of spillage and avoid creating any source of
ignition until fuel vapors have dissipated.
7. Always observe safe refueling and fuel handling practices when re-
fueling the unit after transportation or storage.
8. Always follow the engine’s manual instructions for storage preparations
before storing the unit for both short and long term periods,
9. Always follow the engine manual instructions for proper start-up pro-
cedures when returning the unit to service.
10. Maintain or replace safety and instruction labels as necessary.
11. Keep nuts and bolts tight and keep equipment in good condition.
12. Never tamper with safety devices. Check their proper operation regular-
ly and make necessary repairs if they are not functioning properly.
13. Components are subject to wear, damage, and deterioration. Frequent-
ly check components and replace with manufacturer’s recommended
parts, when necessary.
14. Check control operation frequently. Adjust and service as required.
15. Use only factory authorized replacement parts when making repairs.
16. Always comply with factory specifications on all settings and adjust-
ments.
17. Only authorized service locations should be utilized for major service
and repair requirements.
18. Never attempt to make major repairs on this unit unless you have been
properly trained. Improper service procedures can result in hazardous
operation, equipment damage and voiding of manufacturer’s warranty.
19. Check shear bolts (pins) and other bolts at frequent intervals for proper
tightness to be sure the equipment is in safe working condition.
Emissions
1. Engine exhaust from this product contains chemicals known, in certain
quantities, to cause cancer, birth defects, or reproductive harm.
2. If available, look for the relevant Emissions Durability Period and Air
Index information on the engine emissions label.
Ignition System
1. This spark ignition system complies with Canadian ICES-002.

GB
11
1740212
ASSEMBLY
Read and follow the assembly and adjustment
instructions for your snow thrower. All fasteners
are in the parts bag. Do not discard any parts or
material until the unit is assembled.
WARNING: Before doing any as-
sembly or maintenance to the snow
thrower, remove the wire from the
spark plug.
NOTE: In this instruction book, left and right
describe the location of a part from the oper-
ator’s position behind the unit.
NOTE: Torque is measured in foot pounds
(metric N.m). This measurement describes
how tight a nut or bolt must be. The torque is
measured with a torque wrench.

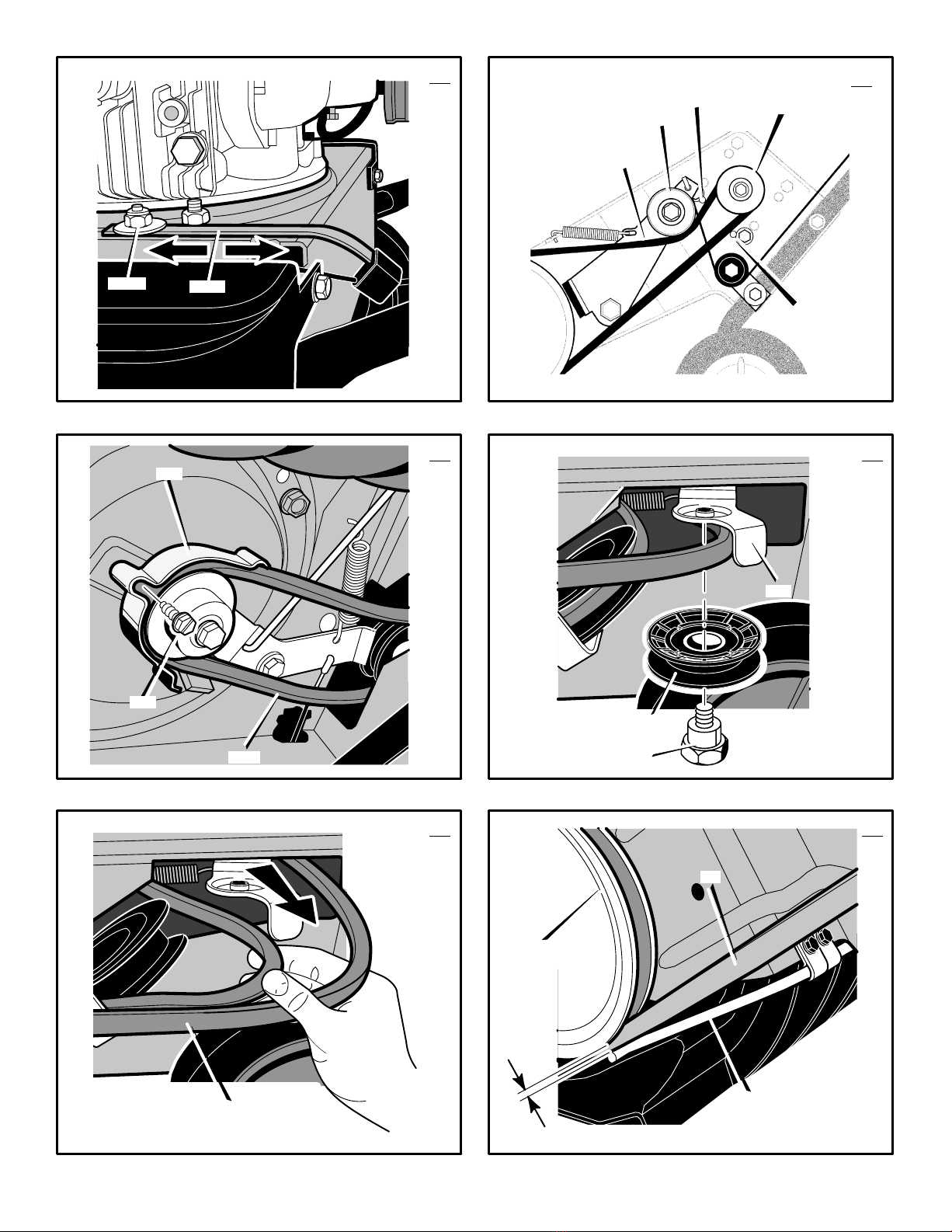

NOTE: Illustrations are located on page 2
and on pages 3 through 6.
Tools Required
1 Knife
1 Pliers
How To Remove The Snow Thrower
From The Carton
1. Locate and remove the container of oil.
2. Locate all parts that are packed separately
and remove from the carton.
3. Remove and discard the packing material
from around the snow thrower.
4. Cut down all four corners of the carton and
lay the side panels flat.
5. Hold onto the lower handle and pull the snow
thrower off the carton.
CAUTION: DO NOT back over cables.
6. Remove the packing material from handle
assembly. Remove the lower insert from the
axle.
How To Assemble The Handle
1. Remove the packing material from the upper
and lower handles.

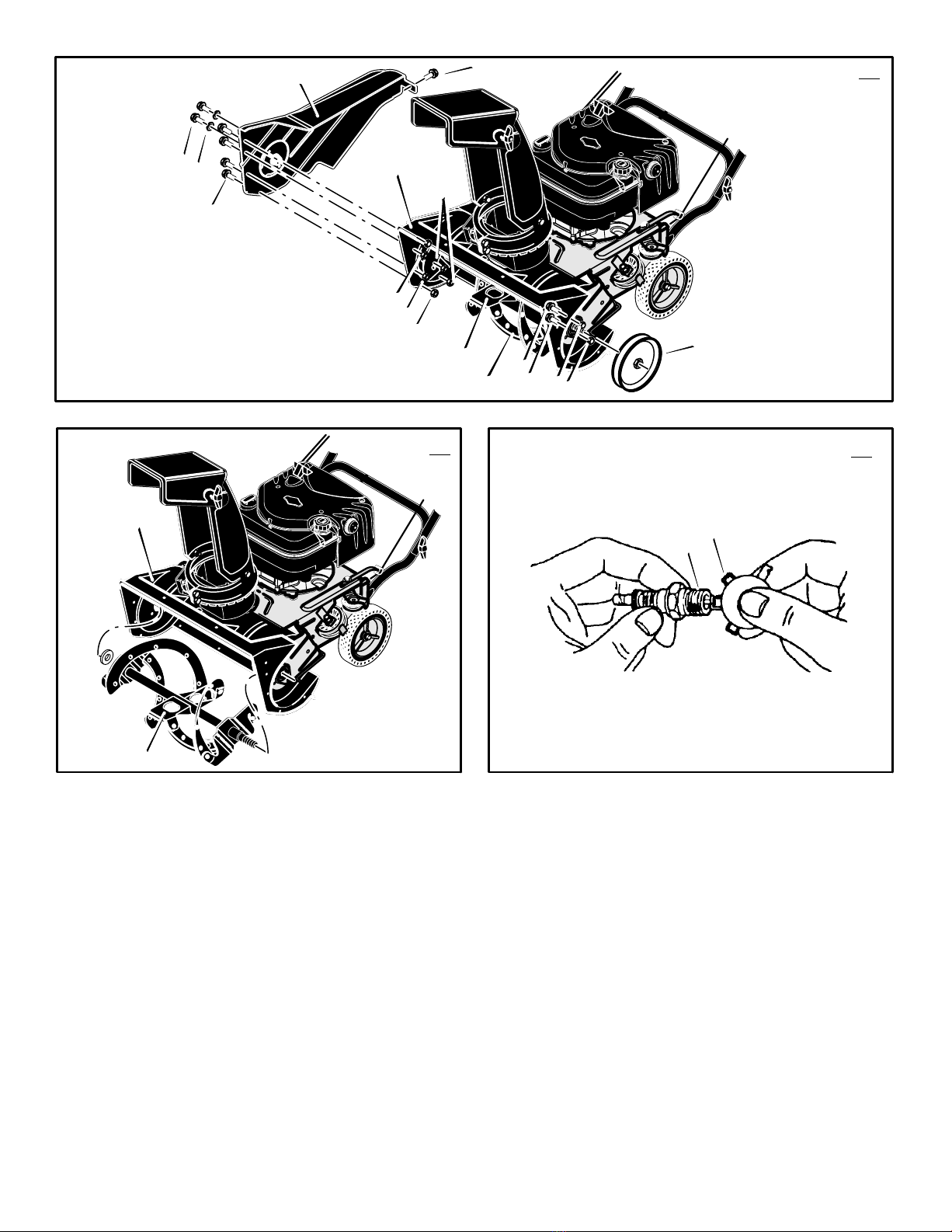

2. (Figure 2) Loosen the knobs (1) on each
side of the handle (2).
3. Raise the upper handle (2) to the operating
position. Hold the upper handle (2) apart to
prevent scratching the lower handle.
NOTE: Make sure the auger drive cable is
not caught between the upper and lower
handle.
4. Tighten the knobs (1).
How To Prepare The Engine
WARNING: Follow the engine
manufacturer’s instructions for the
type of fuel and oil to use. Always
use a safety fuel container. Do not smoke
when adding fuel to the fuel tank. When
inside an enclosure, do not fill the fuel
tank. Before you add the fuel, stop the en-
gine. Let the engine cool for several min-
utes.
See the engine manufacturer’s instructions for
the type of fuel and oil to use. Before you use
the unit, read the information on safety, opera-
tion, maintenance, and storage.
NOTE: Engine horsepower ratings may vary
by engine adjustments, manufacturing vari-
ances, altitude, atmospheric conditions, fuel
and maintenance.
Add Oil To The Engine (Figure 3)
NOTE: Engine may already contain some
residual oil. Check frequently when filling
the crankcase. DO NOT overfill.
The snow thrower was shipped with a container
of 5W30 motor oil. This oil must be added to the
engine before operating.
1. Make sure the unit is level.
2. Remove the oil fill cap/dipstick (1) and fill
the crankcase to “FULL” line on dipstick. DO
NOT overfill.
3. Tighten the oil fill cap/dipstick (1) securely
each time you check the oil level.
NOTE: Synthetic oil can assist with starting
in extreme cold temperatures. Synthetic
5W30 is acceptable for all temperatures. DO
NOT mix oil with petrol.
Add Petrol To The Engine
This engine is certified to operate on petrol. Ex-
haust Emission Control System: EM (Engine
Modifications).
WARNING: Alcohol blended fuels
(called gasohol or those using
ethanol or methanol) can attract
moisture which leads to separation and
formation of acids during storage. Acidic
gas can damage the fuel system of an en-
gine while in storage.
NOTE: To avoid engine problems, the fuel
system must be emptied before storage for
30 days or longer. Start the engine and let it
run until the fuel lines and carburetor are
empty. Use fresh fuel next season. See the
Storage section in this manual for additional
information.
Fill the fuel tank only with a fresh, clean, un-
leaded regular, unleaded premium, or reformu-
lated automotive petrol with a minimum of 85
octane. DO NOT use leaded petrol. Make sure
that the container you pour the petrol from is
clean and free from rust or other foreign par-
ticles. Never use petrol that may be stale from
long periods of storage in the container.
Before You Operate
Before you operate your new snow thrower,
please review the following checklist:
GMake sure all assembly instructions have
been completed.
GMake sure the discharge chute rotates freely.
GMake sure that no loose parts remain in the
carton.
As you learn how to properly use the snow
thrower, pay extra attention to the following im-
portant items.
GMake sure the engine oil is at the proper
level. For the type engine oil to use, see the
Engine Manufacturer’s manual.
GMake sure gas tank is filled properly with
clean, fresh, unleaded petrol with a minimum
of 85 octane.
GBecome familiar with the location of all
controls and understand their function.
GBefore starting the engine, make sure all
controls operate correctly.
OPERATION
NOTE: Illustrations are located on page 2
and on pages 3 through 6.
CAUTION: Use only attachments and acces-
sories approved by the manufacturer of the
snow thrower (such as tire chains, electric
start kits, etc.).
Know Your Snow Thrower (Figure 1)
Read this Instruction Book and safety rules be-
fore operation the snow thrower. Compare the
illustration with your snow thrower to familiarize
yourself with the location of various controls and
adjustments.
How To Control
The Discharge Of The Snow
WARNING: Never direct the dis-
charge of snow toward bystanders.
WARNING: Always stop the engine
before unclogging the discharge
chute or the auger housing and be-
fore leaving the snow thrower.

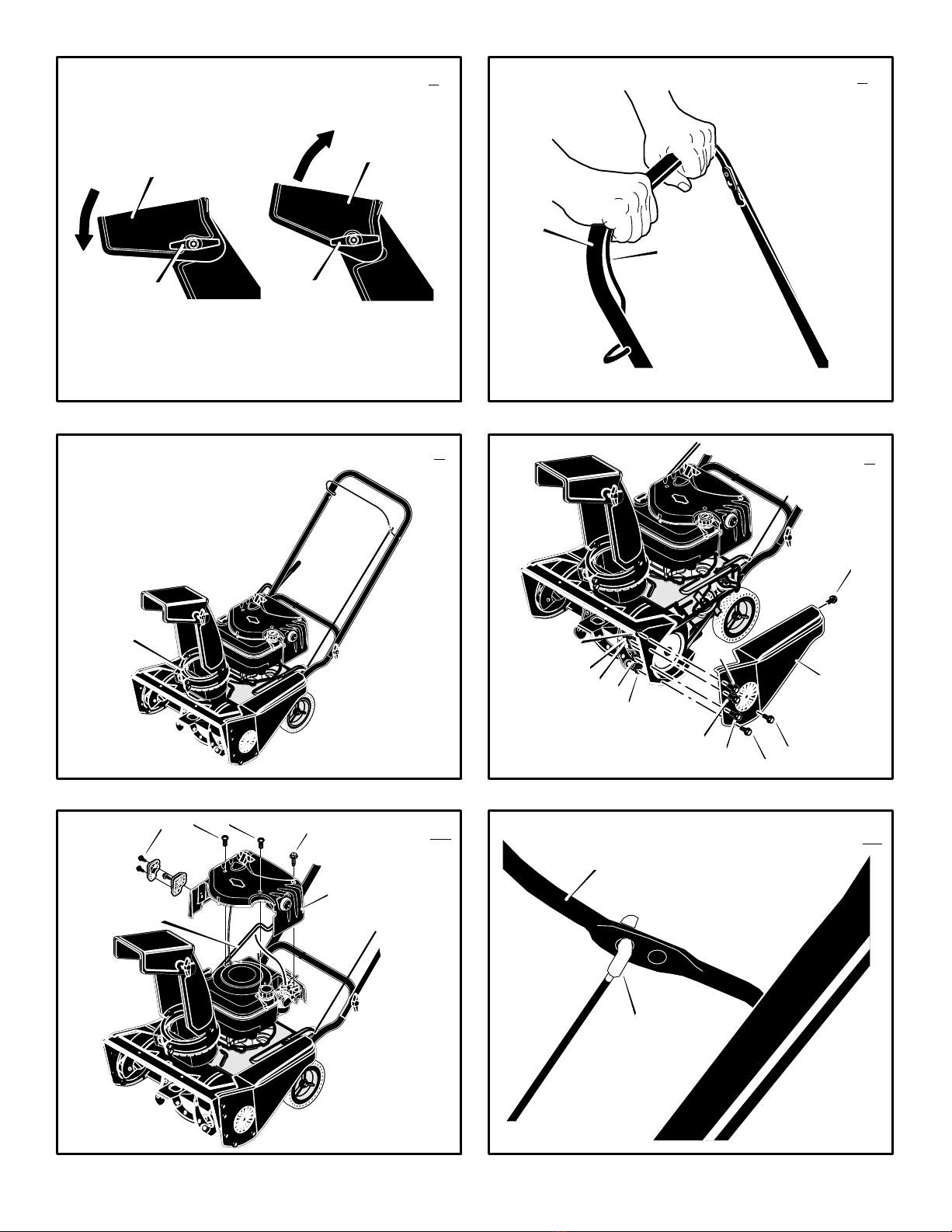

1. (Figure 1) Turn the crank assembly (2) to
change the discharge direction of the snow.
2. (Figure 6) Loosen the wing knob (1) on the
chute deflector (2).
3. Move the chute deflector (2) up for more
distance or down for less distance.
4. Tighten the wing knob (1).
How To Throw Snow (Figure 1)
1. Engage the auger drive lever (5).
2. To stop throwing snow, release the auger
drive lever (5).
WARNING: The operation of any
snow thrower can result in foreign
objects being thrown into the eyes,
which can result in severe eye damage.
Always wear safety glasses or eye shields
while operating the snow thrower. We rec-
ommend standard safety glasses or use a
wide vision safety mask over your glasses.
How To Stop Discharging Snow
(Figure 1)
1. To stop discharging snow, release the auger
drive lever (5).
NOTE: If the snow thrower continues to
slowly move forward, see “How To Adjust
The Auger Control Cable” in the Mainte-
nance Section.
2. To stop the engine, push the stop switch (8)
to the off position.
CAUTION: To stop the engine, do not move
the choke control to CHOKE position. Back-
fire or engine damage can occur.

GB
12
1740212
How To Move Forward (Figure 7)
1. Hold the auger drive lever (5) against the
handle (2). The auger will begin rotating.
2. To go forward, raise the handle (2) to allow
the rubber auger blades to contact the
ground. Maintain a firm hold on the handle
(2) as the snow thrower starts to move for-
ward. Guide the snow thrower by moving the
handle (2) either left or right. Do not attempt
to push the snow thrower.
3. To stop, release the auger drive lever (5).
NOTE: If the auger continues to rotate, see
“How To Adjust The Auger Control Cable” in
the Maintenance section.
Before Starting The Engine
1. Before you service or start the engine, famil-
iarize yourself with the snow thrower. Be
sure you understand the function and loca-
tion of all controls.
2. Make sure that all fasteners are tight.
3. Make sure the fuel tank is filled with the cor-
rect mixture of gasoline and oil.
4. Become familiar with the location of all con-
trols and understand their function.
5. Before starting the engine, make sure all
controls operate corrently.
How To Stop The Engine (Figure 1)
To stop the engine, push the stop switch (8) to
the off position.
CAUTION: To stop the engine, do not move
the choke control to CHOKE position. Back-
fire or engine damage can occur.
How To Start The Engine (Figure 1)
Make sure that the engine oil is at FULL mark on
dipstick. The engine is equipped with a recoil
starter. Before starting the engine, make certain
that you have read the following information.
If engine floods, set the choke to the OPEN/
RUN position and crank until the engine starts.
WARNING: Rapid retraction of the
starter cord (kickback) will pull
your hand or arm toward the en-
gine faster than you can let go of the start-
er cord.
SWhen starting the engine, slowly pull
the starter cord until resistance is felt.
Then, rapidly pull the starter cord.
SMake sure components; such as impel-
lors, pulleys or sprockets, are securely
attached.
How To Start A Cold Engine (Figure 1)
1. (Figure 1) Push the stop switch (8) to the
ON position.
2. When starting the engine, do not engage the
auger drive lever.
3. Move the choke control (14) to the FULL
choke position.
4. Push the primer button (9) as specified be-
low. Remove finger from the primer button
(9) between primes.
SPush two times if temperature is 15°F
(−9°C) or higher.
SPush four times if temperature is below
15°F (−9°C).
5. (Figure 4) Slowly pull the recoil starter han-
dle (1) until resistance is felt and then pull
rapidly to start the engine. Do not allow the
recoil starter handle (1) to snap back. Slow-
ly return the recoil starter handle (1).
NOTE: In temperatures below 0F, allow
the engine to warm up for several minutes
before blowing snow.
WARNING: Never run the engine
indoors or in enclosed, poorly ven-
tilated areas. Engine exhaust con-
tains carbon monoxide, an odorless and
deadly gas. Keep hands, feet, hair and
loose clothing away from any moving parts
located on the engine or the snow thrower.
The temperature of muffler and nearby
areas may exceed 150°F. Avoid these
areas.
How To Start A Warm Engine (Figure 1)
If an engine has been running and is still warm,
leave the choke control (14) in the off position
and do not push the primer button (9). If the
engine fails to start, follow the instructions “How
To Start A Cold Engine”.
NOTE: Do not use the primer button (9) to
start a warm engine.
How To Start An Engine With A Frozen Electric
Starter (Figure 1)
If the starter is frozen and will not turn the en-
gine, follow the instructions below.
1. Pull out the recoil starter handle (12) as far
as possible.
2. Quickly release the recoil starter handle
(12). Allow the recoil starter handle (12) to
snap back against the recoil starter.
If the engine still fails to start, repeat the two pre-
vious steps until the engine starts. Then, contin-
ue with the directions “How To Start A Cold
Engine”.
To help prevent the possible freeze−up of the
recoil starter and of the engine controls, proceed
as follows after each snow removal job.
1. Before storing, run the snow thrower a few
minutes to prevent freeze−up of the auger/
impeller.
2. With engine off, allow engine to cool for sev-
eral minutes.
3. Pull starter rope very slowly until resistance
is felt, then stop. Allow the starter rope to re-
coil. Repeat three times.
4. With the engine not running, wipe all snow
and moisture from the carburetor cover in
area of controls and levers. Also, move the
choke control and starter handle several
times.
How To Remove Snow or Debris From
The Auger Housing (Figure 1)
WARNING: Do not attempt to re-
move snow or debris that may be-
come lodged in auger housing
without taking the following precautions.
1. Release the auger drive lever (5).
2. To stop the engine, move the stop switch
(8) to the stop position.
3. Disconnect the spark plug wire.
4. Do not place your hands in the auger hous-
ing (22) or the discharge chute (4). Use a
pry bar to remove any snow or debris.
Snow Throwing Tips
1. This snow thrower will propel itself forward
when the handle is raised enough to cause
the auger blades to contact the ground. The
auger should stop when auger control bar is
released. If it does not stop, see “How To Ad-
just The Auger Control Cable” in the adjust-
ment section.
2. Most efficient snow throwing is accomplished
when the snow is removed immediately after
if falls.
CAUTION: Do not overload the machine ca-
pacity by attempting to clear snow at too fast
a rate.
3. For complete snow removal, slightly overlap
each previous path.
4. Whenever possible, discharge the snow
down wind.
5. The distance the snow will be discharged
can be adjusted by moving the discharge
chute deflector. Raise the deflector for more
distance or lower the deflector for less dis-
tance.
6. In windy conditions, lower the chute deflector
to direct the discharged snow close to the
ground where it is less likely to blow into un-
wanted areas.
7. For safety and to prevent damage to the
snow thrower, keep the area to be cleared
free of stones, toys and other foreign objects.
8. Do not use the auger propelling feature when
clearing gravel or crushed rock driveways.
Move the handle down to slightly raise the
auger.
9. The forward speed of the snow thrower is
dependent on the depth and weight of the
snow. Experience will establish the most ef-
fective method of using the snow thrower un-
der different conditions.
10.After each snow throwing job, allow the en-
gine to run for a few minutes. The snow and
accumulated ice will melt off the engine.
11. Clean the snow thrower after each use.
12.Remove ice, snow and debris from the entire
snow thrower. Flush with water to remove all
salt or other chemicals. Wipe snow thrower
dry.
Dry And Average Snow
1. Snow up to eight inches deep can be re-
moved rapidly and easily by walking at a
moderate rate. For snow or drifts of a greater
depth,slow your pace to allow the discharge
chute to dispose of the snow as rapidly as
the auger receives the snow.
2. Plan to have the snow discharged in the di-
rection the wind is blowing.
Wet Packed Snow
Move slowly into wet, packed snow. If the wet,
packed snow causes the auger to slow down or
the discharge chute begins to clog, back off and
begin a series of short back and forth jabs into
the snow. These short back and forth jabs, four
to six inches, will “belch” the snow from the
chute.
Snow Banks And Drifts
In snow of greater depth than the unit, use the
same “jabbing” technique described above. Turn
the discharge chute away from the snow bank.
More time will be required to remove snow of
this type than level snow.

GB
13
1740212
MAINTENANCE CHART
CUSTOMER RESPONSIBILITIES
SERVICE RECORDS
Fill in dates as you
complete regular
service.
Before
Each
Use
First
2
Hours
Every
5
Hours
Every
10
Hours
Every
25
Hours Each
Season Before Storage SERVICE DATES
Check And Tighten All Screws and Nuts √ √
Check Spark Plug √ √
Check Drive Belt √
Check Fuel √
Drain Fuel √
Lubricate Chute Control Flange √
Check Adjustment of Auger Control Cable √
Auger Drive Belt √
MAINTENANCE
NOTE: Illustrations are located on page 2
and on pages 3 through 6.
Use the following maintenance section to keep
your unit in good operating condition. All the
maintenance information for the engine is in the
engine manufacturer’s instructions. Before you
start the engine, read this book.
WARNING: Before you make an in-
spection, adjustment (except
carburettor), or repair, disconnect
the wire from the spark plug.
General Recommendations
The warranty on this snow thrower does not cov-
er items that have been subjected to operator
abuse or negligence. To receive full value from
the warranty, the operator must maintain the
snow thrower as instructed in this manual.
Some adjustments must be made periodically to
properly maintain the snow thrower.
After Each Use
GCheck for any loose or damaged parts.
GTighten any loose fasteners.
GCheck and maintain the auger.
GCheck controls to make sure they are
functioning properly.
GIf any parts are worn or damaged, replace
immediately.
GCheck all safety and instruction decals and
labels. Replace any decals or labels that are
missing or cannot be clearly read.
All adjustments in the Maintenance section of
this manual should be checked at least once
each season.
How To Remove The Top Cover
(Figure 8)
1. Remove the five screws (1) from the top
cover (2).
2. Remove the top cover (2).
3. To install the top cover (4), reverse the
above steps.
Lubrication
Before Storage (Figure 8)
1. Lubricate the clute control flange (7). Apply
a clinging type of grease such as Lubriplate.
How To Adjust The Auger Control Cable
The auger control cable is adjusted at the facto-
ry. During normal use, the auger control cable
can become stretched and the auger drive lever
will not properly engage or disengage the auger.
1. (Figure 12) Loosen the nut (1) that holds the
cable tension spring (2).
2. Slide the cable tension spring (2) toward
the rear of the unit until all cable slack is re-
moved.
NOTE: The auger control cable is properly
adjusted when the free cable slack is re-
moved and there is no tension on the
idler arm.
3. Tighten the nut (1) that holds the cable ten-
sion spring (2).
If belt stretch has occured, move the end the
auger control cable to the outside hole as fol-
lows:
1. (Figure 12) Loosen the nut (1) that holds the
cable tension spring (2).
2. Move the cable tension spring (2) toward
the front of the unit to achieve maximum
cable slack.
3. (Figure 11) Remove the upper end of the
auger control cable (3) from the auger
drive lever (4).
4. Install the auger control cable (3) in the
hole shown in Figure 11.
5. (Figure 12) Slide the cable tension spring
(2) toward the rear of the unit until all cable
slack is removed.
NOTE: The auger control cable (3) is
properly adjusted when the free cable
slack is removed and there is no tension
on the idler arm.
6. Tighten the nut (1) that holds the cable ten-
sion spring (2).
7. To check the adjustment, start the snow
thrower. Make sure the auger does not rotate
when the auger drive lever is released.
How To Remove The Top Cover
(Figure 10)
There are no adjustments under the top cover
(1). To clean the engine cooling system, follow
the steps below to remove the top cover (1).
1. Remove screws (2) that attach the rod sup-
port clamp the the top cover (1). Pivot the
crank assembly rod (3) up and lay on unit.
2. Remove screws (4).
3. Remove attachment screws (5).
4. Remove the top cover (1).
5. To install the top cover (1), reverse the
above steps.
How To Remove The Belt Cover
(Figure 9)
1. Remove the screws (1) and nuts (2) from
the belt cover (3).
2. Remove attachment screw (4) from the rear
of the belt cover (3).
3. Remove the belt cover (3) from the unit.
4. To install the belt cover (3), reverse the
above steps.
NOTE: The belt cover (3) has belt guides
moulded onto the inside of the belt cover (3).
When you install the belt cover (3), engage
the auger drive lever to tighten the belt
against the pulley. This will provide adequate
clearance for the belt guides when installing
the belt cover (3).
How To Replace The Auger Drive Belt
The drive belt is of special construction and
must be replaced with an original factory re-
placement belt available from your nearest au-
thorized service center.
If the auger drive belt is damaged, the snow-
thrower will not discharge snow and will not
move forward. Replace the damaged belt as
follows:
1. Disconnect the spark plug wire.

GB
14
1740212
2. Remove the belt cover. See “How To Re-
move The Belt Cover”.
3. Note the path of the auger drive belt (1). For
assistance, a diagram decal is provided.
4. (Figure 14) Remove the belt guide screw
(2) and the belt guide (3). To remove the
belt guide (3), rotate the belt guide (3)
down.
5. (Figure 15) Remove the idler screw (4) and
idler pulley (5) from the idler arm (6).
6. (Figure 16) Remove the auger drive belt (1)
from the engine pulley and pull through side
of motor box.
7. (Figure 17) To remove the auger drive belt
(1) from the impeller pulley (7), move the
idler arm to the engaged position. This will
provide clearance (8) between the impeller
pulley (7) and the brake arm (9) to remove
the auger drive belt.
8. To install a new auger drive belt (1), reverse
the above steps.
9. Check the adjustment of the auger drive
cable. See “Adjust Auger Control Cable”.
How To Remove The Auger
1. Remove the belt cover. See “How To Re-
move The Belt Cover”.
2. Remove the auger drive belt. See “How To
Replace The Auger Drive Belt”.
3. (Figure 18) Remove the auger pulley (1)
from the auger shaft (threads are left hand;
turn clockwise to remove).
4. To keep the auger (6) from rotating, set a
2”x4” piece of wood on the center paddle
(3) to secure auger (6).
5. Remove bolts (4), washer (5), and nuts (2)
from front of right cover (7).
6. Remove screw (8) from back of right cover
(7).
7. Remove bolts (9) and nuts (10).
8. (Figure 19) Slide the auger (6) out of the
right side of the auger housing (11).
9. Slide the auger (6) out of the bearing on the
left side of the auger housing (11).
10.To install auger (6), reverse the above steps.
Lubrication
How To Check The Engine Oil (Figure 3)
Check the oil level before starting the engine
and after each eight (8) hours of continuous use.
1. Make sure the unit is level.
2. Remove the oil fill cap/dipstick (1) and fill
the crankcase to “FULL” line on dipstick. DO
NOT overfill.
3. Tighten the oil fill cap/dipstick (1) securely
each time you check the oil level.
NOTE: Synthetic oil can assist with starting
in extreme cold temperatures. Synthetic
5W30 is acceptable for all temperatures. DO
NOT mix oil with petrol.
How To Change The Engine Oil
Change the engine oil every fifty (50) hours or at
least once a year if the snow thrower is not used
for fifty (50) hours.
To change the engine oil, the engine must be
tilted forward and the oil drained from the oil fill
tube. Change oil when the engine is warm.
1. (Figure 5) Lift the rear of the snowthrower
and tilt the unit forward. In the correct posi-
tion, the snowthrower will be setting on the
front of the auger housing.
2. Put an oil drain pan (1) under the oil fill
tube (2).
3. Carefully remove the oil fill cap/dipstick. Oil
will begin to flow into the oil drain pan (2).
4. After all the oil has drained from the engine,
set the snowthrower in the upright operating
position.
5. (Figure 3) Fill the engine with S.A.E. 5W30
oil. Make sure the oil reaches the FULL mark
on the oil fill cap/dipstick. DO NOT OVER-
FILL.
NOTE: Synthetic oil can assist with starting
in extreme cold temperatures. Synthetic
5W30 is acceptable for all temperatures. DO
NOT mix oil with petrol.
How To Replace The Spark Plug
(Figure 20)
NOTE: This spark ignition system meets all
requirements of the Canadian Interference−
Causing Equipment Regulations.
NOTE: This engine complies with all current
Australian and New Zealand limitations elec-
tromagnetic interference.
Check the spark plug (1) every twenty-five (25)
hours. Replace the spark plug (1) if the elec-
trodes are pitted or burned, if the porcelain is
cracked, or every 100 hours of use.
1. Make sure the spark plug (1) is clean. Clean
the spark plug (1) by carefully scraping the
electrodes (do not sand blast or use a wire
brush).
2. Check the spark plug (1) gap with a feeler
gauge (2) and reset gap to 0.030” if neces-
sary..
3. Before installing the spark plug (1), coat the
threads lightly with oil for easy removal.
Tighten the spark plug (1) to a torque of 15
foot-pounds.
How To Prepare The Snow Thrower For
Storage
WARNING: Do not remove petrol
while inside a building, near a fire,
or while you smoke. Petrol fumes
can cause an explosion or a fire.
If the snow thrower is to be stored for an ex-
tended period, refer to the engine manufactur-
er’s operating manual (included with some
models) for important maintenance or storage
details.
1. Drain the fuel tank.
2. Let the engine run until it is out of gasoline.
3. Never store the snow thrower with fuel in the
tank inside a building where ignition sources
are present such as hot water and space
heaters, clothes dryers, and the like. Allow
the engine (motor) to cool before storing in
any enclosure.
4. Drain the oil from the warm engine. Fill the
engine crankcase with new oil.
5. Remove the spark plug from the cylinder.
Pour one ounce of oil into the cylinder. Slow-
ly pull the recoil−start grip so that the oil will
protect the cylinder. Install a new spark plug
in the cylinder.
6. Thoroughly clean the snow thrower.
7. Lubricate all lubrication points. See the Main-
tenance section.
8. Be sure that all nuts, bolts and screws are
securely fastened. Inspect all visible moving
parts for damage, breakage and wear. Re-
place if necessary.
9. Cover the bare metal parts of the blower
housing and auger with spray rust preventa-
tive lubricant.
10.Put the unit in a building that has good ven-
tilation.
11. If the machine must be stored outdoors,
block up the snow thrower to be sure the en-
tire machine is off the ground.
12.Cover the snow thrower with a suitable pro-
tective cover that does not retain moisture.
Do not use plastic.
How To Order Replacement Parts
The replacement parts are shown either on the
back pages of this Instruction Book or in a
separate Parts List Book.
Use only manufacturer’s authorized or approved
replacement parts. The letter placed on the end
of the part number denotes the type of finish for
the part, C for chrome, Z for zinc, a PA for
purchased assembly. It is important that you
include this when ordering a part. Do not use
attachments or accessories not specifically
recommended for this unit. In order to obtain
proper replacement parts you must supply the
model number (see nameplate).
Replacement parts, except for the engine, trans-
mission, transaxle or differential, are available
from the store where the mower was purchased
or a service shop recommended by the store.
Warranty service is available only through Autho-
rized Service Dealers. Locate your nearest dealer
in our locator map at www.murray.com.
Replacement parts for the engine, transaxle, or
transmission, are available from the
manufacturer’s authorized service center found
in the yellow pages of the telephone directory.
Also, see the individual engine or transmission
warranties to order replacement parts.
When ordering the following information is
required:
(1) The Model Number
(2) Serial Number
(3) Part Number
(4) Quantity

GB
15
1740212
TROUBLE SHOOTING CHART
TROUBLE CAUSE CORRECTION
Difficult starting Defective spark plug. Replace spark plug.
Water or dirt in fuel system. Use carburetor bowl drain to flush and refill with
fresh fuel.
Engine runs erratic Blocked fuel line, empty gas tank, or stale
gasoline Clean fuel line; check fuel supply; add fresh gasoline
Engine stalls Unit running on CHOKE. Set choke lever to RUN position.
Engine runs erratic;
Loss of power Water or dirt in fuel system. Use carburetor bowl drain to flush and refill with fresh fuel.
Excessive vibration Loose parts: damaged impeller Stop engine immediately and disconnect spark
plug wire. Tighten all bolts and make all
necessary repairs. If vibration continues, have
the unit serviced by a competent repairman.
Unit fails to propel itself Drive belt loose or damaged. Replace drive belt.
Unit fails to discharge snow Auger drive belt loose or damaged. Adjust auger drive belt; replace if damaged.
Auger control cable not adjusted correctly. Adjust auger control cable.
Discharge chute clogged. Stop engine immediately and disconnect spark
plug wire. Clean discharge chute and inside of
auger housing.
Foreign object lodged in auger Stop engine immediately and disconnect spark
plug wire. Remove object from auger.

GB
16
1740212
BRIGGS & STRATTON CORPORATION OWNER WARRANTY POLICY
Effective January 1, 2006 replaces all undated Warranties and all Warranties dated before January 1, 2006
Briggs & Stratton Corporation will repair or replace, free of charge, any part(s) of the product that is defective in material or workmanship or both.
Transportation charges on product submitted for repair or replacement under this warranty must be borne by purchaser. This warranty is effective
for the time periods and subject to the conditions stated below. For warranty service, find the nearest Authorized Service Dealer in your area. For
warranty service, find the nearest Authorized Service Dealer in our dealer locator map at www.murray.com.
THERE IS NO OTHER EXPRESS WARRANTY. IMPLIED WARRANTIES, INCLUDING THOSE OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR FROM PURCHASE, OR TO THE EXTENT PERMITTED BY LAW ANY AND ALL
IMPLIED WARRANTIES ARE EXCLUDED. LIABILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES ARE EXCLUDED TO THE
EXTENT EXCLUSION IS PERMITTED BY LAW. Some states or countries do not allow limitations on how long an implied warranty lasts, and
some states or countries do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation and exclusion
may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state or country to
country.
LIMITED WARRANTY
WARRANTY TERMS
Consumer Commercial Condition of
Brand / Unit Use Use Warranty Term
Single Stage Snowthrower 1 year 90 days. . . . . . . . . . . . . . . . . . . .
Dual Stage Snowthrower 2 year 90 days. . . . . . . . . . . . . . . . . . . . .
The warranty period begins on the date of purchase by the first retail consumer or commercial end user, and continues for the period of
time stated in the table above. “Consumer use” means personal residential household use by a retail consumer. “Commercial use” means
all other uses, including use for commercial, income producing or rental purposes. Once product has experienced commercial use, it shall
thereafter be considered as commercial use for purposes of this warranty.
No warranty registration is necessary to obtain warranty on Murray branded products. Save your proof of purchase receipt. If you do not
provide proof of the initial purchase date at the time warranty service is requested, the manufacturing date of the product will be used to
determine the warranty.
ABOUT YOUR WARRANTY
We welcome warranty repair and apologize to you for being inconvenienced. Any Authorized Service Dealer may perform warranty
repairs. Most warranty repairs are handled routinely, but sometimes requests for warranty service may not be appropriate. For example,
warranty service would not apply to the product if damage occurred because of misuse, lack of routine maintenance, shipping, handling,
warehousing or improper installation. Similarly, the warranty is void if the serial number on the product has been removed or the product
has been altered or modified.
This warranty covers product related defective material and/or workmanship only. To avoid misunderstanding which might occur be-
tween the customer and the Dealer, listed below are some of the causes of product failure that the warranty does not cover.
•Normal Wear: Small Engine Powered Equipment, like all mechanical devices, needs periodic parts and service to perform well. Warranty does not
cover repair when normal use has exhausted the life of the product or part.
•Installation: This warranty does not apply to product that has been subjected to improper or unauthorized installation, alteration or modification. Nor
installations that prevent starting, cause unsatisfactory engine performance.
•Improper Maintenance: The life of this product depends upon the conditions under which it operates, and the care it receives. Recommended
maintenance and adjustment intervals are stated in the Operator’s Manual. Often product, such as tillers, edgers, rotary mowers, are used in dusty
or dirty conditions, which can cause what appears to be premature wear. Such wear, when caused by dirt, dust, or other abrasive material entering
the product because of improper maintenance is not covered by warranty. The warranty will not cover repairs due to problems caused by replace-
ment parts that are not original manufactured part(s).
•Incorrect and/or insufficient fuel or lubrication: This warranty does not cover damage caused by the use of stale fuel, or altered gasolines. Dam-
age to engine or engine components ie, combustion chamber, valves, valve seats, valve guides, burned starter motor windings caused by use of
alternate fuels such as liquified petroleum, natural gas, are not covered unless engine is certified for this operation. Parts which are scored or bro-
ken because product was operated with insufficient, contaminated or incorrect grade of lubricating oil as well as product components damaged due
to lack of lubrication are not covered.
•Operational Misuse: Proper operation of the product is stated in the Operator’s Manual. Product damaged by overspeeding, overheating, or opera-
tion in a confined area without sufficient ventilation. Product broken by excessive vibration caused by a loose engine mounting, loose or unbalanced
blades, impellers, overspeeding, or bent crankshaft due to striking of solid object. Damage or malfunctions resulting from accidents, abuse, or im-
proper servicing or freezing or chemical deterioration, as well as operating in excess of recommended capacities as outlined in the Operator’s
Manual are not covered.
•Routine tune-up, wear items or adjustments: This warranty excludes wear items such as oil, belts, blades, o-rings, filters, etc.
•Other exclusions: Repair or adjustments for part(s) that are not manufactured by Briggs & Stratton Corporation, are not covered, see warranty for
respective manufacturers. This warranty excludes failures due to acts of God and other force majeure events beyond the manufacturers con-
trol. Also excluded are used, reconditioned, and demonstration products.
Warranty service is available only through Authorized Service Dealers. Locate your nearest dealer in our locator map at www.murray.com.

195
1740212
EK atbilstĘbas sertifik@ts
Eī vastavustunnistus
Ðéóôïðïéçôéêü Óõììüñöùóçò ÅÊ
DEG−Konformitätserklärung
GB EC Certificate of Conformity
FR Déclaration de conformité pour la CEE
ICertificato di conformita’ comunitario
ES Declaración de Conformidad
NL EG−Conformiteitsverklaring
SEU−konformitetsintyg
NEU−konformitetserklæring
DK EU−overensstemmelseserklæring
SF EY:n vaatimustenmukaisuustodistus
conforming to Directive 98/37/EC
conforming to Directive 89/336/EEC
conforming to Directive 2000/14/EC
conforming to Directive 2002/88/EC
entsprechend der Richtlinie 98/37/EG
entsprechend der Richtlinie 89/336/EWG
entsprechend der Richtlinie 2000/14/EG
entsprechend der Richtlinie 2002/88/EG
conforme à la directive 98/37/CE
conforme à la directive 89/336/CEE
conforme à la directive 2000/14/CE
conforme à la directive 2002/88/CE
conforme alla Direttiva 98/37/CE
conforme alla Direttiva 89/336/CEE
conforme alla Direttiva 2000/14/CE
conforme alla Direttiva 2002/88/CE
según la directiva 98/37/CE
según la directiva 89/336/CEE
según la directiva 2000/14/CE
según la directiva 2002/88/CE
overeen komstig de Richtlijn 98/37/EG
overeen komstig de Richtlijn 89/336/EEG
overeen komstig de Richtlijn 2000/14/EG
overeen komstig de Richtlijn 2002/88/EG
överensstämmande med direktiv 98/37/EG
överensstämmande med direktiv 89/336/EEG
överensstämmande med direktiv 2000/14/EG
överensstämmande med direktiv 2002/88/EG
overholder direktiv 98/37/EF
overholder direktiv 89/336/EØS
overholder direktiv 2000/14/EF
overholder direktiv 2002/88/EF
overholder direktiv 98/37/EF
overholder direktiv 89/336/EØF
overholder direktiv 2000/14/EF
overholder direktiv 2002/88/EF
naudattaa direktiiviä 98/37/EY
naudattaa direktiiviä 89/336/ETY
naudattaa direktiiviä 2000/14/EY
naudattaa direktiiviä 2002/88/EY
Certyfikat zgodnoœci EC
zgodnoœæ z dyrektyw¹ 98/37/EC
zgodnoœæ z dyrektyw¹ 89/336/EEC
zgodnoœæ z dyrektyw¹ 2000/14/EC
zgodnoœæ z dyrektyw¹ 2002/88/EC
PL
LT atitinka direktyv< 98/37/EC
atitinka direktyv< 89/336/EEC
atitinka direktyv< 2000/14/EC
atitinka direktyv< 2002/88/EC
EC atitikties sertifikatas
Ha 98/37/EC Direktívának megfelelõen
a 89/336/EEC Direktívának megfelelõen
a 2000/14/EC Direktívának megfelelõen
a 2002/88/EC Direktívának megfelelõen
EC Megfelelõségi Nyilatkozat
EE Koosklas direktiiviga 98/37/Eī
Koosklas direktiiviga 89/336/EMī
Koosklas direktiiviga 2000/14/Eī
Koosklas direktiiviga 2002/88/Eī
GR
óýìöùíá ìå ôçí Ïäçãßá 98/37/ÅÊ
óýìöùíá ìå ôçí Ïäçãßá 89/336/ÅÏÊ
óýìöùíá ìå ôçí Ïäçãßá 2000/14/ÅÊ
óýìöùíá ìå ôçí Ïäçãßá 2002/88/ÅÊ
LV atbilstĘba direktĘvai 98/37/EK
atbilstĘba direktĘvai 89/336/EEK
atbilstĘba direktĘvai 2000/14/EK
atbilstĘba direktĘvai 2002/88/EK
CZ v souladu se smìrnicí 98/37/ES
v souladu se smìrnicí 89/336/EHS
v souladu se smìrnicí 2000/14/ES
v souladu se smìrnicí 2002/88/ES
ES prohláčení o shodì
SK v skladu z direktivo 98/37/ES
v skladu z direktivo 89/336/EGS
v skladu z direktivo 2000/14/ES
v skladu z direktivo 2002/88/ES
ES izjava o skladnosti

196
1740212
erklären in alleiniger Verantwortung, daß das Produkt
declare in sole responsibility, that the product
déclarons sous notre seule responsabilité que le produit
dichiariamo sotto la nostra piena responsabilità che il prodotto
declaramos bajo responsabilidad propia que el producto
verklaren enig in verantwoording, dat het produkt
intygar med ensamansvar att nedanstående produkt
erklærer som eneansvarlig at produktet
erklærer som eneansvarlig, at produktet
ilmoitamme yksin vastaavamme, että tuote
Kinnitame omal vastutusel, et antud toode
Ý÷ïíôáò ðëÞñç åõèýíç, üôé ôï ðñïúüí
Saját kizárólagos felelõsségünkre kijelentjük, hogy a termék
paziĞojam ar pilnu atbildĘbu, ka Ġis produkts
PareiĠkiame kad gaminys
niniejszy oœwiadczamy, ¿e produkt
prohlačuje na svou výluènou odpovìdnost, ďe produkt
v izkljuèni odgovornosti izjavlja, da je proizvod
Wir / We / Nous / Noi / Nosotros / Wij / Vi / Vi / Vi / Me / Meie
/ Äçëþíïõìå / Mi / MĔs / Mes / My / Výrobce/ Mi
621401x117NA
(Fabrikat, Typ) (Make, model) (Marque, modèle) (Marca, tipo) (Marca,
modelo) (Fabricant, type) (Fabrikat, typ) (Fabrikat, type) (Mærke, type)
(Merkki, malli) (Mark, mudel) (ÌÜñêá, ìïíôÝëï) (Gyártmány, modell)
(Izstrdjums, modelis) (MarkĴ, modelis) (marka, model) (Druh, model)
(fabrikat, tip)
Briggs & Stratton Corporation
Yard Power Products Group
Port Washington, WI 53074
auf das sich diese Erklärung bezieht, den einschlägigen Anforderungen der Richtlinie 98/37/EG, der Richtlinie 2000/14/EG
(Konformitätsbewertungsverfahren gemäß Anhang VI), Richtlinie 2002/88/EG und der Richtlinie 89/336/EWG und aktuellen
Ergänzungen entspricht
to which this certificate applies, conforms to the requirements of Directive 98/37/EC,Directive 2000/14/EC (conformity assessment
procedure according to Annex VI), 2002/88/EC and Directive 89/336/EEC and current amendments
faisant l’objet de la déclaration est conforme aux prescriptions stipulées dans la Directive 98/37/CE, la directive 2000/14/CE (procédure
d’évaluation de conformité selon l’annexe VI), la directive 2002/88/CE et la directive 89/336/CEE et ses modifications courantes
cui la presente dichiarazione si riferisce, è conforme ai requisiti de Direttiva 98/37/CE, della Direttiva 2000/14/CE (procedura di
valutazione della conformità secondo l’Allegato VI), della Direttiva 2002/88/CE e della Direttiva 89/336/CEE e correnti emendamenti
al cual se refiere la presente declaración corresponde a las exigencias de la directiva 98/37/CE, de la directiva 2000/14/CE (los
procedimientos de evaluación de conformidad según el Anexo VI), de la directiva 2002/88/CE y de la directiva 89/336/CEE y
enmiendas vigentes
waarop deze verklaring betrekking heeft, overeenkomt met de eisen van de richtlijn 98/37/EG, de richtlijn 2000/14/EG
(conformiteitsbeoordelingsprocedure volgens bijlage VI), de richtlijn 2002/88/EG en de richtlijn 89/336/EEG en huidige wijzigingen
för vilket detta intyg gäller, uppfyller kraven enligt direktiv 98/37/EG, direktiv 2000/14/EG (procedur för bedömning av överensstämmelse
enligt tillägg VI), direktiv 2002/88/EG och direktiv 89/336/EEG samt allmäna tillägg
som denne erklæring vedrører, oppfyller krav i direktiv 98/37/EF, direktiv 2000/14/EF (konformitetsvurderingsprosedyre i henhold til
anneks VI), direktiv 2002/88/EF og direktiv 89/336/EØS og aktuelle vedlegg
som denne erklæring vedrører, overholder krav i direktiv 98/37/EF, direktiv 2000/14/EF (konformitetsvurderingsprocedure iflg. Annex
VI), direktiv 2002/88/EF og direktiv 89/336/EØF og ændringer
johon tämä ilmoitus liittyy, vastaa direktiivissä 98/37/EY, direktiivissä 2000/14/EY (Liitteen VI mukaisten yhdenmukaisuuden
arviointitoimien), direktiivissä 2002/88/EY, direktiivissä 89/336/ETY ja nykyisissä muutoksissa mainittuja vaatimuksia
mille kohta tunnistus kehtib, on koosklas direktiiviga 98/37/Eī,direktiiviga 2000/14/Eī (vastavushindamismenetlus vastavalt lisale VI),
2002/88/Eī ja direktiiviga 89/336/EMī koos jooksvate muudatustega
óôï ïðïßï áöïñÜ ôï ðáñüí ðéóôïðïéçôéêü, ðëçñïß ôéò áðáéôÞóåéò ôçò Ïäçãßáò 98/37/ÅÊ,ôçò Ïäçãßáò 2000/14/ÅÊ (äéáäéêáóßá
áîéïëüãçóçò ôçò óõììüñöùóçò óýìöùíá ìå ôï ÐáñÜñôçìá VI), 2002/88/ÅÊ êáé ôçò Ïäçãßáò 89/336/ÅÏÊ êáé ôéò
ôñïðïðïéÞóåéò ôïõò
amelyre ezen nyilatkozat vonatkozik, megfelel a 98/37/EC Direktíva, 2000/14/EC Direktíva (a VI Függeléknek megfelelõ megfelelõség
felbecsülési eljárás), 2002/88/EC valamint 89/336/EEC Direktívák és legújabb módosításaik elõírásainak.
Uz kuru attiecas Ġis sertifikts, atbilst DirektĘvas 98/37/EK,un DirektĘvas 2000/14/EK prasĘbm (atbilstĘbas novĔrtĔĠanas procedĢra
saskaĞ ar Pielikumu VI), 2002/88/EK un DirektĘvu 89/336/EEK un krtĔjiem grozĘjumiem
Kuriam priklauso Ġis sertifikatas, atitinka direktyvos 98/37/EC,direktyvos 2000/14/EC (atitikties atestavimo procedĢra pagal Annex
(pried<) Nr.VI), 2002/88/EC ir direktyvos 89/336/EEC reikalavimus ir j esamus pataisymus
którego dotyczy ten certyfikat, jest zgodny z wymaganiami dyrektywy 98/37/EC,dyrektywy 2000/14/EC (procedura oceny zgodnoœci
zgodnie z za³¹cznikiem VI), 2002/88/EC i dyrektyw¹ 89/336/EEC oraz bie¿¹cymi poprawkami.
k nìmuď se vydává toto potvrzení, splòuje poďadavky smìrnice 98/37/ES,smìrnice 2000/14/ES (postup posouzení shody dle pøílohy
VI), 2002/88/ES a smìrnice 89/336/EHS v platném znìní
na katerega se nanaša ta izjava, v skladu z zahtevami direktive 98/37/ES, direktive 2000/14/E, direktive 2002/88/ES in direktive
89/336/EGS ter aktualnimi dopolnili.

197
1740212
Zursachgerechten Umsetzung der EG−Richtlinien wurde(n) folgende Norm(en) und/oder technische Spezifikation(en) herangezogen:
ISO 8437, BS EN 1033:1996, EN ISO 3744:1994
To effect correct application of the EEC Directives, the following standards and/or technical specifications were consulted: ISO 8437,
BS EN 1033:1996 and/or ISO 3744:1994
Pour mettre en pratique les Directives de la CEE, il a été tenu compte de la/des norme(s) et/ou de la/des spécification(s) technique(s)
suivante(s): ISO 8437, BS EN 1033:1996, EN ISO 3744:1994
Per un’appropriato riscontro della normativa CEE, è (sono) stata(e) consultata(e) la(e) seguente(i) norma(e) e/o specifica(che)
tecnica(che): ISO 8437, BS EN 1033:1996, EN ISO 3744:1994
Con el fin de realizar de forma adecuada las exigencias en las normativas de la CEE (fué(ron) consultada(s) la(s) siguiente(s)
normativa(s) y especificación(es) técnica(s): ISO 8437, BS EN 1033:1996, EN ISO 3744:1994
Om de EG−richtlijnen in juiste vorm om te zetten, is/zijn van volgende norm(en) en/of technische specificatie(s) gebruik gemaakt: ISO
8437, BS EN 1033:1996, EN ISO 3744:1994
Följande norm(er) och/eller teknisk(a) specifikation(er) har legat till grund för ett fackmässigt införande av de i EU−normerna: ISO 8437,
BS EN 1033:1996, EN ISO 3744:1994
Følgende normer og/eller tekniske spesifikasjoner er lagt til grunn for gjennomførelse av EU−retningslinjenes: ISO 8437, BS EN
1033:1996, EN ISO 3744:1994
Til gennemførelse af de EF−direktivet er følgende standard(er) og/eller tekniske specifikation(er) anvendt: ISO 8437, BS EN 1033:1996,
EN ISO 3744:1994
ETY−direktiivien oikean soveltamisen varmistamiseksi on käytetty seuraavia standardeja ja/tai teknisiä erittelyjä: ISO 8437, BS EN
1033:1996, EN ISO 3744:1994
EMī direktiivide iguspĨraseks kohaldamiseks arvestati allpool nimetatud standardite ja/vi tehniliste spetsifikatsioonidega: ISO 8437,
BS EN 1033:1996 ja/vi ISO 3744:1994
Ãéá ëüãïõò ïñèÞò åöáñìïãÞò ôùí Ïäçãéþí ÅÏÊ, åëÞöèçóáí õðüøç ôá ðáñáêÜôù ðñüôõðá êáé/Þ ôå÷íéêÝò ðñïäéáãñáöÝò: ISO
8437, BS EN 1033:1996 êáé/Þ ISO 3744:1994
Az EEC Direktívák megfelelõ alkalmazása céljából a következõ szabványokat és/vagy mûszaki elõírásokat vizsgálták meg: ISO 8437,
BS EN 1033:1996 és/vagy a ISO 3744:1994
Lai panktu pareizu EEK DirektĘvu piemĔroĠanu, ievĔroti sekojoĠi standarti un/vai tehniskie noteikumi: ISO 8437, BS EN 1033:1996
un/vai ISO 3744:1994
Tam kad pritaikyti atitinkamas Europos S<jungos direktyvas, buvo atsiĤvelgta Ķ sekanĒius standartus ir/arba techninius reikalavimus:
ISO 8437, BS EN 1033:1996 ir/arba ISO 3744:1994
Aby zapewniæ w³aœciwe zastosowanie dyrektyw EEC, sprawdzono nastêpuj¹ce standardy i/lub specyfikacje techniczne: ISO 8437, BS
EN 1033:1996 i/lub ISO 3744:1994
Pro správnou aplikaci smìrnic EHS bylo postupováno podle následujících norem a/nebo technických specifikací: ISO 8437, BS EN
1033:1996 a/nebo ISO 3744:1994
Za strokovno uresnièevanje direktiv ES smo sledili naslednjim standardom in/ali tehniènim specifikacijam: ISO 8437, BS EN 1033:1996,
EN ISO 3744;1994
Bauart
Category
Categorie
Categoria
Categoría
Categorie
Kategori
Kategori
Kategori
Kategoria
Kategooria
Êáôçãïñßá
Kategória
Kategorija
Kategorija
Kategoria
Kategorie
Kategorija
SCHNEEFRÄSE
SNOW THROWER
CHASSE−NEIGE
SPAZZANEVE
QUITANIEVES
SNEEUWRUIMER
SNÖSLUNGA
SNØFRESER
SNEBLÆSER
LUMILINKO
LUMEKAHUR
ÖuóçôÞñáò ×ÉïíÉïý
HÓMARÓ
SNIEGA METĒJS
SNIEGO VALYMO MAŠINA
ODŒNIEĈARKA
SNĚHOVÁ FRÉZA
SNEģNA FREZA
Fabrikmarke / Make / Marque / Marca / Marca / Merk / Fabriksmärke /
Merke / Mærke / Merkki / Mark / ÌÜñêá / Gyártmány / Izstrdjums / MarkĴ / Model / Druh /
Fabrikat
PARTNER
Typ / Type / Type / Tipo / Tipo / Model / Typ / Type / Type /
Tyyppi / TĬĬp / Ôýðïò / Típus / Tips / Tipas / Typ / Typ / Tip 4 HP / 21

198
1740212
Erklärter Schalleistungspegel
Declared sound power level
Niveau de puissance acoustique déclaré
Livello di potenza acustica dichiarato
Nivel declarado de potencia acústica
Erkend geluidsvermogensniveau
Angiven ljudnivå
Deklarert lydnivå
Deklareret lydniveau
Ilmoitettu äänen tehotaso
Deklareeritud helitase
Äçëùèåßóá óôÜèìç èïñýâïõ
Névleges hangerõszint
DeklarĔtais skaĞas jaudas lĘmenis
Deklaruojamas triukĠmo lygis
Deklarowany poziom g³oœnoœci dwiêku
Deklarovaná hladina akustického výkonu
Deklarirana raven zvoène moèi
104 dB (A)
Gemessener Schalleistungspegel
Measured sound power level
Niveau de puissance acoustique mesuré
Livello di potenza acustica misurato
Nivel medido de potencia acústica
Gemeten niveau van geluidssterkte
Uppmätt ljudstyrksnivå
Målt lydnivå
Målt lydniveau
Mitattu äänentehotaso
Mdetud helitase
Ìåôñçèåßóá óôÜèìç èïñýâïõ
Mért hangerõszint
IzmĔrĘtais skaĞas jaudas lĘmenis
Pamatuotas triukĠmo lygis
Zmierzony poziom g³oœnoœci dwiêku
Zmìøená hladina akustického výkonu
Izmerjena raven zvoène moèi
99 dB (A)
Art des Räumwerks
Type of cutting device
Genre du dispositif de déneigement
Tipo di dispositivo di rimozione della neve
Tipo de dispositivo de remoción de nieve
Type sneeuwverwijderingsapparaat
Typ av snöavlägsningsanordning
Type freserredskap
Type snefjernelsesanordning
Lumenpoistovälineen tyyppi
Likeseadme tĬĬp
Ôýðïò äéÜôáîçò êïðÞò
Vágószerkezet típusa
GriezĔj ierĘces tips
Pjovimo prietaiso tipas
Typ urz¹dzenia tn¹cego
Typ øezného mechanismu
Naèin odstranjevanja snega
ROTIERENDE SCHNEESCHRAUBE
ROTATING AUGER
FRAISE ROTATIVE
TRIVELLA RUOTANTE
CUCHILLA GIRATORIA
ROTEREND BOORBLAD
ROTERANDE SKRUV
ROTERENDE SKRUE
ROTERENDE SKRUE
PYÖRIVÄ SYÖTTÖKIERUKKA
PINNASEPUUR
Ðåñéóôñïöéêü ôñõôôÜíé
FORGÓ CSIGA
ROTēJOğAIS URBIS
BESISUKANTIS SRAIGTAS
OBROTOWA ŒRUBA ODŒNIEĈAJ¥CA
ROTUJÍCÍ ğNEK
ROTAÈNÁ ZÁVITOVKA
Schnittbreite / Width of cut / Largeur de coupe / Ampiezza di taglio /
Ancho de corte / Snijbreedte / Skärbredd /
Snittbredde / Skærebrede / Leikkuujäljen leveys / Like laius / Åýñïò êïðÞò /
Vágásszélesség / GrieĠanas platums / Pjovimo plotis / Szerokoœæ ciêcia / Ćíøka øezu /
ğirina reza
53 cm
