MUSON Smile Key User manual
PRODUCT DESCRIPTION
INTRODUCTION
1
Thank you for choosing MUSON Smile Key aromatherapy diffuser with
white noise and mood lights. Please read the manual carefully, and
keep it for future reference. If you need any assistance, please contact
1
6
7
9
8
23 4 5
10
11
/VOL+ /VOL- LIGHTMIST
1. Last Button
3. Next Button
5. LIGHT Button
7. 2 Hours Timer Indicator
9. Continuous Mist Indicator
11. Cover
13. Water Tank
15. Base
17. DC Socket
2.Play / Pause Button
4.MIST Button
6.1 Hour Timer Indicator
8. 4 Hours Timer Indicator
10. Mist Mouth
12. Air Outlet
14. Main Body
16. Air Intake
18. Speaker
2
14
16
17
18
12
13
15
/VOL+ /VOL- LIGHTMIST
2. Add the moderate amount of water (no more than 500ml)
and a drop of essential oil into the water tank.
1. Please remove the upper cover.
OPERATION
3
/VOL+ /VOL- LIGHTMIST
/VOL+ /VOL- LIGHTMIST

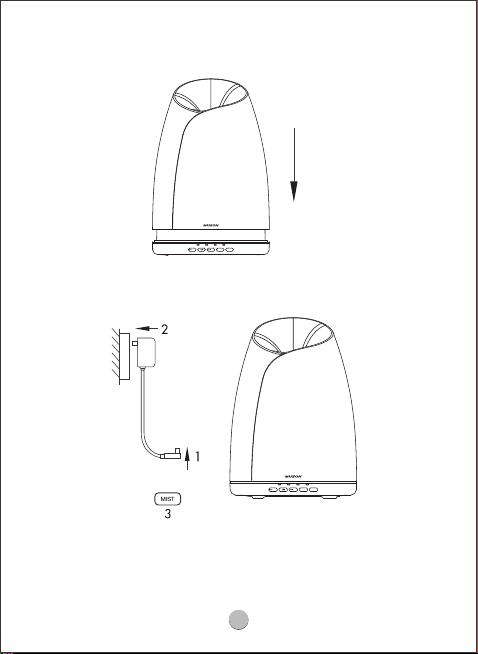

3. Close the cover in the direction.
4. Please connect the AC adapter to the DC jack at the base
of the main body.
4
Note:
If the amount of added water is over the max line, there will be less
mist sprayed out.
Do not invert the machine in use and make sure it is not available to
children.
/VOL+ /VOL- LIGHTMIST
/VOL+ /VOL- LIGHTMIST
USING GUIDE
5
MIST BUTTON:
1. Short press the MIST button the first time, the aromatherapy
machine works for one hour with One Hour Timer Indicator lights up
in orange and then turns off automatically.
2. Short press the MIST button a second time, the aromatherapy
machine works for two hours with Two Hours Timer Indicator lights
up in orange and then turns off automatically.
3. Short press the MIST button a third time, the aromatherapy machine
works for four hours with Four Hours Timer Indicator lights up in
orange and then turns off automatically.
4. Short press the MIST button a four time , the aromatherapy machine
will operate in Mid cont mode (comparatively small amount mist)
with Continuous Mist indicator lighting up in orange and spray MIST
continuously.
5. Short press the MIST button a fifth time, the aromatherapy machine
turns off with indicator off and buzzer sends out 2 buzzing sounds.
6. Short press the MIST button a sixth time, the aromatherapy machine
restarts from the first press
/VOL+ /VOL- LIGHTMIST
6
7. In the power-on state, press the MIST button for 1.5 seconds to
adjust the concentration of spraying MIST. When shift into
comparatively dense mist mode, the buzzer sends out 2 buzzing
sounds; When shift into Mid cont mode, the buzzer sends out 1
buzzing sound.
8. Each time you shift mist mode, the mist function operates in Mid
cont mode by default.
1. Short press for the first time: Enter default lights cycle mode.
2. Short press a second time: Enter manual option mode. Short press
once again in manual option mode to choose and set your ideal
light option. (7 colors with warm and dark options, 14 options in
total)
3. Long press: Light off.
LAST BUTTON
1. In the power-on state, short press one time to play the previous
track.
2. Long press in the power-on state to increase the volume (Long
press for one second at least. When the volume is increased to the
maximum, the buzzer sends out the buzzing sound).
LIGHT BUTTON
Note: The mist and the light will turn off automatically when there is
not sufficient water detected. Auto power-off don't cut the sleeping
music. If you want to turn off the sleeping music, you can short press
the play/pause button.
7
PLAY PAUSE BUTTON:
1. In the off state, short pressing or long pressing this button can
open the machine. (When plug in, you hear a voice prompt
“Power-ON” )
2. In the power-on state, short press to pause music, short press again
to play music.
NEXT BUTTON:
1. In the power-on state, short press one time to play next track.
2. Long press in the power-on state to reduce the volume (Long press
for one second at least. When the volume is reduced to the
minimum, the buzzer sends out the buzzing sound).
SPECIAL INSTRUCTIONS:
1. When the MIST function is operating with Light function, if there is
not sufficient water detected, two functions will turn off
automatically.
2. The MIST function cannot be turned on when no water is detected,
so if the MIST function cannot be turned on, please check the
amount of water.
3. The track sequence and genre:
① Rain ②Fire ③Wind ④Ocean ⑤Forest
⑥ Brook ⑦White Noise ⑧PianoⅠ⑨Piano Ⅱ
TROUBLESHOOTING
Is there enough water in the tank？
-Please add enough water but don't exceed the
maximum tick mark.
Is the AC adapter connected correctly?
-Please unplug, check and re-plug correctly.
Can't
tum on
Not enough water or too much water?
-Add the right amount of water but don't exceed the
maximum tick mark.
Dust on the ultrasonic plate?
-Clean the product according to the instructions.
Dust on the air intake?
-If the air intake is dirty, mist will not come out. Just clean it.
No /low
mist
Is there any crack at the bottom of the water tank?
-Please check whether there is any tiny crack at the bottom of
diffuser through which water can leak. If you find a crack
upon receipt of this product, please contact us for a free
replacement.
Is the steam water inside the lid wiped out?
-Wipe out the steam water after each use, making sure
the inner cap is completely dry before refilling in case.
Steam water may leak out when putting the lid back on.
Low temperature or high humidity?
-In this case, mist may condense quickly into water drops.
Water
leakage
8
FAQ
Q: Why can't I smell anything?
A: The intensity of scent from different essential oils may vary.
Choose a strong scented oil and don't put the diffuser near the air
conditioner, fan or window.
Q: Can I turn the light off and just use the mist?
A: Yes. There are separate buttons for the light and the mist.
Q: Can I turn the player off and just use the mist?
A: Yes. There are separate buttons for the player and the mist.
9
PRECAUTION
10
To prolong the life span of the diffuser, do not use mineral water.
Do not exceed the maximum tick mark when filling water.
If the diffuser runs out of water, it will shut off automatically.
Please only use 100% essential oil with this diffuser. Low quality oil
that contains chemicals, spices, or impurities may cause malfunction.
Essential oils can stain. In the event of spillage, please wipe away with
a soft cloth.
Do not use for more than 10 hours at a time. Wait 60 minutes before
restarting to avoid damage to ultrasonic plate.
It's normal that the amount and intensity of the mist change during
operation.
There are many factors that may affect the mist including: water type,
humidity, capacity, temperatur, and air currents.
MAINTENANCE
Turn off the power, unplug the power cord, and remove the upper lid.
Pour out all the remaining water in the tank.
Put a few drops of neutral kitchen detergent into warm water and
clean the product with a soft rag.
If the unit happens to be knocked over or tipped during operation,
please shake the unit gently to drain the water inside the machine
and put it in a well-ventilated place to dry naturally.
Please clean the product as following after using 5-6 times (or 2-3 days):
11
/VOL+ /VOL- LIGHTMIST
SPECIFICATION
Dimensions
Weight
Color
Input Power
Output Power
Adapter Line Length
The Amount of Mist
Water Tank Capacity
Spray Mode
Control Mode
Power Consumption
Speaker
LED quantity
Noise Level
Main Material
Ultrasonic Frequency
150×150×214mm
464g
Wood grain
AC 100-240V 50/60Hz
DC 24V 650mA
170CM
30-45mL/h
500ml
1h /2h /4h / On
Mechanical
15-19W
4Ω 5W
4 LEDS
< 35dBa
PP
2.4 MHZ
12
For more information, please visit
www.musonworld.com
If you need any assistance or support, please email
We will answer your email within 24 hours. We will do our best to
provide you with a viable solution.
WARRANTY AND SUPPORT
Customer Support
We warrant this device 12 MONTHS from date of the original purchase
for manufacturer defects.
If the device fails due to a manufacturing defect, please contact seller
directly to initiate return and warranty process.
The following are excluded from MUSON warranty cover:
Device purchased as second hand, used or from unauthorized seller.
Damage resulted from misuse and abusive action.
Damage resulted from chemical, fire, radioactive substance, poison,
liquid.
Damage resulted from natural disaster.
Damage caused to any third party / person / object and beyond.
Please do not return the product without seller / MUSON authorization.
Warranty
13
STATEMENT
We can only provide after sale service for products purchased directly
from MUSON or MUSON authorized distributor. If you have purchased
from a different seller, please contact them for any exchange or refund
request.
