Mustek DV DV 5500 User manual

Website:
http://www.mustek.com
Customer Service:
(General Info)
Email: [email protected]
Fax: [phone]
Technical Support:
Email: [email protected]
Phone: [phone]
Address:
15271 Barranca Parkway,
Irvine, CA 92618
(Dock station not included)
• Installation CD
• Video Studio CD
• Photo Express CD
• User Guide
• Getting Started
• Strap for Lens Cover
• Strap for Hand
• DV Bag
• Tripod
• Lens Cover
• Li-ion Battery
• Power Adapter
• 32MB MMC Card
• USB Cable
• AV Cable
• Earphone
DV5500
GETTING STARTED
SD/MMC card slot
Battery slot
Hook for strap
Back View
22
23
24
LCD screen
Mode dial
Record button
Direction Control button
Battery/SD/MMC slot cover
Operation panel
Take Picture/Record Video
Record Voice
Playback
MP3
Menu
Side View
15
18
16
17
19
20
21
22
23
24
A
B
C
Slide the Battery/SD/MMC cover in the direction of the arrow
(down).
Lift the Battery/SD/MMC slots cover up.
Insert the Battery into the battery slot.
DInsert the MMC memory card into the SD/MMC card slot.
D
C
A
B
LOADING BATTERY / MMC CARD
2
CHARGING THE DEVICE
3
There are three ways to charge this device. First, charge it via USB
cable. Second, charge it via AC adapter. Third, charge it via the Dock
Station (optional).
1. Connect the device to a computer with the USB cable provided in
the package.
The Charge Indicator illuminates in red
and starts charging. If the battery is fully
charged, the Charge Indicator will be
turned off automatically. (It takes about 3
hours to have it fully charged.)
2.
Charging the device via AC Adapter
1. Connect the AC adapter to the DC IN jack on the device and the
power plug to a power outlet.
The Charge Indicator illuminates in red and
starts charging. Turning on the device during
the charging stage will lengthen the charge
time.
2.
Charging the device via USB cable
Charging the device via Dock Station (Optional)
Please refer to the Dock Station Getting Started for more detail.
USB
ATTACHING THE STRAP
4
A
B
1
A
BC
2
��
��
A
B
C
D
3
RECORDING VIDEO
5
Power ON the device.
(Power indicator will light up in
Green color.)
Switch to (video/picture) on the Mode dial.
Glide to T (zoom-in) / W (zoom-out) to frame your video.
Press Record to start recording.
Press Record again to stop recording.
2.
5.
3.
1.
4.
82-149-00050
Back Light [On/Off]/Playback Zoom/ Stop
Self-Timer [On/Off]/F.Bwd/Previous
Flash [Off/On/Auto/Red Eye]/F.Fwd/Next
Display
Record: OSD off / LCD off / LCD on & OSD on
Playback: Single / OSD off / LCD off / LCD on &
Thumbnail
OK / Play / Pause / Exit (Playback Zoom)
We have included this convenient Getting Started to help with the basic
operations. For more details on the different functions and operations,
please refer to the User Guide.
Thank you for purchasing the Mustek DV5500 Multi-functional Digital
Video.
Card Status Picture Taking
With Card Self-Timer
Card Lock Flash Strobe OFF
Battery Status Auto Flash Strobe
Battery Full Red Eye Reduction
Battery Low Flash Strobe ON
Out of Battery Economic Resolution
Auto Focus Normal Resolution
Auto Focus Fine Resolution
Macro Attach Voice
Normal Backlight Compensation
Mark for DPOF Portrait
Print mark Landscape
E-mail mark Sports
Movie Recording Night Portrait
Economic Resolution Daylight
Normal Resolution Cloudy
Fine Resolution Fluorescent
Audio Set Tungsten
Long Play Record Quick Review
Standard Play Record Date Display
ICONS & INDICATORS
PACKAGE CONTENTS
HOW TO CONTACT US
1
6
5
4
3
2
10
7
11
12
13
8
AE-Lock button
AF/Shutter
Zoom
Speaker
Power button
Built-in Microphone Lens
Earphone jack
USB port
AV OUT jack
1
6
5
4
3
2
10
9
7
11
12
Do not touch while recording. Flash strobe
8
PRODUCT TOUR
1
Front View
Note1: When the MMC memory card is correctly inserted a “click” sound will be heard.
14
15
16
17
20
19
21
9
14
DC IN jack
13
Hook for strap
18
Power/Charge LED indicator
Status LED
indicator
Note2: The device can only work with a MMC card inserted.

1. Switch to (Menu) on the Mode dial.
Use the Direction Control
buttons to navigate through the
functions and settings.
2.
DO N'T CO NN ECT TO PC !
DI RECT TO P RIN TE R !
Ok
Ret urn
Press
on the Direction Control to
conrm the device is connected to a printer.
4.
Select Print from the menu to print the selected picture.
6.
5.Select your preferred settings from the menu.
Note: When the device is connected to a computer under Direct Print
mode, Windows OS will ask for a device driver. We do not provide
such driver.
Main
menu
Item Setting Description
Direct
Print
Select
PIC
Select Mark still images for direct
printing.
All
Cancel
Optimal On Optimize image processing.
Off
Copies Select number of copies to be
printed for each marked image.
Paper Set
Size
4” X 6” Select paper size.
5” X 7”
8.5” x 11”
Default
Paper
Photo Select paper quality.
• Availability varies according to
your paper size selection.
Fast Photo
Default
Border
Off Apply borders to printing images.
On
Default
Print Print marked images.
MENU SETTING
10
Scroll
Up
Select
Up
Level
Down
Level
Scroll
Down
Switch to
(video/picture) on the Mode
dial.
1.

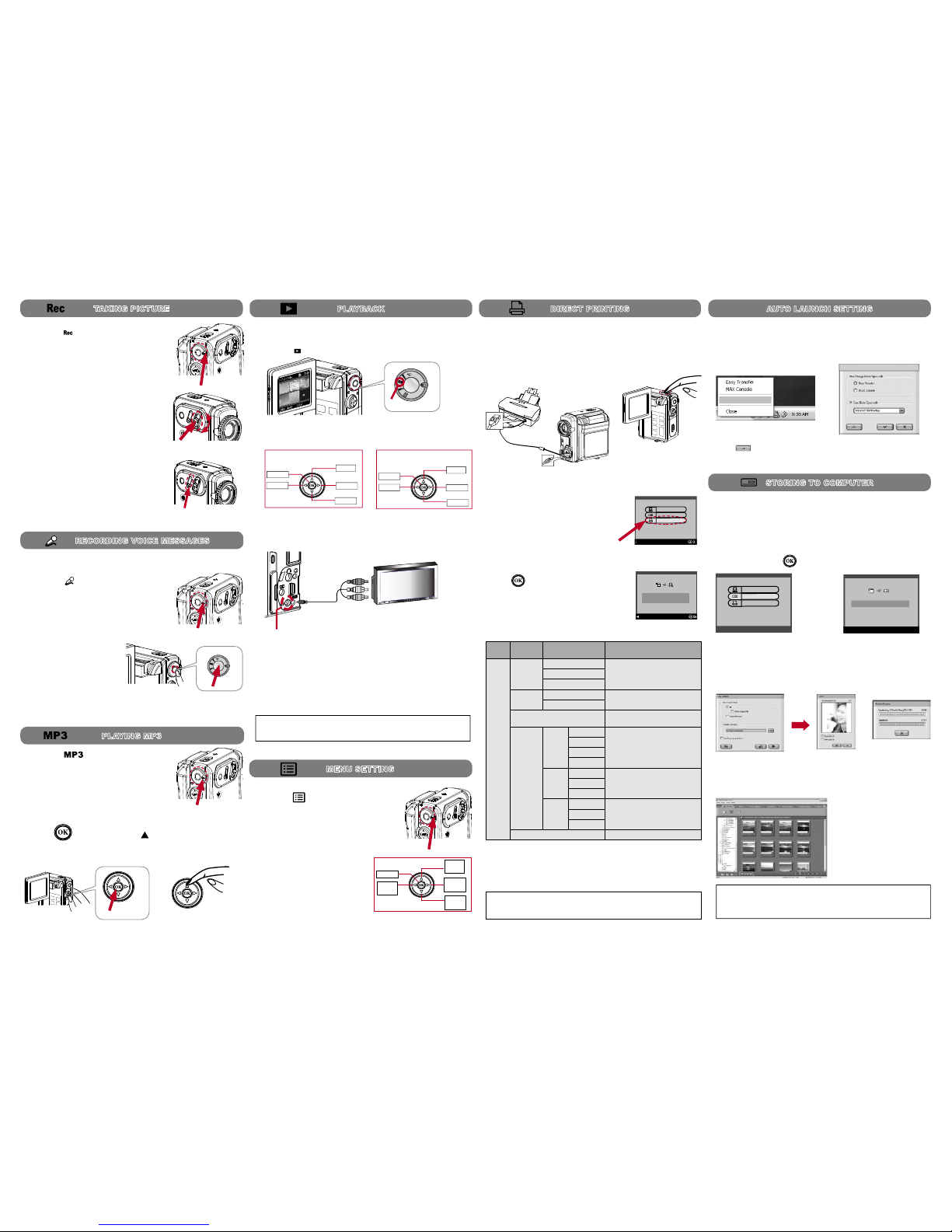

TAKING PICTURE
6
Press Shutter halfway to focus picture and
completely down to take a picture.
Glide to T (zoom-in) / W (zoom-out) to
frame your picture.
Switch to (Voice) on the Mode dial.
Press Record to start re-
cording and press again to
stop.
Switch to on the Mode dial.
PLAYING MP3
8
2.
3.
RECORDING VOICE MESSAGES
7
1.
2.
PLAYBACK
9
1. Switch to (Playback) on the Mode dial.
2. Recorded les list on the LCD screen.
3. Use the Direction Control buttons to navigate through the media.
For Picture
Zoom
Restore
Prev. Next
Display
Stop
Play
Prev. Next
For Audio and Video
Display
Connect the device to a
printer via an USB cable.
1. Power ON the device.
Select Direct Print from the OSD
Menu of the device.
Direct Print
PC Cam
Mass St orage
Selec t
OK
3.
2.
Direct Print provides a direct connection for the device to communicate
with printers. If you connect the device to a PictBridge™ compatible
printer, then the pictures stored in the device can be printed directly
without attaching to any computer or third party device. It’s just that
easy!
DIRECT PRINTING
11
Playback on LCD
Press
to start playing. Press
to stop playing.
Connect yellow end of the cable to the Video input (yellow) jack on
your TV set.
Connect the red and white ends of the cable to the Audio input
(red, white) jacks on your TV set.
Note: This device can also connect to other devices that are equipped
with Audio and Video input jacks. (ex. VCR, DVD Recorder and etc..)
2.
3.
AV Jack
AV Cable
Connect the device to a TV set with the AV cable.
1.
Playback on TV
Select Auto Launch Setting from
the menu and choose either Easy
Transfer or MAX Console as your
default le transfer application.
2.
Press to conrm and exit.
3.
After install the driver, a DV
device icon will appear on
your Windows OS taskbar.
Right click on the icon to
open the selection menu.
1.
Note: We strongly recommend
users to use Easy Transfer as
your default transfer application.
AUTO LAUNCH SETTING
12
Auto Launch Setting
Auto Launch Setting
STORING TO COMPUTER
13
Connect the device to your computer with the USB cable. (Please refer
to Section 3 to connect your USB cable.)
1.
2. Power ON the device.
3. 4.
5.
Select Mass Storage from
the OSD menu press
to
enter.
  
 
 
 

  
 
 
Mode
Mass
Storage
Easy Transfer or MAX Console will launch automatically according to
Auto Launch Setting.
The following screen will appear
for 2 seconds before entering
Mass Storage mode.
or
Single Transfer Transfer All
For MAX Console, select the device’s drive and go to the DCIM/
100MEDIA folder for audio clips, pictures, videos and go to the MP3
folder for MP3 les.
(Use the Drag and Drop
method to copy les to your
computer and vice versa.)
7.
Important: In order for MP3 les to be playable on your device be sure
to store those les in the MP3 folder. If the MP3 folder does not exist,
you may create the folder manually and name it as MP3.
For Easy Transfer single le transfer dialogue or transfer all progress
bar will appear depending on your Easy Transfer setting.
6.
1.
2.
