MUSTOOL FS8330Pro User manual

Intelligent digital clamp multimeter
SEL
NCV
INPUT
！
CAT
MAX 6 00V
COM
AUT O
6000 Counts
NCV
MAX
400A
CAT II
600V
CATIII
300V

Overview
Technical indexes
3.2.7 DIODE
3.2.10 Frequency
3.2.9 Temperature
3.2.6 Resistance
3.2.4 AC voltage
3.2.2 DC current(Optional features)
3.2.1 AC current
3.2.3 DC voltage
3.2.5 Line on-off test
3.2.8 Capacitor
1
16
16
10
5
5
6
7
6
6
6
7
7
8
8
8
9
1
2
2
3

1. Safety Information
Warning
Pay special attention to use of this instrument, for
improper use may cause electric shock or damage to
instrument. During use, observe usual safety regulations
and observe safety measures regulated in use manual.
In order to make full use of instrument functions and
guarantee safe operation, please carefully read and
observe use methods in this manual.
Instrument complies with safety requirements on
electronic measuring instrument of EN-61010-1,
EN-61010-2-030 and EN-61010-2-032, level II pollution,
and over-voltage standard is CAT II 600V.
Please observe safety operation guide, and guarantee
to use instrument in a safe manner.
1.1 Preparation
1.1.1 When using this instrument, users must observe
standard safety rules:
- General electric shock prevention.
- Prevention of misuse of instrument.
1.1.2 After receiving the instrument, check whether it is
damaged during transportation.
1.1.3 After storing and shipping under adverse conditions,
check whether the instrument has been damaged.
1.1.4 Pens of the instrument must be in good condition.
Before use, check whether insulation of pens is
damaged, and whether metal wire is exposed.
1

1.2 Symbol
Note (refer to use manual for important safety
information)
Able to be used on dangerous electrified
conductors.
Dual-insulation protection (Category II)
CAT III Over-voltage according to IEC-61010-1 standard
(installation), level III, pollution degree 2 refers
to protection level of pulse withstand voltage
provided.
Comply with EU standard.
Grounded
1.3 Maintenance
1.3.1 Do not try to open bottom case to adjust or repair
instrument, for such operation could only be
conducted by technicians fully understanding the
instrument and electric shock danger.
1.3.2 Before opening instrument bottom case or battery
cover, remove the pens from the wire being
measured.
1.3.3 In order to avoid electric shock possibly caused by
error reading, when symbol " " displays on
instrument, replace battery immediately.
1.3.4 Use wet cloth and gentle detergent to clean the
instrument, and do no use any abrasive or solvent.
1.3.5 Power off when the instrument is not used, and rotate
range switch to OFF position.
1.3.6 If the instrument is not used for a long time, take out
the battery to avoid any damage to the instrument.
2

2. Description
2.1 Part name
Data hold and flashlight button
Eletric torch
Input socket
Caution light
Contactless induction zone
LCD display
SEL and NCV buttons
Current measuring clamp
On/off key
SEL
NCV
INPUT
！
CAT
MAX 6 00V
COM
AUT O
6000Counts
NCV
MAX
400A
CAT II
600V
CATIII
300V
9
3

AC & DC
Connection/Disconnection indication
Automatic range mode
Automatic shutdown indication
Low battery
Reading hold state
Volt (voltage), ampere (current)
Ohm kilohm and megohm (resistance)
hertz
icrofarad
Centigrade and Fahrenheit
LCD display
DIODE
AUTO
6000Counts
Non-contact measuring voltage
Live line voltage identification
4

3. Specification
The instrument specifies one year as a cycle, and shall
be re-calibrated under 18℃ ～ 28℃, with relative humidity
less than 75%.
3.1 Overview
●Select measurement function and range automatically.
● Overload protection throughout the range.
● Max. voltage between measurement terminal and
ground: 600V DC or 600V AC
● Operating height: Max. 2000m
● Display: LCD
● Max. display value: 6000 digit.
● Polarity indication: Automatic indication, and ‘-’
indicates negative.
● Over range display: ‘0L’ or ‘-0L’.
●Sampling time: About 3 times/second.,bargraph 10
times/second
● Unit display: Function and electricity quantity unit
display.
● Automatic shutdown time: 15 minutes
● Power supply: 1.5V AAA battery × 2
● Battery under-voltage indication: LCD display
symbol
● Temperature coefficient: Less than 0.1×accuracy/℃.
● Operating temperature: 18℃ ～ 28℃.
● Storage temperature: -10℃ ～ 50℃.
5

3.2 Technical indexes
3.2.1 AC current
Range Resolution Accuracy
60A 0.01A ± (2.5% reading + 8 digits)
0.1A
- Min. input current: 0.2A AC current.
- Max. input current: 400A AC current.
- Frequency range: 40～ 1000 Hz;
3.2.2 DC current(Optional features)
Range Resolution Accuracy
60A 0.01A
± (2.5% reading + 8 digits)
400A 0.1A
- Min. input current: 0.2A DC current
- Max. input current: 400A DC current
3.2.3 DC voltage
Range Resolution Accuracy
± (0.5% reading + 5 digits)
600V 0.1V
- Min. input voltage DC
- Max. input voltage: 600V DC
m
Range Resolution Accuracy
± (0.5% reading + digits)
- Min. input voltage 0. 1m V DC
- Max. input voltage: 600V DC
Dc voltage V
Dc voltage
6

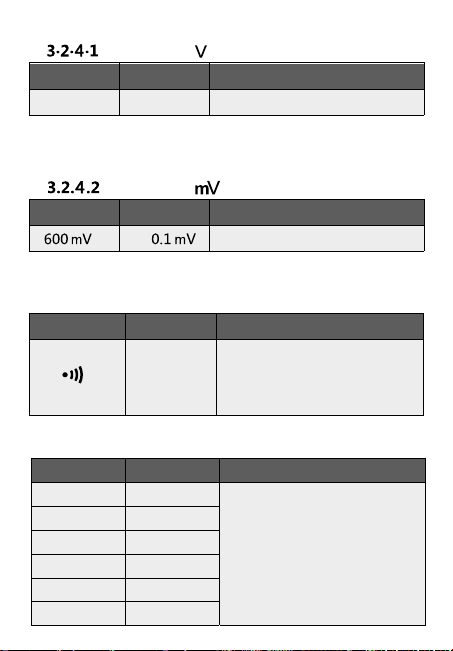

3.2.4 AC voltage
Range Resolution Accuracy
±( 0.8% reading + 5 digits)
600V 0.1V
- Min. input voltage: 0.5V AC
- Max. input voltage: 600V AC (valid value)
- Frequency range: 45 ~ 1000Hz
3.2.5
Range Resolution Accuracy
±( 0.8% reading + 5 digits)
- Min. input voltage: 0.1 mV AC
- Max. input voltage: 600V AC (valid value)
AC voltage
AC voltage
Line on-off test
Range Resolution Function
1Ω Ω
- Overload protection: 250V DC or AC (valid value)
If the measured line
resistance is less than 50 ,
the buzzer in the meter will
sound
3.2.6 Resistance
Range Resolution Accuracy
600Ω 0.1Ω
± (0.8% reading + 3 digits)
6kΩ 0.001kΩ
60kΩ 0.01kΩ
600kΩ 0.1kΩ
6MΩ 0.001MΩ
60MΩ0.01MΩ
7

8
- Overload protection: 250V DC or AC (valid value)
Range Resolution Accuracy
60.00nF 0.01nF
600.0nF 0.1nF
6.000uF 1nF
60.00uF 10nF
600.0uF 100nF
6.000mF 1μF
60.00mF 10μF
- Overload protection: 250V DC or AC (valid value)
±( 10% reading+40 digits)
±( 2.5%reading+20 digits)
3.2.9 Temperature
Range Resolution Accuracy
1℃ ± (1%
reading +3℃)
2℉ ± (1% reading +3℉)
- Overload protection: 250V DC or AC (valid value)
The precision does not include the error of the thermocouple probe
-40°C~
1000°C
-40°F~
1832°F

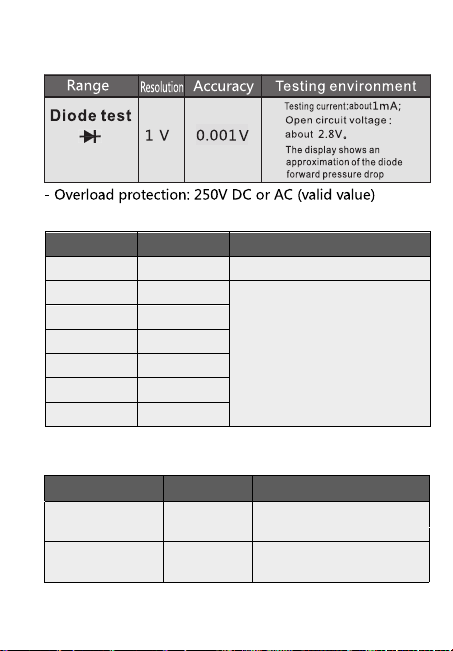

3.2.7 DIODE
3.2.8 Capacitor

9

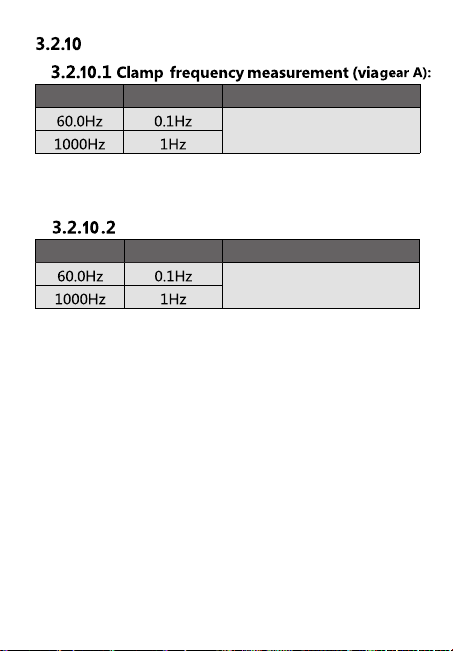

Frequency
Range Resolution Accuracy
Range Resolution Accuracy
±( 1% reading + 5 digits )
±( 1% reading + 5 digits )
-Measurement range: 40Hz ~ 1000Hz
- Input signal range: ≥ 1/4 Full- scale Value
Via gear V:
-Measurement range: 40Hz ~ 1000Hz
- Input signal range: ≥ 0.5～600V AC voltage (valid value)

4. Operation guide
4.1 Reading hold
During measurement, if it is required to hold reading,
touch button, value on display will be locked, touch
button again, to cancel reading hold.
4.2 Torch
1)
4.3
10
Long press the flashlight button for 2 seconds, turn on
the flashlight, and turn it off after about 1 minute.

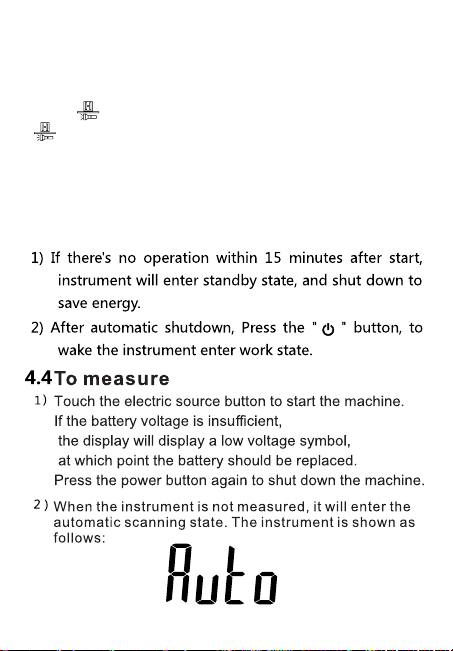

Auto Power -Off

11

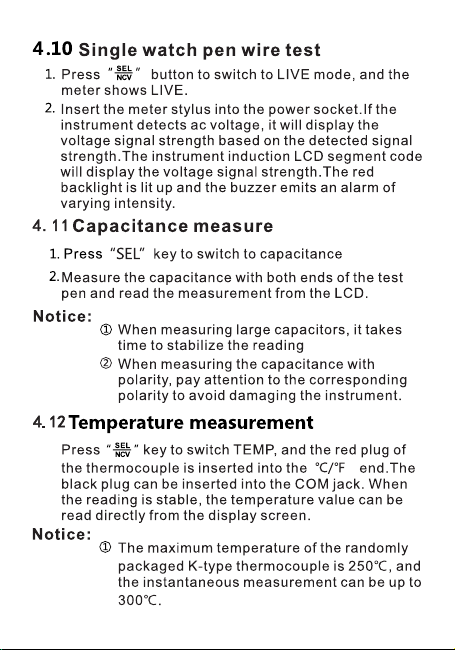

Even if there is no alarm indication, the voltage may
still be present. Do not rely on the non-contact voltage
to determine whether a wire has a voltage.
Probe operation may be influenced by socket design,
type of insulation thickness, etc.
In NCV detection mode, the meter does not measure
voltage, resistance, and current simultaneously.

12
electric current measurement
Ac current and AC current frequency measurement
Press the clamp, open the clamp mouth and clamp one of the
wires under test.
When the measured signal is greater than 0.2a, the meter display
displays the current value and frequency value
of the measured conductor.
(Note: The meter can display the
frequency value only when the current
value is greater than 35A)
Dc current measurement
Press the clamp, open the clamp mouth and clamp one of the
wires under test.
When the measured signal is
greater than 0.2a, the meter display
displays the current value and
frequency value of the measured
conductor.
(Test instrument with dc current function)

13
Connect the test pen to the signal
being tested.
When the measured AC signal is
greater than 0.5V, the display
displays the voltage and
frequency values.
When the measured
AC signal <0.5V, the instrument
default resistance value, display
the measured signal internal
resistance value.
Press SEL button to dc voltage mV,
the instrument shows mV
Dc voltage measurement
Connect the test pen to the test signal.
When the test signal is <600mV,
the instrument will display the current
dc voltage value under test;
when the test signal is >600mV,
the instrument will display "OL".
Connect the test pen to the signal being tested. When the
measured DC signal is greater than 0.5V, the display voltage
value. When the measured DC signal is <0.5V, the instrument
uses the default resistance value and displays the resistance
value of the measured signal.

14
Press SEL to enable the mV function. Instrument display mV
Connect the meter and meter pen to the signal under test.
When the measured signal is less than 600mV,
the meter displays the measured current
dc voltage value.
When the measurement signal
is > 600mV, the instrument
displays "OL".

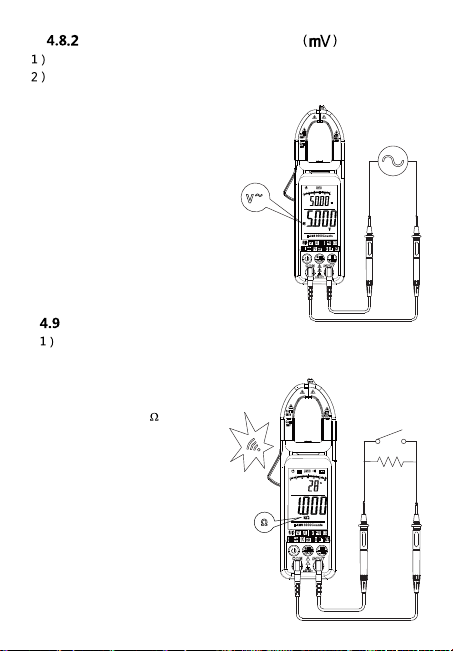

Ac voltage measurement
resistance measurement
Connect the test pen to the resistance to be measured.
The main display of the instrument will display the measured
resistance value.
When the measurement resistance
is less than 50 ,
the instrument buzzer
sound alarm, indicator
light on.

15

5. Maintenance
5.1 Change battery
Warning
Before opening battery cover of the
instrument, remove the pens from the circuit being
measured, to avoid electric shock.
1) If symbol " " appears, it indicates to change the
battery.
2) Unfasten bolts on battery cover of instrument and
remove the cover.
3) Change the old battery.
4) Place the battery cover.
Do not reverse battery polarity.
16
5.2 Change pens
Warning
When changing the pen, it is required to
replace with an identical pen or a pen of the same
level. The pen must be in good condition, and level
of the pens is: 1000V 10A.
If insulation layer of the pen is damaged, or metal wire
of the lead exposes, it is required to change the pen.
6. Accessories
1) Pens Level: 1000V 10A
2) Use Manual
3) Battery 1.5V AAA battery
4)
K-Type Optional function accessories
2PCS
1PCS
