MuxLab 500830 User manual

HDMI 2.0/3G-SDI Signal Generator
© MuxLab Inc. 2017 94-000850-A / SE-000850-A Page 1
HDMI 2.0/3G-SDI Signal Generator
Installation & Operation Manual
500830

HDMI 2.0/3G-SDI Signal Generator
© MuxLab Inc. 2017 94-000850-A / SE-000850-A Page 2
Contents
1. Introduction................................................................................................................................ 3
2. Package Contents....................................................................................................................... 5
3. Product Panel Overview ............................................................................................................ 5
3.1 Front Panel............................................................................................................................... 5
3.2 Rear Panel................................................................................................................................ 6
4. Features...................................................................................................................................... 7
5. Specifications............................................................................................................................. 8
6. Applications............................................................................................................................... 8
7. Operation Control & Functions ............................................................................................... 10
8. USB Port Serial Driver Installation ......................................................................................... 20
9. Cascading the Control Bus....................................................................................................... 20
10. Warranty ............................................................................................................................... 23

HDMI 2.0/3G-SDI Signal Generator
© MuxLab Inc. 2017 94-000850-A / SE-000850-A Page 3
1. Introduction
The HDMI 2.0/3G-SDI Signal Generator (500830) is a
programmable SD/HD/3G SDI and HDMI 2.0 (UHD - Ultra High
Definition) Test Instrument supporting a pattern generator
function that is packed with features for video and audio
testing of HDMI®source and sink equipment, including
repeaters. The unit Generates a full range of resolutions up to
4K @ 60Hz 4:4:4, as defined in HDMI®2.0 standard, and is
capable of generating all available HDMI and DVI digital
signals. The unit also supports the generation of HD/SD/3G-SDI
signals for Broadcast applications.
When used together with the HDMI 2.0/3G-SDI Signal Analyzer
(500831), a useful set of cable tests can be performed to
check the HDMI cable quality and the connectivity of signal
lines. Such tests may be operated from the HDMI 2.0/3G-SDI
Signal Analyzer and the test result will also be displayed on the
HDMI 2.0/3G-SDI Signal Analyzer.
Thanks to the product’s small size and low power consumption,
the unit is powered via an internal battery, which can be
charged from the included power supply. The battery supports
5 hours of normal operation between charges. This

HDMI 2.0/3G-SDI Signal Generator
© MuxLab Inc. 2017 94-000850-A / SE-000850-A Page 4
convenience permits the operator to run tests in areas where
AC power may not be easily accessible, and allows for a
device that is highly portable and can be easily included in a
video technician’s toolbox. It may even be used in an array of
daisy chained devices on a development workbench, or in a
Control Room 19” Rack shelf.
The HDMI 2.0/3G-SDI Signal Generator has a built in 3” (inch)
LCD display that will graphically show actual generated
patterns, menus and unit settings, including output signal
settings & parameters.
A professional programmable sine wave generator is
integrated for performing sophisticated and tailored audio
tests. In addition the unit supports an auxiliary audio port which
may be connected to an external audio source, which is then
embedded into the HDMI®output. The audio auxiliary port is
accessible via a 3.5mm 2CH socket located on rear panel,
and may be connected to practically any unbalanced 1V/pp
line level 2CH analog audio source.
The HDMI 2.0/3G-SDI Signal Generator is programmable via
RS232 or USB, with Windows based Control Software that may
be downloaded at no charge from the MuxLab website. Uses
can create large test systems (with multi device measurement
protocol functionality) by making use of the RS232 port to

HDMI 2.0/3G-SDI Signal Generator
© MuxLab Inc. 2017 94-000850-A / SE-000850-A Page 5
connect to a downstream test unit. This feature allows for a
large test system setup with multiple HDMI 2.0/3G-SDI Signal
Generators to test UHD distribution devices or complex UHD
networks.
2. Package Contents
1. Main unit: HDMI 2.0/3G-SDI Signal Generator
2. 5V 1A Power Supply
3. Wall-mounting bracket (x2)
4. 1.2m USB cable (x1)
5. Stick-on rubber feet (x4)
3. Product Panel Overview
3.1 Front Panel
1. HDMI/SDI mode select button
2. HDMI or SDI mode LED Indicator
3. 3 inch LCD panel. The display shows actually generated

HDMI 2.0/3G-SDI Signal Generator
© MuxLab Inc. 2017 94-000850-A / SE-000850-A Page 6
signals transmitted on the HDMI output port, as well as to
control/navigation menus and device settings.
4. HDMI Sync Status LED. Shows the HDMI link status and is lit
when the link is active. The LED will be off when the link is lost
or the HPD is not present from the sink device. The link will
blink if an EDID error exists.
5. Convenient and ergonomic buttons for operating and
navigating menus and settings with Up, Down, Left, Right,
Enter (select) and Cancel buttons.
3.2 Rear Panel
1. DB9 connector for RS232 control
2. DB9 connector for RS232 cascade, to another tester
3. USB port for control
4. SDI out
5. 3.5mm jack for 2CH analog audio in
6. HDMI out
7. 5V DC socket

HDMI 2.0/3G-SDI Signal Generator
© MuxLab Inc. 2017 94-000850-A / SE-000850-A Page 7
8. Power switch
4. Features
Powerful and affordable testing solution AV R&D
engineers, integrators and installers
Supports 4Kx2K 24Hz/25Hz/30Hz/50Hz/60Hz and 3D
Supports RGB4:4:4, YUV4:4:4, YUV4:2:2,YUV4:2:0(HDMI2.0)
Supports SD/HD/3G-SDI
Includes 33 preset patterns
Supports 32 preset resolutions, 10 user-defined resolutions
and 1 auto resolution mode (for HDMI)
3 inch LCD panel for Output Pattern preview and Menu
settings display
Supports 7 audio sample rates, and one auto mode based
on the EDID data from the HDMI signal received from a sink
device
Supports standard functionality such as HDMI/DVI up to 4K
resolution @ 60Hz (4:4:4), Deep Color, HDCP (On/Off), Color
Space and an array of other crucial video parameters.
Supports EDID read functionality and can store 10 EDID
settings from different TVs (or sink devices) and can write
(program) previously saved EDID configurations to other

HDMI 2.0/3G-SDI Signal Generator
© MuxLab Inc. 2017 94-000850-A / SE-000850-A Page 8
devices
Windows Control Software, available at no charge from the
MuxLab website, will significantly extend the product
functionality.
5. Specifications
HDMI Version
HDMI 2.0/DVI
HDCP Version
HDCP2.2/HDCP1.4
HDCP On/Off Support
Yes
Video Bandwidth
Up to 18.0GHz(6.0GHz per channel)
Color Depth
24bits, 30bits, 36 bits, 48bits
Embedded Timing
54 sets (Including 4K(30), 4K(25), 4K(24), HDMI2.0
4K(50), HDMI2.0 4K(60), 720P-3D, 1080P-3D) fixed
timing and one AUTO mode
User Define Timing
10 sets
SDI version
SD-SDI/ HD-SDI/ 3G-SDI
Pattern
34 patterns: (33x) 2D patterns & (1x) 3D pattern
Color Space
RGB444, YUV444, YUV422, YUV420 (HDMI®2.0 only)
Audio Bits
16bit, 20bit, 24bit
Audio Sample Rate
32K, 44K, 48K, 88K, 96K, 176K, 192K
Vertical Frequency Range
≤120 Hz
Power Consumption (max.)
2 Watts
Housing
Metal
Dimension (mm)
170mm x 109mm x 50mm
Weight (g)
930g
6. Applications

HDMI 2.0/3G-SDI Signal Generator
© MuxLab Inc. 2017 94-000850-A / SE-000850-A Page 9
The HDMI 2.0/3G-SDI Signal Generator is intended to be used
to test HDMI sink devices, which may include HDMI or SDI
matrix, switches, Switchers, splitters, TV sets, etc.

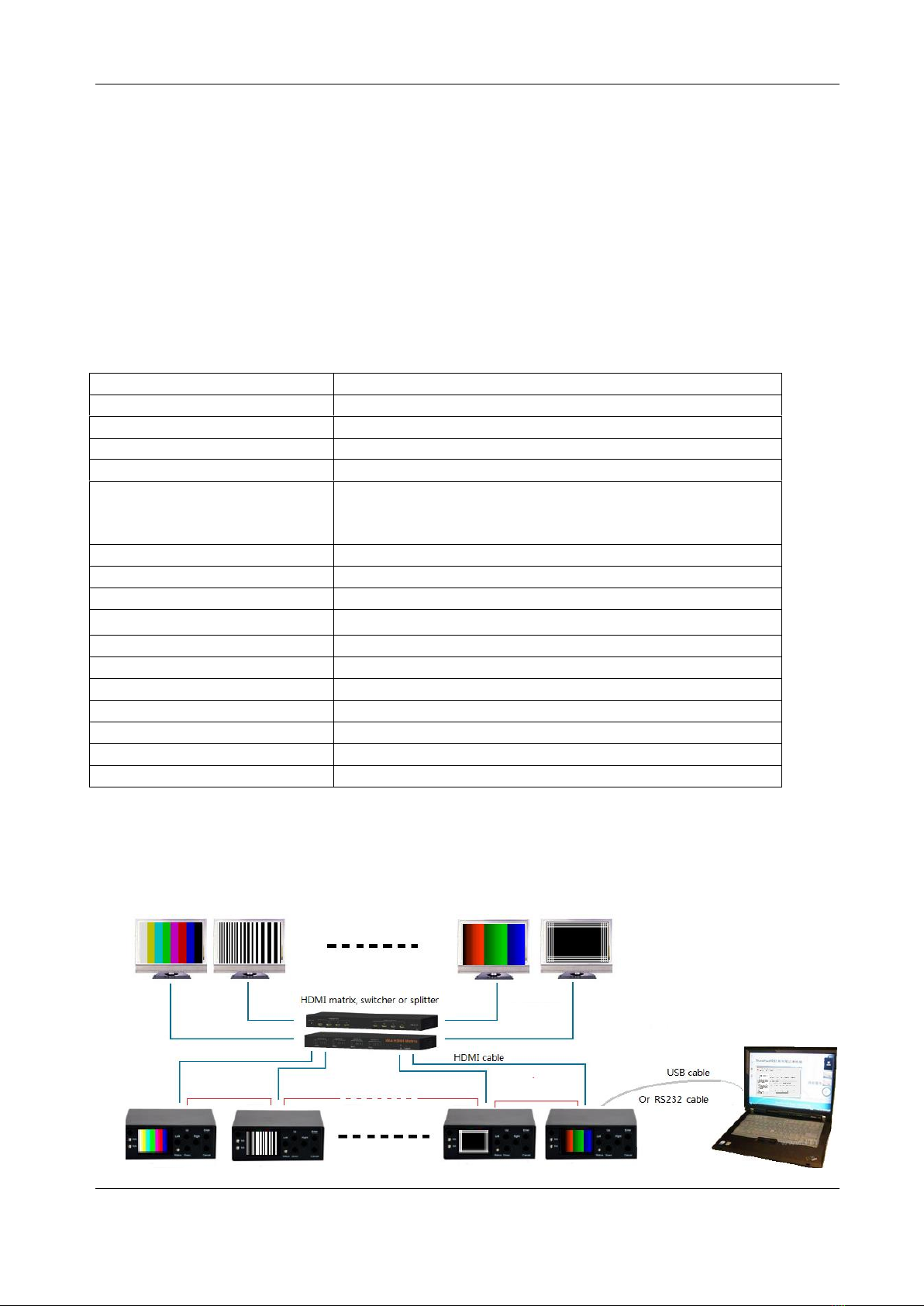

The HDMI 2.0/3G-SDI Signal Generator (500830) also works with
the HDMI 2.0/3G-SDI Signal Analyzer (500831), which is
practical when testing devices placed between source and
sink equipment, such a matrix switches, switchers and splitters
as shown below. This device pairing creates a flexible and
powerful UHD test system. The test systems can be controlled
via a single RS232 control port, due to the fact that the RS232
signal can cascaded (daisy chained) across multiple testing
devices (500830 & 500831 devices).
The combination of the HDMI 2.0/3G-SDI Signal Generator
(500830) and HDMI 2.0/3G-SDI Signal Analyzer (500831)
provides the user with a sophisticated low cost UHD
troubleshooting testing system. The setup can be used to

HDMI 2.0/3G-SDI Signal Generator
© MuxLab Inc. 2017 94-000850-A / SE-000850-A Page 10
analyze bit error levels, and for long term “Time /Event based
sampling” tests that are extremely difficult to do by individual
technician alone.
The HDMI 2.0/3G-SDI Signal Generator offers sophisticated
functionality in a compact size, making it a valuable tool for AV
professionals.
7. Operation Control & Functions
1. For HDMI connections: Connect an HDMI cable from the
Signal Generator to a TV or other HDMI sink device.
2. When managing the test via the Windows Control Software,
connect the Windows PC RS232 port to the RS232 port on
the Signal Generator.
3. The Signal Generator can be run on the internal battery, or
can be run via an external power source, such as from the
included power supply by connecting the power supply to
the Signal Generator power socket.
