MuxLab ProDigital 500790 User manual

MuxLab © 2021 1 94-000962-A/SE-000962-A
HDMI/IP PTZ Camera 30X Zoom, PoE
Operation Manual
(500790)

HDMI/IP PTZ Camera 30X Zoom, PoE Operation Manual
2
Preface
Thank you for purchasing the HDMI/IP PTZ Camera 30X Zoom, PoE. This manual covers the camera
functions, installation, and operation. Prior to installation and usage, please read the manual thoroughly.
Precautions
This product must be used in the specified conditions in order to avoid damage to the camera:
⚫Do not subject the camera to rain or moisture.
⚫Do not remove the cover, otherwise, you may get an electric shock and may void the
warranty. In case of abnormal operation, contact the seller.
⚫Never operate beyond the specified temperature, humidity, and power supply range.
⚫Please use a soft dry cloth to clean the camera. If the camera is very dirty, clean it with a
diluted neuter detergent; do not use any type of solvents which may damage the surface.
Note
This is a class A product. Electromagnetic radiation at the specific frequency may affect the image quality
of a TV in a home environment
Copyright Notice
All content in this manual is copyrighted, and cannot be cloned, copied, or translated without the express
permission of MuxLab Inc. Product specifications and information in this document are for reference
only, and the content may be updated from time to time without prior notice.

HDMI/IP PTZ Camera 30X Zoom, PoE Operation Manual
3
Contents
1. Safety Notice..................................................................................................5
2. Supplied Accessories .....................................................................................6
3. Quick Start .....................................................................................................6
4. About Product ................................................................................................7
4.1 Features................................................................................................7
4.2 Specification ........................................................................................8
4.3 Main Unit Connections ......................................................................10
4.4 Dimension .......................................................................................... 11
4.5 IR Handheld Remote Control.............................................................12

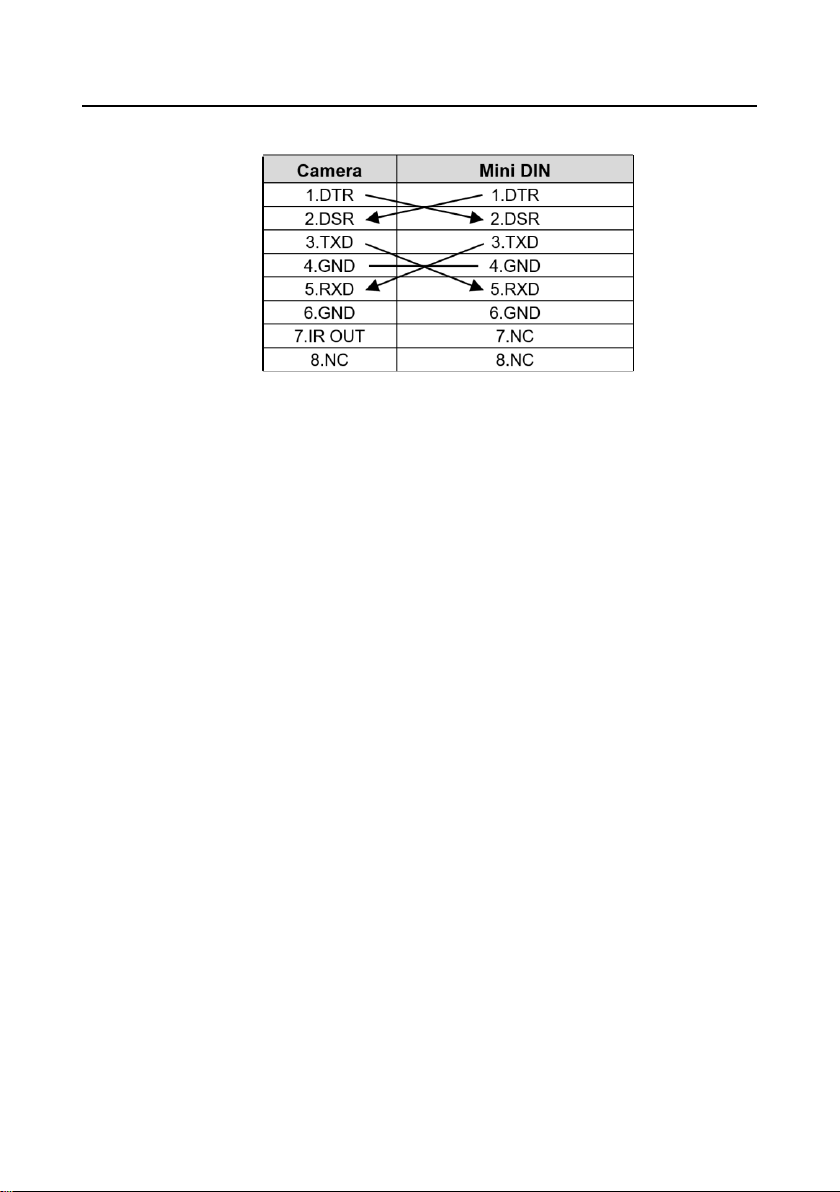

4.6 RS-232 Interface Pinout.....................................................................14
4.7 Serial Communication Control ..........................................................15
4.8 PTZ over TCP/UDP Control ..............................................................16
4.9 Command List....................................................................................16
5. OSD Settings................................................................................................17
5.1 Menu ..................................................................................................17
5.2 Exposure ............................................................................................17
5.3 Color ..................................................................................................18
5.4 Image..................................................................................................18
5.5 P/T/Z ..................................................................................................19
5.6 Noise Reduction.................................................................................20
5.7 Setup ..................................................................................................20
5.8 Communication Setup........................................................................21
5.9 Restore Default ..................................................................................21
6. Network Function ........................................................................................22
6.1 Operating Environment......................................................................22
6.2 Equipment Installation .......................................................................22
6.3 Internet Connection............................................................................22
6.4 IP camera control via LAN ................................................................22
6.4.1 Setup IP address ......................................................................22
6.4.2 Access IP Camera Web Interface ............................................23

HDMI/IP PTZ Camera 30X Zoom, PoE Operation Manual
4
6.5 IP Camera accessed/controlled by WAN (internet)............................24
6.5.1 Setup IPC controlled by dynamic DNS...................................24
6.5.2 Dynamic DNS camera access .................................................24
6.5.3 VLC stream media player monitoring.....................................24
6.6 IP Camera parameter setup ................................................................25
6.6.1 Homepage introduccion ..........................................................25
6.6.2 Video Setup .............................................................................27
6.6.3 Image Setup.............................................................................28
6.6.4 Audio Setup.............................................................................28
6.6.5 System Setup........................................................................... 29
6.6.6 Network Setup.........................................................................29
6.6.7 Device Information .................................................................30
6.7 Downloading firmware updates .........................................................30
7. Maintenance and Troubleshooting...............................................................31
8. Appendix – Visca and Pelco-D Command List............................................33

HDMI/IP PTZ Camera 30X Zoom, PoE Operation Manual
5
1. Safety Notice
⚫Electric Safety
Installation and operation must be in accordance with national and local electric safety standards.
Do not use any power supply other than the one originally supplied with this camera.
⚫Caution when transporting
Avoid stress, vibration and sock during transport, storage and installation.
⚫Polarity of power supply
The power supply of the product is +12V @ 2A (max). The polarity of the power supply plug is
shown below.
⚫Care during installation
Do not grasp the camera head when carrying the camera. Do not turn camera head by hand. Doing
so may result in mechanical damage.
Do not apply any corrosive form of liquid, gas or solid to the camera to avoid damaging the plastic
cover.
To make sure there are no obstacles in the camera rotation range.
Never power on the camera before the installation is complete.
⚫Do not dismantle the camera in any way
MuxLab is not responsible for damage caused by unauthorized modification or dismantling.
CAUTION!
Specific frequencies of electromagnetic fields may affect the image quality of the camera!

HDMI/IP PTZ Camera 30X Zoom, PoE Operation Manual
6
2. Supplied Accessories
When unpacking, check that all supplied accessories are included:
•One (1) Camera
•One (1) AC power adaptor
•One (1) Power cord
•One (1) RS232 cable
•One (1) IR handheld remote control
•One (1) User manual (available via download)
3. Quick Start

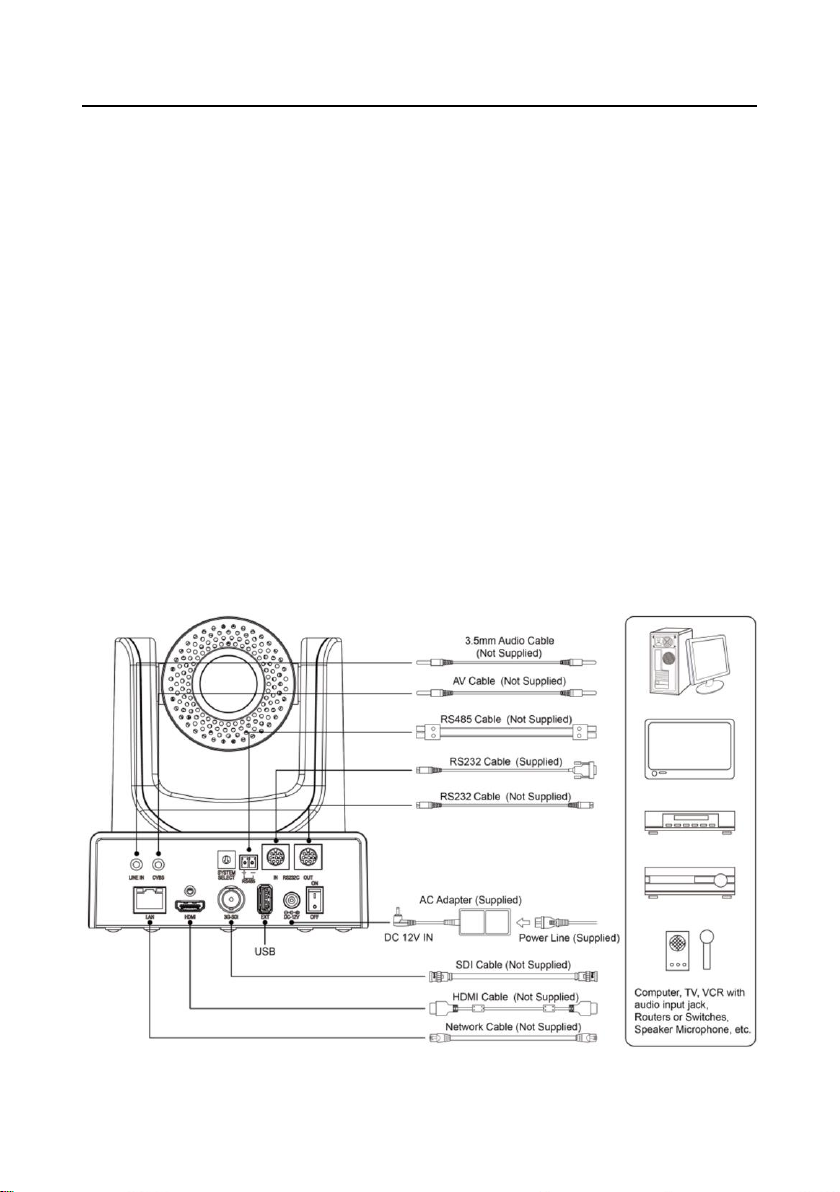

Step1. Please check that connections are correct before continuing.

HDMI/IP PTZ Camera 30X Zoom, PoE Operation Manual
7
Step2.Connect the power on the rear panel of the camera, and the power LED on the front will
illuminate.
Step3. During the power On sequence the Pan-Tilt function rotates the camera to its maximum upper
right position, and then returns to the center position to complete the initialization process. (Note: if
there is an entry for position preset 0, the corresponding position preset 0 will be called up after
initialization.)
4. About Product
4.1 Features
⚫Maximum resolution of 1920 x 1080 (Full HD) at 60Hz.
⚫Supports a Panasonic's 1/2.7 inch, 2.07 million effective pixels high quality HD CMOS
sensor.
⚫Uses a 60.7° wide-angle high-quality lens.
⚫Supports a 30x optical zoom, and up to 8x digital zoom.
⚫Supports H.265 encoding, allowing Full HD 1080p video streaming to be streamed with
ultra-low bandwidth.
⚫High SNR CMOS sensor combined with 2D & 3D noise reduction algorithm, effectively
reducing noise even under low light conditions.
⚫Supports AAC audio encoding for better sound quality at a lower bandwidth.
⚫Supports HDMI and 3G-SDI interfaces, effective transmission distance up to 150 meters
(under 1080P30). HDMI and SDI can output at the same time. It also supports CVBS
interface.
⚫Support local USB disk storage without NVR.
⚫Designed with worm gear drive for reliable and accurate movement.
⚫May be remotely controlled via RS232 and IP.
⚫Works as a standalone device.

HDMI/IP PTZ Camera 30X Zoom, PoE Operation Manual
8
4.2 Specification
Camera
Signal System
HD: 1080p/60, 1080p/50, 1080i/60, 1080i/50, 1080p/30, 1080p/25,
720p/60, 720p/50, 720p/30, 720p/25
SD: 480i, 576i
Sensor
1/2.7 inch, CMOS, Effective Pixels: 2.07M
Scanning Mode
Progressive
Lens
30x, focal length of 4.42mm to 132.6mm, F-Stop of 1.8 to F2.8
Digital Zoom
8x
Minimal Illumination
0.05 Lux @ (F1.8, AGC ON)
Shutter
1/30s to 1/10000s
White Balance
Auto, Indoor, Outdoor, One Push, Manual, VAR
Backlight Compensation
Supported
Digital Noise Reduction
2D & 3D Digital Noise Reduction
Video S/N
≥55dB
Horizontal Angle of View
60.7° to 2.28°
Vertical Angle of View
34.1° to 1.28°
Horizontal Rotation Range
-170° to +170°
Vertical Rotation Range
-30° to +90°
Pan Speed Range
1.7° to 100°/s
Tilt Speed Range
1.7° to 69.9°/s
Horizontal & Vertical flip
Supported
Image Freezing
Supported
Local Storage
Supported
Number of Presets
255
Preset Accuracy
0.1°
IPC Features
Video coding standard
H.265/H.264/MJEPG

HDMI/IP PTZ Camera 30X Zoom, PoE Operation Manual
9
Video Stream
First Stream, Second Stream
First Stream resolution
1920x1080,1280x720,1024x576,960x540,640x480,640x360
Second Stream resolution
1280x720,1024x576,720x576,720x408,640x360,480x270,320x240,3
20x180
Video Bit Rate
32Kbps to 20480Kbps
Bit Rate Types
Variable bit rate and Fixed bit rate
Frame Rate
50Hz: 1fps to 50fps, 60Hz: 1fps to 60fps
Audio encode standard
AAC
Audio Bit Rate
96Kbps, 128Kbps, 256Kbps
Support protocols
TCP/IP, HTTP, RTSP, RTMP, ONVIF, DHCP, Multicast, etc.
Input/Output Interface
HD Output
One (1) HDMI 1.3
Network interface
One (1) RJ45: 10/100/1000M Adaptive Ethernet ports
3G-SDI interface
One (1) 3G-SDI: BNC type, 800mVp-p, 75Ω. Along to SMPTE 424M
standard
CVBS interface
One (1) CVBS: 3.5mm RCA jack, 1Vp-p, 75Ω
USB interface
One (1) USB 2.0: Type A female jack
Audio interface
One (1) 1-ch 3.5mm audio interface, Line In
Communication interface
-One (1) RS-485: 2pin phoenix port, Max Distance:
1200m, Protocol: VISCA / Pelco-D / Pelco-P
-One (1) RS-232 IN: 8pin Min DIN, Max Distance: 30m,
Protocol: VISCA / Pelca-D / Pelco-P
-One (1) RS-232 OUT: 8pin Min DIN, Max Distance: 30m,
Protocol: VISCA / Pelca-D / Pelco-P
Power jack
JEITA type (DC IN 12V)
Generic Specification
Input Voltage
DC 12V
Current Consumption
1.0A (Max)
Operating Temperature
-10°C ~ 40°C (14°F ~ 104°F)
Storage Temperature
-40°C ~ 60°C (-40°F ~ 140°F)
Power Consumption
12W (Max)

HDMI/IP PTZ Camera 30X Zoom, PoE Operation Manual
10
MTBF
>30000h
Unit dimensions
6.65” x 5.59” x 6.46” (169mm x 142mm x 164mm)
Unit Weight
3.0lbs (1.35Kg)
Model
Ordering Information
500790 HDMI/IP PTZ Camera 30X Zoom, PoE

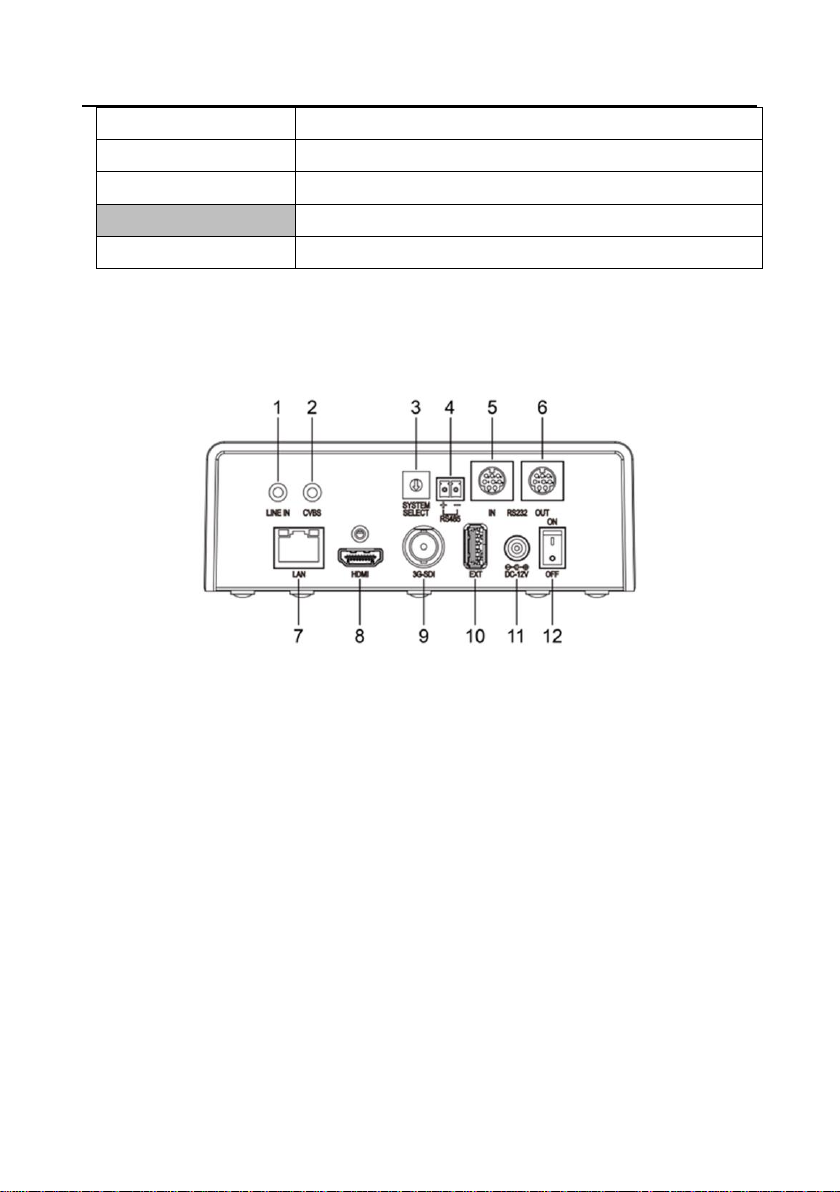

4.3 Main Unit Connections
1 2CH AUDIO LINE IN interface
2 CVBS Interface
3 System Select Switch
4 RS485 Interface
5 RS232 IN Interface
6 RS232 OUT Interface
7 Network Interface
8 HDMI Interface
9 3G-SDI Interface
10 USB 2.0 Interface
11 DC 12V Interface
12 Power Switch

HDMI/IP PTZ Camera 30X Zoom, PoE Operation Manual
11
4.4 Dimension

HDMI/IP PTZ Camera 30X Zoom, PoE Operation Manual
12
4.5 IR Handheld Remote Control
1. Standby Button
Pressing this button toggles between “standby”
and “normal power On” mode. (standby mode
is approximately half the power consumption
of power On mode)
2. Numeric Position Buttons
To store or activate a preset position
3. * Button
Used in combination with other buttons
4. Preset Button
[PRESET] + Numeric key (0-9): Saves a
preset position to a numeric key
5. Pan-Tilt Home Button
Pressing this button sets the camera to the
Pan/Tilt center (home) position
6. Back/Return button
Press this button returns you to the previous
(higher) OSD (On Screen Display) menu.
7. Zoom Buttons
Slow Zoom: Zoom In [+] or Out [-] slowly
Fast Zoom: Zoom In [+] or Out [-] quickly
8. Pan-Tilt L/R set
Press the L/R Set button and either the “1” key or “2” key to set the camera direction of the Pan-
Tilt motion.
L/R Set +1 [STD]: sets the Pan-Tilt motion to the default left/right direction
L/R Set +2 [REV]: sets the Pan-Tilt motion to the reverse right/left direction
9. Focus Buttons
Used for focus adjustment.
Press [AUTO] to adjust the focuses on the center object automatically.
Press [MANUAL] to adjust the focus on the center of the object manually by using the

HDMI/IP PTZ Camera 30X Zoom, PoE Operation Manual
13
[Far] button (to focus on far objects) and [NEAR] button (to focus on near objects)
10. Camera Select Buttons
Press the button corresponding to the camera you want to operate with the remote controller.
11. # Button
Used in combination with other buttons
12. Set Camera IR Address Buttons
To set to Address1, press on [*]+[＃]+[F1] buttons
To set to Address2, press on [*]+[＃]+[F2] buttons
To set to Address3, press on [*]+[＃]+[F3] buttons
To set to Address4, press on [*]+[＃]+[F4] buttons
13. Reset (Clear Preset) Button
Clear preset: Erase a preset position
Press [RESET] + Numeric button (0-9)
Or: [*]+[#]+[RESET]: To erase all the presets
14. Pan/Tilt Control Buttons
Press arrow buttons to perform panning (Left & Right) and tilting (Up & Down). Press [HOME]
button to return the camera to the center (home) position
15. MENU
MENU: enter or exit OSD MENU
16. BLC (Backlight Compensation) Button
BLC ON/OFF: Press this button to enable the backlight compensation. Press it again to disable
the backlight compensation. (NOTE: Effective only in auto exposure mode)
Note: If there is a light behind the subject, the subject will become dark. In this case, press the
backlight ON / OFF button. To cancel this function, press the backlight ON / OFF button again.
17. P/T RST
Press this button to automatically re-calibrate pan and tilt.
18. Screen capture function
Manual screen capture: To activate the screen capture function, press the [F4] key on the remote
control, a "Freeze" message will be displayed in the upper left corner of the screen, after 5 seconds,
this message will disappear. If you want to manually cancel the screen capture function, press the
[F4] key on the remote control, an "Unfreeze" message will be displayed in the upper left corner
of the screen, after 5 seconds, this message will disappear.

HDMI/IP PTZ Camera 30X Zoom, PoE Operation Manual
14
Recalling the Preset with image Freeze: go to OSD main menu, then to the P/T/Z submenu, and
then set "Freeze Image" to ON. Once this feature is enabled, the screen will freeze before going to
a Preset. This can be useful when recalling presets to hide camera shake from viewers.
19. Shortcut Set
[*]+[＃]+[1]: OSD menu default English
[*]+[＃]+[3]: OSD menu default Chinese
[*]+[＃]+[4]: Default IP address
[*]+[＃]+[5]: Save OSD
[*]+[＃]+[6]: Quickly recover the default settings
[*]+[＃]+[8]: Display the camera version
[*]+[＃]+[9]: Quickly set up inversion
4.6RS-232 Interface Pinout
The correspondence between the camera and windows DB-9 pin:

HDMI/IP PTZ Camera 30X Zoom, PoE Operation Manual
15
The correspondence between the camera and the Mini DIN pin:
4.7 Serial Communication Control
The camera can connect to a VISCA controller with an RS232C or and RS485 interface.
•RS232 Communication Settings:
The camera may be controlled via RS232 when set to the following parameters:
Baud rate: 2400, 4800, 9600 or 38400 bit/s.
Start bit: 1 bit.
Data bits: 8 bits.
Stop bit: 1bit.
Parity bit: none.
• RS485 Communication Settings:
The camera may be controlled via RS485 when set to the following parameters:
Baud rate: 2400, 4800, 9600 or 38400 bit/s.
Start bit: 1 bit.
Data bits: 8 bits.
Stop bit: 1bit.
Parity bit: none.
When the camera is turned on, the Pan-Tilt function will move to the maximum top-right position
and then will return to the center (Home) position to complete an initialization process. (Note: If
the position preset 0 has been stored, the position preset 0 will be called up after the initialization
step). After the initialization process users can control the camera via the control commands in the

HDMI/IP PTZ Camera 30X Zoom, PoE Operation Manual
16
below command list.
4.8 PTZ over TCP/UDP Control
The camera supports a TCP server via port number 5678. After the client establishes a TCP
connection with the server, the client may send PTZ control commands to the server to be executed.
A UDP server is also available via port number 1259. Once the client establishes a UDP connection
with the server, the client may send PTZ control commands to the server to be executed.
4.9 Command List
The Visca and Pelco-D command List may be found in the Appendix.

HDMI/IP PTZ Camera 30X Zoom, PoE Operation Manual
17
5. OSD Settings
5.1 Menu
Press the [MENU] button to display the main menu
on the screen. Use the arrow buttons to move the
cursor to the item to be set. Press the [HOME]
button (works similar to an Enter key) to enter the
corresponding sub-menu.
5.2 Exposure
Move the cursor to the Exposure submenu in the
main menu and press the [home] button, the
EXPOSURE submenu will appear as shown in the
following figure.
Mode: Exposure mode. Optional settings: Auto,
Manual, SAE, AAE, Bright
ExpCompMode: Exposure compensation mode,
Optional settings: On, Off (Effective only
inAutomode)
ExpComp: Exposure compensation value,
Optional settings: -7 to +7 (Effective only in
ExpCompMode = On)
Gain Limit: Maximum gain limit. Optional
settings: 0 to 15 (Effective only in Auto, AAE , and
Bright mode)
Backlight: Set the backlight compensation,
Optional settings: On, Off (Effective only in Auto
mode)
Meter: Optional settings: Average, Center,
Bottom, Top
MENU
Exposure
Color
P/T/Z
Noise Reduction
Setup
Communication Setup
Restore Default
[Home] Enter
[Menu] Exit
EXPOSURE
Mode Auto
ExpCompMode Off
Backlight Off
Gain Limit 3
Anti-Flicker 50Hz
Meter Average
DRC 2
Select Item
Change Value
[Menu] Back

HDMI/IP PTZ Camera 30X Zoom, PoE Operation Manual
18
DRC: DRC strength, Optional settings: 0 to 8.
Bright: Intensity control, Optional settings:
00 to 17. (Effective only in Bright mode)
Anti-Flicker: Set Anti-flicker. Optional
settings: Off, 50Hz, 60Hz (Effective only in Auto
and Bright mode)
Iris: Aperture value. Optional settings: F1.8,
F2.0,F2.4,F2.8,F3.4,F4.0,F4.8,F5.6,F6.8,F8.0,F9.6
,F11.0,Close（Effective only in Manual, AAE mode）
Shutt: Shutter value. Optional settings:
1/30,1/60,1/90,1/100,1/125,1/180,1/250,1/350,1/5
00,1/725,1/1000,1/1500,1/2000,1/3000,1/4000,1/6
000,1/10000 (Effective only in Manual, SAE mode)
5.3 Color
Move the cursor to the Color submenu in the main
menu and press the [home] button. The COLOR
submenu will appear as shown in the following
figure.
WB-Mode: White balance mode. Optional
settings: Auto, Indoor, Outdoor, One Push, Manual,
and VAR.
RG Tuning: Red gain fine-tuning, Optional
settings: -10 to +10 (Effective only in Auto, One
Push, and VAR mode).
BG Tuning: Blue gain fine-tuning, Optional
settings: -10 to +10 (Effective only in Auto, One
Push, and VAR mode).
Saturation: Optional settings: 60% to 200%.
Hue: Chroma adjustment, Optional settings: 0 to
14.
AWBsens: The white balance sensitivity,
Optional settings: Normal, High, Low.
RG Red gain: optional items: 0 to 255 (Effective
only in Manual mode).
BG Blue gain: optional items: 0 to 255 (Effective
only in Manual mode).
Colortemp: Optional items: 2500K to 8000K
(Effective only in VAR mode).
5.4 Image
Move the cursor to the Image submenu in the main
menu and press the [home] button. The IMAGE
submenu will appear as shown in the following
figure.
COLOR
WB Mode Auto
RG Tuning +2
BG Tuning 0
Saturation 100%
Hue 7
AWB sens Low
Select Item
Change Value
[Menu] Back

HDMI/IP PTZ Camera 30X Zoom, PoE Operation Manual
19
Luminance: Brightness adjustment. Optional
settings: 0 to 14
Contrast: Contrast adjustment. Optional settings:
0 to 14
Sharpness: Sharpness adjustment. Optional
settings: Auto, 0 to 15
Flip-H: Image flipped horizontally. Optional
settings: On, Off.
Flip-V: Image Flip Vertical. Optional settings:
On, Off.
B&W-Mode: Set to B&W Image. Optional
settings: On, Off.
Gamma: Optional settings: Default, 0.45, 0.5,
0.56, 0.63.
Style: Optional settings: Norm, Clarity, Bright,
Soft, 5S.
5.5 P/T/Z
Move the cursor to the P/T/Z submenu in the main
menu and press the [home] button. The P/T/Z
submenu will appear as shown in the following
figure.
SpeedByZoom: The depth of field scale switch,
Optional settings: On, Off
AF-Zone: Interested in focusing area, Optional
settings: Top, Center, Bottom
AF-Sense: Automatic focusing sensitivity,
Optional settings: Low, Normal, High
L/R Set: Optional settings: STD, REV
Display Info: Optional settings: On, Off
Image Freeze: Optional settings: On, Off
Digital Zoom: Optional settings: Off, 2x, 4x, 8x,
Luminance 7
Contrast 7
Sharpness 2
Flip-H Off
Flip-V Off
B&W-Mode Off
Gamma Default
Style Clarity
Select Item
Change Value
[Menu] Back
P/T/Z
SpeedByZoom On
AF-Zone Center
AF-Sense High
L/R Set STD
Display Info On
Image Freeze Off
Digital Zoom Off
Call Preset Speed 24
Pre Zoom Speed 5
Select Item
Change Value
[Menu] Back

HDMI/IP PTZ Camera 30X Zoom, PoE Operation Manual
20
Call Preset Speed: Optional settings: 1 to 24
Pre Zoom Speed: Optional settings: 0 to 7
5.6 Noise Reduction
Move the cursor to the Noise Reduction submenu
in the main menu and press the [home] button. The
NOISE REDUCTION submenu will appear as
shown in the following figure.
NR2D-Level: 2D noise reduction. Optional
settings: Off, Auto, 1 to 5
NR3D-Level: 3D noise reduction. Optional
settings: Off, 1 to 8
5.7 Setup
Move the cursor to the Setup submenu in the main
menu and press the [home] button. The SETUP
submenu will appear as shown in the following
figure.
Language: language selection, Optional settings:
EN (English), Chinese, Russian
DVI Mode: Optional settings: DVI, HDMI
Lens: Lens type. Optional settings: Type1, Type2
Auto Inspection: Optional settings: Off, On
SDI-3G Mode: Optional settings: LEVEL-A,
LEVEL-B
NOISE REDUCTION
NR2D-Level 3
NR3D-Level 3
Select Item
Change Value
[Menu] Back
SETUP
Language EN
DVI Mode DVI
Lens Type1
Auto Inspection Off
SDI-3G Mode LEVEL-B
Select Item
Change Value
[Menu] Back
